Model Electrolux KS540NKW2 RANGE – Common Parts & Diagrams

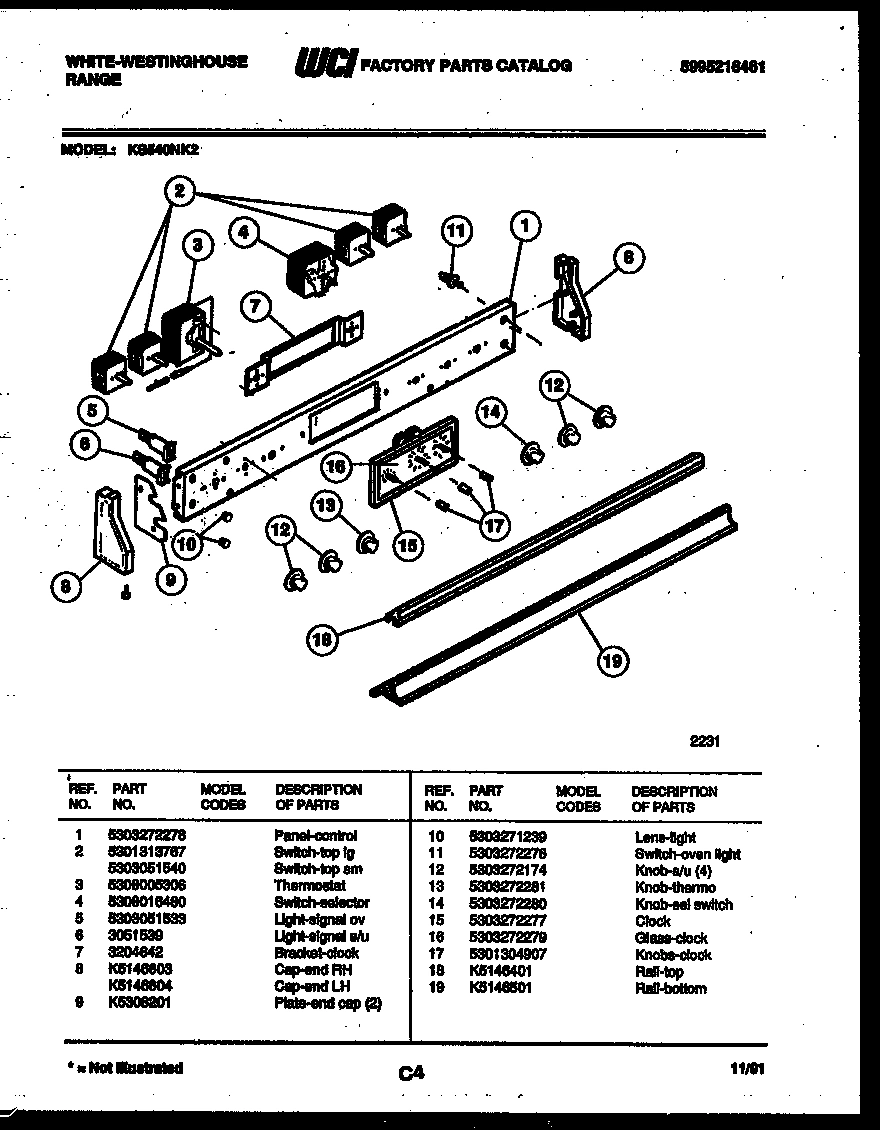

02 - CONTROL PANEL

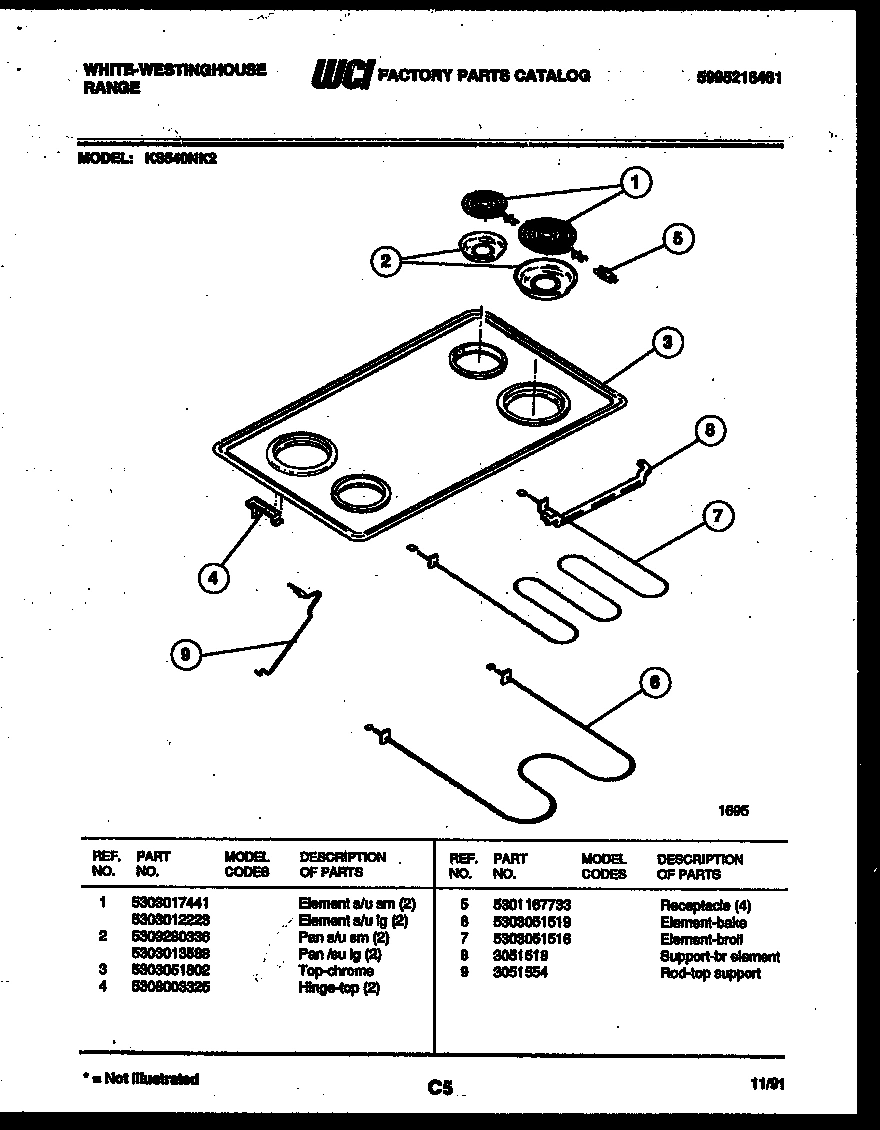

03 - COOKTOP AND BROILER PARTS

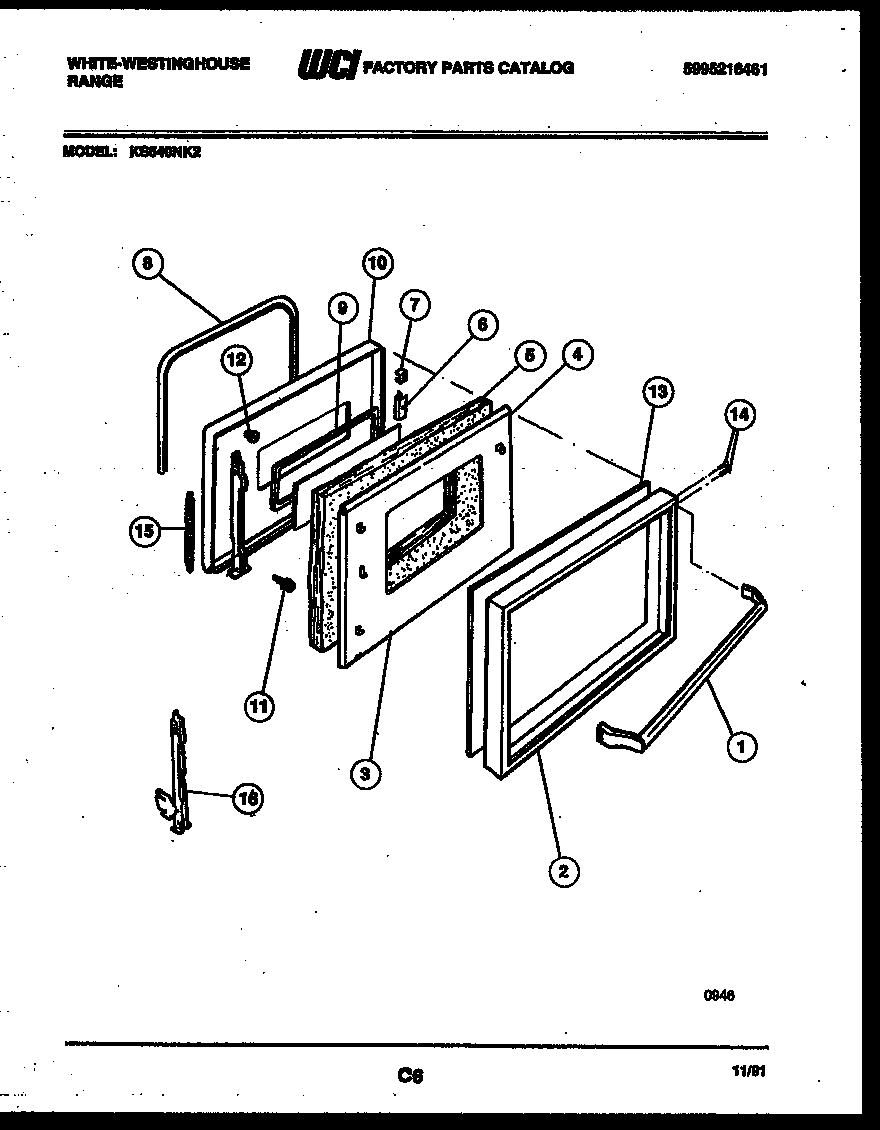

04 - DOOR PARTS

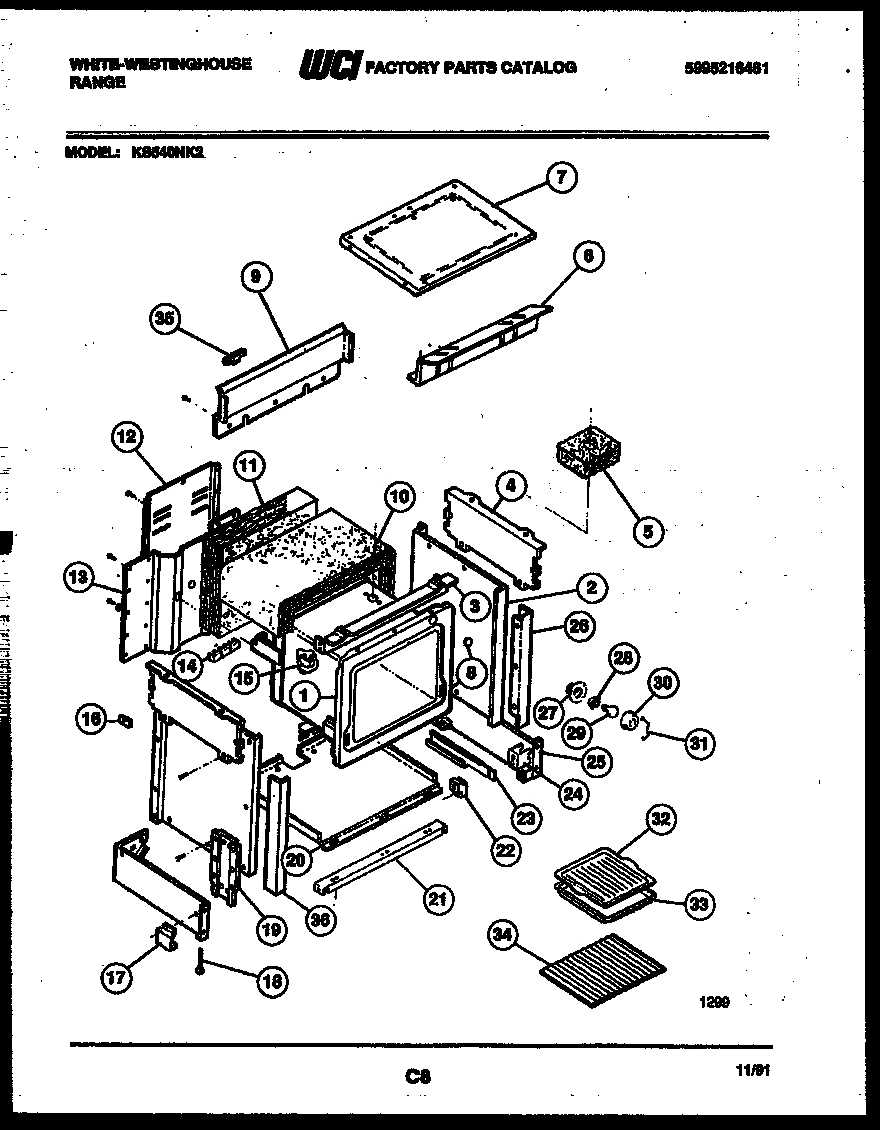

05 - BODY PARTS

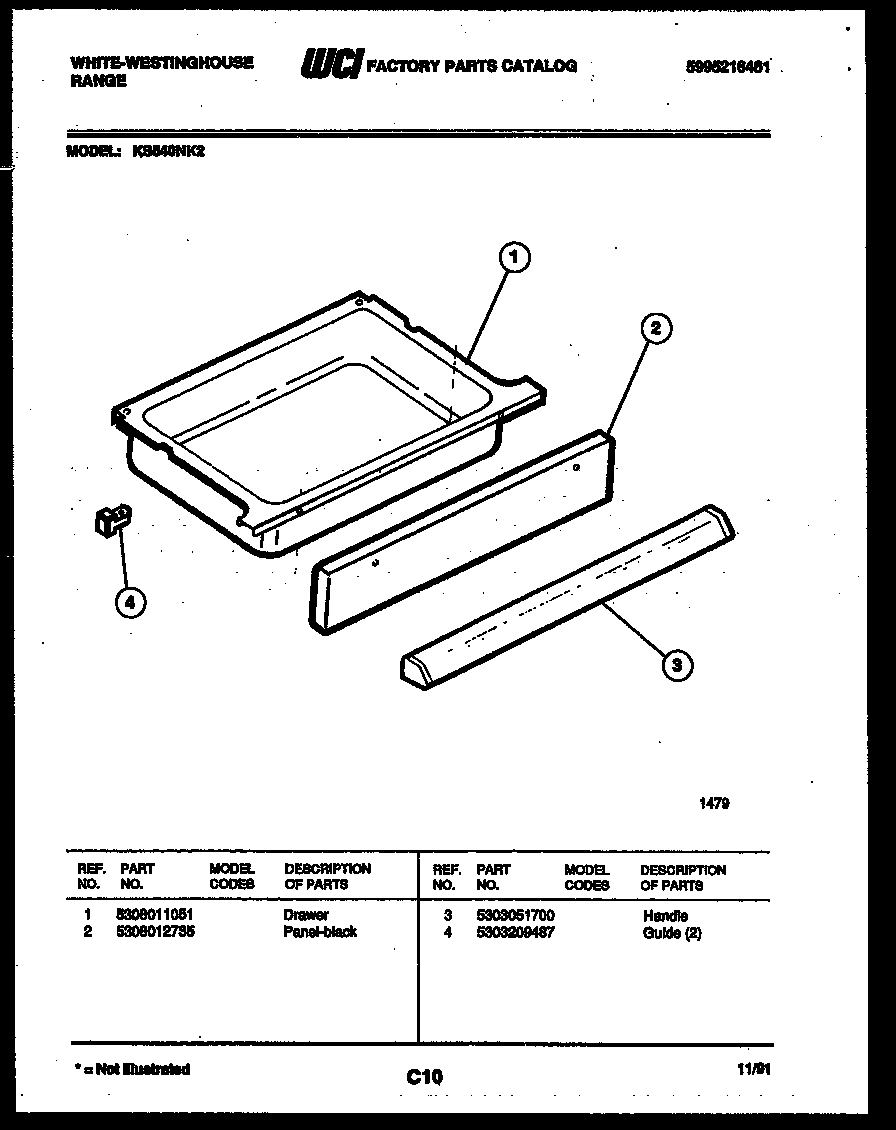

06 - DRAWER PARTS
Common parts from model Electrolux KS540NKW2 RANGE
*56322
WCI 08003659 WCI 08003659 Contact Us For Availability
*56329
ANTI-TIP KIT WCI 3934058 Contact Us For Availability
*56330
WCI 19100210115 WCI 19100210115 Contact Us For Availability
*56330
WCI 5303280340 WCI 5303280340 Contact Us For Availability
*56330
COUNTER WEIGHTS WCI 5303280341 Contact Us For Availability
1
HANDLE ASSY WCI 5303207187 Contact Us For Availability
1
WCI 5303206193 WCI 5303206193 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 08012226 Contact Us For Availability
2
WCI 5308012735 WCI 5308012735 Contact Us For Availability
3
THERMOSTAT WCI 5308005306 Contact Us For Availability
3
TOP-CHROME WCI 5303051802 Contact Us For Availability
3
WCI 3017200 WCI 3017200 Contact Us For Availability
3
WCI 5303206826 WCI 5303206826 Contact Us For Availability
3
WCI 5308008693 WCI 5308008693 Contact Us For Availability
3
HANDLE WCI 5303051700 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
SWITCH-SELECTOR WCI 5308016480 Contact Us For Availability
4
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
4
INSULATION WCI K1325629 Contact Us For Availability
4
WCI 5308015935 WCI 5308015935 Contact Us For Availability
5
LIGHT-SIGNAL OV WCI 5303051533 Contact Us For Availability
5
WCI 5301325511 WCI 5301325511 Contact Us For Availability
5
INSULATION-OVEN VENT WCI 3051523 Contact Us For Availability
6
RETAINER - INNER GLASS WCI 3205108 Contact Us For Availability
6
WCI 5303271384 WCI 5303271384 Contact Us For Availability
7
WCI 5301324812 WCI 5301324812 Contact Us For Availability
7
WCI 5303051553 WCI 5303051553 Contact Us For Availability
8
SWITCH-DOOR WCI 5301314211 Contact Us For Availability
8
SUPPORT-BR ELEMENT WCI 3051518 Contact Us For Availability
8
WCI 5308003268 WCI 5308003268 Contact Us For Availability
9
SEAL-GLASS WCI 3051574 Contact Us For Availability
9
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
9
BACK-UPPER WCI 5308008689 Contact Us For Availability
10
WCI 5303210081 WCI 5303210081 Contact Us For Availability
10
INSULATION WRAP WCI 3051521 Contact Us For Availability
11
BUMPER-WINDOW BOT (4) WCI 5303131771 Contact Us For Availability
11
WCI 5303051630 WCI 5303051630 Contact Us For Availability
12
BUMPER - WINDOW TOP WCI 5305297101 Contact Us For Availability
12
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
13
WCI 5308012546 WCI 5308012546 Contact Us For Availability
13
BACK WCI 5303280344 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
15
WCI 08003264 WCI 08003264 Contact Us For Availability
15
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
16
CHANNEL-HINGE (2) WCI 5308014248 Contact Us For Availability
16
PLATE-FILTER WCI 3051827 Contact Us For Availability
17
KNOBS-CLOCK WCI 5301304907 Contact Us For Availability
17
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
18
WCI K5146401 WCI K5146401 Contact Us For Availability
18
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
19
WCI K5146501 WCI K5146501 Contact Us For Availability
19
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
20
SHIELD-BOTTOM WCI 3205124 Contact Us For Availability
21
WCI 08012722 WCI 08012722 Contact Us For Availability
22
GLIDE-FRONT WCI 3051654 Contact Us For Availability
23
WCI 3204818 WCI 3204818 Contact Us For Availability
23A
WCI 3204819 WCI 3204819 Contact Us For Availability
24
SPACER-DRWR GLIDE (2) WCI 3051653 Contact Us For Availability
25
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
25A
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
26
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
27
HOUSING-LIGHT WCI 5303271606 Contact Us For Availability
31
RETAINER-LENS WCI 5303205904 Contact Us For Availability
32
WCI 5303131356 WCI 5303131356 Contact Us For Availability
33
PAN-BROILER WCI 5303013568 Contact Us For Availability
35
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
× ![]()
