Model Electrolux KS540GDW3 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

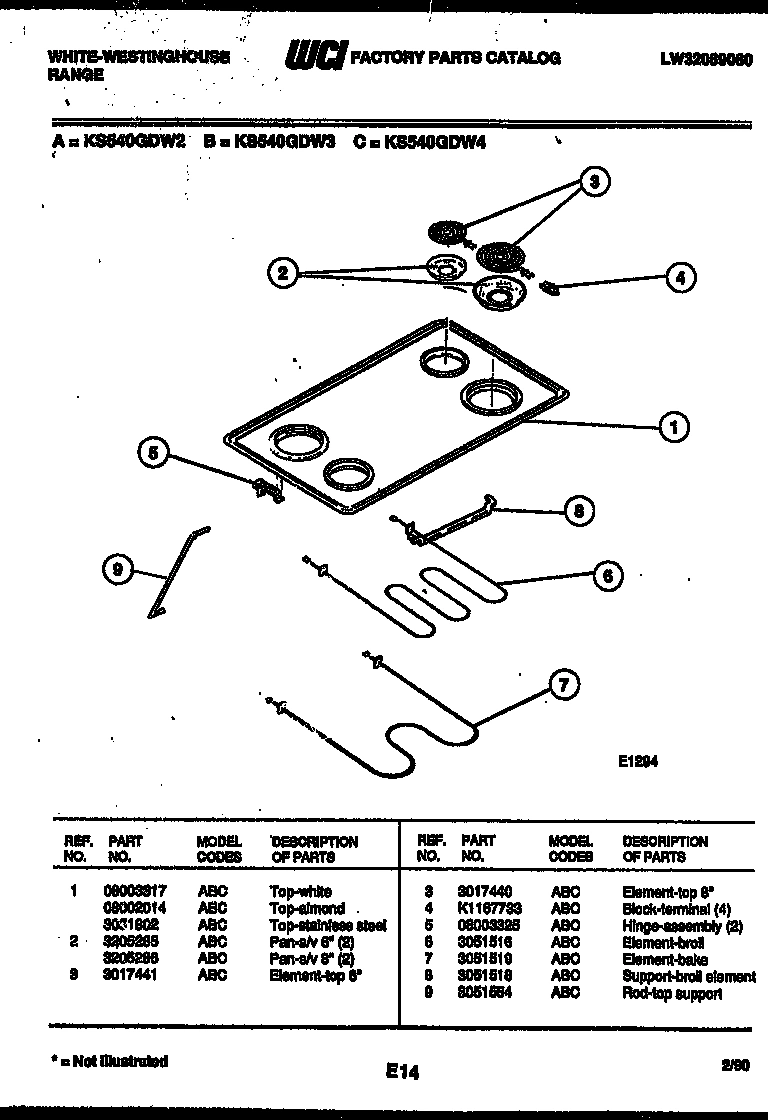

04 - COOKTOP AND BROILER PARTS

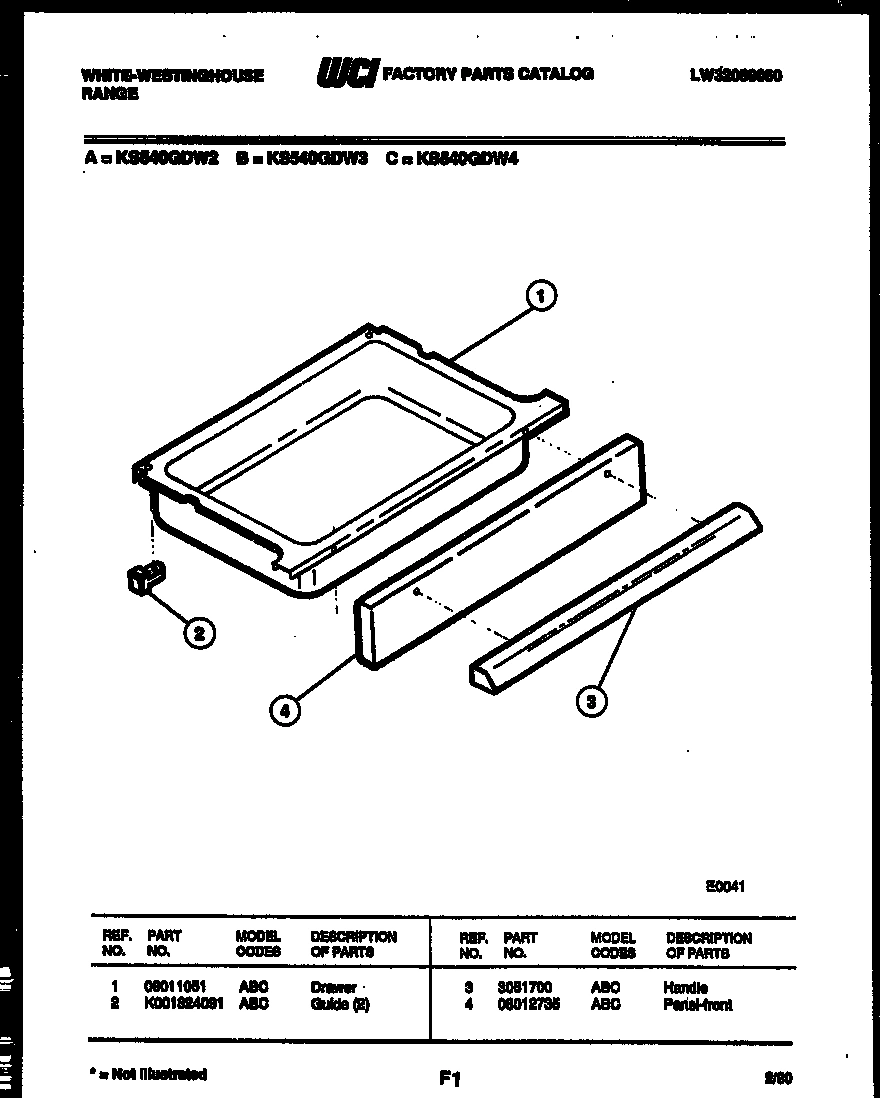

05 - DRAWER PARTS

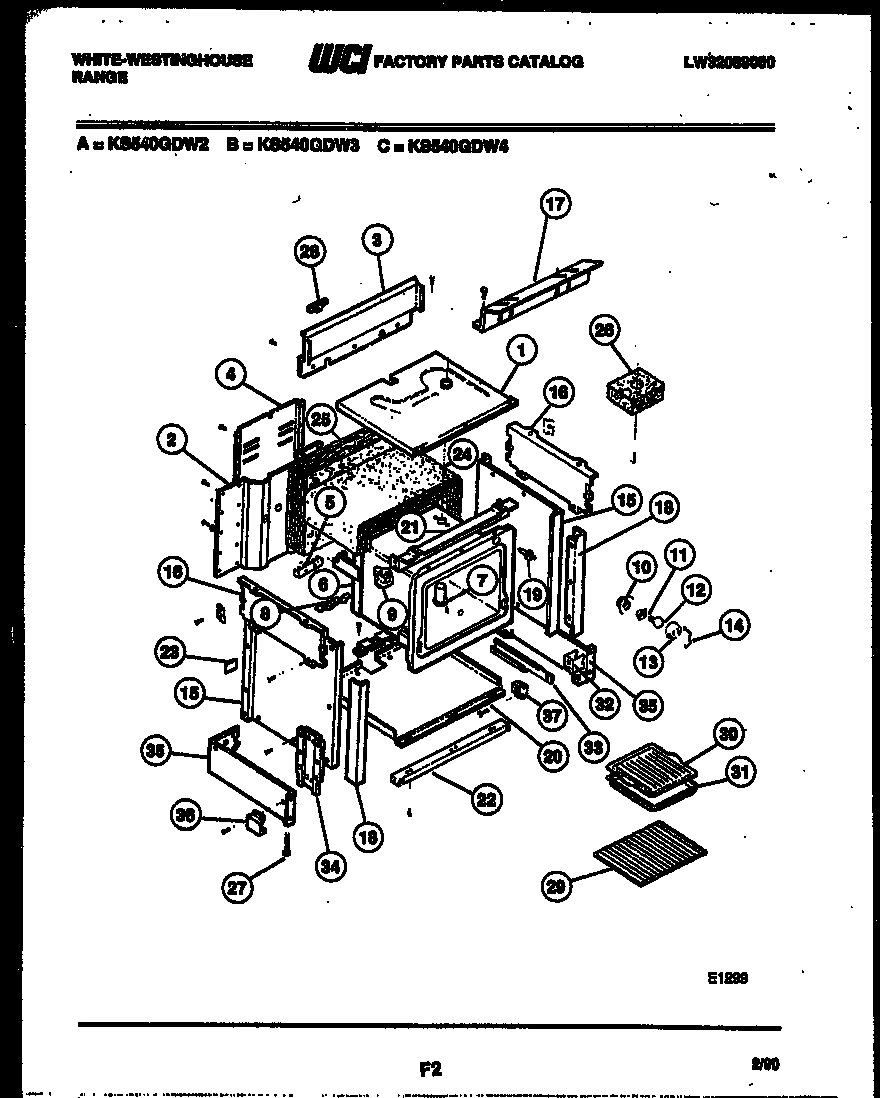

06 - BODY PARTS
Common parts from model Electrolux KS540GDW3 RANGE
*26239
SCREW-END CAP MTG WCI K1164566 Contact Us For Availability
*26239
SCREW-THERMOMETER SELECTOR SWITCH WCI K5104301 Contact Us For Availability
*26243
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
*26252
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
1
WCI K005089601 WCI K005089601 Contact Us For Availability
1
FRAME - DOOR WCI 08015938 Contact Us For Availability
1
WCI 08002014 WCI 08002014 Contact Us For Availability
1
WCI 08003317 WCI 08003317 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
WCI 3051553 WCI 3051553 Contact Us For Availability
1A
TOP-STAINLESS STEEL WCI 3051802 Contact Us For Availability
2
END CAP RH WCI 08003298 Contact Us For Availability
2
GLASS-OUTER BLACK WCI 08012546 Contact Us For Availability
2
GUIDE (2) WCI K001324091 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
2A
END CAP-LH WCI 08003299 Contact Us For Availability
3
WCI 3051532 WCI 3051532 Contact Us For Availability
3
WCI 5303207187 WCI 5303207187 Contact Us For Availability
3
HANDLE WCI 3051700 Contact Us For Availability
3
WCI 08008689 WCI 08008689 Contact Us For Availability
4
WCI 08003296 WCI 08003296 Contact Us For Availability
4
WCI K1325511 WCI K1325511 Contact Us For Availability
4
WCI 08012735 WCI 08012735 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
5
BRACKET-CONT PANEL TOP WCI 3051535 Contact Us For Availability
5
WCI 3017200 WCI 3017200 Contact Us For Availability
5
HINGE ASSEMBLY (2) WCI 08003325 Contact Us For Availability
5A
BRACKET-CONT PANEL BOTTOM WCI 3051536 Contact Us For Availability
6
WCI 3051829 WCI 3051829 Contact Us For Availability
6
WCI 3206193 WCI 3206193 Contact Us For Availability
6A
LIGHT-PILOT S/U WCI 3051533 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI 08003333 WCI 08003333 Contact Us For Availability
8
NUT-LIGHT SWITCH MTG. WCI 3051832 Contact Us For Availability
8
WCI 3205457 WCI 3205457 Contact Us For Availability
8
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
8
WCI 3203574 WCI 3203574 Contact Us For Availability
9
WCI 08012573 WCI 08012573 Contact Us For Availability
9
GASKET - DOOR WCI 08003268 Contact Us For Availability
9
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
9
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
10
WCI 3051830 WCI 3051830 Contact Us For Availability
10
RETAINER-GLASS (4) WCI 3205108 Contact Us For Availability
10
WCI 3204816 WCI 3204816 Contact Us For Availability
11
WCI 08005306 WCI 08005306 Contact Us For Availability
11
SPACER-TOP (2) WCI 08012229 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
BUMPER-TOP (2) WCI 3051841 Contact Us For Availability
13
NUT-KNURLED WCI 08012572 Contact Us For Availability
13
WCI K001324812 WCI K001324812 Contact Us For Availability
14
WCI 08010074 WCI 08010074 Contact Us For Availability
14
WCI 08003435 WCI 08003435 Contact Us For Availability
14
WCI 08011087 WCI 08011087 Contact Us For Availability
15
WCI 08003670 WCI 08003670 Contact Us For Availability
15
CHANNEL-DOOR HINGE (2) WCI 3051822 Contact Us For Availability
15
WCI 08012226 WCI 08012226 Contact Us For Availability
16
WCI 08006417 WCI 08006417 Contact Us For Availability
16
WCI 08003264 WCI 08003264 Contact Us For Availability
16
WCI 08015935 WCI 08015935 Contact Us For Availability
17
KNOB-S/U (4) WCI K005088101 Contact Us For Availability
17
ROLLER-KIT WCI 3931006 Contact Us For Availability
17
SHIELD, WIRE WCI K5113502 Contact Us For Availability
17A
KNOB-THERMOMETER WCI K005088104 Contact Us For Availability
17B
WCI K005088108 WCI K005088108 Contact Us For Availability
18
WCI K005311201 WCI K005311201 Contact Us For Availability
18
WCI 08003183 WCI 08003183 Contact Us For Availability
18
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
19
AXLE WCI 08012004 Contact Us For Availability
19
WCI 08015948 WCI 08015948 Contact Us For Availability
20
WCI 08004154 WCI 08004154 Contact Us For Availability
20
RIVET WCI 3051567 Contact Us For Availability
20
RETAINER, INSULATION, BOTTOM WCI 3205124 Contact Us For Availability
21
WCI 3016387 WCI 3016387 Contact Us For Availability
21
WCI 08008693 WCI 08008693 Contact Us For Availability
22
WCI 3051545 WCI 3051545 Contact Us For Availability
22
WCI 08012722 WCI 08012722 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
INSULATION WRAP WCI 3051521 Contact Us For Availability
25
INSULATION-BACK WCI 3051630 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
27
LEG-LEVELLING (4) WCI 3205540 Contact Us For Availability
28
WCI 3051800 WCI 3051800 Contact Us For Availability
30
GRILL-BROILER WCI 3131356 Contact Us For Availability
31
WCI 3013568 WCI 3013568 Contact Us For Availability
32
SPACER (2) WCI 3051653 Contact Us For Availability
33
RAIL-DRAWER RH WCI 3204818 Contact Us For Availability
33
RAIL-DRAWER LH WCI 3204819 Contact Us For Availability
34
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
35
PANEL-LOWER SIDE-LH WCI 3051781 Contact Us For Availability
35A
PANEL-LOWER SIDE-RH WCI 3051780 Contact Us For Availability
36
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
37
GLIDE, FRONT (2) WCI 3051654 Contact Us For Availability
× ![]()
