Model Electrolux KS220GDW3 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - DOOR PARTS

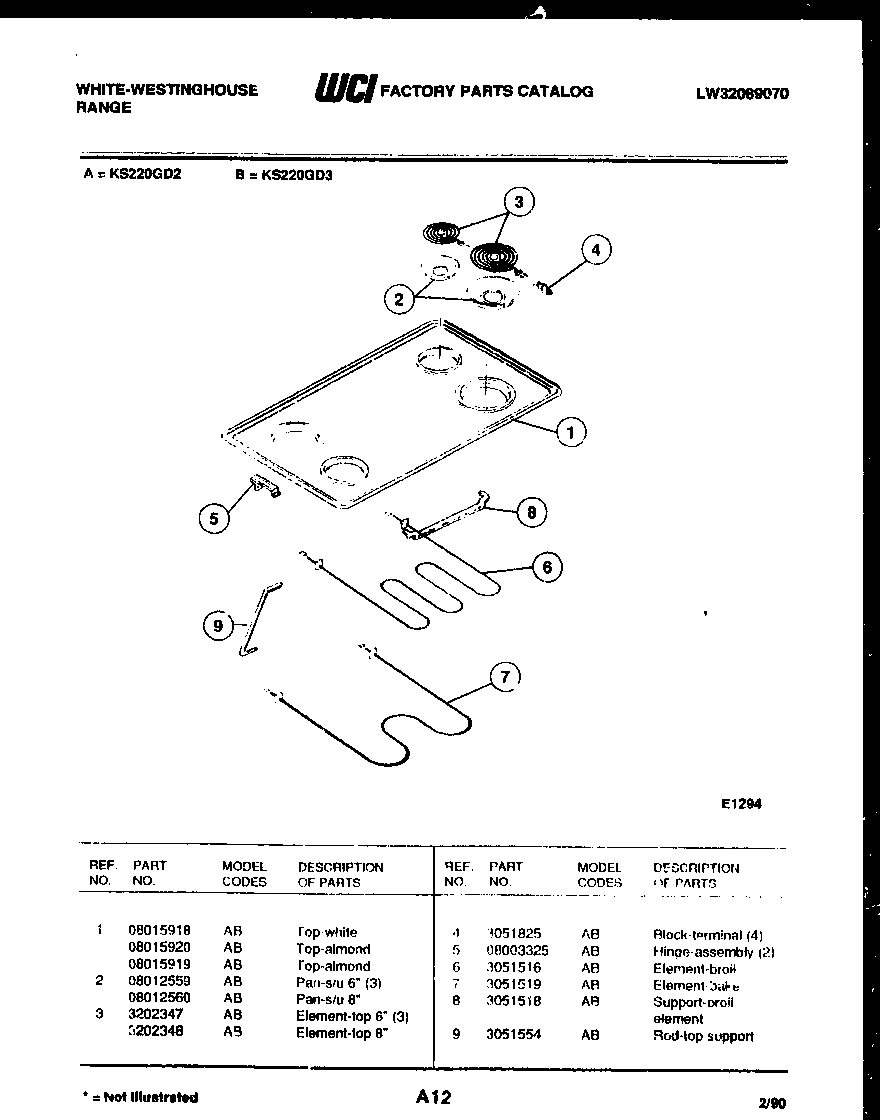

04 - COOKTOP AND BROILER PARTS

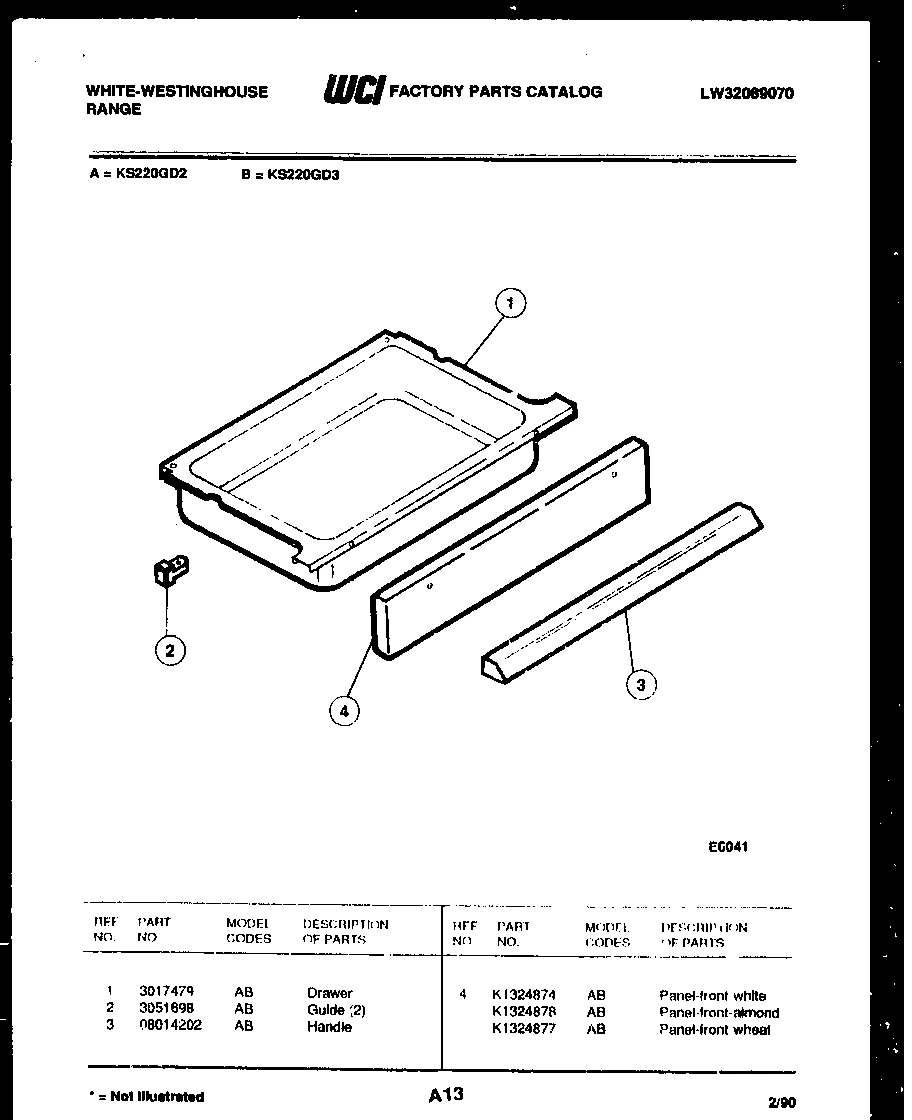

05 - DRAWER PARTS

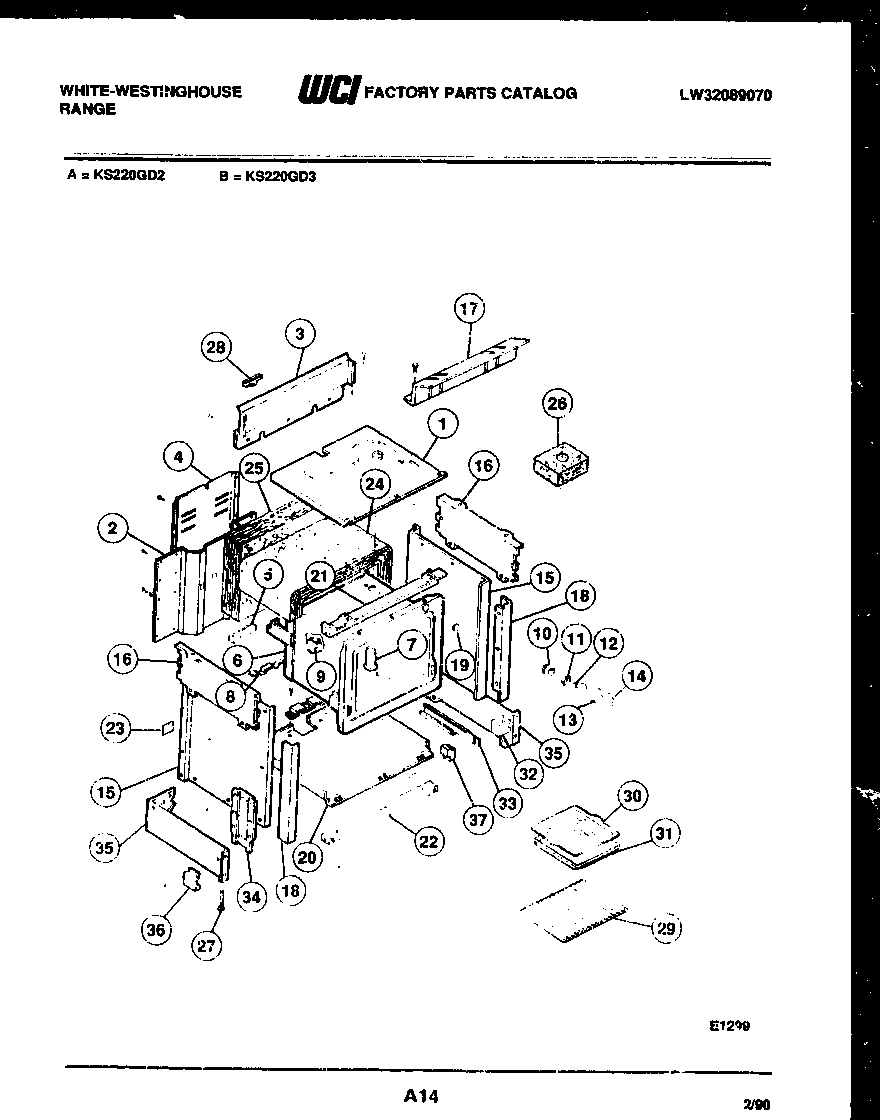

06 - BODY PARTS
Common parts from model Electrolux KS220GDW3 RANGE
*27401
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
*27401
WCI 3934062 WCI 3934062 Contact Us For Availability
1
TOP-WHITE WCI 08015918 Contact Us For Availability
1
DRAWER WCI 3017479 Contact Us For Availability
1
WCI 3051553 WCI 3051553 Contact Us For Availability
2
WCI 3051582 WCI 3051582 Contact Us For Availability
2
GUIDE (2) WCI 3051698 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
2A
END CAP-LH WCI 08003299 Contact Us For Availability
3
WCI 3051532 WCI 3051532 Contact Us For Availability
3
WCI 08014202 WCI 08014202 Contact Us For Availability
3
SPACER-HANDLE (2) WCI 3051585 Contact Us For Availability
3
WCI 08008689 WCI 08008689 Contact Us For Availability
4
WCI 08003296 WCI 08003296 Contact Us For Availability
4
PLUNGER - ACTUATOR WCI 3051583 Contact Us For Availability
4
PANEL-FRONT-WHITE WCI K1324874 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
5
BRACKET-CONT PANEL TOP WCI 3051535 Contact Us For Availability
5
WCI 08011083 WCI 08011083 Contact Us For Availability
5
HINGE ASSEMBLY (2) WCI 08003325 Contact Us For Availability
5A
BRACKET-CONT PANEL BOTTOM WCI 3051536 Contact Us For Availability
6
LIGHT-PILOT (2) WCI K005005802 Contact Us For Availability
6
INSULATION WCI 3051630 Contact Us For Availability
6
WCI 3204607 WCI 3204607 Contact Us For Availability
7
RETAINER-GLASS, (2) WCI 3205109 Contact Us For Availability
7
WCI 3051520 WCI 3051520 Contact Us For Availability
8
RETAINER - INNER GLASS (4) WCI 3205108 Contact Us For Availability
8
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
8
WCI 3203574 WCI 3203574 Contact Us For Availability
9
WCI 08011078 WCI 08011078 Contact Us For Availability
9
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
9
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SWITCH-SELECTOR WCI 08016480 Contact Us For Availability
10
WCI K1325511 WCI K1325511 Contact Us For Availability
11
SEAL-GLASS INNER WCI 3051574 Contact Us For Availability
11
WCI 08005306 WCI 08005306 Contact Us For Availability
12
WCI 08003252 WCI 08003252 Contact Us For Availability
12
SEAL-DOOR WCI 3051586 Contact Us For Availability
13
WCI 08012511 WCI 08012511 Contact Us For Availability
14
WCI 08010074 WCI 08010074 Contact Us For Availability
14
PIN (2) WCI 08012004 Contact Us For Availability
14
WCI 08011087 WCI 08011087 Contact Us For Availability
15
WCI 08003670 WCI 08003670 Contact Us For Availability
15
WCI 08003183 WCI 08003183 Contact Us For Availability
15
RETAINER-INSULATION (2) WCI 3051526 Contact Us For Availability
16
WCI 08006417 WCI 08006417 Contact Us For Availability
16
WCI 08950070 WCI 08950070 Contact Us For Availability
16
WCI 08015935 WCI 08015935 Contact Us For Availability
17
KNOB-S/U (4) WCI K005088101 Contact Us For Availability
17
WCI 08003264 WCI 08003264 Contact Us For Availability
17
SHIELD, WIRE WCI K5113502 Contact Us For Availability
17A
KNOB-THERMOMETER WCI K005088104 Contact Us For Availability
17B
KNOB-SELECTOR SWITCH WCI K005088107 Contact Us For Availability
18
WCI 3017200 WCI 3017200 Contact Us For Availability
18
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
19
WCI 08011073 WCI 08011073 Contact Us For Availability
19
WCI 08015948 WCI 08015948 Contact Us For Availability
20
MOULDING WCI 3201571 Contact Us For Availability
20
WCI 3205124 WCI 3205124 Contact Us For Availability
21
WCI 08008693 WCI 08008693 Contact Us For Availability
22
WCI 3051775 WCI 3051775 Contact Us For Availability
23
PLATE-FILTER (2) WCI 3051827 Contact Us For Availability
24
INSULATION WRAP WCI 3051521 Contact Us For Availability
25
INSULATION-BACK WCI 3051522 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
27
LEG-LEVELING (4) WCI 3203397 Contact Us For Availability
28
WCI 3051800 WCI 3051800 Contact Us For Availability
30
GRILL-BROILER WCI 3051562 Contact Us For Availability
31
WCI 3200723 WCI 3200723 Contact Us For Availability
32
SPACER, (2) WCI K1324860 Contact Us For Availability
33
RAIL-DRAWER LH WCI 3204819 Contact Us For Availability
33A
RAIL-DRAWER RH WCI 3204818 Contact Us For Availability
34
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
35
PANEL-LOWER SIDE-LH WCI 3051781 Contact Us For Availability
35A
PANEL-LOWER SIDE-RH WCI 3051780 Contact Us For Availability
36
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
37
GLIDE-FRONT (2) WCI K1315216 Contact Us For Availability
× ![]()
