Model Whirlpool KRFC704FSS04 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

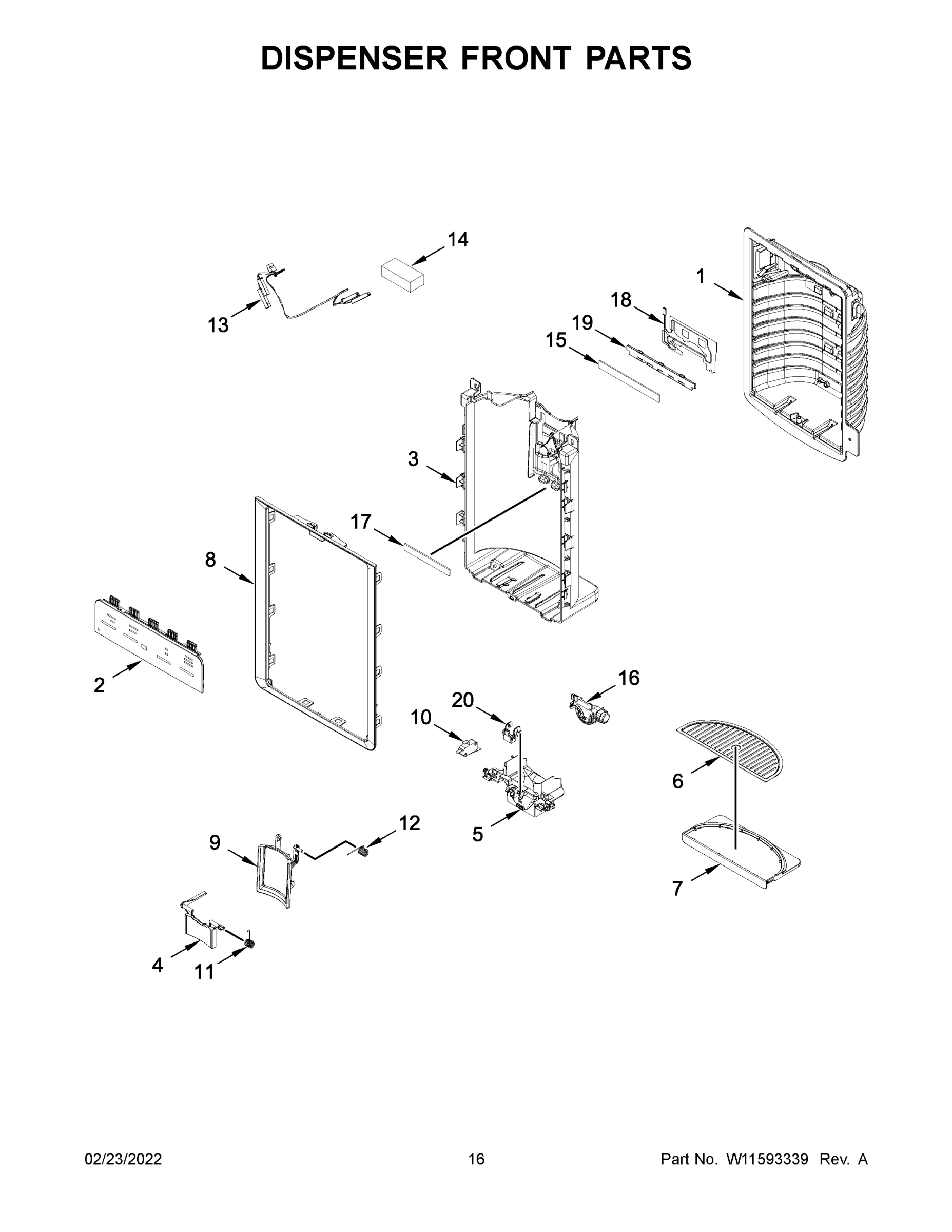

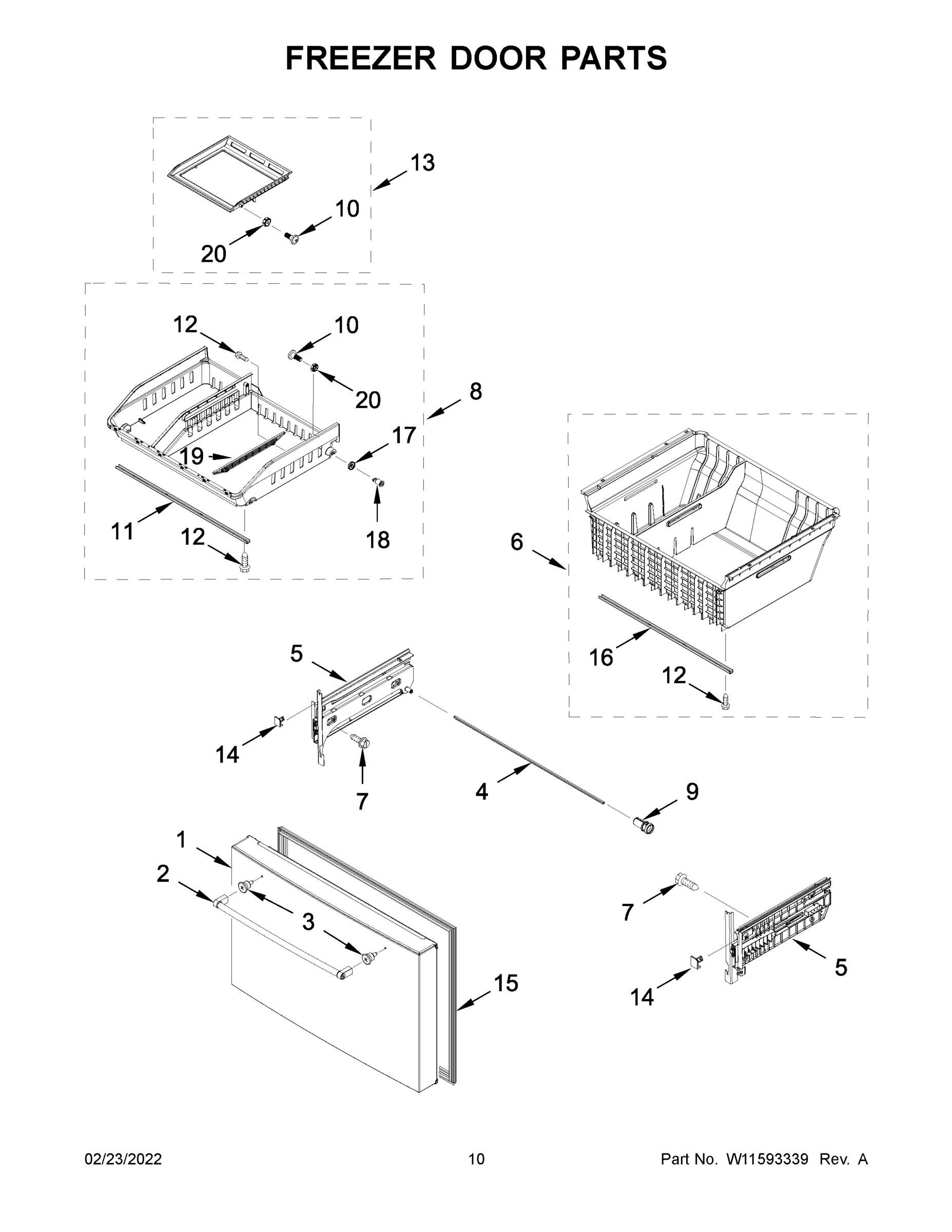

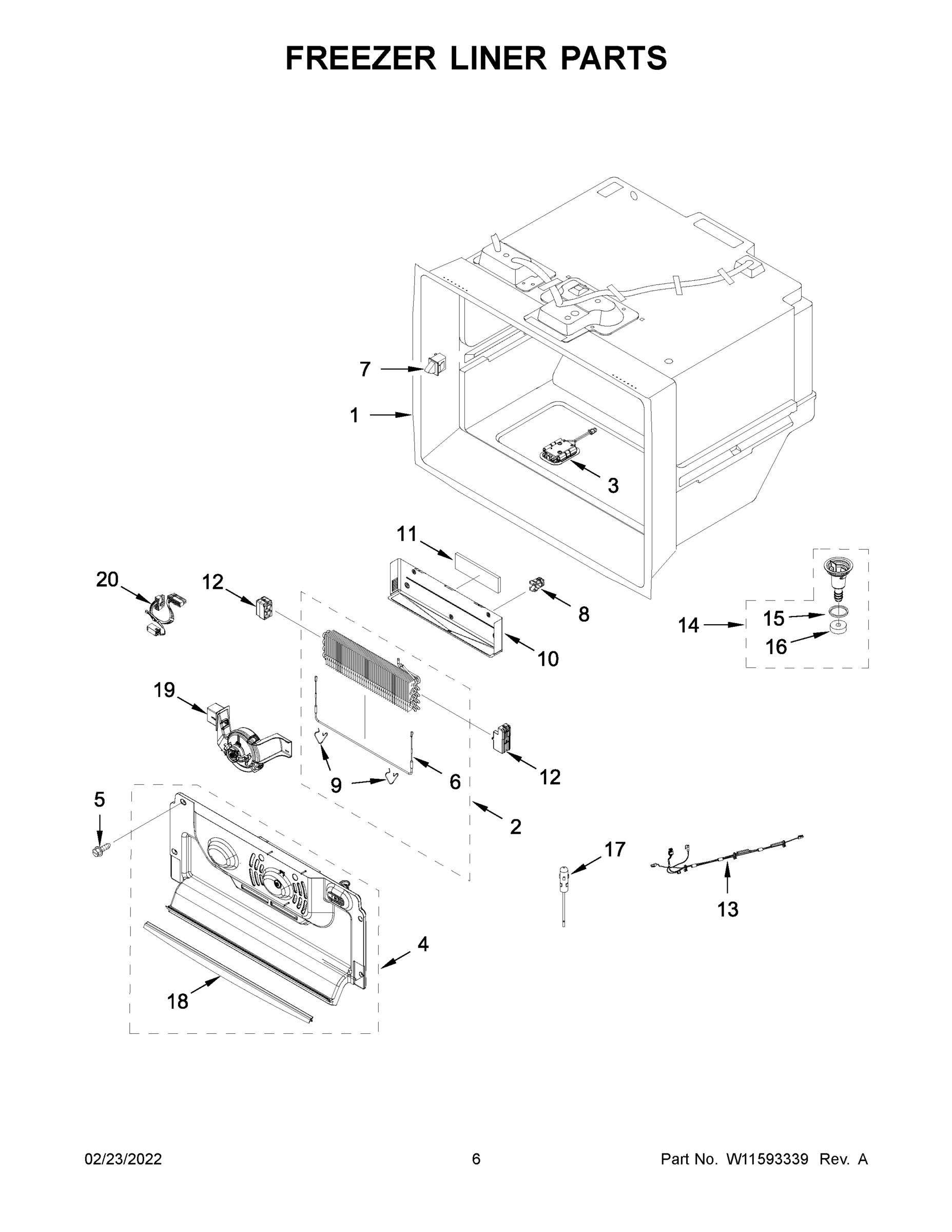

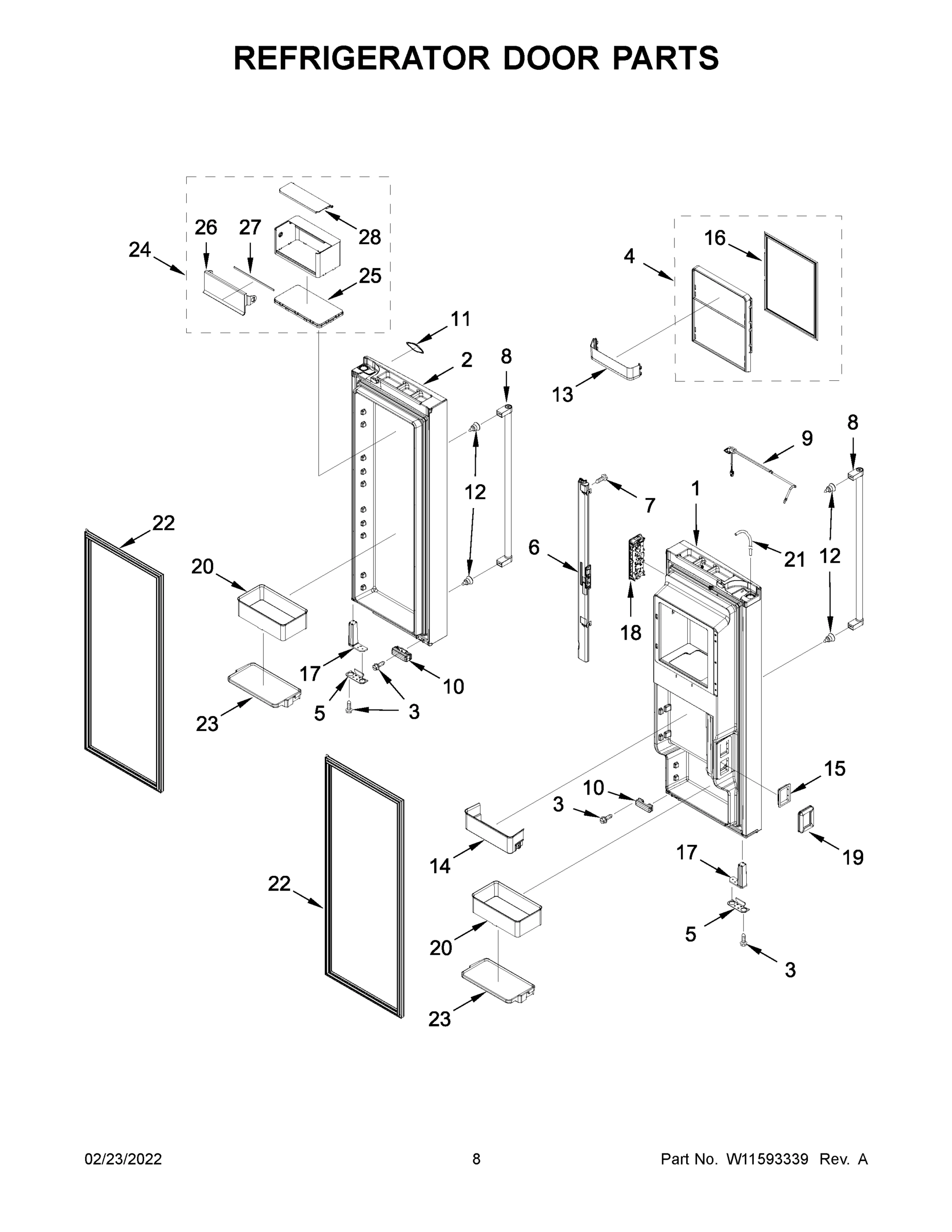

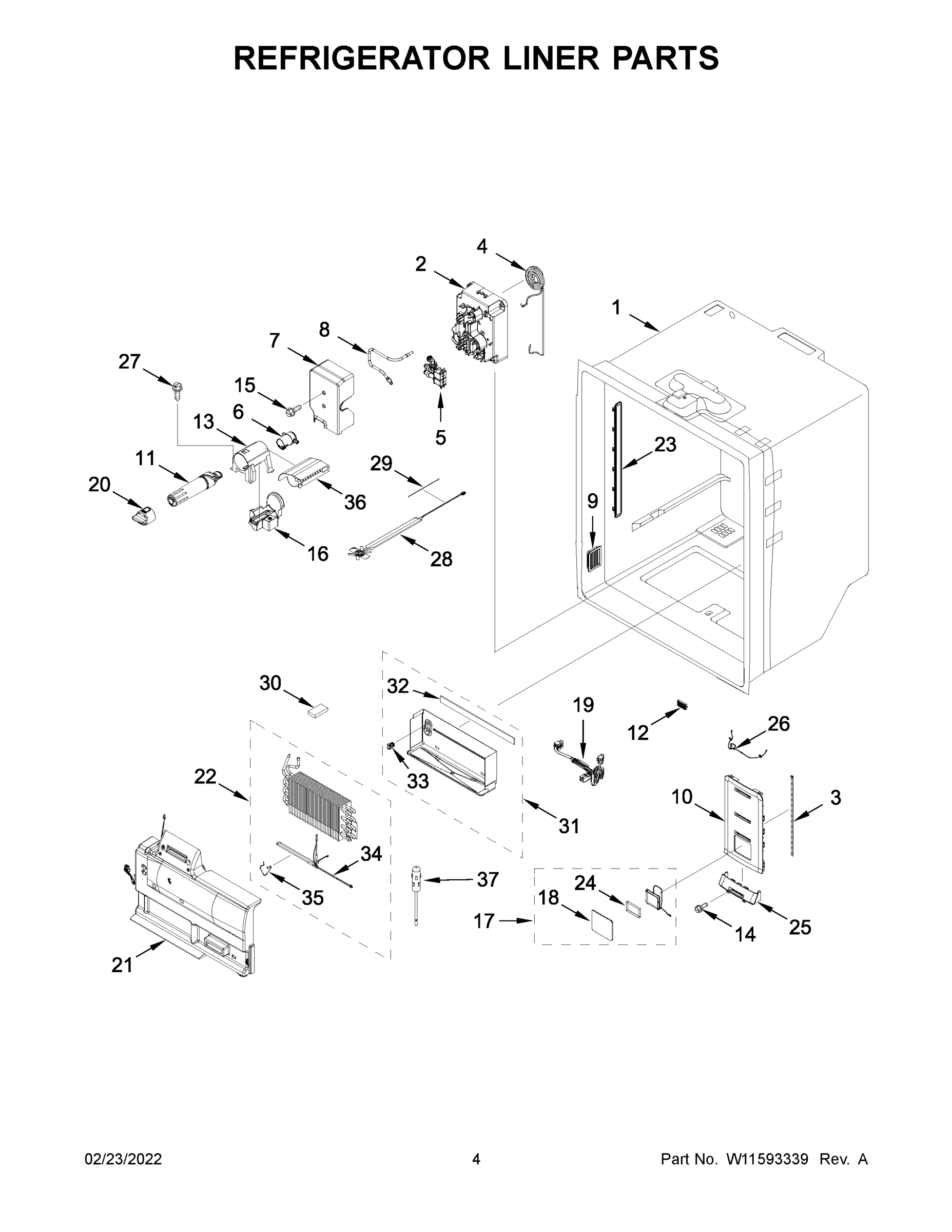

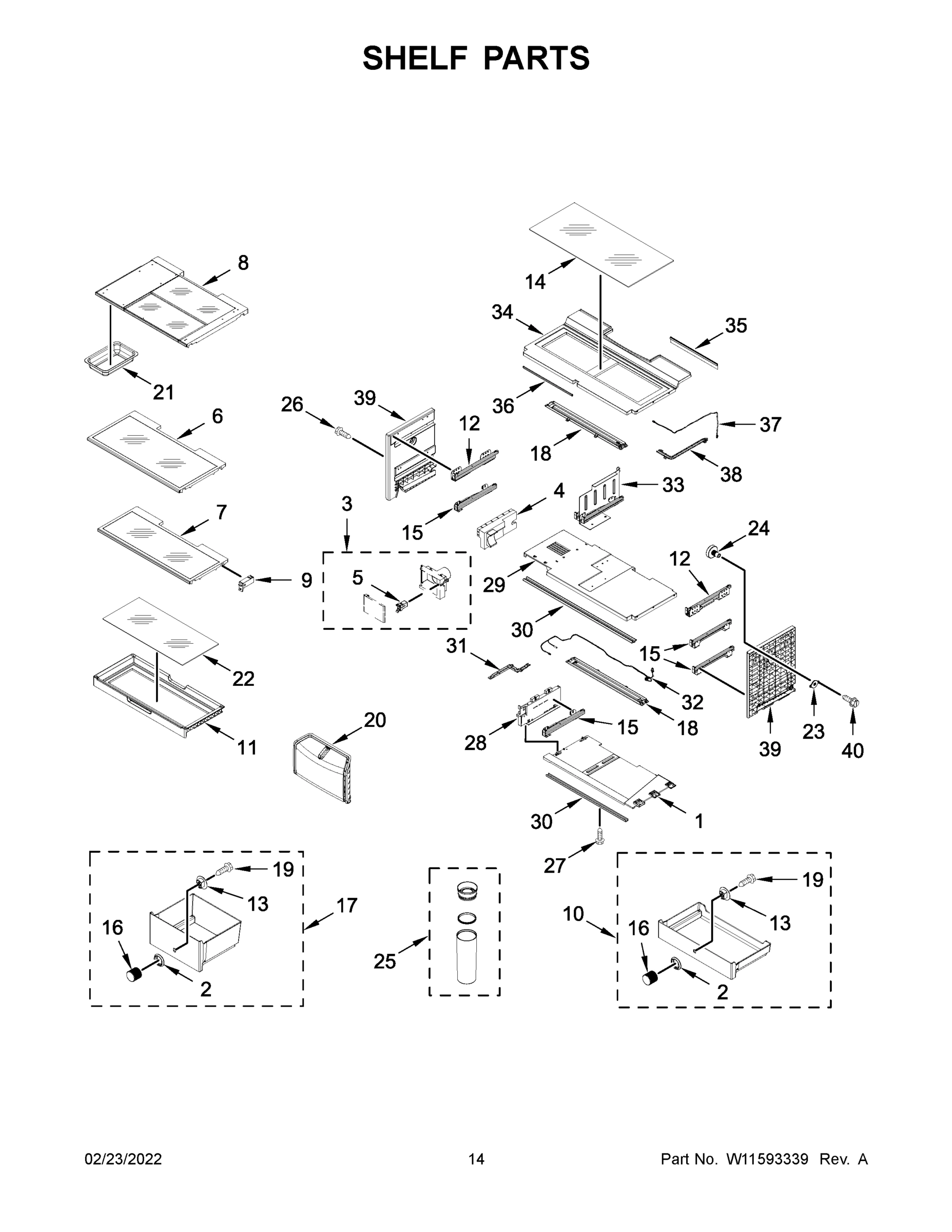

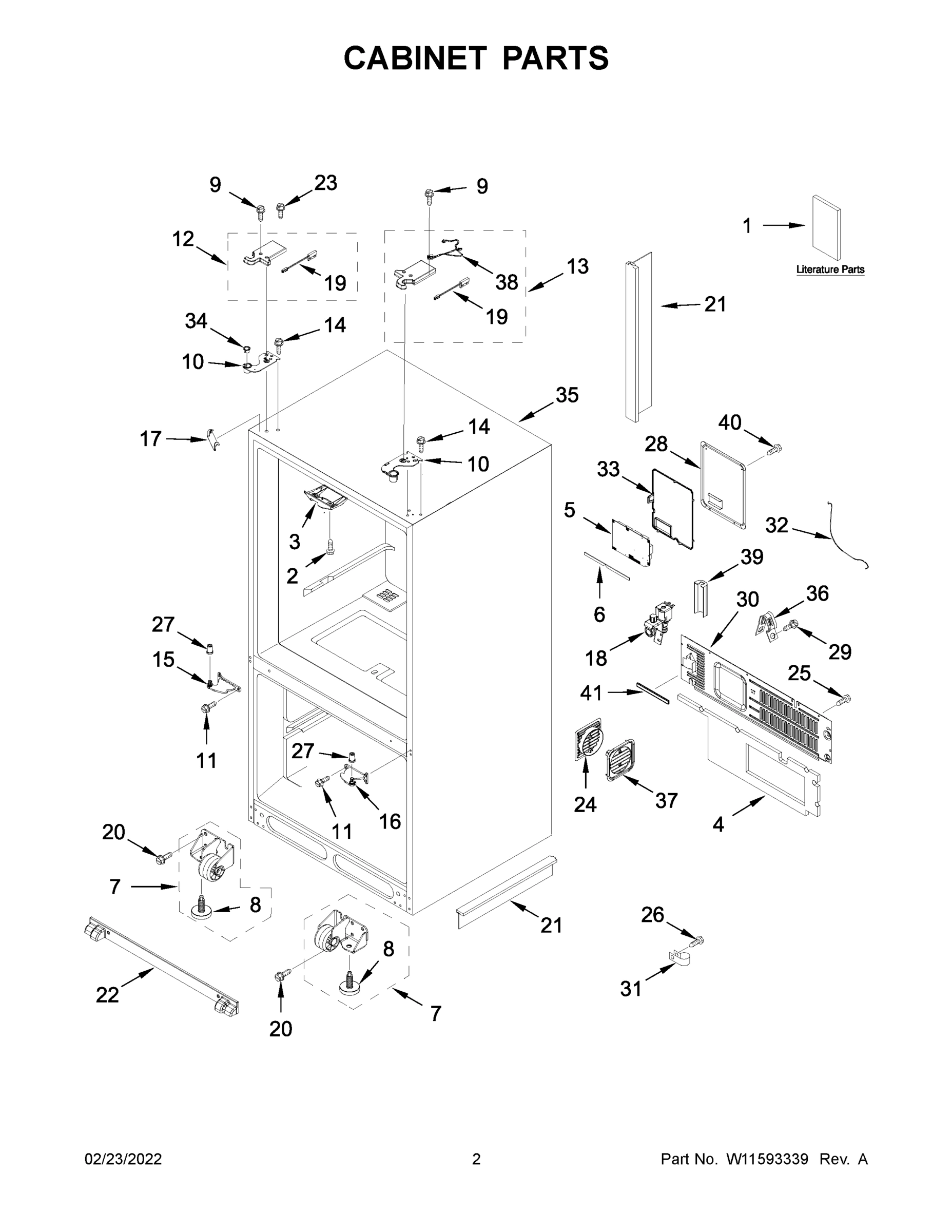

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

1

PEDESTAL (REFER TO COLOR VARIATION PARTS PAGE WPL NP Contact Us For Availability

2

W10696184 Whirlpool Refrigerator Ring Backorder WPL W10696184 $15.94

2

W10708473 Whirlpool Refrigerator Housing In Stock WPL W10708473 $38.41

2

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

2

W11448633 Whirlpool Refrigerator Plate In Stock WPL W11448633 $33.67

2B

W11506620 Whirlpool Refrigerator Coupler In Stock WPL W11506620 $16.85

3

W10840312 Whirlpool Refrigerator Block PIV Backorder WPL W10840312 $14.07

3

W11227946 Whirlpool Refrigerator Shield Backorder WPL W11227946 $27.36

3

W11683243 Whirlpool Module In Stock WPL W11683243 $104.46

3

W11690901 Whirlpool Housing Backorder WPL W11690901 $44.47

3

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

4

W11084829 Whirlpool Refrigerator Insulation Backorder WPL W11084829 $12.99

4

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

4

W11251709 Whirlpool Refrigerator Pad Backorder WPL W11251709 $31.49

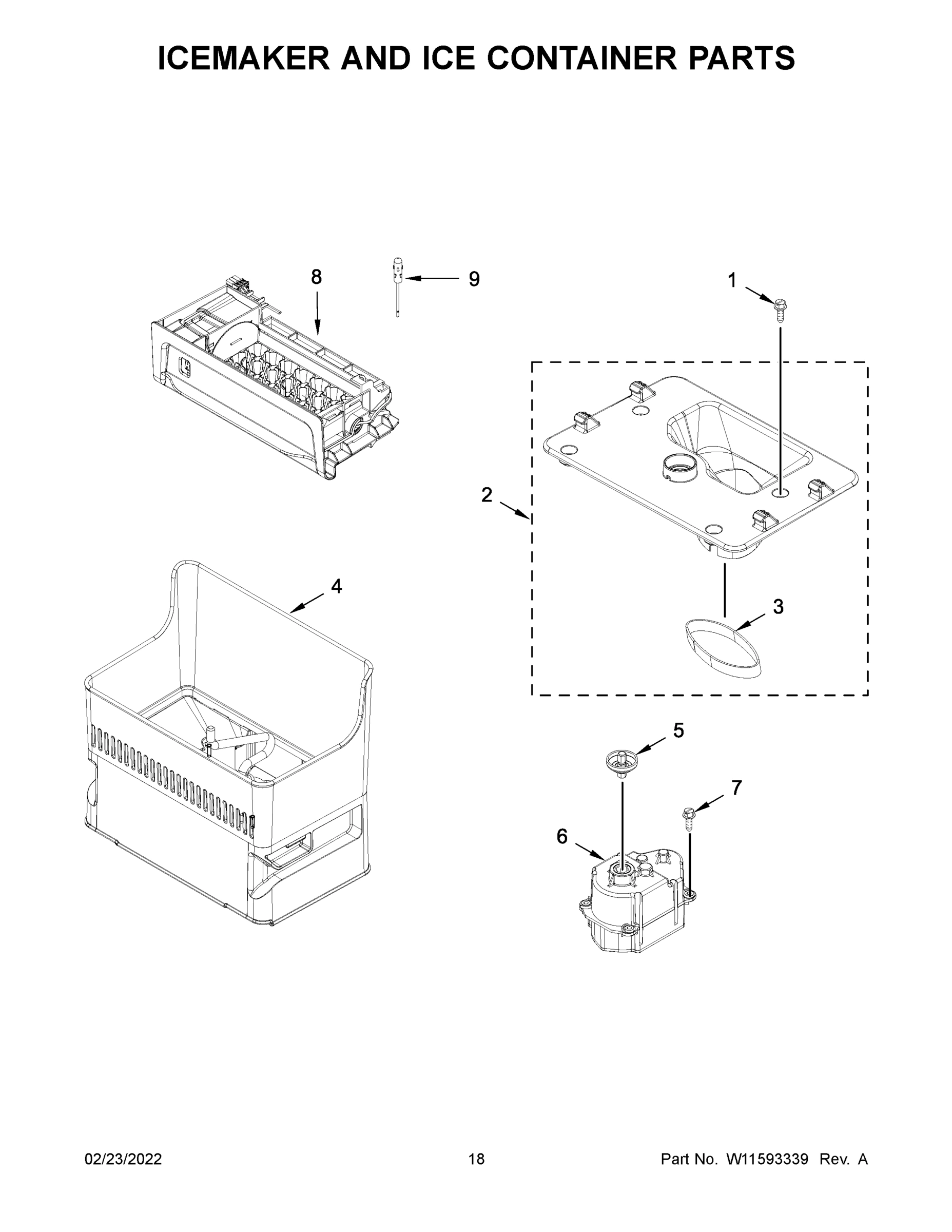

4

W11574764 Whirlpool Refrigerator Ice Containe Backorder WPL W11574764 $145.68

5

W11204892 Whirlpool Refrigerator Ice Door In Stock WPL W11204892 $58.50

5

W11228132 Whirlpool Refrigerator Shaft In Stock WPL W11228132 $10.87

5

W11241580 Whirlpool Refrigerator Bracket Backorder WPL W11241580 $92.44

5

W11243377 Whirlpool Refrigerator Door Stop Backorder WPL W11243377 $26.55

5

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

5

ASSEMBLY, DRAIN EXTENSION WPL W10860180 Contact Us For Availability

5A

W11241268 Whirlpool Refrigerator Bracket Backorder WPL W11241268 $92.80

6

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

6

W10795851 Whirlpool Refrigerator Freezer Bin Backorder WPL W10795851 $99.46

6

W10822606 Whirlpool Dishwasher Dispenser Moto In Stock WPL W10822606 $96.04

6

W10887818 Whirlpool Refrigerator Glass Shelf Backorder WPL W10887818 $185.38

6

W11220377 Whirlpool Refrigerator Tray Backorder WPL W11220377 $34.66

6B

W11506625 Whirlpool Refrigerator Coupler In Stock WPL W11506625 $10.98

7

W10900011 Whirlpool Refrigerator Cover Backorder WPL W10900011 $40.74

7

W11252157 Whirlpool Refrigerator Drip Tray Backorder WPL W11252157 $34.66

7

W11284453 Whirlpool Glass Shelf Assembly Backorder WPL W11284453 $127.18

7

ROLLER-CAB Backorder WPL W11769880 $15.35

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7A

W11763410 Whirlpool Cabinet Roller Backorder WPL W11763410 $15.35

8

W10846099 Whirlpool Refrigerator Leveler Backorder WPL W10846099 $15.59

8

W11102087 Whirlpool Refrigerator Freezer Bin Backorder WPL W11102087 $170.10

8

W11222983 Whirlpool Refrigerator Trim Backorder WPL W11222983 $58.12

8

W11557001 Whirlpool Refrigerator Icemaker In Stock WPL W11557001 $88.76

8

W11563404 Whirlpool Refrigerator Shelf Assemb Backorder WPL W11563404 $361.15

9

W10815345 Whirlpool Refrigerator Pad Backorder WPL W10815345 $56.69

9

W10815965 Whirlpool Refrigerator Cover Backorder WPL W10815965 $40.74

9

W11226828 Whirlpool Refrigerator Shelf Stud Backorder WPL W11226828 $10.10

9

W11724692 Whirlpool Thermistor Backorder WPL W11724692 $11.93

9

WPW10277361 Whirlpool Refrigerator Collar Backorder WPL WPW10277361 $4.28

9A

W11666273 Whirlpool Refrigerator Shelf Stud Backorder WPL W11666273 $10.10

W10407187 Whirlpool Refrigerator Door Bumper Backorder WPL W10407187 $26.44

W11032616 Whirlpool Refrigerator Door Hinge Backorder WPL W11032616 $26.55

W11087492 Whirlpool Refrigerator Water Dispen In Stock WPL W11087492 $14.15

W11115323 Whirlpool Refrigerator Utility Pan Backorder WPL W11115323 $122.89

W11259417 Whirlpool Refrigerator Air Tower Backorder WPL W11259417 $153.45

10A

W10798308 Whirlpool Refrigerator Door Bumper Backorder WPL W10798308 $15.63

10A

W11032620 Whirlpool Refrigerator Door Hinge Backorder WPL W11032620 $26.55

W10672578 Whirlpool Refrigerator Spring Backorder WPL W10672578 $9.13

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

W11563405 Whirlpool Refrigerator Frame Backorder WPL W11563405 $183.57

W11677723 Whirlpool Support Backorder WPL W11677723 $56.16

12

W10843722 Whirlpool Refrigerator Glide Backorder WPL W10843722 $89.83

12

W11109505 Whirlpool Refrigerator Spring Backorder WPL W11109505 $7.58

12

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

12A

W10668198 Whirlpool Refrigerator Evaporator B Backorder WPL W10668198 $29.77

12A

W10814862 Whirlpool Refrigerator Glide Backorder WPL W10814862 $89.83

W10663641 Whirlpool Refrigerator Spacer Backorder WPL W10663641 $15.77

W10704135 Whirlpool Refrigerator Wire Harness Backorder WPL W10704135 $10.60

W10774846 Whirlpool Refrigerator Cabinet Roll Backorder WPL W10774846 $34.44

W11189600 Whirlpool Refrigerator Bracket Backorder WPL W11189600 $25.27

13A

W10895492 Whirlpool Refrigerator Cover Backorder WPL W10895492 $95.24

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W10795820 Whirlpool Refrigerator Pan Stop Backorder WPL W10795820 $32.63

W10887837 Whirlpool Refrigerator Glass Shelf In Stock WPL W10887837 $89.12

W10888235 Whirlpool Refrigerator Gasket Backorder WPL W10888235 $10.76

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $9.59

14A

W10795822 Whirlpool Refrigerator Stop Pan Backorder WPL W10795822 $32.63

W10691674 Whirlpool Refrigerator Door Hinge Backorder WPL W10691674 $30.69

W10696713 Whirlpool Refrigerator Door Gasket Backorder WPL W10696713 $27.23

W10834282 Whirlpool Refrigerator Retainer Backorder WPL W10834282 $14.15

W10866163 Whirlpool Refrigerator Glide Backorder WPL W10866163 $82.52

15A

W10816322 Whirlpool Refrigerator Door Hinge Backorder WPL W10816322 $40.30

15A

W10866166 Whirlpool Refrigerator Glide Backorder WPL W10866166 $82.52

W10691700 Whirlpool Refrigerator Door Hinge Backorder WPL W10691700 $30.69

W11189145 Whirlpool Refrigerator Ice Door In Stock WPL W11189145 $55.19

W11625086 Whirlpool Refrigerator Gasket Backorder WPL W11625086 $36.33

HANDLE WPL W10903881 Contact Us For Availability

16A

W10816323 Whirlpool Refrigerator Door Hinge Backorder WPL W10816323 $42.62

17

W10663699 Whirlpool Refrigerator Gasket Backorder WPL W10663699 $10.50

17

W11115324 Whirlpool Refrigerator Crisper Pan Backorder WPL W11115324 $94.39

17

W11163783 Whirlpool Refrigerator Closer In Stock WPL W11163783 $30.47

17A

W11188796 Whirlpool Refrigerator Closer In Stock WPL W11188796 $16.01

W10752689 Whirlpool Refrigerator Heater Backorder WPL W10752689 $44.71

W10770923 Whirlpool Refrigerator Gasket Backorder WPL W10770923 $12.02

W10839803 Whirlpool Refrigerator Axle Backorder WPL W10839803 $25.27

W11252060 Whirlpool Refrigerator Cover Backorder WPL W11252060 $39.18

W11401419 Whirlpool Refrigerator Module Backorder WPL W11401419 $65.96

19

W10757499 Whirlpool Refrigerator Bracket Backorder WPL W10757499 $26.32

19

SCREW WPL W10903879 Contact Us For Availability

W10809296 Whirlpool Refrigerator Guide Backorder WPL W10809296 $8.84

W10826105 Whirlpool Refrigerator Pro Service Backorder WPL W10826105 $60.18

W10837296 Whirlpool Refrigerator Roller In Stock WPL W10837296 $40.66

W11220375 Whirlpool Refrigerator Filter Cap In Stock WPL W11220375 $26.88

21

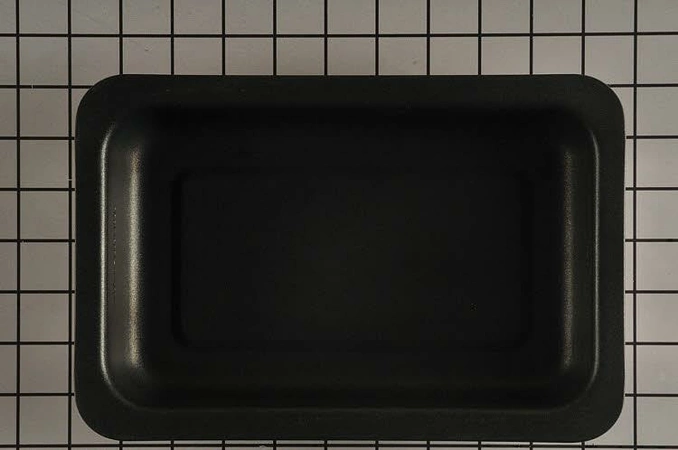

W11592414 Whirlpool Utility Pan Backorder WPL W11592414 $60.00

22

W10887839 Whirlpool Refrigerator Glass Shelf Backorder WPL W10887839 $89.12

22

W10917312 Whirlpool Refrigerator Door Gasket Backorder WPL W10917312 $107.74

22A

W10917313 Whirlpool Refrigerator Door Gasket In Stock WPL W10917313 $107.74

22B

W11506619 Whirlpool Refrigerator Coupler In Stock WPL W11506619 $13.58

23

FLANGE, SIDE SUPPORT WPL W10840918 Contact Us For Availability

24

W10840920 Whirlpool Refrigerator Knob Backorder WPL W10840920 $24.83

24

W11440595 Whirlpool Wire Harness Backorder WPL W11440595 $39.77

W10795523 Whirlpool Refrigerator Base Backorder WPL W10795523 $50.43

W10815960 Whirlpool Refrigerator Air Tower Backorder WPL W10815960 $92.82

W10882409 Whirlpool Refrigerator Herb Tender Backorder WPL W10882409 $25.97

W11109499 Whirlpool Refrigerator Tube In Stock WPL W11109499 $20.17

25A

W11504445 Whirlpool Refrigerator Coupler In Stock WPL W11504445 $15.56

25B

W11506623 Whirlpool Refrigerator Coupler In Stock WPL W11506623 $11.51

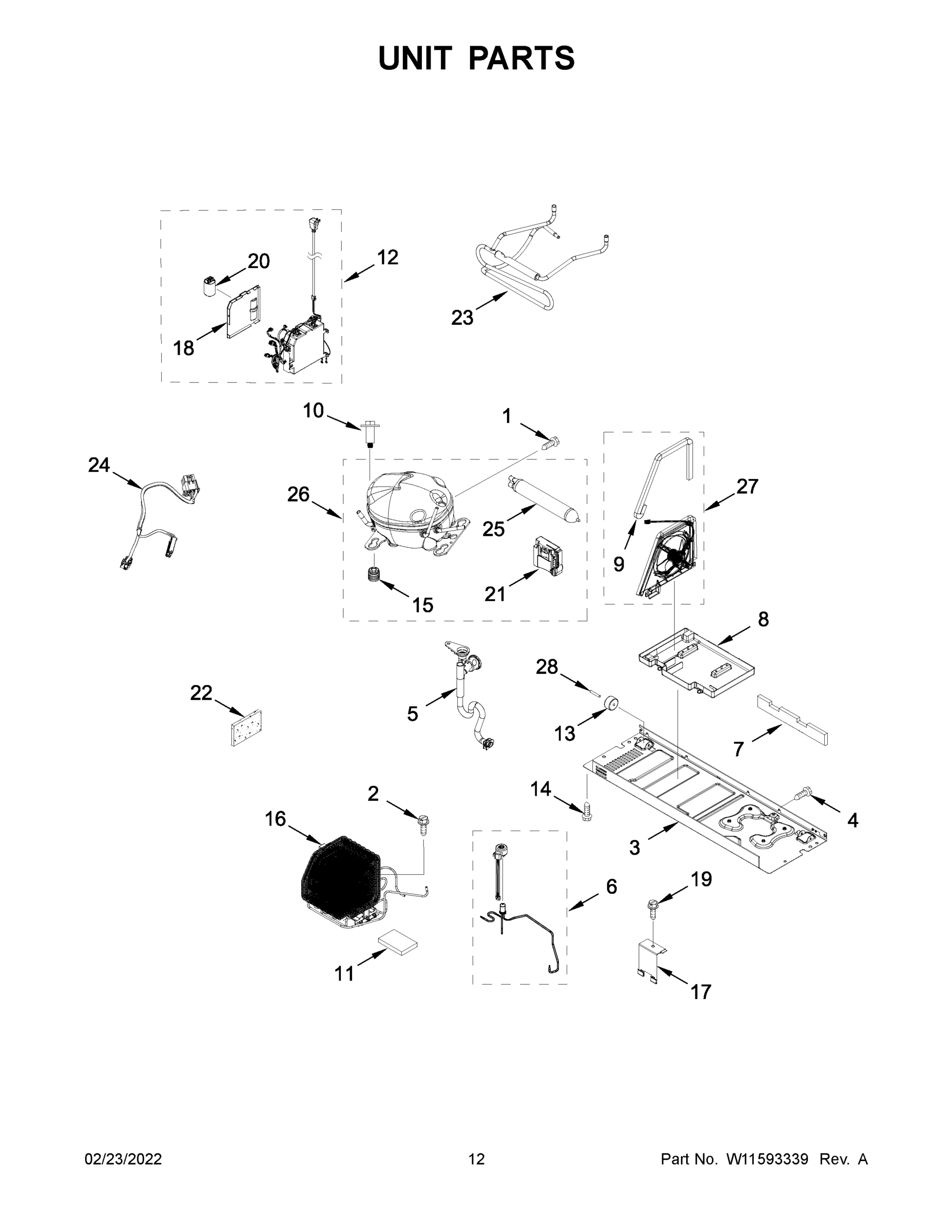

26

W10803630 Whirlpool Refrigerator Compressor D Backorder WPL W10803630 $52.41

26

W10848895 Whirlpool Refrigerator Wire Harness Backorder WPL W10848895 $60.87

26

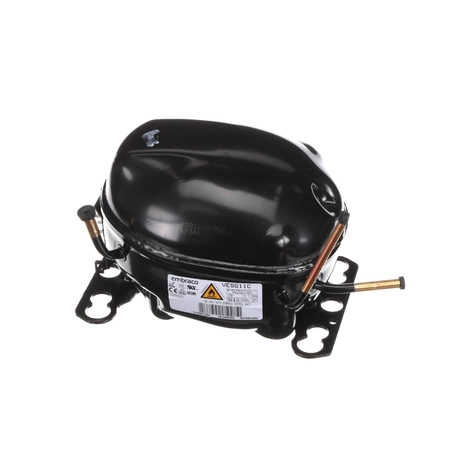

W11578031 Whirlpool Compressor Backorder WPL W11578031 $412.09

26A

W11504431 Whirlpool Microwave Coupler In Stock WPL W11504431 $14.24

26B

W11504415 Whirlpool Refrigerator Coupler In Stock WPL W11504415 $13.69

26C

W11506621 Whirlpool Refrigerator Coupler In Stock WPL W11506621 $11.51

26D

W11506635 Whirlpool Refrigerator Valve Couple In Stock WPL W11506635 $20.70

27

W10847999 Whirlpool Refrigerator Screw Backorder WPL W10847999 $9.59

27

W11223833 Whirlpool Refrigerator Hinge Bushin In Stock WPL W11223833 $6.11

27

W11574308 Whirlpool Fan Backorder WPL W11574308 $79.02

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $32.50

W10794565 Whirlpool Refrigerator Support Backorder WPL W10794565 $107.51

W10795524 Whirlpool Refrigerator Cover Backorder WPL W10795524 $94.36

29

COVER, PANTRY WPL W10794557 Contact Us For Availability

30

W10794250 Whirlpool Support Backorder WPL W10794250 $103.39

30

W10818463 Whirlpool Refrigerator Gasket Backorder WPL W10818463 $14.60

31

W11090564 Whirlpool Refrigerator Shield In Stock WPL W11090564 $37.17

31

COVER, WIRING HARNESS WPL W10834719 Contact Us For Availability

32

W11744510 Whirlpool Wire Harness Backorder WPL W11744510 $39.89

33

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $39.49

33

W10794550 Whirlpool Refrigerator Support Backorder WPL W10794550 $138.89

34

W10705239 Whirlpool Refrigerator Grommet Backorder WPL W10705239 $29.44

34

W11084821 Whirlpool Refrigerator Frame Backorder WPL W11084821 $73.97

35

W10794336 Whirlpool Refrigerator Gasket Backorder WPL W10794336 $10.34

36

W10794242 Whirlpool Gasket Assembly Backorder WPL W10794242 $48.35

37

W10835866 Whirlpool Wire Harness Backorder WPL W10835866 $49.96

38

W10854845 Whirlpool Appliance Cover Backorder WPL W10854845 $37.70

38

W10858468 Whirlpool Refrigerator Wire Harness Backorder WPL W10858468 $51.86

39

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $31.93

39

W10794553 Whirlpool Refrigerator Support Backorder WPL W10794553 $107.51

39A

W10794555 Whirlpool Refrigerator Support Backorder WPL W10794555 $107.51

40

W10834285 Whirlpool Refrigerator Screw Backorder WPL W10834285 $13.96

40

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $21.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.48

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TOUCH-UP PAINT (MIDNIGHT GREY) WPL W10917540 Contact Us For Availability

KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
