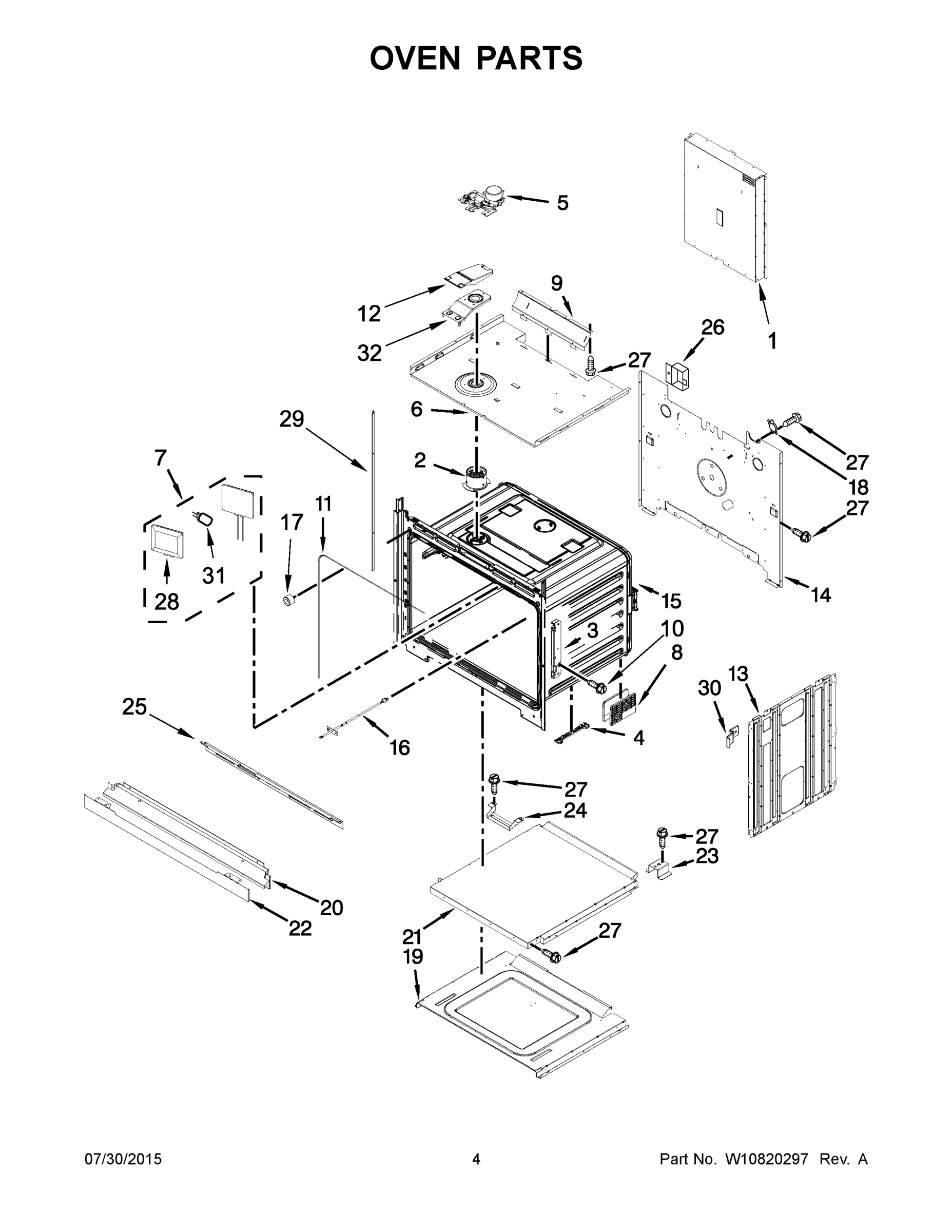

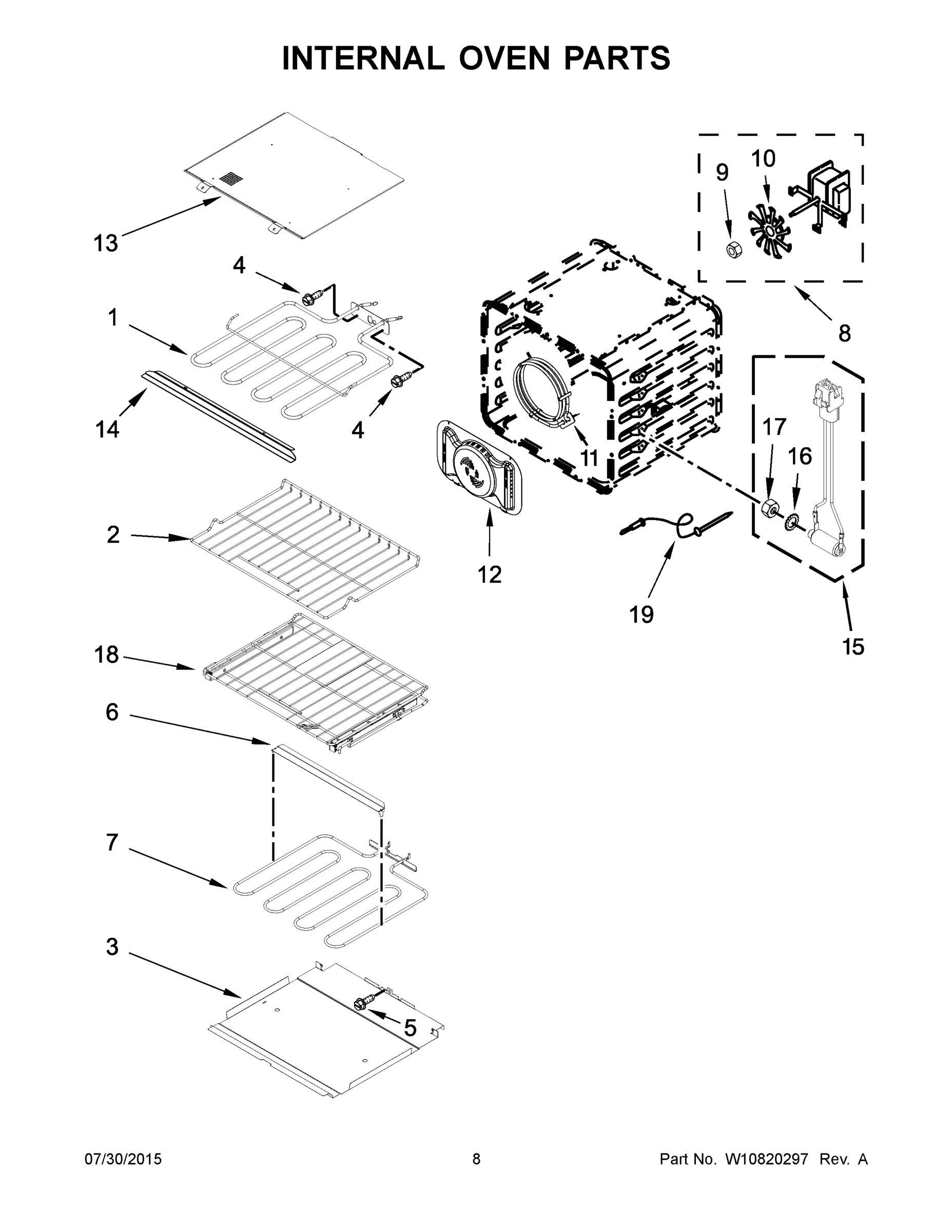

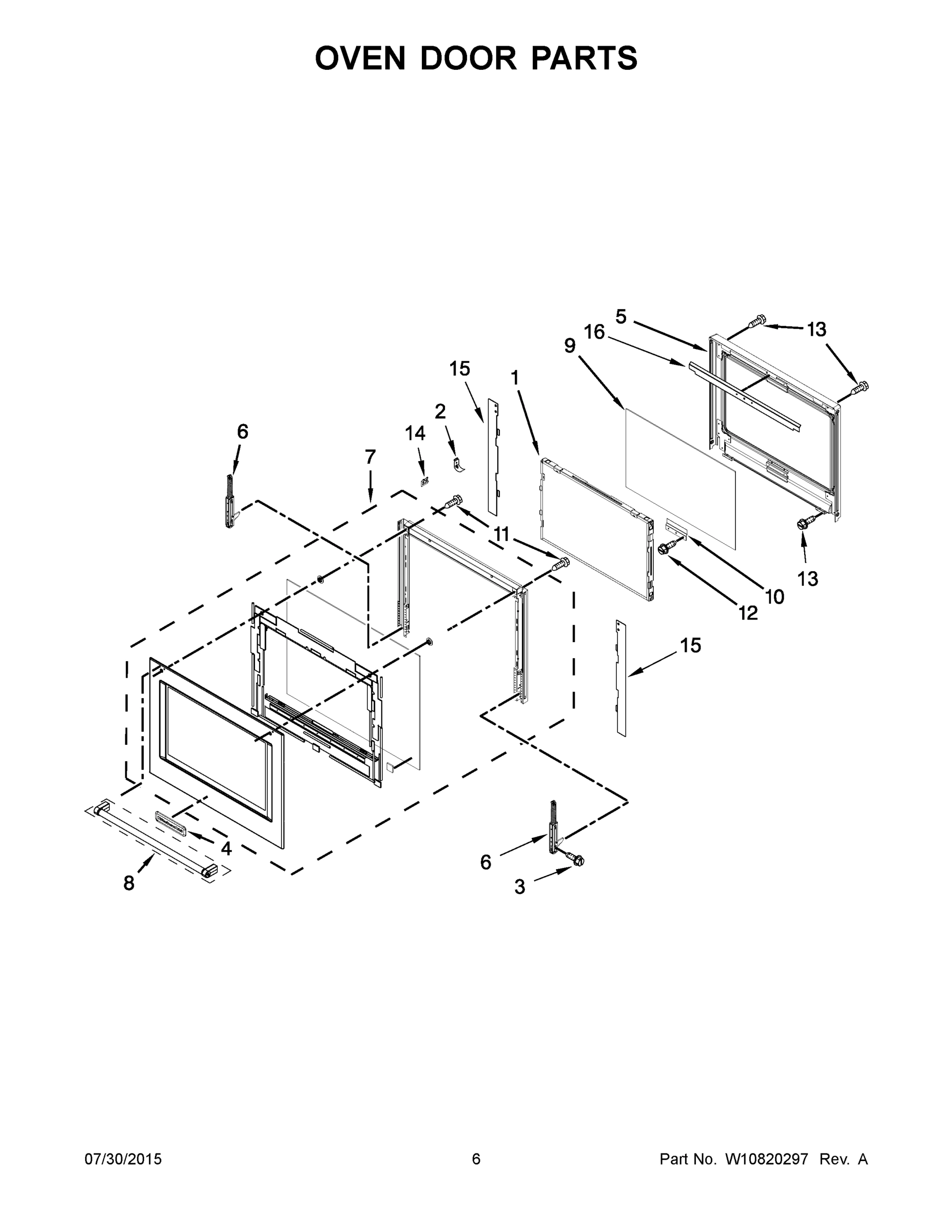

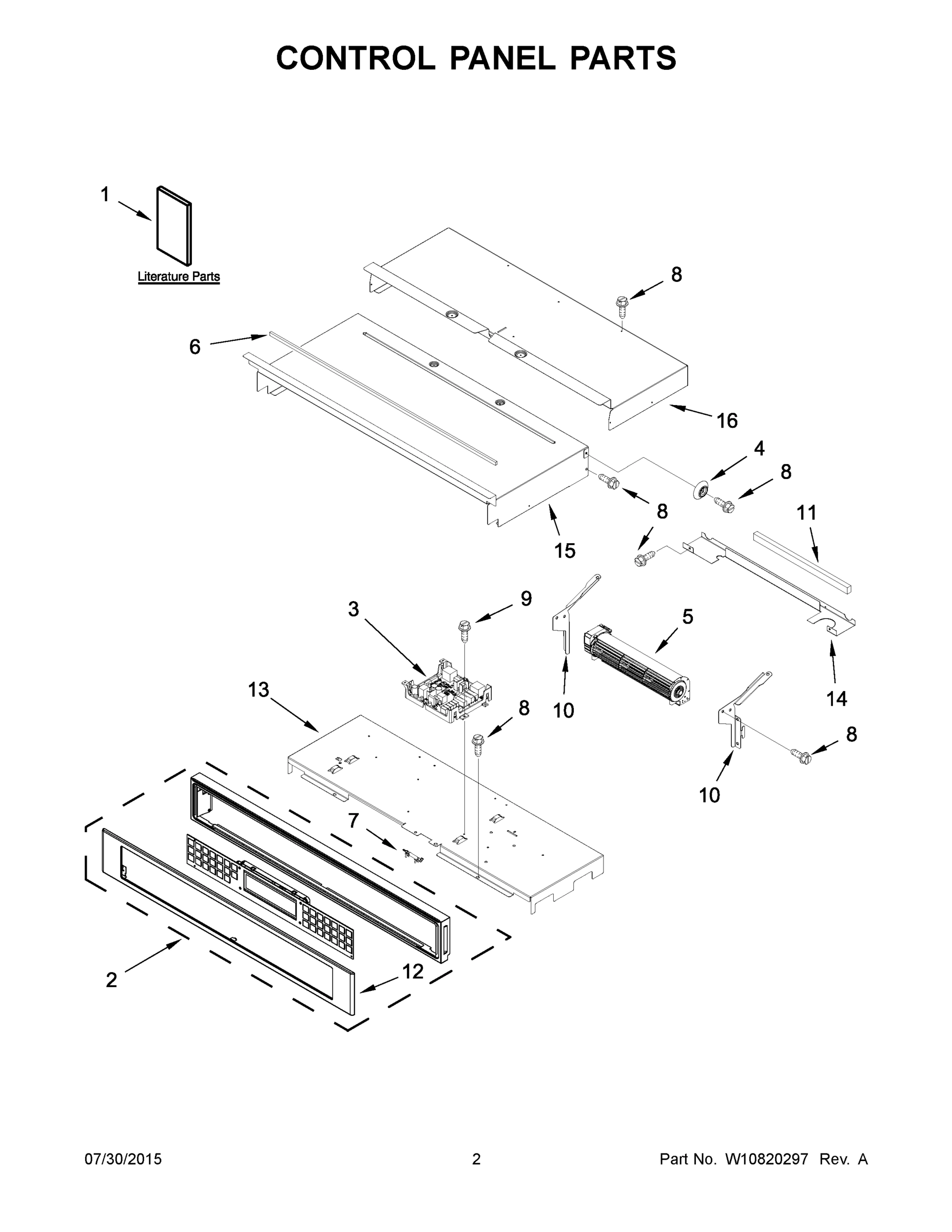

Model Whirlpool KOSE507ESS01 ELECTRIC OVEN – Common Parts & Diagrams

1
DUCT, CHASSIS BACK
DUCT, CHASSIS BACK WPL W10318196 Contact Us For Availability
View on Model
2A
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (W
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (W WPL W10588715 Contact Us For Availability
View on Model
2B
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S
ASSEMBLY, CONTROL PANEL (INCLUDES OVERLAY) (S WPL W10588712 Contact Us For Availability
View on Model
12
COVER, VENT EXHAUST
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
View on Model
12B
SKIN, CONTROL PANEL (STAINLESS)
SKIN, CONTROL PANEL (STAINLESS) WPL W10588741 Contact Us For Availability
View on Model
13
SIDE, CHASSIS
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
View on Model
14
SHIELD, BROIL FRONT
SHIELD, BROIL FRONT WPL W10588738 Contact Us For Availability
View on Model
14
CHASSIS, BACK DIVIDER
CHASSIS, BACK DIVIDER WPL W10655465 Contact Us For Availability
View on Model
15
EXTENSION, SIDE RAIL (LEFT)
EXTENSION, SIDE RAIL (LEFT) WPL W10687815 Contact Us For Availability
View on Model
15
CHASSIS, COVER TOP FRONT 27"
CHASSIS, COVER TOP FRONT 27" WPL W10318193 Contact Us For Availability
View on Model
15A
EXTENSION, SIDE RAIL (RIGHT)
EXTENSION, SIDE RAIL (RIGHT) WPL W10687814 Contact Us For Availability
View on Model
16
SHIELD, DOOR LINER
SHIELD, DOOR LINER WPL W10669415 Contact Us For Availability
View on Model
19
BASE, CHASSIS
BASE, CHASSIS WPL W10282901 Contact Us For Availability
View on Model
20
ASSEMBLY, BOTTOM VENT (BLACK)
ASSEMBLY, BOTTOM VENT (BLACK) WPL W10351276 Contact Us For Availability
View on Model
20A
ASSEMBLY, BOTTOM VENT (WHITE)
ASSEMBLY, BOTTOM VENT (WHITE) WPL W10506349 Contact Us For Availability
View on Model
25
VENT, TOP 27"
VENT, TOP 27" WPL W10283037 Contact Us For Availability
View on Model
32
BASE, VENT EXHAUST
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER (STAINLESS STEEL)
ACCESSORIES, CLEANER (STAINLESS STEEL) WPL W10355016 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (BLACK)
PAINT, SPRAY (BLACK) WPL 285006 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (BISCUIT/BISQUE)
PAINT, SPRAY (BISCUIT/BISQUE) WPL 4392901 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (ALMOND)
PAINT, SPRAY (ALMOND) WPL 350956 Contact Us For Availability
View on Model
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (GRAY PRIMER)
PAINT, SPRAY (GRAY PRIMER) WPL 350938 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
View on Model
NI
HARNESS, DOOR LATCH
HARNESS, DOOR LATCH WPL W10573327 Contact Us For Availability
View on Model
NI
HARNESS, MAIN
HARNESS, MAIN WPL W10632451 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10520716 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (WHITE PRIMER)
PAINT, SPRAY (WHITE PRIMER) WPL 350942 Contact Us For Availability
View on Model
NI
BRACKET, HARNESS
BRACKET, HARNESS WPL W10655464 Contact Us For Availability
View on Model
NI
STRAP, LEAD GROUND
STRAP, LEAD GROUND WPL 4452400 Contact Us For Availability
