Model Whirlpool KOED930SPS00 Electric Wall Oven – Common Parts &amp; Diagrams

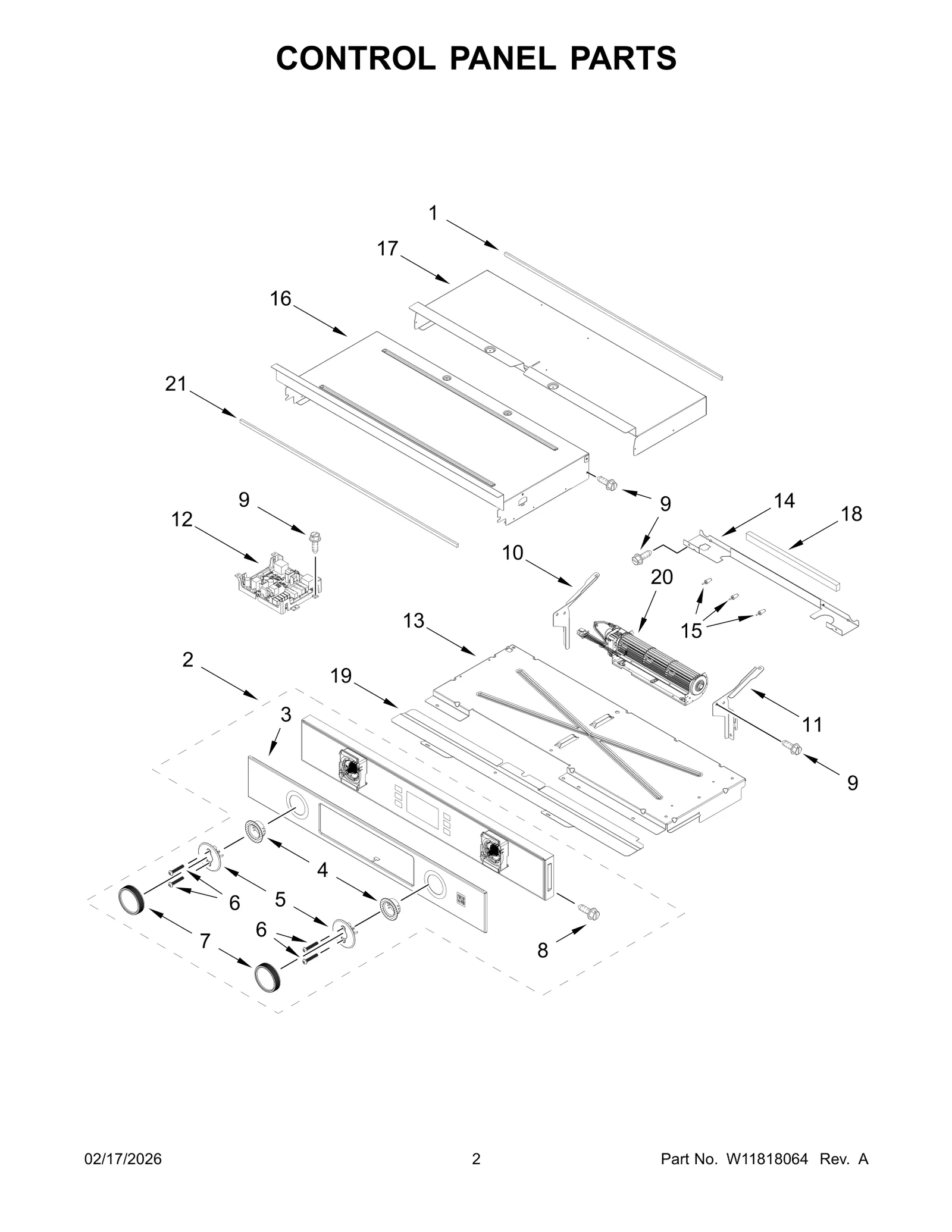

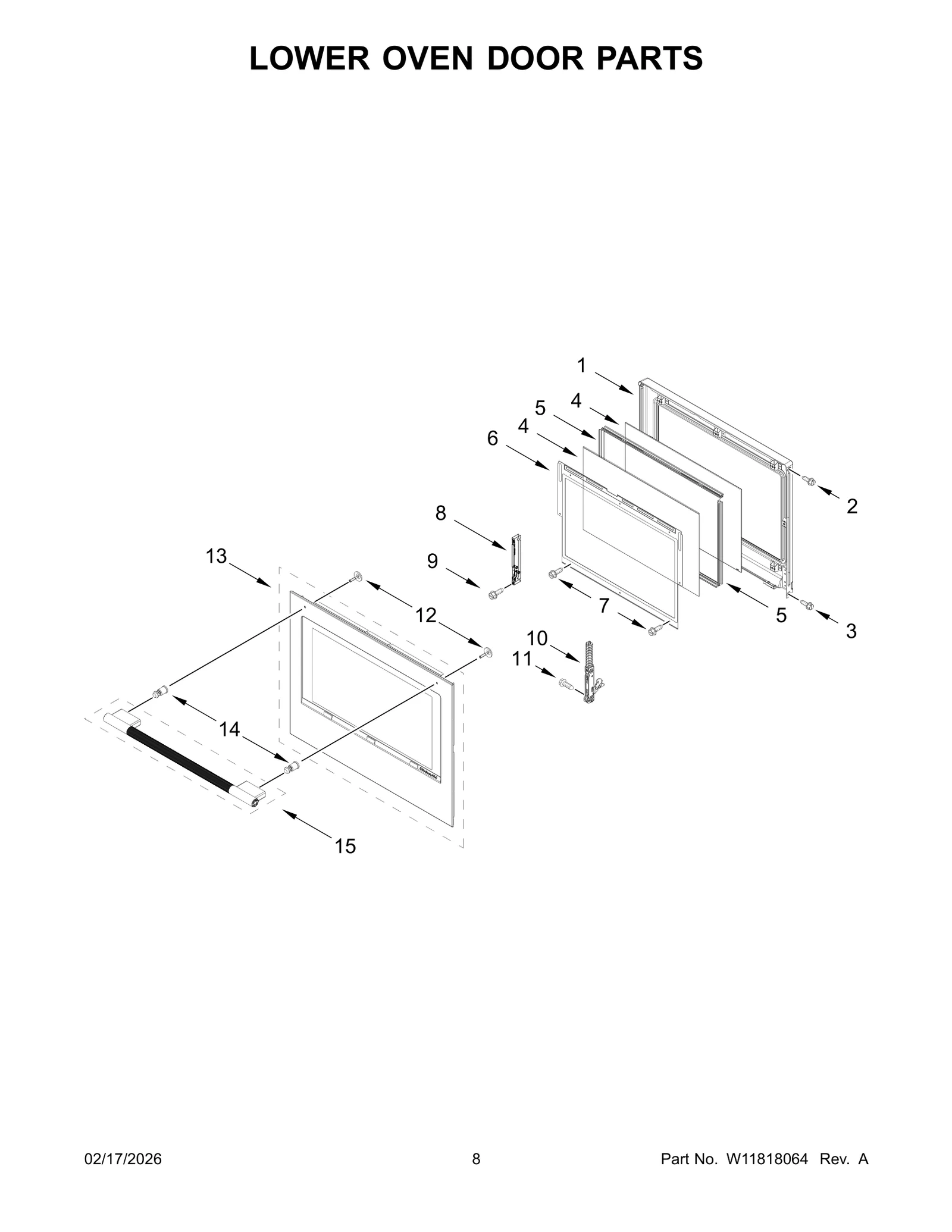

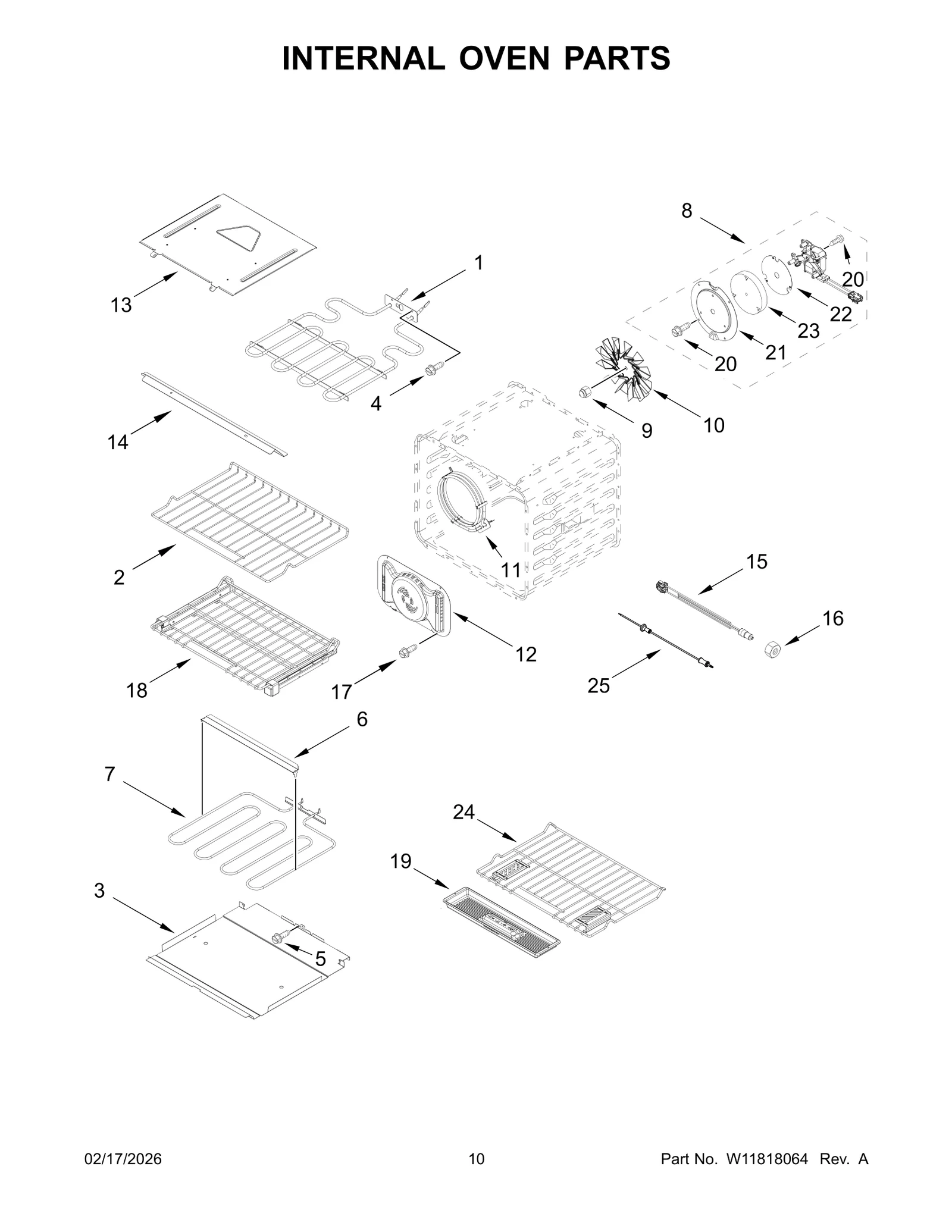

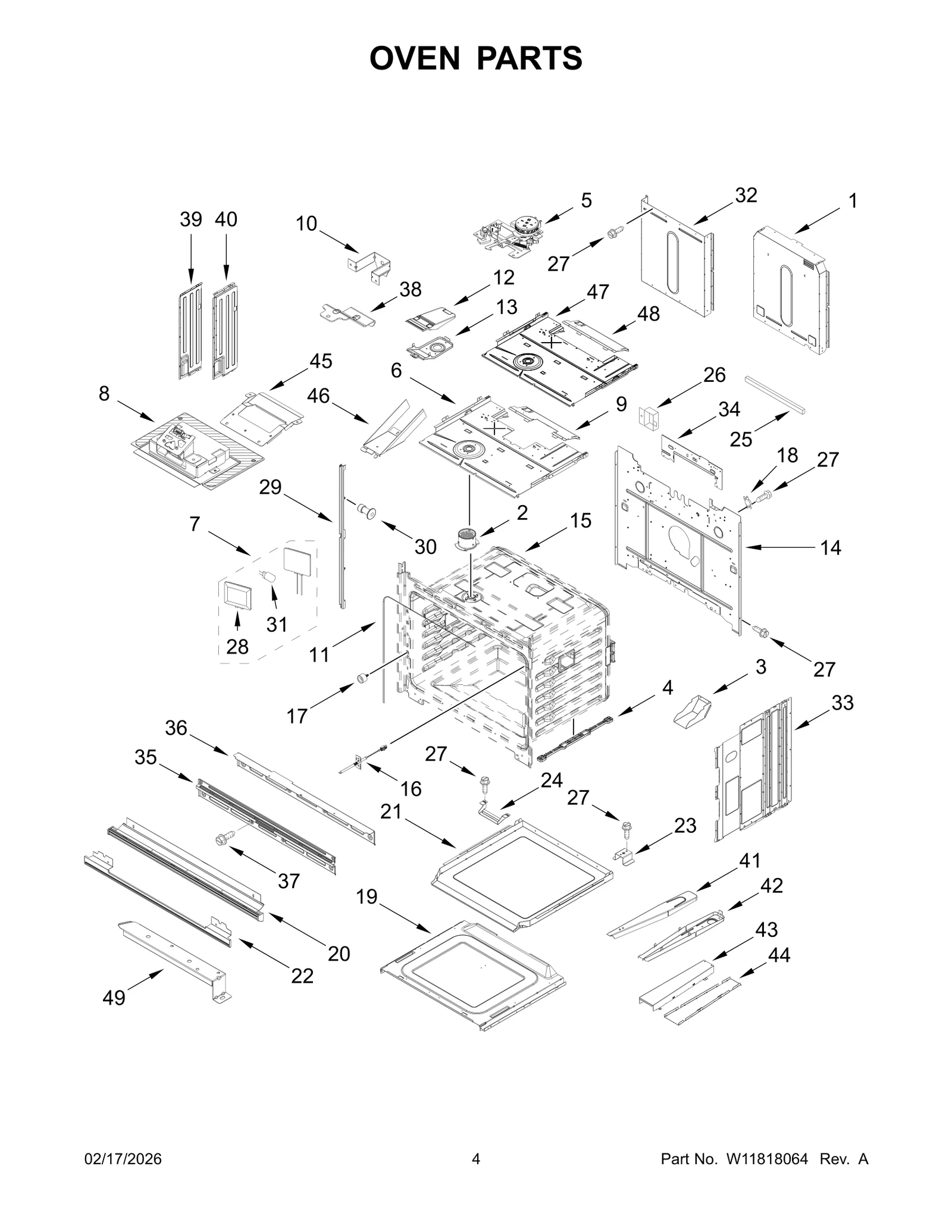

1

Liner Assembly WPL W11699126 Contact Us For Availability

1

Element, Broil WPL W11488059 Contact Us For Availability

2

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.75

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.94

2

WPW10554526 Whirlpool Oven Rack In Stock WPL WPW10554526 $78.13

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $74.89

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.75

3

Deflector, Lower Back Exhaust WPL W11256432 Contact Us For Availability

4

W11598152 Whirlpool Spacer Backorder WPL W11598152 $6.34

4

WP7101P434-60 Whirlpool Screw Backorder WPL WP7101P434-60 $2.55

4

WPW10618107 Whirlpool Door Glass Assembly In Stock WPL WPW10618107 $129.27

5

W11686858 Whirlpool Door Latch In Stock WPL W11686858 $31.19

5

W11736671 Whirlpool Spacer In Stock WPL W11736671 $27.99

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.55

6

W10282957 Whirlpool Bracket Support Backorder WPL W10282957 $18.32

6

W11598182 Whirlpool Retainer Clip Backorder WPL W11598182 $30.24

6

Top, Chassis WPL W11694204 Contact Us For Availability

7

W11292252 Whirlpool Oven Light In Stock WPL W11292252 $38.58

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $58.52

8

W11617227 Whirlpool Fan Motor In Stock WPL W11617227 $99.38

8

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $33.98

8

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $33.98

8

Camera Module Assembly WPL W11626903 Contact Us For Availability

9

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.75

9

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.55

9

Deflector, Blower WPL W11694214 Contact Us For Availability

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $60.15

Hat Bracket, Vent WPL W11344645 Contact Us For Availability

Hinge, Door (Left) WPL W11755837 Contact Us For Availability

Hinge, Door (Right) WPL W11755838 Contact Us For Availability

11

W11678579 Whirlpool Element Backorder WPL W11678579 $47.45

11

W11692454 Whirlpool Gasket Backorder WPL W11692454 $59.67

11

WP3196183 Whirlpool Screw Backorder WPL WP3196183 $2.55

12

W11234763 Whirlpool Convection Baffle Backorder WPL W11234763 $89.61

12

W11256424 Whirlpool Exhaust Cover Backorder WPL W11256424 $21.24

12

Screw (Black) WPL W11707001 Contact Us For Availability

W11256423 Whirlpool Vent Tube Backorder WPL W11256423 $21.97

Door Assembly WPL W11685414 Contact Us For Availability

Door Assembly WPL W11680667 Contact Us For Availability

Reflector, Broil WPL W11695367 Contact Us For Availability

14

W10588737 Whirlpool Heat Shield Backorder WPL W10588737 $45.05

14

Back, Chassis WPL W11223327 Contact Us For Availability

14

Stud, Handle WPL W11804271 Contact Us For Availability

W10351295 Whirlpool Bumper Assembly Backorder WPL W10351295 $10.94

Liner, Oven (Not Serviceable) WPL N/S Contact Us For Availability

Handle (Stainless) WPL W11680261 Contact Us For Availability

Jack, Meat Probe WPL W11734531 Contact Us For Availability

16

WP9755546 Whirlpool Locknut Backorder WPL WP9755546 $2.55

16

Probe, Sensor WPL W11685697 Contact Us For Availability

17

W10739592 Whirlpool Screw Backorder WPL W10739592 $6.38

17

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.94

18

W11718046 Whirlpool Rack In Stock WPL W11718046 $62.91

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $78.71

19

W11598115 Whirlpool Access Cover Backorder WPL W11598115 $52.81

19

Reservoir, Steam Rack WPL W11745725 Contact Us For Availability

20

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.55

20

W11648980 Whirlpool Vent In Stock WPL W11648980 $126.77

4448664 Whirlpool Oven Mounting Bracket Backorder WPL 4448664 $10.42

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.75

W11233570 Whirlpool Wire Harness Backorder WPL W11233570 $127.04

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $52.81

W11602626 Whirlpool Oven Microwave Hardware Backorder WPL W11602626 $8.33

W11727826 Whirlpool Wire Harness Backorder WPL W11727826 $24.44

Gasket, Rubber NOT ILLUSTRATED WPL W11162063 Contact Us For Availability

Harness, Main WPL W11774312 Contact Us For Availability

Harness, Signal WPL W11774313 Contact Us For Availability

Harness, Comm and EOL WPL W11774314 Contact Us For Availability

Harness, Camera WPL W11719484 Contact Us For Availability

Cover, Convect Plate WPL W11398057 Contact Us For Availability

22

W11714646 Whirlpool Trim Assembly Backorder WPL W11714646 $35.17

22

Plate, Convect Motor WPL W11251715 Contact Us For Availability

23

W11135135 Whirlpool Support Backorder WPL W11135135 $21.48

23

Insulation, Convect Motor WPL W11251716 Contact Us For Availability

24

Spacer, Bottom Chassis Duct WPL W11135125 Contact Us For Availability

24

Rack, Oven Steam WPL W11740191 Contact Us For Availability

25

Foam, U-Bracket WPL W11211345 Contact Us For Availability

25

Probe, Temperature WPL W11734537 Contact Us For Availability

26

W11819303 Whirlpool Covr-Wire Backorder WPL W11819303 $5.15

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $66.09

29

W11235460 Whirlpool Mounting Rail Backorder WPL W11235460 $48.10

29

W11235461 Whirlpool Rail Mounting Backorder WPL W11235461 $48.10

30

Rivet (Black) WPL W11696855 Contact Us For Availability

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $42.46

32

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $55.44

33

W11165274 Whirlpool Side Panel Backorder WPL W11165274 $48.84

34

W11186652 Whirlpool Support Bracket Backorder WPL W11186652 $26.36

35

W11235482 Whirlpool Exhaust Vent Backorder WPL W11235482 $55.70

36

W11715951 Whirlpool Vent Trim Backorder WPL W11715951 $40.44

37

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.55

38

Bracket, Top Front WPL W11342780 Contact Us For Availability

39

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $29.57

40

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $29.57

41

Cover, Top Back Exhaust WPL W11256421 Contact Us For Availability

42

W11256420 Whirlpool Vent Tube Backorder WPL W11256420 $21.97

43

Cover, Lower Back Exhaust WPL W11256431 Contact Us For Availability

44

Base, Lower Back Exhaust WPL W11256430 Contact Us For Availability

45

Cover, Insulation WPL W11694215 Contact Us For Availability

46

Duct, Blower WPL W11694216 Contact Us For Availability

47

Chassis, Top WPL W11729557 Contact Us For Availability

48

Deflector, Fan WPL W11729909 Contact Us For Availability

49

Bracket, Harness NOT ILLUSTRATED WPL W11739132 Contact Us For Availability

49

Insulation, Wrap WPL W11188284 Contact Us For Availability

49

Insulation, Cavity WPL W11704930 Contact Us For Availability

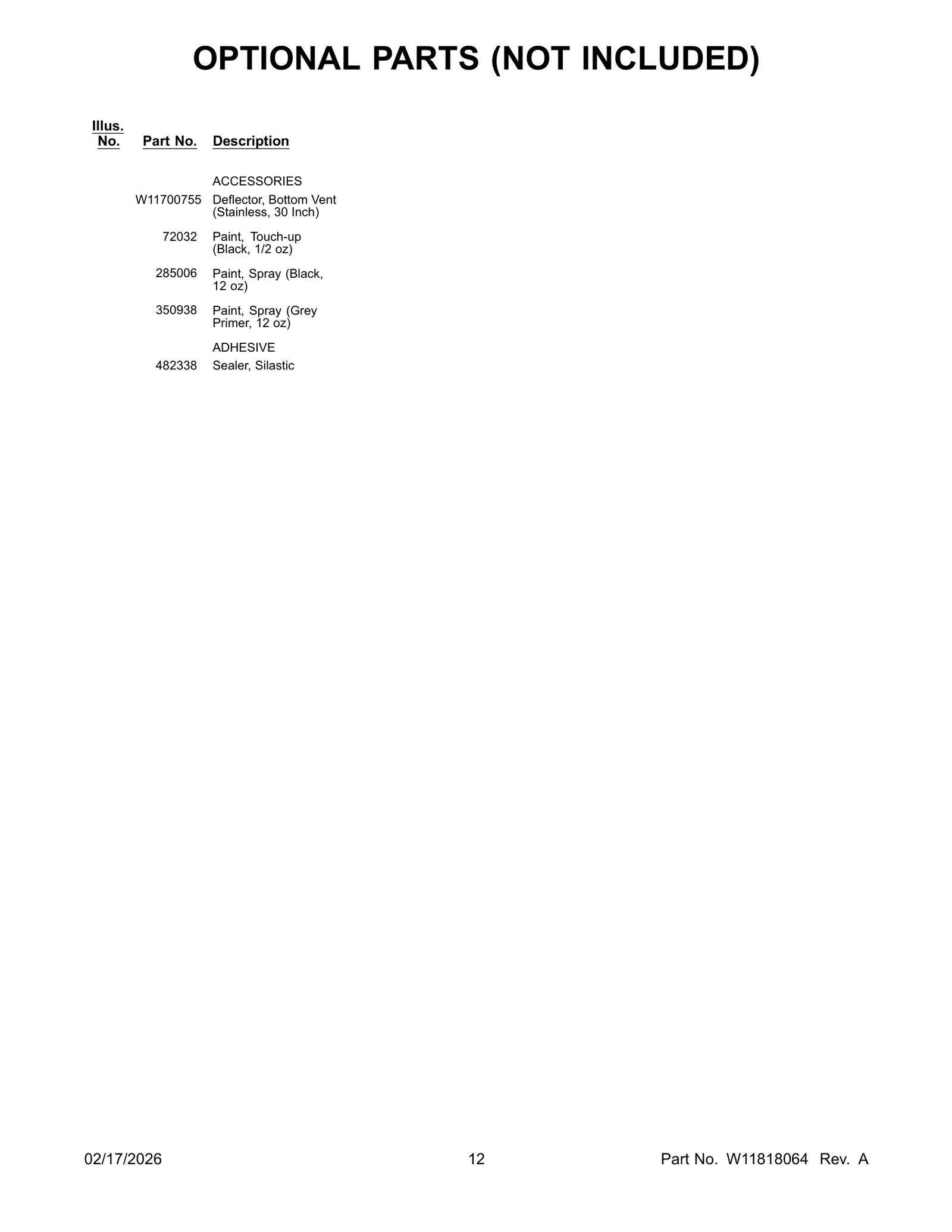

OPT-1

ACCESSORIES WPL W11700755 Contact Us For Availability

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

OPT-3

285006 Whirlpool Spray In Stock WPL 285006 $45.11

OPT-4

350938 Whirlpool Spray Gun Backorder WPL 350938 $51.15

OPT-5

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $26.82
