Model Whirlpool KOEC527PBS00 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts &amp; Diagrams

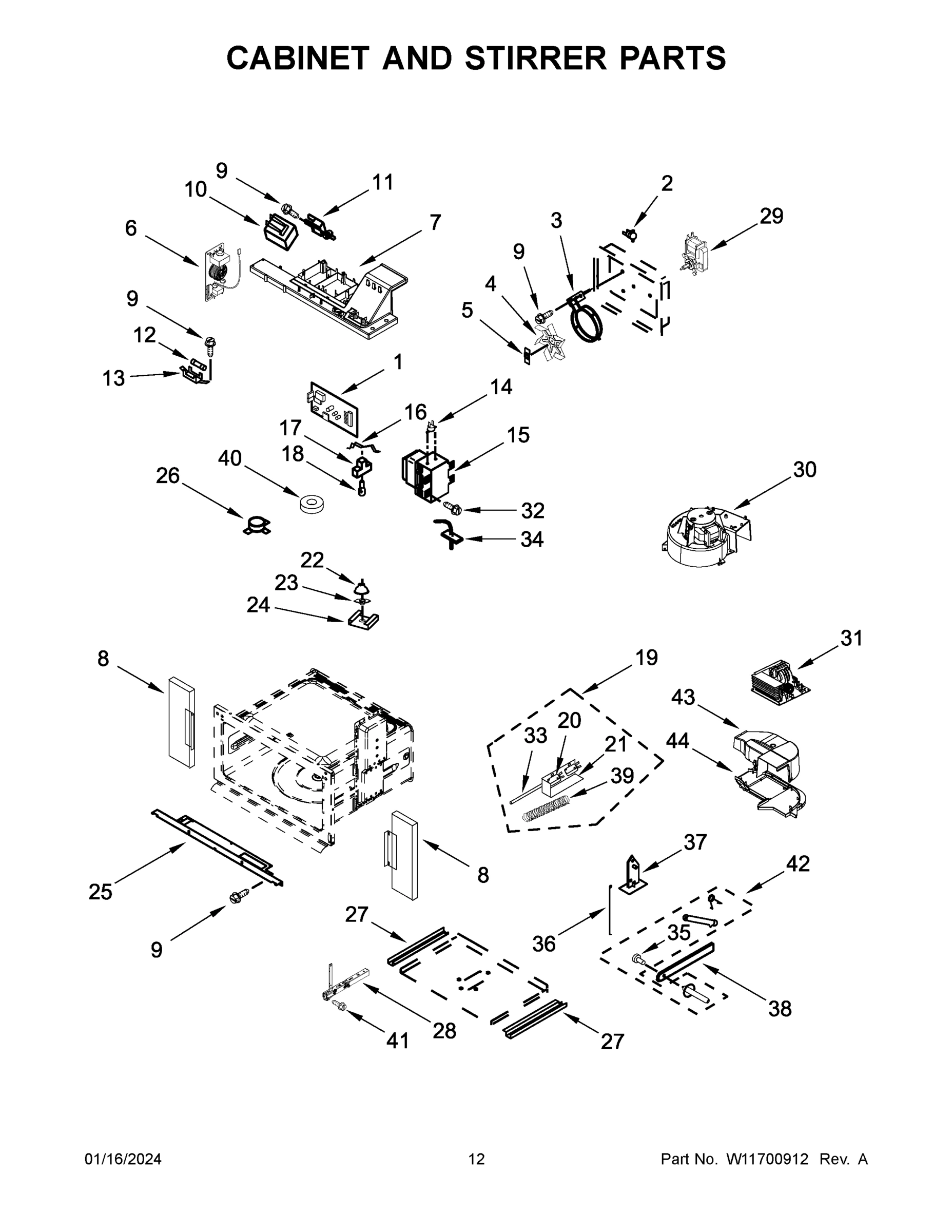

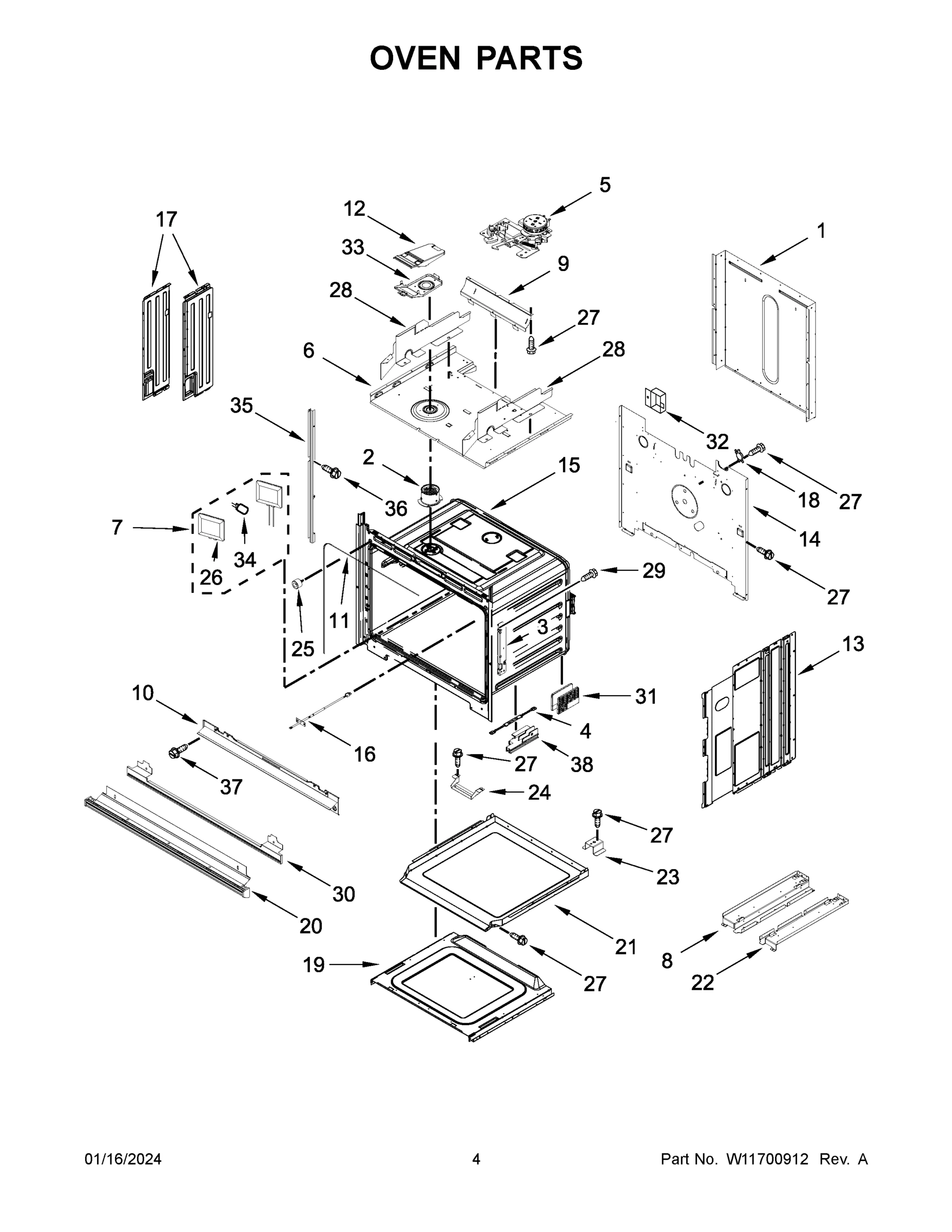

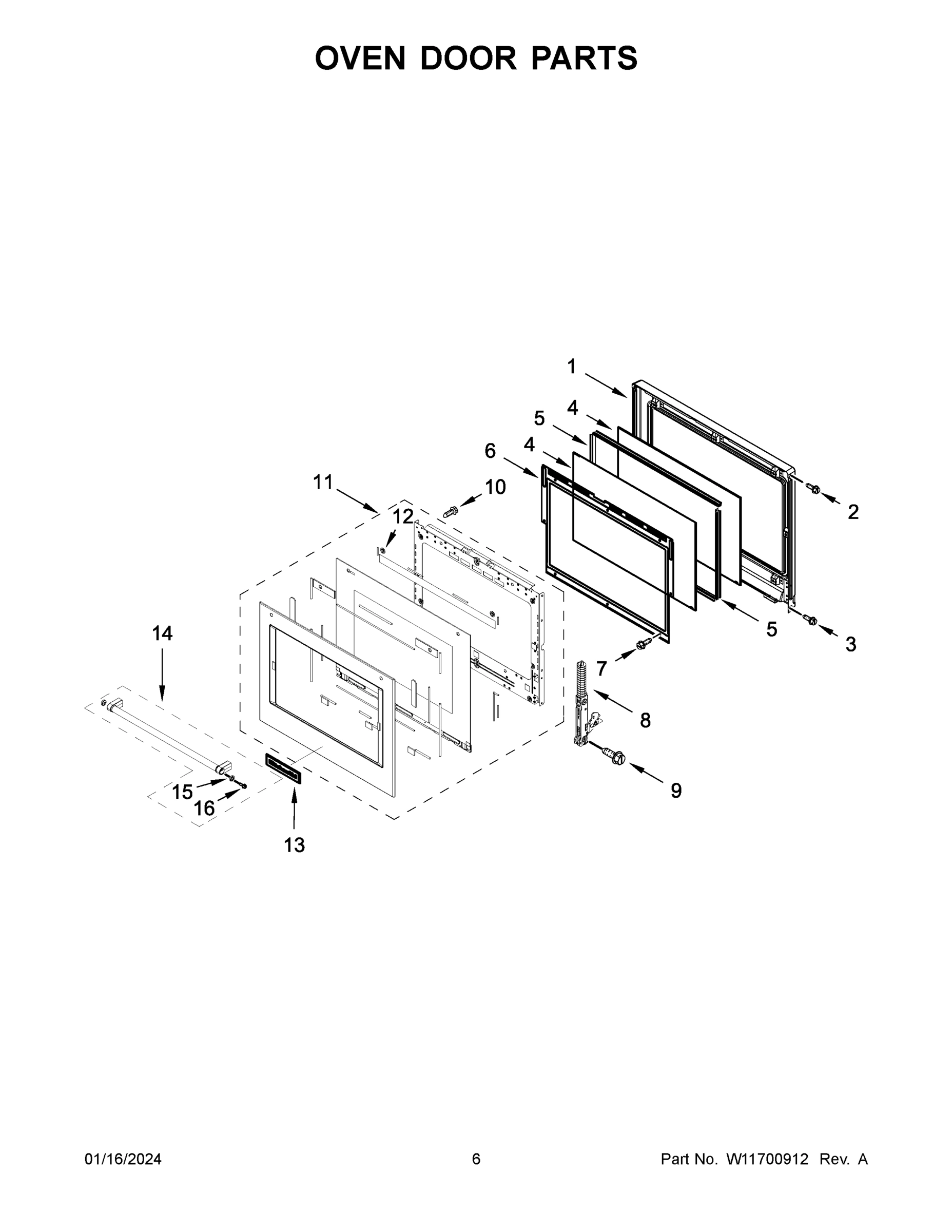

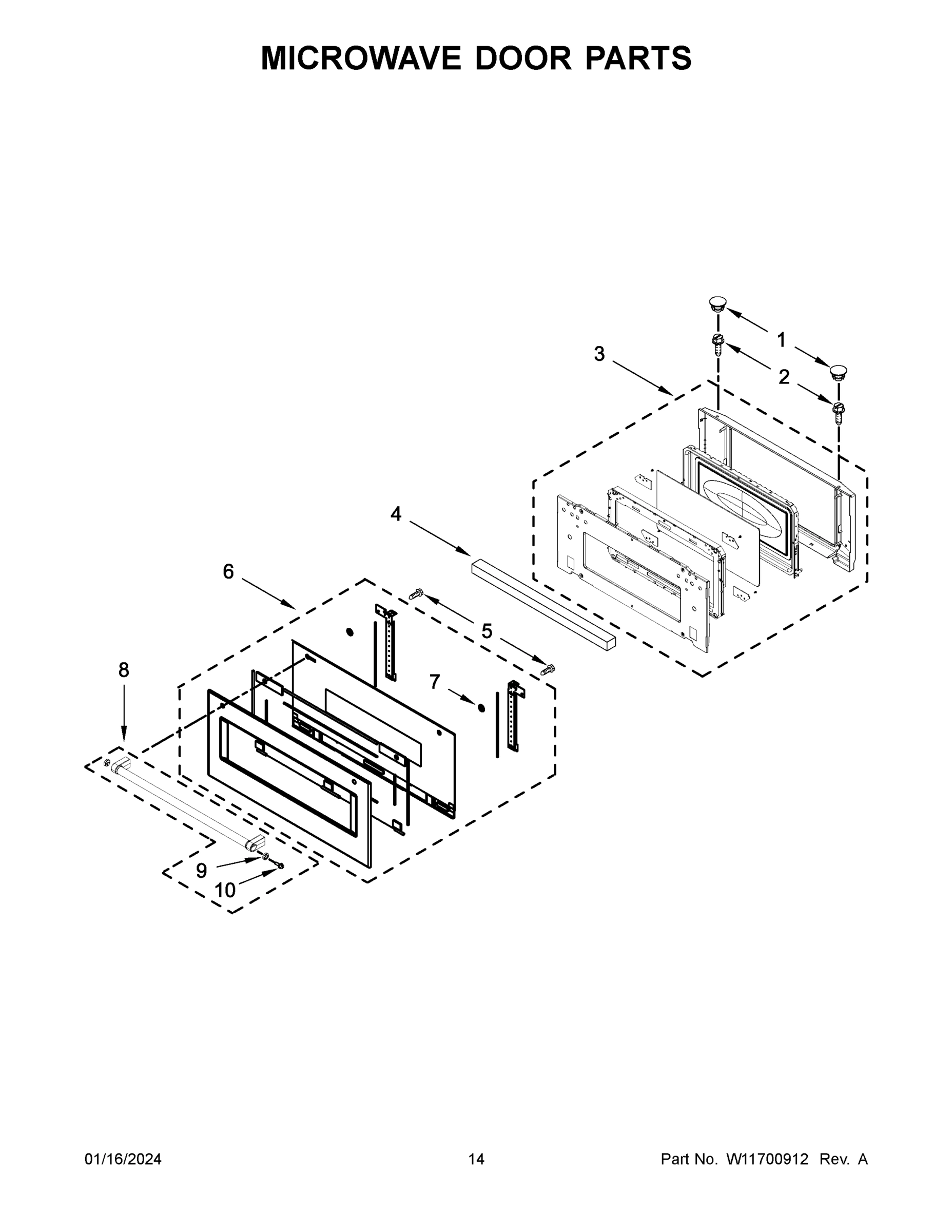

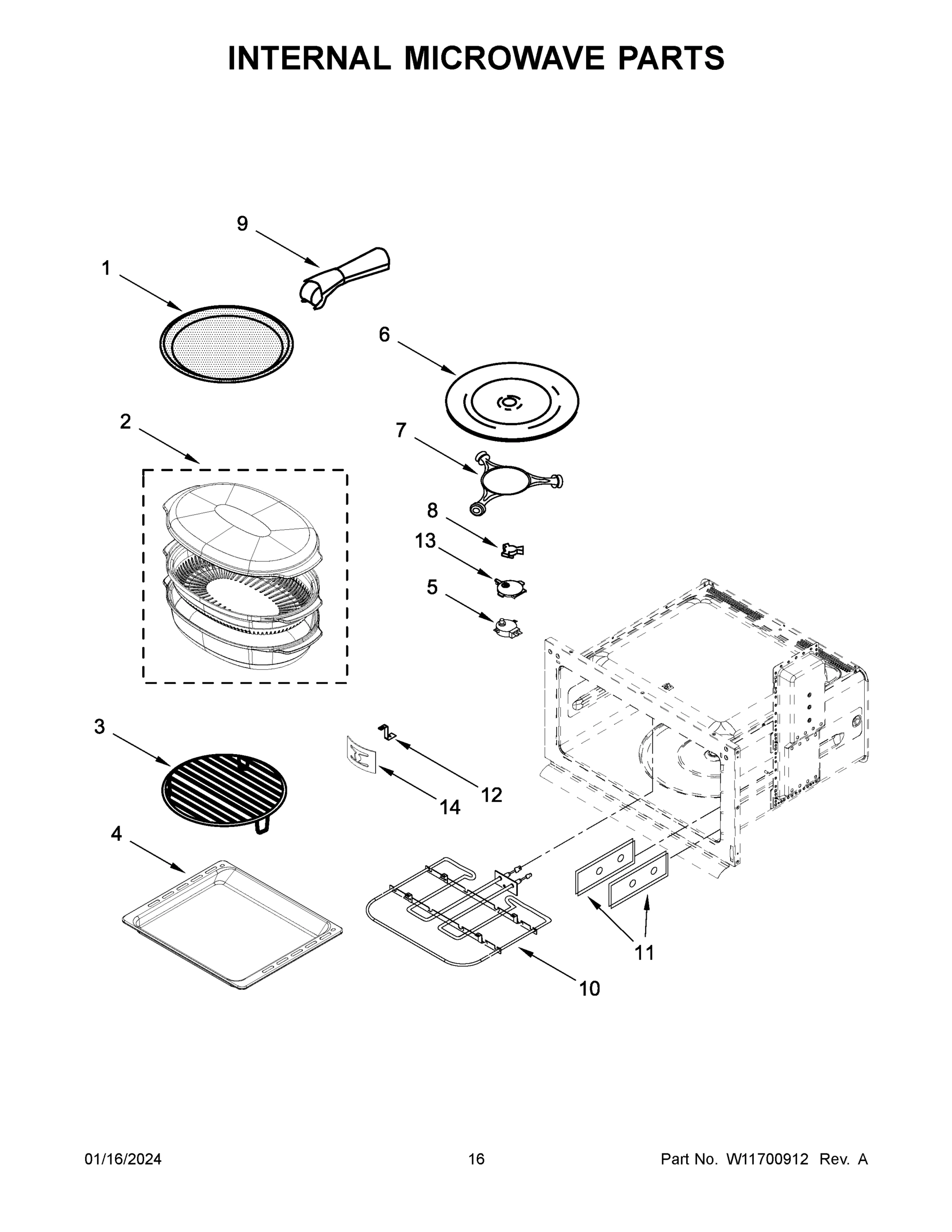

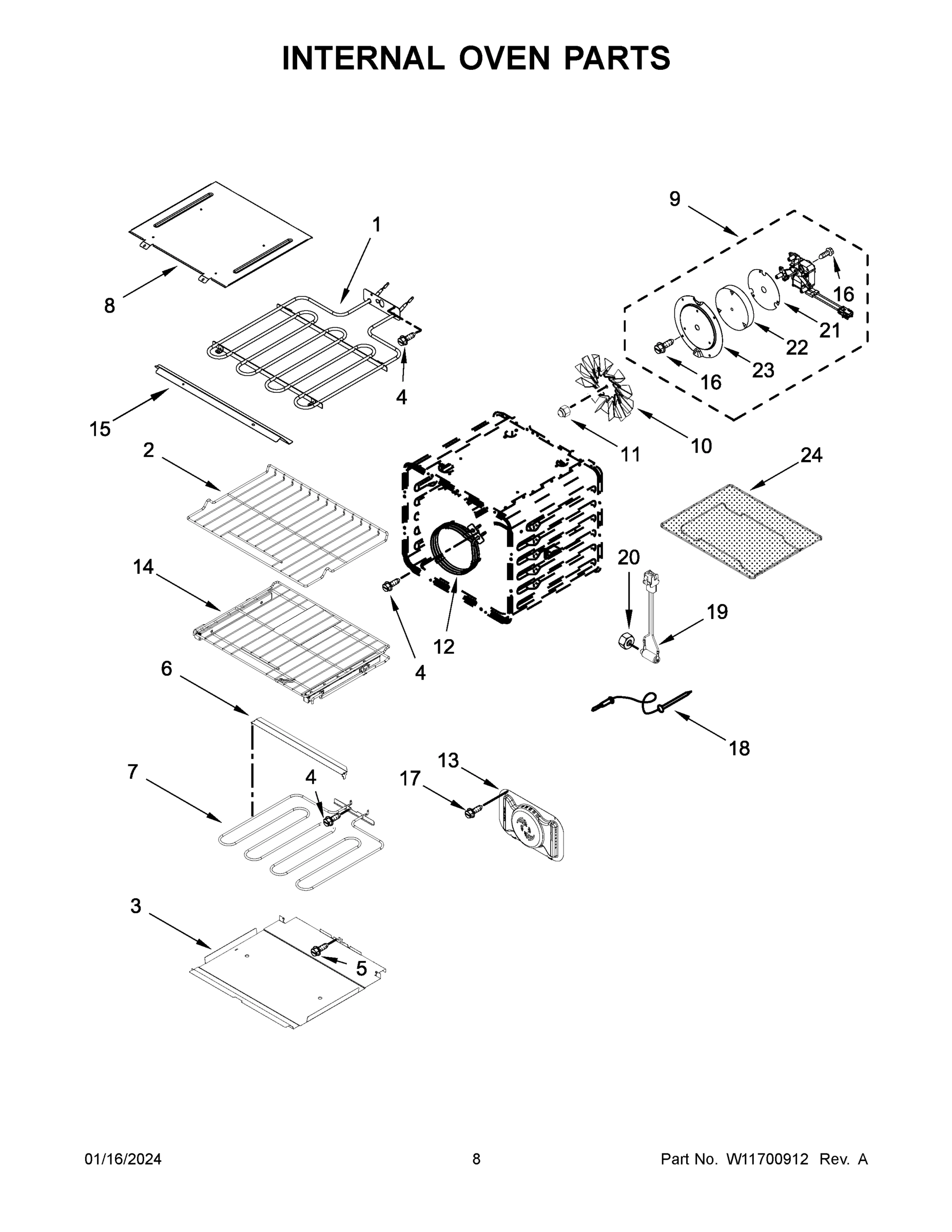

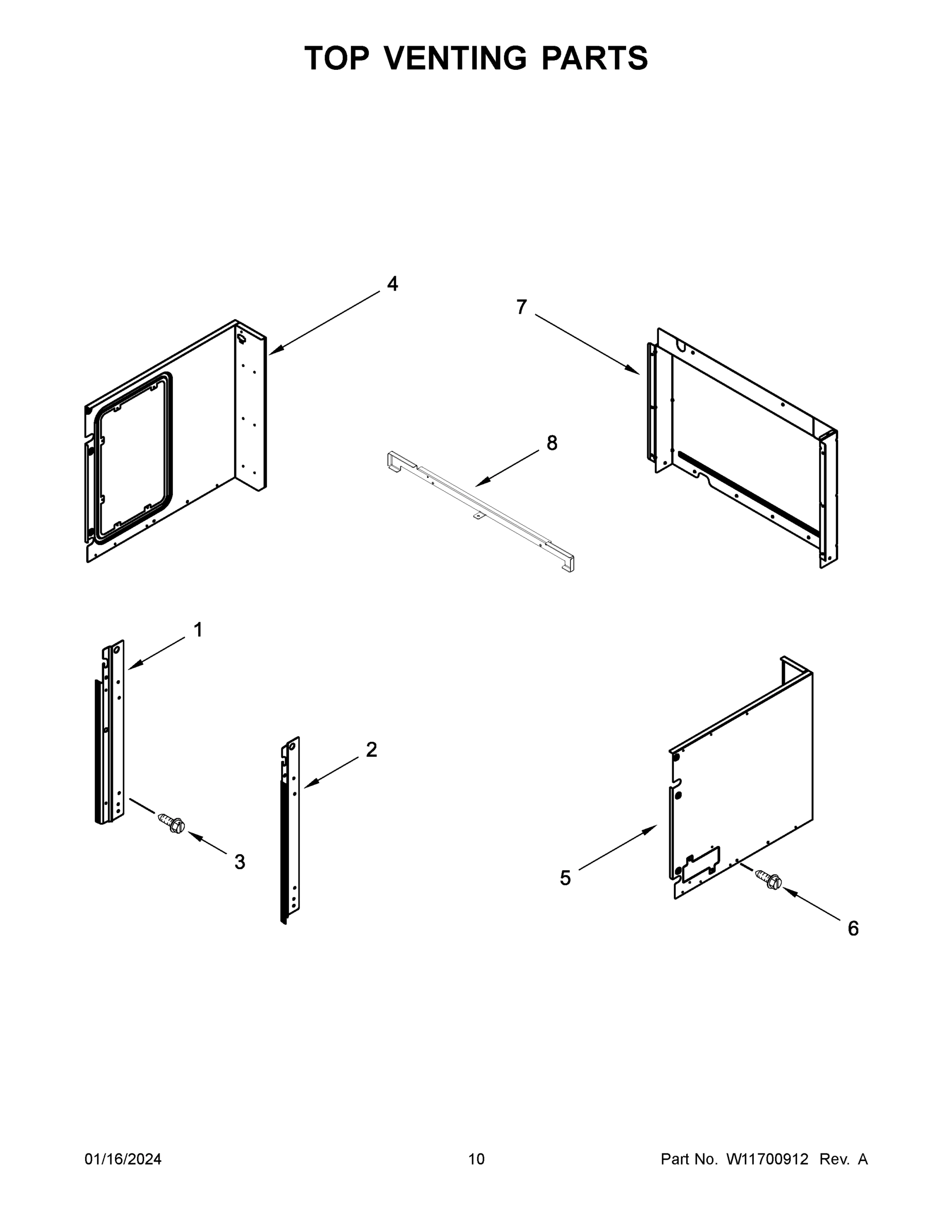

1

W11325786 Whirlpool Microwave Electronic Cont In Stock WPL W11325786 $122.13

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

W11598186 Whirlpool Glass Frame Backorder WPL W11598186 $122.20

1

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $20.33

1

Backorder WPL W11755098 $34.77

2

W10796139 Whirlpool Microwave Cookware Backorder WPL W10796139 $15.23

2

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

2

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $20.33

2

WPW10554529 Whirlpool Oven Rack Backorder WPL WPW10554529 $65.23

2

SCREW WPL 7101P37560 Contact Us For Availability

2

SCREW WPL 7101P33860 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

3

W11639552 Whirlpool Microwave Door Backorder WPL W11639552 $273.17

3

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $44.91

3

SCREW (BLACK) WPL 7101P63360 Contact Us For Availability

4

W10359769 Whirlpool Microwave Door Gasket In Stock WPL W10359769 $8.18

4

W10587374 Whirlpool Baking Pan In Stock WPL W10587374 $28.17

4

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

4

WPW10284902 Whirlpool Door Glass Backorder WPL WPW10284902 $87.51

4

SCREW WPL 7101P43460 Contact Us For Availability

4

SIDE, COMBO CHASSIS (LEFT) WPL W11171909 Contact Us For Availability

5

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

5

W11598187 Whirlpool Bracket Assembly Backorder WPL W11598187 $31.35

5

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

5

SIDE, COMBO CHASSIS (RIGHT) WPL W11171919 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $54.92

6

W11578573 Whirlpool Filter Backorder WPL W11578573 $39.09

6

W11598188 Whirlpool Retainer Backorder WPL W11598188 $26.74

6

W11600218 Whirlpool Glass Door Backorder WPL W11600218 $463.20

6

SCREW WPL 7101P42660 Contact Us For Availability

7

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $35.98

7

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

7

W11171004 Whirlpool Rear Cover Backorder WPL W11171004 $49.54

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

8

461967017511 Whirlpool Microwave Trim Backorder WPL 461967017511 $19.58

8

W10283023 Whirlpool Support Backorder WPL W10283023 $26.21

8

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $12.65

8

W11525064 Whirlpool Door Handle Backorder WPL W11525064 $80.11

8

W11598121 Whirlpool Top-Cabnt Backorder WPL W11598121 $28.38

8

W11665208 Whirlpool Door Hinge Backorder WPL W11665208 $60.36

8A

W11044584 Whirlpool Microwave Trim In Stock WPL W11044584 $19.58

8A

W11665209 Whirlpool Door Hinge Backorder WPL W11665209 $51.68

9

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

9

W10846207 Whirlpool Refrigerator Handle Medal Backorder WPL W10846207 $12.99

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11218702 Whirlpool Microwave Handle Panel Backorder WPL W11218702 $60.58

9

W11617227 Whirlpool Fan Motor In Stock WPL W11617227 $92.22

9

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

10

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

10

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

10

WPW10387651 Whirlpool Microwave Element Backorder WPL WPW10387651 $152.39

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

W11600238 Whirlpool Door Glass Backorder WPL W11600238 $570.17

12

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $5.87

12

W11676355 Whirlpool Washer Backorder WPL W11676355 $8.11

12

W11678579 Whirlpool Element Backorder WPL W11678579 $41.94

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

W11234763 Whirlpool Convection Baffle Backorder WPL W11234763 $79.19

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $8.20

14

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $55.75

14

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

15

Backorder WPL W10588737 $39.82

15

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $70.43

16

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

16

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

16

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

17

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

17

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

17A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

18

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

18

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

19

W11033422 Whirlpool Microwave Interlock In Stock WPL W11033422 $107.41

19

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

19

BASE, CHASSIS WPL W11244454 Contact Us For Availability

20

W10211972 Whirlpool Microwave Switch Backorder WPL W10211972 $28.44

20

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

20

ASSEMBLY, BOTTOM VENT (BLACK) WPL W11467807 Contact Us For Availability

21

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $12.66

21

W11244446 Whirlpool Cover Access Backorder WPL W11244446 $46.67

21

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

22

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

22

W10283021 Whirlpool Support Backorder WPL W10283021 $26.90

22

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

23

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

23

SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability

23

COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability

24

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

24

W11692811 Whirlpool Fryer Basket In Stock WPL W11692811 $54.30

24

SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability

25

W11598125 Whirlpool Bumper Backorder WPL W11598125 $10.76

25

VENT, TOP WPL W11334717 Contact Us For Availability

26

W11699906 Whirlpool Sensor In Stock WPL W11699906 $50.29

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

27

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

28

W11714253 Whirlpool Door Hinge In Stock WPL W11714253 $35.72

28

DEFLECTOR, CHASSIS (LEFT) WPL W11186391 Contact Us For Availability

28A

DEFLECTOR, CHASSIS (RIGHT) WPL W11186398 Contact Us For Availability

29

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $36.14

29

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

30

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $74.14

30

TRIM, BOTTOM VENT (BLACK) WPL W11624688 Contact Us For Availability

31

W11578579 Whirlpool Inverter In Stock WPL W11578579 $99.63

31

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

32

461967825971 Whirlpool Oven Screw Backorder WPL 461967825971 $7.58

32

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

33

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

33

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

34

W11208292 Whirlpool Microwave Sensor In Stock WPL W11208292 $59.10

34

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

35

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

35

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

35A

W11235458 Whirlpool Trim Backorder WPL W11235458 $29.54

36

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

36

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

37

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

37

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

38

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

38

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

38A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

39

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

40

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

41

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

43

HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability

44

HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W11539494 Whirlpool Wire Harness Backorder WPL W11539494 $16.05

W11546965 Whirlpool Wire Harness Backorder WPL W11546965 $28.58

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $62.54

W11578580 Whirlpool Wire Harness Backorder WPL W11578580 $10.08

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability

INSULATION, WRAP WPL W11244474 Contact Us For Availability

INSULATION, BACK WPL W11244475 Contact Us For Availability

MISCELLANEOUS PARTS WPL ARI2EB13EA73395E08F3EB3E7CF4E6B6B38 Contact Us For Availability
