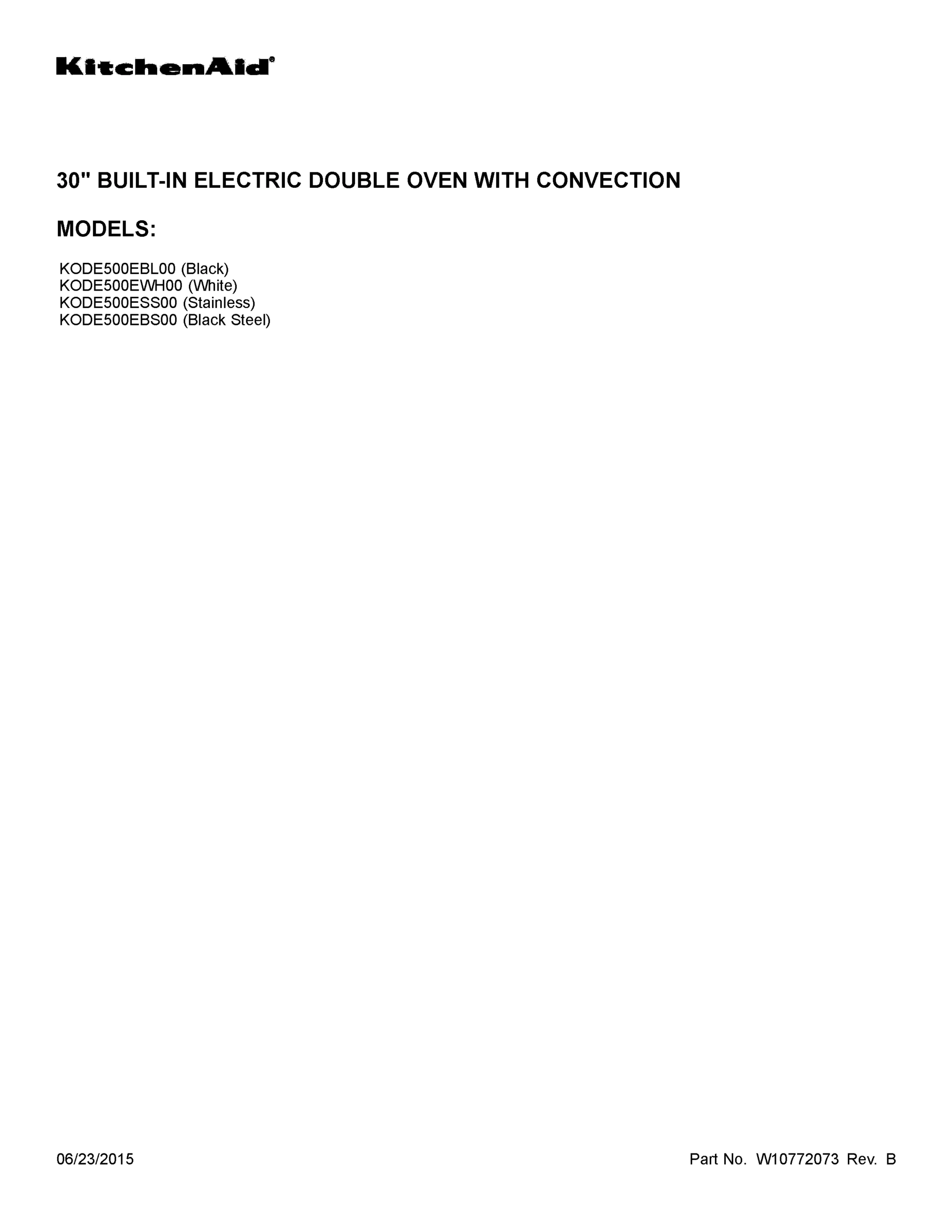

Model Whirlpool KODE500ESS00 ELECTRIC OVEN – Common Parts &amp; Diagrams

1

WPW10347596 Whirlpool Stove Middle Door Glass In Stock WPL WPW10347596 $146.08

2

W11240525 Whirlpool Vent Tube Backorder WPL W11240525 $10.76

2

WPW10554526 Whirlpool Oven Rack In Stock WPL WPW10554526 $69.05

2A

W10916776 Whirlpool Membrane Switch Backorder WPL W10916776 $327.34

2C

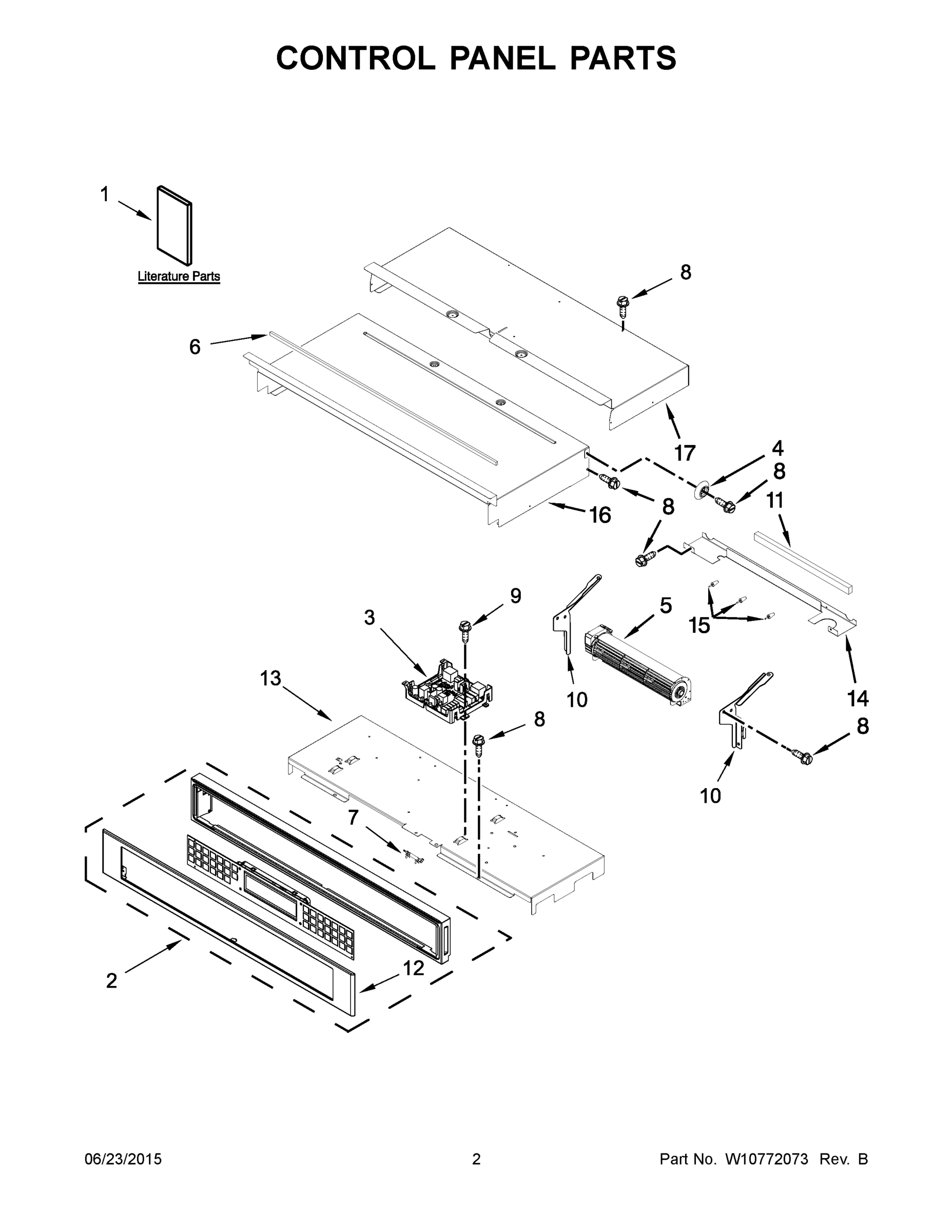

W10697967 Whirlpool Control Panel Backorder WPL W10697967 $315.92

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11179310-includeCORE Whirlpool W11179310 Was Backorder WPL W11179310-includeCORE $262.99

3

W11613828 Whirlpool Hinge Receptacle Backorder WPL W11613828 $24.58

3

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

4

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

4

W11240831 Whirlpool Spacer Backorder WPL W11240831 $6.42

5

W10883049 Whirlpool Door Latch Backorder WPL W10883049 $134.29

5

W11245567 Whirlpool Blower Assembly In Stock WPL W11245567 $140.07

5

WPW10709147 Whirlpool Glass Frame In Stock WPL WPW10709147 $173.19

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W10825778 Whirlpool Door Hinge In Stock WPL W10825778 $38.45

6

WPW10657548 Whirlpool Foam Seal Backorder WPL WPW10657548 $34.18

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

8

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $74.69

8

W11518518 Whirlpool Door Handle Backorder WPL W11518518 $77.31

9

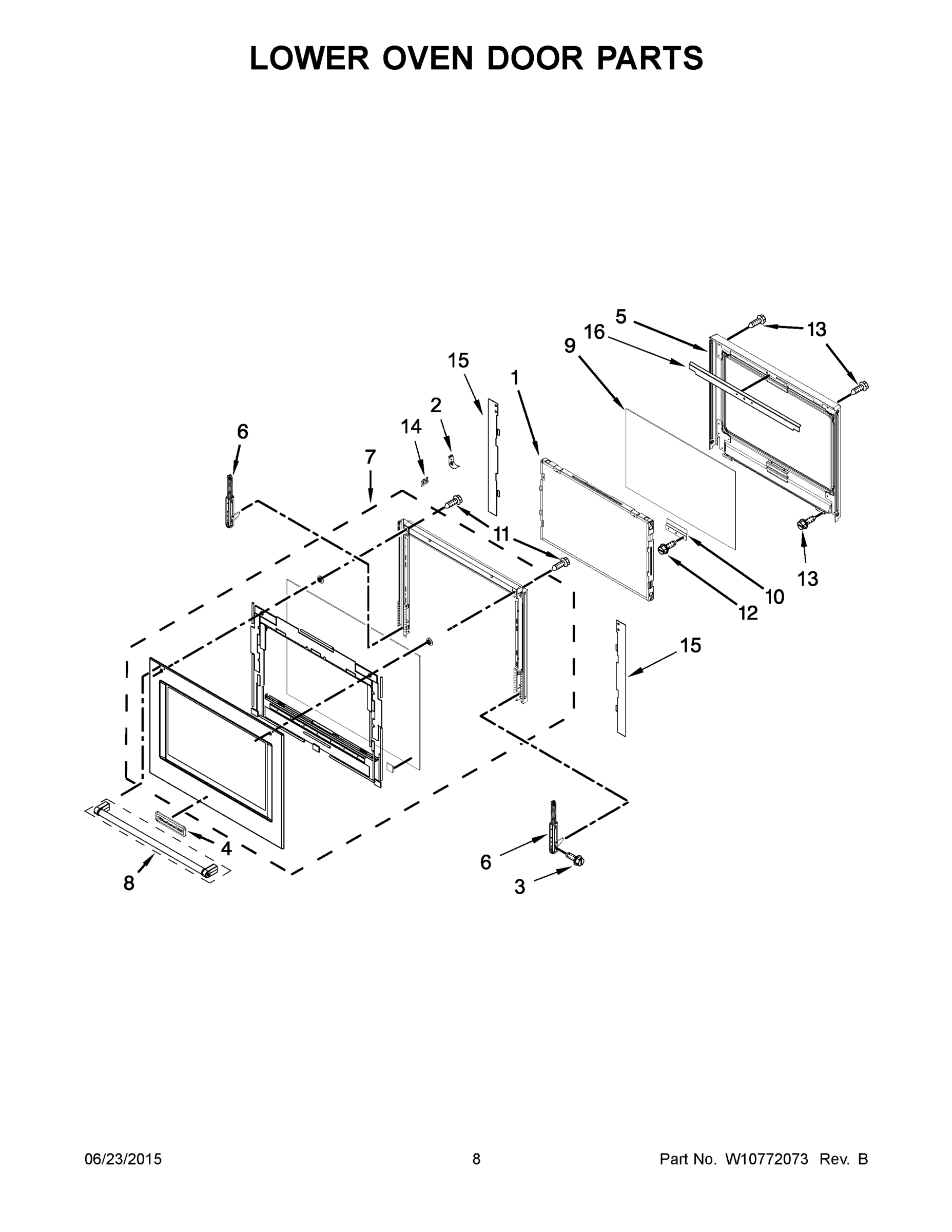

WPW10618107 Whirlpool Door Glass Assembly In Stock WPL WPW10618107 $119.42

10

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

11

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

11

W11623080 Whirlpool Gasket In Stock WPL W11623080 $37.39

11

W11678579 Whirlpool Element Backorder WPL W11678579 $41.94

12

W10588744 Whirlpool Control Panel Backorder WPL W10588744 $131.72

12

W10616810 Whirlpool Exhaust Cover Backorder WPL W10616810 $29.04

12

W11234761 Whirlpool Baffle Convector Backorder WPL W11234761 $79.19

12A

W10725944 Whirlpool Convection Baffle Backorder WPL W10725944 $59.71

12B

W10588740 Whirlpool Control Panel In Stock WPL W10588740 $115.82

12C

W10776407 Whirlpool Control Panel Backorder WPL W10776407 $127.91

13

W11290999 Whirlpool Shield Heat Backorder WPL W11290999 $74.05

13

SIDE, CHASSIS WPL W10318190 Contact Us For Availability

W10588738 Whirlpool Heat Shield Backorder WPL W10588738 $38.85

W10655465 Whirlpool Mounting Bracket Backorder WPL W10655465 $26.10

W11025615 Whirlpool Glass Bracket Backorder WPL W11025615 $62.17

BACK, CHASSIS WPL W10696134 Contact Us For Availability

15

W10351295 Whirlpool Bumper Assembly Backorder WPL W10351295 $10.76

15

W10687815 Whirlpool Glass Bracket Backorder WPL W10687815 $24.80

15

WPW10524044 Whirlpool Jack Probe Backorder WPL WPW10524044 $81.23

15A

W10687814 Whirlpool Glass Bracket Backorder WPL W10687814 $24.80

16

W10318192 Whirlpool Cabinet Top Backorder WPL W10318192 $51.99

16

W10669415 Whirlpool Glass Bracket Backorder WPL W10669415 $24.01

16

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $68.99

17

W10904156 Whirlpool Cabinet Top Backorder WPL W10904156 $62.92

18

W11718046 Whirlpool Rack In Stock WPL W11718046 $70.59

18

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

19

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

20

WPW10351275 Whirlpool Oven Vent Backorder WPL WPW10351275 $464.71

20B

WPW10327374 Whirlpool Oven Vent Backorder WPL WPW10327374 $178.48

20C

ASSEMBLY, BOTTOM VENT (BLACK STEEL) WPL W10723091 Contact Us For Availability

22

WPW10351236 Whirlpool Trim Backorder WPL WPW10351236 $86.25

22B

WPW10327377 Whirlpool Trim Kit Backorder WPL WPW10327377 $72.35

28

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

31

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

32

DUCT, CHASSIS BACK (LOWER) WPL W10542857 Contact Us For Availability

33

W10616809 Whirlpool Vent Tube Backorder WPL W10616809 $11.47

35

VENT, CENTER 30" WPL W10283040 Contact Us For Availability

36

VENT, TOP 30" WPL W10283036 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

4452400 Whirlpool Microwave Wire Harness Backorder WPL 4452400 $27.03

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10573327 Whirlpool Wire Harness Backorder WPL W10573327 $24.56

W10632452 Whirlpool Wire Harness Backorder WPL W10632452 $193.00

W10655464 Whirlpool Bracket Backorder WPL W10655464 $14.22

W11157221 Whirlpool Wire Harness Backorder WPL W11157221 $78.81

W11688731 Whirlpool Insulation Backorder WPL W11688731 $45.31

W11699910 Whirlpool Wire Harness Backorder WPL W11699910 $11.79

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
