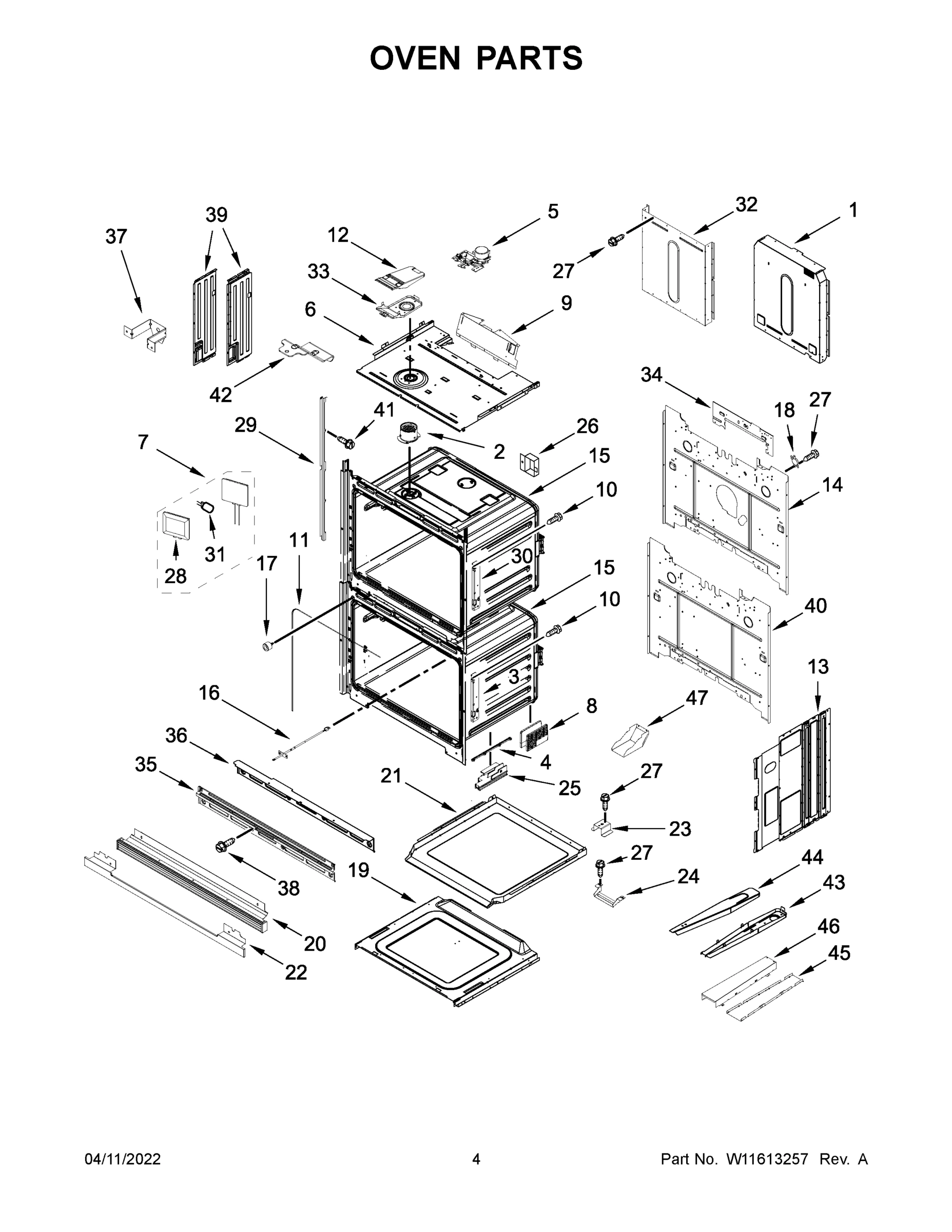

03 - OVEN PARTS

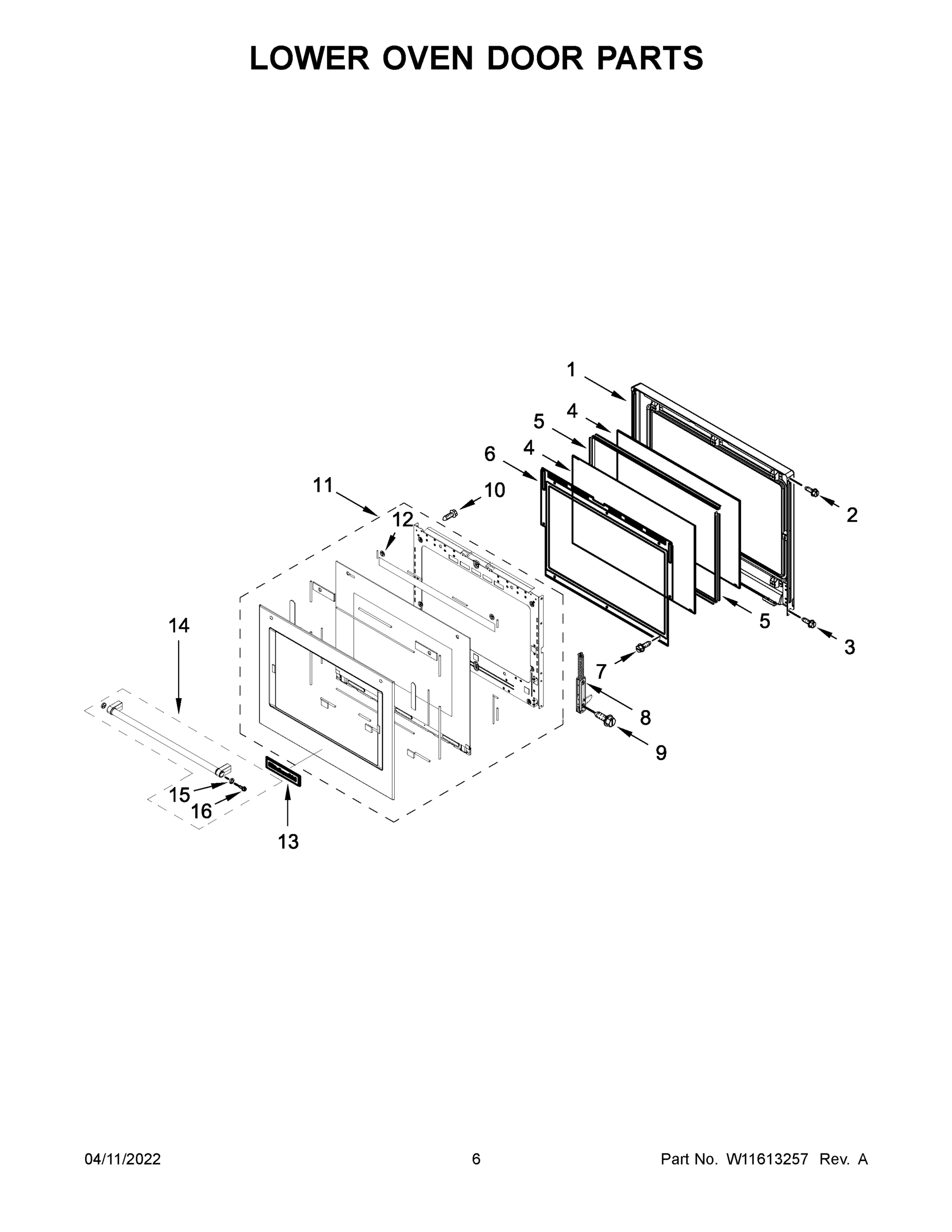

04 - LOWER OVEN DOOR PARTS

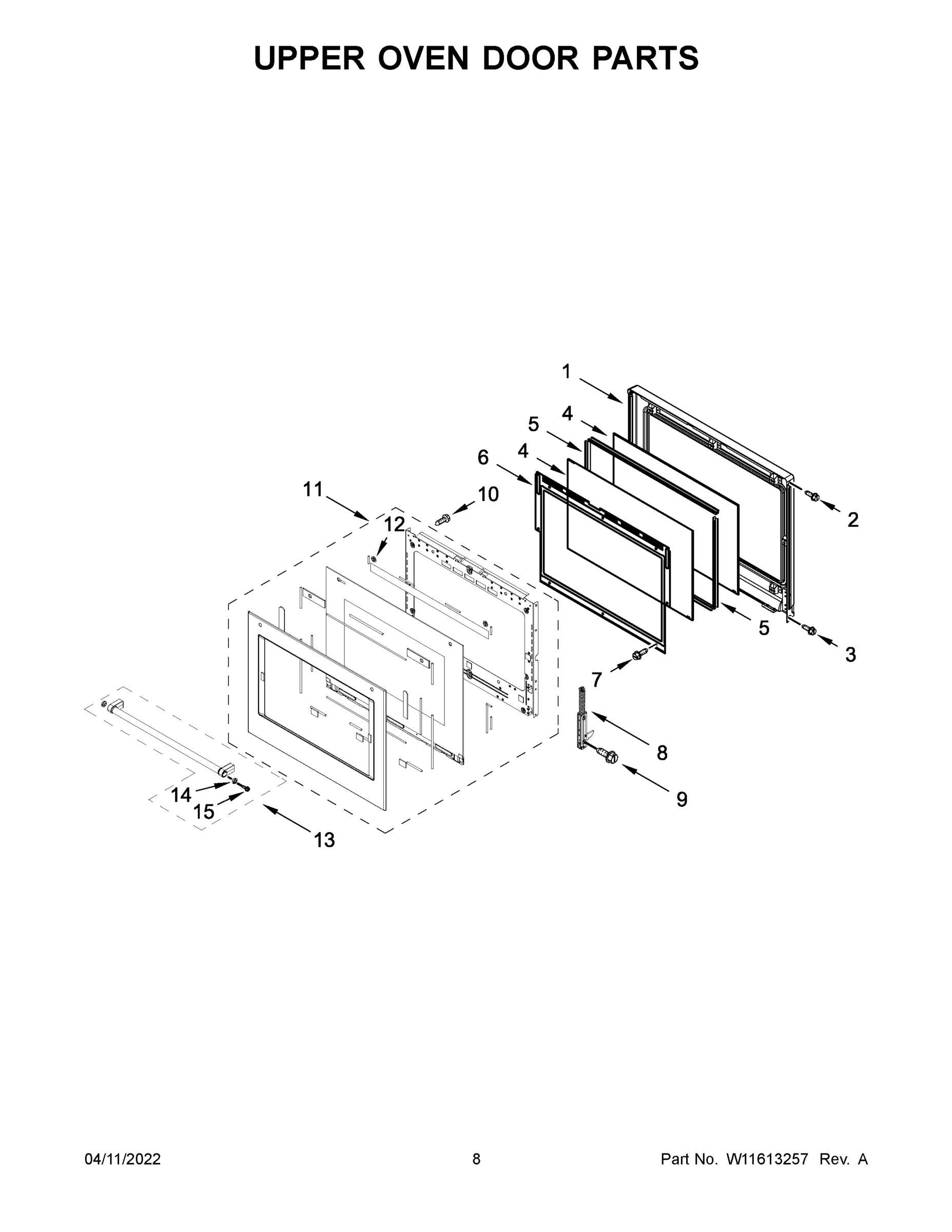

05 - UPPER OVEN DOOR PARTS

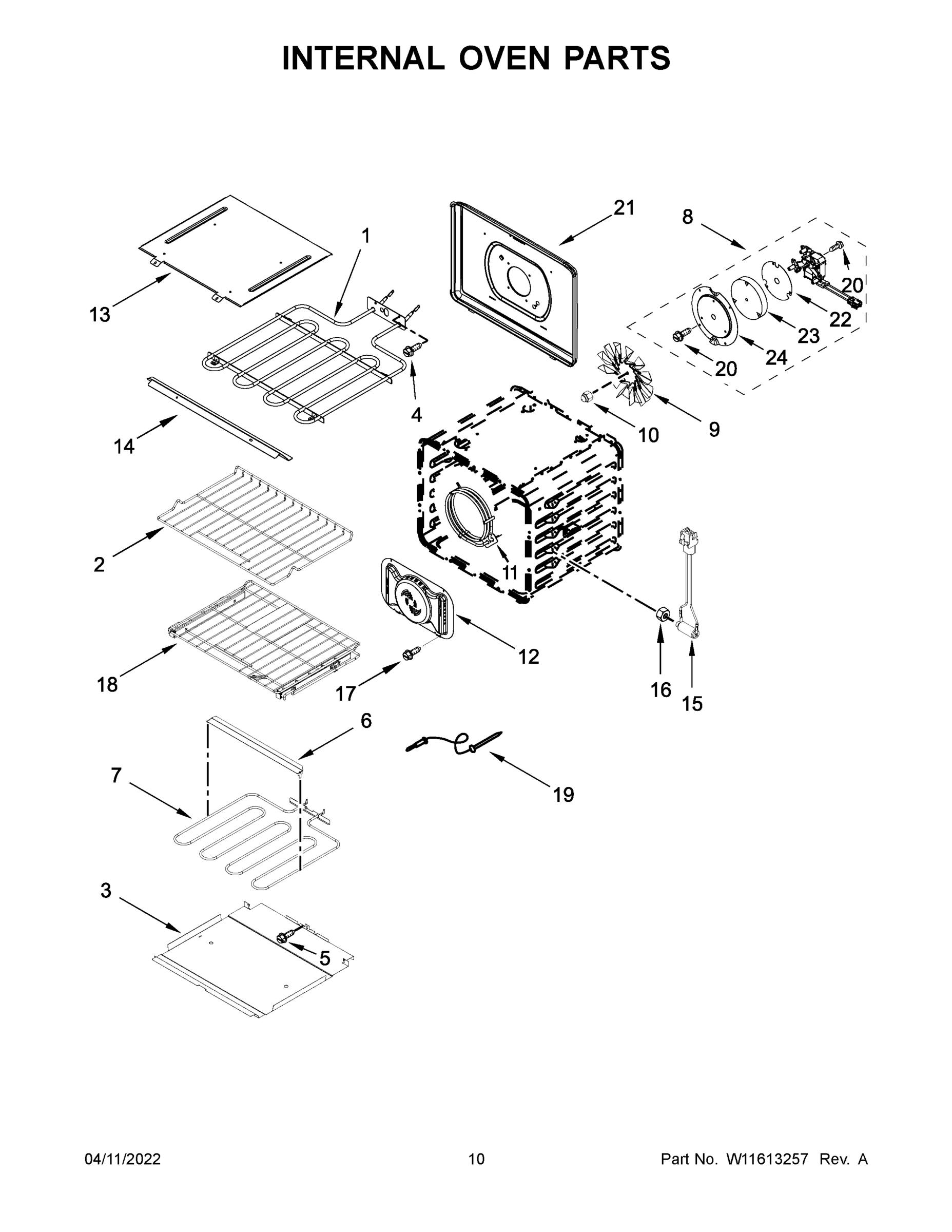

06 - INTERNAL OVEN PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool KODE300ESS20 WALL OVEN, ELECTRIC, DOUBLE, 30 INCH
1
DUCT, CHASSIS BACK (UPPER) WPL W11165250 Contact Us For Availability
2
SCREW WPL 7101P37560 Contact Us For Availability
3
TRAY, HIDDEN BAKE WPL W10318198 Contact Us For Availability
4
SCREW WPL 7101P43460 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
6
CROSSBAR, HIDDEN BAKE TRAY WPL W10282957 Contact Us For Availability
6
TOP, CHASSIS WPL W11168071 Contact Us For Availability
9
DEFLECTOR, BLOWER WPL W10904163 Contact Us For Availability
12
SKIN, CONTROL PANEL (STAINLESS) WPL W10588740 Contact Us For Availability
12
COVER, VENT EXHAUST WPL W11256424 Contact Us For Availability
13
SIDE, CHASSIS WPL W11165274 Contact Us For Availability
14
BACK, CHASSIS (UPPER) WPL W11223327 Contact Us For Availability
14
SHIELD, BROIL FRONT WPL W10588737 Contact Us For Availability
15
BUMPER WPL W10351295 Contact Us For Availability
15
JACK, MEAT PROBE WPL W11252826 Contact Us For Availability
21
DUCT, BOTTOM CHASSIS WPL W11244446 Contact Us For Availability
21
BACK, CAVITY BAFFLE BOWTIE WPL W11198517 Contact Us For Availability
22
PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability
23
SUPPORT, AIR CHANNEL WPL W11135135 Contact Us For Availability
23
INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability
24
SPACER, CHASSIS BOTTOM DUCT WPL W11390667 Contact Us For Availability
24
COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability
26
COVER, CONNECTOR WPL 8285593 Contact Us For Availability
29
COVER, SIDE TRIM (LEFT) WPL W11235460 Contact Us For Availability
29A
COVER, SIDE TRIM (RIGHT) WPL W11235461 Contact Us For Availability
33
BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability
34
BRACKET, U-SHAPE WPL W11186652 Contact Us For Availability
35
VENT, CENTER 30" WPL W11235482 Contact Us For Availability
37
HAT BRACKET, VENT WPL W11344645 Contact Us For Availability
40
BACK, CHASSIS (LOWER) WPL W11442209 Contact Us For Availability
42
BRACKET, TOP FRONT WPL W11342780 Contact Us For Availability
43
BASE, TOP BACK EXHAUST WPL W11256420 Contact Us For Availability
44
COVER, TOP BACK EXHAUST WPL W11256421 Contact Us For Availability
45
BASE, LOWER BACK EXHAUST WPL W11256430 Contact Us For Availability
46
COVER, LOWER BACK EXHAUST WPL W11256431 Contact Us For Availability
47
DEFLECTOR, LOWER BACK EXHAUST WPL W11256432 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING WPL W10355049 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN AND ROASTI WPL W10123240 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) WPL 350938 Contact Us For Availability
NI
ACCESSORIES, STONE, BRICK PIZZA WPL 4378577 Contact Us For Availability
NI
BRACKET, HARNESS WPL W10655464 Contact Us For Availability
NI
PEDESTAL (REFER TO COL WPL NP Contact Us For Availability
NI
STRAP, LEAD GROUND WPL W11132988 Contact Us For Availability
NI
HARNESS, MAIN WPL W11455660 Contact Us For Availability
NI
HARNESS, SIGNAL WPL W11455661 Contact Us For Availability
NI
WPL W11188284 WPL W11188284 Contact Us For Availability
NI
WPL W11234758 WPL W11234758 Contact Us For Availability
× ![]()
