  • Whirlpool KOCE507ESS00

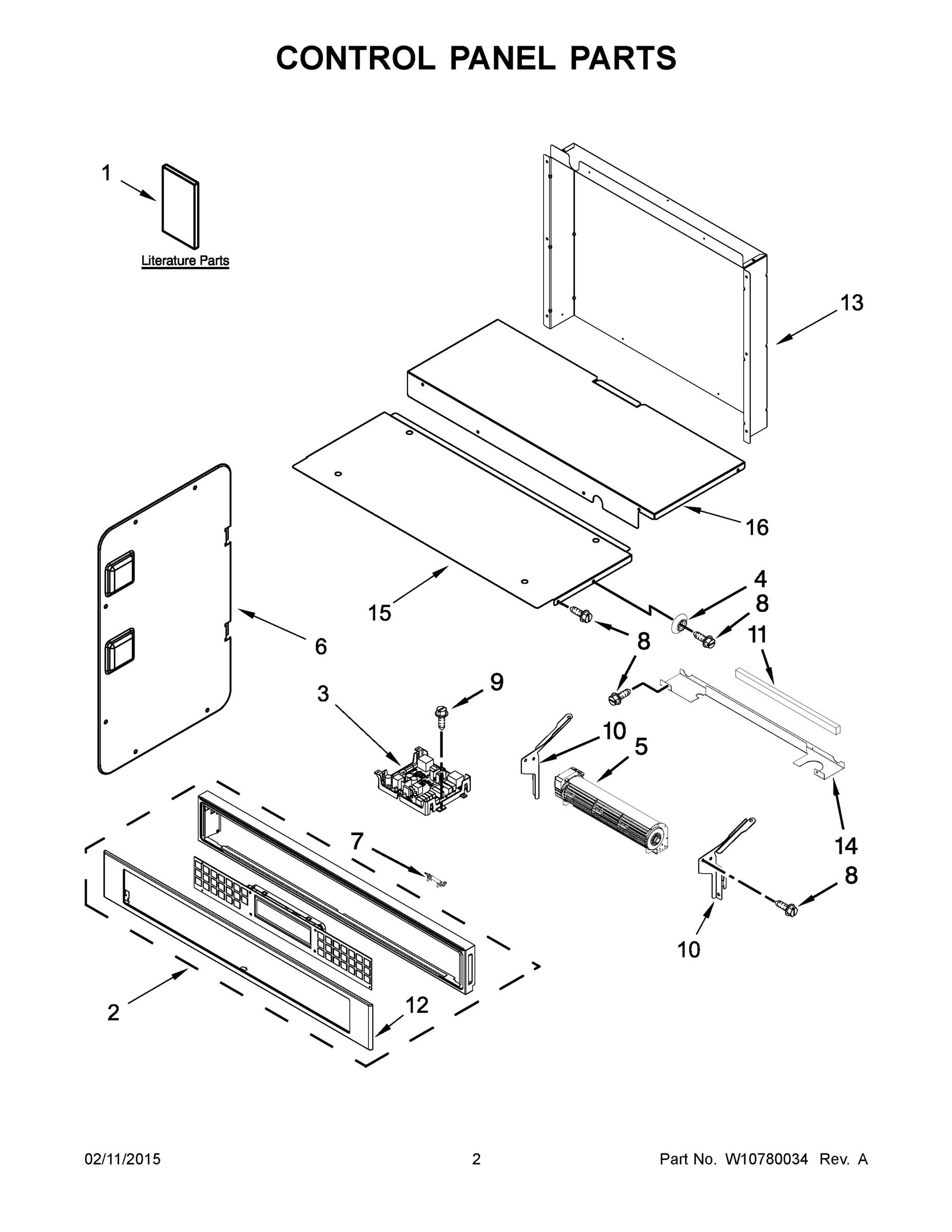

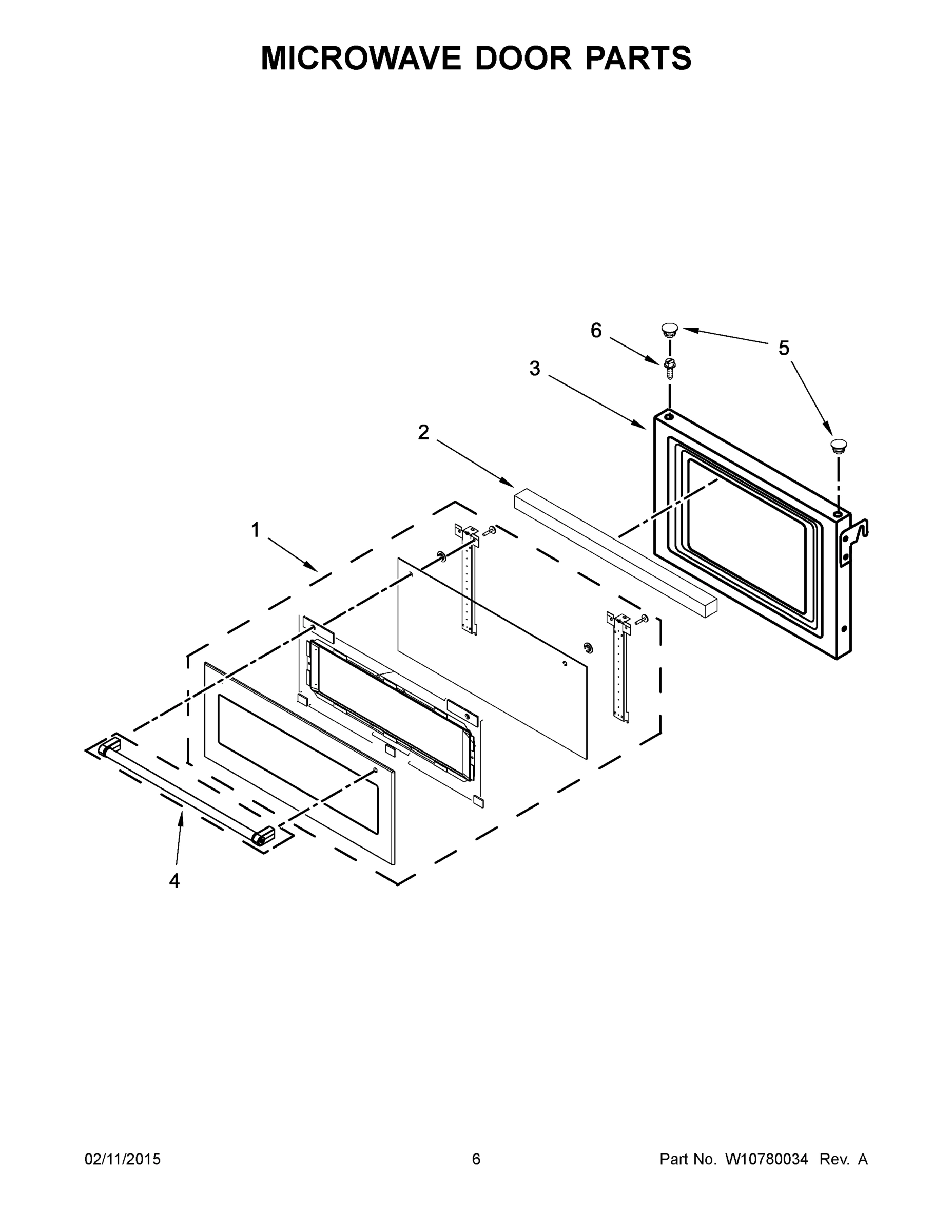

Model Whirlpool KOCE507ESS00 ELECTRIC OVEN – Common Parts & Diagrams

2
FOAM, HANDLE
FOAM, HANDLE WPL W10359769 Contact Us For Availability
View on Model
3
RACK, CONVECTION
RACK, CONVECTION WPL 4452220 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 7101P37660 Contact Us For Availability
View on Model
5
CAP, SCREW
CAP, SCREW WPL 8304588BL Contact Us For Availability
View on Model
5
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
7
CONTROL, ELECTRIC CONVERTER
CONTROL, ELECTRIC CONVERTER WPL W10120228 Contact Us For Availability
View on Model
12
COVER, VENT EXHAUST
COVER, VENT EXHAUST WPL W10616810 Contact Us For Availability
View on Model
12B
SKIN, CONTROL PANEL (STAINLESS)
SKIN, CONTROL PANEL (STAINLESS) WPL W10588741 Contact Us For Availability
View on Model
13
SIDE, CHASSIS
SIDE, CHASSIS WPL W10318190 Contact Us For Availability
View on Model
13
SCREW (BLACK)
SCREW (BLACK) WPL 7101P63360 Contact Us For Availability
View on Model
14
CHASSIS, BACK DIVIDER
CHASSIS, BACK DIVIDER WPL W10655465 Contact Us For Availability
View on Model
15
EXTENSION, SIDE RAIL (LEFT)
EXTENSION, SIDE RAIL (LEFT) WPL W10687815 Contact Us For Availability
View on Model
15
SHIELD, BROIL FRONT
SHIELD, BROIL FRONT WPL W10588738 Contact Us For Availability
View on Model
15A
EXTENSION, SIDE RAIL (RIGHT)
EXTENSION, SIDE RAIL (RIGHT) WPL W10687814 Contact Us For Availability
View on Model
16
SHIELD, DOOR LINER
SHIELD, DOOR LINER WPL W10669415 Contact Us For Availability
View on Model
16
SPRING, LAMP
SPRING, LAMP WPL W10475855 Contact Us For Availability
View on Model
19
BASE, CHASSIS
BASE, CHASSIS WPL W10282901 Contact Us For Availability
View on Model
20
ASSEMBLY, BOTTOM VENT (BLACK)
ASSEMBLY, BOTTOM VENT (BLACK) WPL W10351276 Contact Us For Availability
View on Model
20A
ASSEMBLY, BOTTOM VENT (WHITE)
ASSEMBLY, BOTTOM VENT (WHITE) WPL W10506349 Contact Us For Availability
View on Model
27
SUPPORT, BOTTOM
SUPPORT, BOTTOM WPL 8205707 Contact Us For Availability
View on Model
33
BASE, VENT EXHAUST
BASE, VENT EXHAUST WPL W10616809 Contact Us For Availability
View on Model
37
SIDE, BRACKET
SIDE, BRACKET WPL W10283025 Contact Us For Availability
View on Model
38
RAIL, SIDE (LEFT)
RAIL, SIDE (LEFT) WPL W10360517 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, STAINLESS STEEL
ACCESSORIES, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability
View on Model
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING
ACCESSORIES, RACK, BROILER PAN & ROASTING WPL W10123240 Contact Us For Availability
View on Model
NI
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE
ACCESSORIES, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability
View on Model
NI
PAINT, SPRAY (CITRINE WHITE)
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
View on Model
NI
HARNESS, COMMUNICATION
HARNESS, COMMUNICATION WPL W10603949 Contact Us For Availability
View on Model
NI
HOLDER, FUSE
HOLDER, FUSE WPL 4454949 Contact Us For Availability
View on Model
NI
HARNESS, DOOR LATCH
HARNESS, DOOR LATCH WPL W10573327 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10520716 Contact Us For Availability
View on Model
NI
FOLLOWING PARTS NOT ILLUSTRATED
FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability
View on Model
