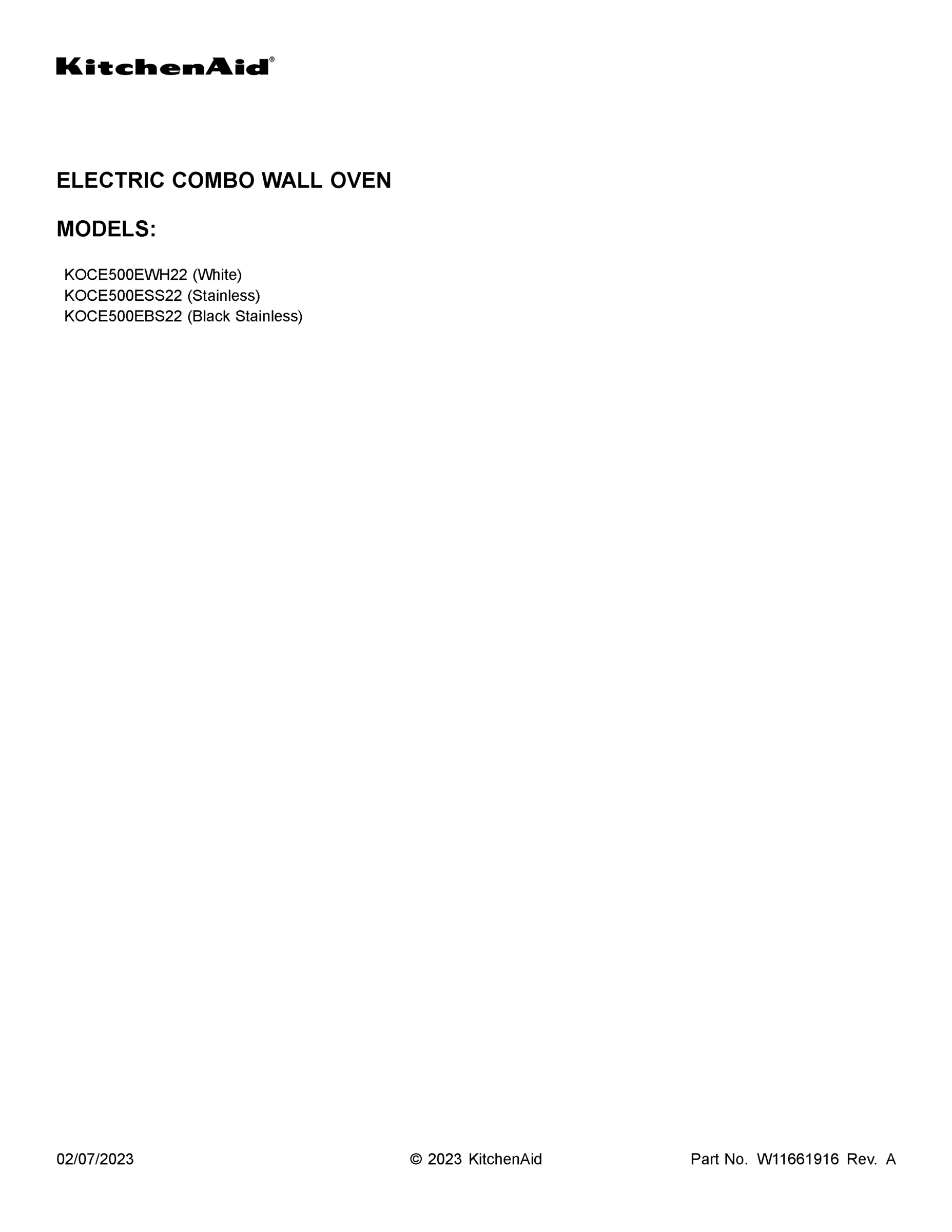

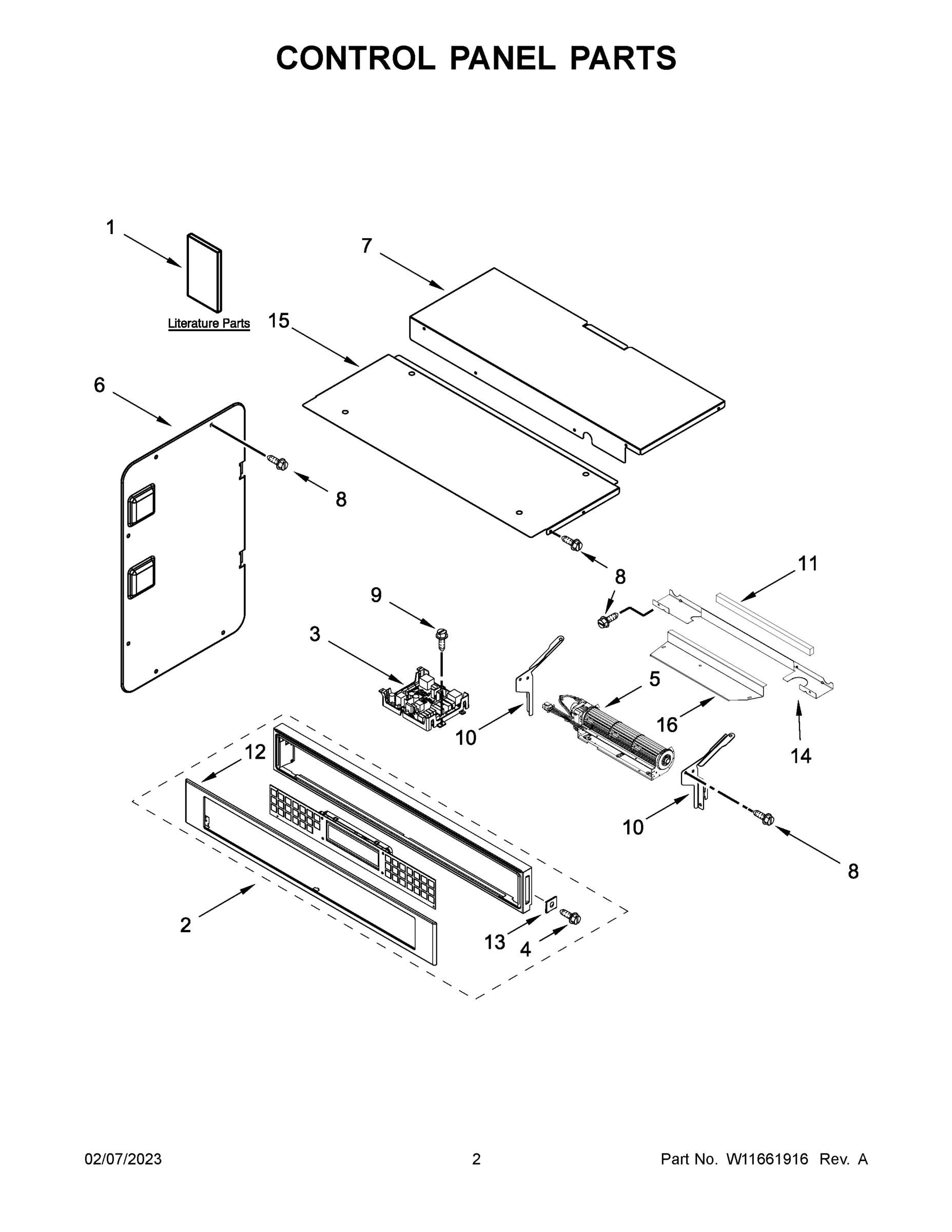

Model Whirlpool KOCE500ESS22 WALL OVEN, ELECTRIC, MICRO COMBO – Common Parts &amp; Diagrams

1

W11325786 Whirlpool Microwave Electronic Cont In Stock WPL W11325786 $122.13

1

W11598122 Whirlpool Broil Element Backorder WPL W11598122 $44.43

1

W11617223 Whirlpool Glass Frame In Stock WPL W11617223 $122.20

1

Backorder WPL W11755098 $34.77

2

W10796139 Whirlpool Microwave Cookware Backorder WPL W10796139 $15.23

2

W11607085 Whirlpool Microwave Thermostat Fix In Stock WPL W11607085 $16.05

2

WPW10554526 Whirlpool Oven Rack In Stock WPL WPW10554526 $69.05

2

SCREW WPL 7101P37560 Contact Us For Availability

2

SCREW WPL 7101P33860 Contact Us For Availability

3

W10318198 Whirlpool Bake Tray Backorder WPL W10318198 $66.19

3

W11175831 Whirlpool Microwave Rack In Stock WPL W11175831 $15.23

3

W11617225 Whirlpool Oven Screw Backorder WPL W11617225 $9.59

3

W11684570 Whirlpool Microwave Inner Door In Stock WPL W11684570 $275.51

3

WPW10493735 Whirlpool Microwave Heater Backorder WPL WPW10493735 $44.91

4

W10359769 Whirlpool Microwave Door Gasket In Stock WPL W10359769 $8.18

4

W10587374 Whirlpool Baking Pan In Stock WPL W10587374 $28.17

4

W11512064 Whirlpool Microwave Fan Backorder WPL W11512064 $60.85

4

WPW10618107 Whirlpool Door Glass Assembly In Stock WPL WPW10618107 $119.42

4

SCREW WPL 7101P43460 Contact Us For Availability

5

W10911403 Whirlpool Microwave Turn Motor In Stock WPL W10911403 $63.73

5

W11602624 Whirlpool Oven Screw In Stock WPL W11602624 $9.59

5

W11736671 Whirlpool Spacer Backorder WPL W11736671 $24.74

5

SCREW WPL 7101P42660 Contact Us For Availability

6

W10282957 Whirlpool Bracket Support In Stock WPL W10282957 $16.20

6

W11373838 Whirlpool Glass Tray In Stock WPL W11373838 $43.52

6

W11578573 Whirlpool Filter Backorder WPL W11578573 $39.09

6

W11598182 Whirlpool Retainer Clip Backorder WPL W11598182 $26.74

7

461967754821 Whirlpool Microwave Magnetic Duc Backorder WPL 461967754821 $35.98

7

W11110134 Whirlpool Glass Tray Support In Stock WPL W11110134 $37.66

7

W11545804 Whirlpool Bake Element In Stock WPL W11545804 $48.90

7

W11600237 Whirlpool Door Glass Backorder WPL W11600237 $394.70

7A

W11600216 Whirlpool Door Glass In Stock WPL W11600216 $394.70

7B

W11600215 Whirlpool Door Glass Backorder WPL W11600215 $463.20

8

W10486208 Whirlpool Microwave Trim Backorder WPL W10486208 $34.64

8

W11179756 Whirlpool Glass Tray Drive Coupling In Stock WPL W11179756 $12.65

8

W11518518 Whirlpool Door Handle Backorder WPL W11518518 $77.31

8

TOP-CABNT Backorder WPL W11598121 $28.38

8

W11712405 Whirlpool Receiver Hinge Backorder WPL W11712405 $30.05

8A

W11712406 Whirlpool Receiver Hinge Backorder WPL W11712406 $30.05

8A

TRIM, SIDE (RIGHT) WPL 461967017481 Contact Us For Availability

9

461967825321 Whirlpool Microwave Screw Backorder WPL 461967825321 $7.47

9

W10846207 Whirlpool Refrigerator Handle Medal Backorder WPL W10846207 $12.99

9

W10904163 Whirlpool Vent Deflector Backorder WPL W10904163 $61.11

9

W11218702 Whirlpool Microwave Handle Panel Backorder WPL W11218702 $60.58

9

W11617227 Whirlpool Fan Motor Backorder WPL W11617227 $92.22

9

WPW10254050 Whirlpool Screw Backorder WPL WPW10254050 $2.51

W11238401 Whirlpool Microwave Transformer In Stock WPL W11238401 $130.31

W11548755 Whirlpool Nut Backorder WPL W11548755 $9.59

W11700313 Whirlpool Door Hinge Backorder WPL W11700313 $39.36

WPW10387651 Whirlpool Microwave Element Backorder WPL WPW10387651 $152.39

10A

W11699927 Whirlpool Door Hinge In Stock WPL W11699927 $39.36

461967842541 Whirlpool Microwave Actuator Backorder WPL 461967842541 $27.87

W10915651 Whirlpool Waveguide Cover In Stock WPL W10915651 $32.79

W11548753 Whirlpool Convection Fan Backorder WPL W11548753 $55.82

WP3196183 Whirlpool Screw In Stock WPL WP3196183 $2.51

12

W11188752 Whirlpool Microwave Fuse In Stock WPL W11188752 $5.87

12

W11678579 Whirlpool Element Backorder WPL W11678579 $41.94

12A

W10588740 Whirlpool Control Panel In Stock WPL W10588740 $115.82

12B

W10776407 Whirlpool Control Panel Backorder WPL W10776407 $127.91

W10245194 Whirlpool Microwave Fuse Block Backorder WPL W10245194 $29.77

W11234761 Whirlpool Baffle Convector Backorder WPL W11234761 $79.19

W11600236 Whirlpool Door Glass Backorder WPL W11600236 $463.20

W11676353 Whirlpool Tt Motor Adapter Omi In Stock WPL W11676353 $8.20

13A

W11234763 Whirlpool Convection Baffle Backorder WPL W11234763 $79.19

13A

W11600222 Whirlpool Door Glass In Stock WPL W11600222 $500.24

13B

W11600221 Whirlpool Door Glass Backorder WPL W11600221 $570.17

W11233913 Whirlpool Microwave Sensor In Stock WPL W11233913 $55.75

W11676355 Whirlpool Washer In Stock WPL W11676355 $8.11

W11718046 Whirlpool Rack In Stock WPL W11718046 $70.59

W11724411 Whirlpool Support In Stock WPL W11724411 $21.74

15

Backorder WPL W10588737 $39.82

15

W10839793 Whirlpool Refrigerator Nameplate In Stock WPL W10839793 $22.77

15

W11578959 Whirlpool Magnetron In Stock WPL W11578959 $70.43

16

W10465869 Whirlpool Microwave Spring Backorder WPL W10465869 $36.67

16

W10850807 Whirlpool Screw Backorder WPL W10850807 $2.51

17

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.51

17

WPW10490593 Whirlpool Microwave Lamp Housing In Stock WPL WPW10490593 $27.05

W10886919 Whirlpool Light Bulb In Stock WPL W10886919 $13.03

W10920281 Whirlpool Screw Backorder WPL W10920281 $2.95

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $75.89

BACK, CAVITY BAFFLE BOWTIE WPL W11198517 Contact Us For Availability

19

W11578578 Whirlpool Microwave Wire Harness In Stock WPL W11578578 $62.54

19

PLATE, CONVECT MOTOR WPL W11251715 Contact Us For Availability

20

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

20

INSULATION, CONVECT MOTOR WPL W11251716 Contact Us For Availability

21

W11214928 Whirlpool Microwave Interlock Backorder WPL W11214928 $12.66

21

COVER, CONVECT PLATE WPL W11398057 Contact Us For Availability

22

423107022541 Whirlpool Microwave Reflector Backorder WPL 423107022541 $32.79

22

W11252826 Whirlpool Probe Jack Backorder WPL W11252826 $39.11

23

W11193483 Whirlpool Microwave Lamp Lens In Stock WPL W11193483 $38.25

23

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $9.59

24

W11440819 Whirlpool Clip Backorder WPL W11440819 $10.76

25

W11334716 Whirlpool Door Trim Backorder WPL W11334716 $22.77

26

W11699906 Whirlpool Sensor In Stock WPL W11699906 $50.29

26

WPW10519866 Whirlpool Light Backorder WPL WPW10519866 $58.43

27

8205707 Whirlpool Microwave Support Backorder WPL 8205707 $29.43

28

W11714253 Whirlpool Door Hinge In Stock WPL W11714253 $35.72

29

W11534564 Whirlpool Microwave Convection Moto Backorder WPL W11534564 $36.14

29

W11602623 Whirlpool Screw Backorder WPL W11602623 $9.59

30

W11344874 Whirlpool Microwave Fan Motor In Stock WPL W11344874 $74.14

30

W11598150 Whirlpool Side Cover Backorder WPL W11598150 $26.15

30A

W11598151 Whirlpool Side Cover Backorder WPL W11598151 $26.15

31

W11578579 Whirlpool Inverter In Stock WPL W11578579 $120.04

31

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

32

8205656 Whirlpool Microwave Screw Backorder WPL 8205656 $6.46

32

8285593 Whirlpool Oven Wire Cover Backorder WPL 8285593 $32.13

33

WPW10120235 Whirlpool Microwave Relief Rod In Stock WPL WPW10120235 $4.30

33

BASE, VENT EXHAUST WPL W11256423 Contact Us For Availability

34

W11208292 Whirlpool Microwave Sensor In Stock WPL W11208292 $59.10

34

WPW10472384 Whirlpool Light Bulb In Stock WPL WPW10472384 $49.87

35

W11235457 Whirlpool Trim Backorder WPL W11235457 $29.54

35

WPW10128850 Whirlpool Microwave Arm In Stock WPL WPW10128850 $42.71

35A

W11235458 Whirlpool Trim Backorder WPL W11235458 $29.54

36

W10283022 Whirlpool Support Backorder WPL W10283022 $26.21

36

W11700292 Whirlpool Spring Backorder WPL W11700292 $26.77

37

W10283024 Whirlpool Mounting Bracket Backorder WPL W10283024 $26.21

37

W11684510 Whirlpool Support Backorder WPL W11684510 $5.38

38

W11607070 Whirlpool Arm Backorder WPL W11607070 $10.23

38

W11627410 Whirlpool Mounting Rail Backorder WPL W11627410 $20.33

39

W11627411 Whirlpool Mounting Rail Backorder WPL W11627411 $20.33

39

W11715912 Whirlpool Spring Assembly Backorder WPL W11715912 $2.29

40

W10769147 Whirlpool Microwave Foam Seal Backorder WPL W10769147 $14.44

40

W11598170 Whirlpool Level Foot Backorder WPL W11598170 $12.59

41

W11598169 Whirlpool Foot Level Assembly Backorder WPL W11598169 $12.59

41

W11690594 Whirlpool Screw Backorder WPL W11690594 $8.11

41A

W11598168 Whirlpool Leveling Foot Backorder WPL W11598168 $12.52

42

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

42

HOUSING, UPPER INVERTER WPL W11591019 Contact Us For Availability

43

SCREW WPL 7101P65360 Contact Us For Availability

43

HOUSING, LOWER INVERTER WPL W11591018 Contact Us For Availability

44

W11134657 Whirlpool Rear Cover Backorder WPL W11134657 $49.54

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4378577 Whirlpool Oven Bake Stone Backorder WPL 4378577 $36.58

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10246102A Whirlpool Range Oven Door Handle Backorder WPL W10246102A $121.04

W10536339 Whirlpool Wall Oven Heat Deflector Backorder WPL W10536339 $64.22

W10727416 Whirlpool Wall Oven Heat Deflector Backorder WPL W10727416 $58.30

W10846205 Whirlpool Refrigerator Handle Medal Backorder WPL W10846205 $12.99

W10846206 Whirlpool Refrigerator Handle Medal Backorder WPL W10846206 $12.99

W11539494 Whirlpool Wire Harness Backorder WPL W11539494 $16.05

W11546965 Whirlpool Wire Harness Backorder WPL W11546965 $28.58

W11570323 Whirlpool Trim Backorder WPL W11570323 $152.19

W11570325 Whirlpool Trim Backorder WPL W11570325 $106.80

W11578580 Whirlpool Wire Harness Backorder WPL W11578580 $10.08

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

PEDESTA WPL NP Contact Us For Availability

WPL W11188284 WPL W11188284 Contact Us For Availability

WPL W11234758 WPL W11234758 Contact Us For Availability
