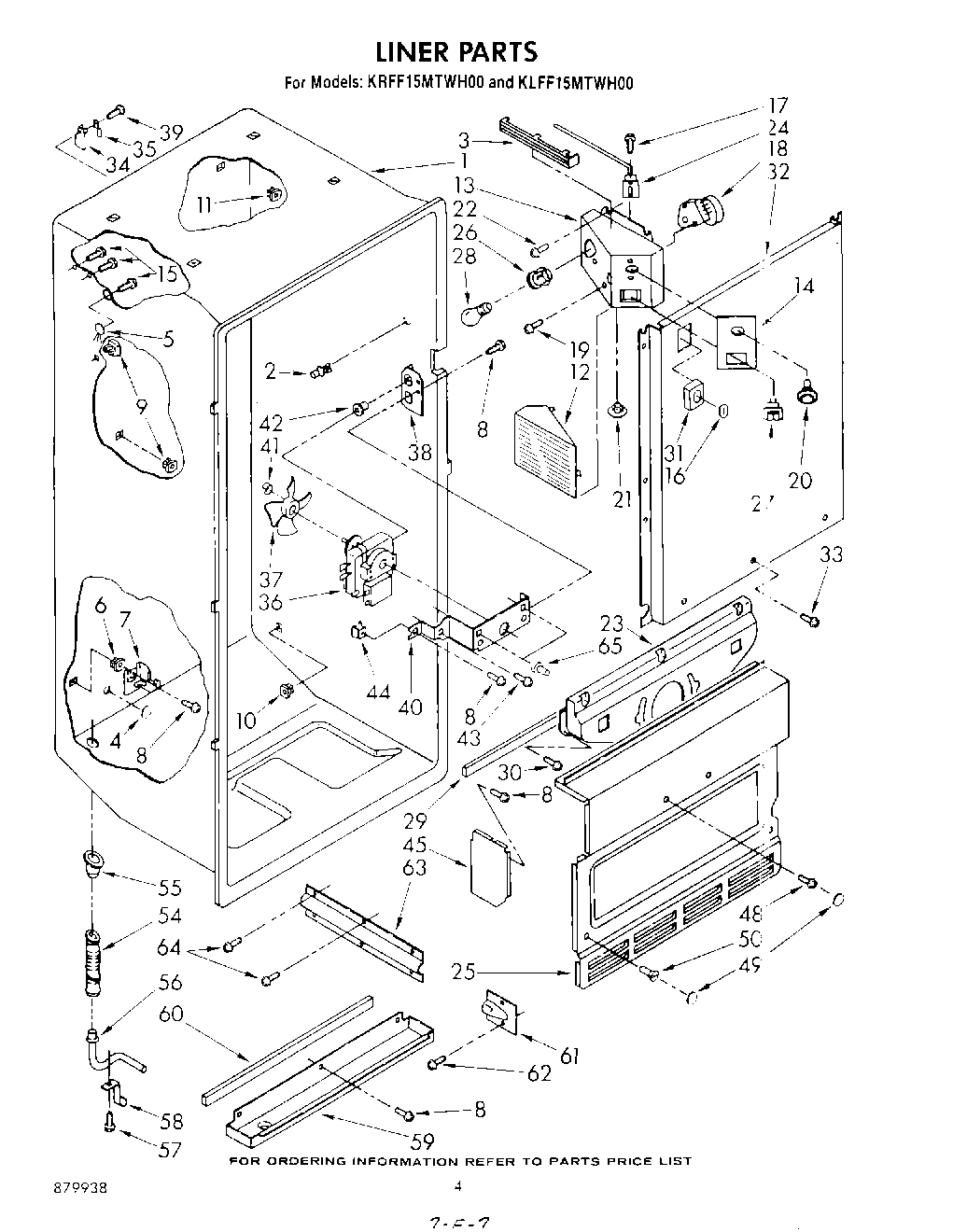

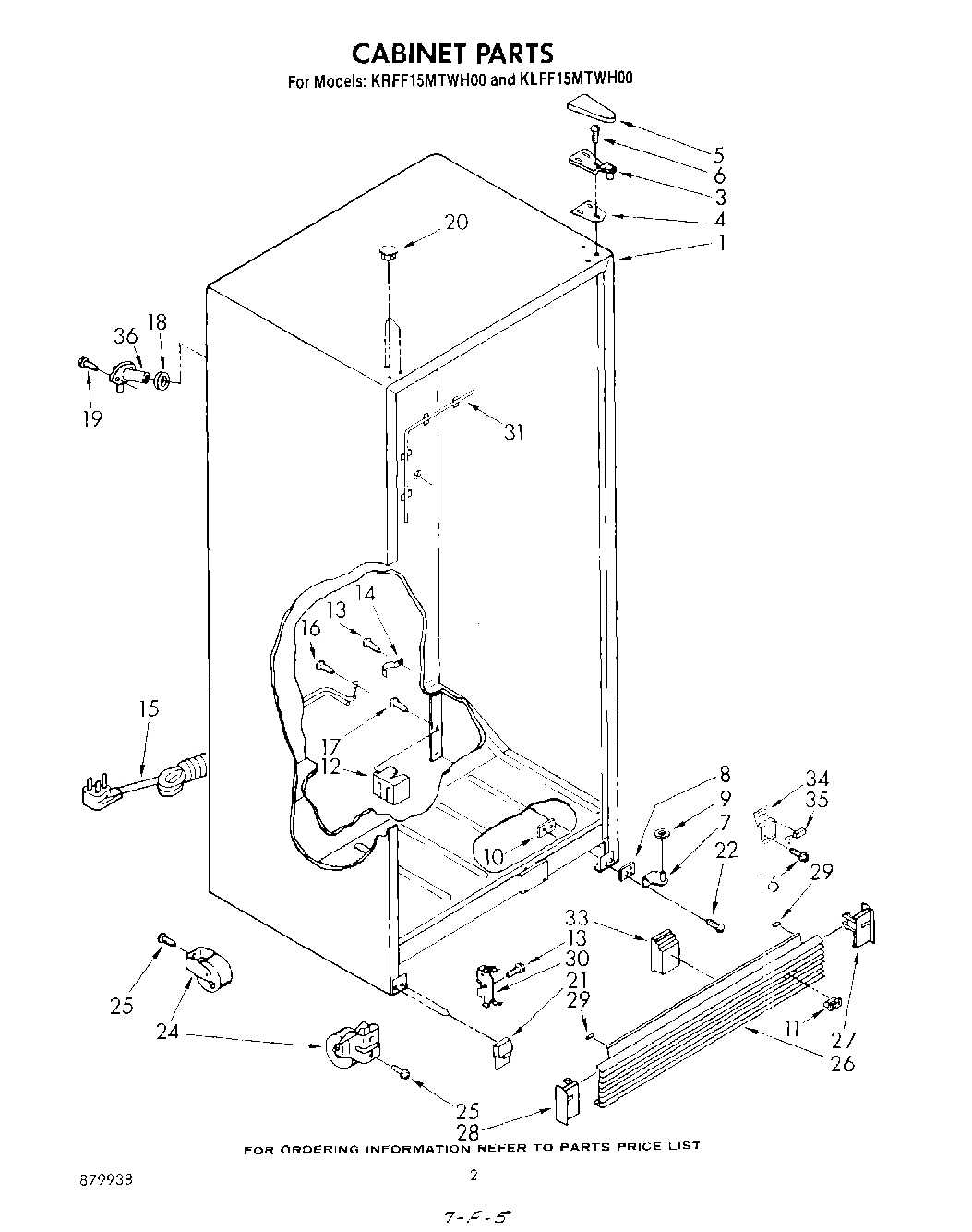

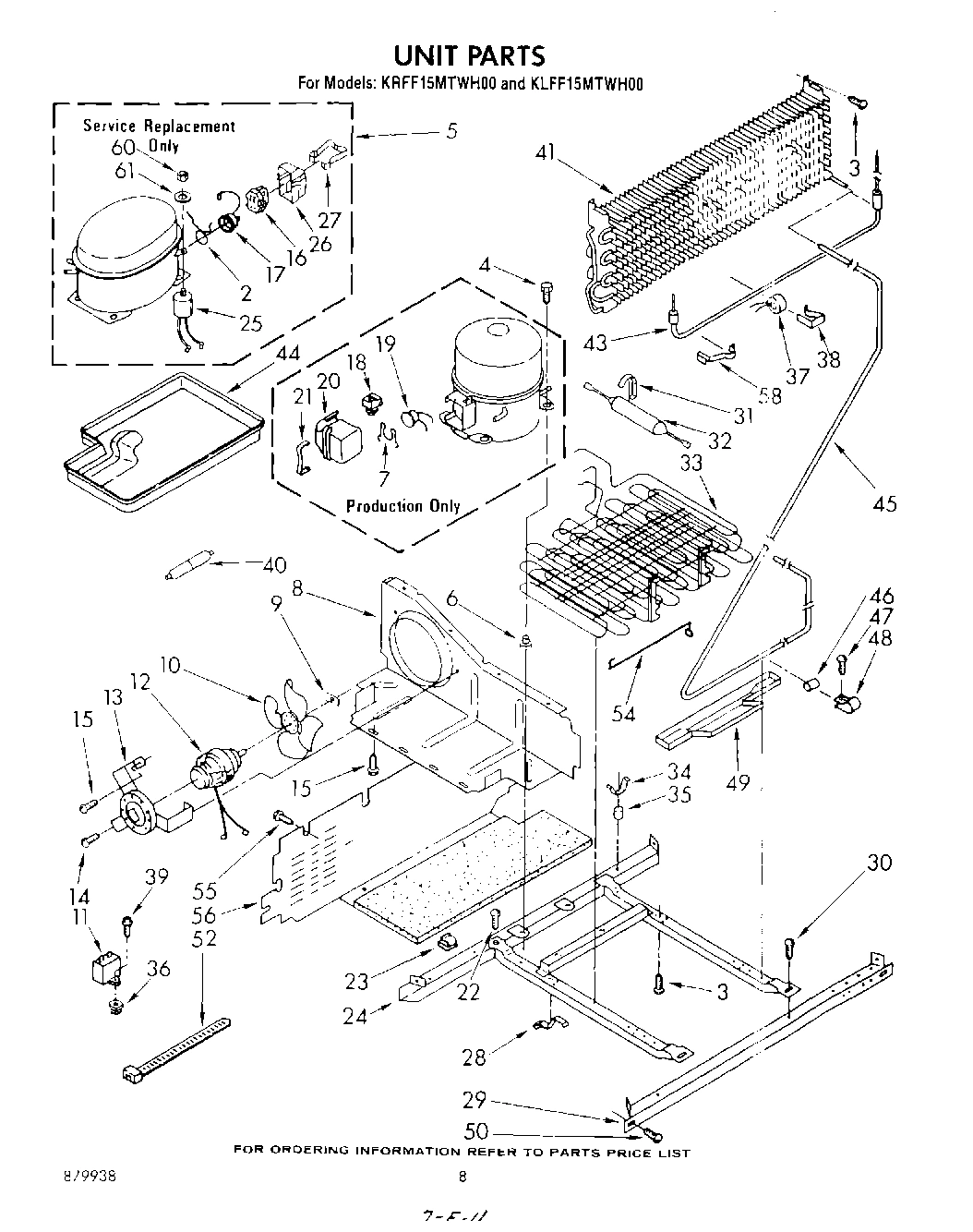

Model Whirlpool KLFF15MTAL00 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

WPL 350941 WPL 350941 Contact Us For Availability

WPL LIT1107934 WPL LIT1107934 Contact Us For Availability

WPL LIT1117596 WPL LIT1117596 Contact Us For Availability

WPL LIT1117697 WPL LIT1117697 Contact Us For Availability

WPL LIT628107 WPL LIT628107 Contact Us For Availability

WPL LIT879938 WPL LIT879938 Contact Us For Availability

1

Breaker Trim (R.S) WPL 836627 Contact Us For Availability

1

Breaker Trim (R.S) (Without Switch Holes) WPL 843333 Contact Us For Availability

1

Cabinet (Not A Serviceable Part) WPL ARI89003A8 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI89004A5 Contact Us For Availability

2

939962 Whirlpool Refrigerator Rivet Backorder WPL 939962 $7.21

2

Spring, Overload WPL 1114190 Contact Us For Availability

2

Breaker Trim (Top) WPL 940923 Contact Us For Availability

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

3

Breaker Trim (L.S) (With Switch Hole) WPL 836631 Contact Us For Availability

3

Breaker Trim (L.S) WPL 840054 Contact Us For Availability

3

Hinge, Top WPL 842039 Contact Us For Availability

3

Cover, Rivet WPL 1107558 Contact Us For Availability

4

Breaker Trim, Bottom WPL 836176 Contact Us For Availability

4

Shim, Hinge WPL 836151 Contact Us For Availability

4

Hole, Plug WPL 519890 Contact Us For Availability

5

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

5

Tube, Clamp WPL 836472 Contact Us For Availability

5

Compressor Includes Items 2, 16, 17, 25, 26, WPL 482980 Contact Us For Availability

5

Ice Cube Pan WPL 480649 Contact Us For Availability

5

Receptacle Cap WPL 481658 Contact Us For Availability

6

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

6

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

6

WP999367 Whirlpool Refrigerator Screw Backorder WPL WP999367 $2.51

6

Shelf Ladder (2) WPL 1107955 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Overload Spring WPL 943320 Contact Us For Availability

7

Hinge, Bottom R.H. WPL 1115900 Contact Us For Availability

7

Hinge, Bottom (L.H.) WPL 1115903 Contact Us For Availability

7

Evaporator Support (2) WPL 842436 Contact Us For Availability

8

WP487802 Whirlpool Refrigerator Washer In Stock WPL WP487802 $2.51

8

Baffle WPL 850764 Contact Us For Availability

8

Shelf, Cantilever (3) WPL 1107527 Contact Us For Availability

9

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

9

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

9

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

9

Trim, Shelf Front WPL 1107528 Contact Us For Availability

9

Grommet WPL 842339 Contact Us For Availability

4318047 Whirlpool Water Valve In Stock WPL 4318047 $29.77

Blade, Fan WPL 989524 Contact Us For Availability

Reflector WPL 1107529 Contact Us For Availability

Tap Plate, Bottom WPL 836162 Contact Us For Availability

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Clip, Reflector WPL 1107246 Contact Us For Availability

Reflector, Pilot, Light WPL 1107553 Contact Us For Availability

Grommet (6) WPL 848445 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

Connector Wire WPL 227991 Contact Us For Availability

Trim, Ice Cube Pan WPL 532501 Contact Us For Availability

Box, Junction WPL 549947 Contact Us For Availability

Light, Lens WPL 1100466 Contact Us For Availability

Tube, Water Inlet WPL 836491 Contact Us For Availability

Bracket, Fan Motor WPL 548695 Contact Us For Availability

Shelf, Basket WPL 1107531 Contact Us For Availability

Control Box WPL 1107555 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Trim, Frame (2) WPL 1107583 Contact Us For Availability

Insert, Control Box WPL 1107556 Contact Us For Availability

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

Tube, Inlet Valve WPL 627854 Contact Us For Availability

Screw, 8 x 3/8 WPL 488624 Contact Us For Availability

Screw, 8-15 x 1 (2) WPL 487547 Contact Us For Availability

Cord, Service WPL 1107603 Contact Us For Availability

16

WP2262181 Whirlpool Refrigerator Start Relay Backorder WPL WP2262181 $53.03

16

Screw, 8-32 x 3/8 WPL 488474 Contact Us For Availability

16

Grommet, Inlet Tube WPL 835649 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Nut, Valve WPL 537588 Contact Us For Availability

Overload WPL 483036 Contact Us For Availability

Reflector, Shelf WPL 1107297 Contact Us For Availability

Screw WPL 488974 Contact Us For Availability

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Relay WPL 945507 Contact Us For Availability

Shelf, Fixed WPL 1107627 Contact Us For Availability

Defrost Timer WPL 945486 Contact Us For Availability

WP487353 Whirlpool Refrigerator Screw In Stock WPL WP487353 $2.51

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

Overload WPL 1107956 Contact Us For Availability

Stud, Shelf (2) WPL 1117317 Contact Us For Availability

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Relay Case WPL 1105055 Contact Us For Availability

Hole Plug (3) (White) WPL 842031 Contact Us For Availability

Hole Plug (3) (Almond) WPL 989195 Contact Us For Availability

Control Knob, Thermostat WPL 1100467 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

Knob WPL 1117082 Contact Us For Availability

Spring WPL 943322 Contact Us For Availability

Shelf Stud (2) WPL 528864 Contact Us For Availability

Filler, Corner WPL 839178 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Stud, Fixed Shelf WPL 849297 Contact Us For Availability

Screw (Repair) WPL 488949 Contact Us For Availability

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

23

Clip, Wire (2) WPL 548745 Contact Us For Availability

23

Fan Orifice WPL 1107605 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

Frame WPL 945461 Contact Us For Availability

Freezer, Basket WPL 1107533 Contact Us For Availability

Thermostat & Barrier Assembly WPL 1107557 Contact Us For Availability

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Capacitor WPL 482996 Contact Us For Availability

Screw, 1/4-28 x 1/2 (4) WPL 488454 Contact Us For Availability

Evaporator, Cover WPL 1107560 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Relay, Case WPL 1105015 Contact Us For Availability

Grille WPL 1107193 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Strap, Cover WPL 938384 Contact Us For Availability

27

Grille, End Cap (R.S) WPL 1107443 Contact Us For Availability

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

Screw, 10-32 x 49/64 WPL 489258 Contact Us For Availability

Clip (2) WPL 548744 Contact Us For Availability

Grille, End Cap (L.S.) WPL 1107444 Contact Us For Availability

29

Rail, Front WPL 941699 Contact Us For Availability

29

Bumper, Grille (2) WPL 1107614 Contact Us For Availability

29

Gasket, Orifice WPL 659202 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Clip, Grille WPL 989068 Contact Us For Availability

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $37.02

Clamp WPL 548508 Contact Us For Availability

Stile Heater WPL 851778 Contact Us For Availability

Cover, Water Fill Tube WPL 1107249 Contact Us For Availability

32

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

32

WP628172 Whirlpool Refrigerator Wire Harness Backorder WPL WP628172 $43.02

32

Air Duct WPL 1107606 Contact Us For Availability

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $30.25

Condenser WPL 943480 Contact Us For Availability

Screw, 8 x 1-1/4 WPL 488357 Contact Us For Availability

Switch, Light WPL 549191 Contact Us For Availability

Insert, Air Baffle WPL 1107271 Contact Us For Availability

Screw, 10 x 1 1/4 WPL 488623 Contact Us For Availability

Clamp (4) WPL 548738 Contact Us For Availability

Spacer Ground WPL 1107542 Contact Us For Availability

Mounting, Bracket Pilot Light WPL 1107551 Contact Us For Availability

Screw Grommet WPL 538532 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

Grommet WPL 943447 Contact Us For Availability

Light, Signal WPL 1103639 Contact Us For Availability

Support Clip WPL 538533 Contact Us For Availability

482469 Whirlpool Refrigerator Evaporator Fan In Stock WPL 482469 $88.24

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

Grommet WPL 509812 Contact Us For Availability

Basket, Trim WPL 1107534 Contact Us For Availability

37

WP4387489 Whirlpool Refrigerator Bi-Metal Def In Stock WPL WP4387489 $33.76

37

Blade, Fan WPL 992920 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Clamp WPL 513584 Contact Us For Availability

38

Fan Braket Double WPL 548263 Contact Us For Availability

39

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

39

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

40

Muffler WPL 1107672 Contact Us For Availability

40

Fan, Bracket Single WPL 548264 Contact Us For Availability

41

Evaporator WPL 1107503 Contact Us For Availability

41

Ring, Compression WPL 992953 Contact Us For Availability

42

Grommet, Fan Motor (3) WPL 548268 Contact Us For Availability

43

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

43

Heater, Defrost WPL 989613 Contact Us For Availability

44

Tray, Evaporating WPL 842041 Contact Us For Availability

44

Expansion Clip WPL 537095 Contact Us For Availability

45

Exchanger, Heat WPL 1107507 Contact Us For Availability

45

Air Baffle (2) WPL 1107559 Contact Us For Availability

46

Dampener (2) WPL 510769 Contact Us For Availability

47

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

48

Clamp, Tube (2) WPL 510716 Contact Us For Availability

48

Screw WPL 489175 Contact Us For Availability

49

Pan, Drip WPL 945572 Contact Us For Availability

49

Cap, Screw WPL 1107633 Contact Us For Availability

52

Strap WPL 851095 Contact Us For Availability

54

Guard, Fan WPL 850156 Contact Us For Availability

54

Fitting, Drain WPL 981147 Contact Us For Availability

55

NLA:SCREW Backorder WPL WPW10141645 $3.70

55

Drain Ferrule WPL 981148 Contact Us For Availability

56

Cover WPL 850639 Contact Us For Availability

56

Extension, Drain WPL 841646 Contact Us For Availability

57

Screw, 8-32 x 1/2 WPL 489050 Contact Us For Availability

58

Clip, Heater WPL 548459 Contact Us For Availability

58

Clip, Drain Extension WPL 841648 Contact Us For Availability

59

Drain Pan WPL 1107562 Contact Us For Availability

60

Nut WPL 489142 Contact Us For Availability

60

Gasket, Drain Pan WPL 1107954 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Washer WPL 489143 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Cover, Tube Entry WPL 839826 Contact Us For Availability

63

Cover, Tube WPL 981085 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.41

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.93

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.13

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl (1/4`` x 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

WPL 538449 WPL 538449 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
