Model Whirlpool KIDS36EPSS1 IN-SINK DISHWASHER – Common Parts & Diagrams
06 - SUMP AND STRAINER PARTS
07 - DISHRACK AND SPRAYARM PARTS, OPTIONAL PARTS (NOT INCLUDED)

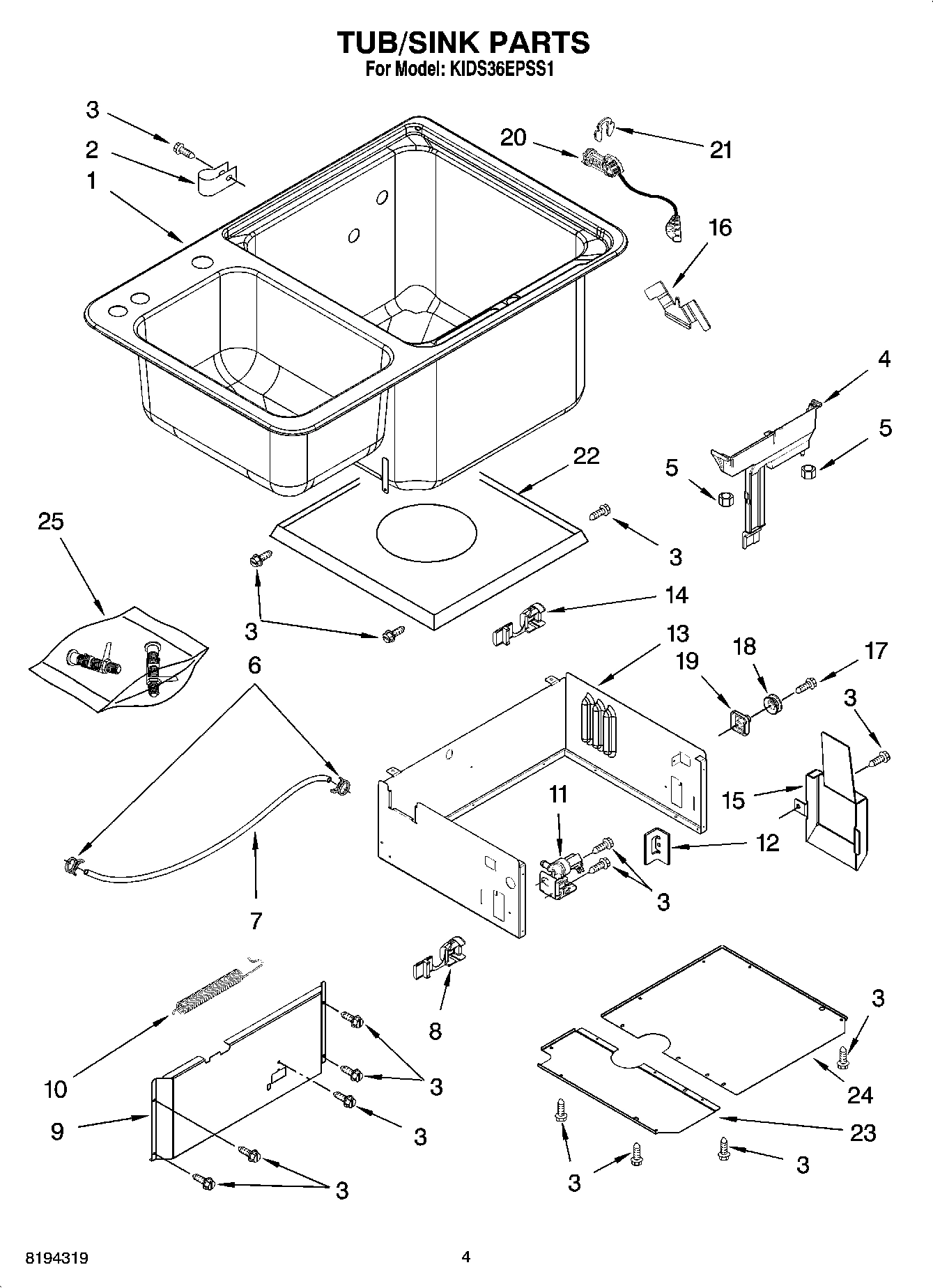

03 - TUB/SINK PARTS

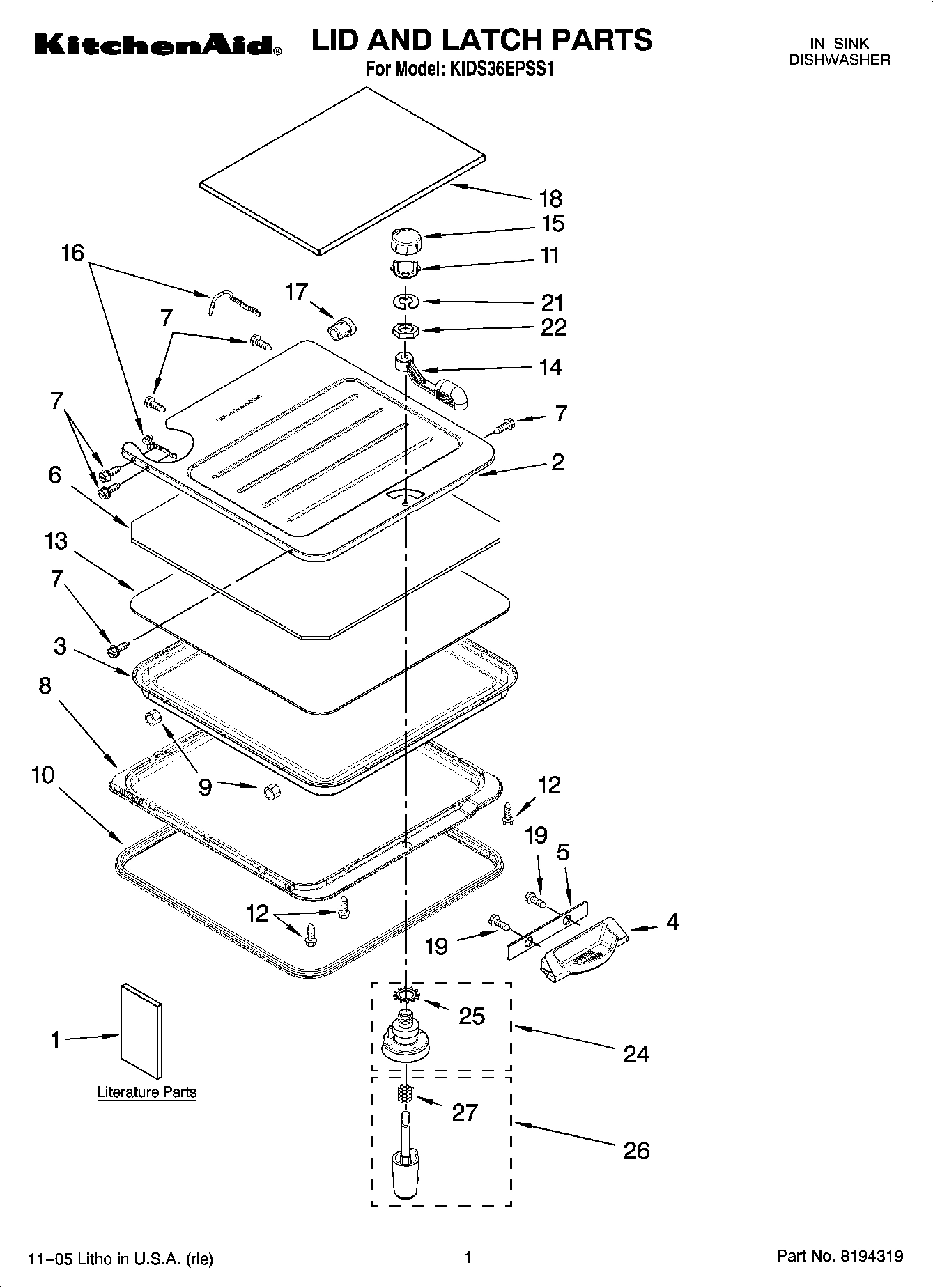

01 - LID AND LATCH PARTS

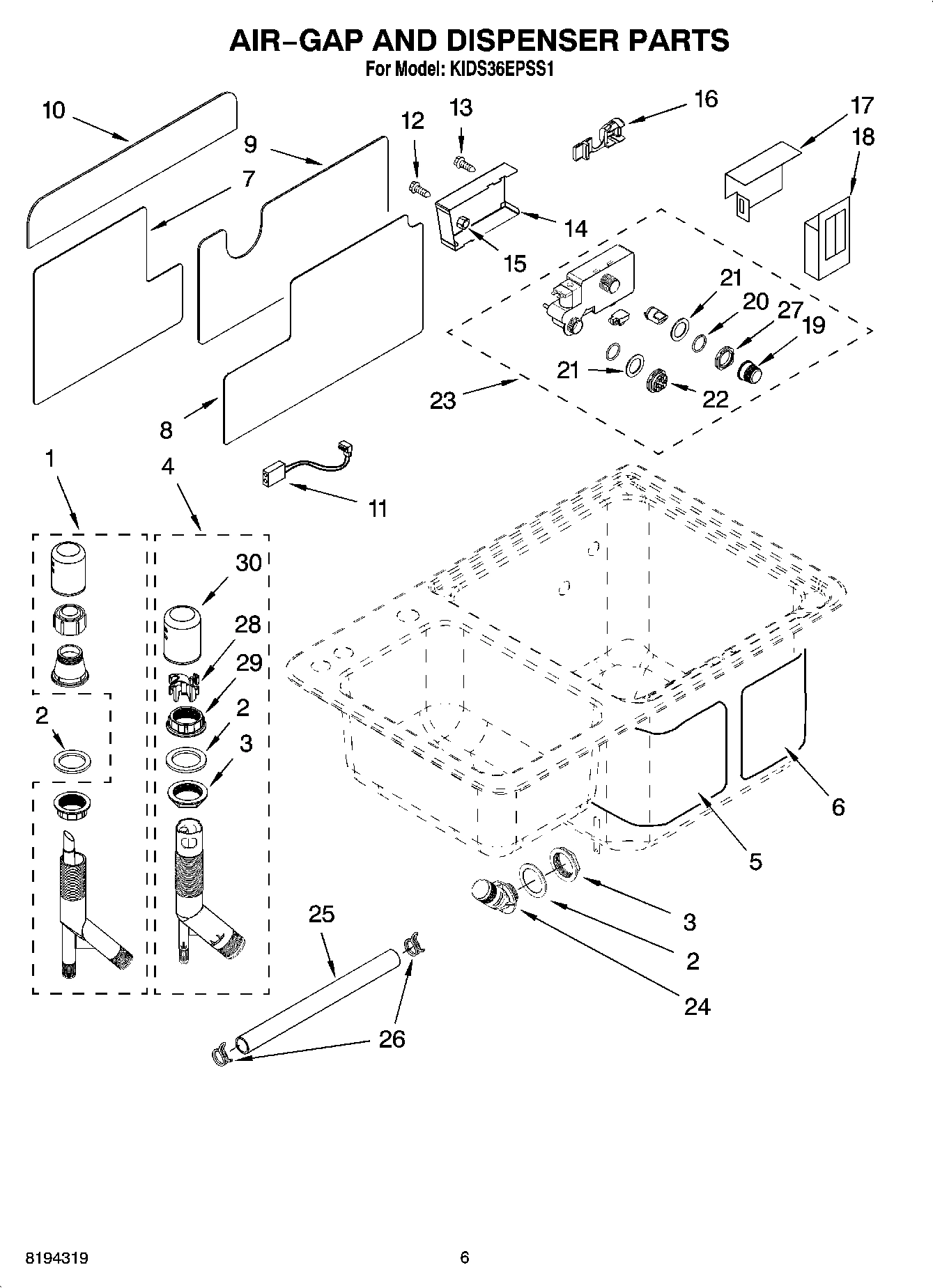

04 - AIR-GAP AND DISPENSER PARTS

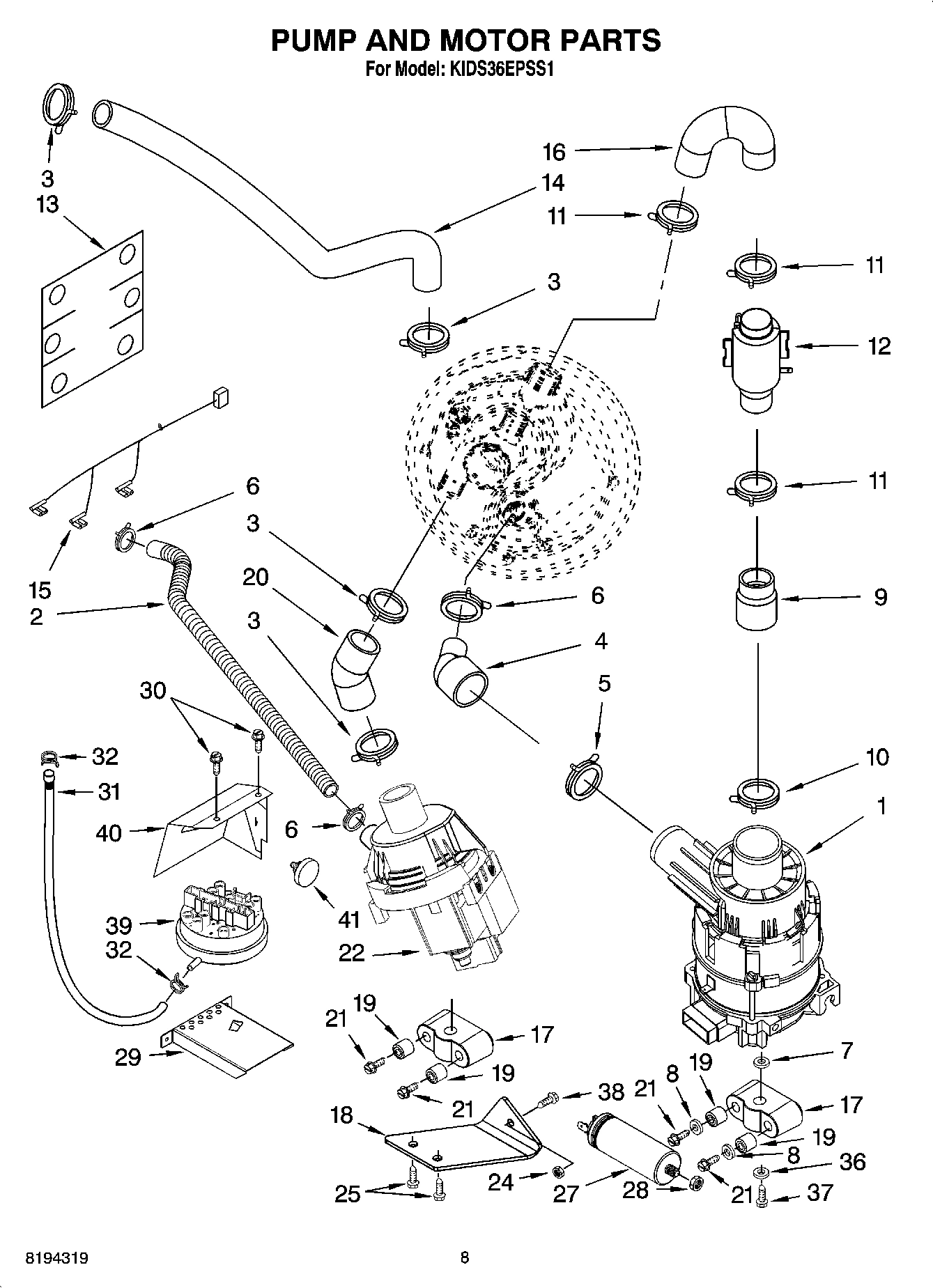

05 - PUMP AND MOTOR PARTS

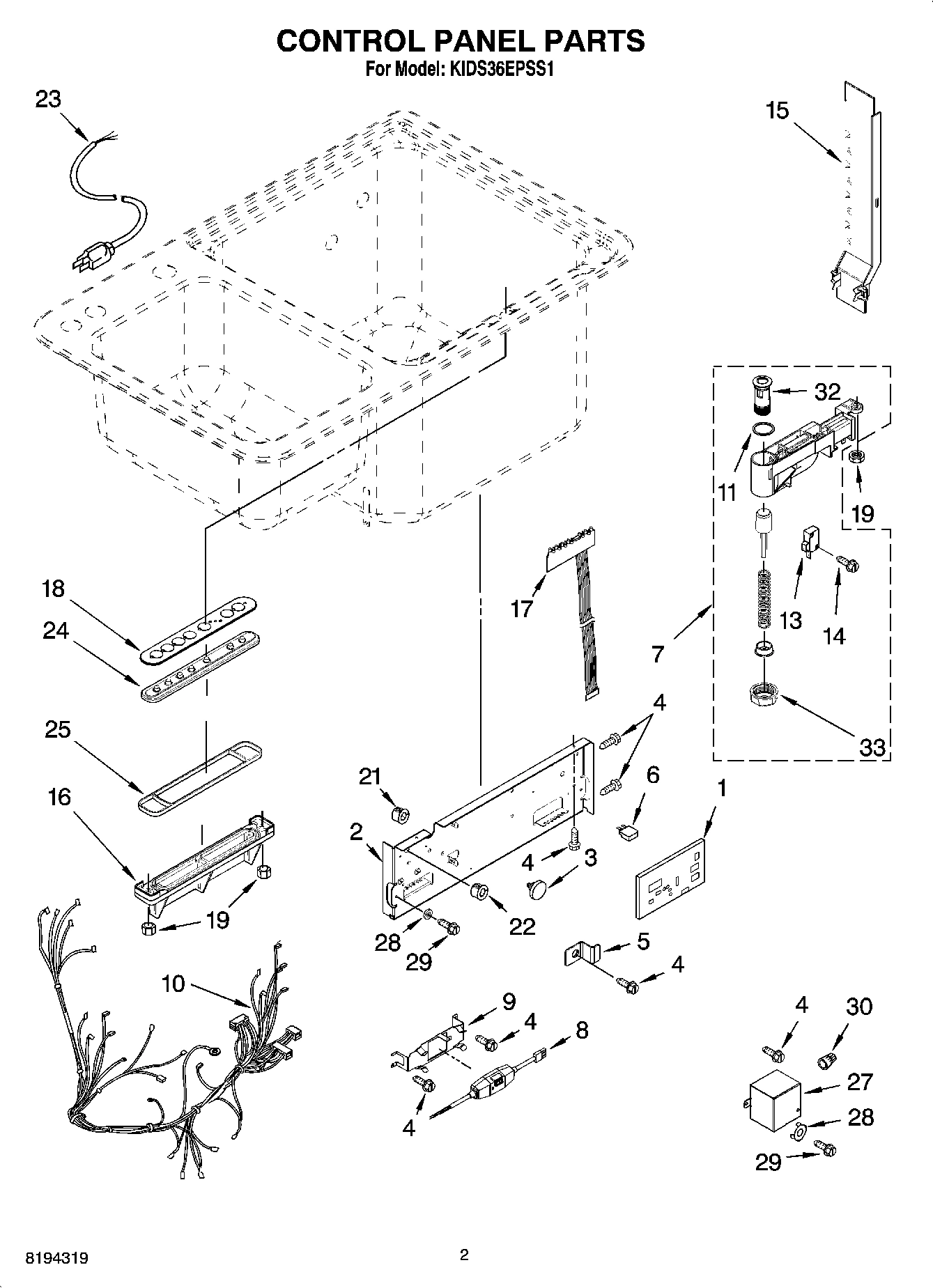

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool KIDS36EPSS1 IN-SINK DISHWASHER
1
Dishrack WPL 8564459 Contact Us For Availability
1
Tub/Sink Assembly WPL 8537045 Contact Us For Availability
1
Instructions, Installation WPL 8564766 Contact Us For Availability
1
English/French WPL 8571337 Contact Us For Availability
1
Energy Guide WPL 8572277 Contact Us For Availability
1
Guide, Use & Care Tech Sheet WPL 8574094 Contact Us For Availability
1
Air-Gap Drain (Also Order Item 2) WPL 8529490 Contact Us For Availability
1
Pump & Motor (Also Order Item 7) WPL 8529370 Contact Us For Availability
1
Control, Electronic (Also Order Item 6) WPL 8528829 Contact Us For Availability
2
Sprayarm WPL 8529352 Contact Us For Availability
2
Clamp, Cable WPL 8537014 Contact Us For Availability
2
Lid, Outer WPL 8564450 Contact Us For Availability
2
Gasket, Fittings WPL 8529497 Contact Us For Availability
2
Hose, Drain W/Check Valve WPL 8529474 Contact Us For Availability
2
Brace, Cross WPL 8529436 Contact Us For Availability
3
Basket, Silverware WPL 8564467 Contact Us For Availability
3
Lid, Inner WPL 8564451 Contact Us For Availability
3
Nut, Air-Gap WPL 8529496 Contact Us For Availability
3
Spacer, Cabinet WPL 8283353 Contact Us For Availability
4
Cover, Enclosure WPL 8529446 Contact Us For Availability
4
Cup, Detergent WPL 8564452 Contact Us For Availability
4
Air-Gap, Fill WPL 8529494 Contact Us For Availability
4
Hose, Sump Wash Pump WPL 8529327 Contact Us For Availability
5
Support, Arm WPL 8529337 Contact Us For Availability
5
Seal, Detergent Cup WPL 8564453 Contact Us For Availability
5
Mastic, Front Left Side WPL 8529461 Contact Us For Availability
5
Clamp, Hose WPL 8281275 Contact Us For Availability
5
Bracket, Control WPL 8529432 Contact Us For Availability
6
WASHER WPL 3400944 Contact Us For Availability
6
Insulator, Sound Lid WPL 8529459 Contact Us For Availability
6
Mastic, Front Right Side WPL 8529462 Contact Us For Availability
7
Cone, Centering WPL 8529338 Contact Us For Availability
7
Hose, Water Inlet WPL 8537010 Contact Us For Availability
7
Mastic, Back Left Side WPL 8529463 Contact Us For Availability
7
Grommet, Bushing WPL 8533903 Contact Us For Availability
7
Latch Assembly WPL 8537020 Contact Us For Availability
8
SCREW WPL 3400098 Contact Us For Availability
8
Strain Relief WPL 8536977 Contact Us For Availability
8
Retainer, Gasket WPL 8529340 Contact Us For Availability
8
Mastic, Back Right Side WPL 8529464 Contact Us For Availability
8
Washer WPL 3400946 Contact Us For Availability
8
Ground Fault WPL 8536987 Contact Us For Availability
9
Cover, Access WPL 8529439 Contact Us For Availability
9
NUT WPL 3400629 Contact Us For Availability
9
Mastic, Left Side WPL 8529520 Contact Us For Availability
9
Hose, Heater Wash Pump WPL 8529329 Contact Us For Availability
9
Bracket, Ground Fault WPL 8529517 Contact Us For Availability
10
Spring, Lid WPL 8529447 Contact Us For Availability
10
Gasket, Lid WPL 8529381 Contact Us For Availability
10
Mastic, Bottom Rear WPL 8536992 Contact Us For Availability
10
Harness, Main WPL 8318158 Contact Us For Availability
11
Inlet, Water WPL 8529387 Contact Us For Availability
11
Plate, Mounting Knob WPL 8564023 Contact Us For Availability
11
Harness, Dispenser WPL 8529412 Contact Us For Availability
11
GASKET WPL 8529518 Contact Us For Availability
12
Plate, Lid Counter Balance WPL 8536979 Contact Us For Availability
12
SCREW WPL 3400637 Contact Us For Availability
12
HEATER WPL 8529372 Contact Us For Availability
13
Wrapper, U-Shape WPL 8529438 Contact Us For Availability
13
Mastic, Lid WPL 8529458 Contact Us For Availability
13
Shield, Heater WPL 8529508 Contact Us For Availability
13
Switch, Micro WPL 3369325 Contact Us For Availability
14
Thermistor WPL 8269208 Contact Us For Availability
14
Lever, Lid Locking WPL 8564024 Contact Us For Availability
14
Cover, Rinse Aid Dispenser WPL 8529430 Contact Us For Availability
14
Hose, Drain Air Gap WPL 8559823 Contact Us For Availability
15
Cover, Lid Counter Balance WPL 8536980 Contact Us For Availability
15
Knob, Latch WPL 8565403 Contact Us For Availability
15
Wire Harness Heater WPL 8318161 Contact Us For Availability
15
Protector, Harness WPL 8529445 Contact Us For Availability
16
Strain Relief WPL 3400950 Contact Us For Availability
16
Guide, Rope Upper WPL 8529345 Contact Us For Availability
16
Pin, Hinge (Left Hand) WPL 8529383 Contact Us For Availability
16
Pin, Hinge (Right Hand) WPL 8529384 Contact Us For Availability
16
Hose Sump/Heater WPL 8529326 Contact Us For Availability
16
Bracket, User Interface WPL 8529504 Contact Us For Availability
17
Bearing, Lid Hinge WPL 8319539 Contact Us For Availability
17
Board, Interface WPL 8537044 Contact Us For Availability
17
Shield, Coil WPL 8536985 Contact Us For Availability
17
Grommet, Motor WPL 8537028 Contact Us For Availability
18
Board, Cutting WPL 8571336 Contact Us For Availability
18
Shield, Switch WPL 8536984 Contact Us For Availability
18
Bracket, Drain Pump WPL 8529431 Contact Us For Availability
18
Insert WPL 8537041 Contact Us For Availability
19
Mount, Wheel WPL 8536978 Contact Us For Availability
19
Cap, Fill Rinse Aid WPL 8565560 Contact Us For Availability
19
Sleeve, Grommet WPL 3400942 Contact Us For Availability
20
Link, Lid Balance (Also Order Item 21) WPL 8572664 Contact Us For Availability
20
``O`` Ring Dispenser WPL 8529365 Contact Us For Availability
20
Hose, Sump/Drain Motor WPL 8529328 Contact Us For Availability
21
C-Ring WPL 3400945 Contact Us For Availability
21
E-Ring WPL 3400940 Contact Us For Availability
21
Gasket, Fill Cup WPL 8529362 Contact Us For Availability
21
SCREW WPL 3400226 Contact Us For Availability
21
BUSHING WPL 8536976 Contact Us For Availability
22
Pump, Drain WPL 8529374 Contact Us For Availability
22
Base Plate WPL 8537021 Contact Us For Availability
22
Cap, Dispenser WPL 8565561 Contact Us For Availability
22
BUSHING WPL 8529522 Contact Us For Availability
23
Cover, Bottom Plumbing WPL 8529440 Contact Us For Availability
23
Dispenser, Rinse Aid WPL 8572523 Contact Us For Availability
24
Cover, Bottom Components WPL 8529441 Contact Us For Availability
24
Collar Assembly WPL 8537007 Contact Us For Availability
24
Fitting, Water Inlet WPL 8529487 Contact Us For Availability
24
Spacer, User Interface WPL 8529505 Contact Us For Availability
25
Miscellaneous Parts Bag (Includes 8 Each, Mou WPL 8529473 Contact Us For Availability
25
WASHER WPL 3400941 Contact Us For Availability
25
Hose, Fill Large WPL 8559822 Contact Us For Availability
25
Screw WPL 3428430 Contact Us For Availability
25
Gasket, User Interface WPL 8529506 Contact Us For Availability
26
Cam Assembly WPL 8529395 Contact Us For Availability
27
Spring, Torsion WPL 8529390 Contact Us For Availability
27
Nut, Fill Rinse Aid WPL 8565559 Contact Us For Availability
27
CAPACITOR WPL 8529371 Contact Us For Availability
27
Cover, Terminal WPL 8529437 Contact Us For Availability
28
Insert, Air-Gap WPL 8529499 Contact Us For Availability
28
Nut WPL 3400921 Contact Us For Availability
29
Nut, Air Gap-Top WPL 8529498 Contact Us For Availability
29
Bracket, Pressure Switch WPL 8529433 Contact Us For Availability
30
Cap, Air-Gap WPL 8529492 Contact Us For Availability
30
Nut, Wire WPL 8529478 Contact Us For Availability
31
Hose, Pressure Switch WPL 8529479 Contact Us For Availability
32
Clamp, Hose WPL 3380943 Contact Us For Availability
32
Housing, Plunger Latch WPL 8529393 Contact Us For Availability
33
Nut, Latch WPL 8529403 Contact Us For Availability
38
SCREW WPL 8533830 Contact Us For Availability
39
Switch, Pressure WPL 8529373 Contact Us For Availability
40
Shield, Assembly WPL 8537005 Contact Us For Availability
× ![]()
