Model Whirlpool KIDS01EKSS0 DISHWASHER – Common Parts & Diagrams
03 - TUB/SINK
04 - AIR-GAP AND DISPENSER

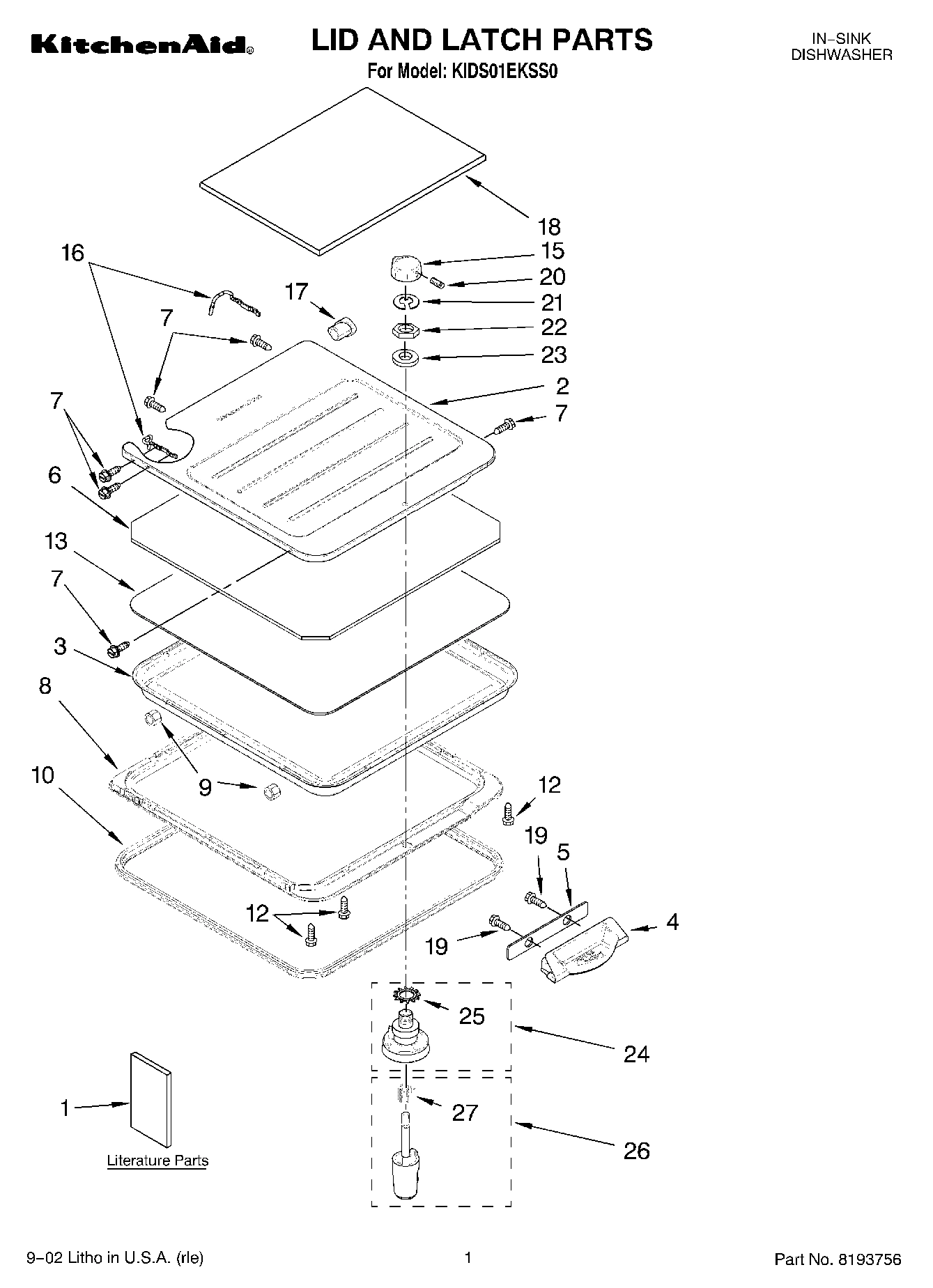

01 - LID AND LATCH, LITERATURE

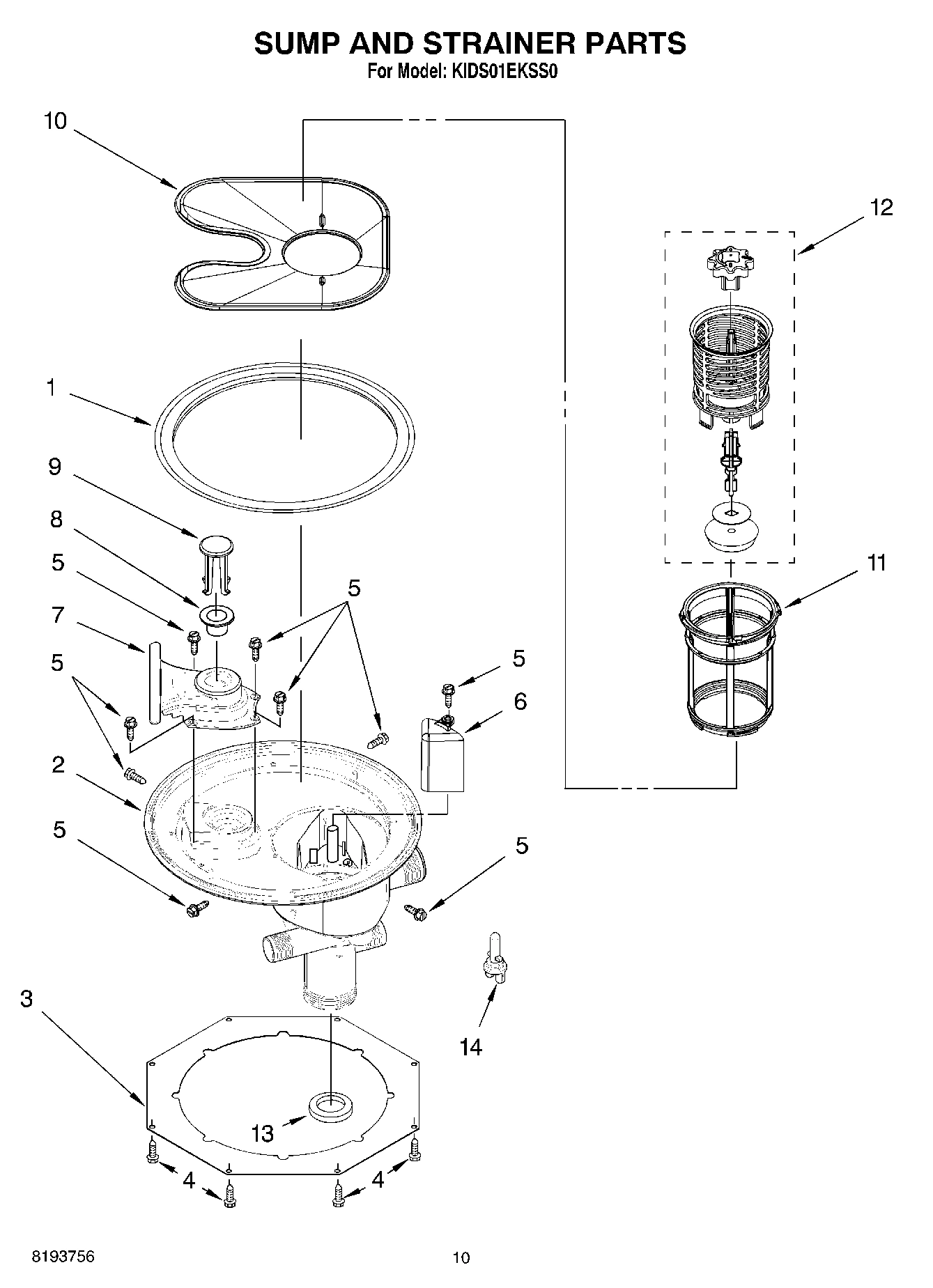

06 - SUMP AND STRAINER

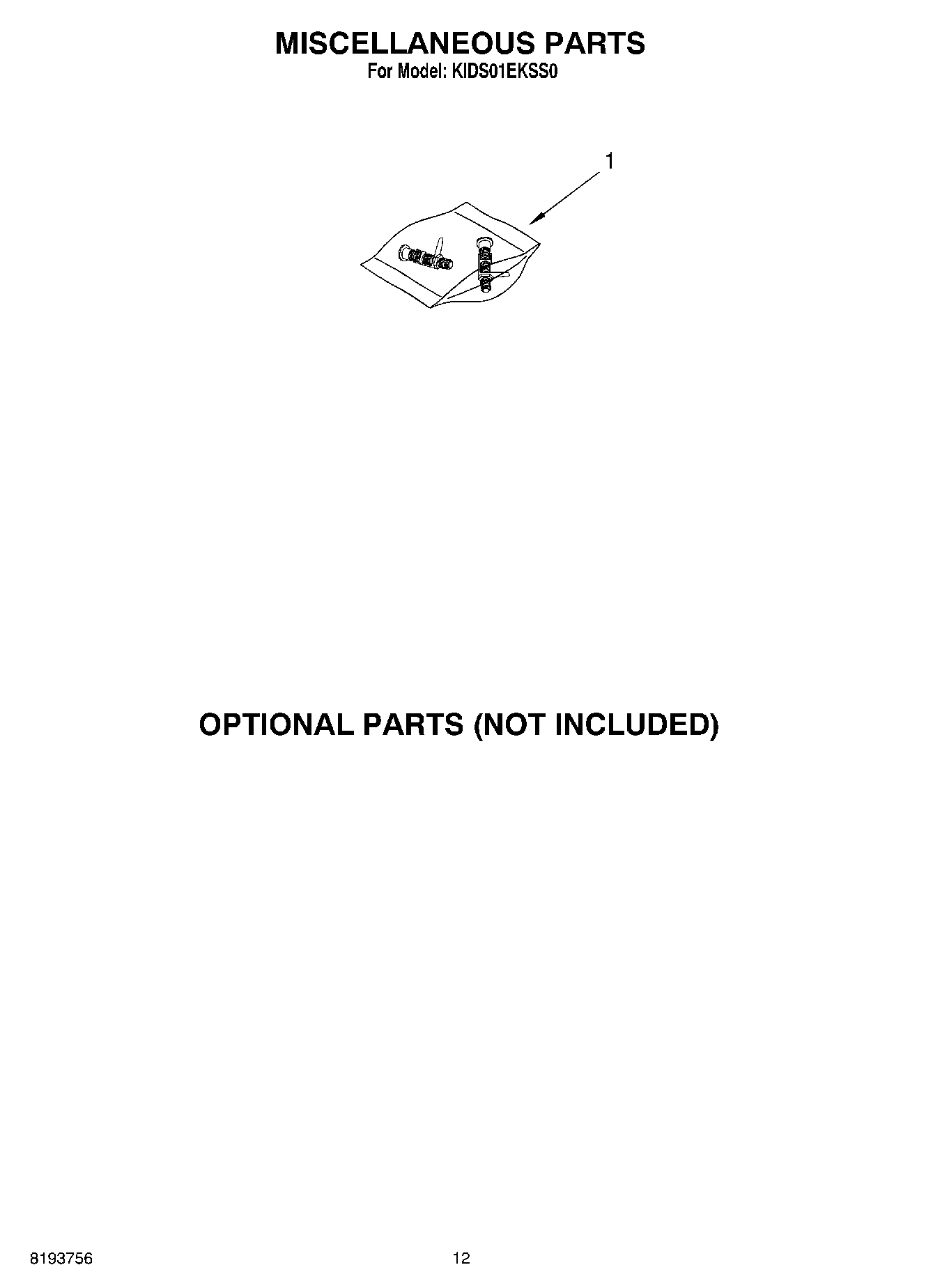

08 - MISCELLANEOUS, OPTIONAL

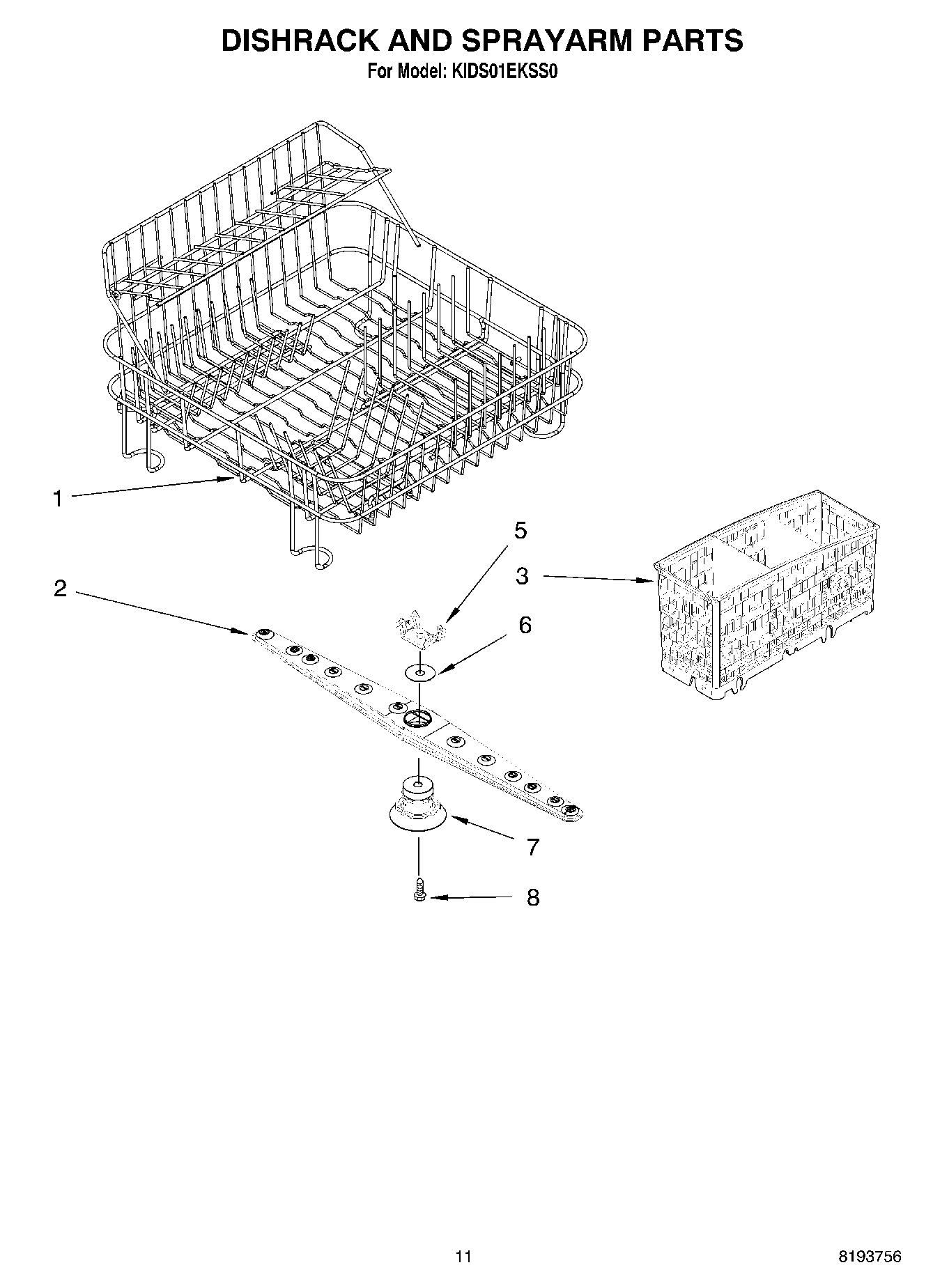

07 - DISHRACK AND SPRAYARM

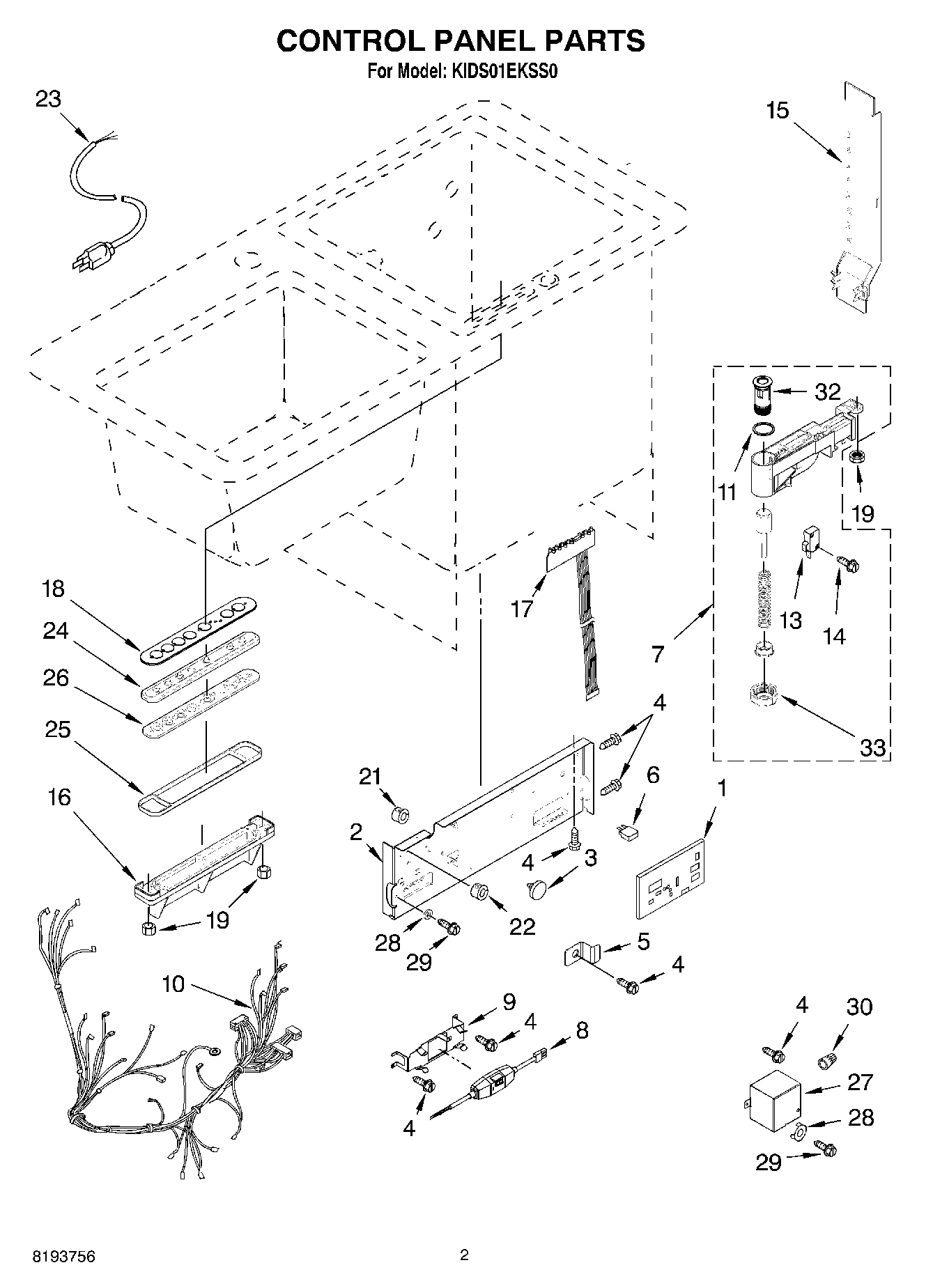

02 - CONTROL PANEL

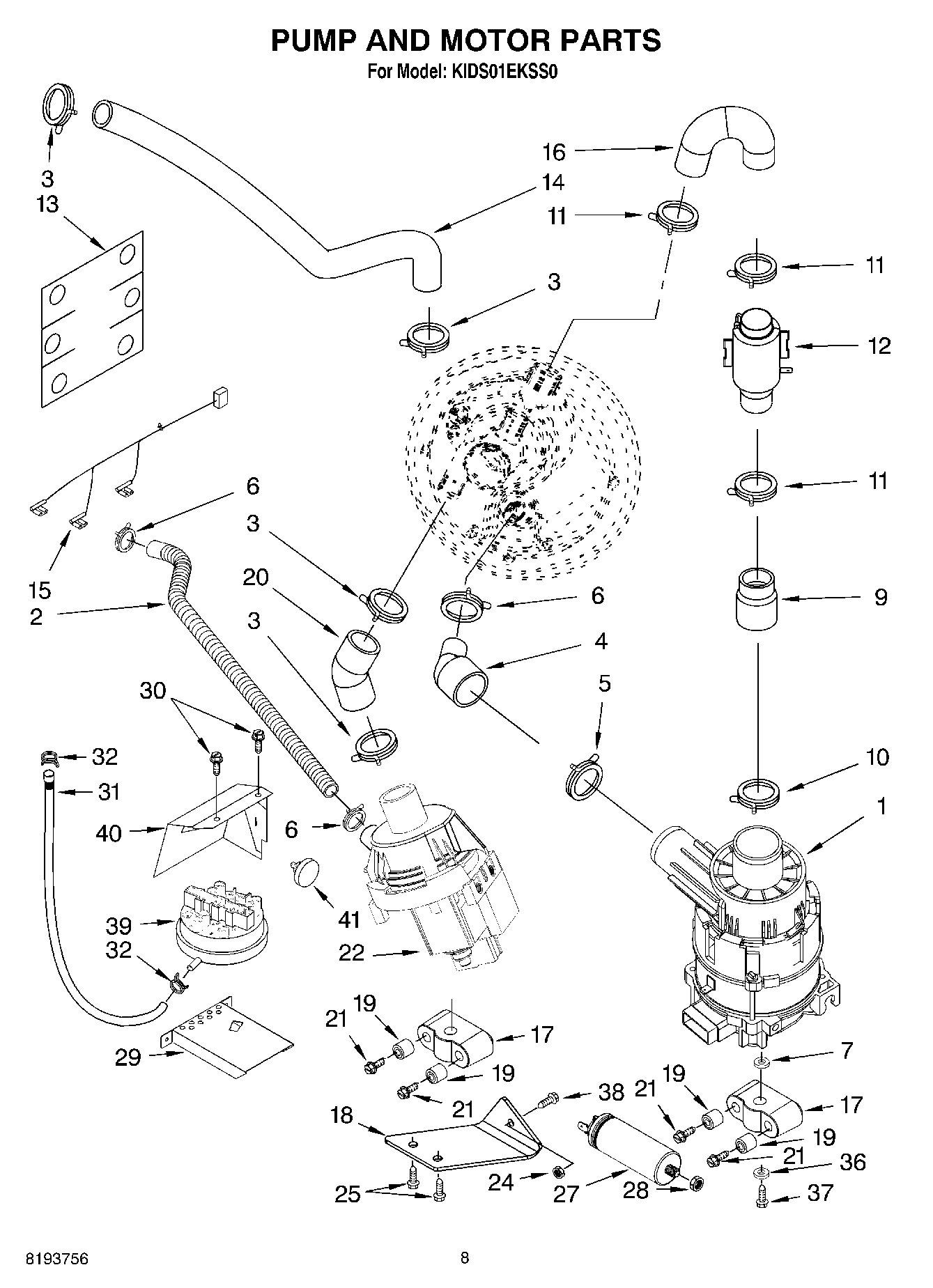

05 - PUMP AND MOTOR
Common parts from model Whirlpool KIDS01EKSS0 DISHWASHER
1
Air-Gap Drain (Also Order Item 2) WPL 8529490 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8529407 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8529408 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT8529409 Contact Us For Availability
1
Literature PartsTech Sheet (English/French) WPL LIT8529449 Contact Us For Availability
1
Gasket, Sump WPL 8529413 Contact Us For Availability
1
HOT WATER BOOSTER (Booster, Hot Water) WPL 4396282 Contact Us For Availability
1
Miscellanous Parts Bag (Includes 8 Each, Moun WPL 8529473 Contact Us For Availability
1
DISHRACK WPL 8529379 Contact Us For Availability
1
Control, Electronic (Also Order Item 6) WPL 8528829 Contact Us For Availability
1
Pump & Motor (Also Order Item 7) WPL 8529370 Contact Us For Availability
2
Gasket, Fittings WPL 8529497 Contact Us For Availability
2
Lid, Outer WPL 8529357 Contact Us For Availability
2
SUMP WPL 8529334 Contact Us For Availability
2
Sprayarm WPL 8529352 Contact Us For Availability
2
Brace, Cross WPL 8529436 Contact Us For Availability
2
Hose, Drain W/Check Valve WPL 8529474 Contact Us For Availability
3
Nut, Air-Gap WPL 8529496 Contact Us For Availability
3
Lid, Inner WPL 8529358 Contact Us For Availability
3
Ring, Sump WPL 8529435 Contact Us For Availability
3
Basket, Silverware WPL 8529417 Contact Us For Availability
4
Air-Gap, Fill WPL 8529494 Contact Us For Availability
4
Cup, Detergent WPL 8536997 Contact Us For Availability
4
Hose, Sump Wash Pump WPL 8529327 Contact Us For Availability
5
Mastic, Front Left Side WPL 8529461 Contact Us For Availability
5
Clamp, Hose WPL 8281275 Contact Us For Availability
5
Seal, Detergent Cup WPL 8536998 Contact Us For Availability
5
Support, Arm WPL 8529337 Contact Us For Availability
5
Bracket, Control WPL 8529432 Contact Us For Availability
6
Clamp, Hose WPL 371499 Contact Us For Availability
6
Mastic, Front Right Side WPL 8529462 Contact Us For Availability
6
Insulator, Sound Lid WPL 8529459 Contact Us For Availability
6
Dome, Pressure WPL 8537006 Contact Us For Availability
6
WASHER WPL 3400944 Contact Us For Availability
7
Mastic, Back Left Side WPL 8529463 Contact Us For Availability
7
Retainer, Feed Tube WPL 8529332 Contact Us For Availability
7
Cone, Centering WPL 8529338 Contact Us For Availability
7
Latch Assembly WPL 8537020 Contact Us For Availability
7
Grommet, Bushing WPL 3400943 Contact Us For Availability
8
Mastic, Back Right Side WPL 8529464 Contact Us For Availability
8
Retainer, Gasket WPL 8529340 Contact Us For Availability
8
Tube, Feed WPL 8529331 Contact Us For Availability
8
SCREW WPL 3400098 Contact Us For Availability
8
Ground Fault WPL 8536987 Contact Us For Availability
9
Mastic, Left Side WPL 8529520 Contact Us For Availability
9
NUT WPL 3400629 Contact Us For Availability
9
Poppet, Valve WPL 8529330 Contact Us For Availability
9
Bracket, Ground Fault WPL 8529517 Contact Us For Availability
9
Hose, Heater Wash Pump WPL 8529329 Contact Us For Availability
10
Mastic, Bottom Rear WPL 8536992 Contact Us For Availability
10
Gasket, Lid WPL 8529381 Contact Us For Availability
10
Sieve, Stainless WPL 8529414 Contact Us For Availability
10
Harness, Main WPL 8318158 Contact Us For Availability
11
Harness, Dispenser WPL 8529412 Contact Us For Availability
11
Microfilter WPL 8529415 Contact Us For Availability
11
GASKET WPL 8529518 Contact Us For Availability
12
SCREW WPL 3400628 Contact Us For Availability
12
Filter, Drain Stem Assembly WPL 8529367 Contact Us For Availability
12
HEATER WPL 8529372 Contact Us For Availability
13
Mastic, Lid WPL 8529458 Contact Us For Availability
13
Grommet WPL 3400951 Contact Us For Availability
13
Switch, Micro WPL 3369325 Contact Us For Availability
13
Shield, Heater WPL 8529508 Contact Us For Availability
14
Thermistor WPL 8269208 Contact Us For Availability
14
Cover, Rinse Aid Dispenser WPL 8529430 Contact Us For Availability
14
Screw WPL 3400409 Contact Us For Availability
14
Hose, Drain Air Gap WPL 8529512 Contact Us For Availability
15
Cover, Lid Counter Balance WPL 8536980 Contact Us For Availability
15
Knob, Latch (Also Order Item 20) WPL 8529380 Contact Us For Availability
15
Protector, Harness WPL 8529445 Contact Us For Availability
15
Wire Harness Heater WPL 8318161 Contact Us For Availability
16
Guide, Rope Upper WPL 8529341 Contact Us For Availability
16
Strain Relief WPL 3400950 Contact Us For Availability
16
Pin, Hinge (Left Hand) WPL 8529383 Contact Us For Availability
16
Pin, Hinge (Right Hand) WPL 8529384 Contact Us For Availability
16
Bracket, User Interface WPL 8529504 Contact Us For Availability
16
Hose Sump/Heater WPL 8529326 Contact Us For Availability
17
Bearing, Lid Hinge WPL 8319539 Contact Us For Availability
17
Shield, Coil WPL 8536985 Contact Us For Availability
17
Board, Interface WPL 8529323 Contact Us For Availability
17
Grommet, Motor WPL 8529324 Contact Us For Availability
18
Shield, Switch WPL 8536984 Contact Us For Availability
18
Board, Cutting WPL 8529385 Contact Us For Availability
18
INSERT WPL 8529509 Contact Us For Availability
18
Bracket, Drain Pump WPL 8529431 Contact Us For Availability
19
Mount, Wheel WPL 8536978 Contact Us For Availability
19
Cap, Fill Rinse Aid WPL 8529366 Contact Us For Availability
19
Sleeve, Grommet WPL 3400942 Contact Us For Availability
20
Link, Lid Balance (Also Order Item 21) WPL 8529382 Contact Us For Availability
20
``O`` Ring Dispenser WPL 8529365 Contact Us For Availability
20
Screw, Set WPL 3400630 Contact Us For Availability
20
Hose, Sump/Drain Motor WPL 8529328 Contact Us For Availability
21
C-Ring WPL 3400945 Contact Us For Availability
21
Gasket, Fill Cup WPL 8529362 Contact Us For Availability
21
E-Ring WPL 3400940 Contact Us For Availability
21
BUSHING WPL 8536976 Contact Us For Availability
21
SCREW WPL 3400226 Contact Us For Availability
22
Pump, Drain WPL 8529374 Contact Us For Availability
22
Base Plate WPL 8537021 Contact Us For Availability
22
Cap, Dispenser WPL 8529368 Contact Us For Availability
22
BUSHING WPL 8529522 Contact Us For Availability
23
Dispenser, Rinse Aid WPL 8529361 Contact Us For Availability
23
WASHER WPL 3400939 Contact Us For Availability
24
Fitting, Water Inlet WPL 8529487 Contact Us For Availability
24
Collar Assembly WPL 8537007 Contact Us For Availability
24
Spacer, User Interface WPL 8529505 Contact Us For Availability
25
Hose, Fill Large WPL 8529477 Contact Us For Availability
25
WASHER WPL 3400941 Contact Us For Availability
25
Gasket, User Interface WPL 8529506 Contact Us For Availability
25
Screw WPL 3428430 Contact Us For Availability
26
Cam Assembly WPL 8529395 Contact Us For Availability
26
Plate, Backing WPL 8529511 Contact Us For Availability
27
Nut, Fill Rinse Aid WPL 8529364 Contact Us For Availability
27
Spring, Torsion WPL 8529390 Contact Us For Availability
27
Cover, Terminal WPL 8529437 Contact Us For Availability
27
CAPACITOR WPL 8529371 Contact Us For Availability
28
Insert, Air-Gap WPL 8529499 Contact Us For Availability
28
Nut WPL 3400921 Contact Us For Availability
29
Nut, Air Gap-Top WPL 8529498 Contact Us For Availability
29
Bracket, Pressure Switch WPL 8529433 Contact Us For Availability
30
Cap, Air-Gap WPL 8529492 Contact Us For Availability
30
Nut, Wire WPL 8529478 Contact Us For Availability
31
Hose, Pressure Switch WPL 8529479 Contact Us For Availability
32
Housing, Plunger Latch WPL 8529393 Contact Us For Availability
32
Clamp, Hose WPL 3380943 Contact Us For Availability
33
Nut, Latch WPL 8529403 Contact Us For Availability
36
Washer WPL 487944 Contact Us For Availability
37
SCREW WPL 8533830 Contact Us For Availability
38
SCREW WPL 8533831 Contact Us For Availability
39
Switch, Pressure WPL 8529373 Contact Us For Availability
40
Shield, Assembly WPL 8537005 Contact Us For Availability
41
Spacer WPL 8283353 Contact Us For Availability
× ![]()
