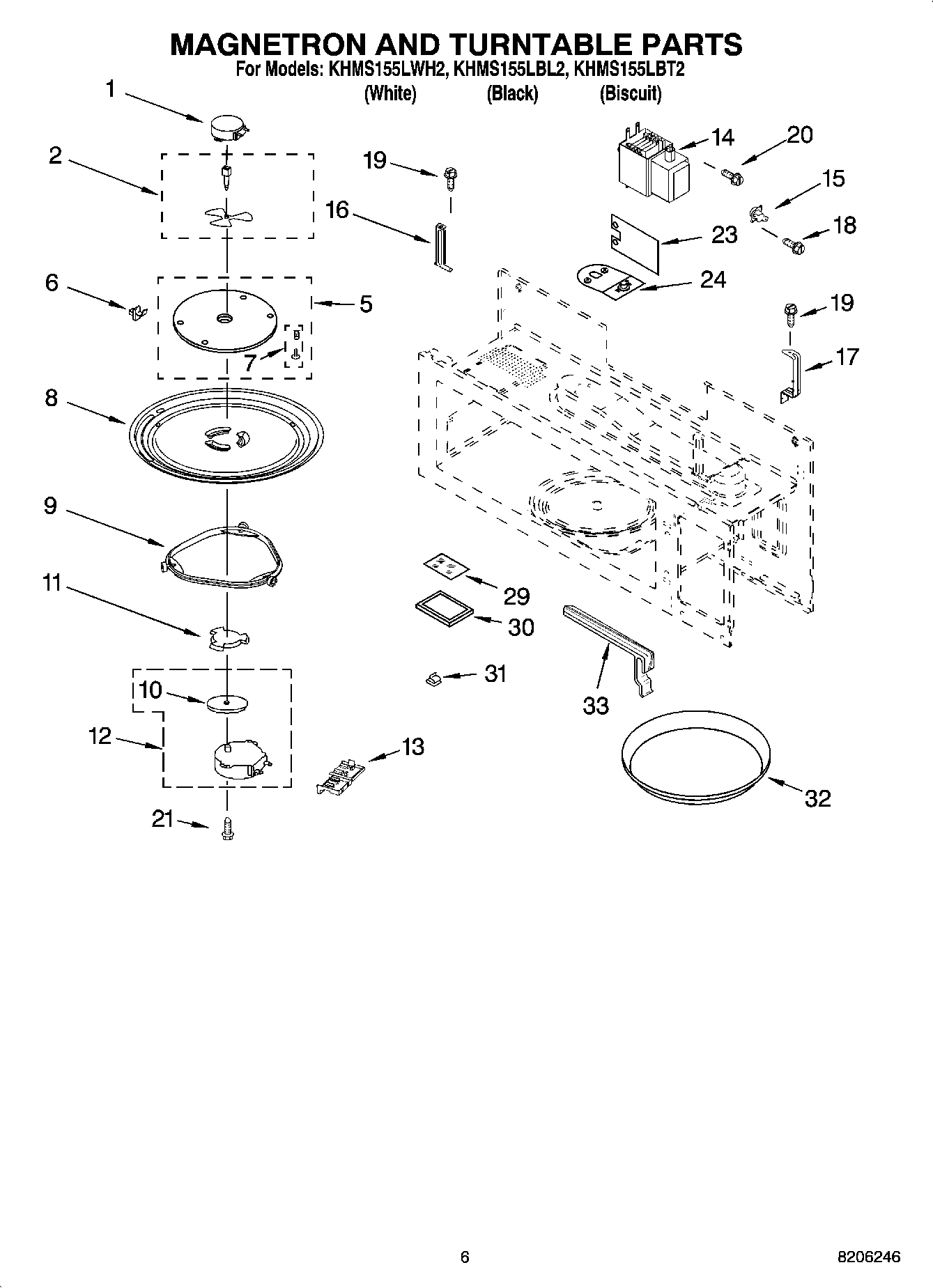

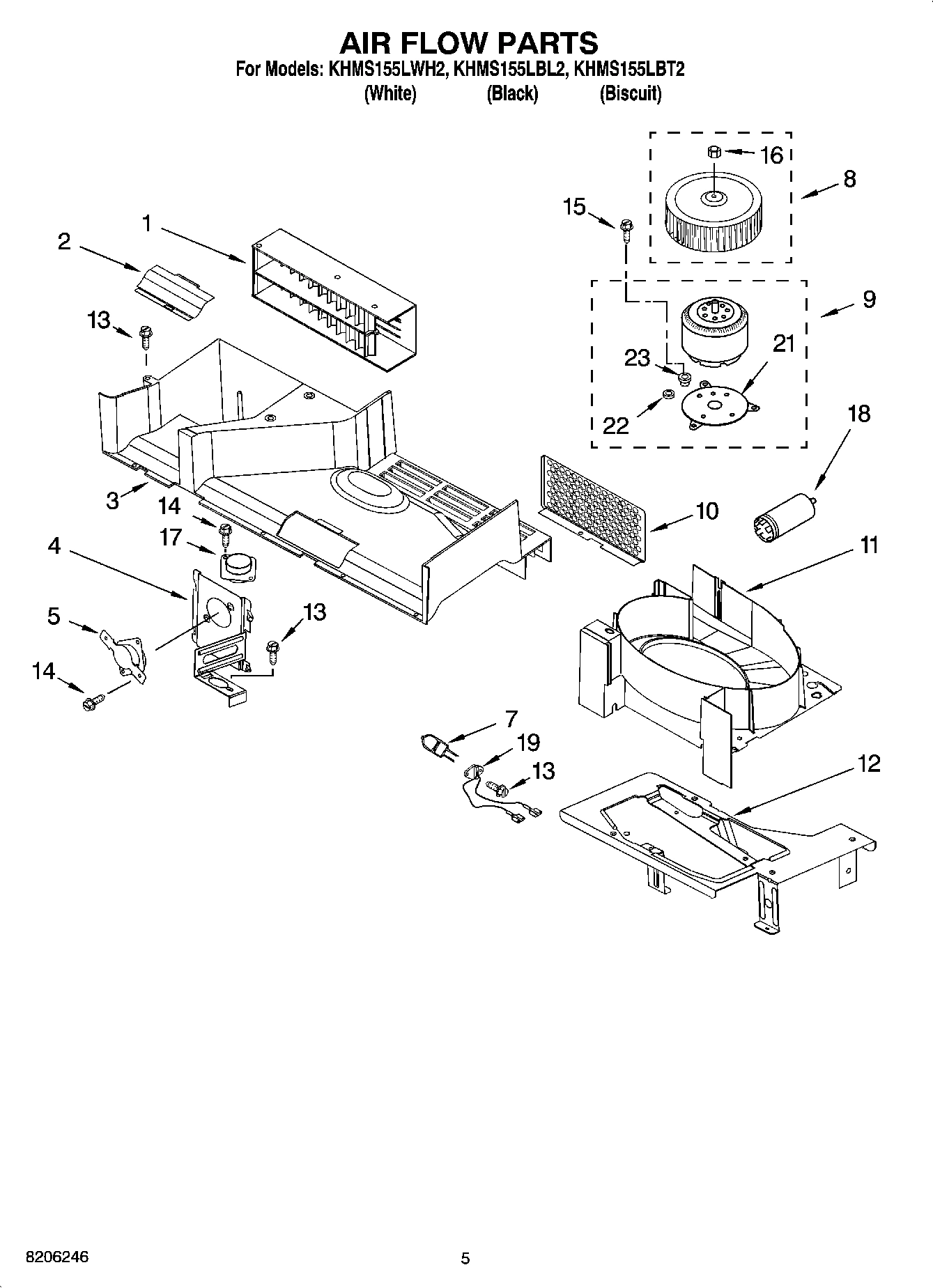

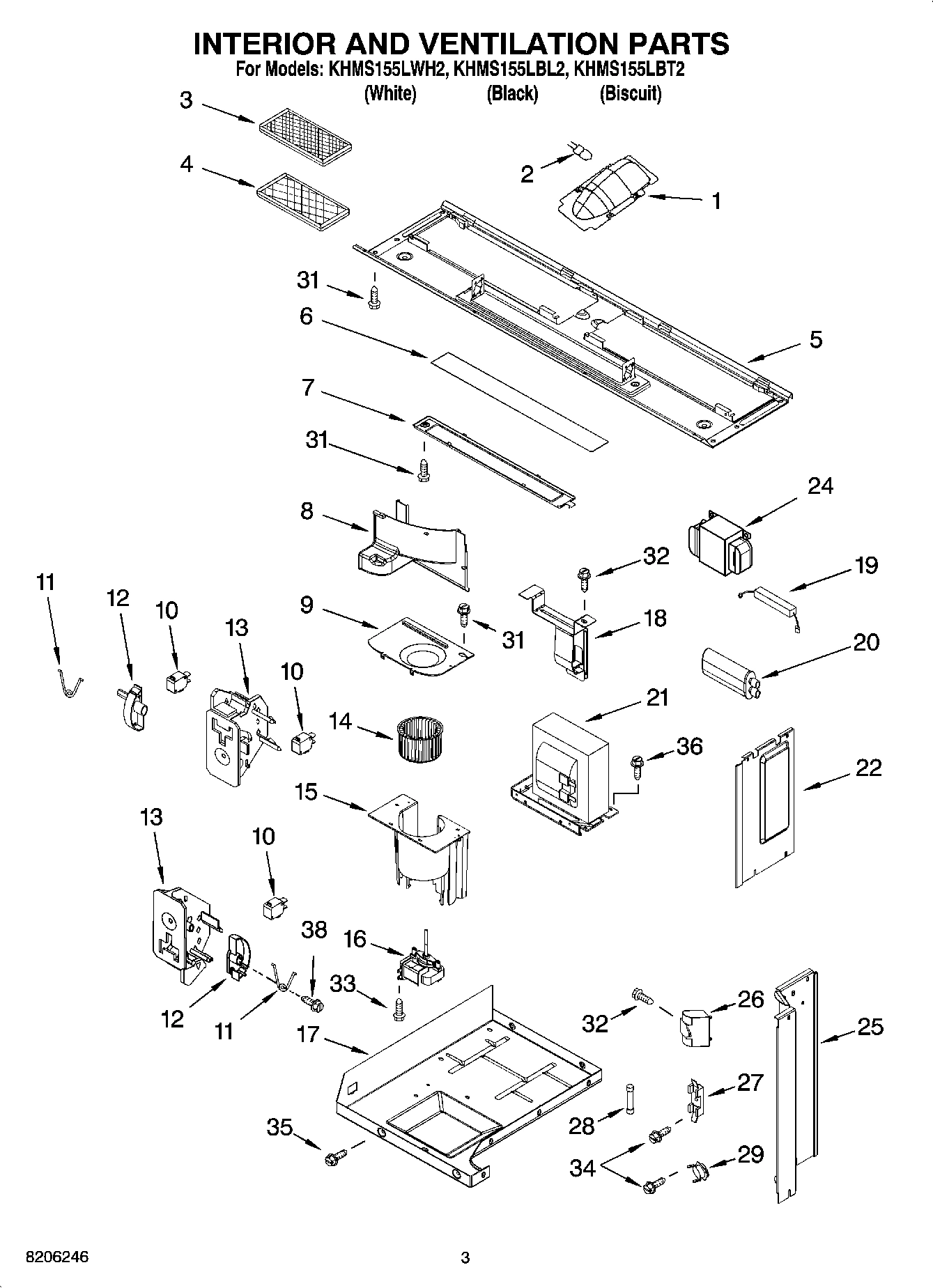

Model Whirlpool KHMS155LWH2 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

Deflector, Air WPL 8184638 Contact Us For Availability

1

Reflector, Lamp WPL 8169652 Contact Us For Availability

1

Motor, Stirrer WPL 8205044 Contact Us For Availability

2

8204670 Whirlpool Microwave Halogen Lamp 10W In Stock WPL 8204670 $10.07

2

Frame, Inner WPL 8169545 Contact Us For Availability

2

Reflector, Air WPL 8169557 Contact Us For Availability

2

Stirrer Assembly WPL 8205315 Contact Us For Availability

3

6800 Whirlpool Charcoal Filter Kit In Stock WPL 6800 $11.99

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Duct, Air WPL 8185083 Contact Us For Availability

4

6802A Whirlpool Grease Filter In Stock WPL 6802A $12.48

4

Body, Door (White) WPL 8169653 Contact Us For Availability

4

Bracket, Thermostat WPL 8204653 Contact Us For Availability

5

Glass, Outer WPL 4393725 Contact Us For Availability

5

Thermostat WPL 8183697 Contact Us For Availability

5

Plate, Bottom WPL 8184307 Contact Us For Availability

5

Cover, Inlet WPL 8184476 Contact Us For Availability

6

Hook, Rack (4) WPL 8204662 Contact Us For Availability

6

PCB Assembly WPL 8169733 Contact Us For Availability

6

Glass, Lamp WPL 8169564 Contact Us For Availability

7

8169738 Whirlpool Microwave Door Handle In Stock WPL 8169738 $54.85

7

Handle, Door (S.Steel) WPL 8184264 No Longer Available

7

Holder, Glass WPL 8184308 Contact Us For Availability

7

Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability

8

Turntable WPL 4393799 No Longer Available

8

8184608 Whirlpool Microwave Oven Vent Grille In Stock WPL 8184608 $23.92

8

Grille, Vent (White) WPL 8184148 Contact Us For Availability

8

Grille, Vent (Biscuit) WPL 8184146 Contact Us For Availability

8

Wheel, Fan WPL 4393960 Contact Us For Availability

8

Guide, Air (Magnetron) WPL 8184309 Contact Us For Availability

9

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $20.42

9

Motor, Fan WPL 8169632 Contact Us For Availability

9

Cover, Fan WPL 8183823 Contact Us For Availability

8184109 Whirlpool Microwave Spacer In Stock WPL 8184109 $3.70

W10211972 Whirlpool Microwave Switch In Stock WPL W10211972 $28.44

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $2.51

Frame, Outer (Black) WPL 8184592 Contact Us For Availability

Frame, Outer (White) WPL 8184149 Contact Us For Availability

Frame, Outer (Biscuit) WPL 8184744 Contact Us For Availability

Shield WPL 8184130 Contact Us For Availability

11

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 $12.02

11

Spring, Interlock WPL 8169438 Contact Us For Availability

11

Housing, Fan WPL 8184624 Contact Us For Availability

12

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $72.24

12

Plate, Cam WPL 8183824 Contact Us For Availability

12

Bracket, Fan (Not Serviced) WPL ARI88570A2 Contact Us For Availability

13

8205572 Whirlpool Microwave Interlock Backorder WPL 8205572 $3.70

13

Screw WPL 8169474 Contact Us For Availability

13

Cover, Terminal WPL 4393756 Contact Us For Availability

14

W10245183 Whirlpool Microwave Magnetron In Stock WPL W10245183 $135.56

14

Screw WPL 4393316 Contact Us For Availability

14

Wheel, Fan WPL 8183825 Contact Us For Availability

15

Thermostat WPL 4393943 Contact Us For Availability

15

Screw WPL 4393830 Contact Us For Availability

15

Housing, Fan WPL 8184310 Contact Us For Availability

16

Nut WPL 8184404 Contact Us For Availability

16

Motor, Fan WPL 8183826 Contact Us For Availability

16

Holder, Connector (L) WPL 8205792 Contact Us For Availability

17

Humidity, Sensor WPL 4393808 Contact Us For Availability

17

Chassis WPL 8183827 Contact Us For Availability

17

Holder, Connector (R) WPL 8169705 Contact Us For Availability

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $2.85

Installation, Hardware WPL 8205947 Contact Us For Availability

Filter WPL 8169561 Contact Us For Availability

Holder, Capacitor WPL 8184311 Contact Us For Availability

Screw WPL 4393838 Contact Us For Availability

19

W11256462 Whirlpool Microwave Diode In Stock WPL W11256462 $10.01

19

Holder, Lamp WPL 8185084 Contact Us For Availability

19

Screw WPL 4393828 Contact Us For Availability

20

W10850446 Whirlpool Microwave Magnetron Capac In Stock WPL W10850446 $118.69

20

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $2.51

21

4393832 Whirlpool Microwave Screw Backorder WPL 4393832 $9.59

21

Adapter, Motor WPL 8184000 Contact Us For Availability

21

Transformer, H.V. WPL 8206250 Contact Us For Availability

22

Plate, Damper WPL 8204674 Contact Us For Availability

22

Plate, Side (R) WPL 4393705 Contact Us For Availability

23

WP8184485 Whirlpool Microwave Shield Backorder WPL WP8184485 $40.26

23

Cushion, Mtr WPL 8169635 Contact Us For Availability

24

Transformer, L.V. WPL 8185003 Contact Us For Availability

24

Thermostat/Bracket WPL 8184585 Contact Us For Availability

25

Plate, Side (L) WPL 8169470 Contact Us For Availability

26

Capacitor WPL 4393709 Contact Us For Availability

27

Holder, Fuse WPL 8184312 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $19.18

29

Thermostat WPL 4393710 Contact Us For Availability

29

Glass, Lamp WPL 8169499 Contact Us For Availability

30

Frame, Glass WPL 8169646 Contact Us For Availability

31

Clip WPL 8169647 Contact Us For Availability

32

W10748097 Whirlpool Microwave Crisp Pan In Stock WPL W10748097 $31.42

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $9.86

33

W10851464 Whirlpool Microwave Handle Panel In Stock WPL W10851464 $8.45

33

Screw WPL 4393833 Contact Us For Availability

34

Screw WPL 8169478 Contact Us For Availability

35

Screw WPL 8169475 Contact Us For Availability

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $2.73

38

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $2.51
