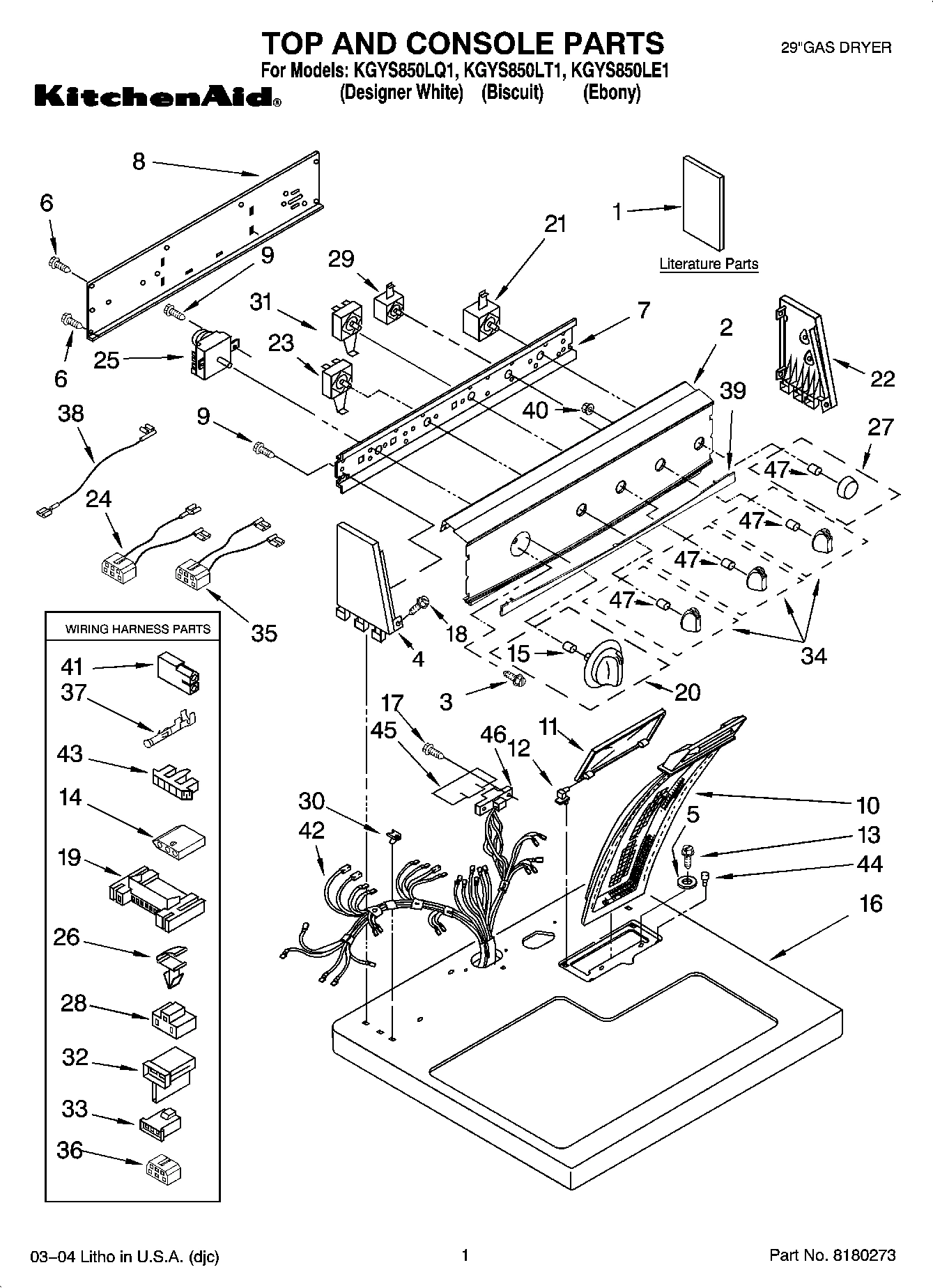

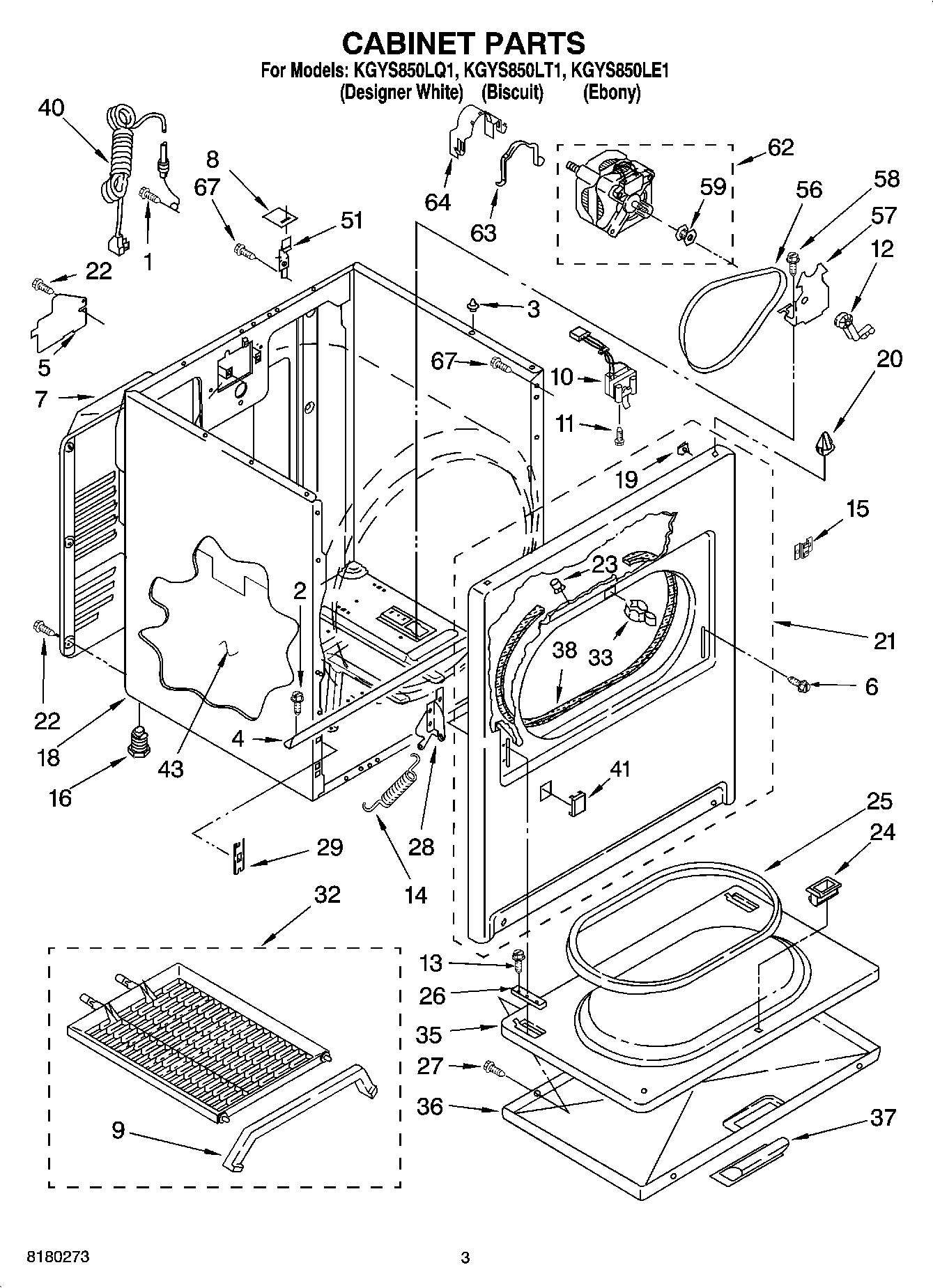

Model Whirlpool KGYS850LT1 29``GAS DRYER – Common Parts &amp; Diagrams

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

Dry Rack Bracket WPL 692989 Contact Us For Availability

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $10.86

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

WP8318277 Whirlpool Gas Valve In Stock WPL WP8318277 $198.88

11

Cover, Lint Screen (White) WPL 8283378 Contact Us For Availability

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $3.70

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $3.70

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

14

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

14

8541401 Whirlpool Door Spring Backorder WPL 8541401 $37.28

15

8546676 Whirlpool Clip Backorder WPL 8546676 $36.12

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Top (Black) WPL 3978787 Contact Us For Availability

Top (White) WPL 8274386 Contact Us For Availability

Top (Biscuit) WPL 8274387 Contact Us For Availability

17

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

19

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Knob, Timer (White) WPL 3956185 Contact Us For Availability

Seal, Blower WPL 3394196 Contact Us For Availability

Knob, Timer (Biscuit) WPL 3956186 Contact Us For Availability

Knob, Timer (Black) WPL 3956187 Contact Us For Availability

21

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $42.69

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

End Cap (R.H.) (Black) WPL 3954771 Contact Us For Availability

End Cap (R.H.) (White) WPL 8274349 Contact Us For Availability

End Cap (R.H.) (Biscuit) WPL 8274351 Contact Us For Availability

23

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

23

WP3399640 Whirlpool Switch Backorder WPL WP3399640 $43.24

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

24

Wire, Jumper WPL 8283276 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

WP3976570 Whirlpool Timer In Stock WPL WP3976570 $145.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

27

Knob, Push To Sta WPL 8536921 Contact Us For Availability

27

WPL 8536922 WPL 8536922 Contact Us For Availability

27

WPL 8536923 WPL 8536923 Contact Us For Availability

28

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

29

W11398682 Whirlpool Bracket Backorder WPL W11398682 $19.91

29

WP3398093 Whirlpool Buzzer Adjuster Backorder WPL WP3398093 $53.91

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

WP3405156 Whirlpool Switch In Stock WPL WP3405156 $48.50

32

3406839 Whirlpool Drying Rack In Stock WPL 3406839 $42.42

32

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

33

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

34

WPL 3956182 WPL 3956182 Contact Us For Availability

34

WPL 3956183 WPL 3956183 Contact Us For Availability

34

WPL 3956184 WPL 3956184 Contact Us For Availability

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

35

WPL 8283279 WPL 8283279 Contact Us For Availability

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

36

WPL 3347243 WPL 3347243 Contact Us For Availability

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Handle, Door (Biscuit) WPL 8536934 Contact Us For Availability

Handle, Door (White) WPL 8536933 Contact Us For Availability

Handle, Door (Black) WPL 8536935 Contact Us For Availability

38

WPL 3401668 WPL 3401668 Contact Us For Availability

39

WPL 8536944 WPL 8536944 Contact Us For Availability

39

WPL 8536945 WPL 8536945 Contact Us For Availability

39

WPL 8536946 WPL 8536946 Contact Us For Availability

40

WPL 8533828 WPL 8533828 Contact Us For Availability

41

Plug-Panel Front (White) WPL 3394975 Contact Us For Availability

41

WPL 717252 WPL 717252 Contact Us For Availability

42

WPL 8299881 WPL 8299881 Contact Us For Availability

43

WPL 3397269 WPL 3397269 Contact Us For Availability

44

WPL 297535 WPL 297535 Contact Us For Availability

46

3391885 Whirlpool Connector Backorder WPL 3391885 $28.80

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392065 Whirlpool Dryer Maintenance Kit In Stock WPL 4392065 $16.88

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

WPL 346764 WPL 346764 Contact Us For Availability

WPL 4392900 WPL 4392900 Contact Us For Availability

WPL 786020 WPL 786020 Contact Us For Availability

WPL 786032 WPL 786032 Contact Us For Availability

WPL ARI154718A WPL ARI154718A Contact Us For Availability

48

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $118.41

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

64

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70
