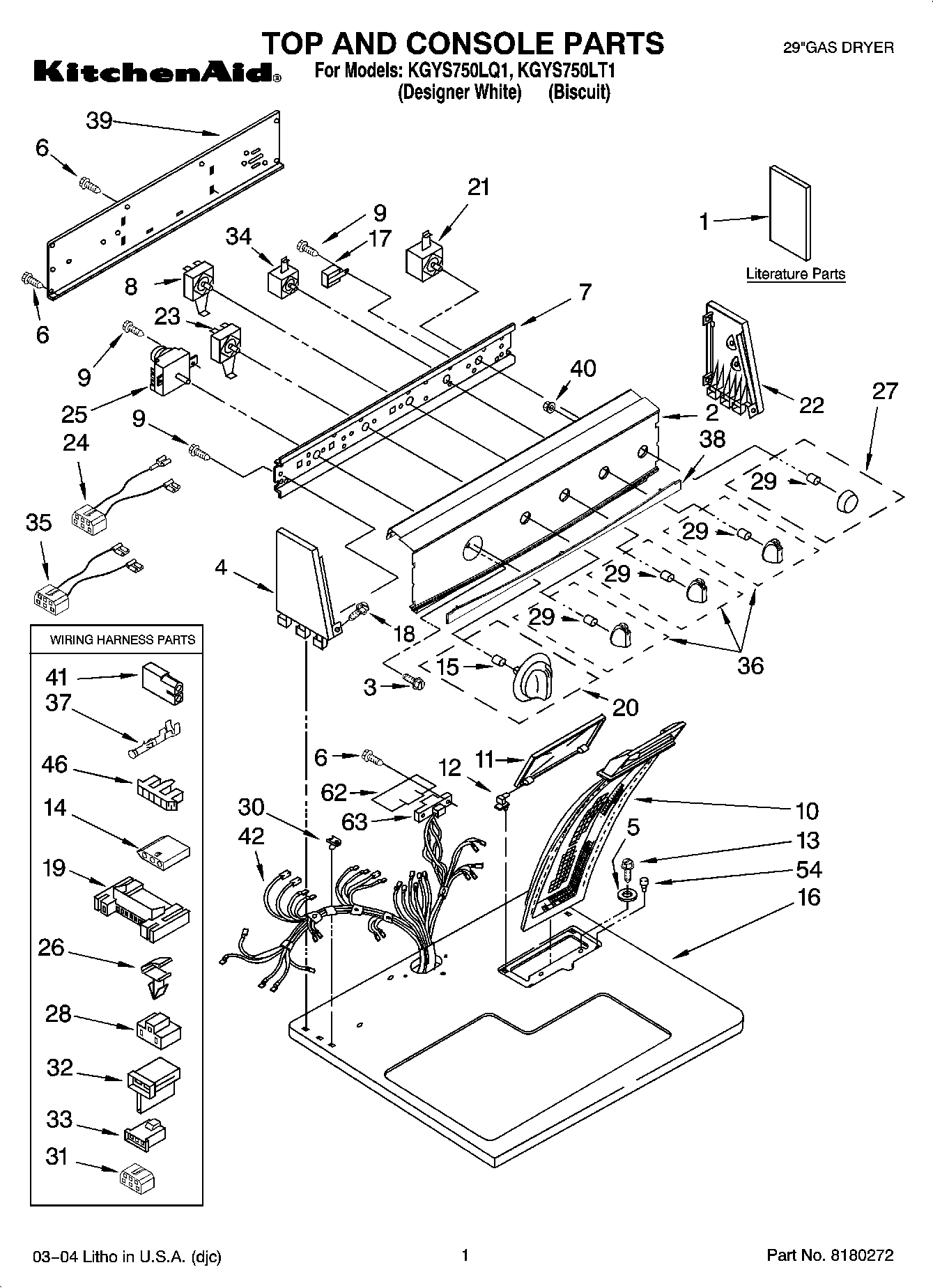

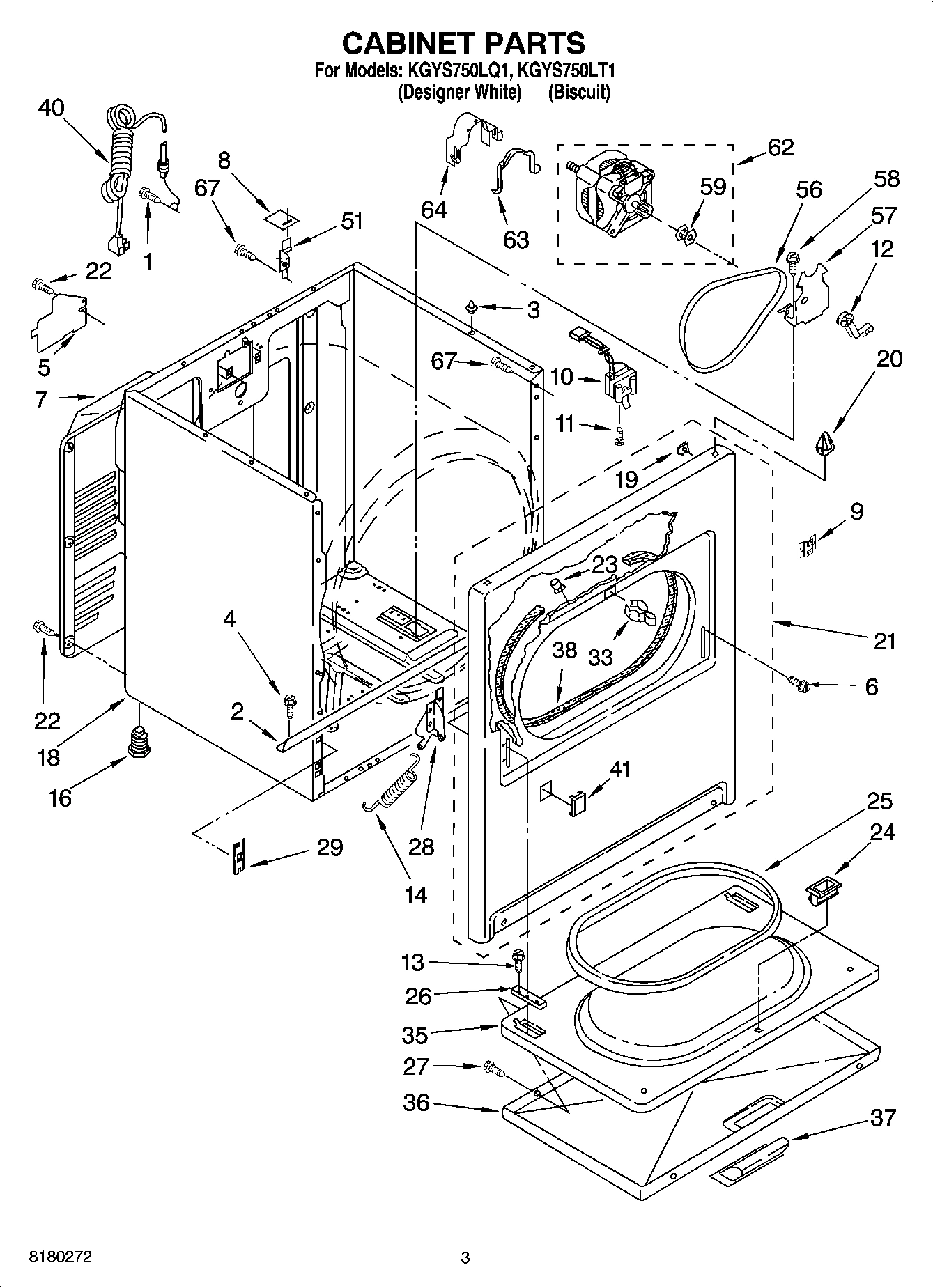

Model Whirlpool KGYS750LT1 29``GAS DRYER – Common Parts &amp; Diagrams

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

3

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

3

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

5

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

7

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $10.97

8

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

8

WP3405156 Whirlpool Switch In Stock WPL WP3405156 $48.50

9

8546676 Whirlpool Clip Backorder WPL 8546676 $36.12

9

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $10.86

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $16.56

WP8318277 Whirlpool Gas Valve In Stock WPL WP8318277 $198.88

11

Cover, Lint Screen (White) WPL 8283378 Contact Us For Availability

12

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $5.69

14

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

14

8541401 Whirlpool Door Spring Backorder WPL 8541401 $37.28

15

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Top (Biscuit) WPL 8274387 Contact Us For Availability

17

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $49.52

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

19

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Knob, Timer (White) WPL 3956185 Contact Us For Availability

Seal, Blower WPL 3394196 Contact Us For Availability

Knob, Timer (Biscuit) WPL 3956186 Contact Us For Availability

21

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $42.69

W11415783 Whirlpool Seal In Stock WPL W11415783 $6.81

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

End Cap (R.H.) (White) WPL 8274349 Contact Us For Availability

End Cap (R.H.) (Biscuit) WPL 8274351 Contact Us For Availability

23

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

23

WP3399639 Whirlpool Switch In Stock WPL WP3399639 $33.03

24

3401695 Whirlpool Wire Harness Backorder WPL 3401695 $28.80

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

24

Wire, Jumper (White/Yellow) WPL 8283276 Contact Us For Availability

25

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $33.81

25

WP3976570 Whirlpool Timer In Stock WPL WP3976570 $145.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

26

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

27

Knob, Push To Start (White) WPL 8536921 Contact Us For Availability

27

Knob, Push To Start (Biscuit) WPL 8536922 Contact Us For Availability

28

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $30.80

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $31.07

29

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.19

29

W11398682 Whirlpool Bracket Backorder WPL W11398682 $19.91

29

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $3.70

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

31

Connector 6-Circuit WPL 3347243 Contact Us For Availability

32

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $3.51

33

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

34

3399638 Whirlpool Switch Backorder WPL 3399638 $44.76

35

8539893 Whirlpool Wire Harness Backorder WPL 8539893 $7.36

35

WP695737 Whirlpool Door Backorder WPL WP695737 $104.93

36

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $79.93

36

WPL 3956182 WPL 3956182 Contact Us For Availability

36

WPL 3956183 WPL 3956183 Contact Us For Availability

37

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

37

Handle, Door (Biscuit) WPL 8536934 Contact Us For Availability

37

Handle, Door (White) WPL 8536933 Contact Us For Availability

38

WPL 8536944 WPL 8536944 Contact Us For Availability

38

WPL 8536945 WPL 8536945 Contact Us For Availability

39

W10103406 Whirlpool Rear Panel Backorder WPL W10103406 $42.99

40

WPL 8533828 WPL 8533828 Contact Us For Availability

41

Plug-Panel Front (White) WPL 3394975 Contact Us For Availability

41

WPL 717252 WPL 717252 Contact Us For Availability

42

WPL 8299881 WPL 8299881 Contact Us For Availability

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WPL 3397269 WPL 3397269 Contact Us For Availability

47

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

48

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $118.41

54

WPL 297535 WPL 297535 Contact Us For Availability

57

WP348780 Whirlpool Base In Stock WPL WP348780 $36.31

58

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

63

3391885 Whirlpool Connector Backorder WPL 3391885 $28.80

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

64

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

64

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

65

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

68

WP692490 Whirlpool Drum Baffle In Stock WPL WP692490 $49.76

69

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $45.29

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.70

3406839 Whirlpool Drying Rack In Stock WPL 3406839 $42.42

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $4.76
