Model Whirlpool KGST307HWH8 COOKTOP – Common Parts & Diagrams
03 - CONTROL PANEL
06 - BROILER AND OVEN BURNER

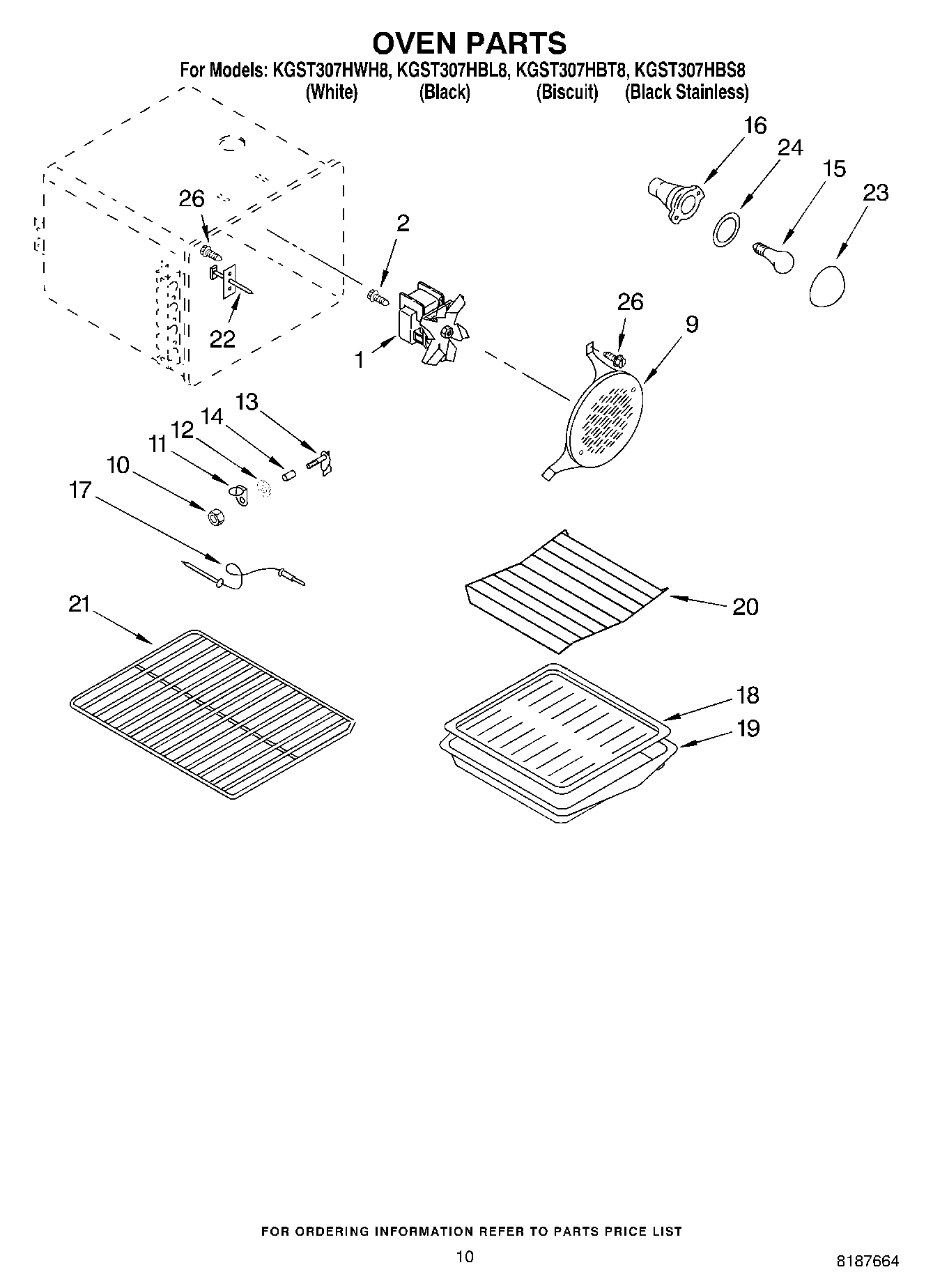

07 - OVEN

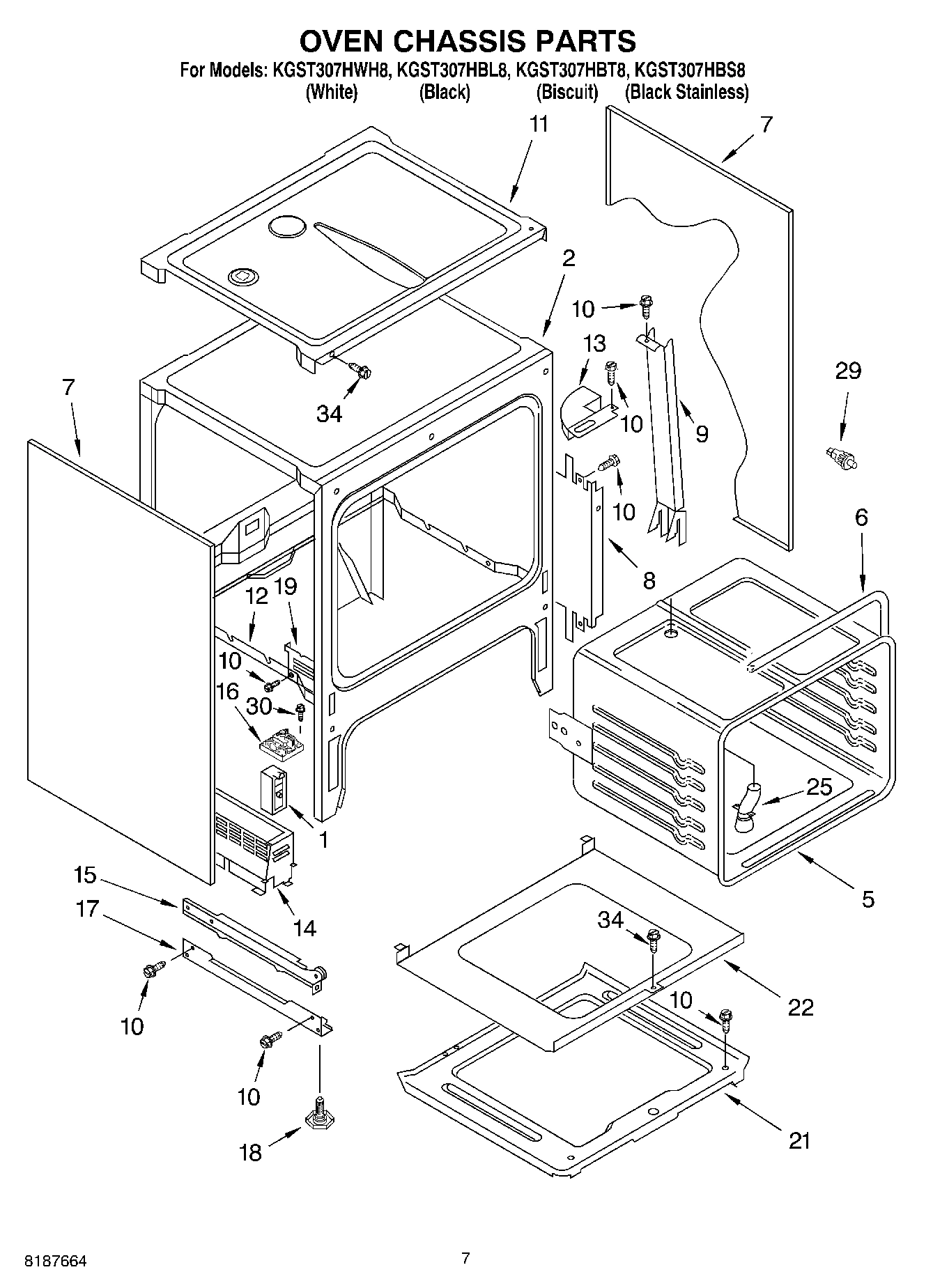

05 - OVEN CHASSIS

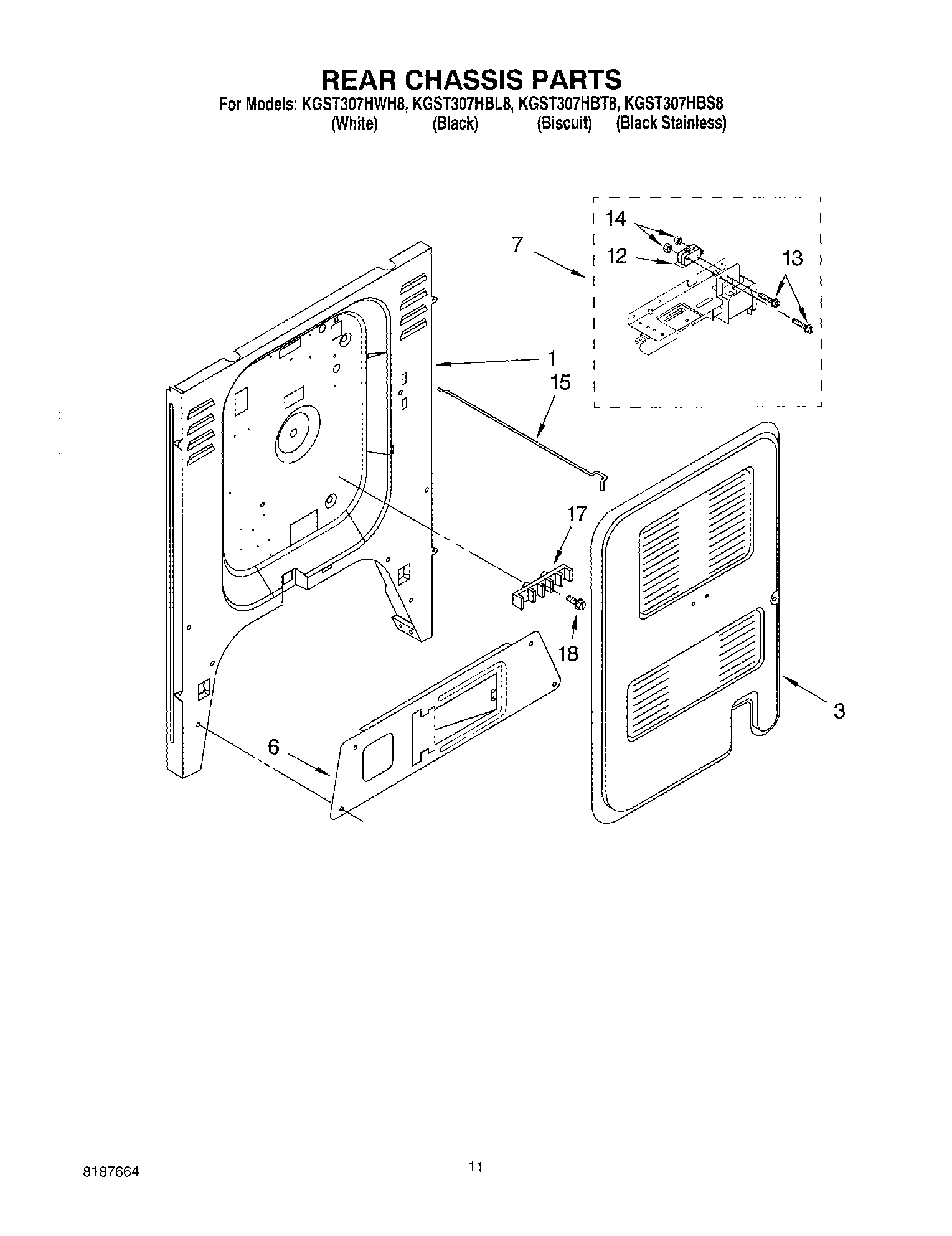

08 - REAR CHASSIS

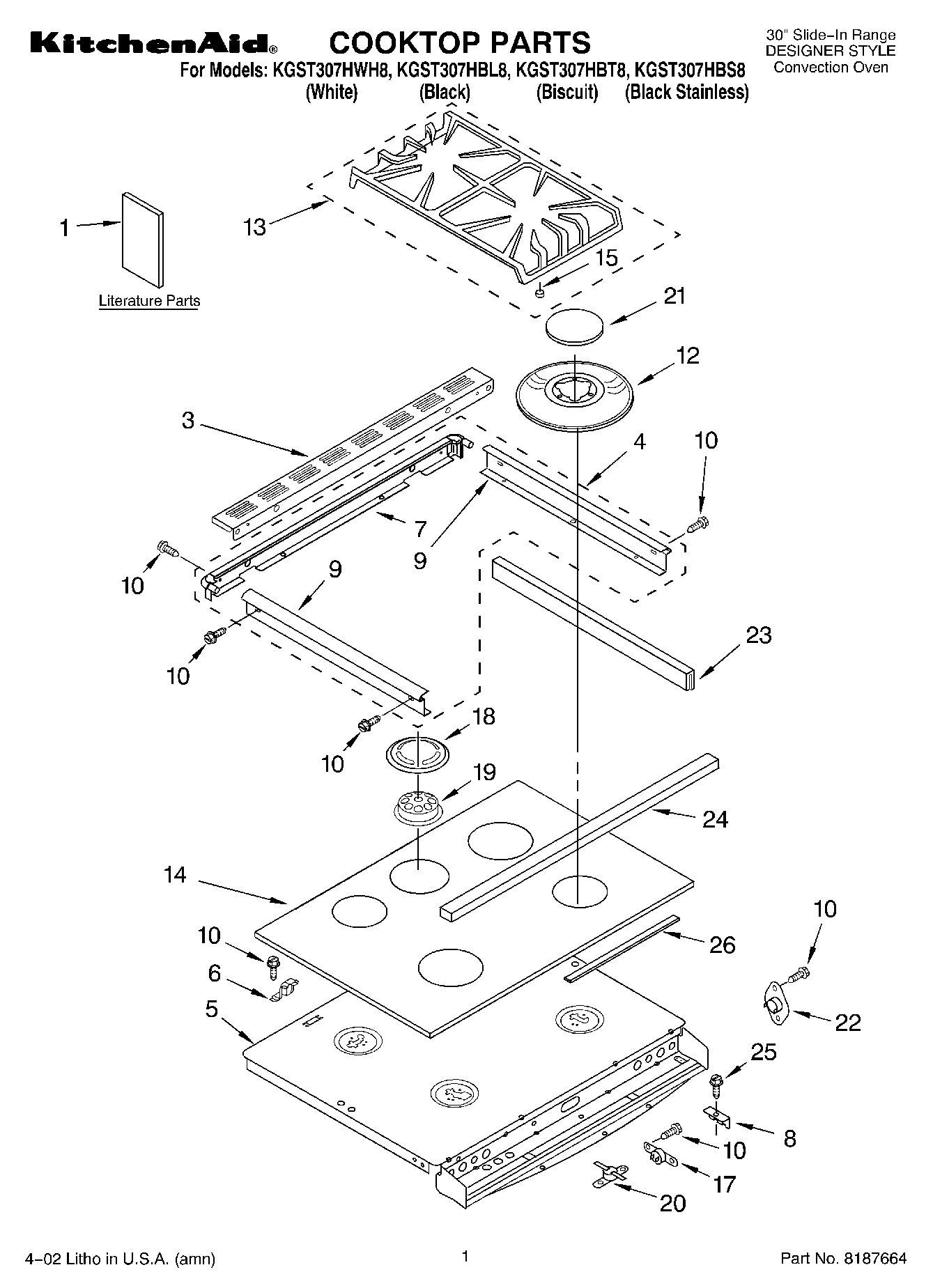

01 - COOKTOP, LITERATURE

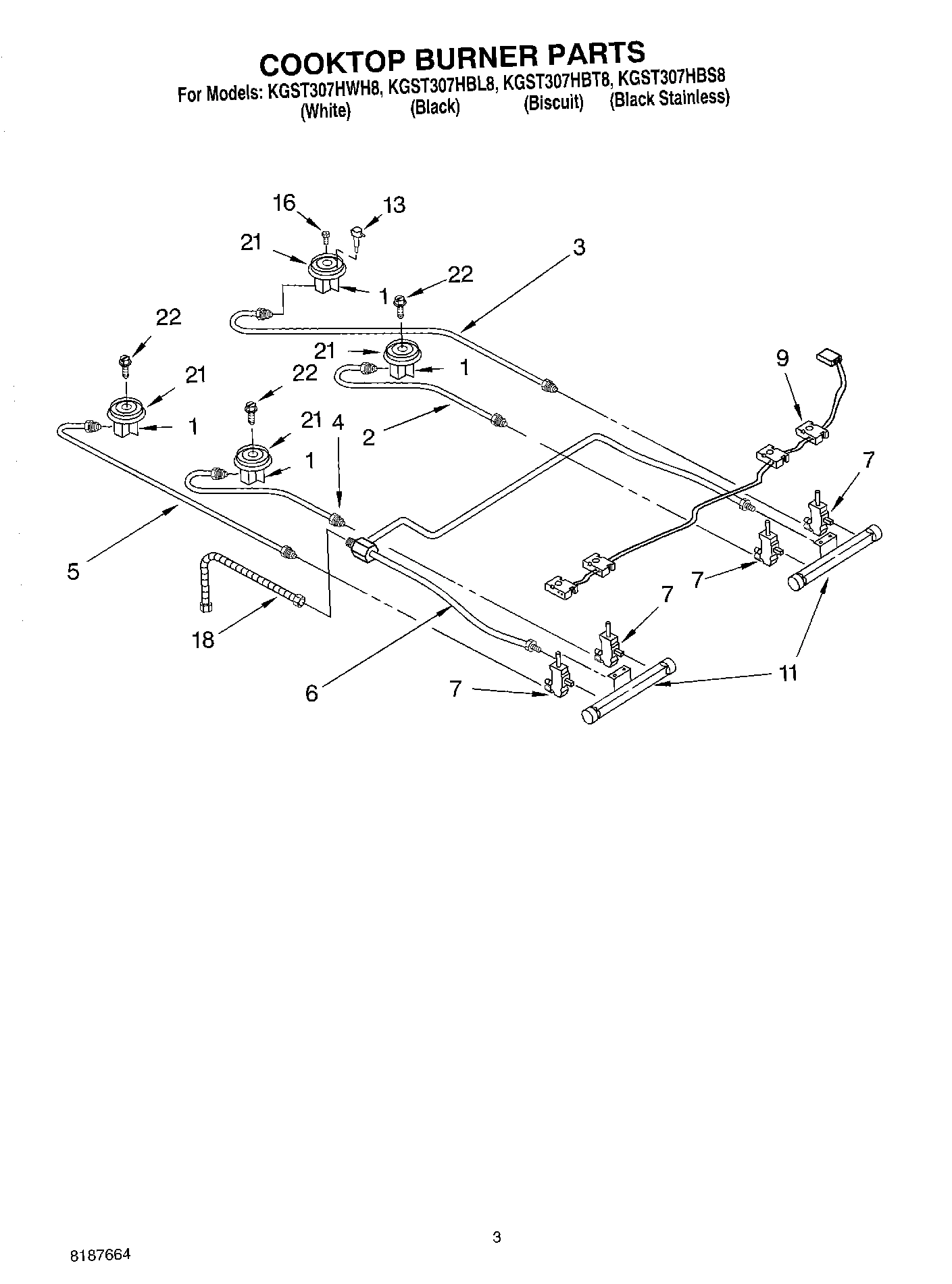

02 - COOKTOP BURNER

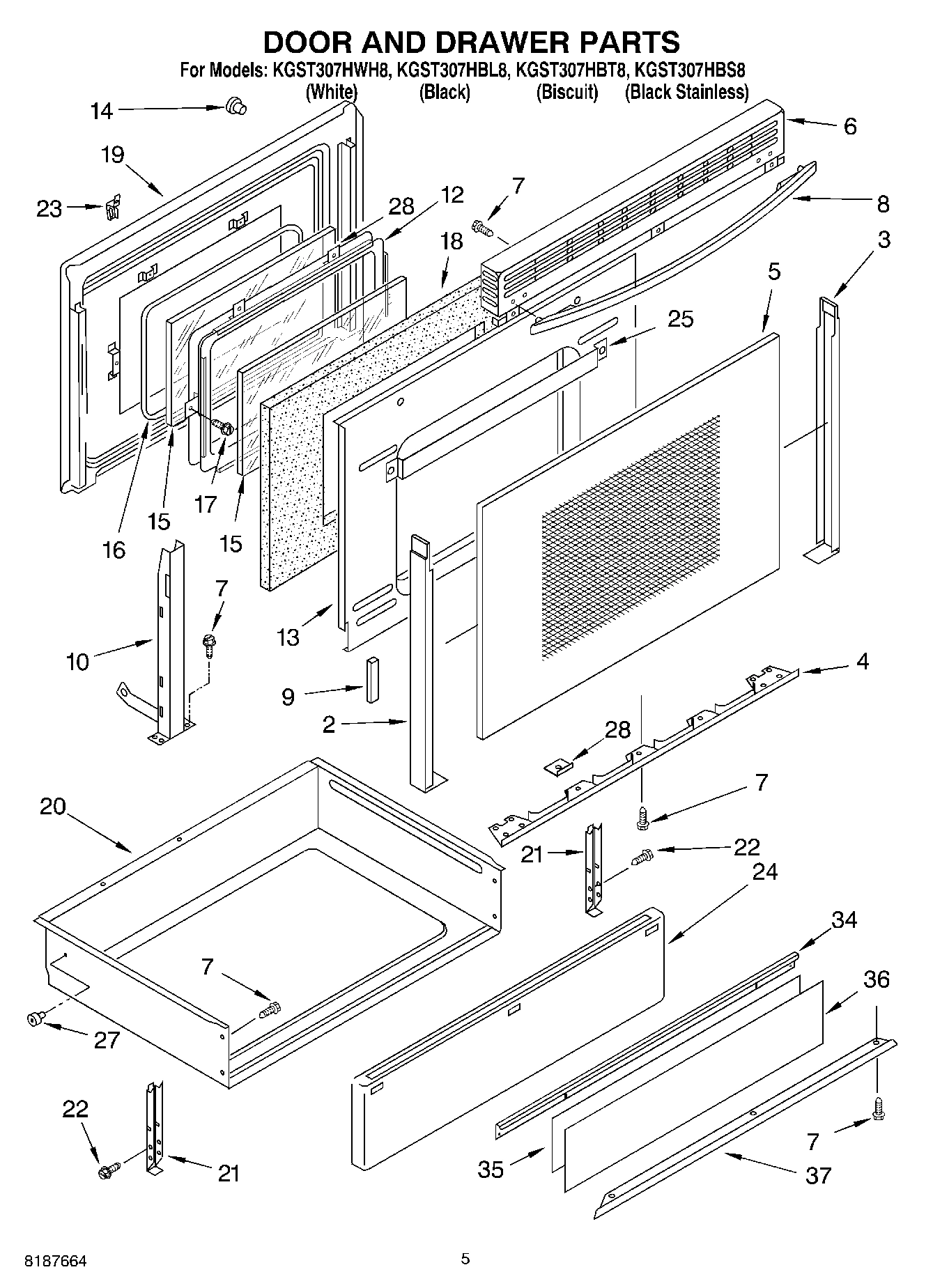

04 - DOOR AND DRAWER
Common parts from model Whirlpool KGST307HWH8 COOKTOP
1
Console, Glass (Black) WPL 9782418CB Contact Us For Availability
1
Assembly, Fan WPL 9781543 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (LP Conv Instr.) WPL LIT9753848 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9754241 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9754288 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9754372 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9755235 Contact Us For Availability
1
Burner Base W/Orifice (6K RF-LR) WPL 9754183 Contact Us For Availability
1
Burner Base W/Orifice (12K RR) WPL 9754189 Contact Us For Availability
1
Burner Base W/Orifice (14K LF) WPL 9754192 Contact Us For Availability
2
Tubing, Burner (RF) WPL 9753610 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Vent, Rear (Black) WPL 9755225PB Contact Us For Availability
3
Vent, Rear (Biscuit) WPL 9755225PC Contact Us For Availability
3
Vent, Rear (White) WPL 9755225PW Contact Us For Availability
3
Tubing, Burner (RR) WPL 9753611 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Tubing, Burner (LF) WPL 9753608 Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Support, Burner WPL 9754197 Contact Us For Availability
5
Tubing, Burner (LR) WPL 9753609 Contact Us For Availability
5
Glass, Door (Stainless) WPL 9754041 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Tubing, Manifold WPL 9754148 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
7
Valve, Burner (6K - Red Stem) WPL 9753045 Contact Us For Availability
7
Valve, Burner (14K - Plain Stem) WPL 9753614 Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Oven Lock Assembly WPL 9755001 Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Black) WPL 9781831PB Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
7
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
7
Valve, Burner (Bolt, Gas Valve) WPL 3185829 Contact Us For Availability
7
Valve, Burner (12K - Black Stem) WPL 9753044 Contact Us For Availability
7
Gasket, Door Vent WPL 9781659 Contact Us For Availability
8
Knobs, Control (4) (White) WPL 9751199FW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Trim, Side (Black) WPL 9781828PB Contact Us For Availability
9
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
9
Trim, Side (White) WPL 9781828PW Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
10
Board, Power WPL 9782435 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Manifold (Left Hand) WPL 9754116L Contact Us For Availability
11
Manifold (Right Hand) WPL 9754116R Contact Us For Availability
12
Retainer, Insulation WPL 9752735 Contact Us For Availability
12
Switch, Interloc WPL 9754291 Contact Us For Availability
12
(Bezel, Burner (Black)) (14K LF) WPL 9753600GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (14K LF) WPL 9753600GS Contact Us For Availability
12
(Bezel, Burner (Black)) (6K RF-LR) WPL 9753601GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (6K RF-LR) WPL 9753601GS Contact Us For Availability
12
Bezel, Burner (Black) (12K RR) WPL 9753602GB Contact Us For Availability
12
Bezel, Burner (Mouse Gray) (12K RR) WPL 9753602GS Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
13
Grate, Burner (Mouse Gray) WPL 9753616GS Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Grate, Burner (Black) WPL 9753616GB Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Cooktop, Glass (Black) WPL 9753606CB Contact Us For Availability
14
Cooktop, Glass (Opaque White) WPL 9753606CO Contact Us For Availability
14
Cooktop, Glass (Honeycomb) WPL 9753606CT Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Orifice, Burner (6K Small Base) WPL 9753928 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Probe, Meat WPL 3150144 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
18
WPL W10355051 No Longer Available
18
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
18
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
18
(Natural) WPL 9752717 Contact Us For Availability
18
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
18
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
18
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
18
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
18
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
18
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
18
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
18
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
18
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
18
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
18
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
18
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
18
Grease WPL 261582 Contact Us For Availability
18
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
18
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
18
Hanger, Cable WPL 9750984 Contact Us For Availability
18
Grommet, Harness WPL 9751868 Contact Us For Availability
18
WPL 9752769 WPL 9752769 Contact Us For Availability
18
WPL 9753374 WPL 9753374 Contact Us For Availability
18
WPL 9753604 WPL 9753604 Contact Us For Availability
18
WPL 9754004 WPL 9754004 Contact Us For Availability
18
WPL 9754005 WPL 9754005 Contact Us For Availability
18
WPL 9754011 WPL 9754011 Contact Us For Availability
18
WPL 9754289 WPL 9754289 Contact Us For Availability
18
WPL 9754301 WPL 9754301 Contact Us For Availability
18
WPL 9754366 WPL 9754366 Contact Us For Availability
18
WPL 9755018 WPL 9755018 Contact Us For Availability
18
WPL 9755024 WPL 9755024 Contact Us For Availability
18
WPL 9755025 WPL 9755025 Contact Us For Availability
18
WPL 9755193 WPL 9755193 Contact Us For Availability
18
WPL 9755256 WPL 9755256 Contact Us For Availability
18
WPL 9781055 WPL 9781055 Contact Us For Availability
18
WPL 9781555 WPL 9781555 Contact Us For Availability
18
WPL 9782111 WPL 9782111 Contact Us For Availability
18
WPL 9782344 WPL 9782344 Contact Us For Availability
18
WPL 9782443 WPL 9782443 Contact Us For Availability
18
WPL 978883 WPL 978883 Contact Us For Availability
18
WPL 98884 WPL 98884 Contact Us For Availability
18
Cap, Vent (Black) WPL 9751271GB Contact Us For Availability
18
Cap, Vent (Bisc WPL 9751271GC Contact Us For Availability
18
WPL 9751271GW WPL 9751271GW Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Hinge, Door L or R WPL 9782005 Contact Us For Availability
19
WPL 9751366 WPL 9751366 Contact Us For Availability
20
For Stn. Steel MDL WPL 9750257 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Head, Burner (14K LF) WPL 4455849 Contact Us For Availability
21
WPL 3191899 WPL 3191899 Contact Us For Availability
21
Shield, Drawer WPL 9782051 Contact Us For Availability
21
WPL 9753939GB WPL 9753939GB Contact Us For Availability
21
WPL 9753939GS WPL 9753939GS Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
WPL 9752006 WPL 9752006 Contact Us For Availability
22
Plate, Reflectance WPL 9782050 Contact Us For Availability
22
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
23
WPL 9752034 WPL 9752034 Contact Us For Availability
23
Retainer, clip WPL 9750676 Contact Us For Availability
24
WPL 9754103 WPL 9754103 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
24
Front, Drawer (For Stn.Steel Mdl.) WPL 9782109PB Contact Us For Availability
25
Vent Tube WPL 9751592 Contact Us For Availability
25
WPL 9751871 WPL 9751871 Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
26
WPL 9754136 WPL 9754136 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
34
Trim, Drawer-Top For Stn.Steel Mdl. WPL 9750614PB Contact Us For Availability
35
Spacer (Stn.Mdl.) WPL 9753329 Contact Us For Availability
36
Panel, Drawer For Stn.Steel Mdl. WPL 9753293 Contact Us For Availability
37
Trim, Drawer-Btm For Stn. Steel Mdl. WPL 9750613PB Contact Us For Availability
× ![]()
