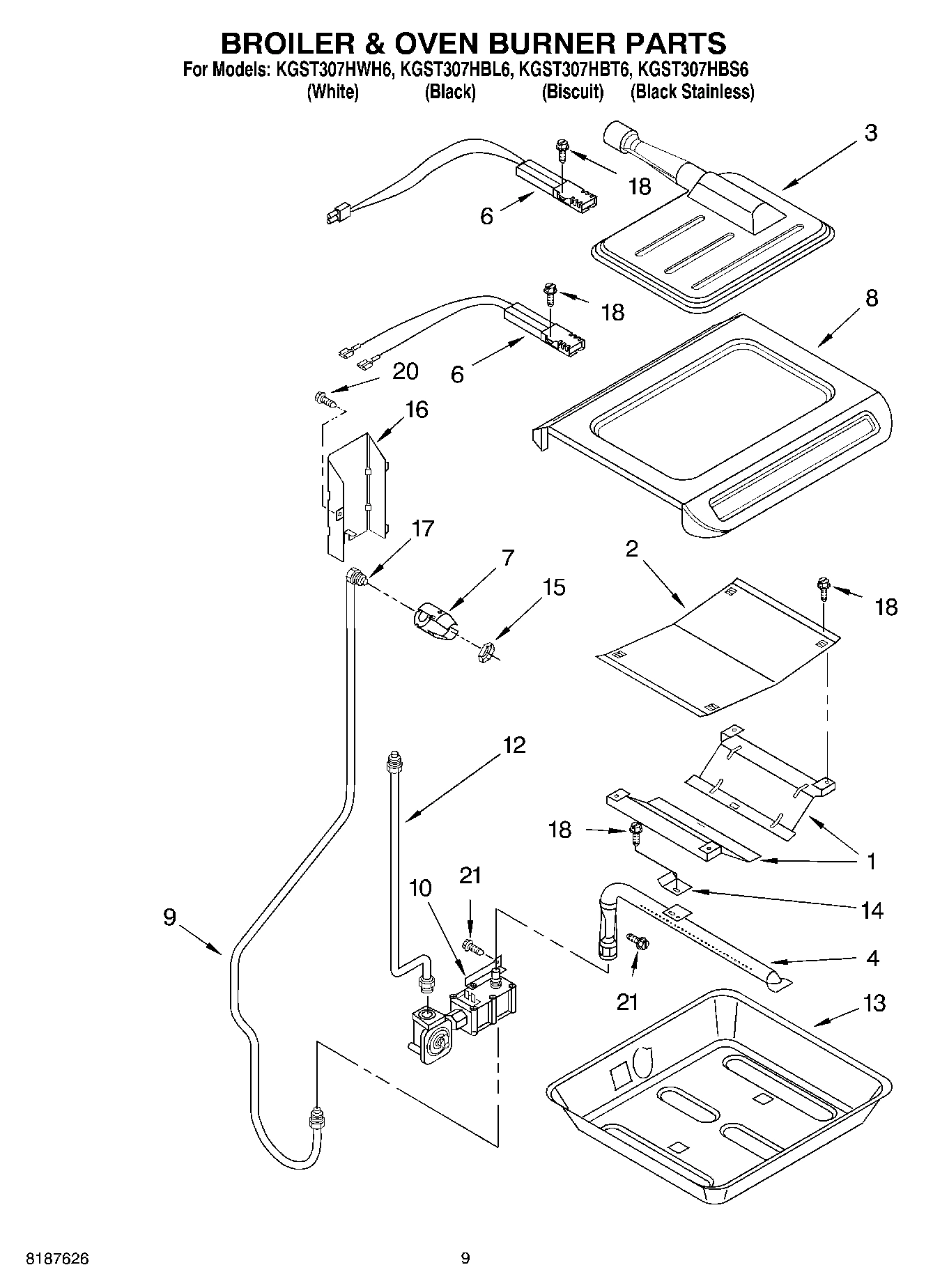

Model Whirlpool KGST307HWH6 COOKTOP – Common Parts &amp; Diagrams

1

Console, Glass (Black) WPL 9754341CB Contact Us For Availability

1

Assembly, Fan WPL 9781543 Contact Us For Availability

1

Back panel, Chassis WPL 9751051 Contact Us For Availability

1

Safer Cooking Tips WPL LIT3191638 Contact Us For Availability

1

Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability

1

Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability

1

Literature Parts (LP Conv Instr.) WPL LIT9753848 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT9754241 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT9754288 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT9754372 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT9755235 Contact Us For Availability

1

Console, Glass (Biscuit) WPL 9754341CC Contact Us For Availability

1

Console, Glass (White) WPL 9754341CW Contact Us For Availability

1

Burner Base W/Orifice (6K RF-LR) WPL 9754183 Contact Us For Availability

1

Burner Base W/Orifice (12K RR) WPL 9754189 Contact Us For Availability

1

Burner Base W/Orifice (14K LF) WPL 9754192 Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

2

Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability

2

Microcmptr WPL 9754376 Contact Us For Availability

2

Tubing, Burner (RF) WPL 9753610 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

3

Vent, Rear (Black) WPL 9755225PB Contact Us For Availability

3

Vent, Rear (Biscuit) WPL 9755225PC Contact Us For Availability

3

Vent, Rear (White) WPL 9755225PW Contact Us For Availability

3

Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability

3

Tubing, Burner (RR) WPL 9753611 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

Frame, Cooktop (Black) WPL 9781832PB Contact Us For Availability

4

Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability

4

Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability

4

(End Cap Left Hand) (Black) WPL 9751039FB Contact Us For Availability

4

End Cap (Left Hand) (Biscuit) WPL 9751039FC Contact Us For Availability

4

(End Cap Left Hand) (White) WPL 9751039FW Contact Us For Availability

4

End Cap Right Hand (Black) WPL 9751040FB Contact Us For Availability

4

End Cap (Right Hand) (Biscuit) WPL 9751040FC Contact Us For Availability

4

End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability

4

Tubing, Burner (LF) WPL 9753608 Contact Us For Availability

5

Glass, Door (Black) WPL 9781627PB Contact Us For Availability

5

Oven Liner WPL 9753335GM Contact Us For Availability

5

Support, Burner WPL 9754197 Contact Us For Availability

5

Tubing, Burner (LR) WPL 9753609 Contact Us For Availability

6

WP9782065 Whirlpool Range Igniter In Stock WPL WP9782065 $110.29

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Gasket, Oven WPL 9755179 Contact Us For Availability

6

Bracket, Pivot WPL 9751629 Contact Us For Availability

6

Washer, Pivot WPL 9752003 Contact Us For Availability

6

Tubing, Manifold WPL 9754148 Contact Us For Availability

7

Valve, Burner (6K - Red Stem) WPL 9753045 Contact Us For Availability

7

Valve, Burner (14K - Plain Stem) WPL 9753614 Contact Us For Availability

7

Oven Lock Assembly WPL 9755001 Contact Us For Availability

7

Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability

7

Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability

7

Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Black) WPL 9781831PB Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability

7

Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability

7

Valve, Burner (Bolt, Gas Valve) WPL 3185829 Contact Us For Availability

7

Valve, Burner (12K - Black Stem) WPL 9753044 Contact Us For Availability

8

W10405147 Whirlpool Knob In Stock WPL W10405147 $61.49

8

Knobs, Control (4) (White) WPL 9751199FW Contact Us For Availability

8

Pan, Oven Bottom WPL 9752736GM Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

8

Support Clips (4) WPL 9753691 Contact Us For Availability

8

Knobs, Control (4) (Biscuit) WPL 9751199FC Contact Us For Availability

9

Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability

9

Tubing, Broil WPL 9782061 Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

9

Baffle, Convection WPL 9751904GM Contact Us For Availability

9

Trim, Side (Black) WPL 9781828PB Contact Us For Availability

9

Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability

9

Trim, Side (White) WPL 9781828PW Contact Us For Availability

WP9755424 Whirlpool Gas Valve In Stock WPL WP9755424 $172.62

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $125.67

Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability

Microcptr WPL 9754378 Contact Us For Availability

Burner Box WPL 9752637 Contact Us For Availability

Jack Cover WPL 4167266 Contact Us For Availability

Shield, Control Panel WPL 9755021 Contact Us For Availability

Manifold (Left Hand) WPL 9754116L Contact Us For Availability

Manifold (Right Hand) WPL 9754116R Contact Us For Availability

Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability

Switch, Interlock WPL 9754291 Contact Us For Availability

Retainer, Insulation WPL 9752735 Contact Us For Availability

Gasket WPL 305289 Contact Us For Availability

(Bezel, Bruner (Black)) (14K LF) WPL 9753600GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (14K LF) WPL 9753600GS Contact Us For Availability

(Bezel, Bruner (Black)) (6K RF-LR) WPL 9753601GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (6K RF-LR) WPL 9753601GS Contact Us For Availability

Bezel, Bruner (Black) (12K RR) WPL 9753602GB Contact Us For Availability

Bezel, Burner (Mouse Gray) (12K RR) WPL 9753602GS Contact Us For Availability

WP9754215 Whirlpool Surface Igniter Backorder WPL WP9754215 $26.47

Grate, Burner (Mouse Gray) WPL 9753616GS Contact Us For Availability

Pan Support, Bake WPL 9752734 Contact Us For Availability

Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

Receptacle, Probe WPL 4173575 Contact Us For Availability

Grate, Burner (Black) WPL 9753616GB Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Support, Fan WPL 9751060 Contact Us For Availability

Spacer - Tubing WPL 3179672 Contact Us For Availability

Cooktop, Glass (Black) WPL 9753606CB Contact Us For Availability

Cooktop, Glass (Opaque White) WPL 9753606CO Contact Us For Availability

Cooktop, Glass (Honeycomb) WPL 9753606CT Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $10.78

WP9781593 Whirlpool Door Glass In Stock WPL WP9781593 $66.84

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.67

WP9753929 Whirlpool Orifice Backorder WPL WP9753929 $31.04

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $36.45

WP9755177 Whirlpool Wind Gasket Backorder WPL WP9755177 $82.52

Orifice, Burner (6K Small Base) WPL 9753928 Contact Us For Availability

Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability

Motor, Fan WPL 9751020 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $11.80

Thermo- WPL 341196 Contact Us For Availability

Probe, Meat WPL 3150144 Contact Us For Availability

Orifice No.54 WPL 9752716 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $249.73

285006 Whirlpool Spray In Stock WPL 285006 $29.65

3400964 Whirlpool Range Clip Backorder WPL 3400964 $34.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8212471 Whirlpool Oven Paint Backorder WPL 8212471 $35.69

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

WPL W10355051 No Longer Available

WA906B Whirlpool Cooktop Glass Scraper In Stock WPL WA906B $5.40

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Gas Conversion Kit ((Na WPL 9752717 Contact Us For Availability

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Hanger, Cable WPL 9750984 Contact Us For Availability

Grommet, Harness WPL 9751868 Contact Us For Availability

WPL 9752769 WPL 9752769 Contact Us For Availability

WPL 9753374 WPL 9753374 Contact Us For Availability

WPL 9753604 WPL 9753604 Contact Us For Availability

WPL 9754004 WPL 9754004 Contact Us For Availability

WPL 9754005 WPL 9754005 Contact Us For Availability

WPL 9754011 WPL 9754011 Contact Us For Availability

WPL 9754289 WPL 9754289 Contact Us For Availability

WPL 9754301 WPL 9754301 Contact Us For Availability

WPL 9755022 WPL 9755022 Contact Us For Availability

WPL 9755193 WPL 9755193 Contact Us For Availability

WPL 9755256 WPL 9755256 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 9781555 WPL 9781555 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 98884 WPL 98884 Contact Us For Availability

WPL 9751271GB WPL 9751271GB Contact Us For Availability

WPL 9751271GC WPL 9751271GC Contact Us For Availability

WPL 9751271GW WPL 9751271GW Contact Us For Availability

Tubing, Flex WPL 9751854 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $36.18

Liner, Door WPL 9781600GM Contact Us For Availability

Hinge, Door L or R WPL 9782005 Contact Us For Availability

WPL 9751366 WPL 9751366 Contact Us For Availability

20

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $73.11

20

Rack, Roasting WPL 9750827 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $44.27

WP3191904 Whirlpool Burner Cap Backorder WPL WP3191904 $100.55

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $46.21

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $35.85

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $54.75

Head, Burner (14K LF) WPL 4455849 Contact Us For Availability

WPL 3191899 WPL 3191899 Contact Us For Availability

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Shield, Drawer WPL 9782051 Contact Us For Availability

Rack, Standard (3) WPL 9750823 Contact Us For Availability

WPL 9753939GB WPL 9753939GB Contact Us For Availability

WPL 9753939GS WPL 9753939GS Contact Us For Availability

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $3.33

Sensor WPL 9782081 Contact Us For Availability

WPL 9752006 WPL 9752006 Contact Us For Availability

Plate, Reflector WPL 9782050 Contact Us For Availability

23

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $31.07

23

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $41.14

23

WPL 9752034 WPL 9752034 Contact Us For Availability

24

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $4.52

24

WPL 9754103 WPL 9754103 Contact Us For Availability

25

Vent Tube WPL 9751592 Contact Us For Availability

25

WPL 9751871 WPL 9751871 Contact Us For Availability

26

WPL 9754136 WPL 9754136 Contact Us For Availability

27

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

29

Door Switch WPL 9755192 Contact Us For Availability

30

Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
