Model Whirlpool KGST307BWH2 COOKTOP – Common Parts &amp; Diagrams

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

WPL 3190058 WPL 3190058 Contact Us For Availability

WPL 3190208 WPL 3190208 Contact Us For Availability

WPL 9750376 WPL 9750376 Contact Us For Availability

WPL 9751708 WPL 9751708 Contact Us For Availability

WPL 9751868 WPL 9751868 Contact Us For Availability

WPL 9752177 WPL 9752177 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL LIT9751595 WPL LIT9751595 Contact Us For Availability

WPL LIT9751683 WPL LIT9751683 Contact Us For Availability

WPL LIT9752668 WPL LIT9752668 Contact Us For Availability

WPL LIT9752669 WPL LIT9752669 Contact Us For Availability

WPL LIT9780959 WPL LIT9780959 Contact Us For Availability

1

340184 Whirlpool Screw Backorder WPL 340184 $9.59

1

WP4454392 Whirlpool Spark Module Backorder WPL WP4454392 $155.89

1

Assembly, Fan WPL 9781543 Contact Us For Availability

1

Screw, No.10 x 1/2 WPL 9780272 Contact Us For Availability

1

Shield, Oven (2) WPL 9751417 Contact Us For Availability

1

Back panel, Chassis WPL 9751051 Contact Us For Availability

1

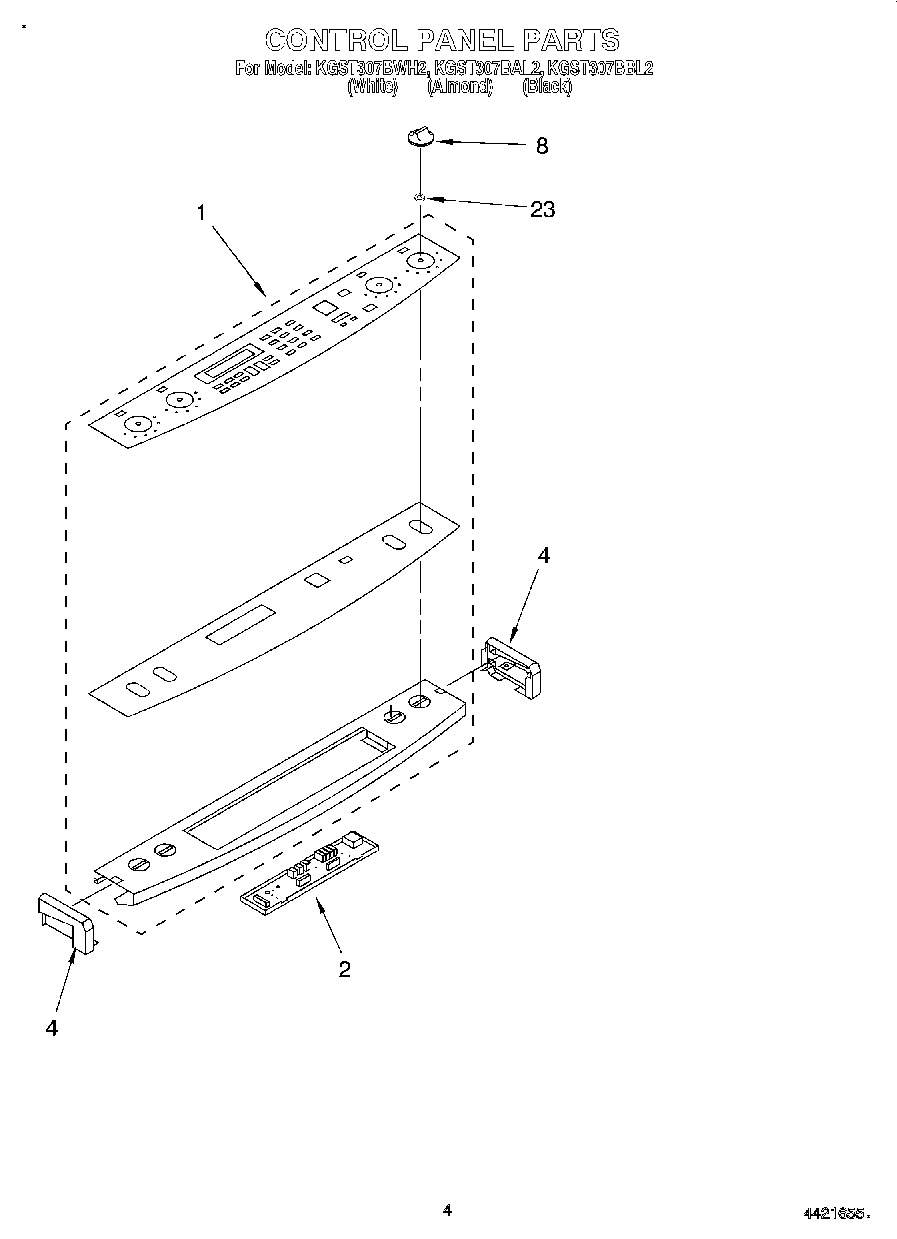

Console, Glass (White Mdl.) WPL 9751889 Contact Us For Availability

1

Console, Glass (Almond Mdl.) WPL 9751893 Contact Us For Availability

1

Console, Glass (Black Mdl.) WPL 9751895 Contact Us For Availability

1

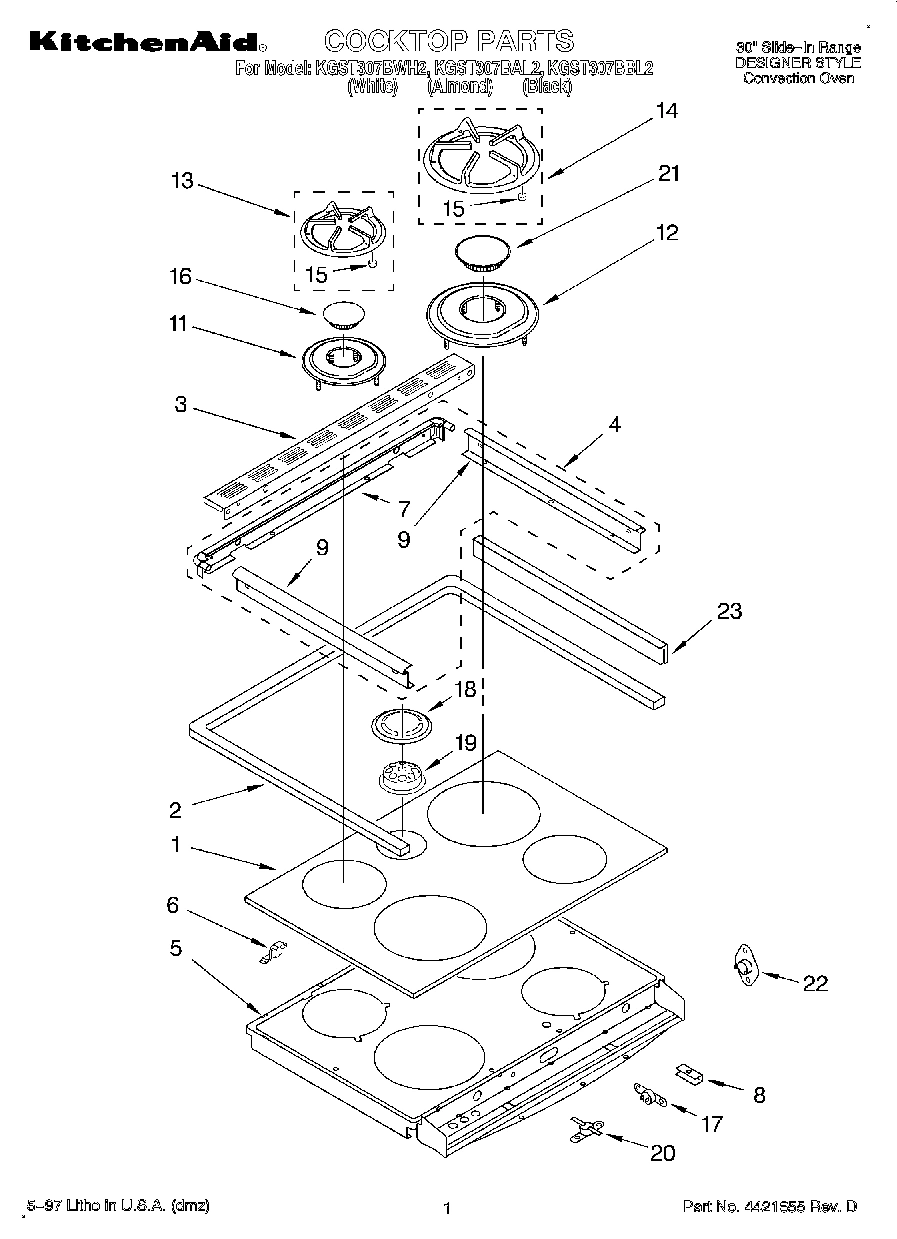

Cooktop, Ceran (White) WPL 9751034 Contact Us For Availability

1

Cooktop, Ceran (Almond) WPL 9751340 Contact Us For Availability

1

Cooktop, Ceran (Black) WPL 9751341 Contact Us For Availability

1

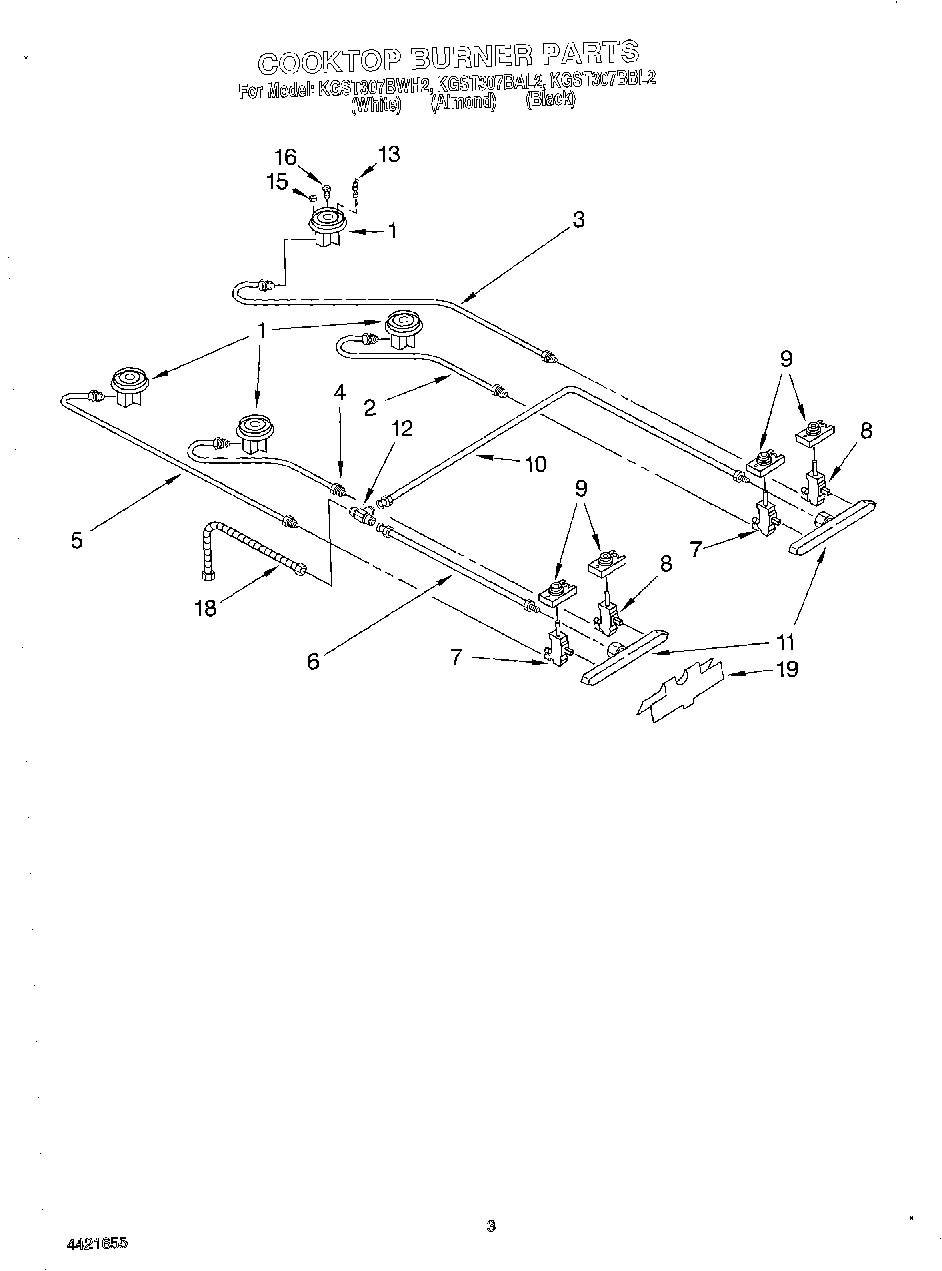

Burner, Sealed Gas (Small (2)) WPL 3185821 Contact Us For Availability

1

Burner, Sealed Gas (Large (2)) WPL 3185822 Contact Us For Availability

2

WP9780939 Whirlpool Cooktop Gasket Backorder WPL WP9780939 $28.80

2

Screw, (2) WPL 9780271 Contact Us For Availability

2

Flame Shield, Bake WPL 9781042 Contact Us For Availability

2

Timer, Electronic WPL 3190378 Contact Us For Availability

2

Chassis, Front WPL 4212002 Contact Us For Availability

2

Tubing, Burner (RF) WPL 9781034 Contact Us For Availability

3

Burner, Broiler WPL 9751424 Contact Us For Availability

3

Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability

3

Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability

3

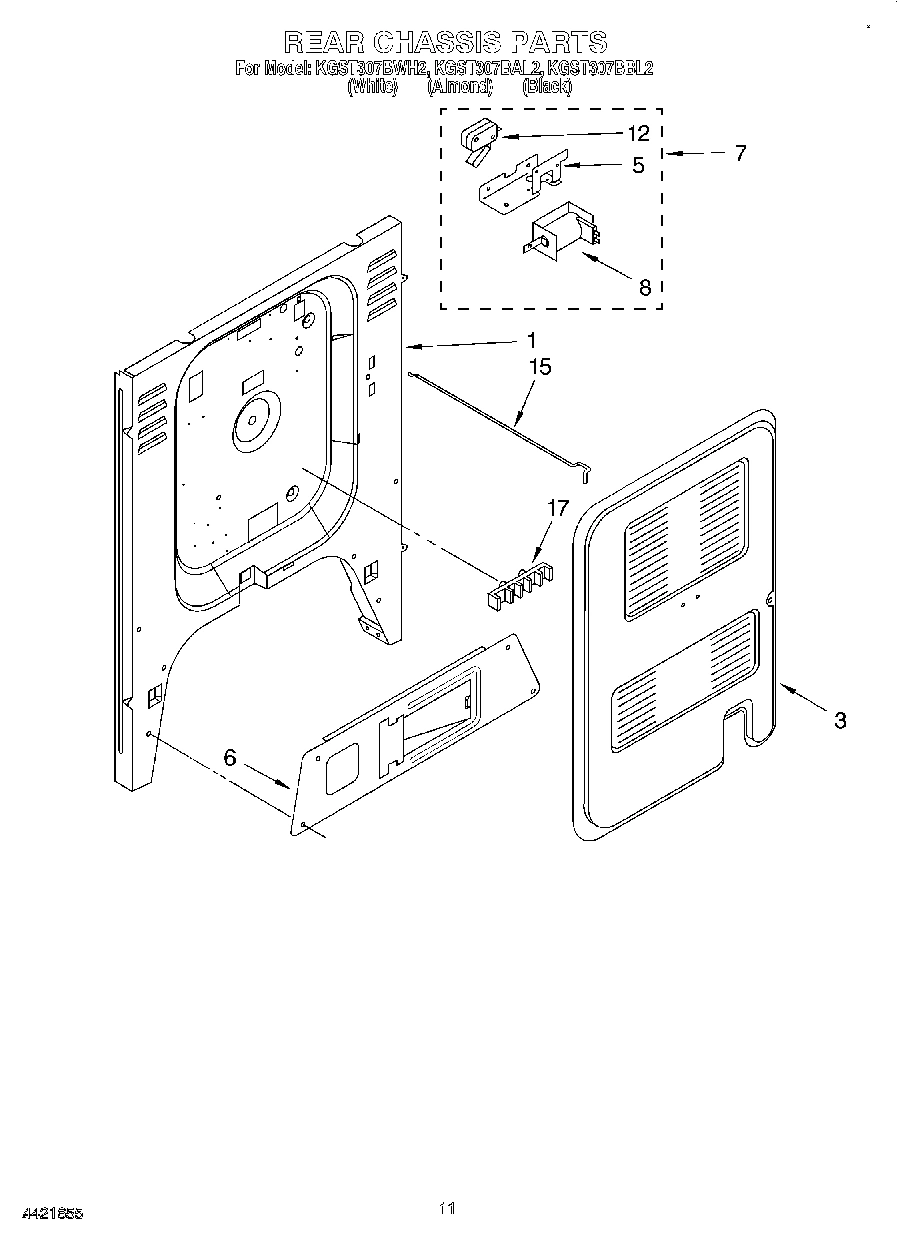

Panel, Rear Cover WPL 9751353 Contact Us For Availability

3

Vent, Rear (Black) WPL 9752090PB Contact Us For Availability

3

Vent, Rear (Almond) WPL 9752090PT Contact Us For Availability

3

Vent, Rear (White) WPL 9752090PW Contact Us For Availability

3

Tubing, Burner (RR) WPL 9781035 Contact Us For Availability

4

(End Cap Left Hand) (Screw, (3) 10 x 1/2) WPL 3149333 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

Nut WPL 4173237 Contact Us For Availability

4

(End Cap Left Hand) (White) WPL 4421436 Contact Us For Availability

4

(End Cap Left Hand) (Almond) WPL 4421437 Contact Us For Availability

4

(End Cap Left Hand) (Black) WPL 4421438 Contact Us For Availability

4

End Cap (Right Hand) (White) WPL 4421439 Contact Us For Availability

4

End Cap Right Hand (Almond) WPL 4421440 Contact Us For Availability

4

End Cap Right Hand (Black) WPL 4421441 Contact Us For Availability

4

Frame, Cooktop (White) WPL 4421430 Contact Us For Availability

4

Frame, Cooktop (Almond) WPL 4421431 Contact Us For Availability

4

Frame, Cooktop (Black) WPL 4421432 Contact Us For Availability

4

Tubing, Burner (LF) WPL 9781036 Contact Us For Availability

5

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

5

Bracket, Lock WPL 9751418 Contact Us For Availability

5

Fan WPL 9751117 Contact Us For Availability

5

Oven Liner WPL 9781048GM Contact Us For Availability

5

Support, Element WPL 9751274 Contact Us For Availability

5

Tubing, Burner (LR) WPL 9781037 Contact Us For Availability

6

WP9751123 Whirlpool Oven Igniter Backorder WPL WP9751123 $98.45

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Shim Ring WPL 4173238 Contact Us For Availability

6

Gasket Oven WPL 9750247 Contact Us For Availability

6

Bracket, Pivot WPL 9751629 Contact Us For Availability

6

Washer (2) WPL 9752003 Contact Us For Availability

6

Tubing, Manifold WPL 9751284 Contact Us For Availability

7

Bracket, Broil Shooter WPL 9751168 Contact Us For Availability

7

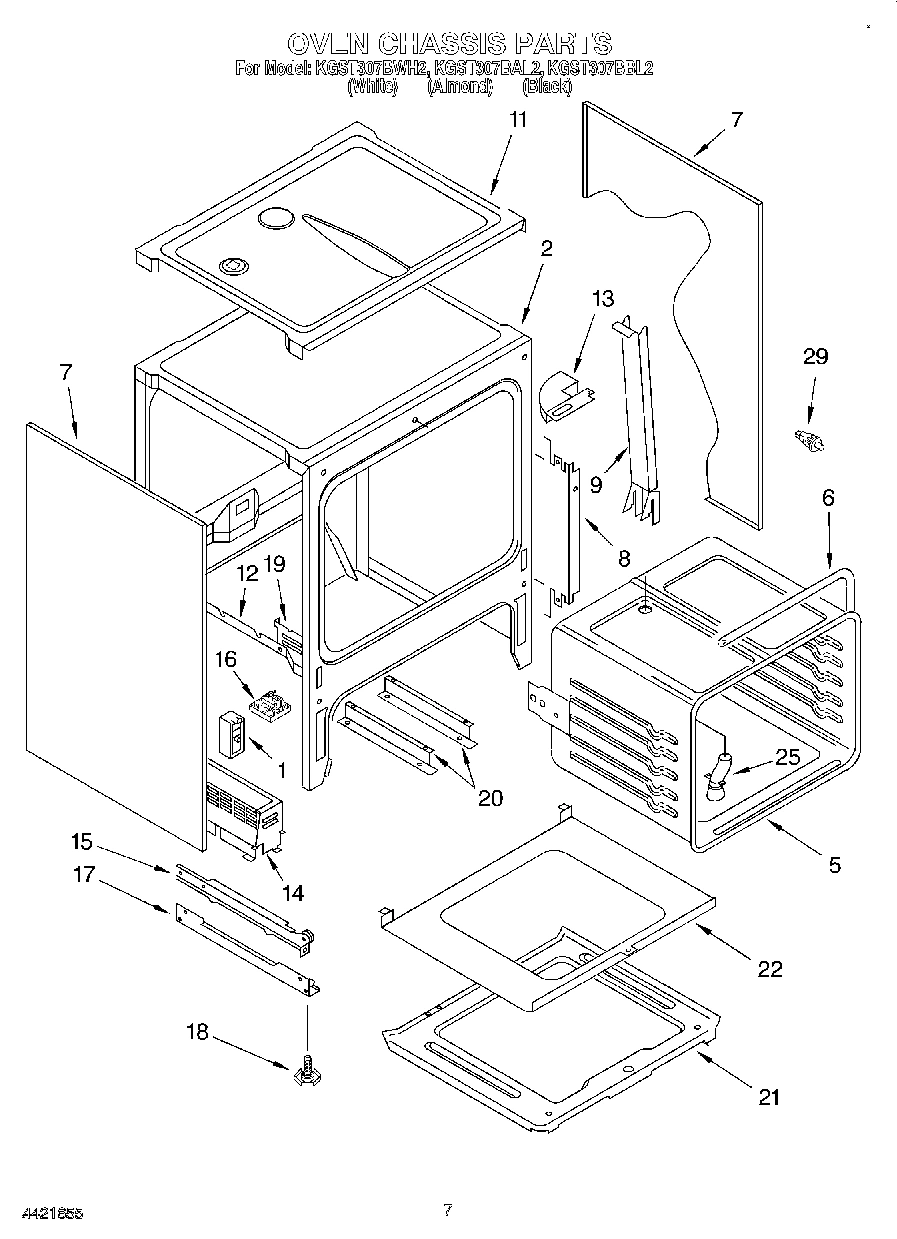

Oven Lock Assembly WPL 9751439 Contact Us For Availability

7

Oven , Side L or R (Black) WPL 4211895 Contact Us For Availability

7

Oven , Side L or R (White) WPL 4211896 Contact Us For Availability

7

Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Black) WPL 9752045PB Contact Us For Availability

7

Trim, Rear (Includes End Caps) (Almond) WPL 9752045PT Contact Us For Availability

7

Trim, Rear (Includes End Caps) (White) WPL 9752045PW Contact Us For Availability

7

Valve, Burner (Small (2)) WPL 9751333 Contact Us For Availability

8

W10405147 Whirlpool Knob Backorder WPL W10405147 $58.55

8

Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability

8

Pan, Oven Bottom WPL 9781041GM Contact Us For Availability

8

Washer WPL 4211875 Contact Us For Availability

8

Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability

8

Solenoid WPL 9751590 Contact Us For Availability

8

Knobs, Control (Almond Mdl.) WPL 9751199FT Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

8

Support Clips (4) WPL 9750821 Contact Us For Availability

8

Screw (4) No.10 Type B 1`` WPL 9751871 Contact Us For Availability

8

Valve, Burner (Bolt, Gas Valve (2)) WPL 3185829 Contact Us For Availability

8

Valve, Burner (Large (2)) WPL 9751334 Contact Us For Availability

9

Switch, Ignitor (4) WPL 9751325 Contact Us For Availability

9

Tubing, Broil (Includes Key 17) WPL 9751173 Contact Us For Availability

9

Baffle, Convection WPL 9751904GM Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

9

Trim, Side (Black) WPL 9751440PB Contact Us For Availability

9

Trim, Side (Almond) WPL 9751440PT Contact Us For Availability

9

Trim, Side (White) WPL 9751440PW Contact Us For Availability

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability

Tubing, Manifold To Manifold Pipe WPL 9751285 Contact Us For Availability

Bracket, Burner WPL 9752041 Contact Us For Availability

Jack Cover WPL 4167266 Contact Us For Availability

Screw, No.8-32 x 3/8 WPL 9780269 Contact Us For Availability

Burner Box WPL 9751166 Contact Us For Availability

Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability

Bezel, Small LR-RF (Black Mdl.) WPL 3185815 Contact Us For Availability

Bezel, Small LR-RF (Almond Mdl.) WPL 3185816 Contact Us For Availability

Bezel, Small LR-RF (White Mdl.) WPL 3185817 Contact Us For Availability

Manifold (2) WPL 9751287 Contact Us For Availability

Baffle, Glass WPL 9750634 Contact Us For Availability

Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability

Screw, (2) WPL 9750887 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Switch, Interlock WPL 9751763 Contact Us For Availability

Gasket WPL 4163975 Contact Us For Availability

Oven Bottom WPL 9781043 Contact Us For Availability

Bezel, Large RR-LF (Nut, Zinc No.8-32) WPL 4166262 Contact Us For Availability

Bezel, Large RR-LF (Black Mdl.) WPL 3185818 Contact Us For Availability

Bezel, Large RR-LF (Almond Mdl.) WPL 3185819 Contact Us For Availability

Bezel, Large RR-LF (White Mdl.) WPL 3185820 Contact Us For Availability

Tee, Flare WPL 9751283 Contact Us For Availability

Electrode WPL 3185804 Contact Us For Availability

Pan Support, Bake WPL 9781022 Contact Us For Availability

Receptacle, Probe WPL 4173575 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

Grates, Small (Black Mdl.) WPL 3186672 Contact Us For Availability

Grates, Small (Almond Mdl.) WPL 3186673 Contact Us For Availability

Grates, Small (White Mdl.) WPL 3186674 Contact Us For Availability

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

Spacer - Tubing WPL 3179672 Contact Us For Availability

Support, Fan WPL 9751060 Contact Us For Availability

Grates, Large (Black Mdl.) WPL 3186675 Contact Us For Availability

Grates, Large (Almond Mdl.) WPL 3186676 Contact Us For Availability

Grates, Large (White Mdl.) WPL 3186677 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $5.14

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability

Speed Nut WPL 3185805 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

Motor, Fan WPL 9751020 Contact Us For Availability

Screw, (3) No.8 x 1`` WPL 9751808 Contact Us For Availability

Cap, Small (2) (Almond Mdl.) WPL 3185795 Contact Us For Availability

Cap, Small (2) (Black Mdl.) WPL 3185796 Contact Us For Availability

Cap, Small (2) (Whi WPL 3185797 Contact Us For Availability

Orifice, Small No.56 WPL 3185947 Contact Us For Availability

Orifice, Large No.52 WPL 3185948 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPL 341196 WPL 341196 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Probe, Meat WPL 3150144 Contact Us For Availability

WPL 9751745 WPL 9751745 Contact Us For Availability

Orfice No.54 WPL 9752716 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~ WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9750221 WPL 9750221 Contact Us For Availability

WPL 9751164 WPL 9751164 Contact Us For Availability

WPL 9751323 WPL 9751323 Contact Us For Availability

WPL 9751844 WPL 9751844 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL 98884 WPL 98884 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPL 4421505 WPL 4421505 Contact Us For Availability

WPL 4421506 WPL 4421506 Contact Us For Availability

WPL 4421507 WPL 4421507 Contact Us For Availability

Tubing, Flex WPL 9751854 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Liner, Door WPL 9781197GM Contact Us For Availability

Hinge, Door L or R WPL 9750149 Contact Us For Availability

WPL 9751366 WPL 9751366 Contact Us For Availability

Bracket, Manifold (2) WPL 9781457 Contact Us For Availability

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

Drawer & Roller WPL 9750257 Contact Us For Availability

Rack, Roasting WPL 3181534 Contact Us For Availability

Support Rail, Pan WPL 421771 Contact Us For Availability

Bracket, Drawer WPL 9750169 Contact Us For Availability

Rack, Standard (3) WPL 9750823 Contact Us For Availability

Shield, Drawer WPL 9781025 Contact Us For Availability

WPL 3185792 WPL 3185792 Contact Us For Availability

WPL 3185793 WPL 3185793 Contact Us For Availability

WPL 3185794 WPL 3185794 Contact Us For Availability

WPL 9752006 WPL 9752006 Contact Us For Availability

Sensor WPL 3148440 Contact Us For Availability

Screw WPL 9781509 Contact Us For Availability

Plate, Reflectance WPL 9751641 Contact Us For Availability

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

Washer, Console (4) (Black Mdl.) WPL 9751449 Contact Us For Availability

Washer, Console (4) (White Mdl.) WPL 9751450 Contact Us For Availability

Washer, Console (4) (Almond Mdl.) WPL 9751451 Contact Us For Availability

WPL 9752034 WPL 9752034 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Front, Drawer (White) WPL 4211992 Contact Us For Availability

Front, Drawer (Almond) WPL 4211993 Contact Us For Availability

Front, Drawer (Black) WPL 4212056 Contact Us For Availability

25

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

25

Vent Tube WPL 9751592 Contact Us For Availability

26

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

26

Latch, Drawer WPL 9751248 Contact Us For Availability

26

Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability

27

Retainer, Glass WPL 9750676 Contact Us For Availability

28

Retainer, Door Glass WPL 9781206 Contact Us For Availability

29

Door Switch WPL 9750897 Contact Us For Availability
