Model Whirlpool KGST300HWH5 COOKTOP – Common Parts & Diagrams
06 - OVEN CHASSIS
01 - COOKTOP, LITERATURE

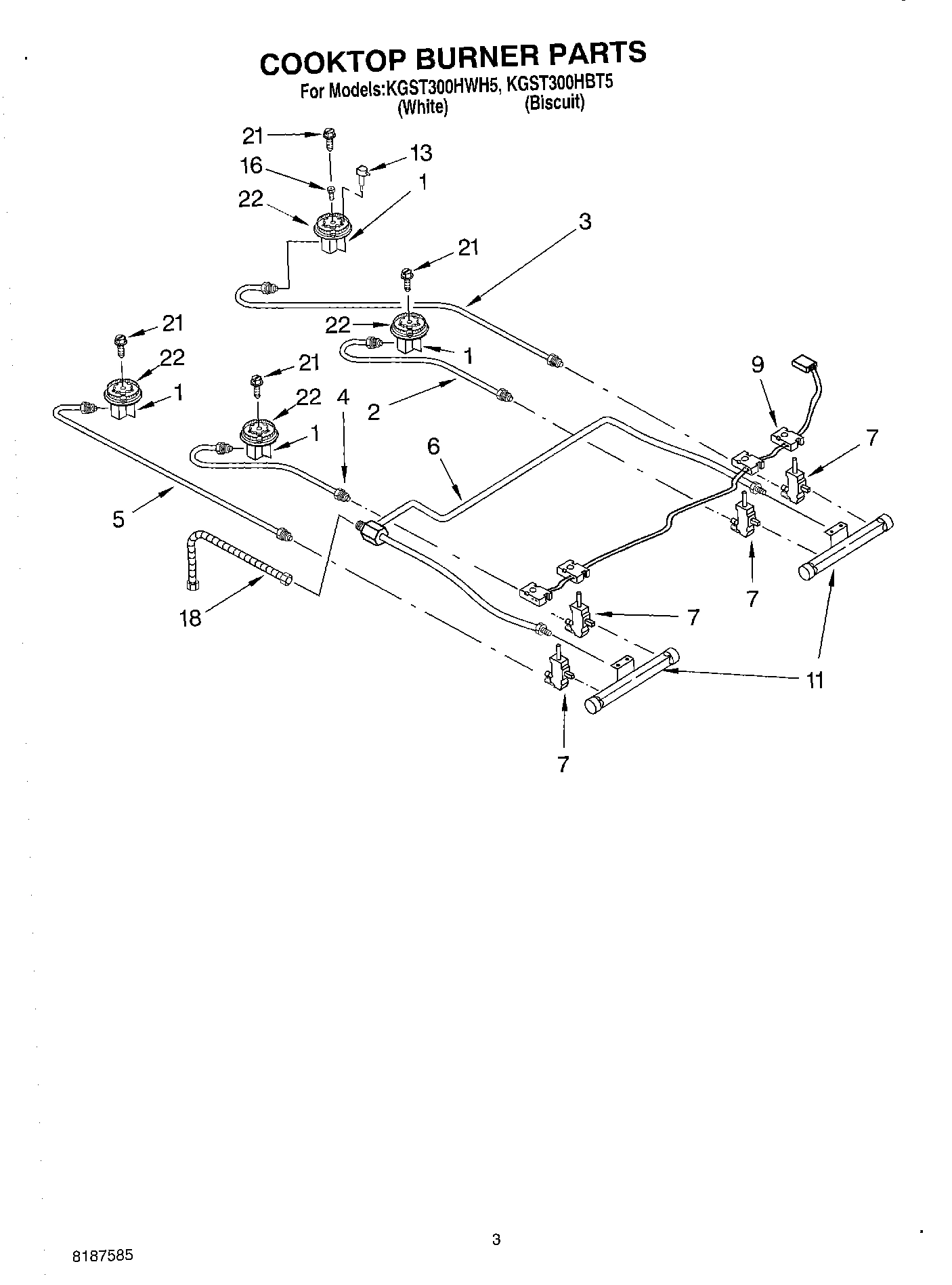

03 - COOKTOP BURNER

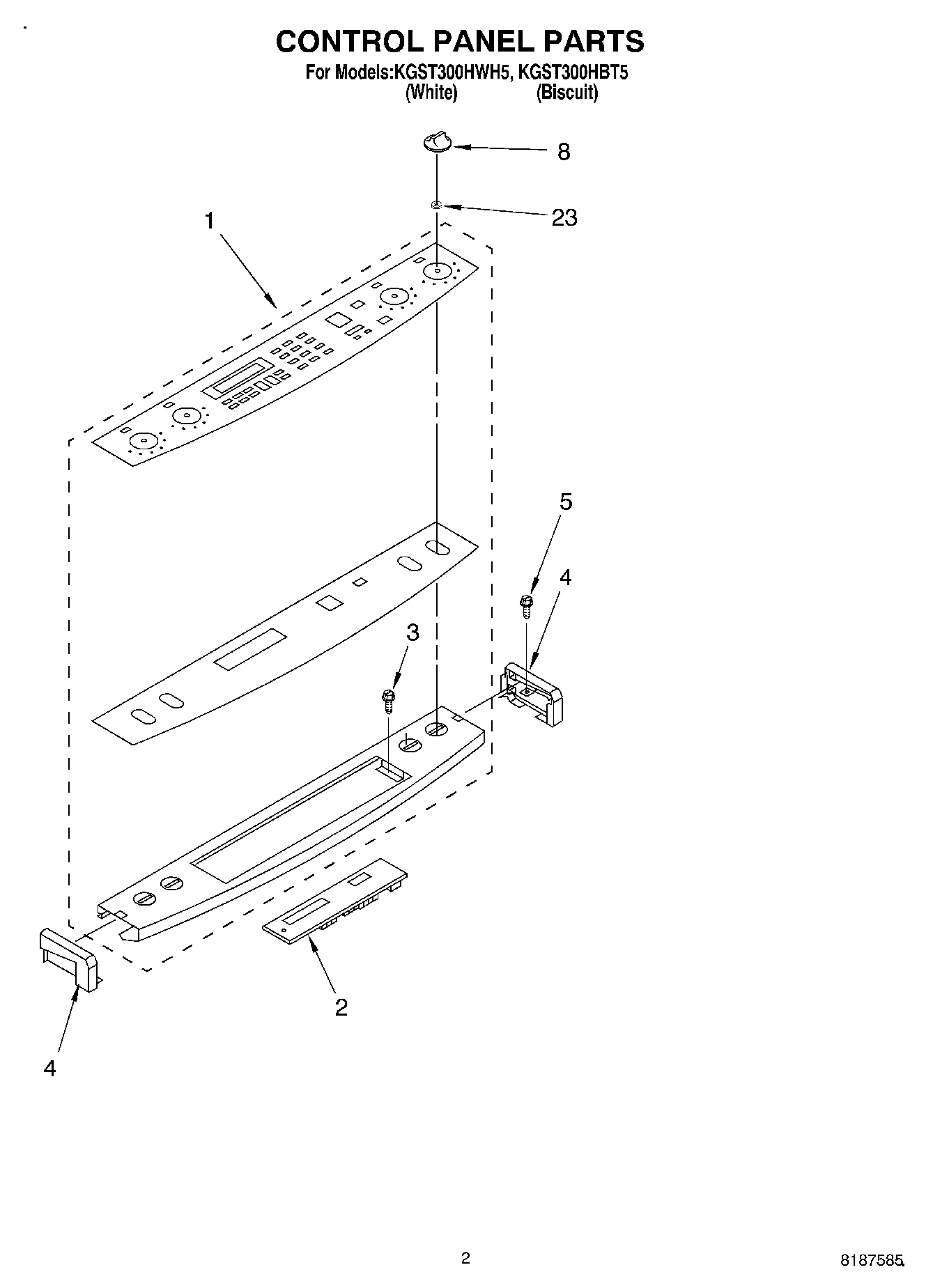

02 - CONTROL PANEL

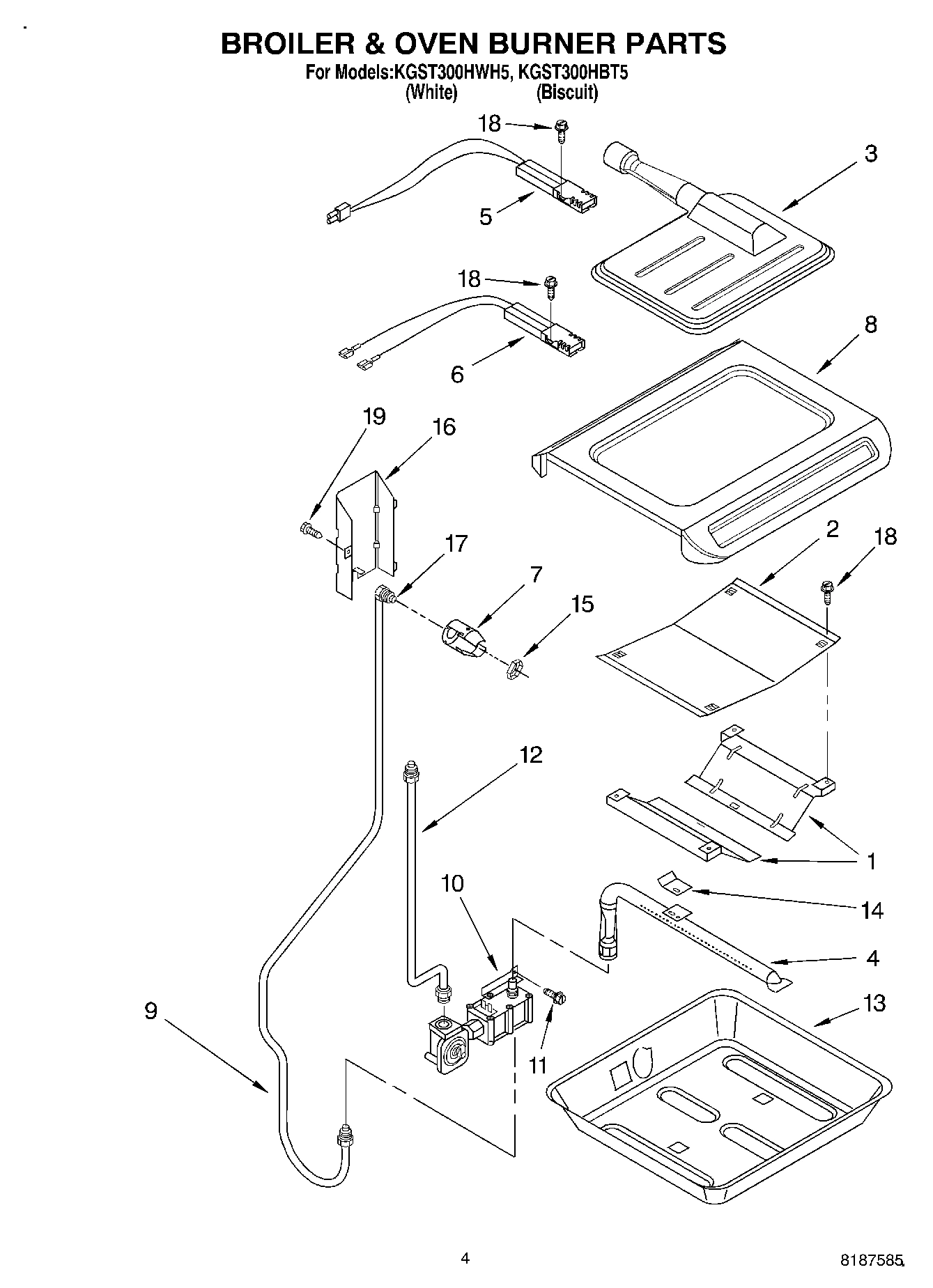

04 - BROILER AND OVEN BURNER

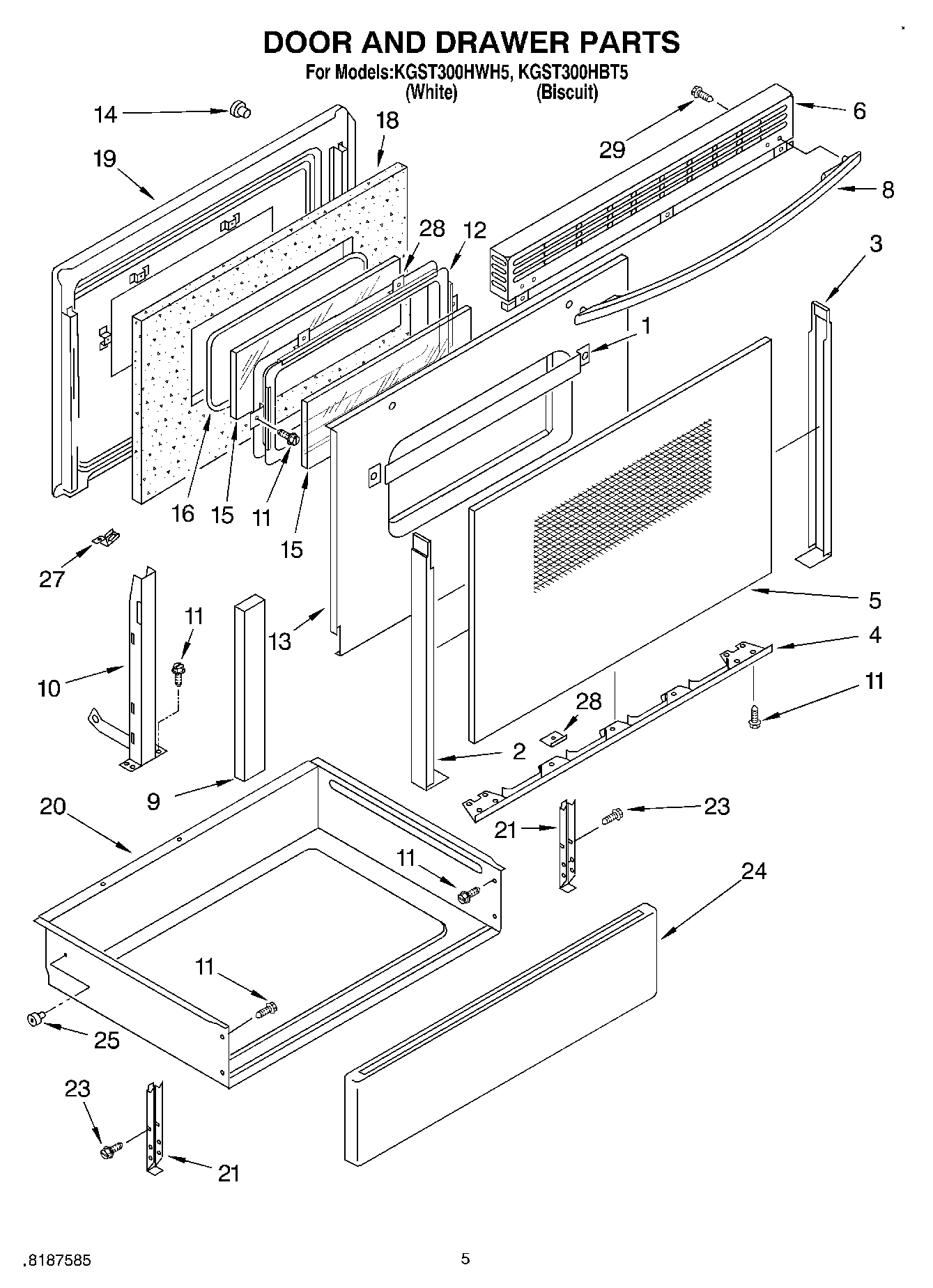

05 - DOOR AND DRAWER

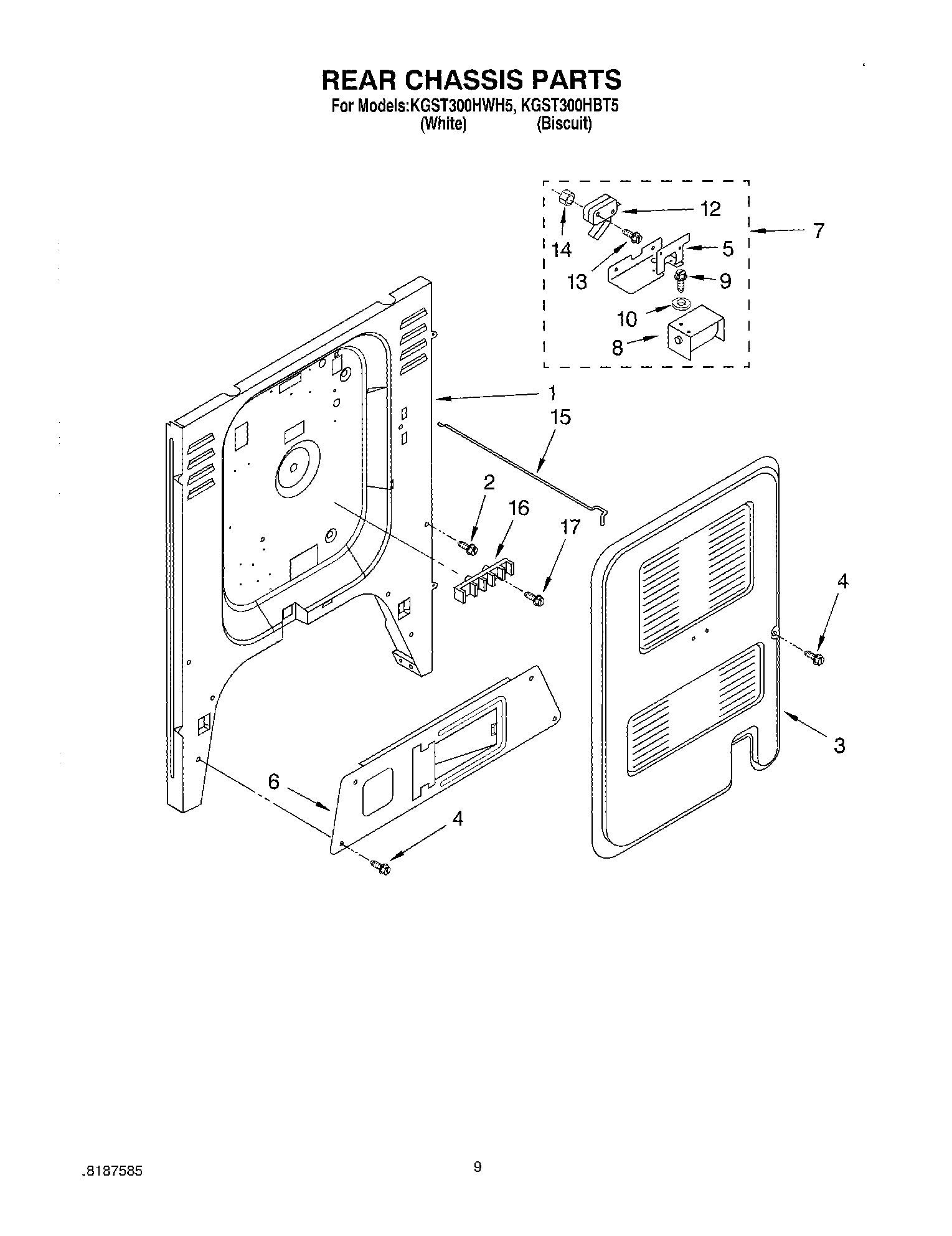

07 - REAR CHASSIS, OPTIONAL
Common parts from model Whirlpool KGST300HWH5 COOKTOP
1
Burner Base, W/Orifice (Small 6K - RF-LR) WPL 9754183 Contact Us For Availability
1
Burner Base, W/Orifice (Medium 12K - RR) WPL 9754189 Contact Us For Availability
1
Burner Base, W/Orifice (Large 14K - LF) WPL 9754192 Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9781972CC Contact Us For Availability
1
Console, Glass (White) WPL 9781972CW Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Channel, Heat WPL 9750693 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
2
Gasket, Cooktop WPL 9754103 Contact Us For Availability
2
Tubing, Burner (RF) WPL 9753610 Contact Us For Availability
2
Timer, Electronic WPL 9781981 Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
3
Tubing, Burner (RR) WPL 9753611 Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Burner, Broiler WPL 9752922 Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Tubing, Burner (LF) WPL 9753608 Contact Us For Availability
4
End Cap Right Hand (Almond) WPL 9751039FT Contact Us For Availability
4
End Cap Right Hand (White) WPL 9751039FW Contact Us For Availability
4
End Cap (Right Hand) (Almond) WPL 9751040FT Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751040FW Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Support, Burner WPL 9754197 Contact Us For Availability
5
Tubing, Burner (LR) WPL 9753609 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Tubing, Manifold WPL 9754148 Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Gasket, Door Vent) WPL 9781659 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
7
Valve, Burner (6K - Red Stem) WPL 9753045 Contact Us For Availability
7
Valve, Burner (14K - Plain Stem) WPL 9753614 Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
7
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
7
Valve, Burner (Bolt, Valve (4)) WPL 3185829 Contact Us For Availability
7
Valve, Burner (12K - Black Stem) WPL 9753044 Contact Us For Availability
7
Bracket, Broil Shooter WPL 9752858 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
8
Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability
8
Support Clips (4) WPL 9753691 Contact Us For Availability
8
Knobs, Control (Almond Mdl.) WPL 9751199FT Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Handle, Door (Almond) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
9
Trim, Side (White) WPL 9781828PW Contact Us For Availability
9
Tubing, Broil WPL 9782061 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Screw,10-32 x .313 WPL 422222 Contact Us For Availability
10
Washer, Lock No.10 WPL 424238 Contact Us For Availability
11
Bezel, Burner (14K LF) WPL 9753600GB Contact Us For Availability
11
Bezel, Burner (6K RF-LR) WPL 9753601GB Contact Us For Availability
11
Bezel, Burner (12K RR) WPL 9753602GB Contact Us For Availability
11
Manifold (Left Hand) WPL 9754116L Contact Us For Availability
11
Manifold (Right Hand) WPL 9754116R Contact Us For Availability
11
Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability
12
Cooktop, Ceran (Biscuit) WPL 9753606CT Contact Us For Availability
12
Cooktop, Ceran (White) WPL 9753606CW Contact Us For Availability
12
Tubing, Valve WPL 9781015 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
13
Grate, Burner WPL 9753616GB Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
14
Screw WPL 3400075 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Nut, 5/8`` - 18 WPL 9751203 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Orifice, Burner (6K Small Base) WPL 3192528 Contact Us For Availability
16
Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
WPL 9752717 WPL 9752717 Contact Us For Availability
17
Orifice No.54 WPL 9752716 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 9750376 WPL 9750376 Contact Us For Availability
17
WPL 9750984 WPL 9750984 Contact Us For Availability
17
WPL 9751868 WPL 9751868 Contact Us For Availability
17
WPL 9752769 WPL 9752769 Contact Us For Availability
17
WPL 9753101 WPL 9753101 Contact Us For Availability
17
WPL 9753808 WPL 9753808 Contact Us For Availability
17
WPL 9754004 WPL 9754004 Contact Us For Availability
17
WPL 9754005 WPL 9754005 Contact Us For Availability
17
WPL 9754011 WPL 9754011 Contact Us For Availability
17
WPL 9781055 WPL 9781055 Contact Us For Availability
17
WPL 9781555 WPL 9781555 Contact Us For Availability
17
WPL 9782129 WPL 9782129 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 98884 WPL 98884 Contact Us For Availability
18
Cap, Vent WPL 9751271GB Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
18
Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Cap, Vent WPL 9751366 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Gasket, Seal (2) WPL 9752034 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Head, Burner (14K LF) WPL 4455849 Contact Us For Availability
22
Bimetal WPL 9752006 Contact Us For Availability
23
Cap, Burner (14K LF) WPL 9753939GB Contact Us For Availability
23
Cap, Burner (Pad, Burner Ring) WPL 9754136 Contact Us For Availability
23
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
26
Sensor, Oven WPL 9782081 Contact Us For Availability
26
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
× ![]()
