Model Whirlpool KGST300HWH0 COOKTOP – Common Parts & Diagrams

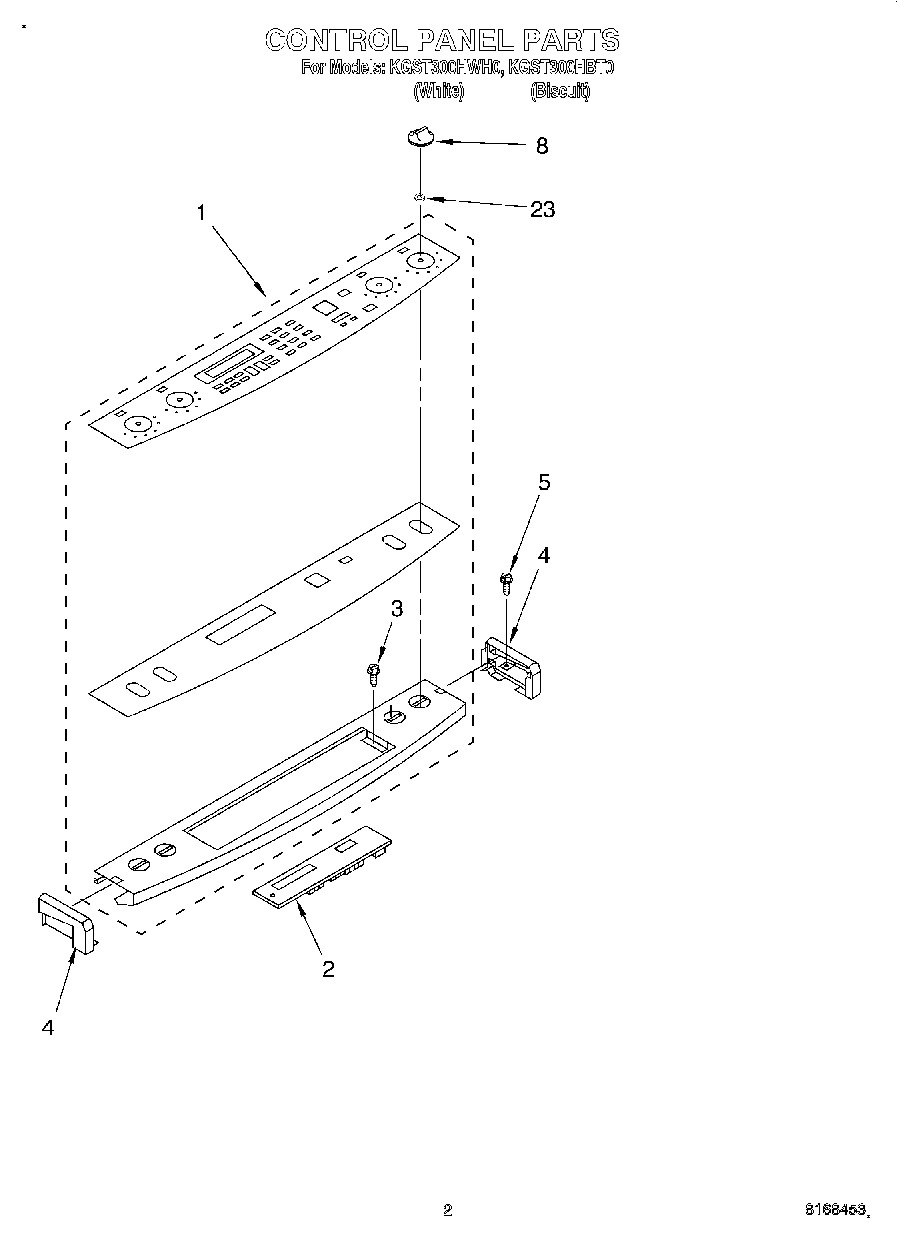

02 - CONTROL PANEL

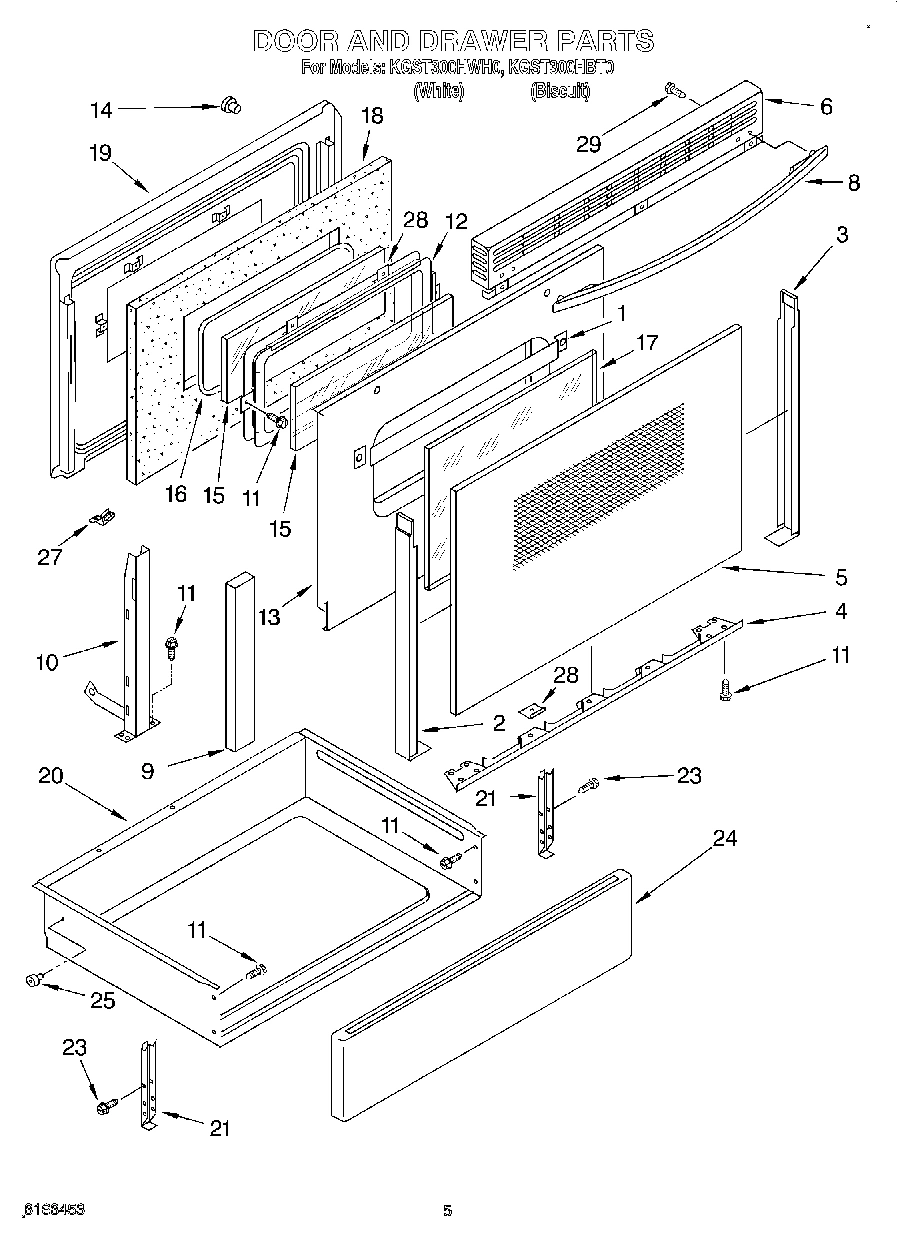

05 - DOOR AND DRAWER

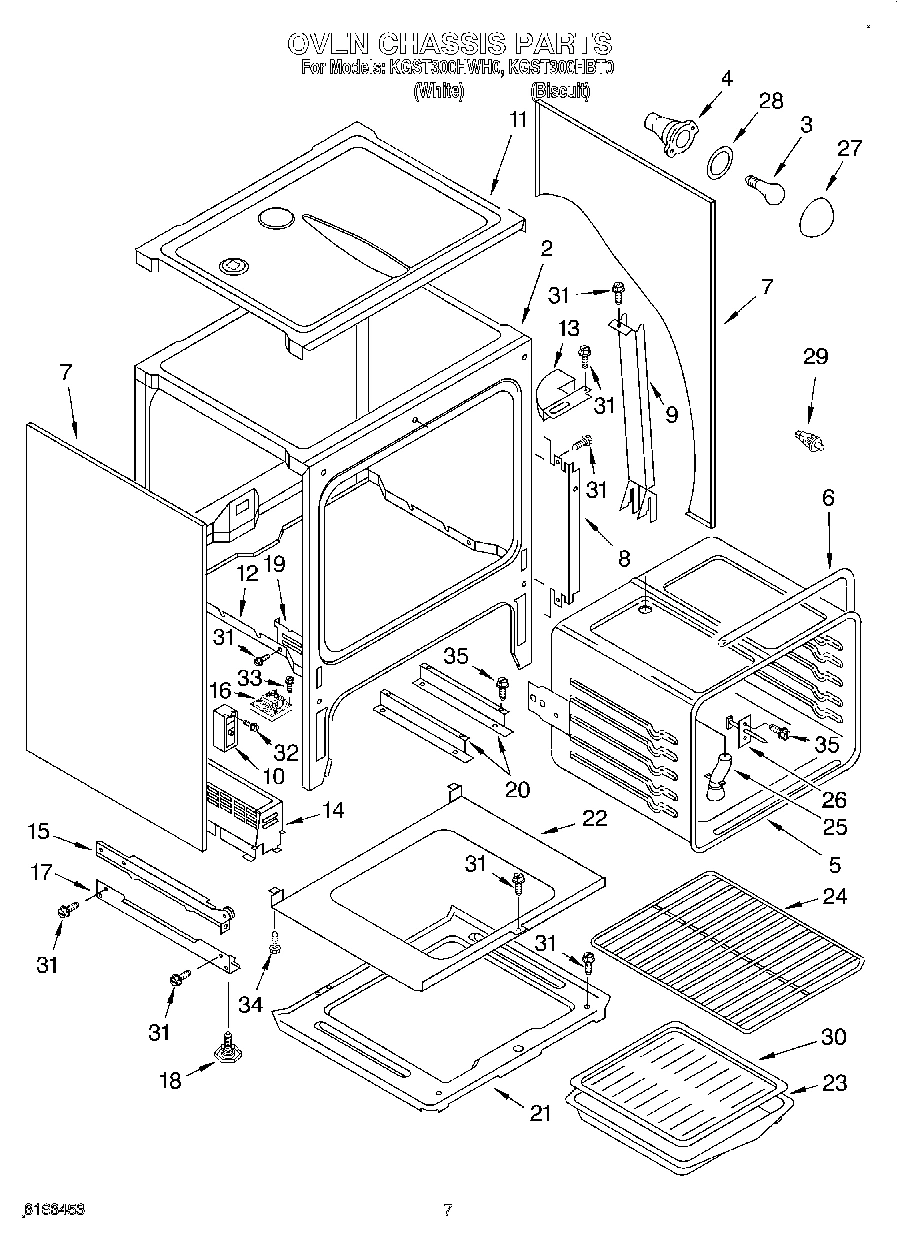

06 - OVEN CHASSIS

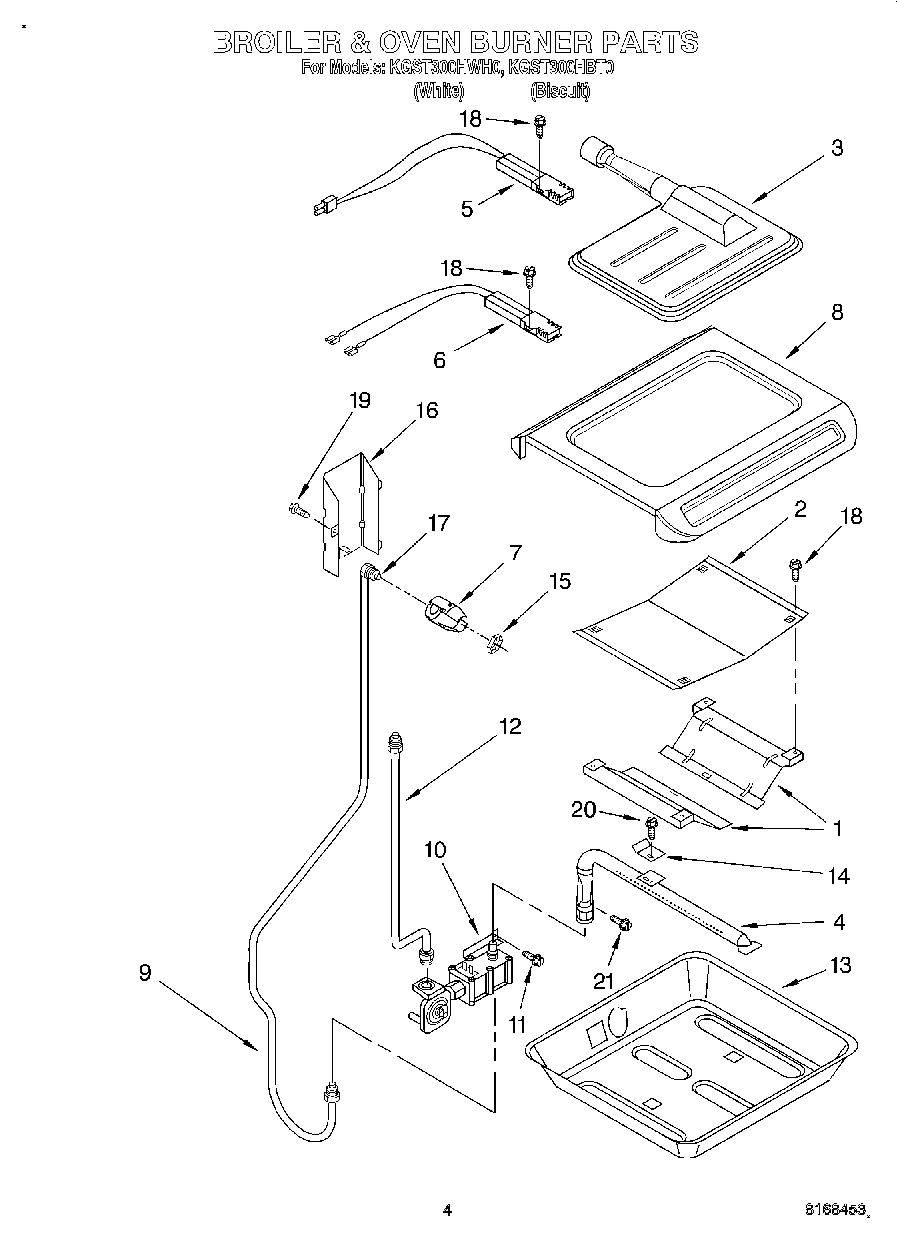

04 - BROILER AND OVEN BURNER
07 - REAR CHASSIS, OPTIONAL

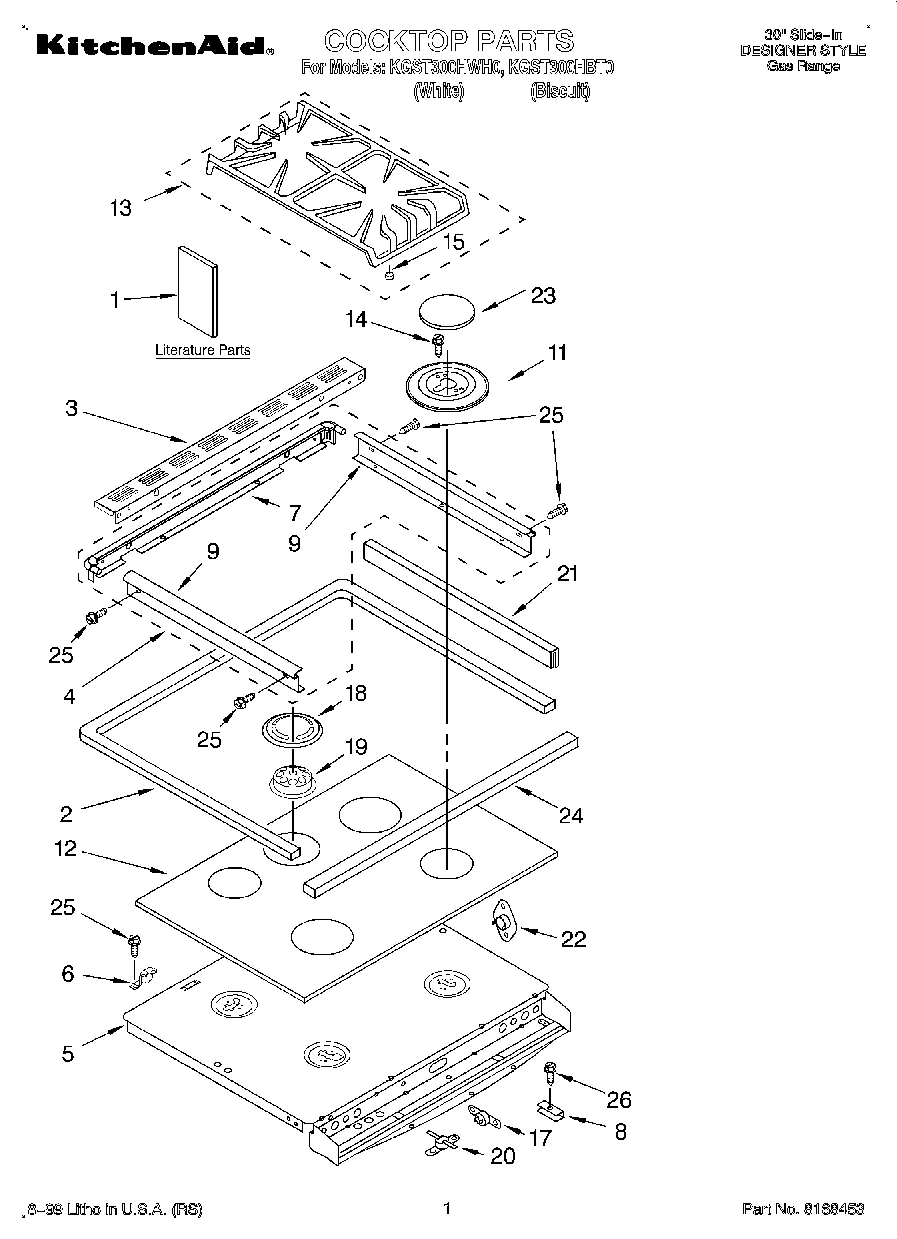

01 - COOKTOP, LITERATURE

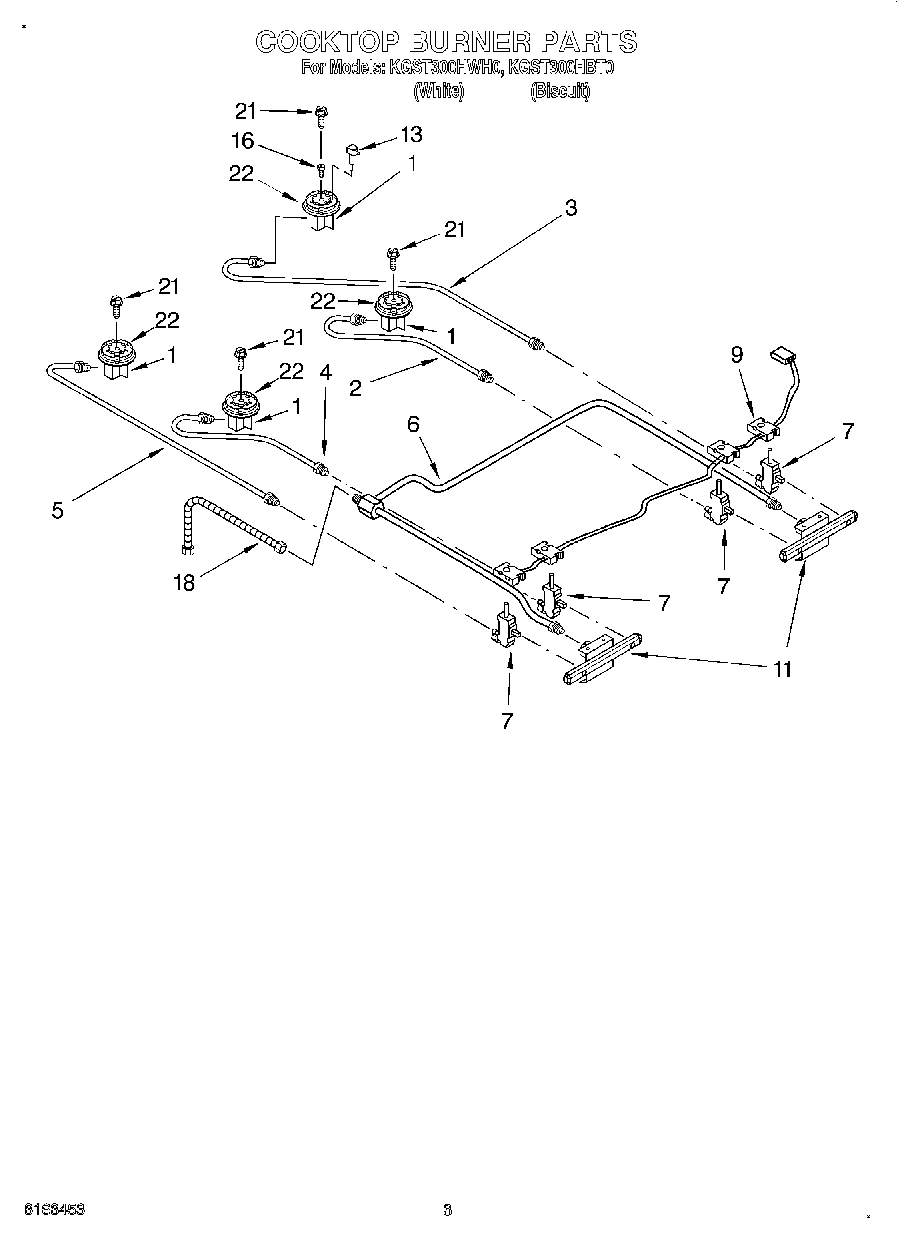

03 - COOKTOP BURNER
Common parts from model Whirlpool KGST300HWH0 COOKTOP
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Back panel, Chassis WPL 9751051 Contact Us For Availability
1
Safer Cooking Tips WPL LIT3191638 Contact Us For Availability
1
Literature Parts (Smart & Easy Guide) WPL LIT9752686 Contact Us For Availability
1
Literature Parts (Template, Anti-Tip) WPL LIT9752775 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT9753562 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT9753620 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT9753621 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT9753622 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT9753848 Contact Us For Availability
1
Burner Base, W/Orifice (Small 6K - RF-LR) WPL 9753430 Contact Us For Availability
1
Burner Base, W/Orifice (Medium 12K - RR) WPL 9753431 Contact Us For Availability
1
Burner Base, W/Orifice (Large 14K - LF) WPL 9753432 Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
2
Tubing, Burner (RF) WPL 9753610 Contact Us For Availability
3
Burner, Broiler WPL 9752922 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Vent, Rear (Biscuit) WPL 9752090PC Contact Us For Availability
3
Vent, Rear (White) WPL 9752090PW Contact Us For Availability
3
Tubing, Burner (RR) WPL 9753611 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Frame, Cooktop (Washer (2)) WPL 9752003 Contact Us For Availability
4
Frame, Cooktop (Biscuit) WPL 9781832PC Contact Us For Availability
4
Frame, Cooktop (White) WPL 9781832PW Contact Us For Availability
4
Tubing, Burner (LF) WPL 9753608 Contact Us For Availability
5
Oven Liner WPL 9753340GM Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Support, Burner WPL 9753603 Contact Us For Availability
5
Tubing, Burner (LR) WPL 9753609 Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Tubing, Manifold WPL 9752996 Contact Us For Availability
7
Valve, Burner (6K - Red Stem) WPL 9753045 Contact Us For Availability
7
Valve, Burner (14K - Plain Stem) WPL 9753614 Contact Us For Availability
7
Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability
7
Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability
7
Bracket, Broil Shooter WPL 9752858 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Trim, Rear (Includes End Caps) (Biscuit) WPL 9781831PC Contact Us For Availability
7
Trim, Rear (Includes End Caps) (White) WPL 9781831PW Contact Us For Availability
7
Valve, Burner (Bolt, Valve (4)) WPL 3185829 Contact Us For Availability
7
Valve, Burner (12K - Black Stem) WPL 9753044 Contact Us For Availability
8
Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Tubing, Broil WPL 9751173 Contact Us For Availability
9
Screw,10-32 x .313 WPL 422222 Contact Us For Availability
9
Trim, Side (Biscuit) WPL 9781828PC Contact Us For Availability
9
Trim, Side (White) WPL 9781828PW Contact Us For Availability
10
Washer, Lock No.10 WPL 424238 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
11
Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability
11
Bezel, Burner (14K LF) WPL 9753600GB Contact Us For Availability
11
Bezel, Burner (6K RF-LR) WPL 9753601GB Contact Us For Availability
11
Bezel, Burner (12K RR) WPL 9753602GB Contact Us For Availability
11
Manifold (2) WPL 9753613 Contact Us For Availability
12
Retainer, Insulation WPL 9752735 Contact Us For Availability
12
Tubing, Valve WPL 9781015 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Cooktop, Ceran (Biscuit) WPL 9753606CT Contact Us For Availability
12
Cooktop, Ceran (White) WPL 9753606CW Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Grate, Burner WPL 9753616GB Contact Us For Availability
13
Electrode WPL 3192527 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
15
Nut, 5/8`` - 18 WPL 9751203 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
WPL 9751745 WPL 9751745 Contact Us For Availability
17
WPL 9752717 WPL 9752717 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Orifice No.54 WPL 9752716 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 9750221 WPL 9750221 Contact Us For Availability
17
WPL 9750376 WPL 9750376 Contact Us For Availability
17
WPL 9751164 WPL 9751164 Contact Us For Availability
17
WPL 9751323 WPL 9751323 Contact Us For Availability
17
WPL 9751868 WPL 9751868 Contact Us For Availability
17
WPL 9752769 WPL 9752769 Contact Us For Availability
17
WPL 9753101 WPL 9753101 Contact Us For Availability
17
WPL 9753808 WPL 9753808 Contact Us For Availability
17
WPL 9754036 WPL 9754036 Contact Us For Availability
17
WPL 9781055 WPL 9781055 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 98884 WPL 98884 Contact Us For Availability
18
Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability
18
Cap, Vent WPL 9751271GB Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Receiver, Hinge WPL 9750149 Contact Us For Availability
19
Cap, Vent WPL 9751366 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Shield, Drawer WPL 9781025 Contact Us For Availability
21
Screw, 10-32 x 1/2 WPL 9781910 Contact Us For Availability
21
Gasket, Seal (2) WPL 9752034 Contact Us For Availability
22
Bimetal WPL 9752006 Contact Us For Availability
22
Plate, Reflectance WPL 9751641 Contact Us For Availability
22
Head, Burner (6K RF-LR) WPL 9753109 Contact Us For Availability
22
Head, Burner (12K RR) WPL 9753110 Contact Us For Availability
22
Head, Burner (14K LF) WPL 9753111 Contact Us For Availability
23
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
23
Cap, Burner (14K LF) WPL 9753939GB Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9750168PC Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
24
Seal Cooktop WPL 9751478 Contact Us For Availability
25
Vent Tube WPL 9751592 Contact Us For Availability
26
Sensor, Oven WPL 8053344 Contact Us For Availability
26
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
32
Screw, 8-32 x 3/8 WPL 9780269 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
× ![]()
