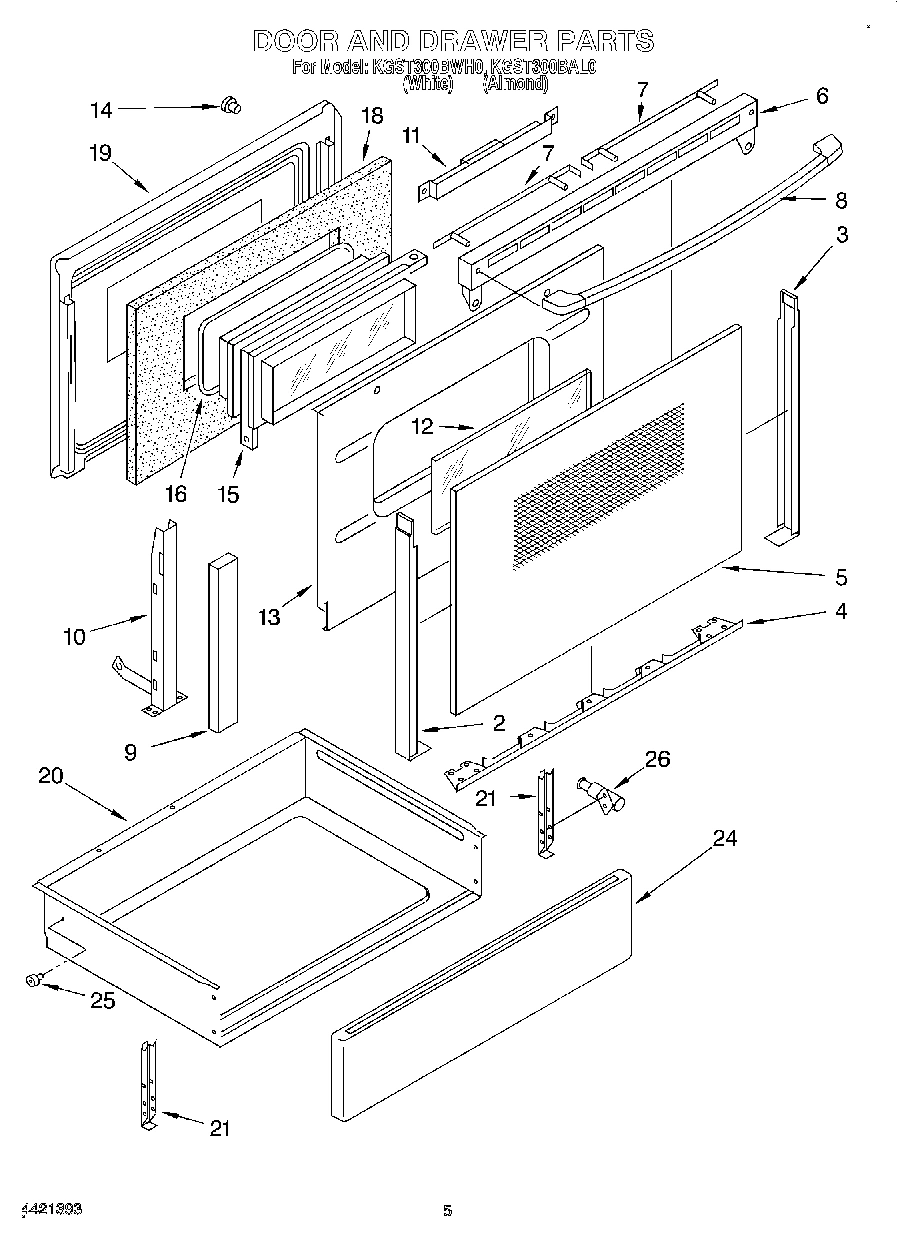

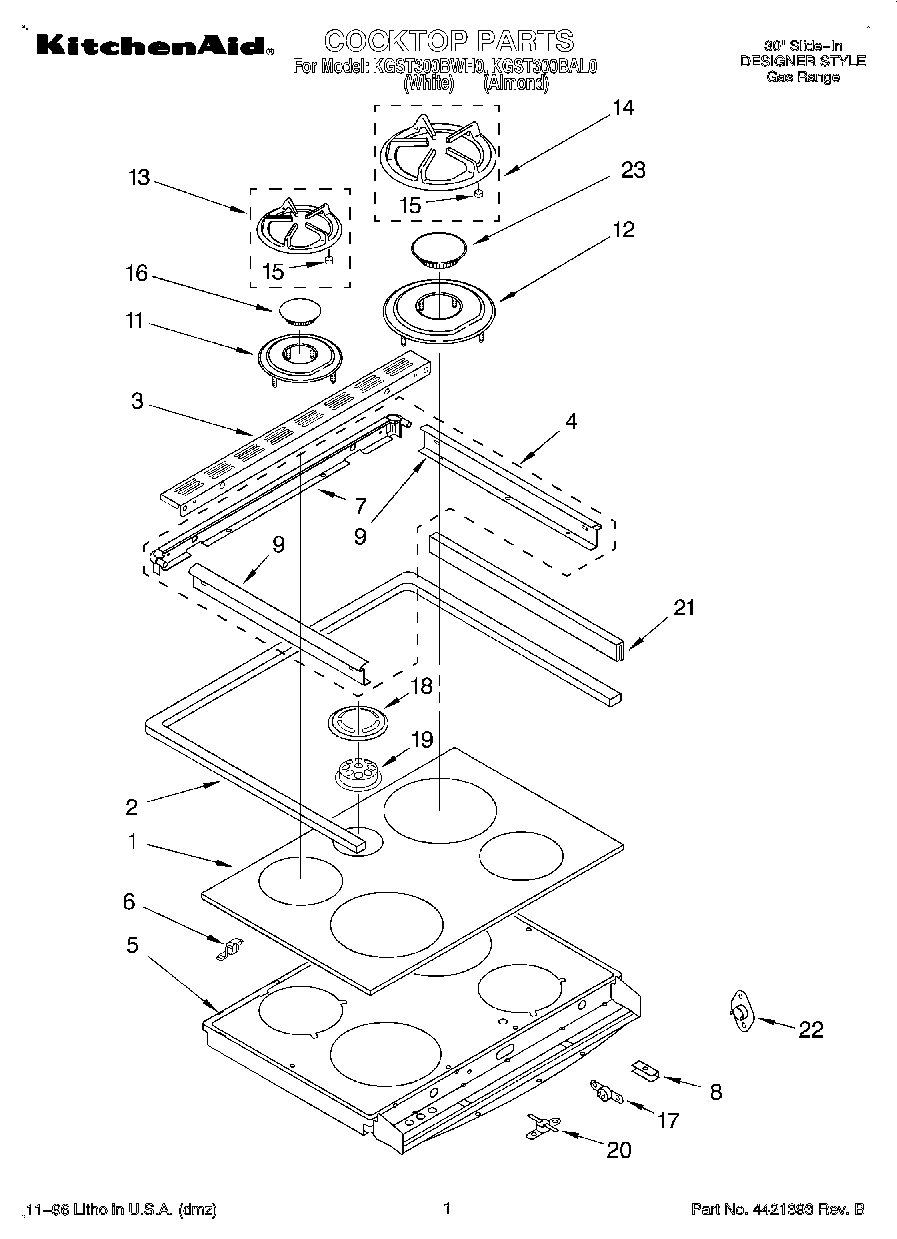

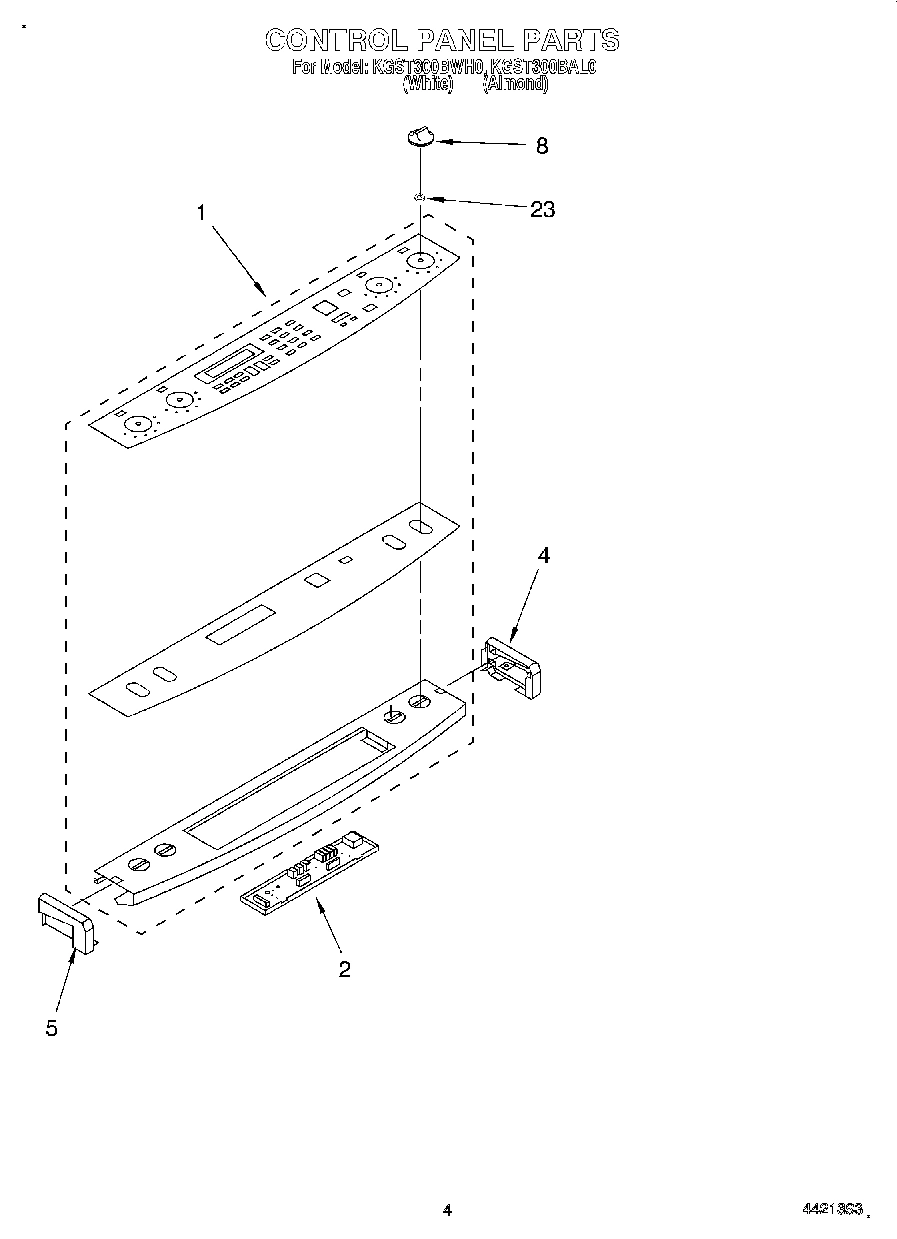

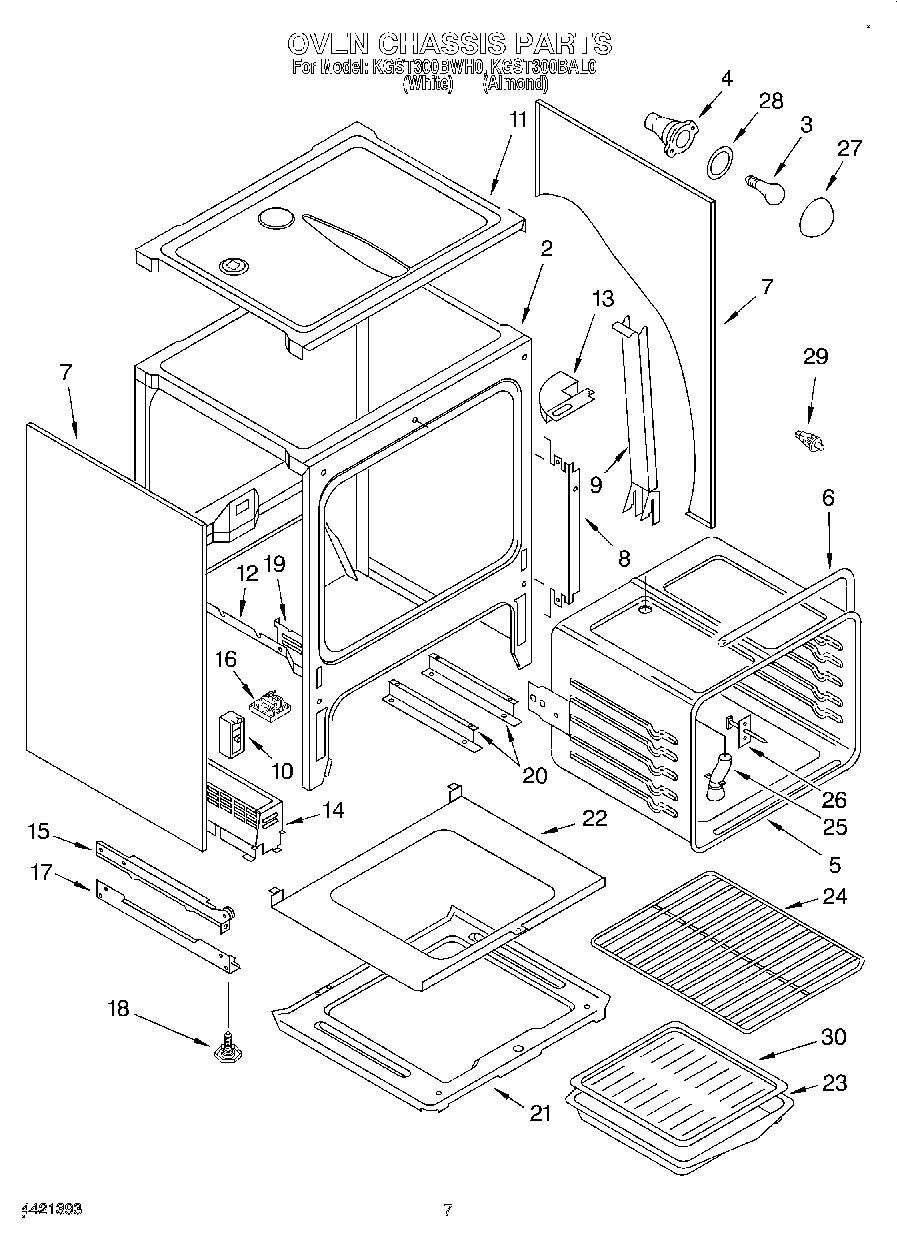

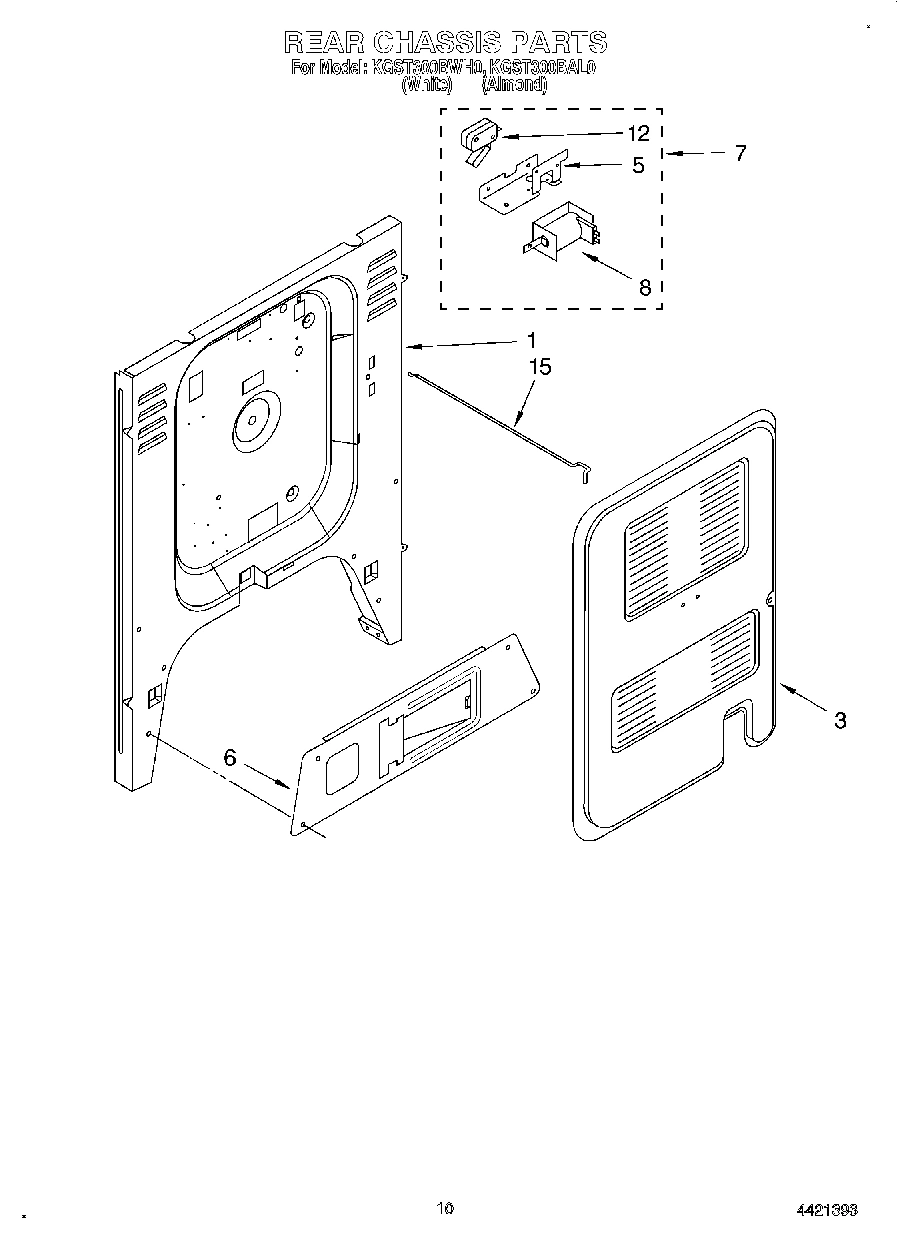

Model Whirlpool KGST300BWH0 COOKTOP – Common Parts &amp; Diagrams

1

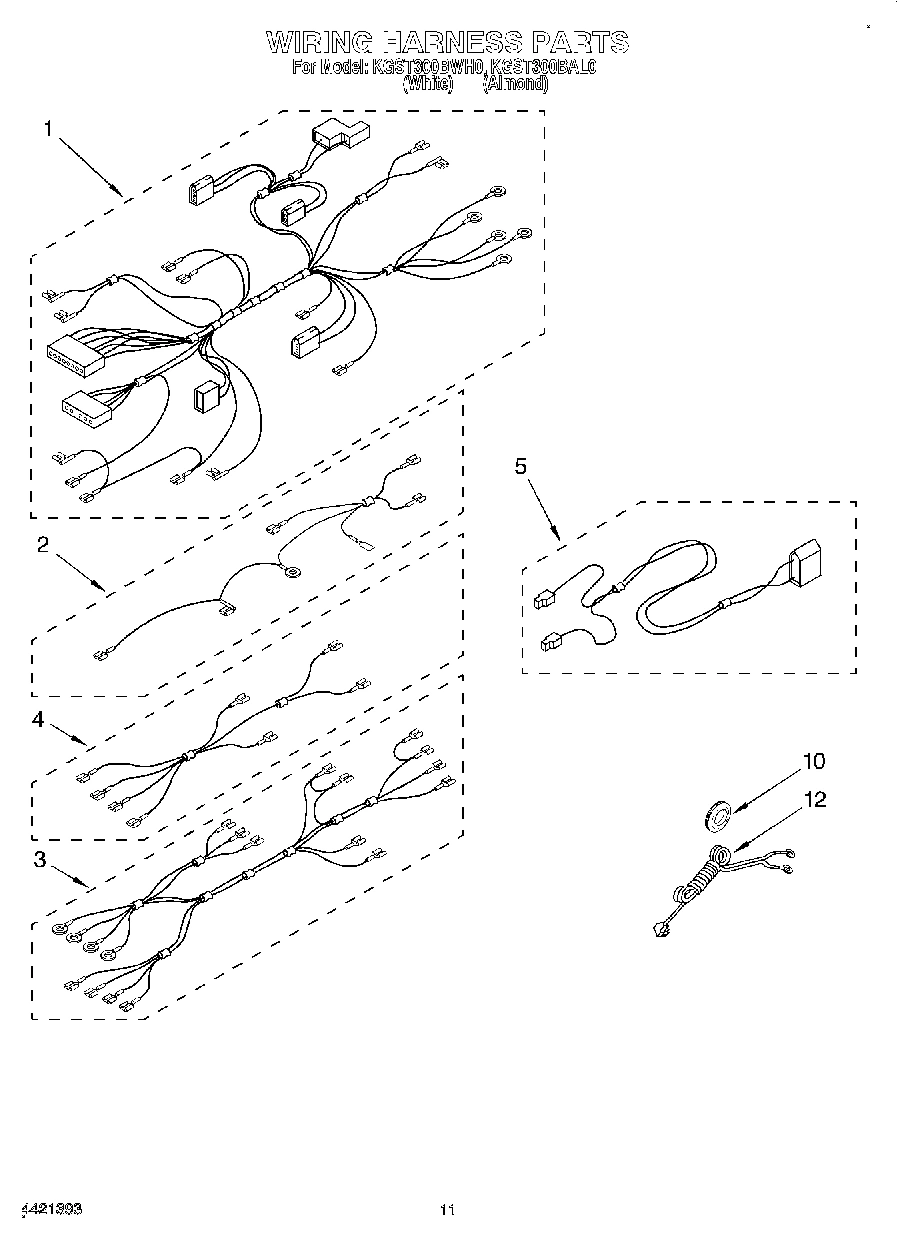

Harness, Wiring (Main Harness) WPL 9752087 Contact Us For Availability

1

Back panel, Chassis WPL 9751051 Contact Us For Availability

1

Shield, Oven (2) WPL 9751417 Contact Us For Availability

1

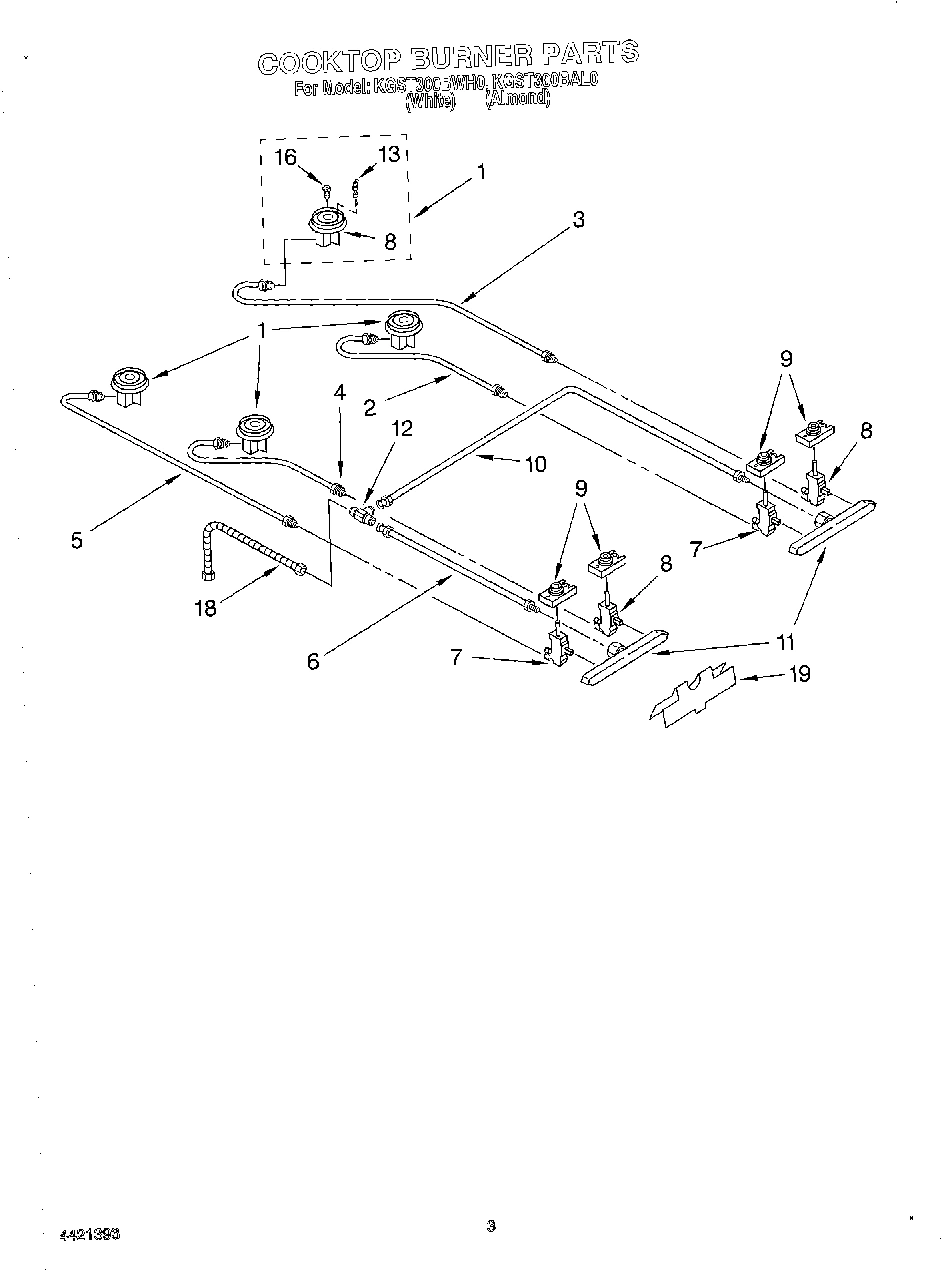

Burner, Small (2) WPL 3185821 Contact Us For Availability

1

Burner, Large (2) WPL 3185822 Contact Us For Availability

1

Console, Glass (White Mdl.) WPL 9751887 Contact Us For Availability

1

Console, Glass (Almond Mdl.) WPL 9751891 Contact Us For Availability

2

WP9780939 Whirlpool Cooktop Gasket Backorder WPL WP9780939 $28.80

2

Harness, Wiring (L2 Gas) WPL 9751875 Contact Us For Availability

2

Chassis, Front WPL 4212002 Contact Us For Availability

2

Trim, Door-Left (White) WPL 4212028 Contact Us For Availability

2

Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability

2

Screw, (2) WPL 9780271 Contact Us For Availability

2

Flame Shield, Bake WPL 9781042 Contact Us For Availability

2

Tubing, Burner (RF) WPL 9781034 Contact Us For Availability

2

Timer, Electronic WPL 3190379 Contact Us For Availability

3

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

3

Harness, Wiring (Control) WPL 3190208 Contact Us For Availability

3

Screw, (2) 10 x 3/8 WPL 4211813 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

3

Trim, Door-Right (White) WPL 4212029 Contact Us For Availability

3

Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability

3

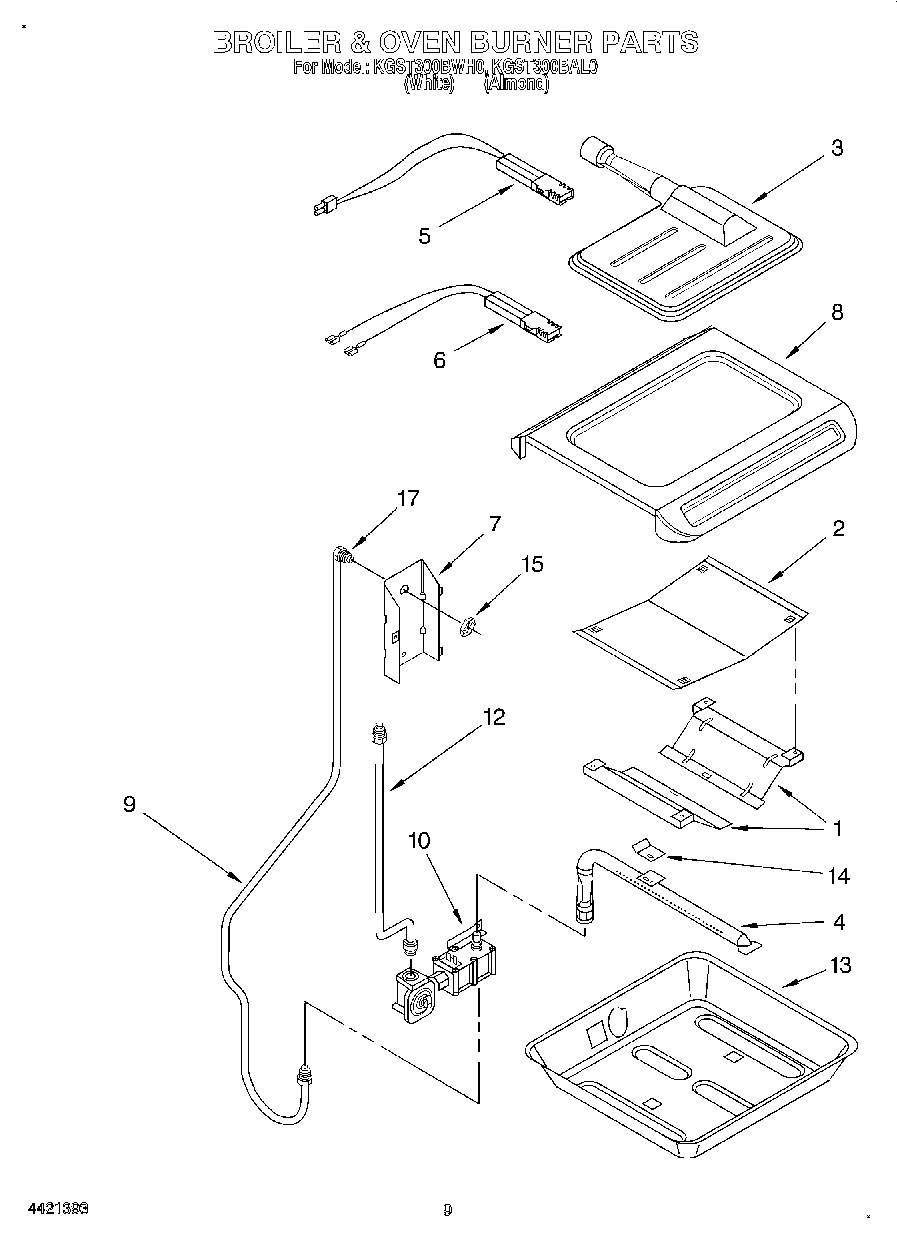

Burner, Broiler WPL 9751424 Contact Us For Availability

3

Screw, 10-24 x 1/2 WPL 9751644 Contact Us For Availability

3

Tubing, Burner (RR) WPL 9781035 Contact Us For Availability

4

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

Harness, Wiring (Cooktop) WPL 3190058 Contact Us For Availability

4

Trim, Door Bottom (White) WPL 4212030 Contact Us For Availability

4

Trim, Door Bottom (Almond) WPL 9750236PT Contact Us For Availability

4

Tubing, Burner (LF) WPL 9781036 Contact Us For Availability

4

End Cap R.H. (White) WPL 4421439 Contact Us For Availability

4

End Cap R.H. (Almond) WPL 4421440 Contact Us For Availability

5

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

5

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

5

Harness, Wiring (Door) WPL 9750376 Contact Us For Availability

5

Oven Liner WPL 9751210GM Contact Us For Availability

5

Bracket, Lock WPL 9751418 Contact Us For Availability

5

Glass, Door (White) WPL 9751769 Contact Us For Availability

5

Glass, Door (Almond) WPL 9751770 Contact Us For Availability

5

Tubing, Burner (LR) WPL 9781037 Contact Us For Availability

5

End Cap L.H. (White) WPL 4421436 Contact Us For Availability

5

End Cap L.H. (Almond) WPL 4421437 Contact Us For Availability

6

WP9751123 Whirlpool Oven Igniter Backorder WPL WP9751123 $98.45

6

Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability

6

Gasket Oven WPL 9750247 Contact Us For Availability

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Vent, Door (White) WPL 4212224 Contact Us For Availability

6

Vent, Door (Almond) WPL 4421443 Contact Us For Availability

6

Tubing, Manifold WPL 9751284 Contact Us For Availability

7

Oven , Side L or R (White) WPL 4211896 Contact Us For Availability

7

Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability

7

Oven Lock Assembly WPL 9751439 Contact Us For Availability

7

Vent Back WPL 9750898 Contact Us For Availability

7

Bracket, Broil Shooter WPL 9751168 Contact Us For Availability

7

Valve, Burner (Small (2)) WPL 9751333 Contact Us For Availability

8

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $2.38

8

Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

8

Washer WPL 4211875 Contact Us For Availability

8

Screw, (2) 10-32 x 5/16 WPL 4211945 Contact Us For Availability

8

Solenoid WPL 9751590 Contact Us For Availability

8

Handle, Door (White) WPL 4212069 Contact Us For Availability

8

Handle, Door (Almond Mdl.) WPL 4421442 Contact Us For Availability

8

Pan, Oven Bottom WPL 9781041GM Contact Us For Availability

8

Valve, Burner (Bolt, Valve (2)) WPL 3185829 Contact Us For Availability

8

Valve, Burner (Large (2)) WPL 9751334 Contact Us For Availability

8

Knobs, Control (Almond Mdl.) WPL 9751199FT Contact Us For Availability

9

Switch, Ignitor (4) WPL 9751325 Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

9

Gasket, Door Glass WPL 9750694 Contact Us For Availability

9

Tubing, Broil (Includes Key 17) WPL 9751173 Contact Us For Availability

WP4454392 Whirlpool Spark Module Backorder WPL WP4454392 $155.89

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $118.92

Grommet, Harness WPL 9751868 Contact Us For Availability

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Tubing, Manifold WPL 9751285 Contact Us For Availability

Burner Box WPL 9751166 Contact Us For Availability

Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability

Channel, Heat WPL 9750693 Contact Us For Availability

Manifold (2) WPL 9751287 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Baffle, Glass WPL 9750634 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Harvest Gold WPL 261890 Contact Us For Availability

Harvest Gold (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Paint, WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Oven Bottom WPL 9781043 Contact Us For Availability

Screw, (2) WPL 9750887 Contact Us For Availability

Nut (2) WPL 9750888 Contact Us For Availability

Switch, Interlock WPL 9751763 Contact Us For Availability

Tubing, Valve WPL 9781015 Contact Us For Availability

Tee, Flare WPL 9751283 Contact Us For Availability

Electrode WPL 3185804 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

Shield Door WPL 4211941 Contact Us For Availability

Pan Support, Bake WPL 9781022 Contact Us For Availability

Speed Nut WPL 3185805 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

Support, Fan WPL 9751060 Contact Us For Availability

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

Bracket, Bake WPL 9751600 Contact Us For Availability

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $5.14

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Window Pack WPL 9751245 Contact Us For Availability

Nut, 5/8`` - 18 WPL 9751203 Contact Us For Availability

Cap, Small (2) (Almond Mdl.) WPL 3185795 Contact Us For Availability

Cap, Small (2) (White Mdl.) WPL 3185797 Contact Us For Availability

Motor, Fan WPL 9751020 Contact Us For Availability

Screw, (3) No.8 x 1`` WPL 9751808 Contact Us For Availability

Seal, Glass WPL 9781232 Contact Us For Availability

Orifice, Small No.56 WPL 3185947 Contact Us For Availability

Orifice, Large No.52 WPL 3185948 Contact Us For Availability

17

Thermo-Disc WPL 341196 Contact Us For Availability

17

Bottom Rail (2) WPL 9750147 Contact Us For Availability

17

Orifice No.54 WPL 9752716 Contact Us For Availability

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

Cap, Vent (White Mdl.) WPL 4421505 Contact Us For Availability

Cap, Vent (Almond Mdl.) WPL 4421506 Contact Us For Availability

Tubing, Flex WPL 9751854 Contact Us For Availability

Cap, Vent WPL 9751366 Contact Us For Availability

Hinge, Door L or R WPL 9750149 Contact Us For Availability

Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability

Liner, Door WPL 9781197GM Contact Us For Availability

Bracket, Manifold (2) WPL 9781457 Contact Us For Availability

20

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

20

Support Rail, Pan WPL 421771 Contact Us For Availability

20

Drawer & Roller WPL 9750257 Contact Us For Availability

Gasket, Seal (2) WPL 9752034 Contact Us For Availability

Shield, Drawer WPL 9781025 Contact Us For Availability

Bracket, Drawer WPL 9750169 Contact Us For Availability

Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability

22

Bimetal WPL 9752006 Contact Us For Availability

22

Plate, Reflectance WPL 9751641 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Cap, Large (2) (Almond Mdl.) WPL 3185792 Contact Us For Availability

Cap, Large (2) (White Mdl.) WPL 3185794 Contact Us For Availability

Washer, Console (4) (Screw) WPL 9751871 Contact Us For Availability

Washer, Console (4) (White Mdl.) WPL 9751450 Contact Us For Availability

Washer, Console (4) (Almond Mdl.) WPL 9751451 Contact Us For Availability

24

Rack, Standard (2) WPL 9750498 Contact Us For Availability

24

Front, Drawer (White) WPL 4211992 Contact Us For Availability

24

Front, Drawer (Almond) WPL 4211993 Contact Us For Availability

25

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

25

Vent Tube WPL 9751592 Contact Us For Availability

Sensor, Oven WPL 3148440 Contact Us For Availability

Screw, No.8-32 x 3/8 WPL 9781509 Contact Us For Availability

Latch, Drawer WPL 9751248 Contact Us For Availability

Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability

27

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

28

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

29

Door Switch WPL 9750897 Contact Us For Availability

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

Anti-Tip Kit WPL 9751745 Contact Us For Availability

Insulation, Rear WPL 9750221 Contact Us For Availability

Insulation, Wrap WPL 9751164 Contact Us For Availability

Insulation, Bottom WPL 9751323 Contact Us For Availability

Gas Conversion Kit ((LP)) WPL 9751844 Contact Us For Availability
