Model Whirlpool KGSS907XSP01 30`` FREESTANDING GAS RANGE WITH CONVECTION OVEN – Common Parts &amp; Diagrams

1

WPW10128446 Whirlpool Orifice Holder Backorder WPL WPW10128446 $64.54

1

WPW10128455 Whirlpool Orifice Holder Backorder WPL WPW10128455 $40.59

1

ASSEMBLY, OUTER DOOR WPL W10246115 Contact Us For Availability

1

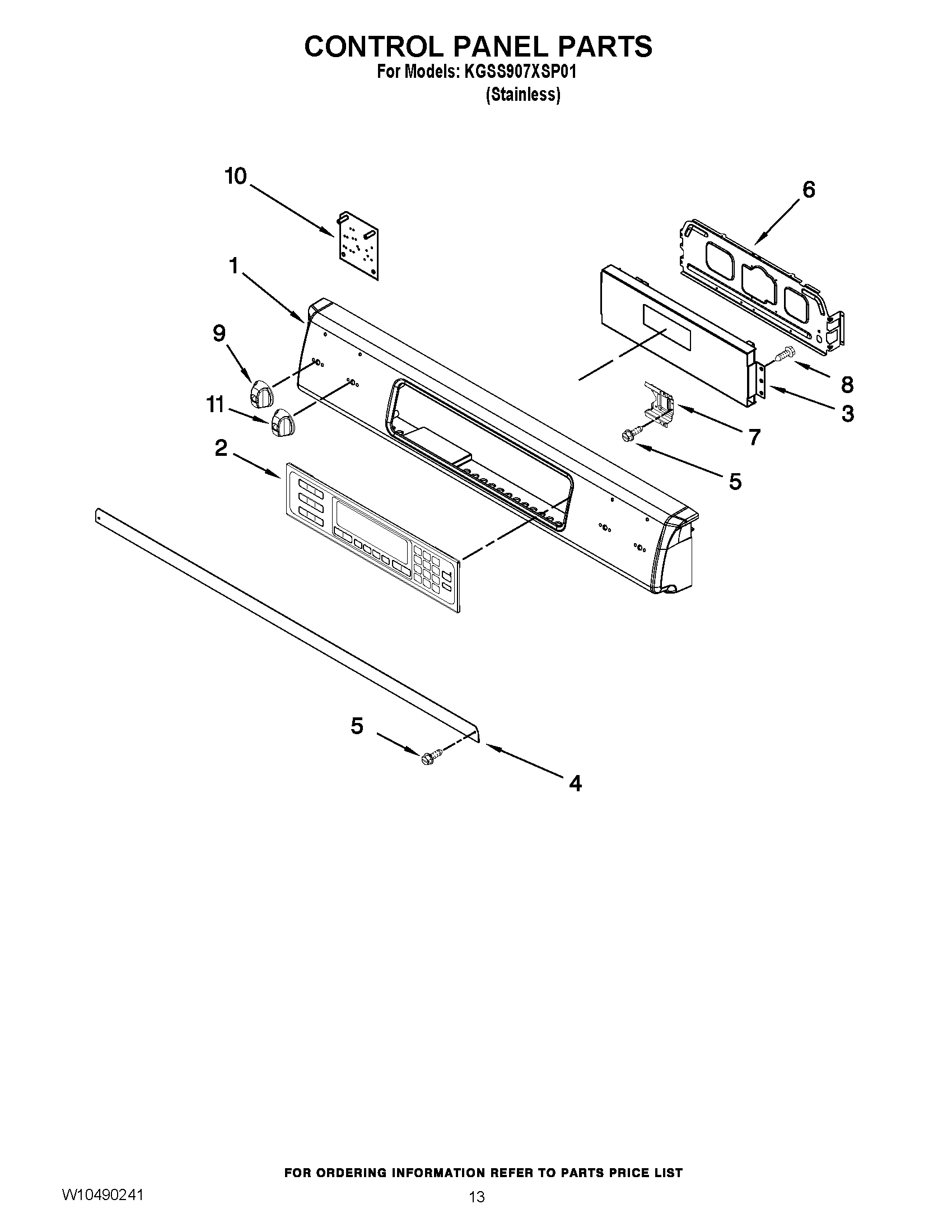

CONTROL PANEL WPL W10156273 Contact Us For Availability

2

8285250 Whirlpool Oven Cover Plate Backorder WPL 8285250 $6.00

2

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $73.34

2

WP9761566 Whirlpool Membrane Switch Backorder WPL WP9761566 $218.38

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $144.86

3

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $65.32

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $54.02

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $54.02

3

WP8285255 Whirlpool Burner Head Backorder WPL WP8285255 $61.74

4

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.85

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $102.32

4

WP8285256 Whirlpool Burner Head Backorder WPL WP8285256 $63.17

4

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

4

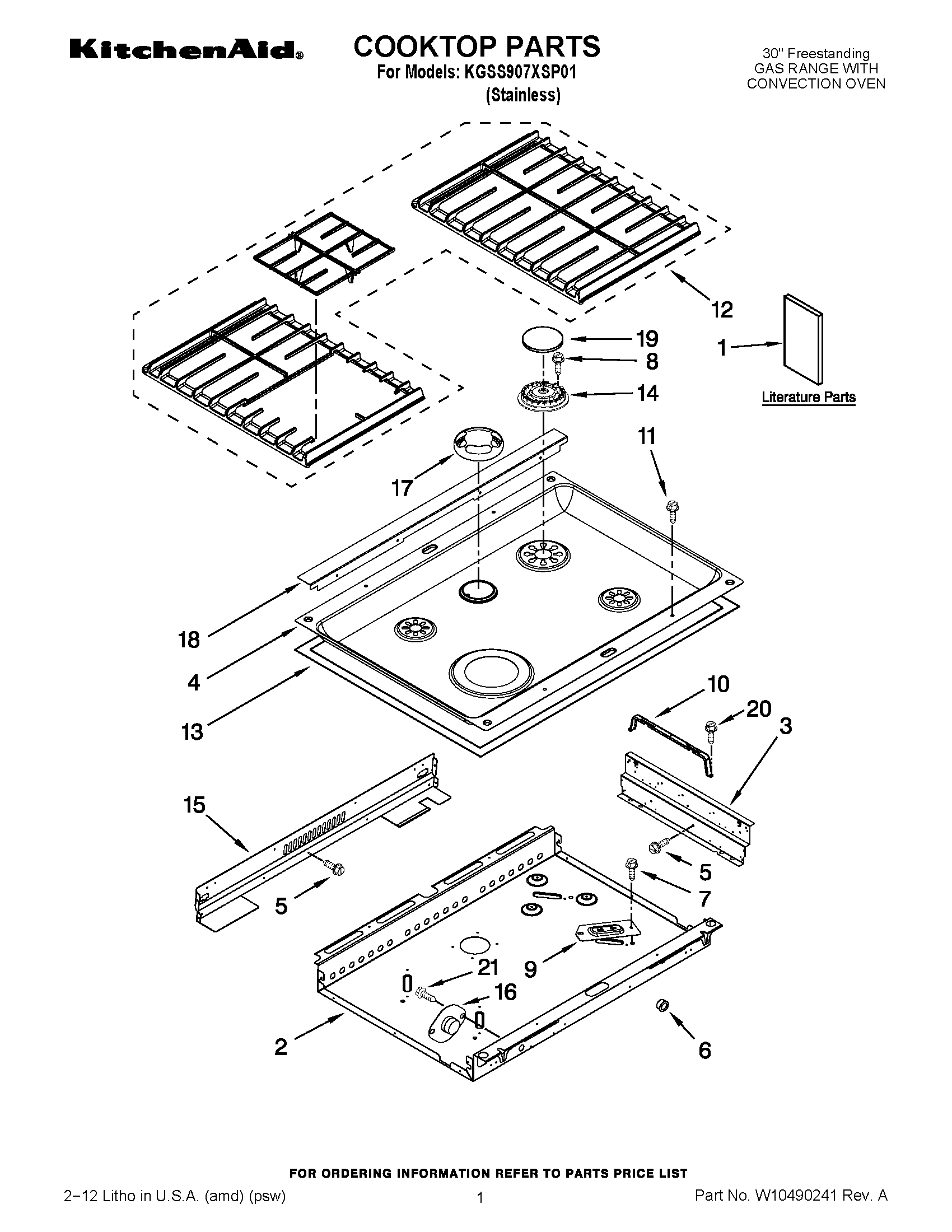

COOKTOP WPL W10175850 Contact Us For Availability

5

9757779 Whirlpool Oven Fitting Backorder WPL 9757779 $62.32

5

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $38.08

5

WP9760579 Whirlpool Right Door Hinge Backorder WPL WP9760579 $39.62

5

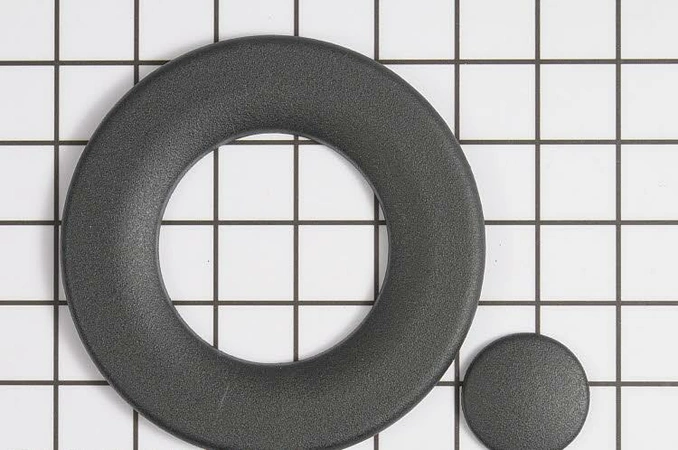

WPW10065280 Whirlpool Burner Cap Backorder WPL WPW10065280 $81.94

5

Side, Base (Right) WPL 9759953 Contact Us For Availability

5

Side, Base (Left) WPL 9759954 Contact Us For Availability

5

Screw WPL 4449040 Contact Us For Availability

6

9762937 Whirlpool Oven Orifice Backorder WPL 9762937 $32.08

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $63.24

6

Orifice (RR) WPL 9762938 Contact Us For Availability

7

4457114 Whirlpool Oven Heat Shield Backorder WPL 4457114 $82.55

7

W10207402 Whirlpool Broil Element Backorder WPL W10207402 $87.86

7

WP3400702 Whirlpool Screw Backorder WPL WP3400702 $5.23

7

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $134.02

8

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

8

WP3196037 Whirlpool Leveling Foot Backorder WPL WP3196037 $26.50

8

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

8

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 $133.87

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $60.69

8

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $105.29

9

WP9760229 Whirlpool Oven Igniter In Stock WPL WP9760229 $81.65

9

VALVE, TCB WPL 9760519 Contact Us For Availability

9

Bracket, Burner WPL 9763445 Contact Us For Availability

9

SHIELD, HEAT TOP WPL 4457104 Contact Us For Availability

9761072 Whirlpool Oven Gas Tubing Backorder WPL 9761072 $40.83

WP9756821 Whirlpool Support Backorder WPL WP9756821 $28.05

WP9759225 Whirlpool Inner Door Glass In Stock WPL WP9759225 $82.93

WP9760228 Whirlpool Oven Burner Backorder WPL WP9760228 $121.06

Lens, Light WPL W10067870 Contact Us For Availability

TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability

9762443 Whirlpool Oven Orifice Spud Backorder WPL 9762443 $4.85

W10129030 Whirlpool Screw Backorder WPL W10129030 $4.85

WPW10155632 Whirlpool Slide Drawer Assembly Backorder WPL WPW10155632 $46.92

WPW10155633 Whirlpool Drawer Slide Rail Backorder WPL WPW10155633 $44.69

Orifice (External) WPL 9762442 Contact Us For Availability

Bracket, Central WPL 9759230 Contact Us For Availability

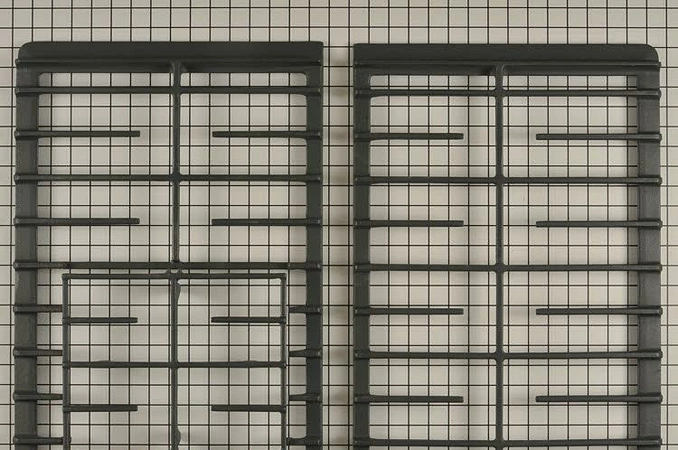

W10338795 Whirlpool Grate Kit Assembly Backorder WPL W10338795 $211.55

WP9763494 Whirlpool Surface Igniter In Stock WPL WP9763494 $26.44

BRACKET, HANDLE (LEFT) WPL W10246113 Contact Us For Availability

BRACKET, HANDLE (RIGHT) WPL W10246114 Contact Us For Availability

8522415 Whirlpool Oven Wind Gasket Backorder WPL 8522415 $28.80

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WP9763716 Whirlpool Gas Valve In Stock WPL WP9763716 $343.87

Gasket (Tape) WPL W10109920 Contact Us For Availability

WPW10320959 Whirlpool Dishwasher Nameplate Backorder WPL WPW10320959 $49.01

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.18

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $32.96

Tube, Broil WPL 9756831 Contact Us For Availability

15

W10246102A Whirlpool Range Oven Door Handle Backorder WPL W10246102A $121.04

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $25.44

15

Cover, Cooktop Rear WPL 9759627 Contact Us For Availability

WP8054129 Whirlpool Oven Igniter In Stock WPL WP8054129 $70.95

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $108.51

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

SCREW WPL 7101P06860 Contact Us For Availability

4448520 Whirlpool Oven Bumper Backorder WPL 4448520 $10.76

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

VENT, CENTER WPL 9760225BL Contact Us For Availability

ELEMENT, WARMING WPL W10207401 Contact Us For Availability

18

WP9763436 Whirlpool Rear Cover Backorder WPL WP9763436 $47.87

18

WPW10272546 Whirlpool Broiler Pan Backorder WPL WPW10272546 $89.56

18

PANEL, DOOR WPL W10277749 Contact Us For Availability

19

KIT, BURNER CAP WPL 9763503CB Contact Us For Availability

20

SCREW WPL 7101P42660 Contact Us For Availability

21

W10491985 Whirlpool Screw In Stock WPL W10491985 $2.51

21

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $55.46

22

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $143.63

23

WP9757807 Whirlpool High Limit Thermostat Backorder WPL WP9757807 $37.77

26

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $2.51

32

W10083460 Whirlpool Slide Assembly Backorder WPL W10083460 $56.45

32

Screw WPL 3400080 Contact Us For Availability

33

Central, Appliance WPL 9762774 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $45.37

38

Vent, Bottom Upper WPL W10160347 Contact Us For Availability

41

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

42

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

9756921 Whirlpool Oven Wire Harness Backorder WPL 9756921 $145.43

9757426 Whirlpool Oven LP Conversion Kit Backorder WPL 9757426 $17.97

9763481 Whirlpool Oven Wire Harness Backorder WPL 9763481 $28.80

W10110533 Whirlpool Wire Harness Backorder WPL W10110533 $128.36

W10113901A Whirlpool Fill Kit In Stock WPL W10113901A $59.26

W10157936 Whirlpool Wire Harness Backorder WPL W10157936 $129.14

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $71.21

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WP261869 Whirlpool Microwave Paint In Stock WPL WP261869 $9.88

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $24.89

WP9756824 Whirlpool Wire Harness Backorder WPL WP9756824 $84.18

WP9762904 Whirlpool Wire Harness Backorder WPL WP9762904 $50.84

WPW10237644 Whirlpool Wire Harness Backorder WPL WPW10237644 $54.26

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability

Insulation, Wrap WPL 9756817 Contact Us For Availability

Spacer, Harness WPL 4452222 Contact Us For Availability
