Model Whirlpool KGSS907XSP00 30`` FREESTANDING GAS OVEN CONVECTION – Common Parts & Diagrams

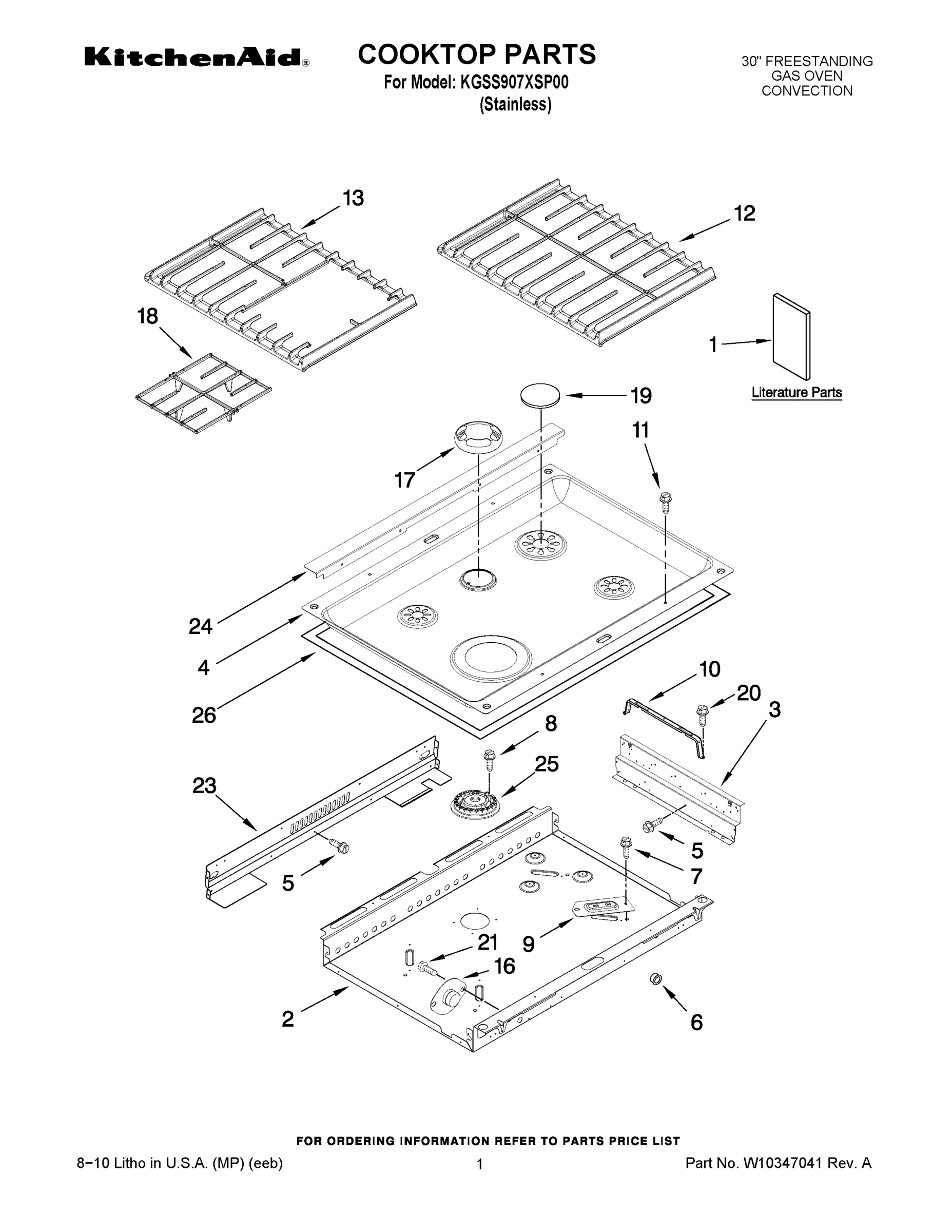

01 - COOKTOP PARTS

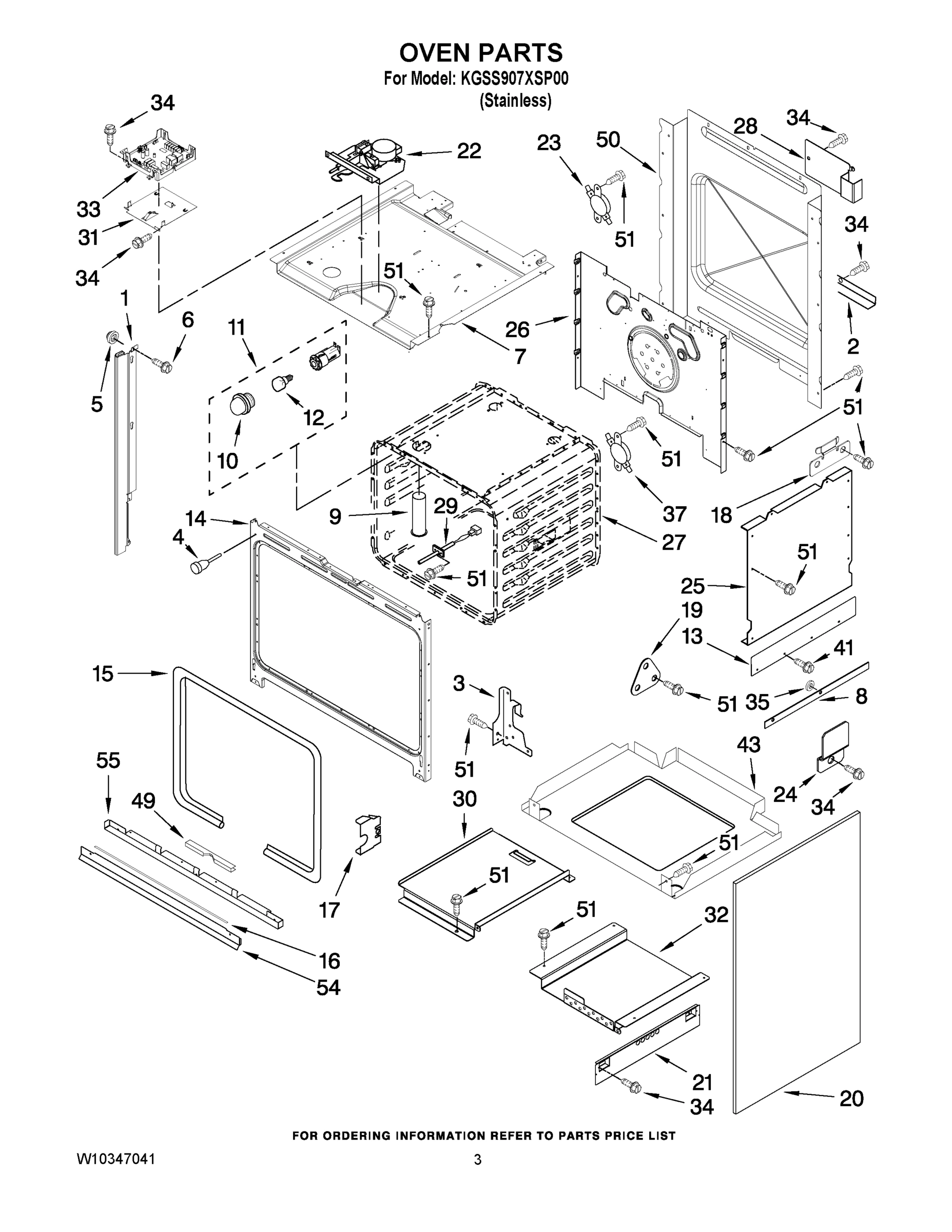

02 - OVEN PARTS

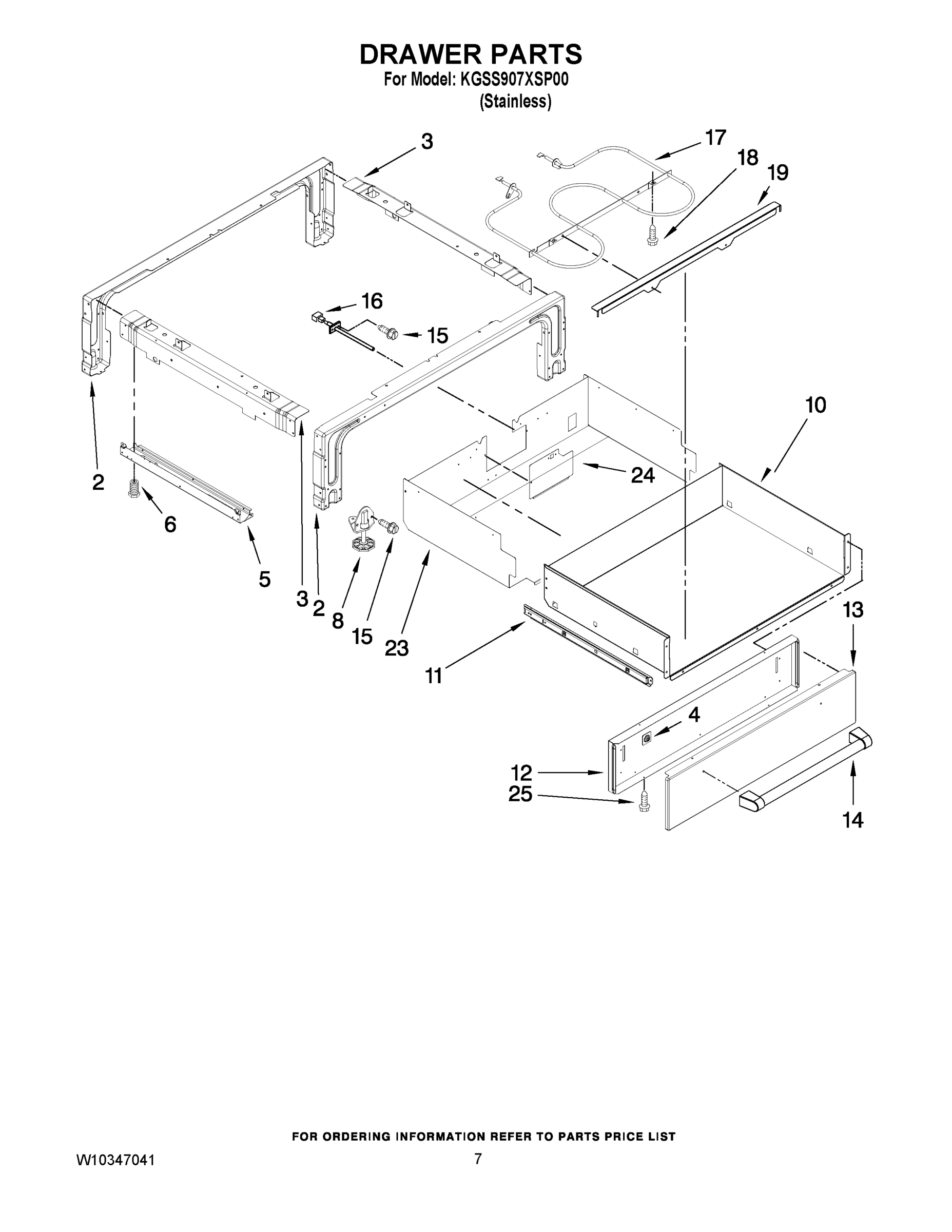

04 - DRAWER PARTS

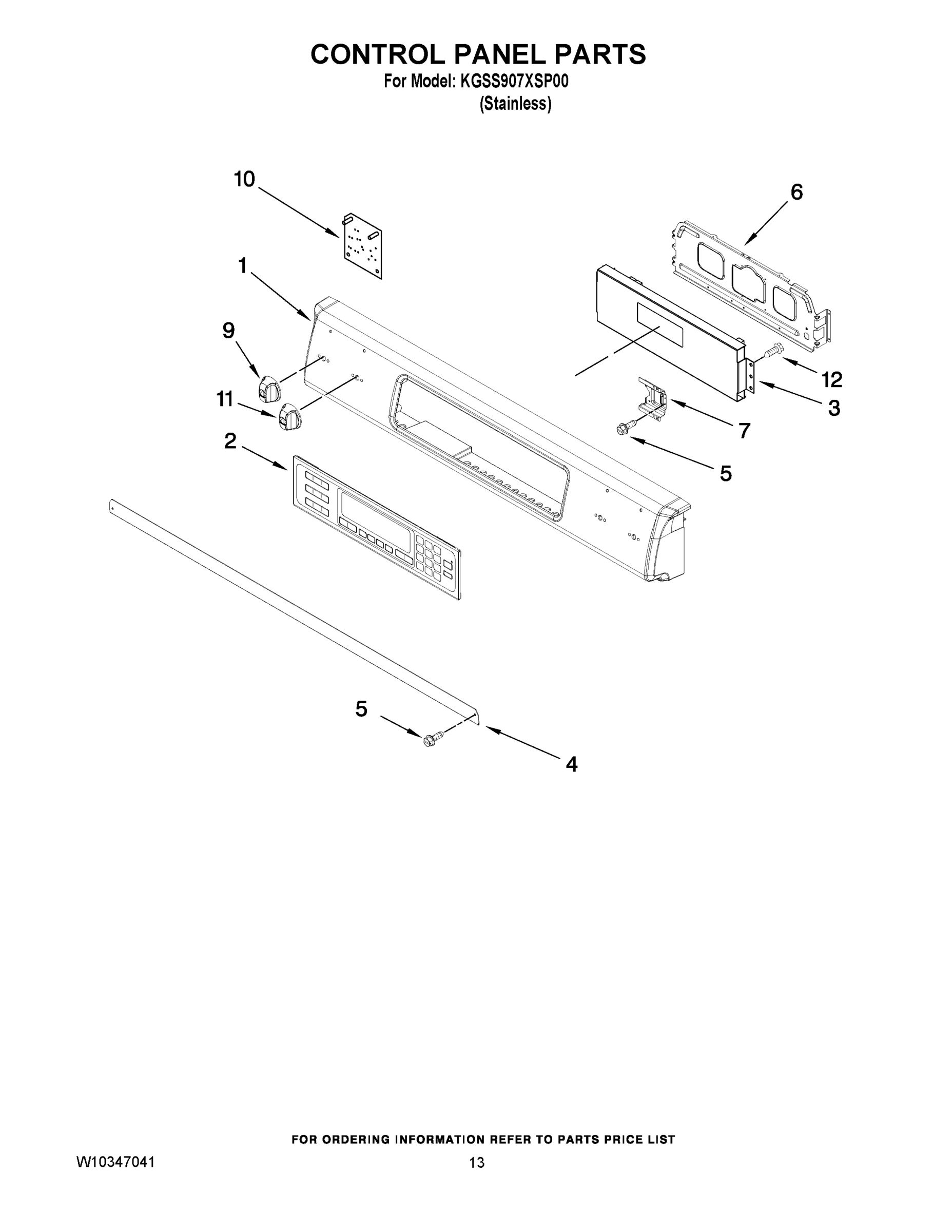

09 - CONTROL PANEL PARTS

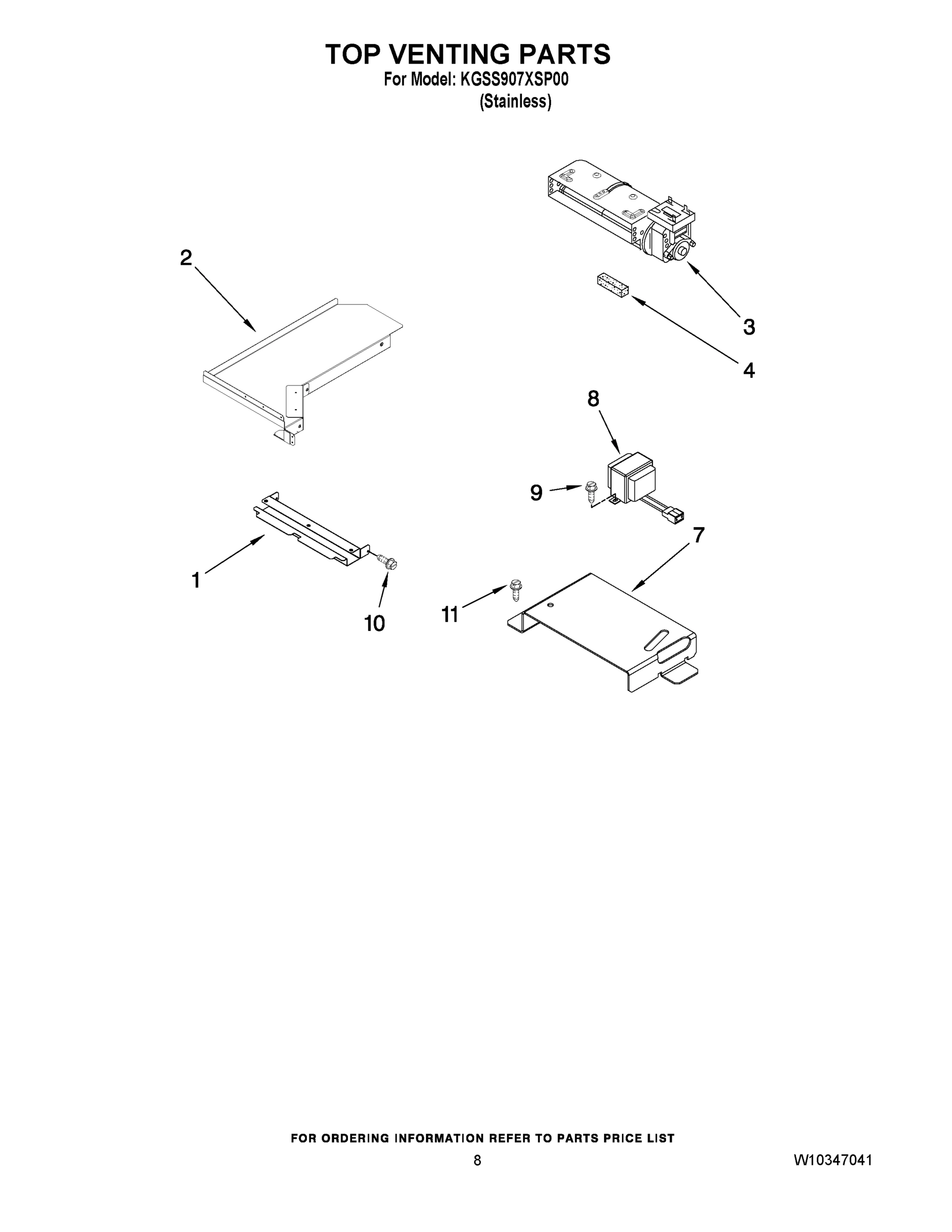

05 - TOP VENTING PARTS

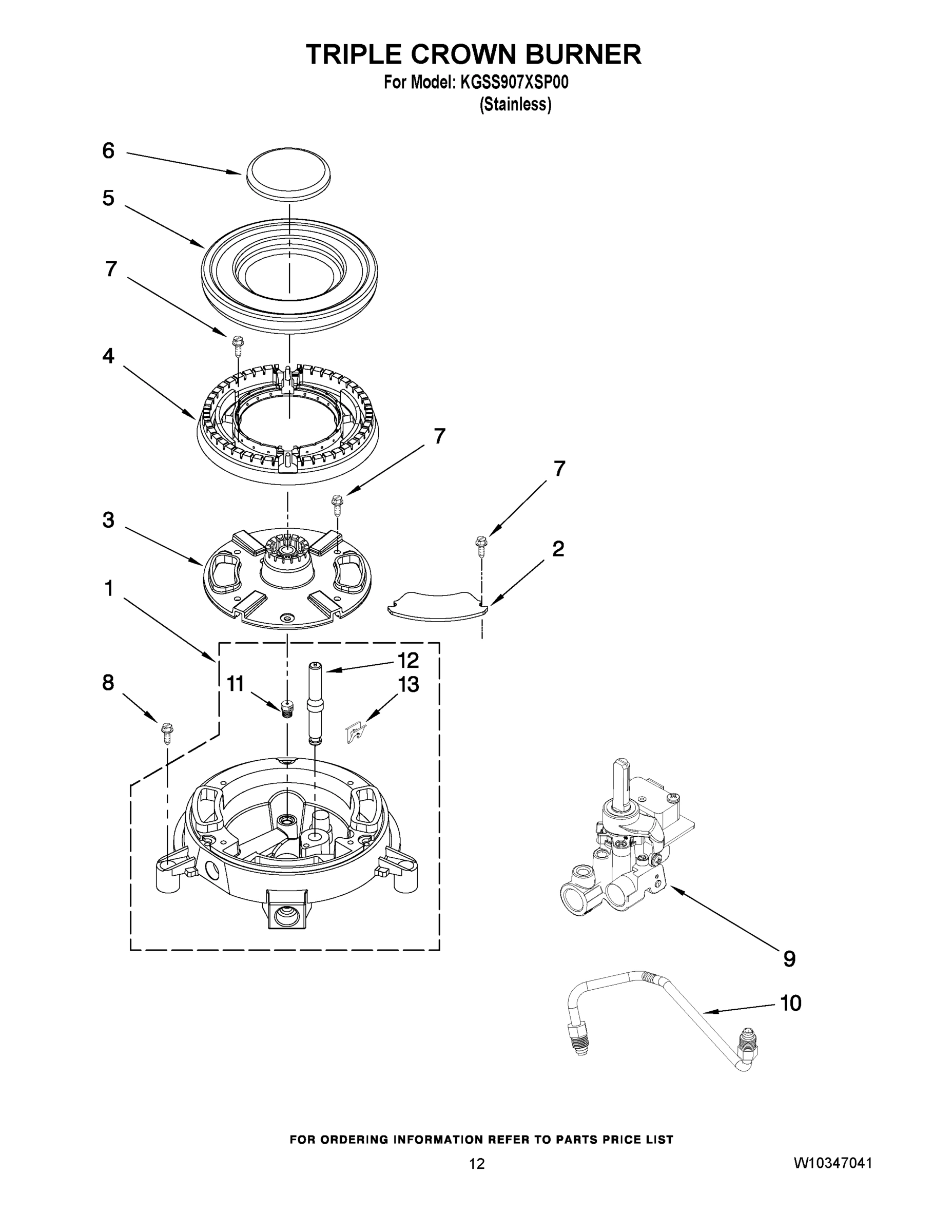

08 - TRIPLE CROWN BURNER

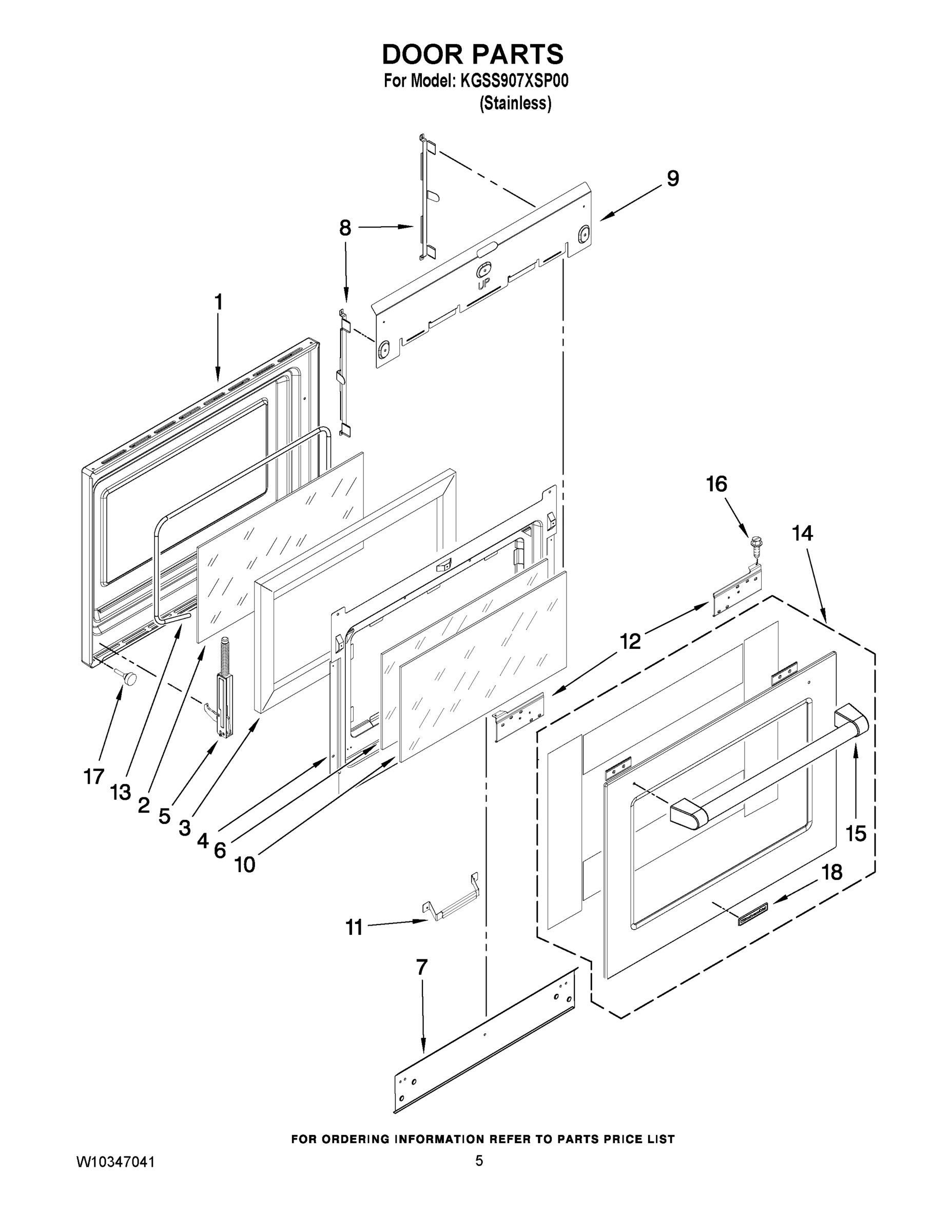

03 - DOOR PARTS
10 - OPTIONAL PARTS (NOT INCLUDED)
06 - INTERNAL OVEN PARTS
07 - COOKTOP BURNER PARTS
Common parts from model Whirlpool KGSS907XSP00 30`` FREESTANDING GAS OVEN CONVECTION
1
CONTROL PANEL WPL W10156273 Contact Us For Availability
1
FRONT, AIR DUCT WPL W10203758 Contact Us For Availability
1
Shield, Flame WPL 9752980 Contact Us For Availability
2
Plate, Closure WPL 8285250 Contact Us For Availability
2
Top, Air Duct (Right) WPL W10068590 Contact Us For Availability
2
Top, Air Duct (Left) WPL W10068600 Contact Us For Availability
2
TUBING, BURNER(RF) WPL 9761069 Contact Us For Availability
3
TUBING, BURNER(RR) WPL 9761070 Contact Us For Availability
4
COOKTOP (BLACK/STAINLESS) WPL W10175850 Contact Us For Availability
4
Bumper, Door WPL W10105790 Contact Us For Availability
4
Shield, Console WPL W10105370 Contact Us For Availability
5
Fitting, Broiler WPL 9757779 Contact Us For Availability
5
Side, Base (Right) WPL 9759953 Contact Us For Availability
5
Side, Base (Left) WPL 9759954 Contact Us For Availability
5
TUBING, BURNER(LR) WPL 9761068 Contact Us For Availability
6
Orifice (LR, RF) WPL 9762937 Contact Us For Availability
6
Orifice (RR) WPL 9762938 Contact Us For Availability
6
Support, Gas Valve WPL 9757409 Contact Us For Availability
7
ELEMENT, BROIL WPL W10207402 Contact Us For Availability
7
Bracket, Touchsensor WPL 9761745 Contact Us For Availability
7
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
9
VALVE, TCB WPL 9760519 Contact Us For Availability
9
SHIELD, HEAT TOP WPL 4457104 Contact Us For Availability
10
Lens, Light WPL W10067870 Contact Us For Availability
10
TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability
10
TUBE, T.C.B. GAS (OUTER) WPL 9761072 Contact Us For Availability
10
Screw WPL 4449040 Contact Us For Availability
10
Tube, Manifold WPL 9761648 Contact Us For Availability
11
Orifice (Internal) WPL 9762443 Contact Us For Availability
11
Orifice (External) WPL 9762442 Contact Us For Availability
11
Bracket, Central WPL 9759230 Contact Us For Availability
11
Shield, Oven WPL 9752737 Contact Us For Availability
11
Manifold (TCB) WPL 9761641 Contact Us For Availability
11
MANIFOLD, COOKTOP WPL 9761642 Contact Us For Availability
12
GRATE, BURNER KIT WPL 9761555CB Contact Us For Availability
12
Screw WPL 9780271 Contact Us For Availability
12
BRACKET, HANDLE (LEFT) WPL W10246113 Contact Us For Availability
12
BRACKET, HANDLE (RIGHT) WPL W10246114 Contact Us For Availability
12
Shield, Bake Flame WPL 4453984 Contact Us For Availability
13
Seal, Window WPL 8522415 Contact Us For Availability
13
GRATE, BURNER LEFT WPL 9761556CB Contact Us For Availability
14
DOOR ASSEMBLY, OUTER WPL W10246115 Contact Us For Availability
14
Tube, Broil WPL 9756831 Contact Us For Availability
15
Burner, Broil WPL W10111219 Contact Us For Availability
17
Vent, Center (Black) WPL 9760225BL Contact Us For Availability
17
Bumper, Door WPL 4448520 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
ELEMENT, WARMING WPL W10207401 Contact Us For Availability
17
Cover, Ignitor WPL 4454009 Contact Us For Availability
18
Tubing GDS to Manifold WPL 4453754 Contact Us For Availability
19
Cap, Burner (12.5K (RR)) WPL 9761563CB Contact Us For Availability
19
Support, Element WPL 9758676 Contact Us For Availability
19
Element, Convect WPL 9760777 Contact Us For Availability
20
Cover, Fan WPL W10104790 Contact Us For Availability
22
Bushing WPL 9757778 Contact Us For Availability
23
Enclosure, Warming Drawer WPL 9761796 Contact Us For Availability
23
Shield, Element (Right) WPL W10153093 Contact Us For Availability
23
Shield, Element (Left) WPL W10153094 Contact Us For Availability
24
Cover, Access WPL W10153099 Contact Us For Availability
24
Diverter, Air WPL W10153101 Contact Us For Availability
26
Gasket (Tape) WPL W10109920 Contact Us For Availability
32
Screw WPL 3400080 Contact Us For Availability
32
Slide, GOC WPL W10083460 Contact Us For Availability
33
Central, Appliance WPL 9762774 Contact Us For Availability
54
Vent, Bottom Upper (Stainless) WPL W10160347 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
LP Orifice Kit WPL 9757426 Contact Us For Availability
NI
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
NI
ANTI-TIP, ASSEMBLY FILLER, COUNTERTOP (STAINL WPL W10113901A Contact Us For Availability
NI
ANTI-TIP, ASSEMBLY FILLER, COUNTERTOP (BLACK) WPL W10113902A Contact Us For Availability
NI
ANTI-TIP, ASSEMBLY FILLER, COUNTERTOP (WHITE) WPL W10113903A Contact Us For Availability
NI
HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability
NI
Harness, Triple Crown Burner WPL 9756921 Contact Us For Availability
NI
Harness, Main WPL W10157936 Contact Us For Availability
NI
Insulation, Wrap WPL 9756817 Contact Us For Availability
NI
Harness, Ground Strap WPL 9763481 Contact Us For Availability
NI
Screw, Ground WPL 4450800 Contact Us For Availability
NI
Spacer, Harness WPL 4452222 Contact Us For Availability
NI
GASKET, CHASSIS BASE 65 X 236 X 3.2 WPL 9756637 Contact Us For Availability
NI
Harness, Warming Drawer WPL W10110533 Contact Us For Availability
× ![]()
