Model Whirlpool KGSS907SSS02 RANGE/OVEN, GAS, FREESTANDING – Common Parts &amp; Diagrams

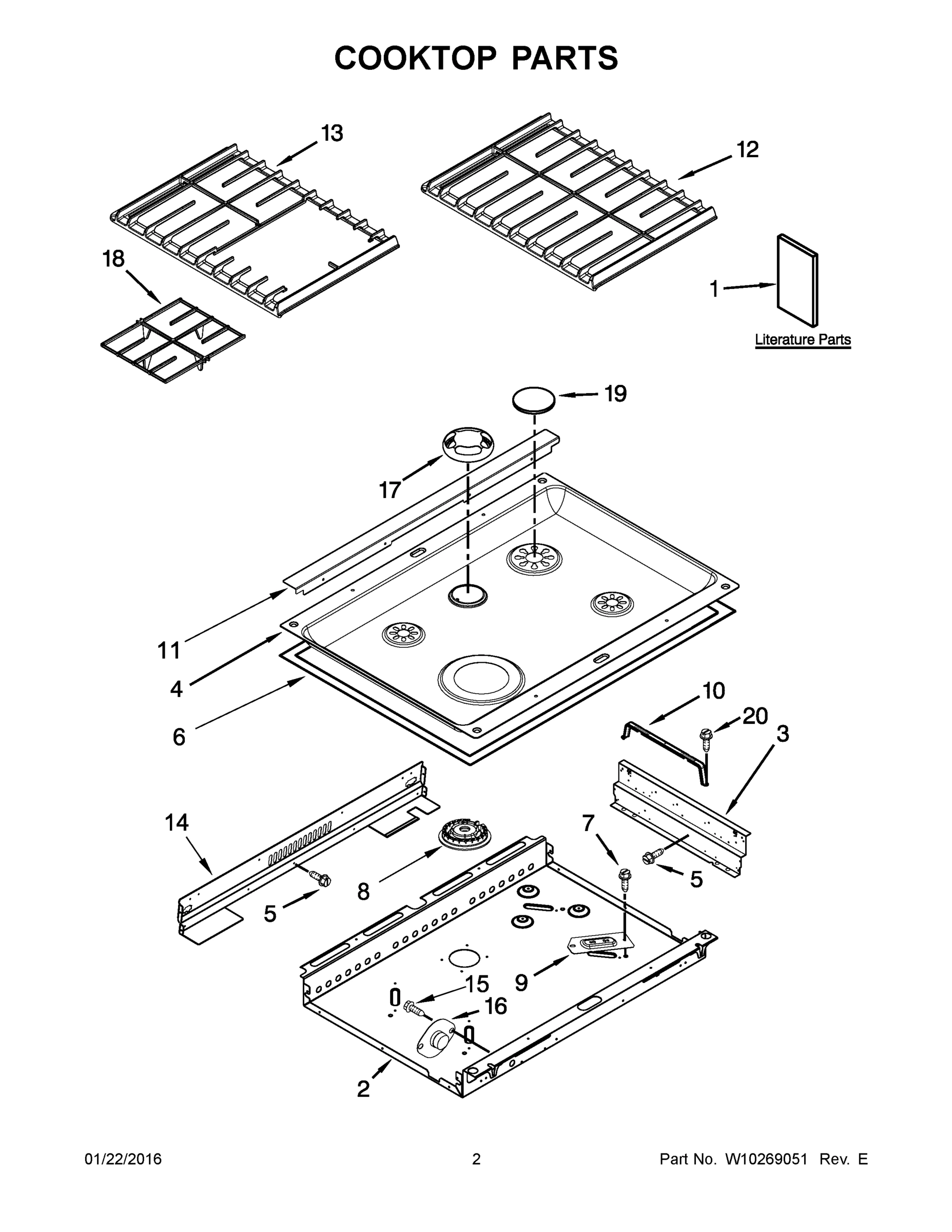

1

WP9761639 Whirlpool Orifice Holder In Stock WPL WP9761639 $107.71

1

WPW10128446 Whirlpool Orifice Holder Backorder WPL WPW10128446 $67.77

1

CONTROL PANEL (BLACK) WPL W10117036 Contact Us For Availability

1

SUPPORT, ELEMENT WPL 9758676 Contact Us For Availability

1A

ASSEMBLY, ORIFICE HOLDER (RIGHT REAR) WPL W10128455 Contact Us For Availability

1B

CONTROL PANEL (STAINLESS) WPL W10156273 Contact Us For Availability

2

8285250 Whirlpool Oven Cover Plate Backorder WPL 8285250 $6.00

2

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $77.02

2

WP9761566 Whirlpool Membrane Switch In Stock WPL WP9761566 $219.17

2

SUPPORT, FRONT & REAR WPL 9763501BL Contact Us For Availability

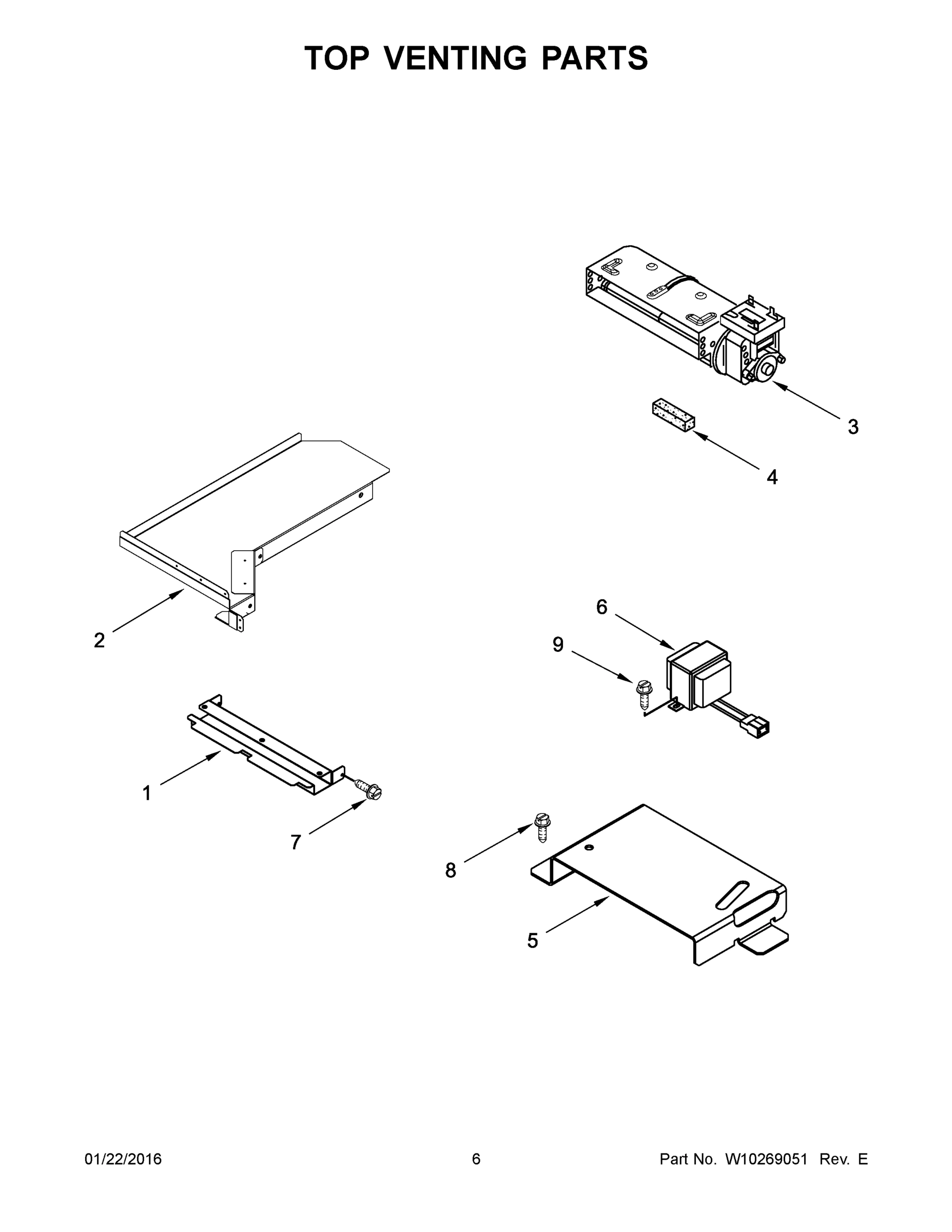

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $145.66

3

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

3

WP8285255 Whirlpool Burner Head Backorder WPL WP8285255 $64.83

3

WP9762794-includeCORE Whirlpool WP9762794 Ele Backorder WPL WP9762794-includeCORE $349.75

3

BRACE, DRAWER (RIGHT) WPL 4453720 Contact Us For Availability

3A

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

3A

BRACE, DRAWER (LEFT) WPL 4453721 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $107.44

4

WP8285256 Whirlpool Burner Head Backorder WPL WP8285256 $66.34

4

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

4

COOKTOP (BLACK) WPL W10175850 Contact Us For Availability

4

ENCLOSURE, WARMING DRAWER WPL 9761796 Contact Us For Availability

5

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $41.60

5

CAP, BURNER EXTERNAL (MATTE BLACK) WPL 8285258 Contact Us For Availability

5

FITTING, BROILER WPL 9757779 Contact Us For Availability

5

BASE, SIDE (RIGHT) WPL 9759953 Contact Us For Availability

5A

BASE, SIDE (LEFT) WPL 9759954 Contact Us For Availability

6

9762937 Whirlpool Range Orifice Backorder WPL 9762937 $33.69

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

6

WP9758829CB Whirlpool Burner Cap Backorder WPL WP9758829CB $28.11

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $79.34

6

SCREW WPL 4449040 Contact Us For Availability

6

GASKET (TAPE) WPL W10109920 Contact Us For Availability

6A

ORIFICE, SPUD (RIGHT REAR) WPL 9762938 Contact Us For Availability

7

W10207402 Whirlpool Broil Element Backorder WPL W10207402 $92.26

7

WP3400702 Whirlpool Screw Backorder WPL WP3400702 $5.23

7

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $140.71

7

COVER, ACCESS WPL W10153099 Contact Us For Availability

8

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $28.64

8

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 $141.37

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

8

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $112.09

9

W10193275 Whirlpool Knob Backorder WPL W10193275 $46.92

9

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

9

WP9760229 Whirlpool Range Igniter In Stock WPL WP9760229 $86.55

9

VALVE, TRIPLE CROWN BURNER WPL 9760519 Contact Us For Availability

9B

WPW10156265 Whirlpool Knob In Stock WPL WPW10156265 $49.17

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $87.13

WP9760228 Whirlpool Range Burner Backorder WPL WP9760228 $127.11

LENS, LIGHT WPL W10067870 Contact Us For Availability

TUBE, GAS (TRIPLE CROWN BURNER) (OUTER) WPL 9761072 Contact Us For Availability

DRAWER WPL W10164163 Contact Us For Availability

10A

TUBE, GAS (TRIPLE CROWN BURNER) (INNER) WPL 9761071 Contact Us For Availability

11

9762443 Whirlpool Range Orifice Spud Backorder WPL 9762443 $4.85

11

KNOB, TRIPLE CROWN BURNER (LEFT FRONT) (BLACK WPL W10193263 Contact Us For Availability

11

SLIDE, DRAWER (RIGHT) WPL W10155633 Contact Us For Availability

11A

WPW10155632 Whirlpool Slide Drawer Assembly Backorder WPL WPW10155632 $49.26

11A

KNOB, TRIPLE CROWN BURNER (LEFT FRONT) (WHITE WPL W10193261 Contact Us For Availability

11A

ORIFICE (EXTERNAL) WPL 9762442 Contact Us For Availability

12

WP9763494 Whirlpool Surface Igniter Backorder WPL WP9763494 $27.76

12

PANEL, DRAWER WPL W10164169 Contact Us For Availability

8522415 Whirlpool Range Wind Gasket Backorder WPL 8522415 $30.25

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $3.33

WP9763716 Whirlpool Gas Valve In Stock WPL WP9763716 $328.24

FRONT, DRAWER (BLACK) WPL W10203760 Contact Us For Availability

13A

FRONT, DRAWER (WHITE) WPL W10203762 Contact Us For Availability

13B

FRONT, DRAWER (STAINLESS) WPL W10203763 Contact Us For Availability

14

ASSEMBLY, OUTER DOOR (BLACK) WPL W10131888 Contact Us For Availability

14

TUBE, BROIL WPL 9756831 Contact Us For Availability

14

HANDLE, DRAWER (BLACK) WPL W10292375 Contact Us For Availability

14A

ASSEMBLY, OUTER DOOR (WHITE) WPL W10131889 Contact Us For Availability

14A

HANDLE, DRAWER (WHITE) WPL W10292379 Contact Us For Availability

14B

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $277.62

14B

HANDLE, DRAWER (STAINLESS) WPL W10292374 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

15

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

15

HANDLE, DOOR (BLACK) WPL W10292381 Contact Us For Availability

15B

HANDLE, DOOR (STAINLESS) WPL W10292380 Contact Us For Availability

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $78.63

16

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $113.94

16

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $73.11

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

VENT, CENTER (BLACK) WPL 9760225BL Contact Us For Availability

ELEMENT, WARMING DRAWER WPL W10207401 Contact Us For Availability

17A

VENT, CENTER (WHITE) WPL 9760225WH Contact Us For Availability

18

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

18

WPW10272546 Whirlpool Broiler Pan Backorder WPL WPW10272546 $94.03

18A

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

18B

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

19

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $27.49

19A

WP9761562SD Whirlpool Burner Cap Backorder WPL WP9761562SD $51.00

19B

9761563CB Whirlpool Burner Cap Backorder WPL 9761563CB $45.35

19C

9761563SD Whirlpool Burner Cap Backorder WPL 9761563SD $52.76

21

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

22

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $150.25

23

WP9757807 Whirlpool High Limit Thermostat Backorder WPL WP9757807 $39.66

26

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $55.66

32

SLIDE, GLOBAL OVEN CONTROL WPL W10083460 Contact Us For Availability

33

MANAGER, APPLIANCE WPL 9762774 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

38

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

40

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

41

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

9756921 Whirlpool Range Wire Harness Backorder WPL 9756921 $152.71

9757426 Whirlpool Range LP Conversion Kit Backorder WPL 9757426 $17.97

9763481 Whirlpool Range Wire Harness Backorder WPL 9763481 $30.25

W10113901A Whirlpool Fill Kit Backorder WPL W10113901A $59.26

W10113902A Whirlpool Fill Kit Assembly Backorder WPL W10113902A $49.94

W10113903A Whirlpool Range Filler Kit Backorder WPL W10113903A $37.95

W10157936 Whirlpool Wire Harness Backorder WPL W10157936 $135.60

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $74.77

W11209404 Whirlpool Wire Harness Backorder WPL W11209404 $82.75

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP9756824 Whirlpool Wire Harness Backorder WPL WP9756824 $89.21

WP9762904 Whirlpool Wire Harness In Stock WPL WP9762904 $53.38

WPL 9762921 WPL 9762921 Contact Us For Availability

INSULATION, WRA WPL 9756817 Contact Us For Availability
