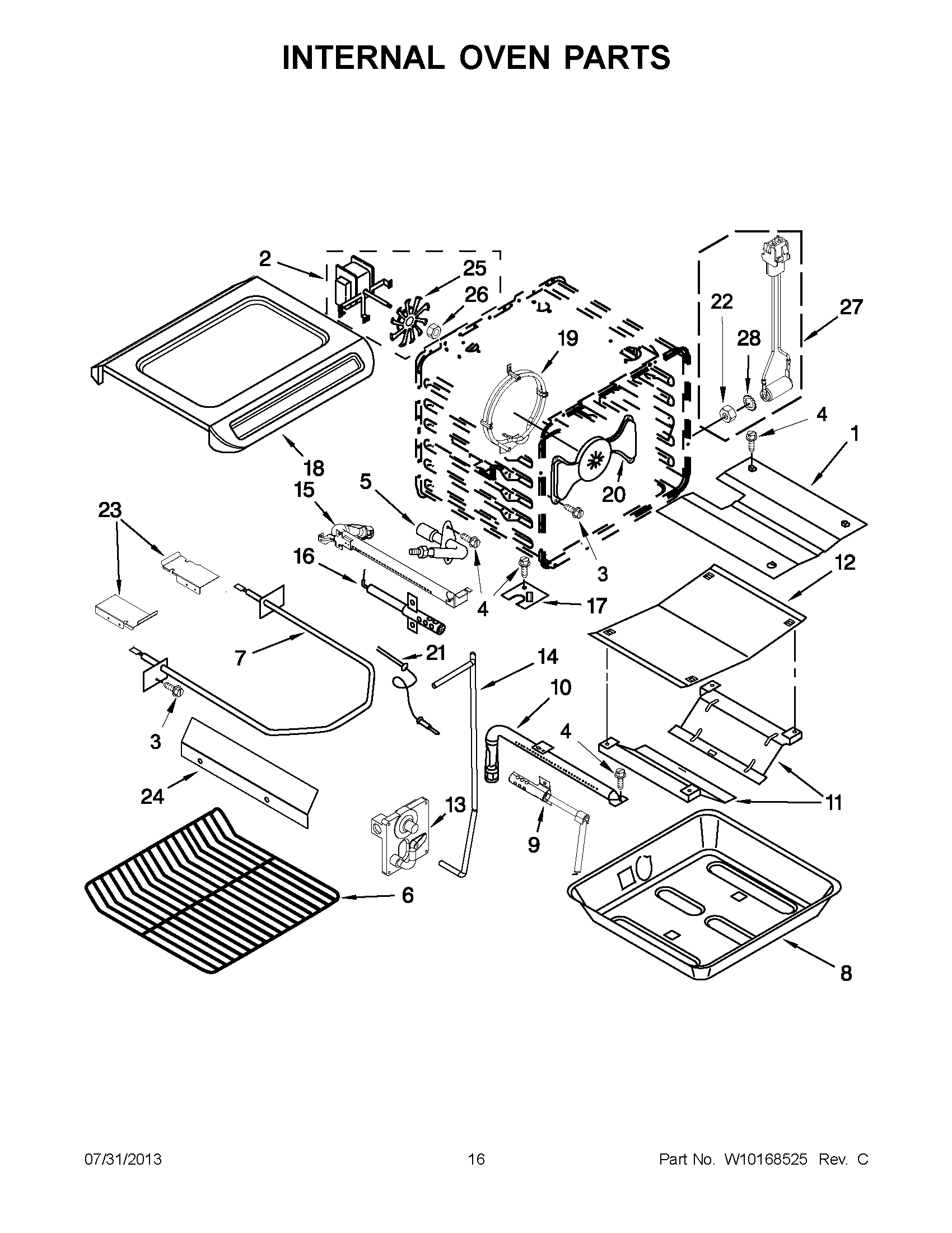

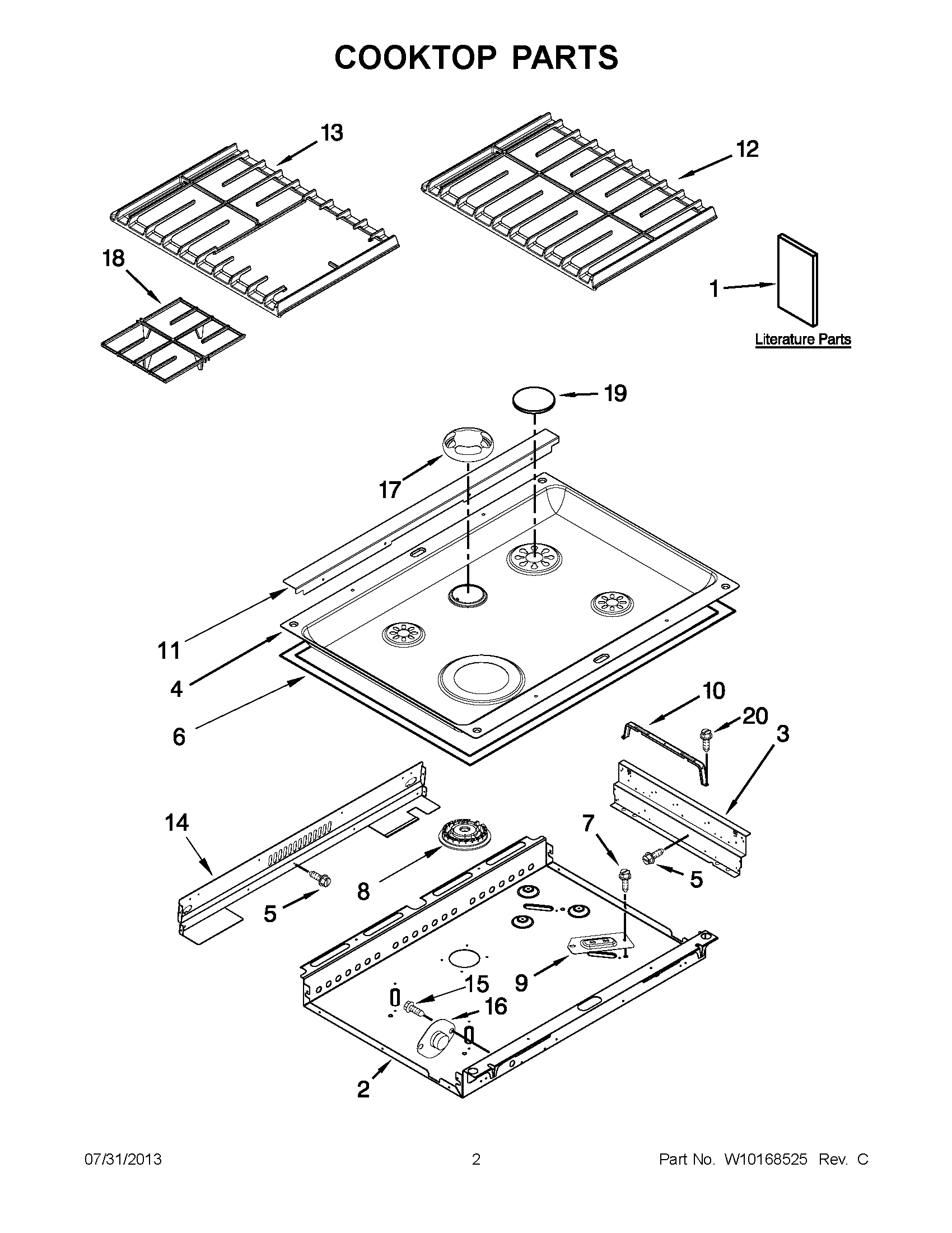

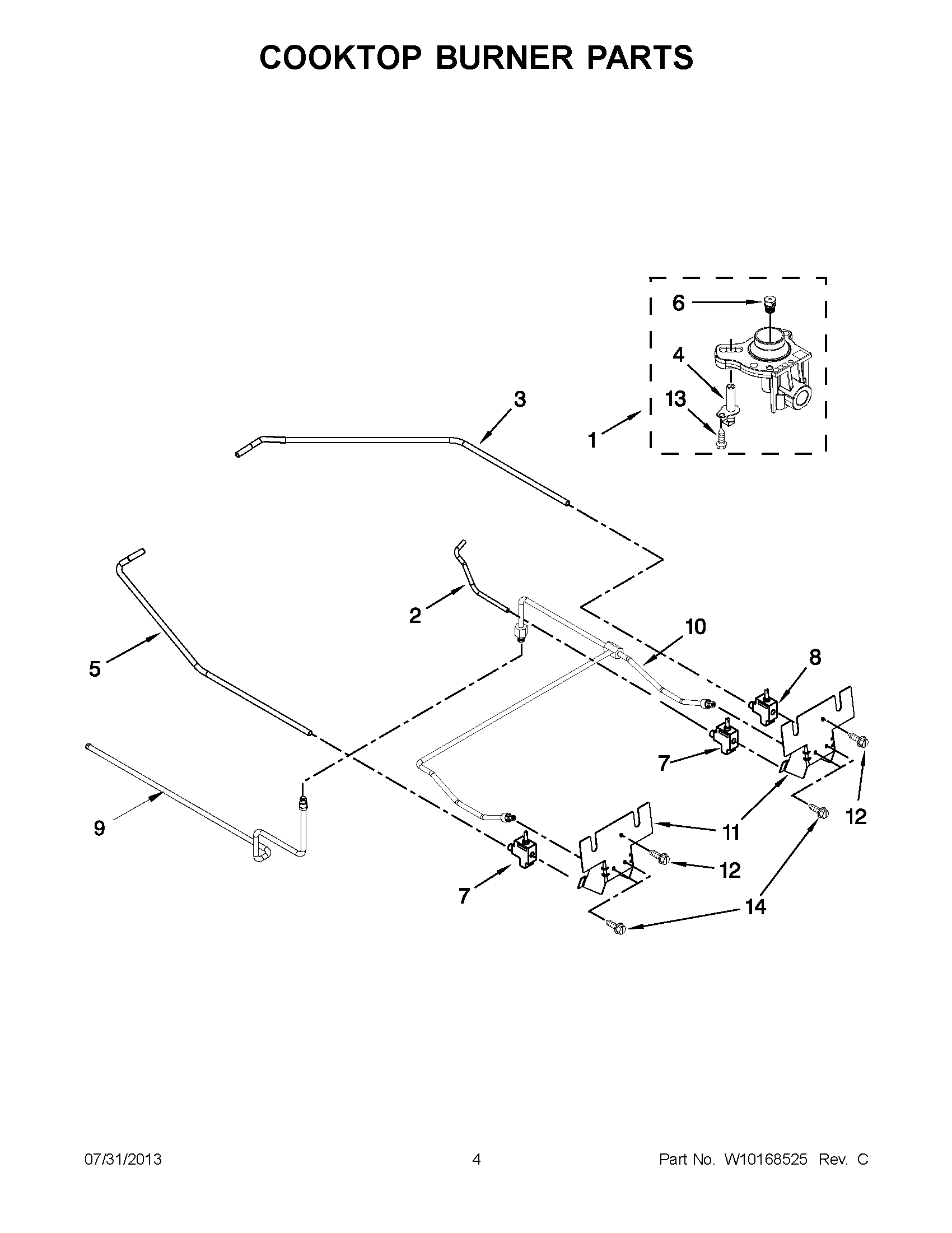

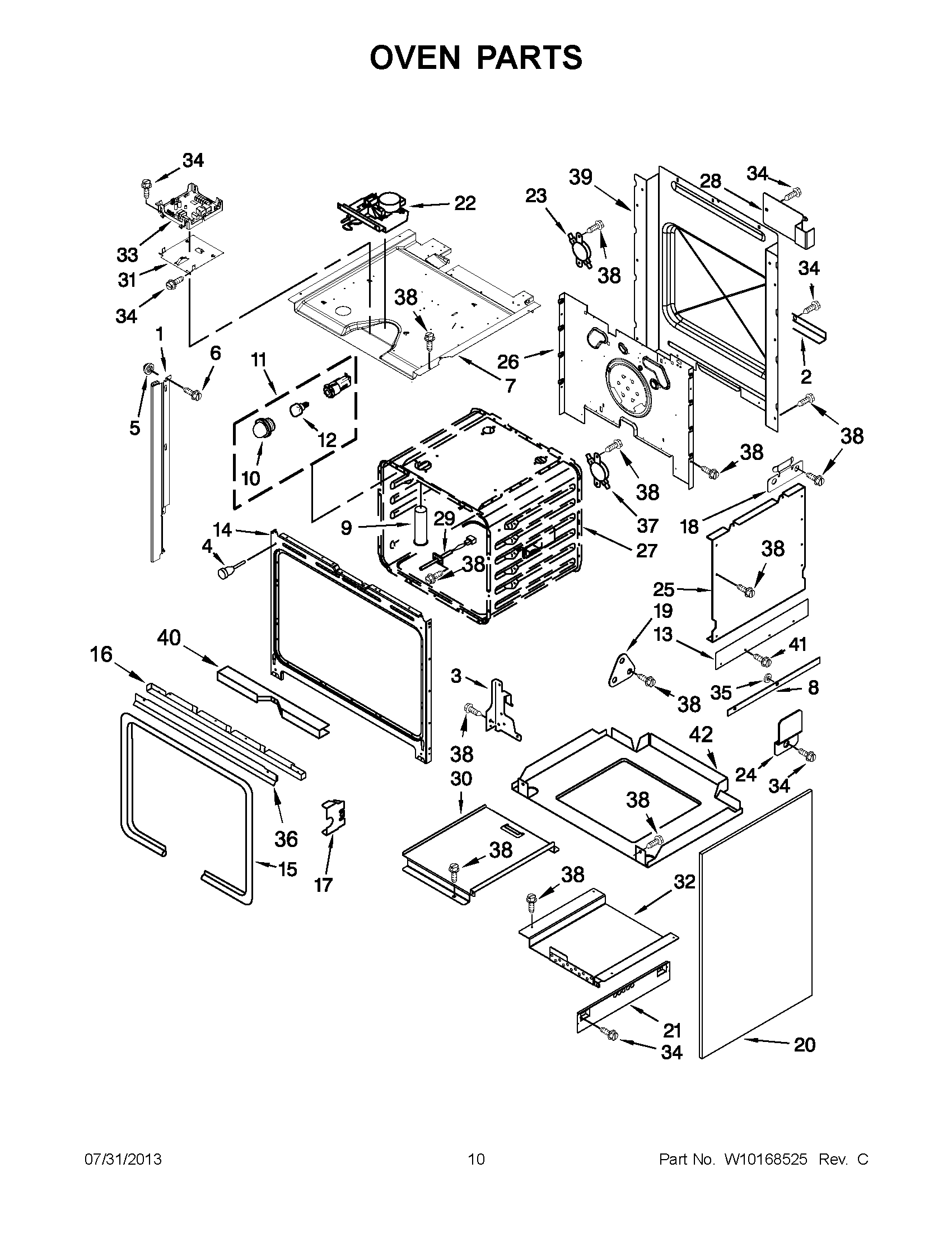

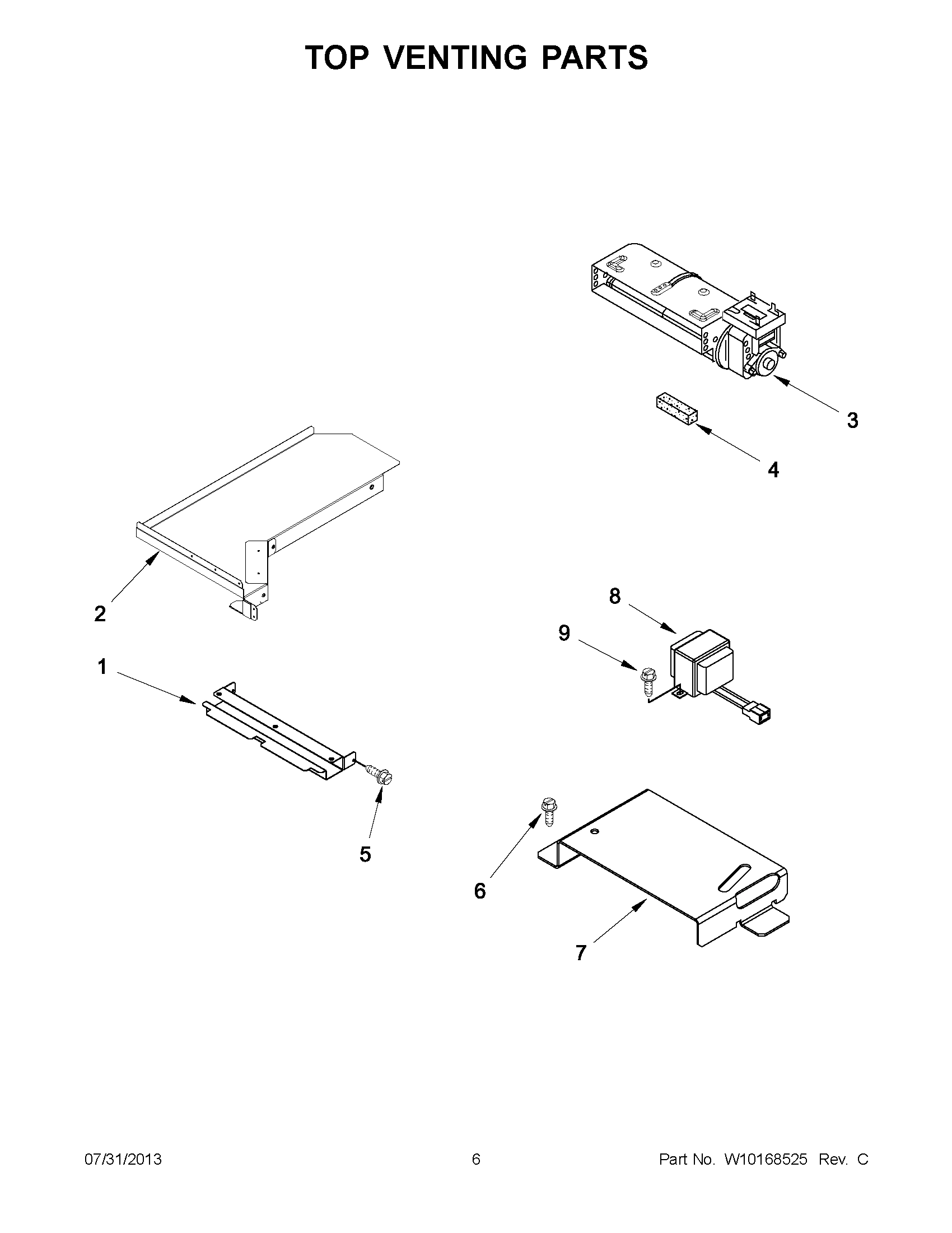

Model Whirlpool KGSS907SSS01 30`` FREESTANDING GAS OVEN CONVECTION – Common Parts &amp; Diagrams

1

WP9761639 Whirlpool Orifice Holder In Stock WPL WP9761639 $107.71

1

WPW10128446 Whirlpool Orifice Holder Backorder WPL WPW10128446 $67.77

1

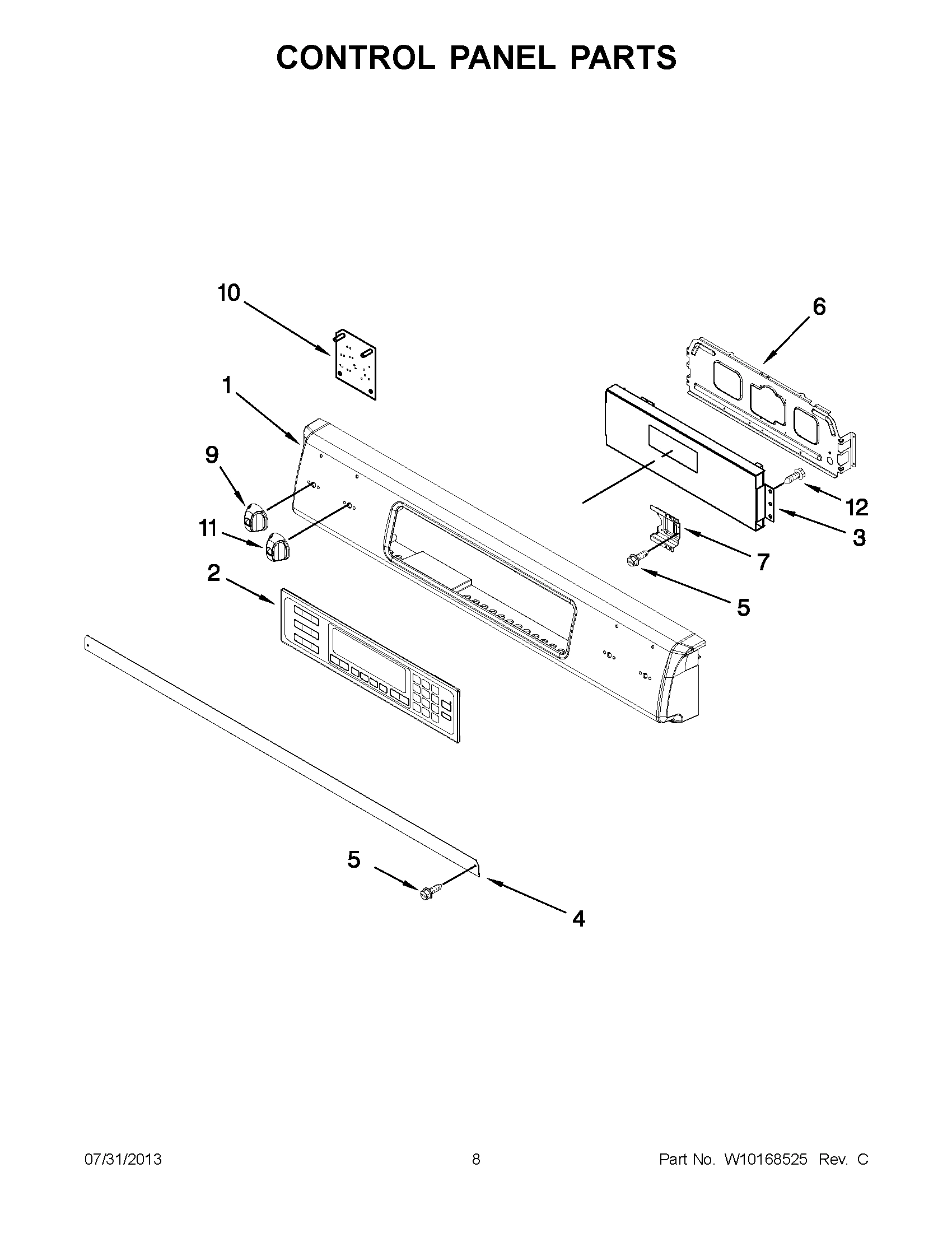

Control Panel (Stainless) WPL W10156273 Contact Us For Availability

1

ASSEMBLY, ORIFICE HOLDER (RIGHT REAR) WPL W10128455 Contact Us For Availability

1

Control Panel (Black) WPL W10117036 Contact Us For Availability

1

INSTRUCTIONS, ANTI-TIP WPL 9757680 Contact Us For Availability

1

Safer Cooking Tips (French) WPL 9759133 Contact Us For Availability

1

TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability

1

Guide Easy Set WPL 9763467 Contact Us For Availability

1

SHEET, TECH (ENGLISH) WPL W10112145 Contact Us For Availability

1

SHEET, TECH (FRENCH) WPL W10112146 Contact Us For Availability

1

Use & Care Guide WPL W10118261 Contact Us For Availability

1

Installation Instructions WPL W10118262 Contact Us For Availability

2

8285250 Whirlpool Oven Cover Plate Backorder WPL 8285250 $6.00

2

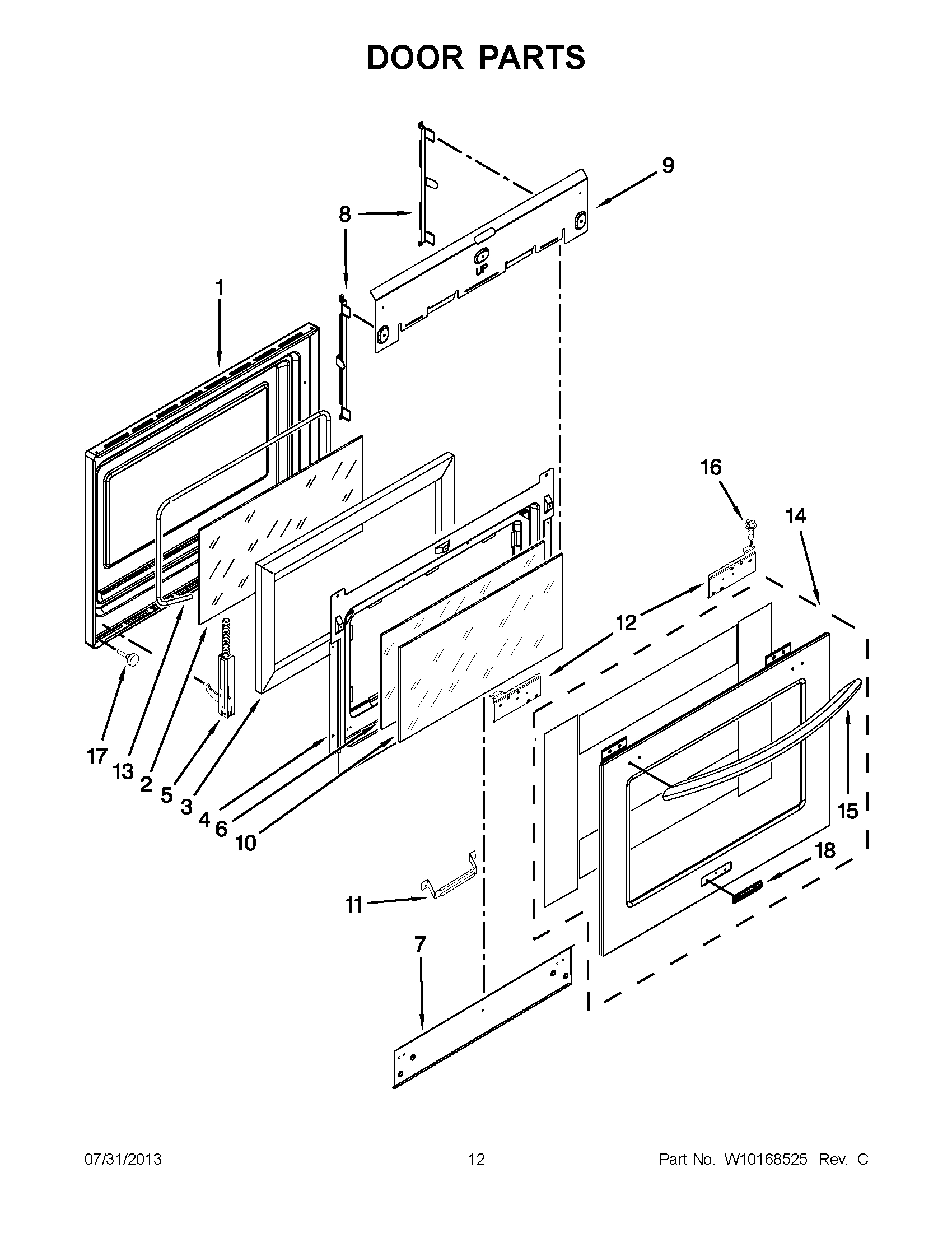

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $77.02

2

WP9761566 Whirlpool Membrane Switch In Stock WPL WP9761566 $219.17

2

Motor, Convection Fan WPL 4451583 Contact Us For Availability

2

Burner Box WPL W10153103 Contact Us For Availability

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $145.66

3

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.92

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.92

3

WP8285255 Whirlpool Burner Head Backorder WPL WP8285255 $64.83

3

WP9762794-includeCORE Whirlpool WP9762794 Ele Backorder WPL WP9762794-includeCORE $349.75

3

Brace, Drawer (Left) WPL 4453721 Contact Us For Availability

3

FRAME, COOKTOP WPL 9761784 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $107.44

4

WP8285256 Whirlpool Burner Head Backorder WPL WP8285256 $66.34

4

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

4

Enclosure, Warming Drawer WPL 9761796 Contact Us For Availability

4

Cooktop (Black) WPL W10106250 Contact Us For Availability

4

Cooktop (Biscuit) WPL W10106260 Contact Us For Availability

4

Cooktop (White) WPL W10106270 Contact Us For Availability

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

5

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $41.60

5

Cap, Burner External (Matte Black) WPL 8285258 Contact Us For Availability

5

Fitting, Broiler WPL 9757779 Contact Us For Availability

5

BASE, SIDE (RIGHT) WPL 9759953 Contact Us For Availability

5

BASE, SIDE (LEFT) WPL 9759954 Contact Us For Availability

5

Screw WPL 4449040 Contact Us For Availability

6

9762937 Whirlpool Range Orifice Backorder WPL 9762937 $33.69

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $3.93

6

WP9758829CB Whirlpool Burner Cap Backorder WPL WP9758829CB $28.11

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.52

6

ORIFICE, SPUD (RIGHT REAR) WPL 9762938 Contact Us For Availability

6

Gasket (Tape) WPL W10109920 Contact Us For Availability

7

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.33

7

WP3400702 Whirlpool Screw Backorder WPL WP3400702 $5.23

7

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $140.71

7

Element, Broil WPL 9760776 Contact Us For Availability

7

Cover, Access WPL W10153099 Contact Us For Availability

8

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $28.64

8

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 $141.37

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

8

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $112.09

8

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $15.01

8

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $35.43

9

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

9

WP9760229 Whirlpool Range Igniter In Stock WPL WP9760229 $86.55

9

WPW10156265 Whirlpool Knob In Stock WPL WPW10156265 $49.17

9

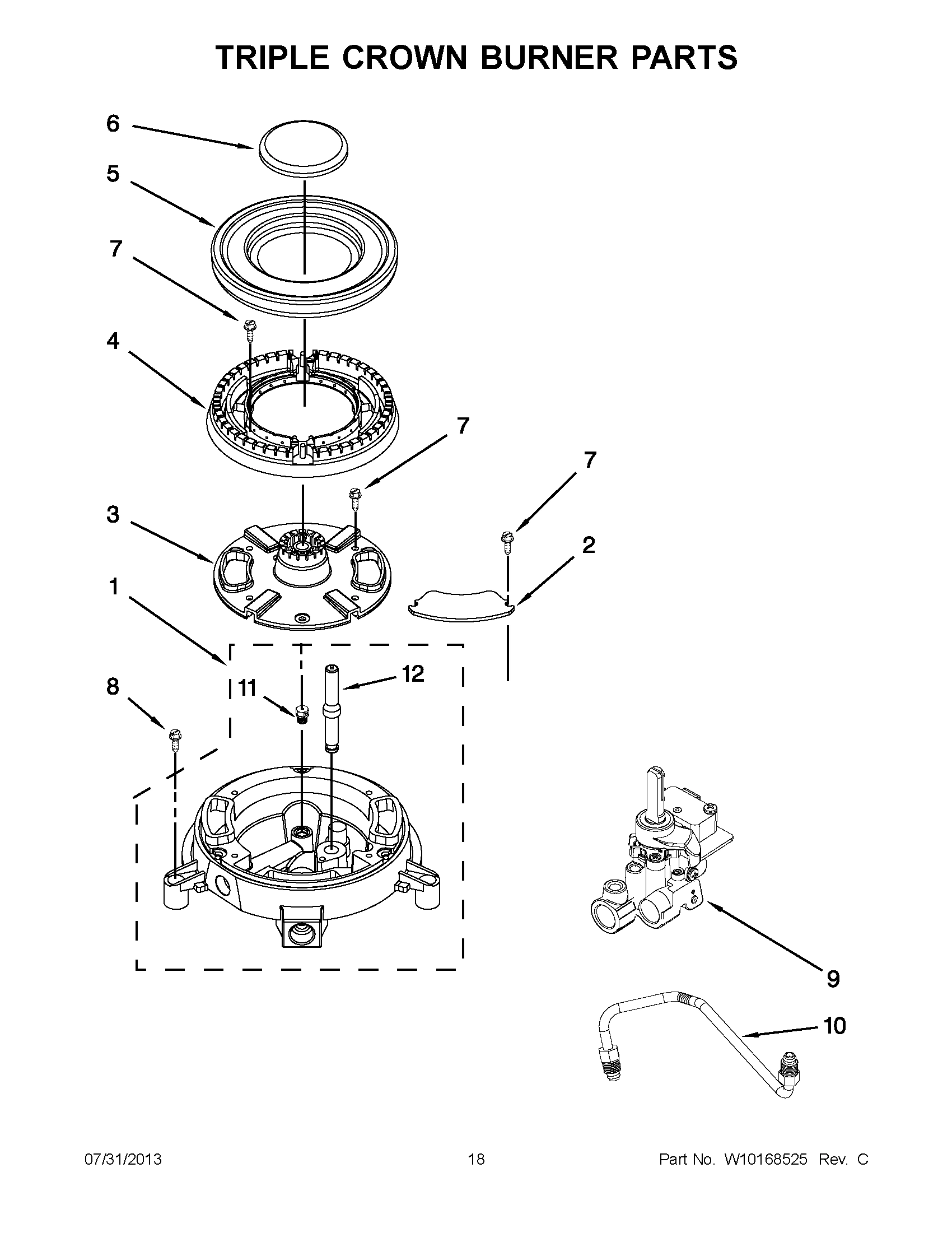

VALVE, TRIPLE CROWN BURNER WPL 9760519 Contact Us For Availability

9

KNOB, BURNER (RIGHT FRONT, RIGHT REAR, LEFT R WPL W10130373 Contact Us For Availability

9

Bracket, Burner WPL 9763445 Contact Us For Availability

WP9756821 Whirlpool Support Backorder WPL WP9756821 $29.46

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $87.13

WP9760228 Whirlpool Range Burner Backorder WPL WP9760228 $127.11

Lens, Light WPL W10067870 Contact Us For Availability

TUBE, GAS (TRIPLE CROWN BURNER) (INNER) WPL 9761071 Contact Us For Availability

TUBE, GAS (TRIPLE CROWN BURNER) (OUTER) WPL 9761072 Contact Us For Availability

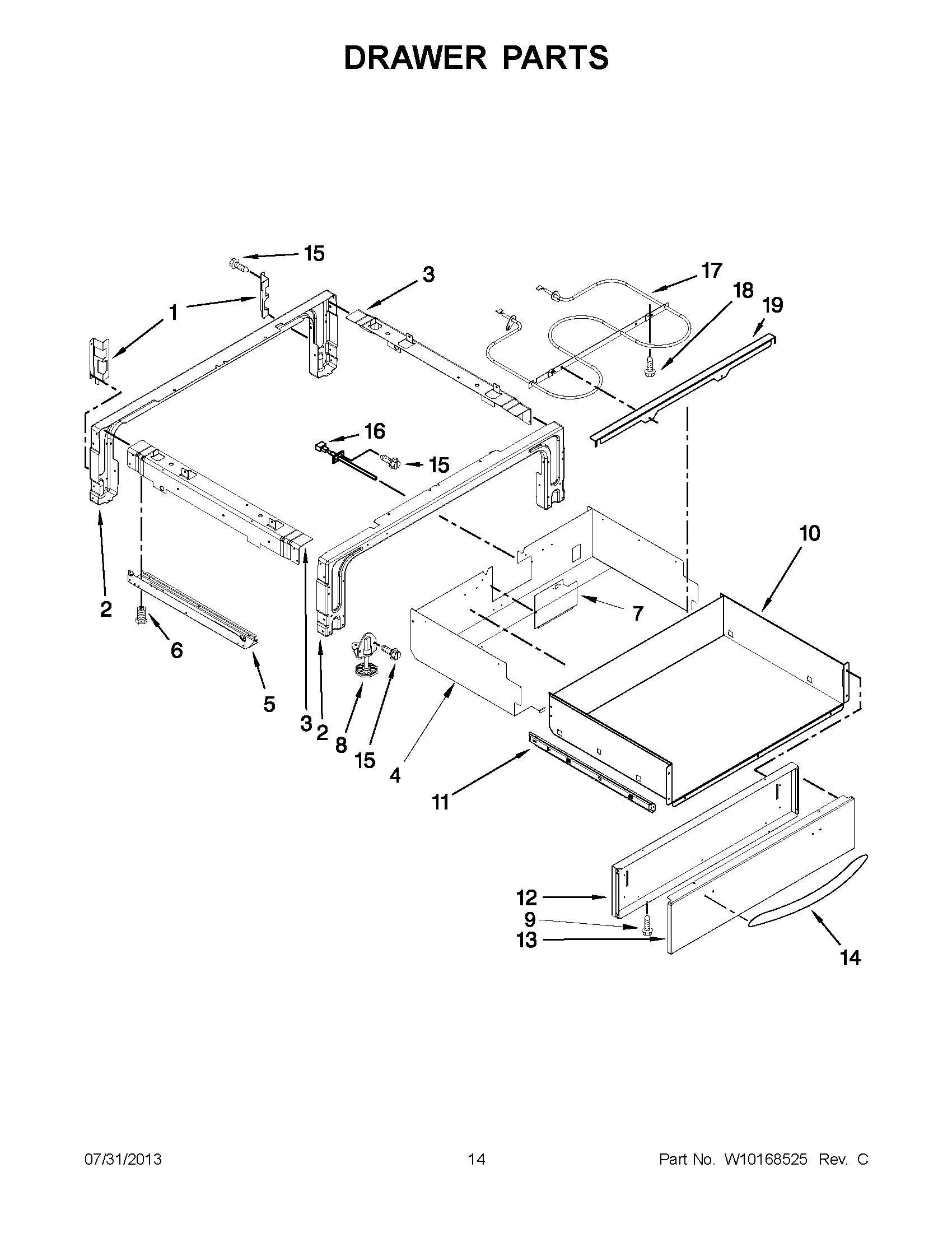

Drawer WPL W10140539 Contact Us For Availability

9762443 Whirlpool Range Orifice Spud Backorder WPL 9762443 $4.85

WP9763436 Whirlpool Rear Cover Backorder WPL WP9763436 $50.27

WPW10155632 Whirlpool Slide Drawer Assembly Backorder WPL WPW10155632 $49.26

Orifice (External) WPL 9762442 Contact Us For Availability

Guide, Roller Includes Roller (Right) WPL W10019810 Contact Us For Availability

WP9763494 Whirlpool Surface Igniter Backorder WPL WP9763494 $27.76

Grate, Burner Right (Coal Black) WPL 9761555CB Contact Us For Availability

Panel, Drawer WPL W10140544 Contact Us For Availability

GRATE, BURNER RIGHT (SATIN CUMBERLAND WPL 9761555SD Contact Us For Availability

Grate, Burner Right (Satin Moleskin) WPL 9761555SN Contact Us For Availability

8522415 Whirlpool Range Wind Gasket Backorder WPL 8522415 $30.25

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $3.33

WP9763716 Whirlpool Gas Valve In Stock WPL WP9763716 $344.66

GRATE, BURNER LEFT (MATTE BLACK) WPL 9761556CB Contact Us For Availability

Front, Drawer (Black) WPL 9761747BL Contact Us For Availability

Front, Drawer (Biscuit) WPL 9761747BT Contact Us For Availability

Front, Drawer (White) WPL 9761747WH Contact Us For Availability

Front, Drawer (Stainless) WPL W10140545 Contact Us For Availability

Grate, Burner Left (Satin Cumberland) WPL 9761556SD Contact Us For Availability

GRATE, BURNER LEFT (SATIN MOLESKIN) WPL 9761556SN Contact Us For Availability

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $291.63

ASSEMBLY, OUTER DOOR (WHITE) WPL W10131889 Contact Us For Availability

ASSEMBLY, OUTER DOOR (BLACK) WPL W10131888 Contact Us For Availability

Tube, Broil WPL 9756831 Contact Us For Availability

Handle, Drawer (Black) WPL 9761573BL Contact Us For Availability

Handle, Drawer (Biscuit) WPL 9761573BT Contact Us For Availability

Handle, Drawer (Stainless) WPL 9761573SS Contact Us For Availability

Handle, Drawer (White) WPL 9761573WH Contact Us For Availability

Cover, Cooktop Rear WPL 9759627 Contact Us For Availability

15

W10491985 Whirlpool Screw Backorder WPL W10491985 $3.33

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $44.23

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $78.63

16

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $113.94

16

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $73.11

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

9760775 Whirlpool Range Warm Element Backorder WPL 9760775 $73.14

Vent, Center (Black) WPL 9760225BL Contact Us For Availability

Vent, Center (White) WPL 9760225WH Contact Us For Availability

Vent, Center (Biscuit) WPL 9760225BT Contact Us For Availability

WP9761557CB Whirlpool Burner Grate In Stock WPL WP9761557CB $100.15

Badge (Stainless) WPL 8304603SS Contact Us For Availability

Grate, Insert (Satin Cumberland) WPL 9761557SD Contact Us For Availability

Grate, Insert (Satin Moleskin) WPL 9761557SN Contact Us For Availability

9761563CB Whirlpool Burner Cap Backorder WPL 9761563CB $45.35

9761563SD Whirlpool Burner Cap Backorder WPL 9761563SD $52.76

9761563SN Whirlpool Burner Cap Backorder WPL 9761563SN $55.26

WP8284669 Whirlpool Burner Cap In Stock WPL WP8284669 $27.49

WP9761562SD Whirlpool Burner Cap Backorder WPL WP9761562SD $51.00

Support, Element WPL 9758676 Contact Us For Availability

CAP, BURNER 6K (RIGHT FRONT & LEFT REAR) (SAT WPL 9761562SN Contact Us For Availability

21

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $59.04

22

WP9760889 Whirlpool Door Latch In Stock WPL WP9760889 $193.95

23

WP9757807 Whirlpool High Limit Thermostat Backorder WPL WP9757807 $39.66

26

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $55.66

32

SLIDE, GLOBAL OVEN CONTROL WPL W10083460 Contact Us For Availability

33

MANAGER, APPLIANCE WPL 9762774 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

40

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

41

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

4450800 Whirlpool Oven Screw Backorder WPL 4450800 $9.59

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

9756921 Whirlpool Range Wire Harness Backorder WPL 9756921 $152.71

9757426 Whirlpool Range LP Conversion Kit Backorder WPL 9757426 $17.97

9763481 Whirlpool Range Wire Harness Backorder WPL 9763481 $30.25

W10110533 Whirlpool Wire Harness Backorder WPL W10110533 $128.36

W10113901A Whirlpool Fill Kit Backorder WPL W10113901A $59.26

W10113902A Whirlpool Fill Kit Assembly Backorder WPL W10113902A $49.94

W10113903A Whirlpool Range Filler Kit Backorder WPL W10113903A $37.95

W10157936 Whirlpool Wire Harness Backorder WPL W10157936 $135.60

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $74.77

W11209404 Whirlpool Wire Harness Backorder WPL W11209404 $82.75

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $13.41

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $10.71

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $3.46

WP4455352 Whirlpool Mounting Bracket Backorder WPL WP4455352 $13.45

WP9756824 Whirlpool Wire Harness Backorder WPL WP9756824 $89.21

WP9762904 Whirlpool Wire Harness In Stock WPL WP9762904 $53.38

WIRING HARNESS PARTS, HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability

WPL 9756817 WPL 9756817 Contact Us For Availability

WIRING HARNESS PARTS, SPACER, HARNESS WPL 4452222 Contact Us For Availability

MISCELLANEOUS,ASSEMBLY, COUNTERTOP FILLER (BI WPL W10113904A Contact Us For Availability
