Model Whirlpool KGSS907SBL02 RANGE/OVEN, GAS, FREESTANDING – Common Parts & Diagrams

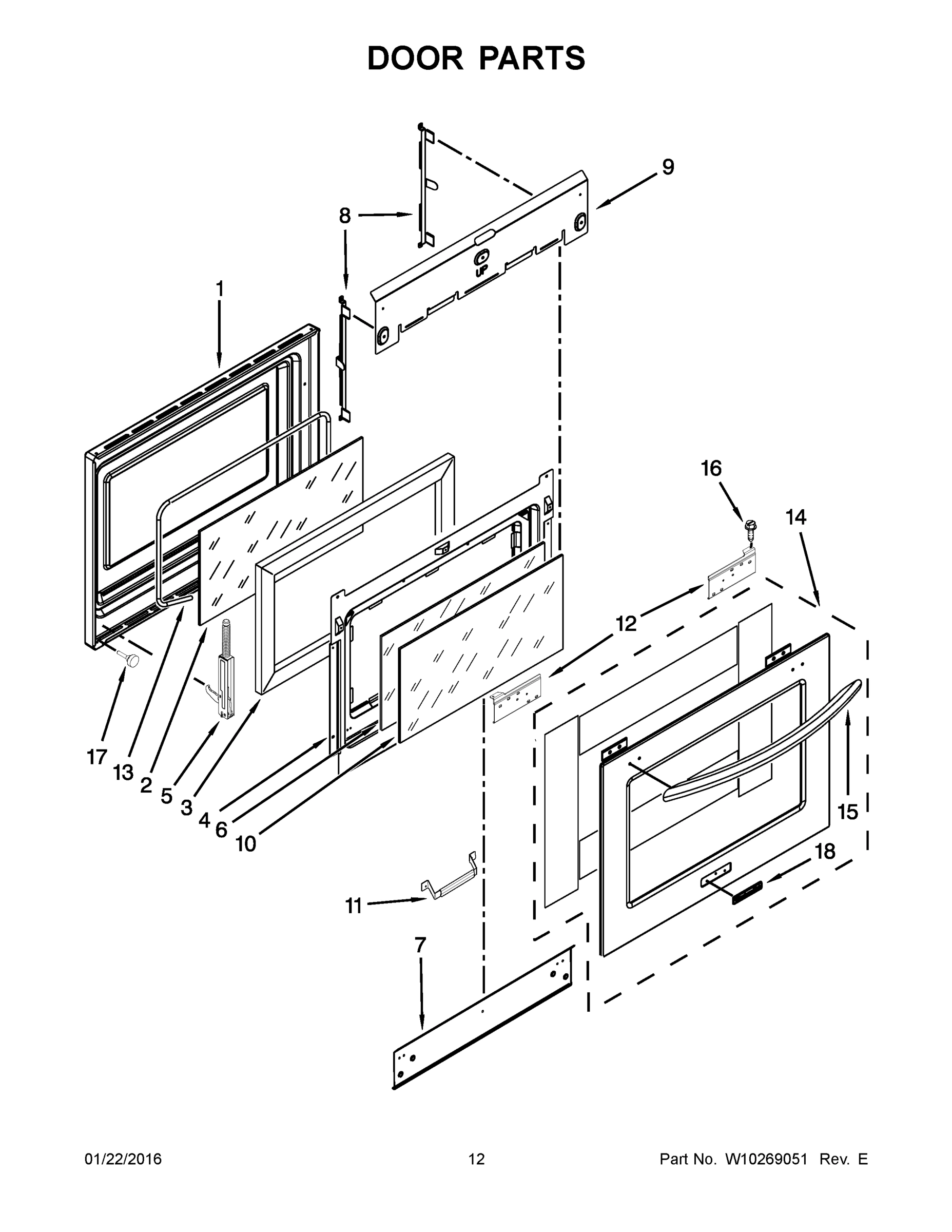

07 - DOOR PARTS

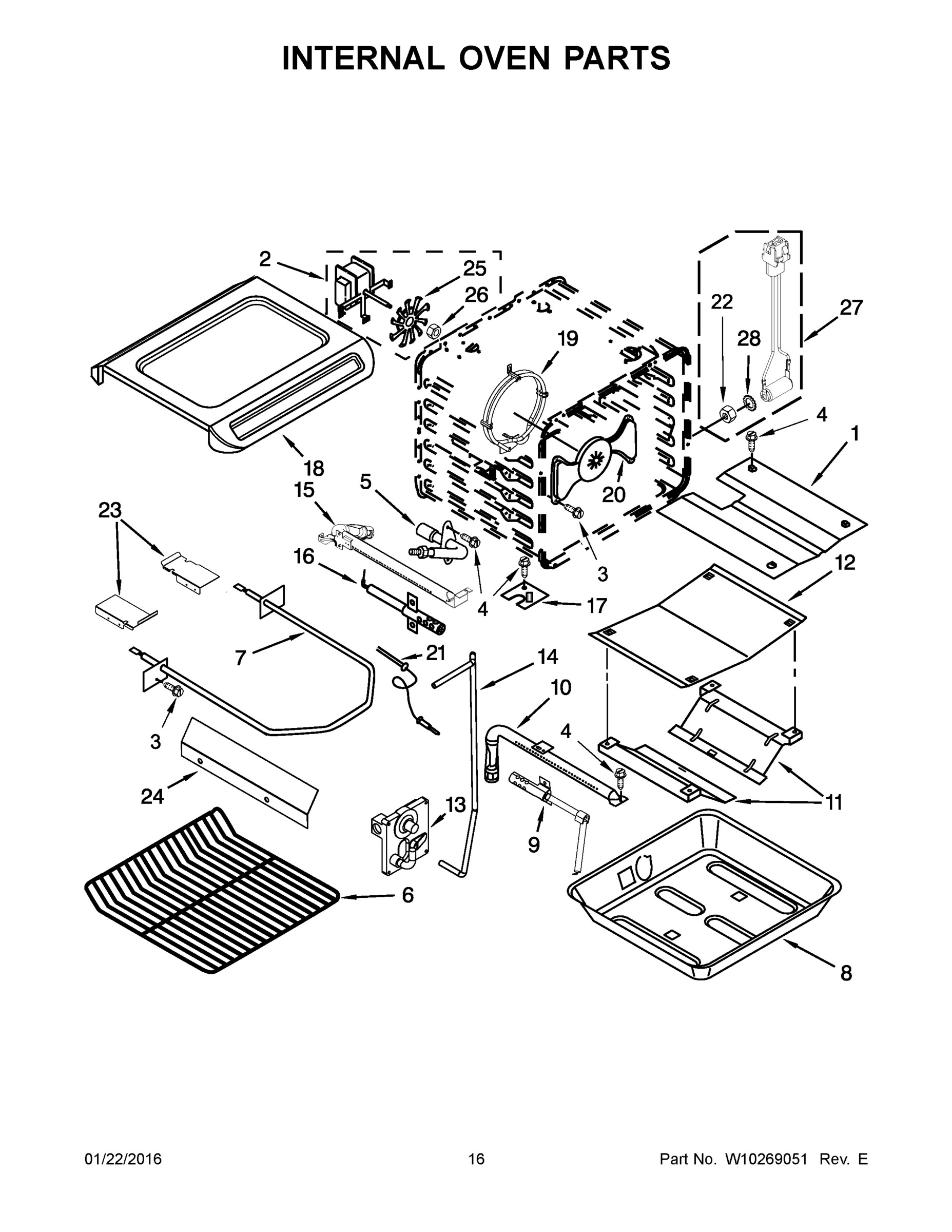

09 - INTERNAL OVEN PARTS
03 - COOKTOP BURNER PARTS
10 - TRIPLE CROWN BURNER PARTS
02 - COOKTOP PARTS
04 - TOP VENTING PARTS
06 - OVEN PARTS
08 - DRAWER PARTS
01 - COVER SHEET
05 - CONTROL PANEL PARTS
11 - OPTIONAL PARTS
Common parts from model Whirlpool KGSS907SBL02 RANGE/OVEN, GAS, FREESTANDING
1
CONTROL PANEL (BLACK) WPL W10117036 Contact Us For Availability
1
SUPPORT, ELEMENT WPL 9758676 Contact Us For Availability
1A
CONTROL PANEL (WHITE) WPL W10117038 Contact Us For Availability
1B
CONTROL PANEL (STAINLESS) WPL W10156273 Contact Us For Availability
2
PLATE, CLOSURE WPL 8285250 Contact Us For Availability
2
SUPPORT, FRONT & REAR WPL 9763501BL Contact Us For Availability
3
BRACE, DRAWER (RIGHT) WPL 4453720 Contact Us For Availability
3A
BRACE, DRAWER (LEFT) WPL 4453721 Contact Us For Availability
4
COOKTOP (BLACK) WPL W10175850 Contact Us For Availability
4
BUMPER & SCREW WPL W10105790 Contact Us For Availability
4
ENCLOSURE, WARMING DRAWER WPL 9761796 Contact Us For Availability
4
SHIELD, CONSOLE VENT WPL W10105370 Contact Us For Availability
5
FITTING, BROILER WPL 9757779 Contact Us For Availability
5
BASE, SIDE (RIGHT) WPL 9759953 Contact Us For Availability
5A
BASE, SIDE (LEFT) WPL 9759954 Contact Us For Availability
6
ORIFICE, SPUD (RIGHT FRONT AND LEFT REAR) WPL 9762937 Contact Us For Availability
6
GASKET (TAPE) WPL W10109920 Contact Us For Availability
6
SCREW WPL 4449040 Contact Us For Availability
6
SUPPORT, GAS VALVE WPL 9757409 Contact Us For Availability
6A
ORIFICE, SPUD (RIGHT REAR) WPL 9762938 Contact Us For Availability
7
ELEMENT, BROIL WPL W10207402 Contact Us For Availability
7
CHASSIS, TOP WPL 8303099 Contact Us For Availability
7
COVER, ACCESS WPL W10153099 Contact Us For Availability
7
BRACKET, THERMOSTAT WPL 9761745 Contact Us For Availability
8
INSULATION, BODY SIDE TRIM WPL 9759722 Contact Us For Availability
8
SCREW WPL 9780271 Contact Us For Availability
9
VALVE, TRIPLE CROWN BURNER WPL 9760519 Contact Us For Availability
9
KNOB, BURNER (LEFT REAR, RIGHT FRONT, RIGHT R WPL W10193275 Contact Us For Availability
9
TUBE, VENT WPL 9761666 Contact Us For Availability
10
LENS, LIGHT WPL W10067870 Contact Us For Availability
10
TUBE, GAS (TRIPLE CROWN BURNER) (OUTER) WPL 9761072 Contact Us For Availability
10
DRAWER WPL W10164163 Contact Us For Availability
10A
TUBE, GAS (TRIPLE CROWN BURNER) (INNER) WPL 9761071 Contact Us For Availability
11
ORIFICE (INTERNAL) WPL 9762443 Contact Us For Availability
11
KNOB, TRIPLE CROWN BURNER (LEFT FRONT) (BLACK WPL W10193263 Contact Us For Availability
11A
KNOB, TRIPLE CROWN BURNER (LEFT FRONT) (WHITE WPL W10193261 Contact Us For Availability
11A
ORIFICE (EXTERNAL) WPL 9762442 Contact Us For Availability
11B
KNOB, TRIPLE CROWN BURNER (LEFT FRONT) (STAIN WPL W10156262 Contact Us For Availability
12
PANEL, DRAWER WPL W10164169 Contact Us For Availability
13
SEAL, WINDOW WPL 8522415 Contact Us For Availability
13
SHIELD, HEAT WPL 9757732 Contact Us For Availability
13
FRONT, DRAWER (BLACK) WPL W10203760 Contact Us For Availability
13A
FRONT, DRAWER (WHITE) WPL W10203762 Contact Us For Availability
13B
FRONT, DRAWER (STAINLESS) WPL W10203763 Contact Us For Availability
14
ASSEMBLY, OUTER DOOR (BLACK) WPL W10131888 Contact Us For Availability
14
HANDLE, DRAWER (BLACK) WPL W10292375 Contact Us For Availability
14
TUBE, BROIL WPL 9756831 Contact Us For Availability
14A
ASSEMBLY, OUTER DOOR (WHITE) WPL W10131889 Contact Us For Availability
14A
HANDLE, DRAWER (WHITE) WPL W10292379 Contact Us For Availability
14B
ASSEMBLY, OUTER DOOR (STAINLESS) WPL W10155557 Contact Us For Availability
14B
HANDLE, DRAWER (STAINLESS) WPL W10292374 Contact Us For Availability
15
HANDLE, DOOR (BLACK) WPL W10292381 Contact Us For Availability
15B
HANDLE, DOOR (STAINLESS) WPL W10292380 Contact Us For Availability
16
TRIM, BOTTOM VENT (BLACK) WPL W10104890 Contact Us For Availability
16A
TRIM, BOTTOM VENT (WHITE) WPL W10104910 Contact Us For Availability
16B
TRIM, BOTTOM VENT (STAINLESS) WPL W10104870 Contact Us For Availability
17
VENT, CENTER (BLACK) WPL 9760225BL Contact Us For Availability
17
BUMPER, DOOR WPL 4448520 Contact Us For Availability
17
BRACKET, BOTTOM VENT WPL 4452152 Contact Us For Availability
17
ELEMENT, WARMING DRAWER WPL W10207401 Contact Us For Availability
17A
VENT, CENTER (WHITE) WPL 9760225WH Contact Us For Availability
19
BRACKET,SIDE PANEL WPL 9757461 Contact Us For Availability
19B
CAP, BURNER (12.5K) (RIGHT REAR) (COAL BLACK) WPL 9761563CB Contact Us For Availability
19C
CAP, BURNER (12.5K) (RIGHT REAR) (SATIN CUMBE WPL 9761563SD Contact Us For Availability
20
OVEN, SIDE PANEL (BLACK) WPL W10281880 Contact Us For Availability
20A
OVEN, SIDE PANEL (WHITE) WPL W10281881 Contact Us For Availability
21
BRACE, SIDE PANEL WPL 9757811 Contact Us For Availability
24
CLIP, SIDE PANEL WPL 9759890 Contact Us For Availability
26
BACK, CHASSIS WPL 9759762 Contact Us For Availability
27
BASE, CHASSIS WPL W10110534 Contact Us For Availability
28
STANDOFF, REAR WPL 9759945 Contact Us For Availability
30
BRACKET, APPLIANCE MANAGER WPL 9756454 Contact Us For Availability
31
SLIDE, DSI MODULE WPL 9760223 Contact Us For Availability
32
SLIDE, GLOBAL OVEN CONTROL WPL W10083460 Contact Us For Availability
33
MANAGER, APPLIANCE WPL 9762774 Contact Us For Availability
35
WASHER WPL 9760481 Contact Us For Availability
36
VENT, BOTTOM UPPER (BLACK) WPL 9756481BL Contact Us For Availability
36A
VENT, BOTTOM UPPER (WHITE) WPL 9756481WH Contact Us For Availability
36B
VENT, BOTTOM UPPER (STAINLESS) WPL 9756481SS Contact Us For Availability
39
COVER, BACK WPL 9758583 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
KIT, LP CONVERSION WPL 9757426 Contact Us For Availability
NI
PAINT, SPRAY (CITRINE WHITE) WPL 261900 Contact Us For Availability
NI
WPL W10113901A WPL W10113901A Contact Us For Availability
NI
WPL W10113902A WPL W10113902A Contact Us For Availability
NI
WPL W10113903A WPL W10113903A Contact Us For Availability
NI
WPL 9762921 WPL 9762921 Contact Us For Availability
NI
HARNESS, DSI (TRIPLE CROWN BURNER) WPL 9756921 Contact Us For Availability
NI
WPL W10157936 WPL W10157936 Contact Us For Availability
NI
INSULATION, WRA WPL 9756817 Contact Us For Availability
NI
WPL 9763481 WPL 9763481 Contact Us For Availability
NI
INSULATION, BACK WPL 9756470 Contact Us For Availability
NI
WPL NP WPL NP Contact Us For Availability
× ![]()
