Model Whirlpool KGSA906PBT00 30`` Slide-In GAS OVEN CONVECTION – Common Parts & Diagrams
02 - OVEN PARTS
04 - TOP VENTING PARTS

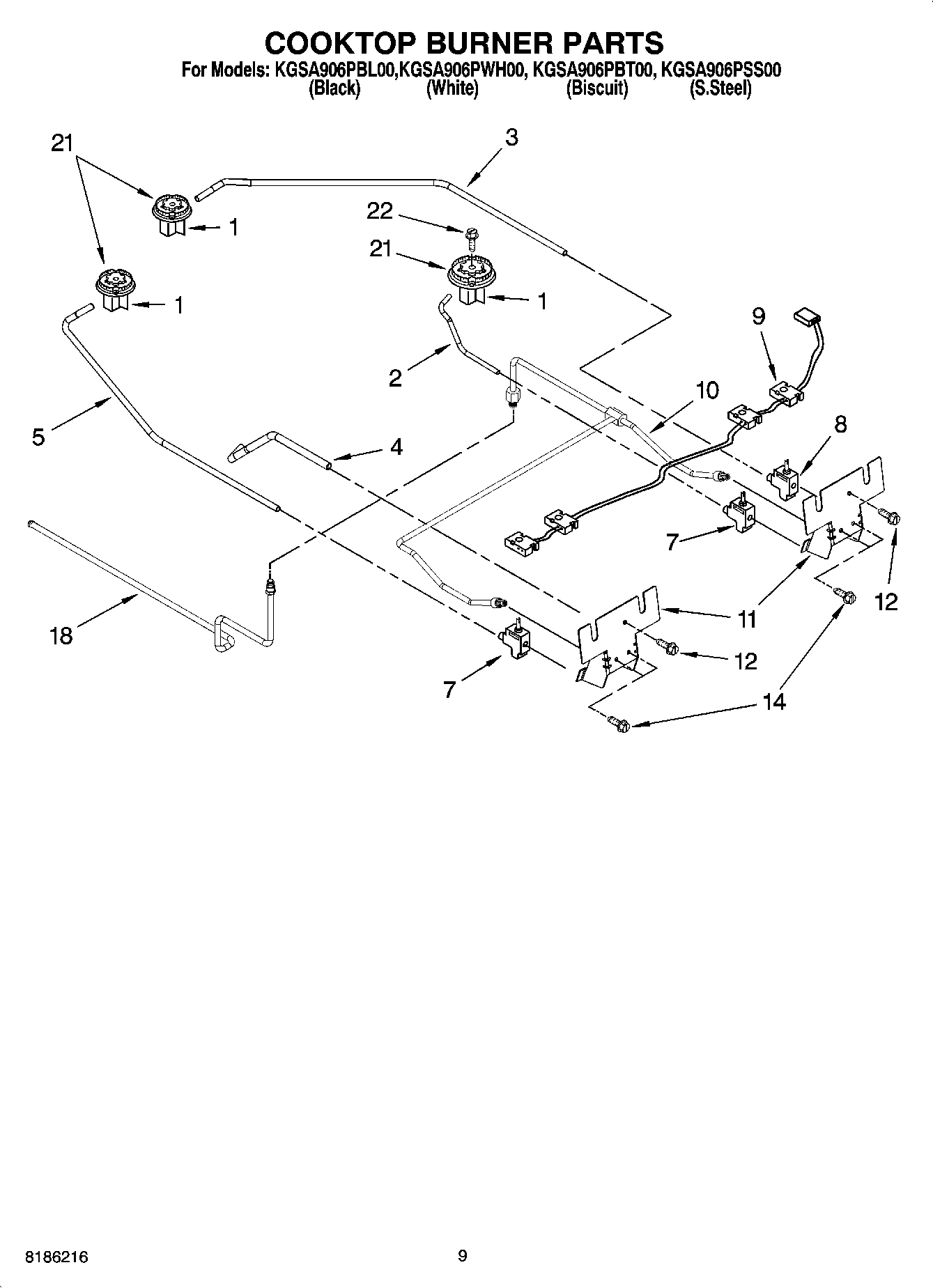

06 - COOKTOP BURNER PARTS

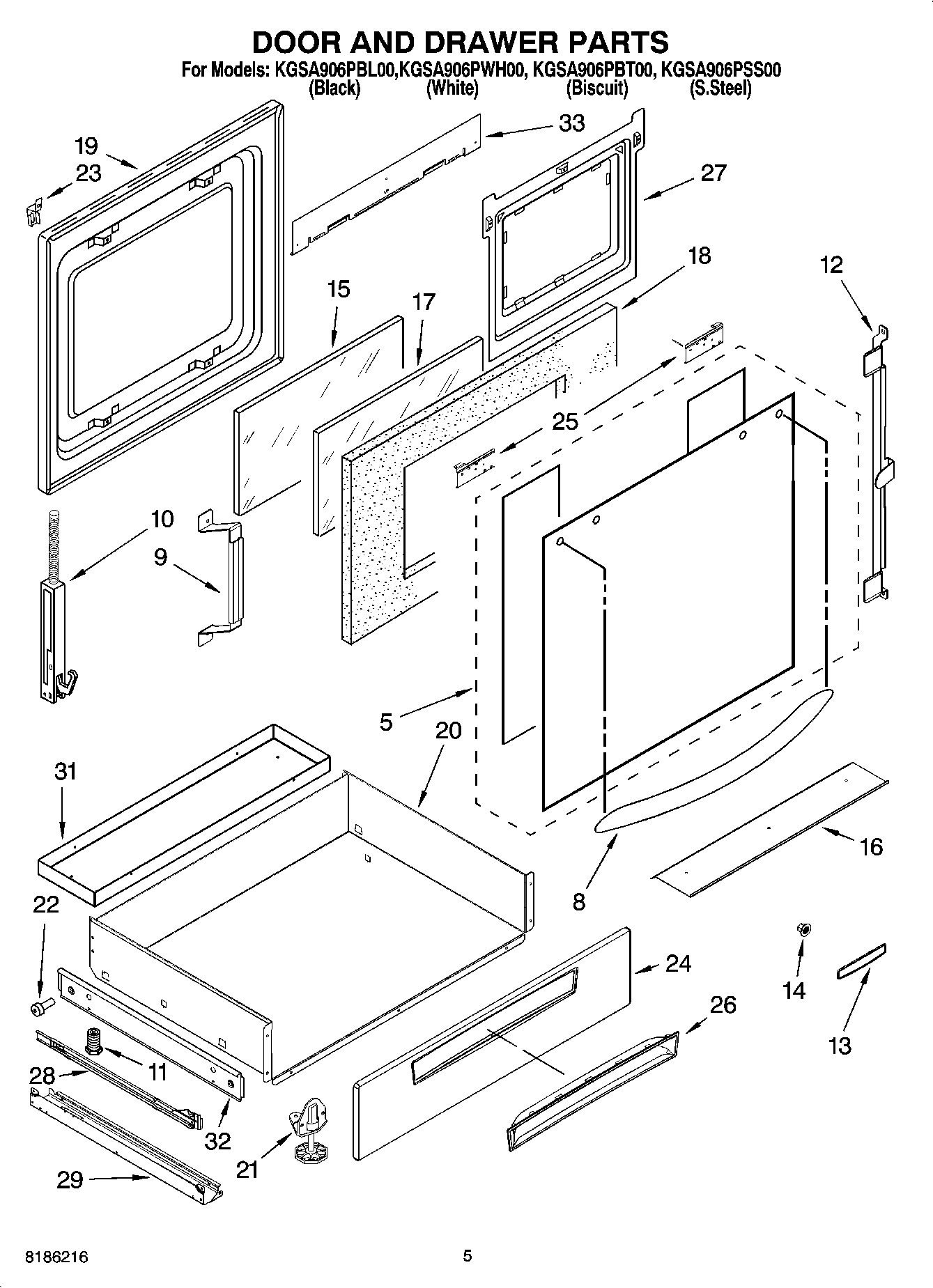

03 - DOOR AND DRAWER PARTS

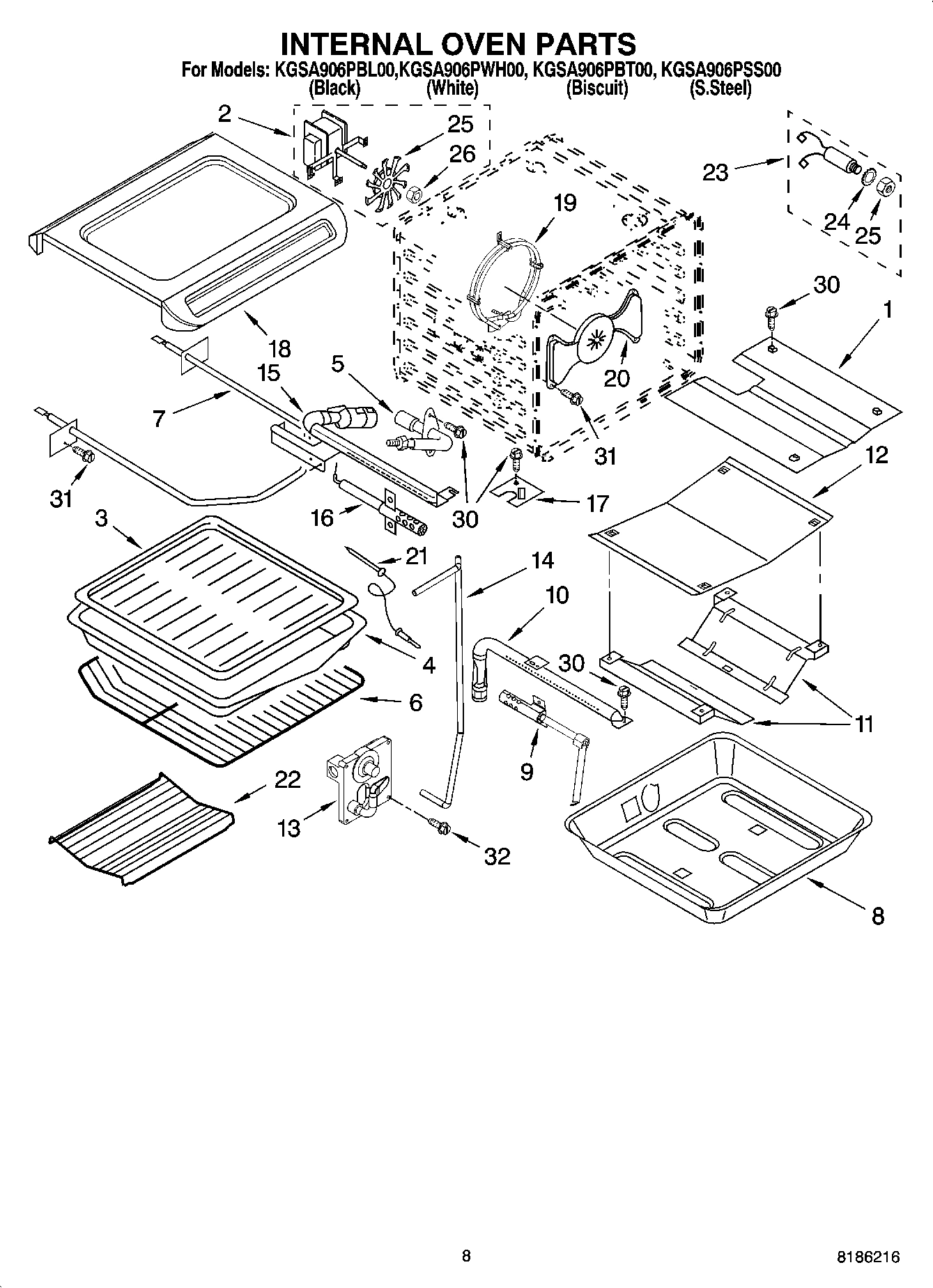

05 - INTERNAL OVEN PARTS

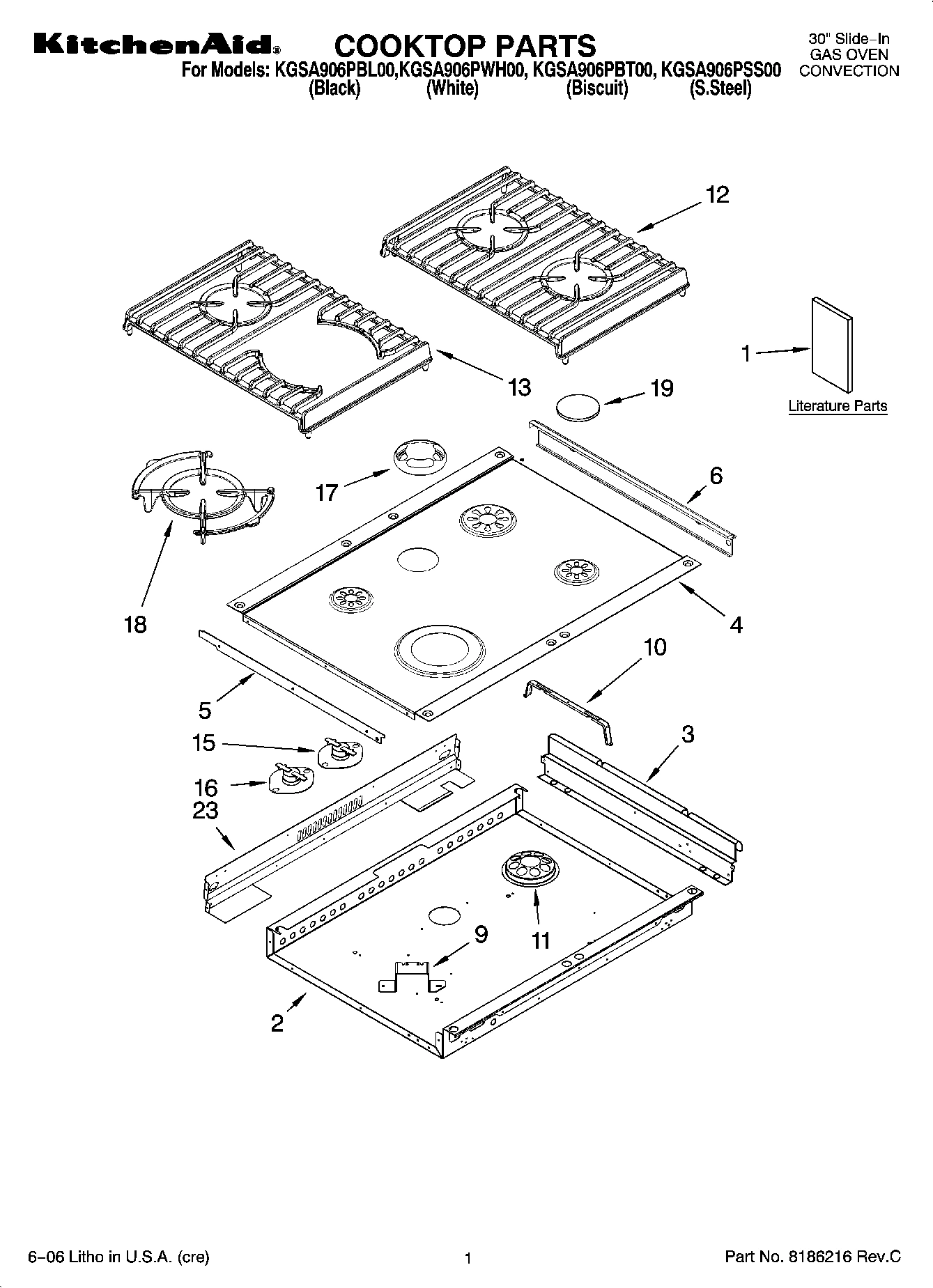

01 - COOKTOP PARTS

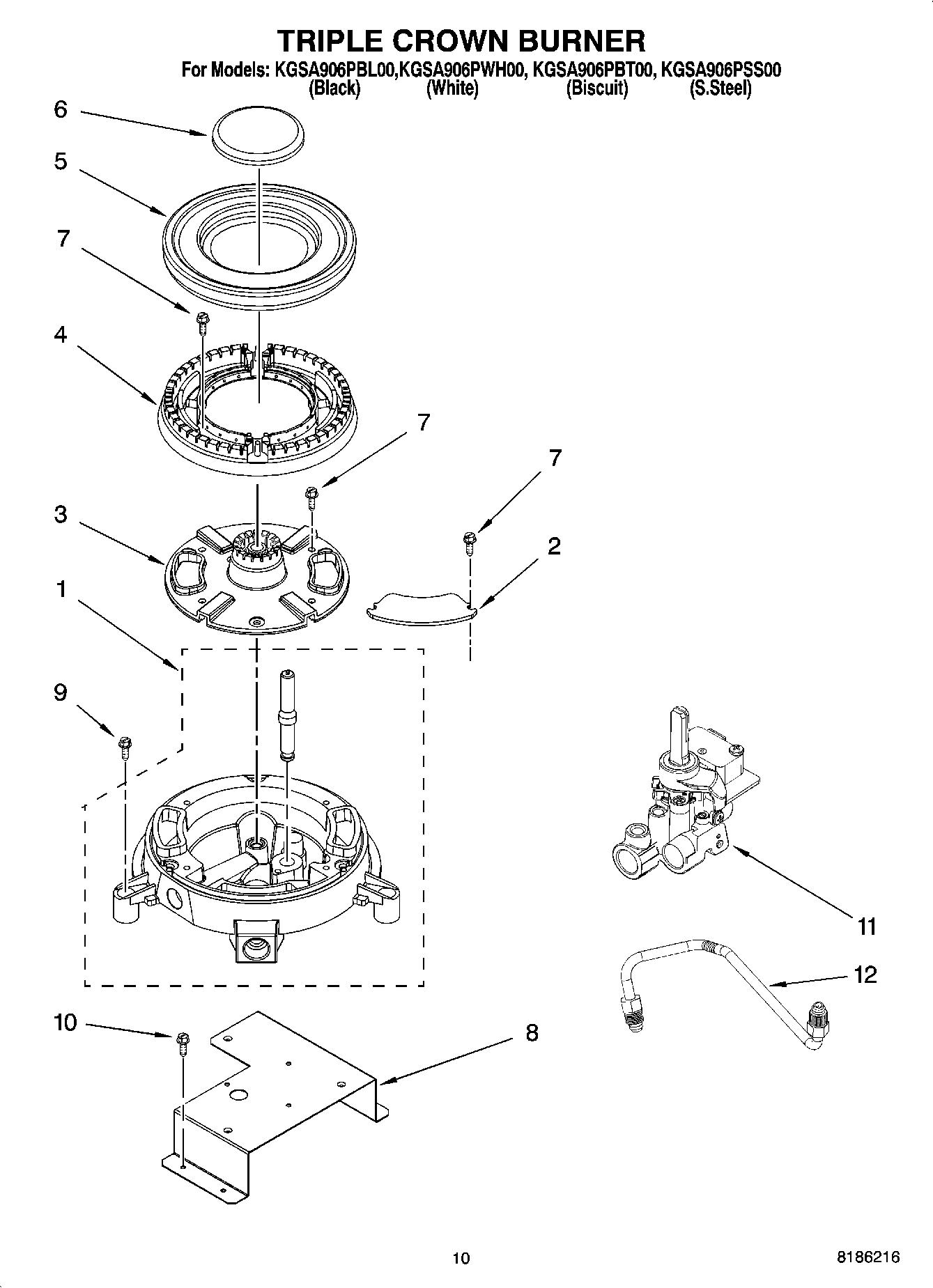

07 - TRIPLE CROWN BURNER

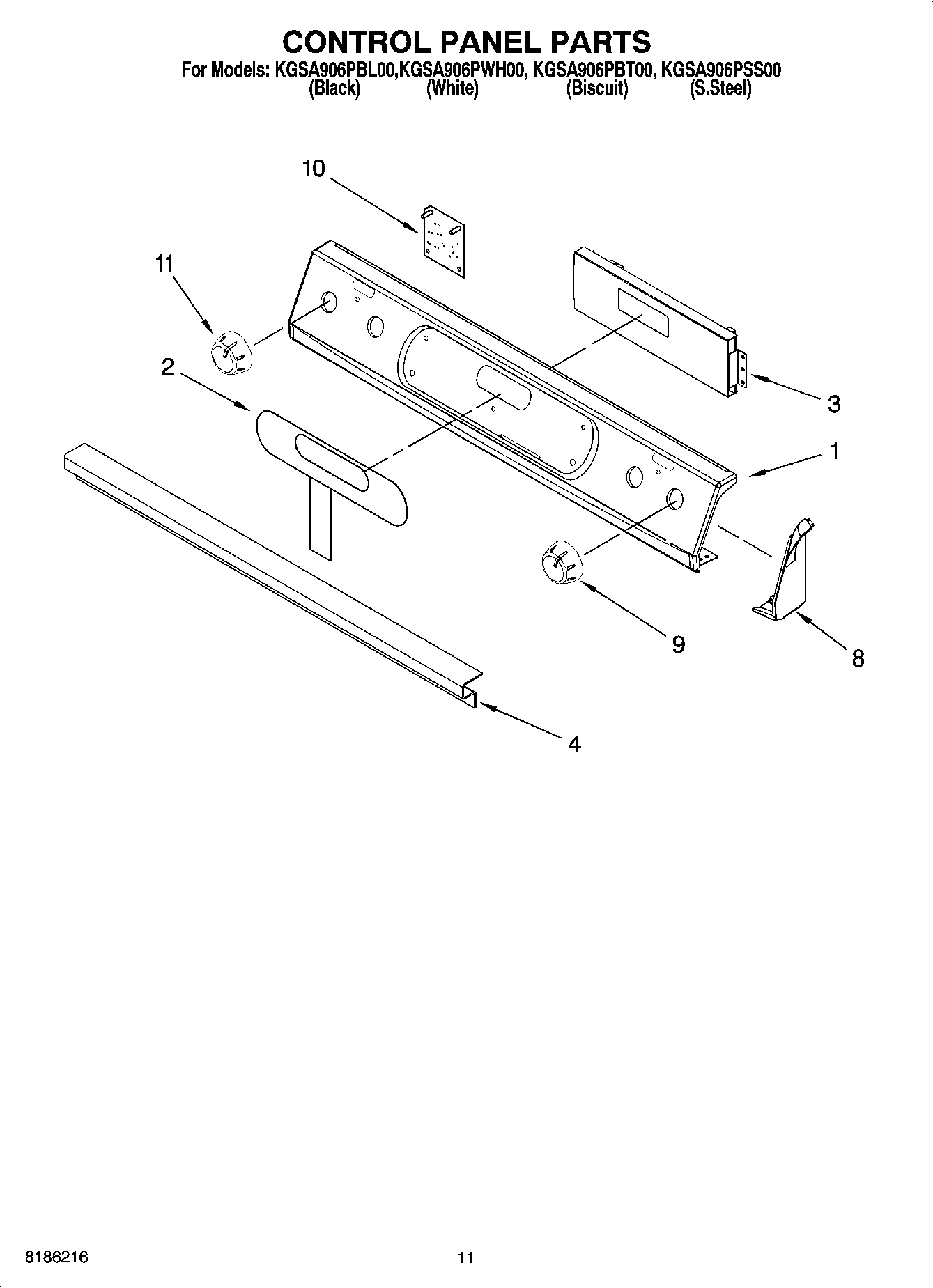

08 - CONTROL PANEL PARTS, OPTIONAL PARTS
Common parts from model Whirlpool KGSA906PBT00 30`` Slide-In GAS OVEN CONVECTION
PAINT, PRESSURIZED SPR WPL 350930 Contact Us For Availability
WPL 9757426 WPL 9757426 Contact Us For Availability
PAINT, SPRAY (Citrine White) WPL 261900 Contact Us For Availability
WPL 814381 WPL 814381 Contact Us For Availability
WPL 9756920 WPL 9756920 Contact Us For Availability
WPL 9756921 WPL 9756921 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire (14 Ga. 150 c White) WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire (12 Ga. 150 c Red) WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire (14 Ga. 200 c Red) WPL 242831 Contact Us For Availability
Wire (14 Ga. 200 c Yellow) WPL 242832 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
WPL 4448664 WPL 4448664 Contact Us For Availability
WPL 4450800 WPL 4450800 Contact Us For Availability
WPL 4452222 WPL 4452222 Contact Us For Availability
WPL 591014 WPL 591014 Contact Us For Availability
WPL 9756554 WPL 9756554 Contact Us For Availability
WPL 9756919 WPL 9756919 Contact Us For Availability
WPL 9757785BL WPL 9757785BL Contact Us For Availability
WPL 9757785BT WPL 9757785BT Contact Us For Availability
WPL 9757785SS WPL 9757785SS Contact Us For Availability
WPL 9757785WH WPL 9757785WH Contact Us For Availability
WPL ARI88146A4 WPL ARI88146A4 Contact Us For Availability
WPL ARI88147A4 WPL ARI88147A4 Contact Us For Availability
WPL ARI88148A8 WPL ARI88148A8 Contact Us For Availability
WPL ARI88149A6 WPL ARI88149A6 Contact Us For Availability
WPL ARI88150A2 WPL ARI88150A2 Contact Us For Availability
1
Burner Base w/Orifice (Small (2)) WPL 9782447 Contact Us For Availability
1
Control Panel (Black) WPL 4453931BL Contact Us For Availability
1
Control Panel (S.Steel) WPL 4453931SS Contact Us For Availability
1
Front, Air Duct WPL 9758810 Contact Us For Availability
1
Shield, Flame WPL 9752980 Contact Us For Availability
1
Safe Cooking Tips WPL 3191638 Contact Us For Availability
1
Installation Instructions WPL 9757447 Contact Us For Availability
1
Use & Care Guide WPL 9757452 Contact Us For Availability
1
Tech Sheet WPL 9757665 Contact Us For Availability
1
Anti-Tip Instruct. WPL 9757680 Contact Us For Availability
1
Burner Assy., Triple Crown Brnr WPL 9756816 Contact Us For Availability
1
Control Panel (Biscuit) WPL 4453931BT Contact Us For Availability
1
Control Panel (White) WPL 4453931WH Contact Us For Availability
2
Membrane Switch (White) WPL 9756559WH Contact Us For Availability
2
Assy, Fan WPL 4451583 Contact Us For Availability
2
Membrane Switch (Black) WPL 9756559BL Contact Us For Availability
2
Plate, Closure WPL 8285250 Contact Us For Availability
2
Top, Air Duct (L.Hand) WPL 9757827 Contact Us For Availability
2
Top, Air Duct (R.Hand) WPL 9757828 Contact Us For Availability
2
Tubing, Burner (RF) WPL 4453747 Contact Us For Availability
2
Burner Box WPL 9759896 Contact Us For Availability
3
Tubing, Burner (RR) WPL 4453748 Contact Us For Availability
3
Bracket, Mounting WPL 4454023 Contact Us For Availability
3
Control, Migration WPL 9760009 Contact Us For Availability
3
Screw WPL 9780271 Contact Us For Availability
4
Bumper, Door WPL 4448520 Contact Us For Availability
4
Screw (3) WPL 3179776 Contact Us For Availability
4
Tubing, Burner (LF) WPL 4453752 Contact Us For Availability
4
Cooktop (Black) WPL 9757803BL Contact Us For Availability
4
Cooktop (Biscuit) WPL 9757803BT Contact Us For Availability
4
Cooktop (White) WPL 9757803WH Contact Us For Availability
4
Bracket, Console WPL 9757119 Contact Us For Availability
5
Glass, Door Front (S.Steel) WPL 9757102SS Contact Us For Availability
5
Fitting, Broiler WPL 9757779 Contact Us For Availability
5
Corner, Air Duct (L.Hand) WPL 9756638 Contact Us For Availability
5
Corner, Air Duct (R.Hand) WPL 9756639 Contact Us For Availability
5
Tubing, Burner (LR) WPL 4453749 Contact Us For Availability
5
Glass, Door Front (Black) WPL 9757102BL Contact Us For Availability
5
Glass, Door Front (Biscuit) WPL 9757102BT Contact Us For Availability
5
Glass, Door Front (White) WPL 9757102WH Contact Us For Availability
5
Wall, Side Cktp (Black) WPL 9756781BL Contact Us For Availability
5
Wall, Side Cktp (Biscuit) WPL 9756781BT Contact Us For Availability
5
Wall, Side Cktp (White) WPL 9756781WH Contact Us For Availability
5
Cap, Burner Ext. (Black) WPL 8285258BL Contact Us For Availability
5
Cap, Burner Ext. (Mouse Gray) WPL 8285258MG Contact Us For Availability
5
Cap, Burner Ext. (Moleskin) WPL 8285258MS Contact Us For Availability
6
Vent, (Control Panel) WPL 9757117BL Contact Us For Availability
6
Trim-CkTop, SI (Black RH) WPL 4453870BL Contact Us For Availability
6
Trim-CkTop, SI (Biscuit RH) WPL 4453870BT Contact Us For Availability
6
Trim-CkTop, SI (S.Steel RH) WPL 4453870SS Contact Us For Availability
6
Trim-CkTop, SI (White RH) WPL 4453870WH Contact Us For Availability
6
Trim-CkTop, SI (Black LH) WPL 4453875BL Contact Us For Availability
6
Trim-CkTop, SI (Biscuit LH) WPL 4453875BT Contact Us For Availability
6
Trim-CkTop, SI (S.Steel LH) WPL 4453875SS Contact Us For Availability
6
Trim-CkTop, SI (White LH) WPL 4453875WH Contact Us For Availability
6
Cap, Burner Int. (Black) WPL 9758829BL Contact Us For Availability
6
Cap, Burner Int. (Mouse Gray) WPL 9758829MG Contact Us For Availability
6
Cap, Burner Int. (Moleskin) WPL 9758829MS Contact Us For Availability
7
Element, Broil WPL 4453625 Contact Us For Availability
8
Endcap (Screw) WPL 3196172 Contact Us For Availability
8
Transformer WPL 9756551 Contact Us For Availability
8
Handle, Door (Black) WPL 9756833BL Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9756833BT Contact Us For Availability
8
Handle, Door (S.Steel) WPL 9756833OG Contact Us For Availability
8
Handle, Door (White) WPL 9756833WH Contact Us For Availability
8
Bracket, Triple Crown Burner WPL 8285177 Contact Us For Availability
8
Endcap (Black LH) WPL 4453726BL Contact Us For Availability
8
Endcap (Biscuit LH) WPL 4453726BT Contact Us For Availability
8
Endcap (White LH) WPL 4453726WH Contact Us For Availability
8
Endcap (Black RH) WPL 4453727BL Contact Us For Availability
8
Endcap (Biscuit RH) WPL 4453727BT Contact Us For Availability
8
Endcap (White RH) WPL 4453727WH Contact Us For Availability
8
Endcap (S.Steel RH) WPL 9760456CM Contact Us For Availability
8
Endcap (S.Steel LH) WPL 9760457CM Contact Us For Availability
9
Knob (Meteorite) WPL 8285604 Contact Us For Availability
9
Knob (White) WPL 4453911WH Contact Us For Availability
9
Bracket, Central WPL 8302094 Contact Us For Availability
9
Bracket, Burner WPL 3192811 Contact Us For Availability
9
Knob (Black) WPL 4453911BL Contact Us For Availability
9
Knob (Biscuit) WPL 4453911BT Contact Us For Availability
10
Tube, Manifold WPL 4453755 Contact Us For Availability
11
Knob (Meteorite) WPL 4453912CM Contact Us For Availability
11
Manifold WPL 4453753 Contact Us For Availability
11
Shield, Oven WPL 9752737 Contact Us For Availability
11
Dome Cap, Vent WPL 9756505BL Contact Us For Availability
11
Valve, T.C.B. WPL 9759636 Contact Us For Availability
11
Knob (Black) WPL 4453912BL Contact Us For Availability
11
Knob (Biscuit) WPL 4453912BT Contact Us For Availability
11
Knob (White) WPL 4453912WH Contact Us For Availability
12
Shield, Bake Flame WPL 4453984 Contact Us For Availability
12
Grate, Burner (Black) WPL 9760230BL Contact Us For Availability
12
Grate, Burner (Coal Black) WPL 9760230CB Contact Us For Availability
12
Grate, Burner (Mouse Grey) WPL 9760230MG Contact Us For Availability
12
Grate, Burner (Moleskin) WPL 9760230MS Contact Us For Availability
12
Tube, T.C.B. Gas WPL 4453751 Contact Us For Availability
13
Screw WPL 3400080 Contact Us For Availability
13
Nameplate (Black) WPL 9757730BL Contact Us For Availability
13
Nameplate (Biscuit) WPL 9757730BT Contact Us For Availability
13
Nameplate (White) WPL 9757730WH Contact Us For Availability
13
Grate, Brnr (TCB) (Black) WPL 9760231BL Contact Us For Availability
13
Grate, Brnr (TCB) (Coal Black) WPL 9760231CB Contact Us For Availability
13
Grate, Brnr (TCB) (Mouse Grey) WPL 9760231MG Contact Us For Availability
13
Grate, Brnr (TCB) (Moleskin) WPL 9760231MS Contact Us For Availability
14
Screw WPL 4449040 Contact Us For Availability
14
Tube, Broil WPL 9756831 Contact Us For Availability
14
Nut WPL 4453107 Contact Us For Availability
15
Burner, Broil WPL 9757700 Contact Us For Availability
16
SHIELD, HEAT BOTTOM WPL 4457114 Contact Us For Availability
17
Bracket, Mounting WPL 4452152 Contact Us For Availability
17
Cover, Ignitor WPL 4454009 Contact Us For Availability
17
Vent, Center (Black) WPL 9757766BL Contact Us For Availability
17
Vent, Center (Biscuit) WPL 9757766BT Contact Us For Availability
17
Vent, Center (White) WPL 9757766WH Contact Us For Availability
18
Grate, Insert (TCB) (Coal Black) WPL 9760222CB Contact Us For Availability
18
Grate, Insert (TCB) (Black) WPL 9760222BL Contact Us For Availability
18
Tubing GDS to Manifold WPL 4453754 Contact Us For Availability
18
Grate, Insert (TCB) (Mouse Grey) WPL 9760222MG Contact Us For Availability
18
Grate, Insert (TCB) (M WPL 9760222MS Contact Us For Availability
19
WPL 3191899 WPL 3191899 Contact Us For Availability
19
WPL 3191898MS WPL 3191898MS Contact Us For Availability
19
WPL 3191904MS WPL 3191904MS Contact Us For Availability
20
Drawer & Roller WPL 9757806 Contact Us For Availability
20
Cover, Fan WPL 9756689 Contact Us For Availability
21
Head, Burner (Turbi) WPL 4455849 Contact Us For Availability
21
Head, Burner (Small) WPL 9759894 Contact Us For Availability
22
Rack, Roasting WPL 3181534 Contact Us For Availability
23
Retainer, Door WPL 9759743 Contact Us For Availability
23
WPL 9759627 WPL 9759627 Contact Us For Availability
24
Front, Drawer (Black) WPL 4453799BL Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 4453799BT Contact Us For Availability
24
Front, Drawer (S.Steel) WPL 4453799SS Contact Us For Availability
24
Front, Drawer (White) WPL 4453799WH Contact Us For Availability
25
Bracket, Handle (R.Hand) WPL 8301837 Contact Us For Availability
25
Bracket, Handle (L.Hand) WPL 8301838 Contact Us For Availability
26
Handle, Drawer (Black) WPL 9756952BL Contact Us For Availability
26
Handle, Drawer (Biscuit) WPL 9756952BT Contact Us For Availability
26
Handle, Drawer (Cashmere Metal) WPL 9756952CM Contact Us For Availability
26
Handle, Drawer (White) WPL 9756952WH Contact Us For Availability
28
Track, Drawer (L.Side) WPL 9756839 Contact Us For Availability
28
Track, Drawer (R.Side) WPL 9756837 Contact Us For Availability
29
Side, Base (R.Side) WPL 9759953 Contact Us For Availability
29
Side, Base (L.Side) WPL 9759954 Contact Us For Availability
31
Panel, Drawer WPL 9760591 Contact Us For Availability
32
Guide, Roller WPL 9756673 Contact Us For Availability
33
Shield, Heat Top WPL 9757707 Contact Us For Availability
55
WPL 9756817 WPL 9756817 Contact Us For Availability
55
WPL 9756485SS WPL 9756485SS Contact Us For Availability
55
WPL 9756485WH WPL 9756485WH Contact Us For Availability
55
WPL ARI88145A3 WPL ARI88145A3 Contact Us For Availability
× ![]()
