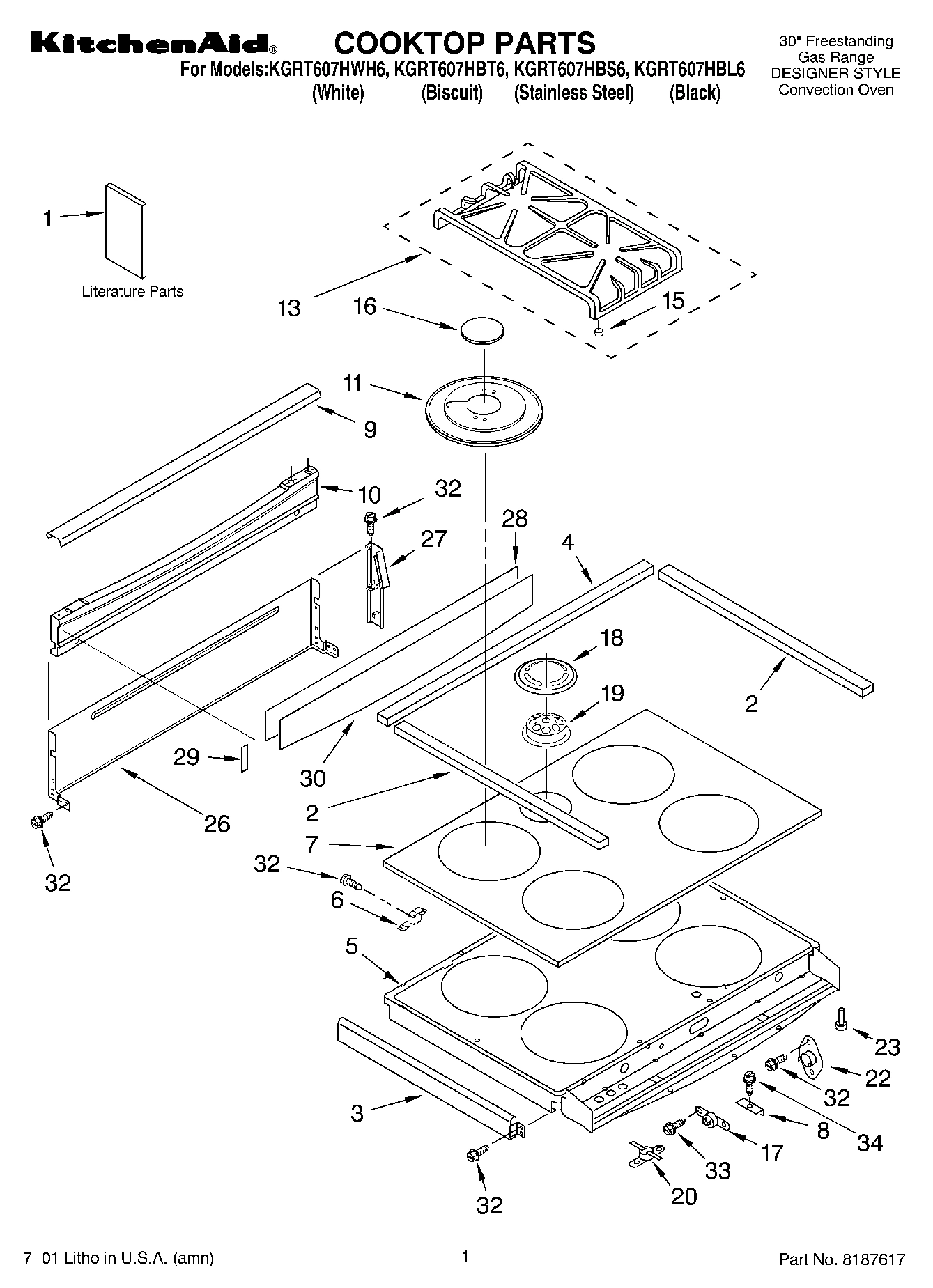

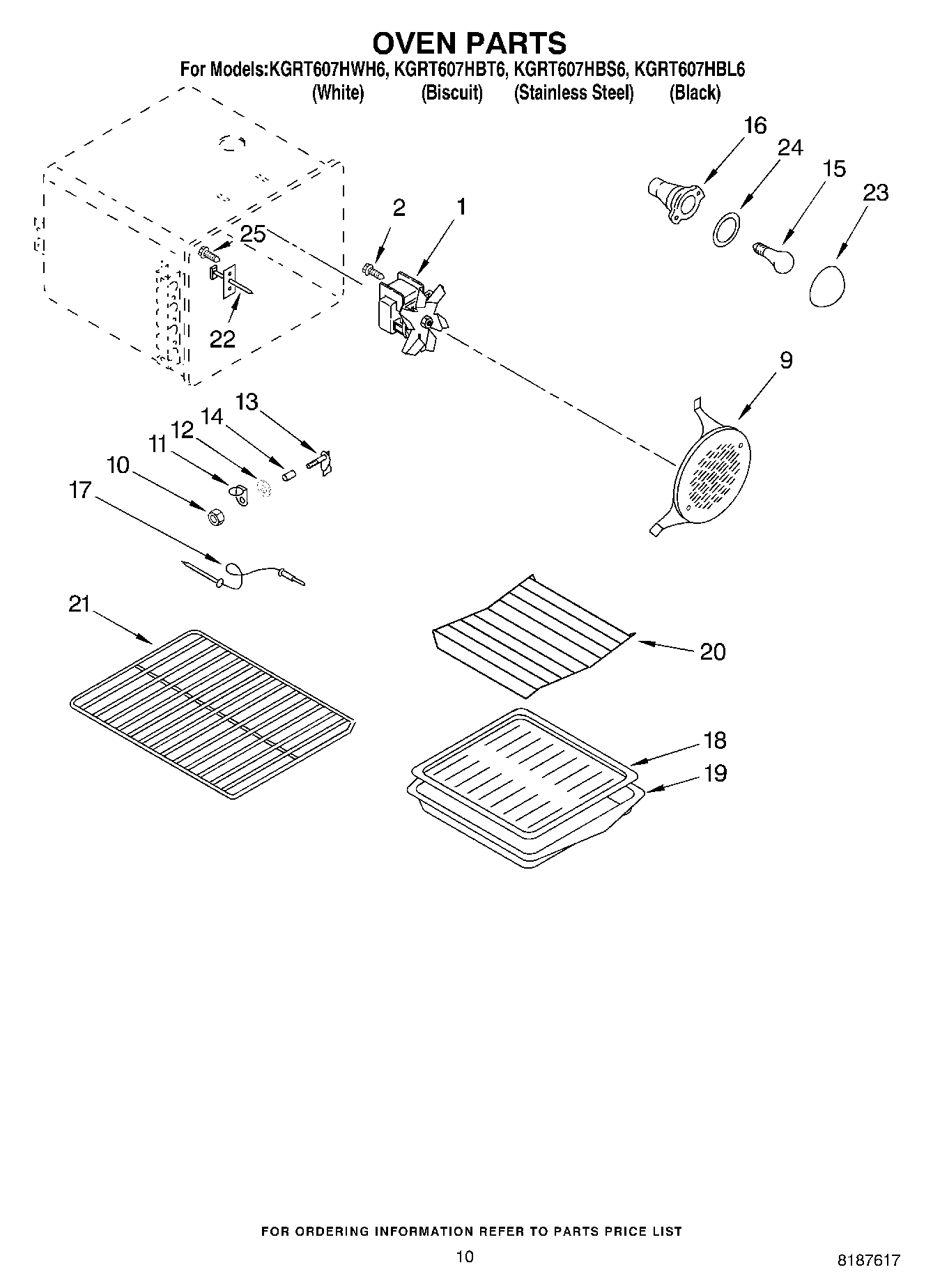

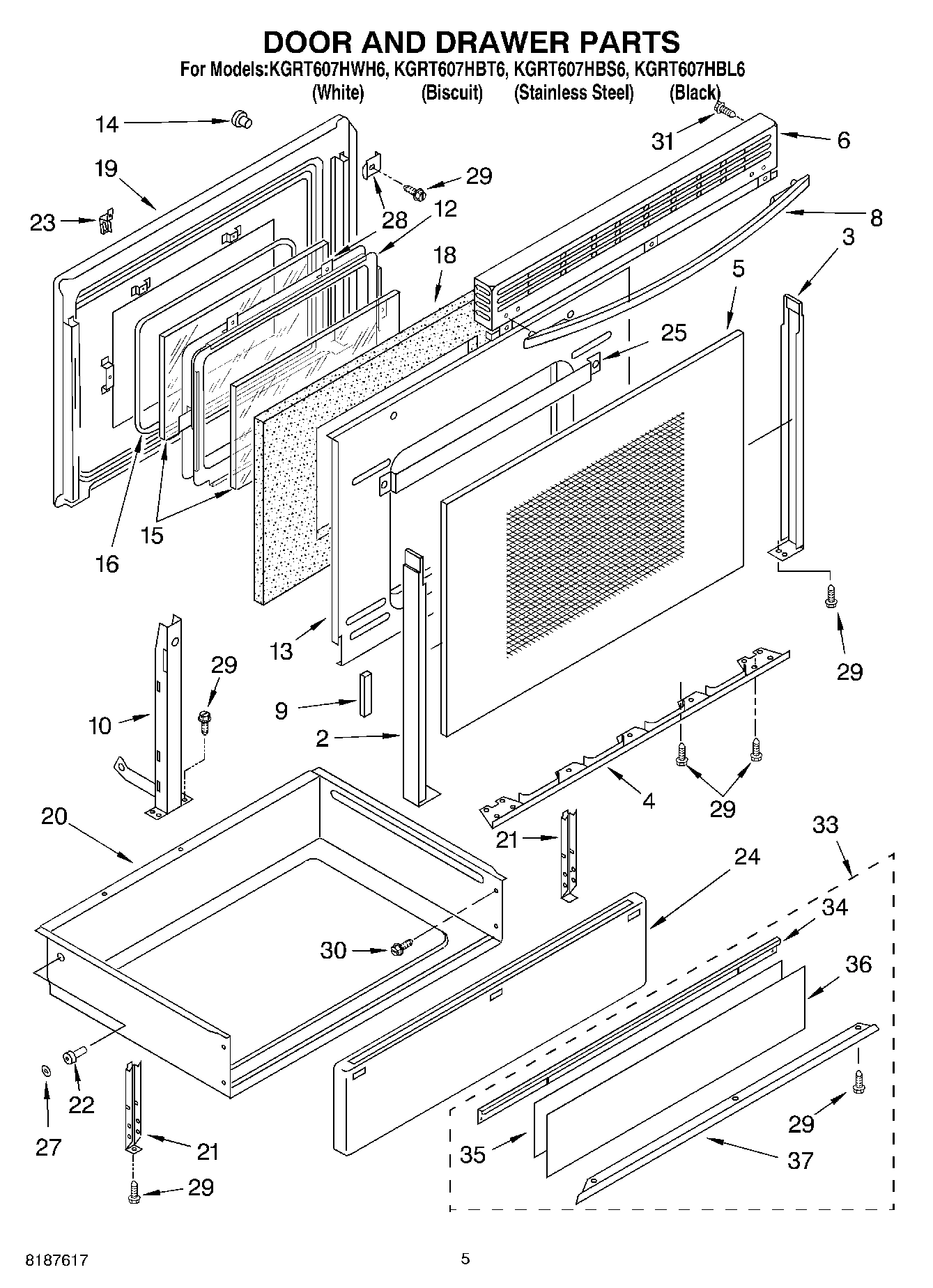

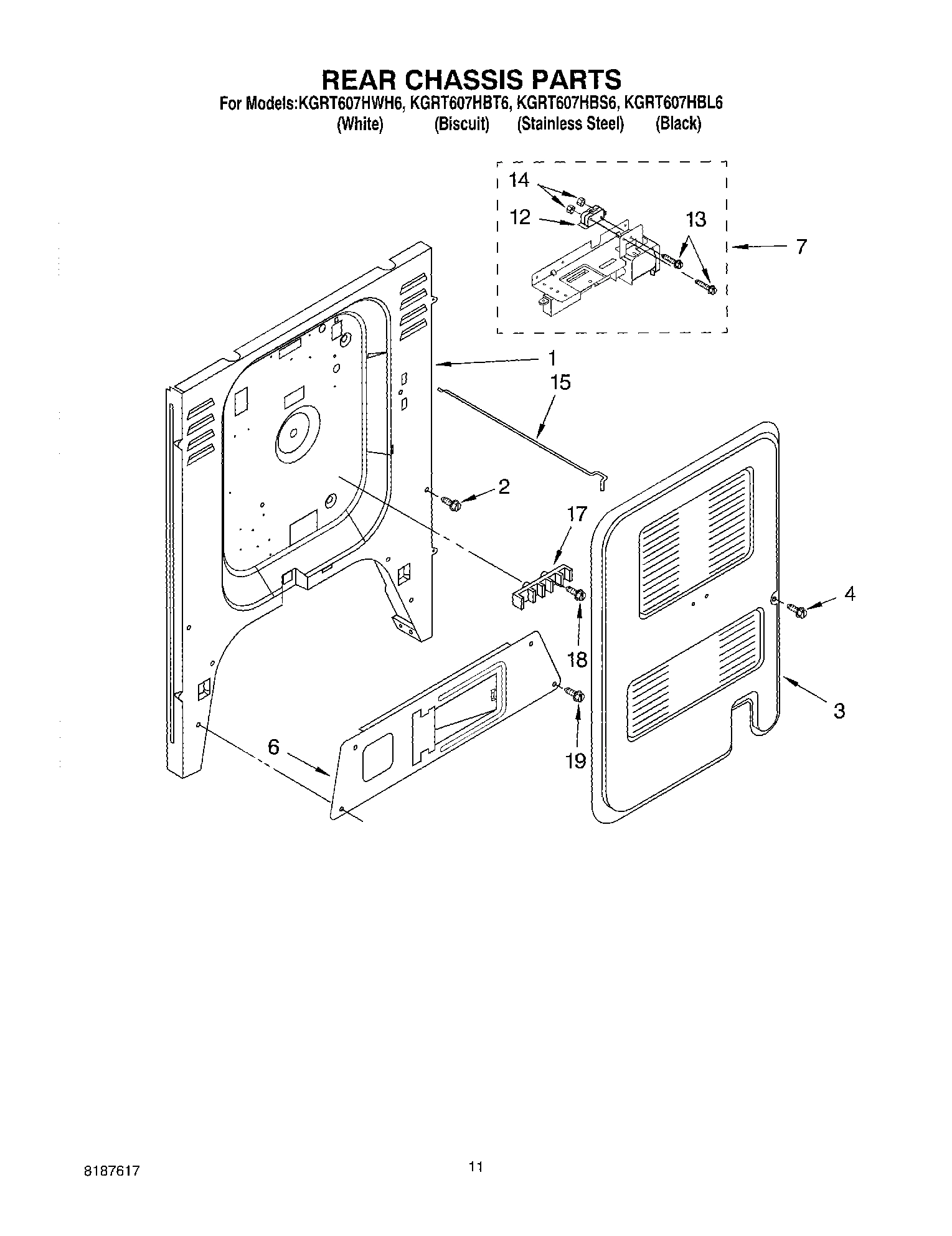

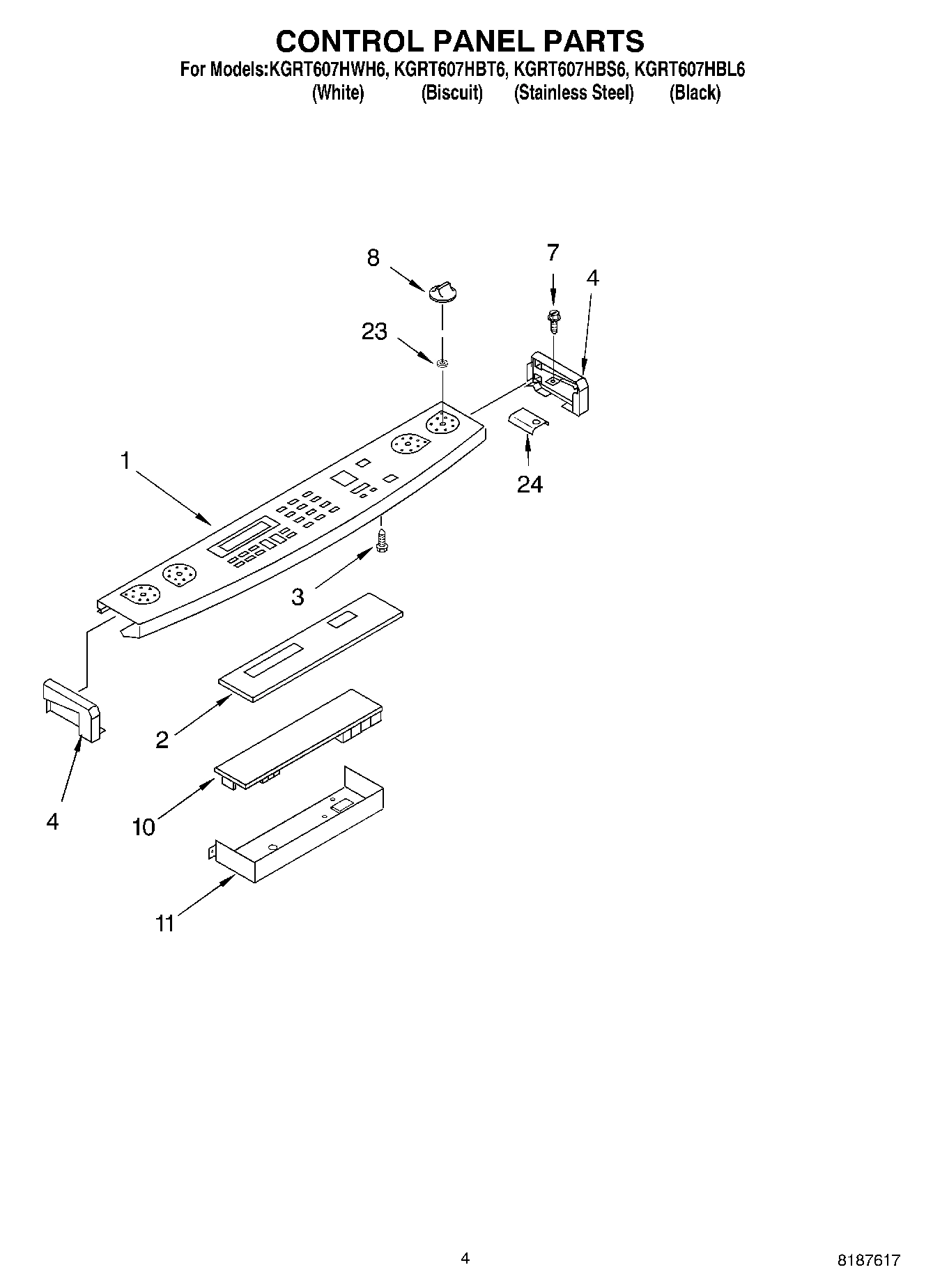

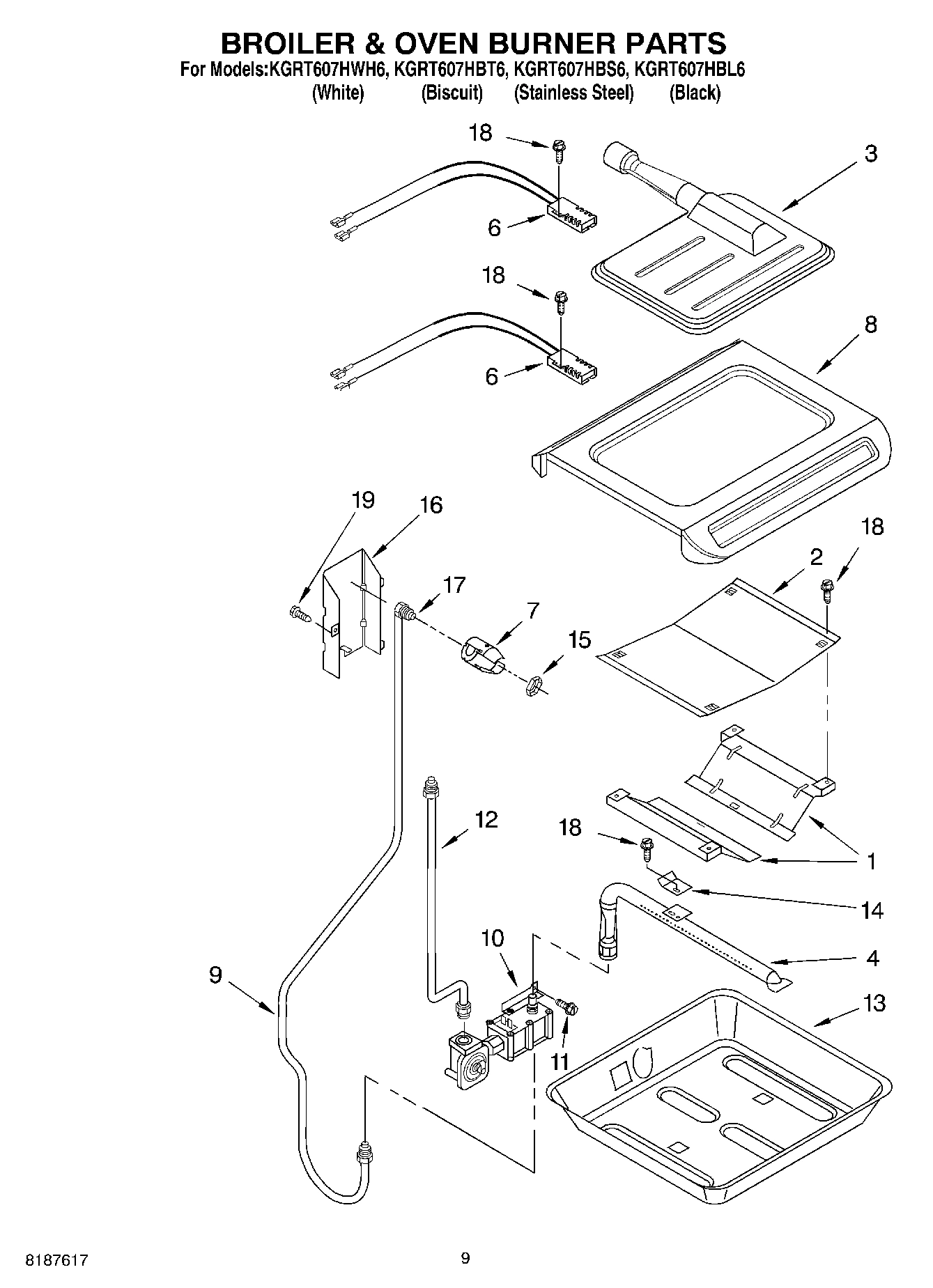

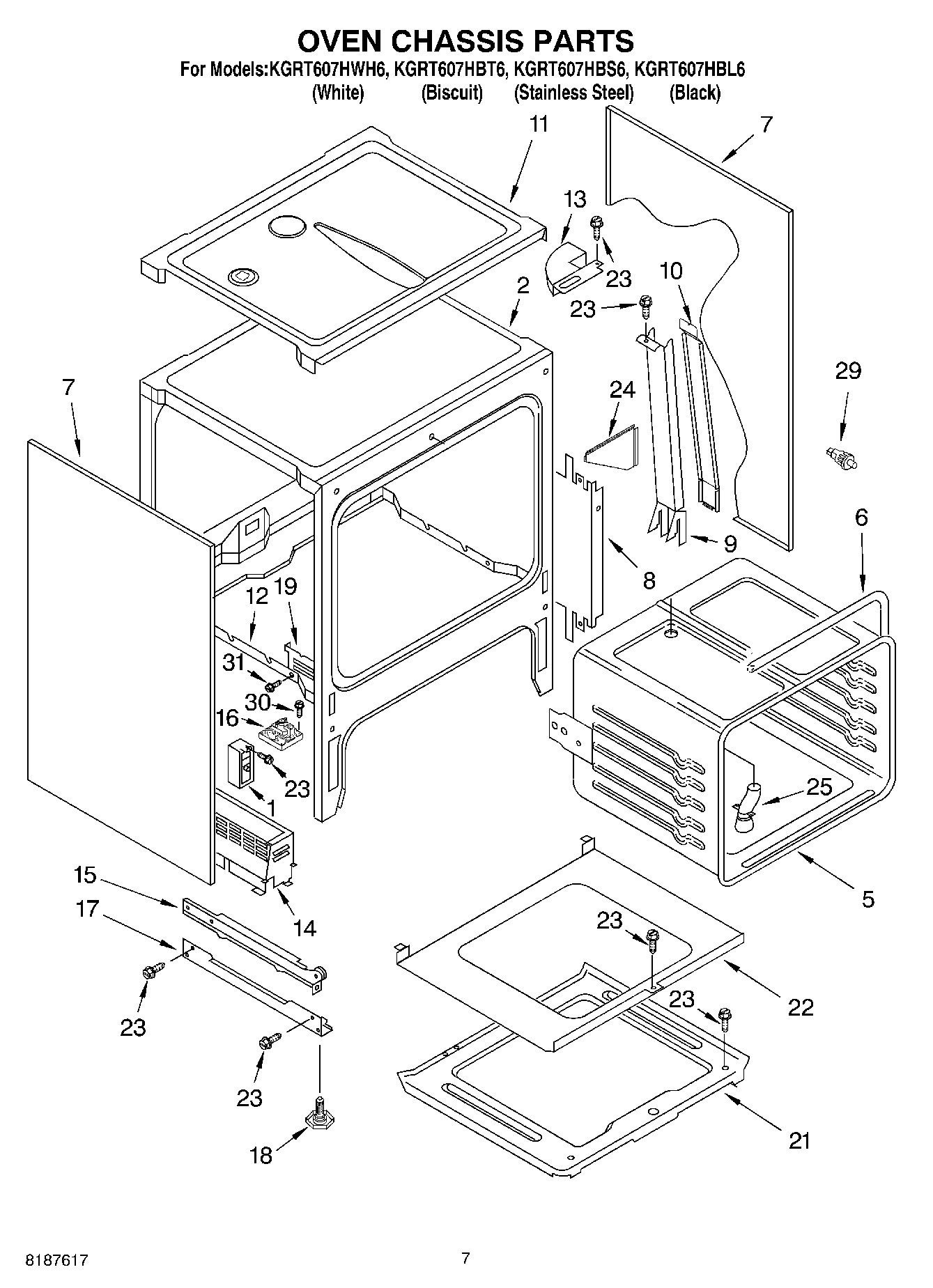

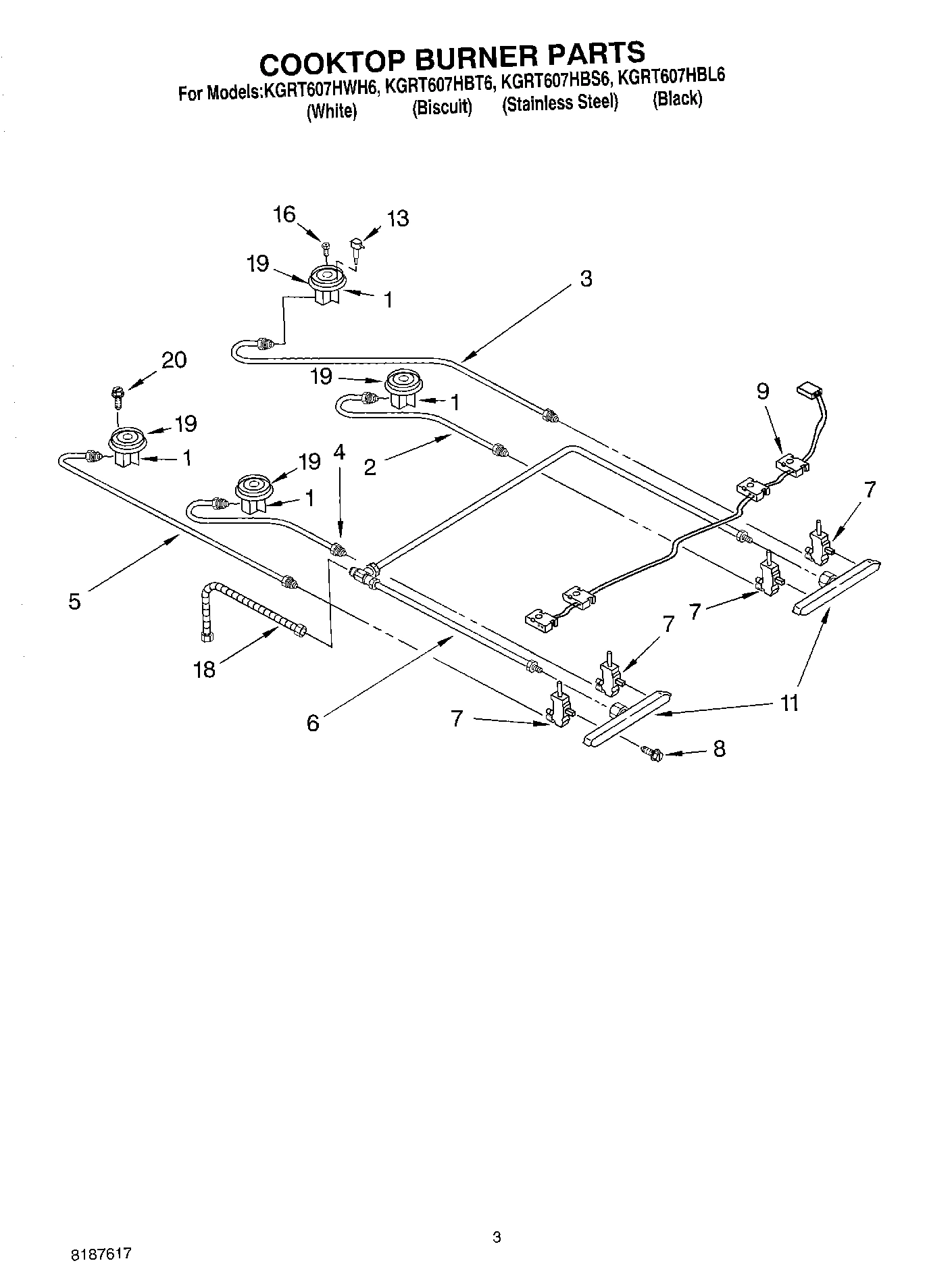

Model Whirlpool KGRT607HWH6 GAS RANGE – Common Parts &amp; Diagrams

1

WP8053421 Whirlpool Oven Spark Module Backorder WPL WP8053421 $99.35

1

Console, Glass (Black) WPL 9754341CB Contact Us For Availability

1

Assembly, Fan WPL 9781543 Contact Us For Availability

1

Console, Glass (Biscuit) WPL 9754341CC Contact Us For Availability

1

Console, Glass (White) WPL 9754341CW Contact Us For Availability

1

Burner Base W/Orifices (6K RF-LR) WPL 9754183 Contact Us For Availability

1

Burner Base W/Orifices (12K RR) WPL 9754189 Contact Us For Availability

1

Burner Base W/Orifices (14K LF) WPL 9754192 Contact Us For Availability

1

Shield, Oven (2) WPL 9752737 Contact Us For Availability

1

Back, Chassis WPL 9751051 Contact Us For Availability

2

340184 Whirlpool Screw Backorder WPL 340184 $9.59

2

Microcmptr WPL 9754376 Contact Us For Availability

2

Tubing, Burner (RF) WPL 9753610 Contact Us For Availability

2

Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability

2

Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability

2

Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability

2

Flame Shield, Bake WPL 9752738 Contact Us For Availability

2

Chassis, Front WPL 9750514GM Contact Us For Availability

3

Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability

3

Tubing, Burner (RR) WPL 9753611 Contact Us For Availability

3

Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability

3

Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability

3

Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability

3

Burner, Broiler WPL 9752922 Contact Us For Availability

3

Panel, Rear Cover WPL 9751353 Contact Us For Availability

4

Burner, Bake WPL 9751367 Contact Us For Availability

4

(End Cap Left Hand) (Black) WPL 9751279FB Contact Us For Availability

4

End Cap (Biscuit, Left) WPL 9751279FC Contact Us For Availability

4

End Cap (Left Hand) (White) WPL 9751279FW Contact Us For Availability

4

End Cap (Black, Right) WPL 9751280FB Contact Us For Availability

4

End Cap (Biscuit, Right) WPL 9751280FC Contact Us For Availability

4

End Cap (White, Right) WPL 9751280FW Contact Us For Availability

4

Tubing, Burner (LF) WPL 9753608 Contact Us For Availability

4

Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability

4

Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability

4

Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability

4

Screw, 10-16 x 3/8 WPL 423247 Contact Us For Availability

5

Glass, Door (Black) WPL 9781627PB Contact Us For Availability

5

Tubing, Burner (LR) WPL 9753609 Contact Us For Availability

5

Glass, Door (Stainless) WPL 9754041 Contact Us For Availability

5

Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability

5

Glass, Door (White) WPL 9781627PW Contact Us For Availability

5

Oven Liner WPL 9753335GM Contact Us For Availability

6

WP9782065 Whirlpool Oven Igniter In Stock WPL WP9782065 $106.03

6

Vent, Door (Seal, Door) WPL 9781490 Contact Us For Availability

6

Tubing, Manifold WPL 9754148 Contact Us For Availability

6

Vent, Door (Black) WPL 9753498GB Contact Us For Availability

6

Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability

6

Vent, Door (White) WPL 9753498GW Contact Us For Availability

6

Vent, Door (Gasket, Vent) WPL 9781659 Contact Us For Availability

6

Bracket, Regulator Valve WPL 9751500 Contact Us For Availability

6

Gasket, Oven WPL 9755179 Contact Us For Availability

7

Valve, Burner (6K RF-LR Red Stem) WPL 9753045 Contact Us For Availability

7

Valve, Burner (14K LF Plain Stem) WPL 9753614 Contact Us For Availability

7

Valve, Burner (12K RR Black Stem) WPL 9753044 Contact Us For Availability

7

Bracket, Broil Shooter WPL 9752858 Contact Us For Availability

7

Oven Lock Assembly WPL 9755001 Contact Us For Availability

7

Oven, Side L or R (Black) WPL 9781907PB Contact Us For Availability

7

Oven, Side L or R (Biscuit) WPL 9781907PC Contact Us For Availability

7

Oven, Side L or R (White) WPL 9781907PW Contact Us For Availability

8

W10405147 Whirlpool Knob Backorder WPL W10405147 $58.55

8

Knobs, Control (White) WPL 9751199FW Contact Us For Availability

8

Knobs, Control (Biscuit) WPL 9751199FC Contact Us For Availability

8

Bolt, Gas Valve (4) WPL 3185829 Contact Us For Availability

8

Handle, Door (Black) WPL 9780523PB Contact Us For Availability

8

Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability

8

Handle, Door (White) WPL 9780523PW Contact Us For Availability

8

Pan, Oven Bottom WPL 9752736GM Contact Us For Availability

8

Shield, Insulation WPL 9780664 Contact Us For Availability

9

Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability

9

Gasket, Door Glass WPL 9781449 Contact Us For Availability

9

Tubing, Broil WPL 9782061 Contact Us For Availability

9

Duct, Side Fan WPL 9751789 Contact Us For Availability

WP9755424 Whirlpool Gas Valve Backorder WPL WP9755424 $172.62

WP9782033 Whirlpool Door Hinge Backorder WPL WP9782033 $118.92

Microcptr WPL 9754378 Contact Us For Availability

Duct WPL 9782329 Contact Us For Availability

Shield, Control Panel WPL 9755021 Contact Us For Availability

Manifold (Left Hand) WPL 9754116L Contact Us For Availability

Manifold (Right Hand) WPL 9754116R Contact Us For Availability

Screw, 1/4-20x1/2 WPL 776593 Contact Us For Availability

Burner Box WPL 9752637 Contact Us For Availability

Frame, Window WPL 9781602 Contact Us For Availability

Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability

Switch, Interlock WPL 9754291 Contact Us For Availability

Retainer, Insulation WPL 9752735 Contact Us For Availability

WP9754215 Whirlpool Surface Igniter In Stock WPL WP9754215 $26.47

Grate, 2 Burner (Mouse WPL 9753616GS Contact Us For Availability

Grate, 2 Burner (Black) WPL 9753616GB Contact Us For Availability

Shield, Door WPL 9781586 Contact Us For Availability

Pan Support, Bake WPL 9752734 Contact Us For Availability

Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability

Duct, Top WPL 9751653 Contact Us For Availability

14

Bracket, Bake WPL 9751600 Contact Us For Availability

14

Nut (2) WPL 9750888 Contact Us For Availability

14

Support, Fan WPL 9751060 Contact Us For Availability

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $5.14

WP9781593 Whirlpool Door Glass In Stock WPL WP9781593 $66.03

Rail, Drawer (Right) WPL 9750224 Contact Us For Availability

Nut No.18 5/8 WPL 9751203 Contact Us For Availability

Rod, Lock WPL 9750523 Contact Us For Availability

Drawer Rail, Left WPL 9750223 Contact Us For Availability

WP3191898 Whirlpool Surface Burner Cap Black Backorder WPL WP3191898 $42.16

WP3191904 Whirlpool Burner Cap In Stock WPL WP3191904 $95.75

WP3191905 Whirlpool Burner Cap Backorder WPL WP3191905 $44.01

WP9753928 Whirlpool Orifice Assembly Backorder WPL WP9753928 $32.56

WP9753929 Whirlpool Orifice Backorder WPL WP9753929 $29.55

WP9753930 Whirlpool Orifice Backorder WPL WP9753930 $34.72

WP9755177 Whirlpool Wind Gasket Backorder WPL WP9755177 $78.59

WPL 3191899 WPL 3191899 Contact Us For Availability

WPL 9753939GB WPL 9753939GB Contact Us For Availability

WPL 9753939GS WPL 9753939GS Contact Us For Availability

Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability

Motor, Fan WPL 9751020 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPL 341196 WPL 341196 Contact Us For Availability

Probe WPL 3150144 Contact Us For Availability

Orifice No.54 WPL 9752716 Contact Us For Availability

Bottom Rail (2) WPL 9750147 Contact Us For Availability

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPL 9751271GB WPL 9751271GB Contact Us For Availability

WPL 9751271GW WPL 9751271GW Contact Us For Availability

Tubing, Flex WPL 9751854 Contact Us For Availability

Insulation WPL 9754006 Contact Us For Availability

Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability

Screw, 10-16 x 1 WPL 98884 Contact Us For Availability

242831 Whirlpool Oven Wire Backorder WPL 242831 $261.62

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3400964 Whirlpool Oven Clip Backorder WPL 3400964 $32.57

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $3.50

WP4455979 Whirlpool Range Small Burner Head Backorder WPL WP4455979 $34.15

WP4455981 Whirlpool Burner Head Backorder WPL WP4455981 $52.72

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP9755428 Whirlpool Orifice Spud In Stock WPL WP9755428 $14.68

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Head, Burner (14K LF) WPL 4455849 Contact Us For Availability

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

Liner, Door WPL 9781600GM Contact Us For Availability

Anti WPL 9751745 Contact Us For Availability

WPL 9752717 WPL 9752717 Contact Us For Availability

WPL 9751366 WPL 9751366 Contact Us For Availability

Head, Burner (Pad, Burner Ring) WPL 9754136 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability

Grease WPL 261582 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

Hanger, Cable WPL 9750984 Contact Us For Availability

WPL 9751868 WPL 9751868 Contact Us For Availability

WPL 9752769 WPL 9752769 Contact Us For Availability

WPL 9753374 WPL 9753374 Contact Us For Availability

WPL 9754004 WPL 9754004 Contact Us For Availability

WPL 9754005 WPL 9754005 Contact Us For Availability

WPL 9754011 WPL 9754011 Contact Us For Availability

WPL 9754289 WPL 9754289 Contact Us For Availability

WPL 9754301 WPL 9754301 Contact Us For Availability

WPL 9754366 WPL 9754366 Contact Us For Availability

WPL 9755018 WPL 9755018 Contact Us For Availability

WPL 9755193 WPL 9755193 Contact Us For Availability

WPL 9755256 WPL 9755256 Contact Us For Availability

WPL 9781055 WPL 9781055 Contact Us For Availability

WPL 9781555 WPL 9781555 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

Hinge, Door L or R WPL 9782005 Contact Us For Availability

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $68.85

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

For Stn. Steel MDL WPL 9750257 Contact Us For Availability

Drawer & Roller WPL 9780583 Contact Us For Availability

21

Bracket, Drawer WPL 9750169 Contact Us For Availability

21

Shield, Drawer WPL 9782051 Contact Us For Availability

814229 Whirlpool Primary Roller In Stock WPL 814229 $27.60

Sensor WPL 9782081 Contact Us For Availability

WPL 9752006 WPL 9752006 Contact Us For Availability

Plate, Reflector WPL 9782050 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $28.80

WP4159387 Whirlpool Compactor Screw Backorder WPL WP4159387 $2.51

WP9781049 Whirlpool Light Lens Backorder WPL WP9781049 $39.18

Retainer, Door WPL 9750676 Contact Us For Availability

WP3184533 Whirlpool Range Light Lens Gasket In Stock WPL WP3184533 $3.70

Spacer, Bottom Trim WPL 9781488 Contact Us For Availability

Front, Drawer (Black) WPL 9782108PB Contact Us For Availability

Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability

Front, Drawer (White) WPL 9782108PW Contact Us For Availability

Front, Drawer (For Stn.Steel Mdl.) WPL 9782109PB Contact Us For Availability

Shield, Heat WPL 9782326 Contact Us For Availability

25

Channel, Heat WPL 9750693 Contact Us For Availability

25

Vent Tube WPL 9751592 Contact Us For Availability

26

WPL 9751664 WPL 9751664 Contact Us For Availability

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

WPL 9781884FB WPL 9781884FB Contact Us For Availability

WPL 9781884FC WPL 9781884FC Contact Us For Availability

WPL 9781884FW WPL 9781884FW Contact Us For Availability

WPL 9781885FB WPL 9781885FB Contact Us For Availability

WPL 9781885FC WPL 9781885FC Contact Us For Availability

WPL 9781885FW WPL 9781885FW Contact Us For Availability

WP9753292 Whirlpool Backsplash Glass Backorder WPL WP9753292 $146.14

WPL 9753910CW WPL 9753910CW Contact Us For Availability

WPL 9753910CB WPL 9753910CB Contact Us For Availability

WPL 9753910CC WPL 9753910CC Contact Us For Availability

Retainer, Glass WPL 9781502 Contact Us For Availability

29

Door Switch WPL 9755192 Contact Us For Availability

30

WPL 9754071 WPL 9754071 Contact Us For Availability

30

Screw WPL 3400075 Contact Us For Availability

30

Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability

31

WPW10001180 Whirlpool Refrigerator Screw Backorder WPL WPW10001180 $2.38

31

Screw, 8-18 x 3/8 WPL 9780270 Contact Us For Availability

33

WPL 3149333 WPL 3149333 Contact Us For Availability

33

Stainless Model WPL ARI88120A3 Contact Us For Availability

34

WPL 9751871 WPL 9751871 Contact Us For Availability

34

Trim, Drawer-Top WPL 9750614PB Contact Us For Availability

35

Spacer WPL 9753329 Contact Us For Availability

36

Panel, Drawer WPL 9754062 Contact Us For Availability

37

Trim, Drawer-Btm WPL 9750613PB Contact Us For Availability
