Model Whirlpool KGRT600HWH9 GAS RANGE – Common Parts & Diagrams

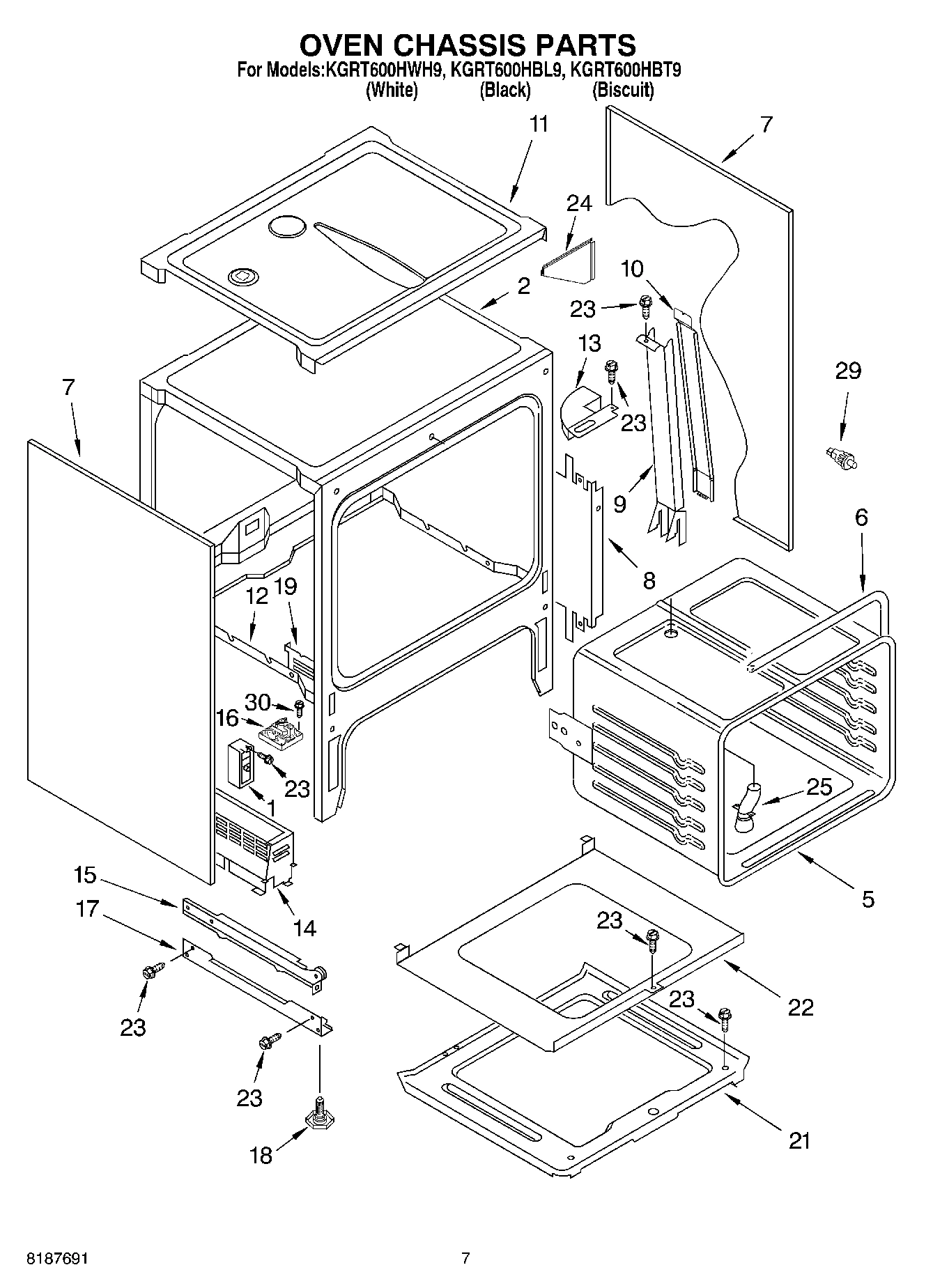

05 - OVEN CHASSIS
02 - COOKTOP BURNER

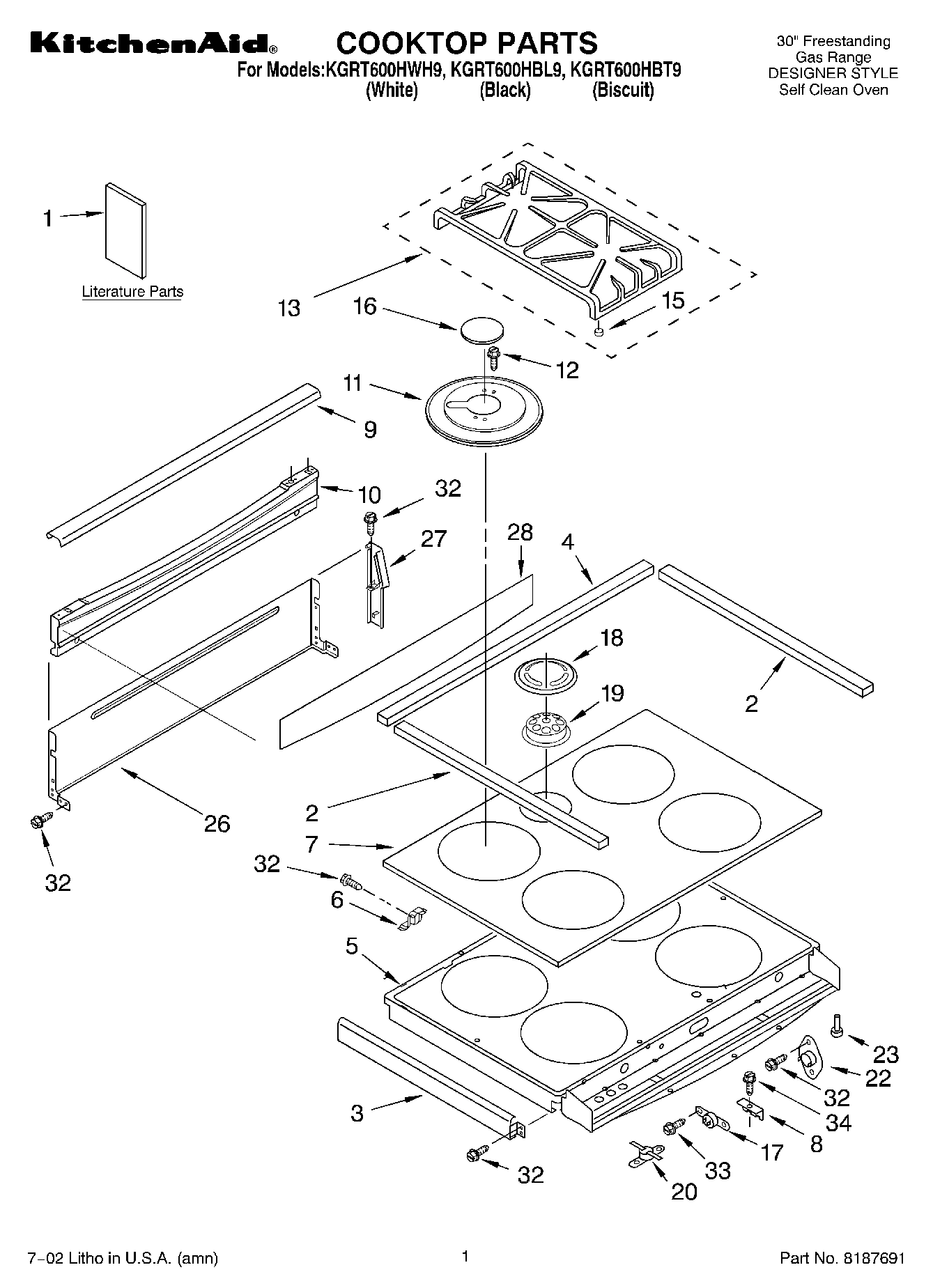

01 - COOKTOP, LITERATURE

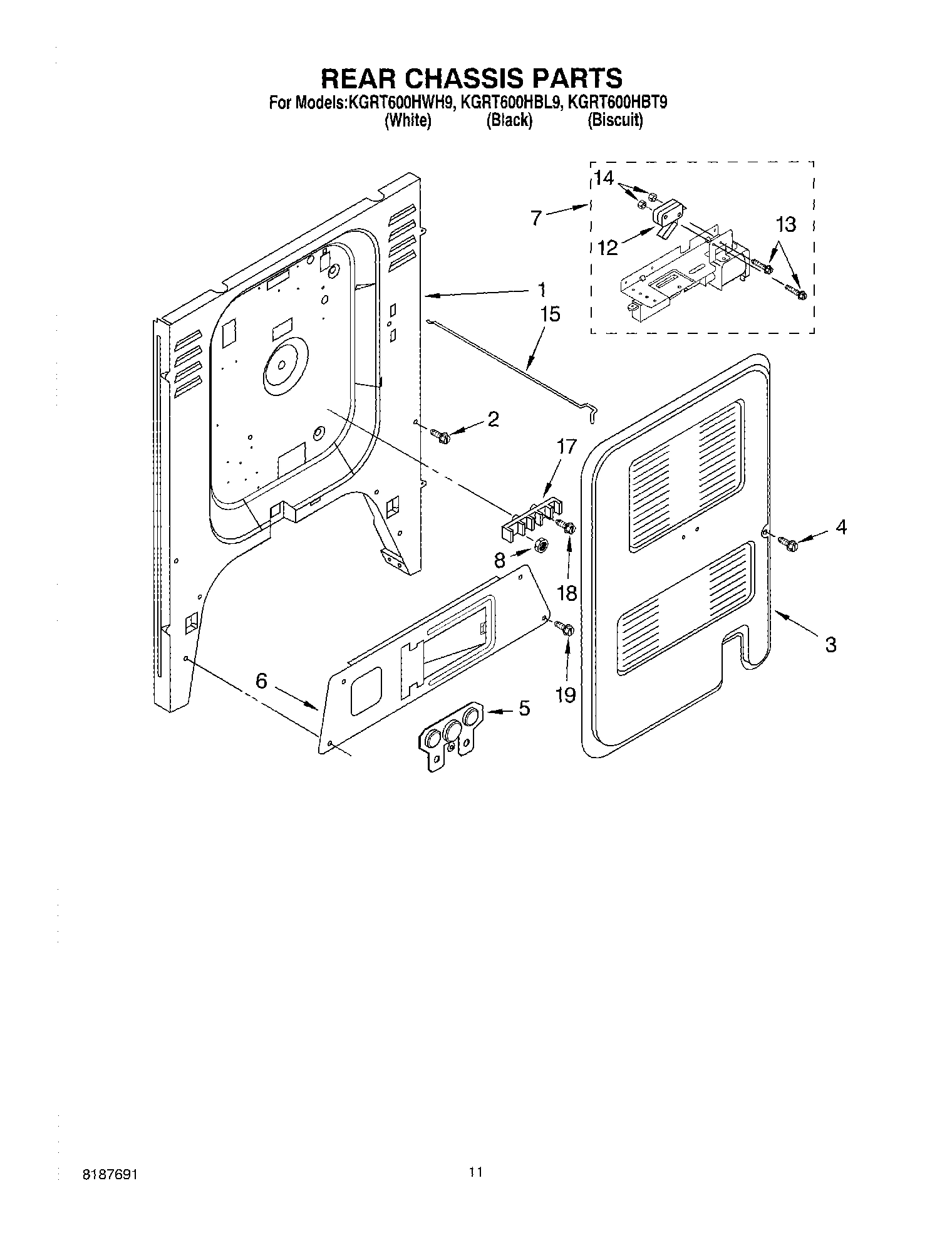

08 - REAR CHASSIS

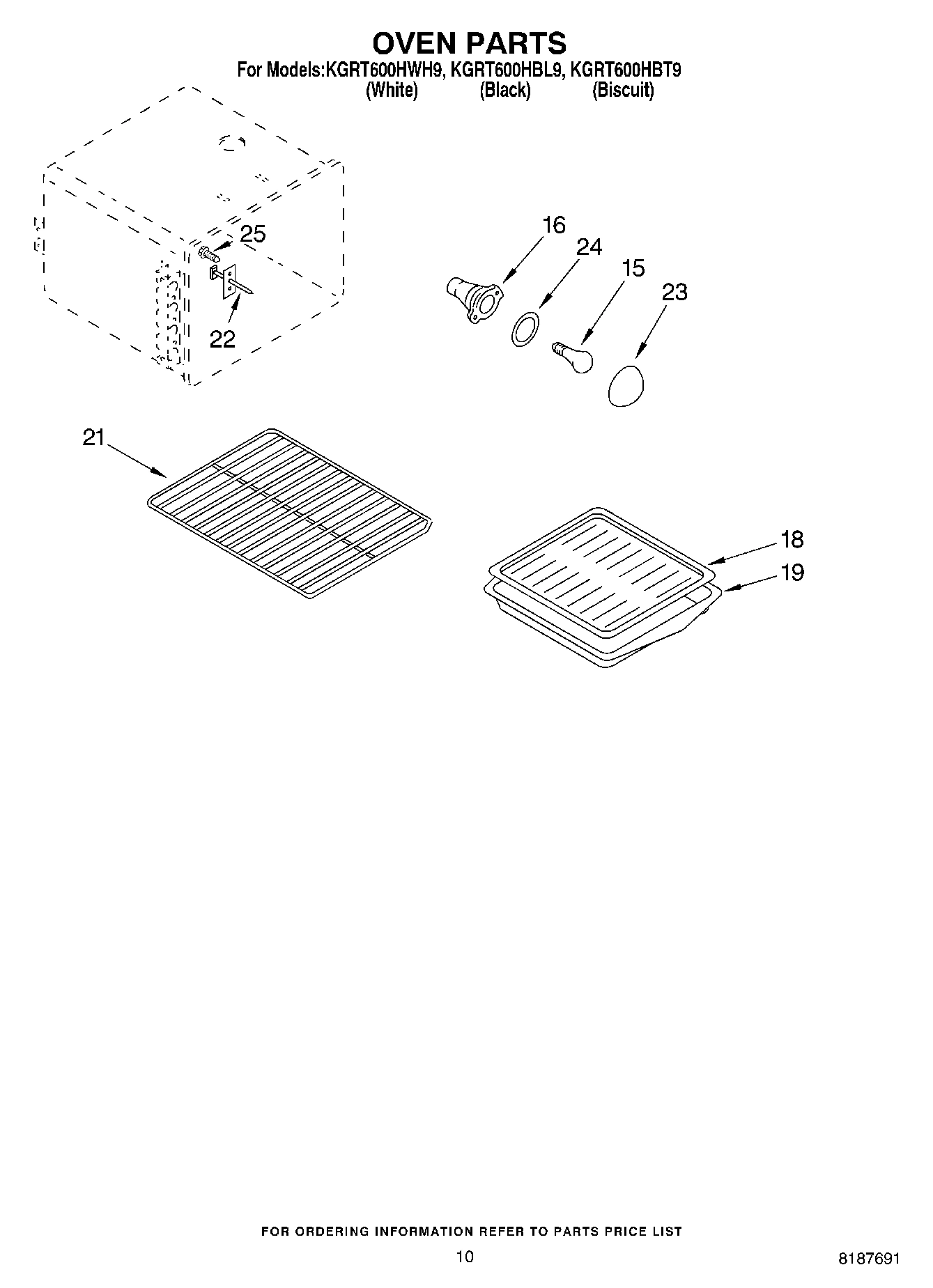

07 - OVEN

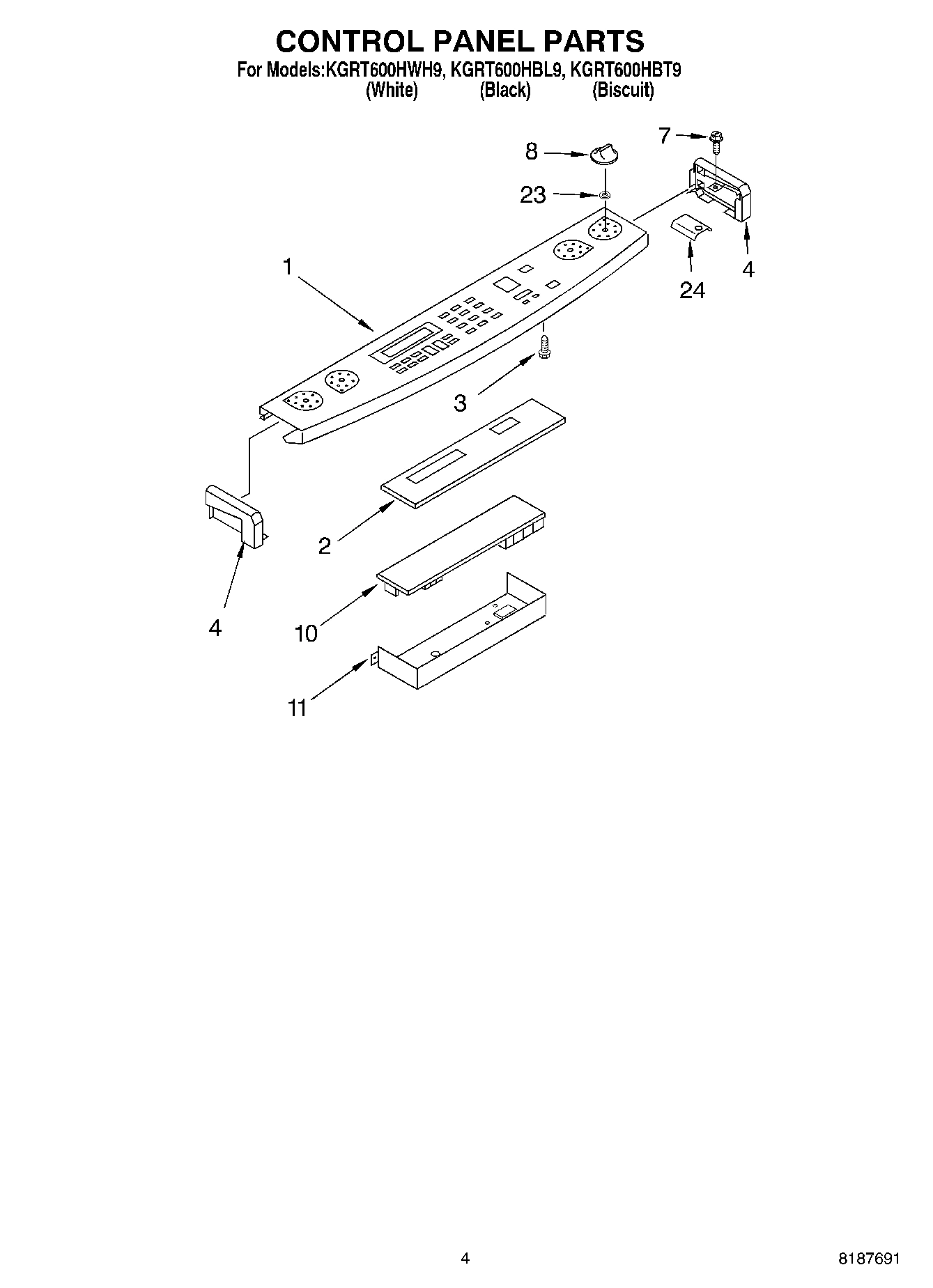

03 - CONTROL PANEL

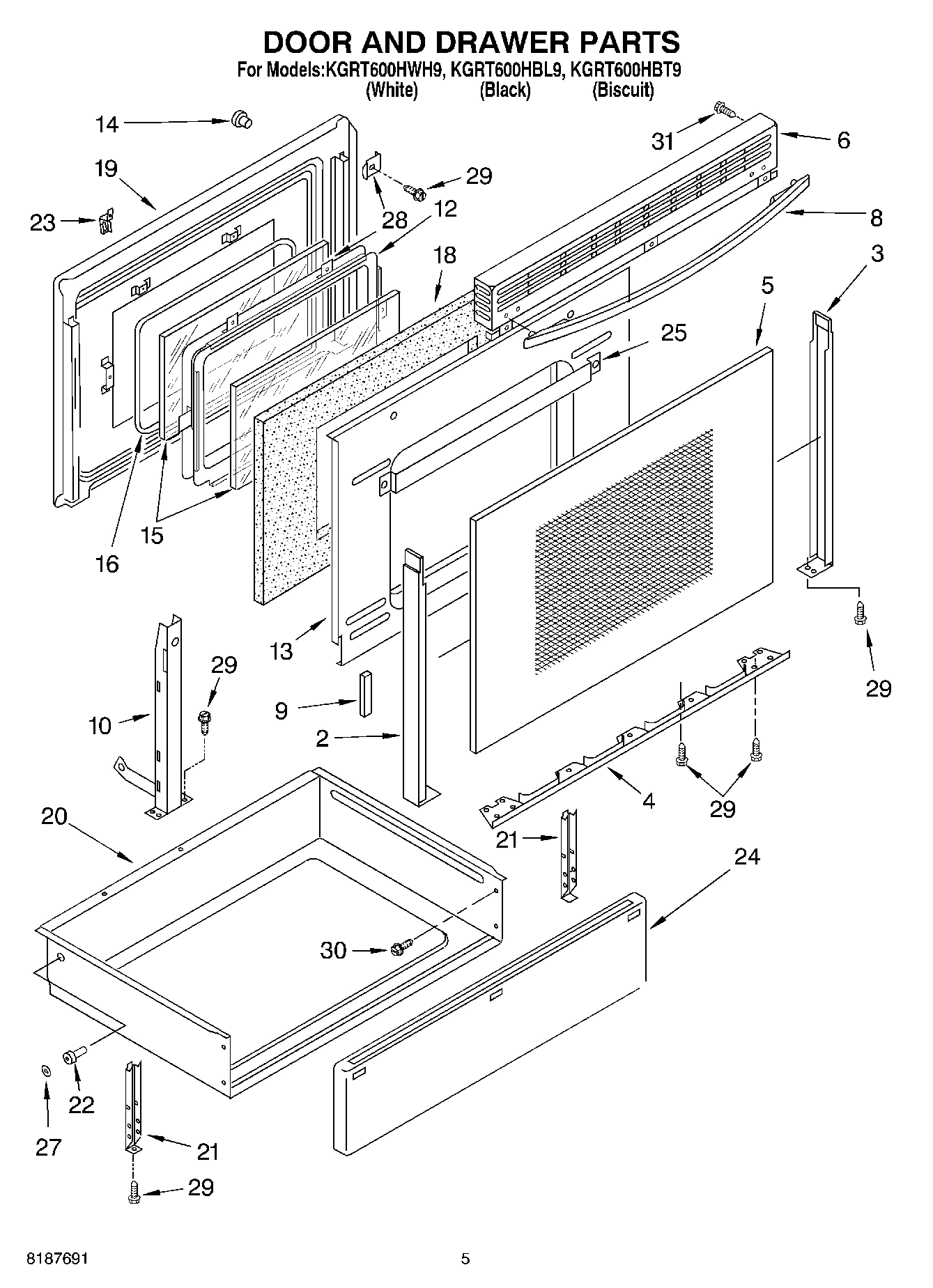

04 - DOOR AND DRAWER

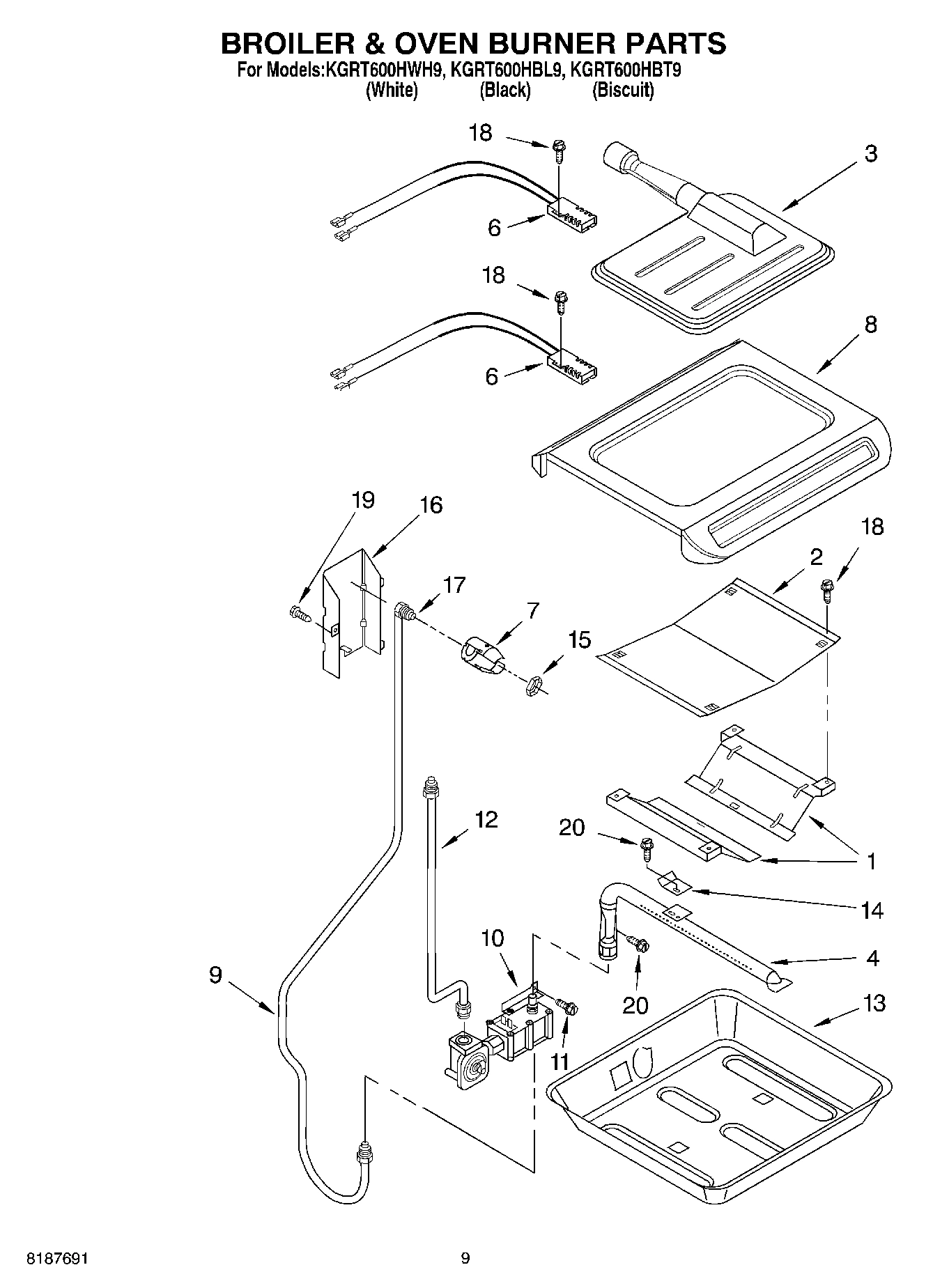

06 - BROILER AND OVEN BURNER
Common parts from model Whirlpool KGRT600HWH9 GAS RANGE
1
Burner Base W/Orifices (6K RF-LR) WPL 9782447 Contact Us For Availability
1
Back, Chassis WPL 9751051 Contact Us For Availability
1
Console, Glass (Black) WPL 9782422CB Contact Us For Availability
1
Console, Glass (Biscuit) WPL 9782422CC Contact Us For Availability
1
Console, Glass (White) WPL 9782422CW Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
2
Board, Display WPL 9782431 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 9782003PB Contact Us For Availability
2
Trim, Door-Left (Biscuit) WPL 9782003PC Contact Us For Availability
2
Trim, Door-Left (White) WPL 9782003PW Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
3
Trim, Cooktop (Right Hand) (Black) WPL 9751275PB Contact Us For Availability
3
Trim, Cooktop (Right Hand) (Biscuit (Left Han WPL 9751275PC Contact Us For Availability
3
Trim, Cooktop (Right Hand) (White) WPL 9751275PW Contact Us For Availability
3
Trim, Cooktop (Right Hand) (Black) WPL 9751276PB Contact Us For Availability
3
Trim, Cooktop (Right Hand) (Biscuit) WPL 9751276PC Contact Us For Availability
3
Trim, Cooktop (Right Hand) (White) WPL 9751276PW Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Screw, 8-18 x 1/4`` WPL 9780271 Contact Us For Availability
3
Trim, Door-Right (Black) WPL 9782004PB Contact Us For Availability
3
Trim, Door-Right (Biscuit) WPL 9782004PC Contact Us For Availability
3
Trim, Door-Right (White) WPL 9782004PW Contact Us For Availability
3
Burner, Broiler WPL 9752922 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Gasket, Cooktop WPL 9781982 Contact Us For Availability
4
Screw, 10-16 x 3/8 WPL 423247 Contact Us For Availability
4
End Cap Right Hand (Black) WPL 9751279FB Contact Us For Availability
4
End Cap Right Hand (Biscuit) WPL 9751279FC Contact Us For Availability
4
End Cap Right Hand (White) WPL 9751279FW Contact Us For Availability
4
End Cap (Right Hand) (Black) WPL 9751280FB Contact Us For Availability
4
End Cap Right Hand (Biscuit Left Hand) WPL 9751280FC Contact Us For Availability
4
End Cap (Right Hand) (White) WPL 9751280FW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom (Biscuit) WPL 9781209PC Contact Us For Availability
4
Trim, Door Bottom (White) WPL 9781209PW Contact Us For Availability
5
Glass, Door (Black) WPL 9781627PB Contact Us For Availability
5
Suppressor, Trans WPL 9755444 Contact Us For Availability
5
Support, Burner WPL 9754197 Contact Us For Availability
5
Glass, Door (Biscuit) WPL 9781627PC Contact Us For Availability
5
Glass, Door (White) WPL 9781627PW Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Washer, Pivot WPL 9752003 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Vent, Door (Black) WPL 9753498GB Contact Us For Availability
6
Vent, Door (Biscuit) WPL 9753498GC Contact Us For Availability
6
Vent, Door (White) WPL 9753498GW Contact Us For Availability
6
Vent, Door (Seal, Door) WPL 9781490 Contact Us For Availability
6
Vent, Door (Gasket, Vent) WPL 9781659 Contact Us For Availability
7
Cooktop, Glass (Black) WPL 9753606CB Contact Us For Availability
7
Cooktop, Glass (Biscuit) WPL 9753606CT Contact Us For Availability
7
Cooktop, Glass (White) WPL 9753606CW Contact Us For Availability
7
Oven Lock Assy. WPL 9755001 Contact Us For Availability
7
Bracket, Broil Shooter WPL 9752858 Contact Us For Availability
8
Knobs, Control (White) WPL 9751199FW Contact Us For Availability
8
Bracket, Support WPL 9753691 Contact Us For Availability
8
Knobs, Control (Biscuit) WPL 9751199FC Contact Us For Availability
8
Handle, Door (Black) WPL 9780523PB Contact Us For Availability
8
Handle, Door (Biscuit) WPL 9780523PC Contact Us For Availability
8
Handle, Door (White) WPL 9780523PW Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
9
Cover, Light (White) WPL 9751327 Contact Us For Availability
9
Cover, Light (Black) WPL 9751632 Contact Us For Availability
9
Cover, Light (Biscuit) WPL 9753320 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Tubing, Broil WPL 9782061 Contact Us For Availability
10
Backsplash (Black) WPL 9781896GB Contact Us For Availability
10
Backsplash (Biscuit) WPL 9781896GC Contact Us For Availability
10
Backsplash (White) WPL 9781896GW Contact Us For Availability
10
Board, Power WPL 9782436 Contact Us For Availability
11
Bezel, Burner (14K LF) WPL 9753600GB Contact Us For Availability
11
Bezel, Burner (6K RF-LR) WPL 9753601GB Contact Us For Availability
11
Bezel, Burner (12K RR) WPL 9753602GB Contact Us For Availability
11
Shield, Control Panel WPL 9755021 Contact Us For Availability
12
Switch, Interlock WPL 9754291 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Tubing, Valve To Regulator WPL 9781015 Contact Us For Availability
13
Grate, 2 Burner WPL 9753616GB Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Nut No.18 5/8 WPL 9751203 Contact Us For Availability
16
Orifice, Burner (6K RF-LR) WPL 9753928 Contact Us For Availability
16
Cap, Burner (14K LF) WPL 9753939GB Contact Us For Availability
16
Coverbox (Broiler Tubing) WPL 9752920 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Orifice No.54 WPL 9752716 Contact Us For Availability
18
Cap, Vent WPL 9751271GB Contact Us For Availability
18
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
WPL W10355051 No Longer Available
19
Head, Burner (14K LF) WPL 4455849 Contact Us For Availability
19
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
19
WPL 9751745 WPL 9751745 Contact Us For Availability
19
WPL 9752717 WPL 9752717 Contact Us For Availability
19
Cap, Vent WPL 9751366 Contact Us For Availability
19
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
19
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
19
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
19
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
19
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
19
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
19
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
19
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
19
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
19
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
19
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
19
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
19
Grease WPL 261582 Contact Us For Availability
19
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
19
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
19
WPL 9751868 WPL 9751868 Contact Us For Availability
19
WPL 9753604 WPL 9753604 Contact Us For Availability
19
WPL 9754004 WPL 9754004 Contact Us For Availability
19
WPL 9754005 WPL 9754005 Contact Us For Availability
19
WPL 9754011 WPL 9754011 Contact Us For Availability
19
WPL 9754301 WPL 9754301 Contact Us For Availability
19
WPL 9754366 WPL 9754366 Contact Us For Availability
19
WPL 9755193 WPL 9755193 Contact Us For Availability
19
WPL 9781055 WPL 9781055 Contact Us For Availability
19
WPL 9781555 WPL 9781555 Contact Us For Availability
19
WPL 9782111 WPL 9782111 Contact Us For Availability
19
WPL 9782344 WPL 9782344 Contact Us For Availability
19
WPL 9782443 WPL 9782443 Contact Us For Availability
19
WPL 9782454 WPL 9782454 Contact Us For Availability
19
WPL 9782460 WPL 9782460 Contact Us For Availability
19
WPL 9782464 WPL 9782464 Contact Us For Availability
19
WPL 9782466 WPL 9782466 Contact Us For Availability
19
WPL 978883 WPL 978883 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Screw, 10-24x3/8 WPL 9751643 Contact Us For Availability
21
Rack, Standard (3) WPL 9750498 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 9782081 Contact Us For Availability
22
Thermostat, Fixed WPL 9752006 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
24
Spacer, Bottom Trim WPL 9781488 Contact Us For Availability
24
Front, Drawer (Black) WPL 9782108PB Contact Us For Availability
24
Front, Drawer (Biscuit) WPL 9782108PC Contact Us For Availability
24
Front, Drawer (White) WPL 9782108PW Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
26
WPL 9751664 WPL 9751664 Contact Us For Availability
27
WPL 9781884FB WPL 9781884FB Contact Us For Availability
27
WPL 9781884FC WPL 9781884FC Contact Us For Availability
27
WPL 9781884FW WPL 9781884FW Contact Us For Availability
27
WPL 9781885FB WPL 9781885FB Contact Us For Availability
27
WPL 9781885FC WPL 9781885FC Contact Us For Availability
27
WPL 9781885FW WPL 9781885FW Contact Us For Availability
28
WPL 9753910CW WPL 9753910CW Contact Us For Availability
28
WPL 9753910CB WPL 9753910CB Contact Us For Availability
28
WPL 9753910CC WPL 9753910CC Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9755192 Contact Us For Availability
30
Screw WPL 9780272 Contact Us For Availability
33
WPL 3149333 WPL 3149333 Contact Us For Availability
34
WPL 9751871 WPL 9751871 Contact Us For Availability
34
WPL 9754136 WPL 9754136 Contact Us For Availability
× ![]()
