Model Whirlpool KGRT507BWH2 GAS RANGE – Common Parts & Diagrams

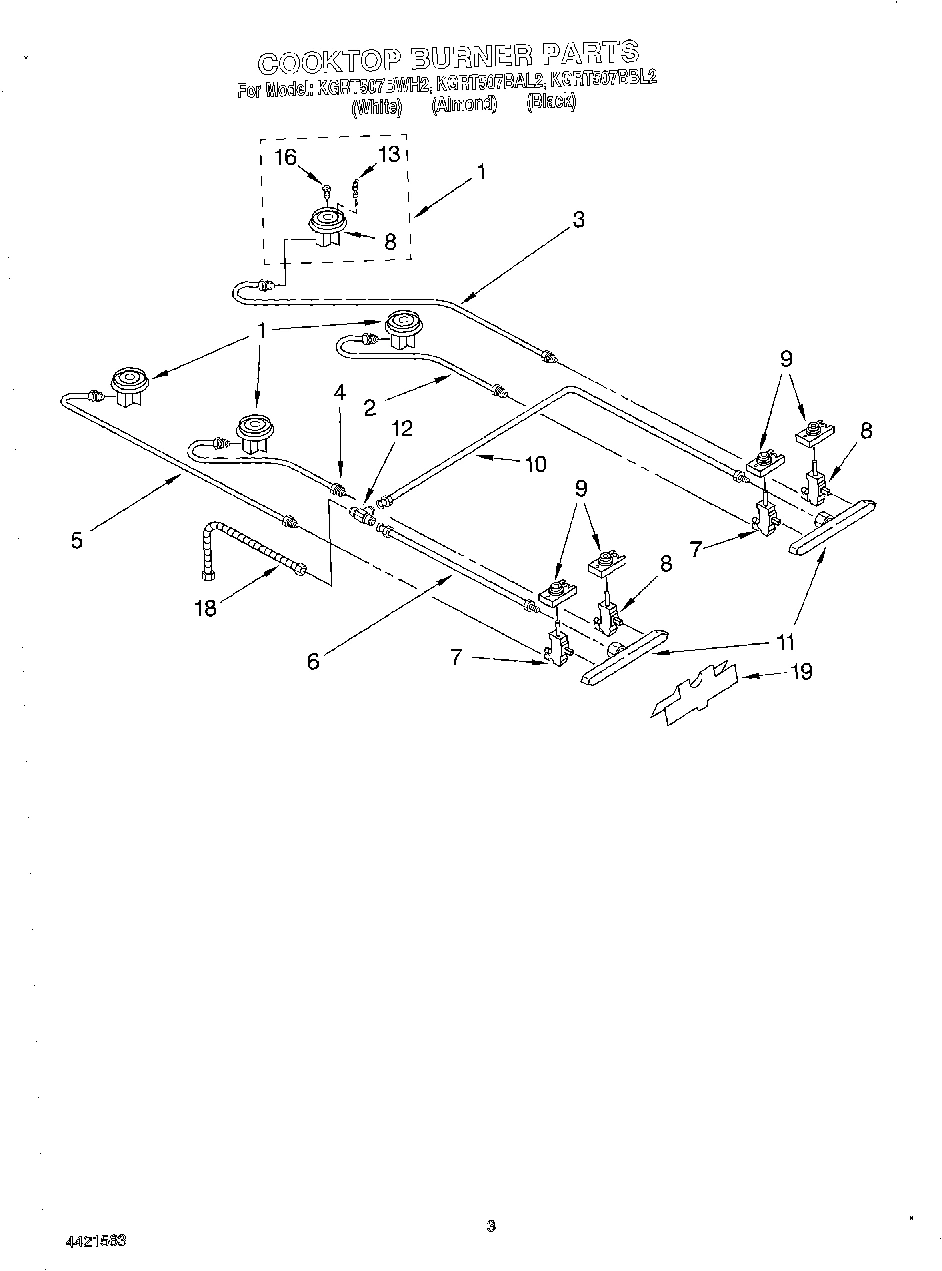

02 - COOKTOP BURNER

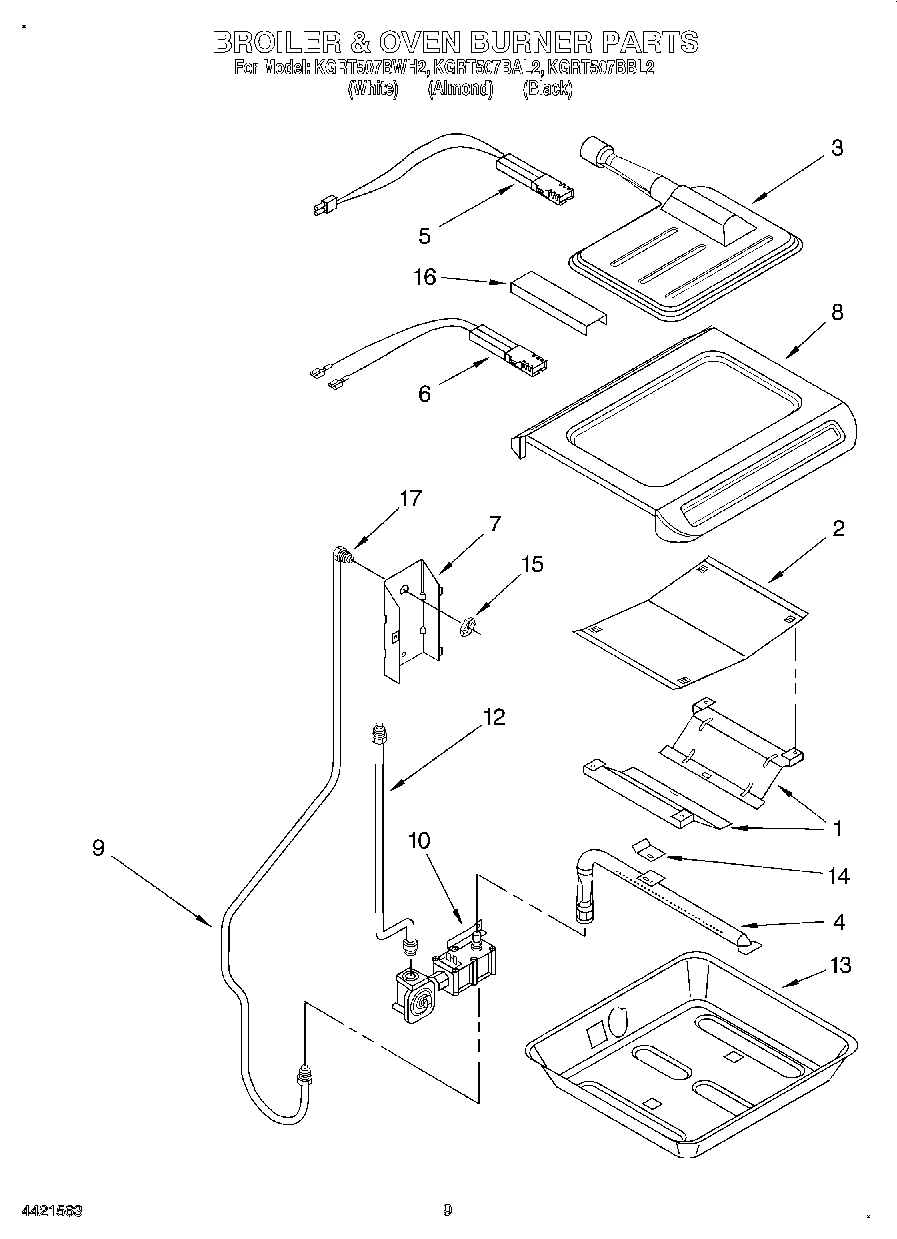

06 - BROILER AND OVEN

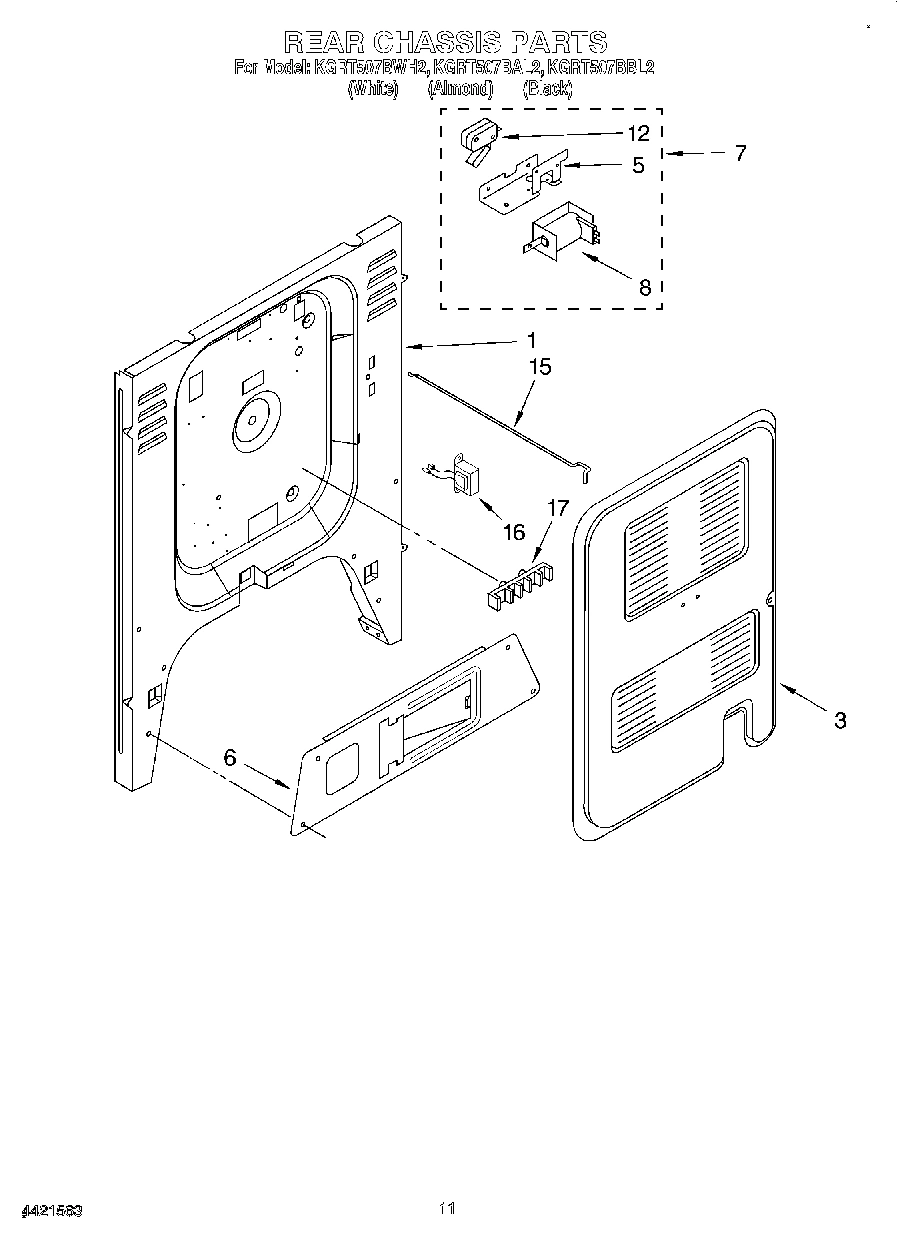

08 - REAR CHASSIS, OPTIONAL

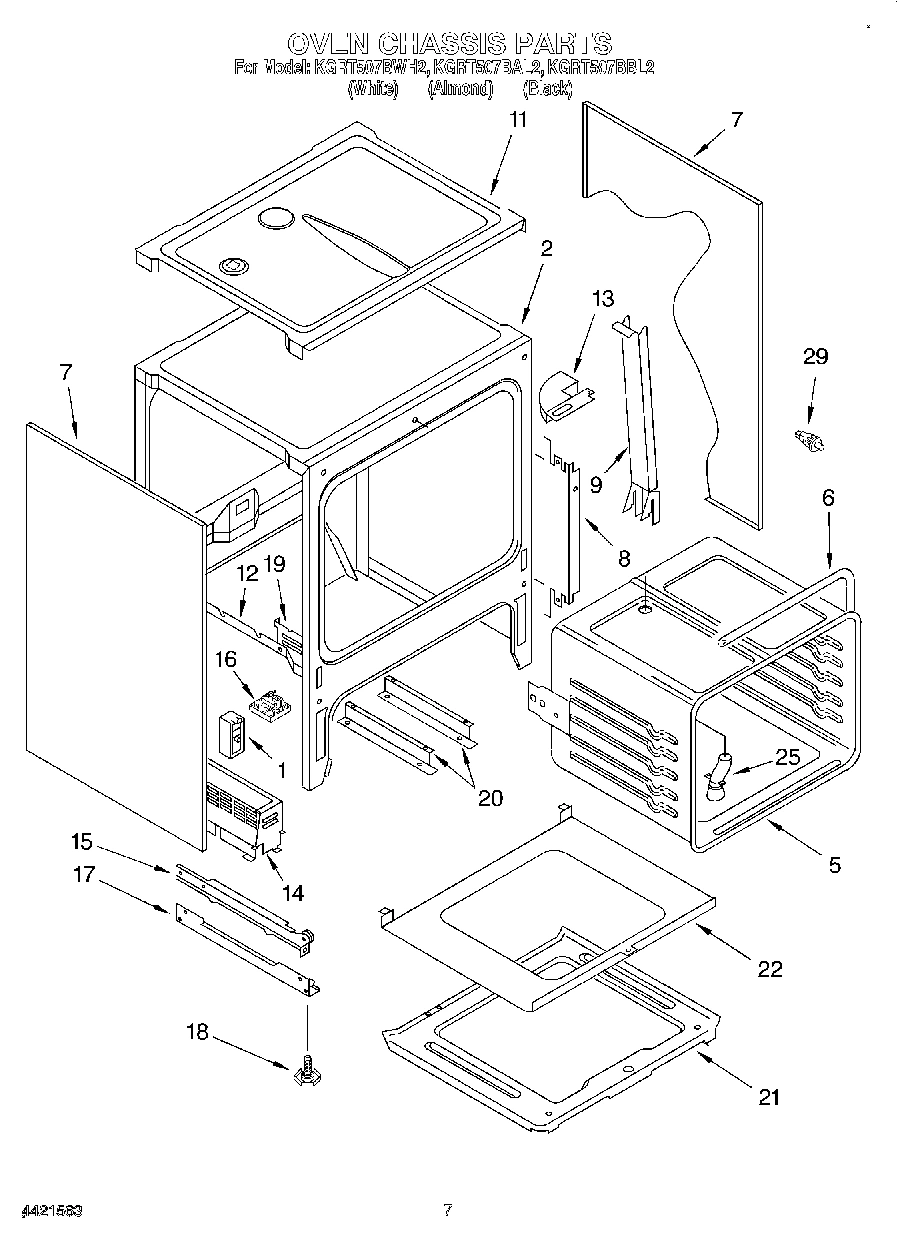

05 - OVEN CHASSIS

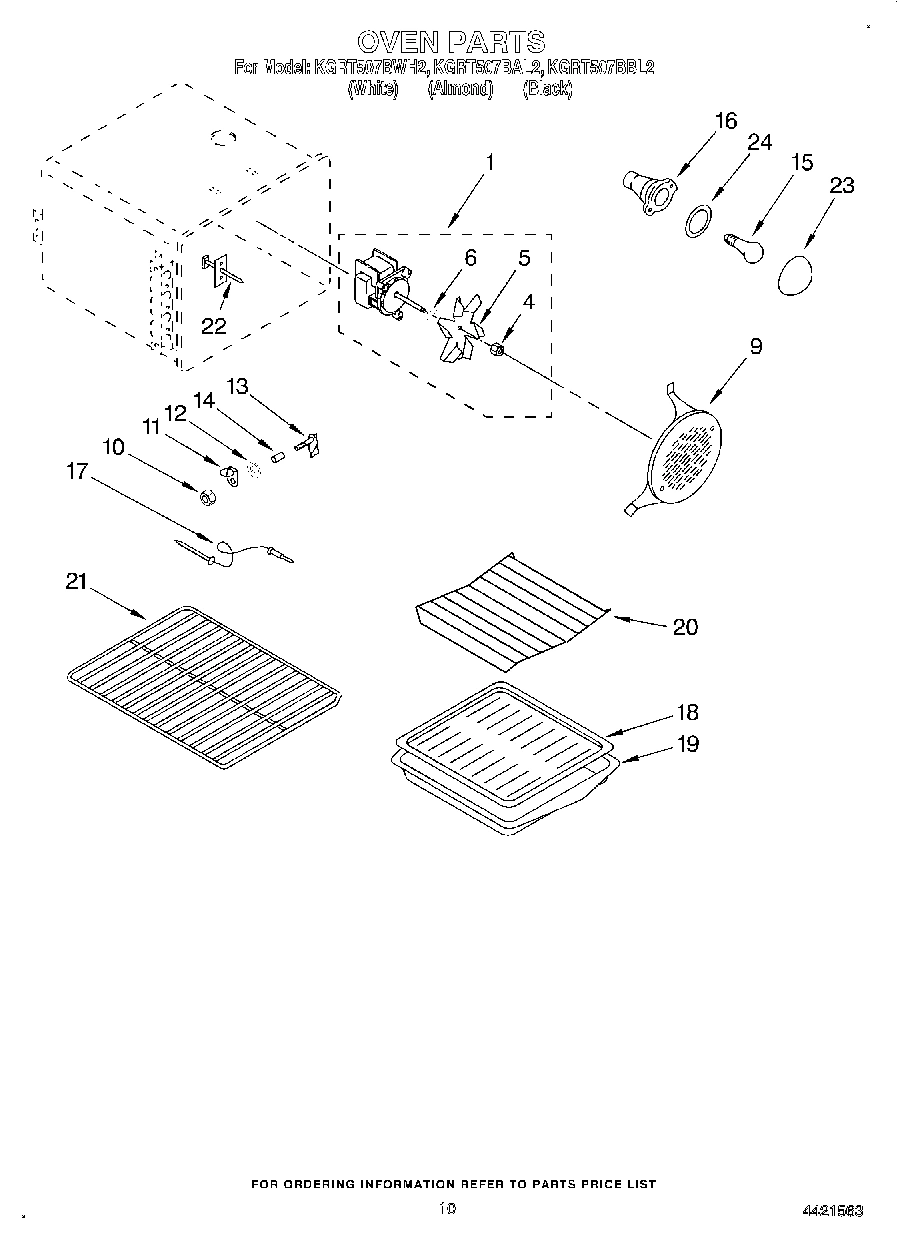

07 - OVEN

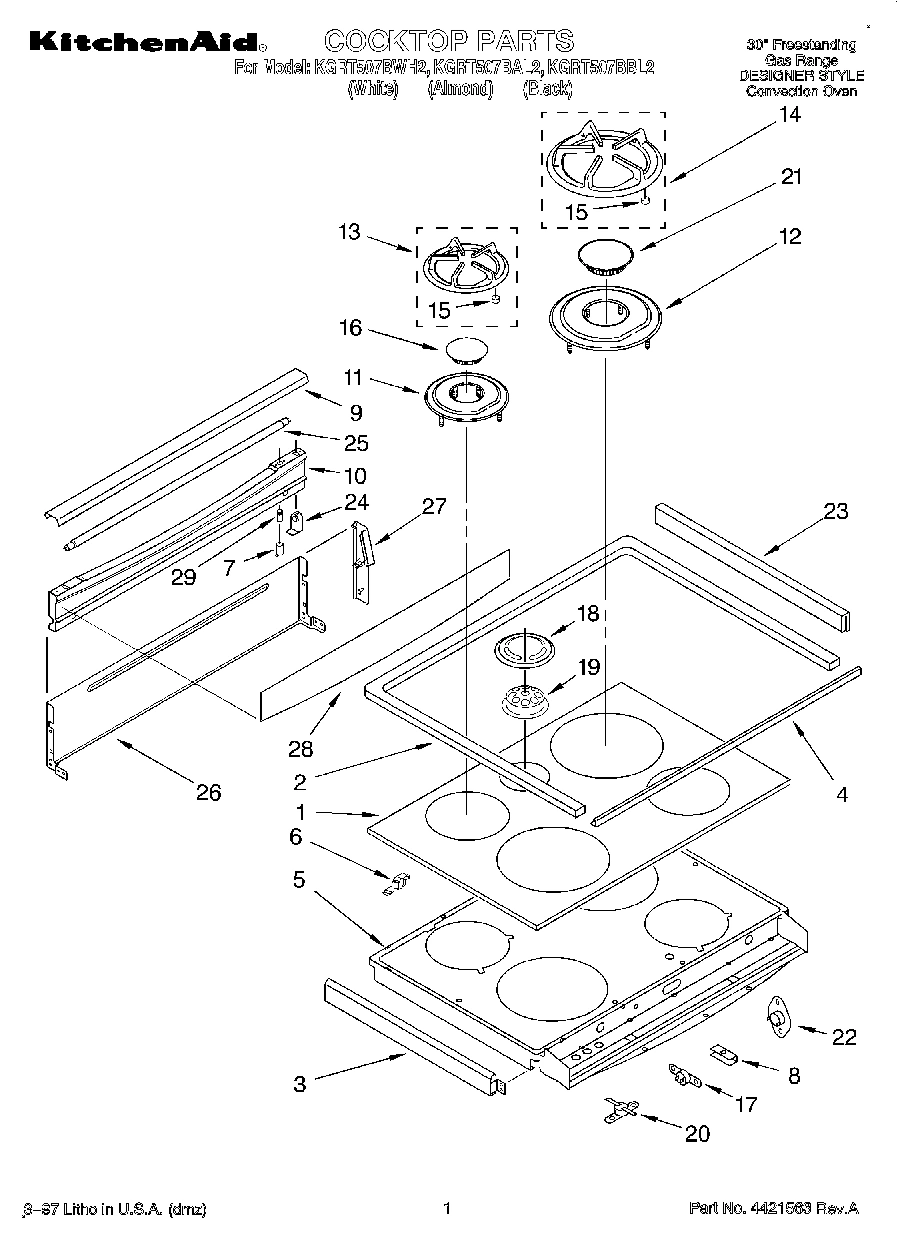

01 - COOKTOP, LITERATURE

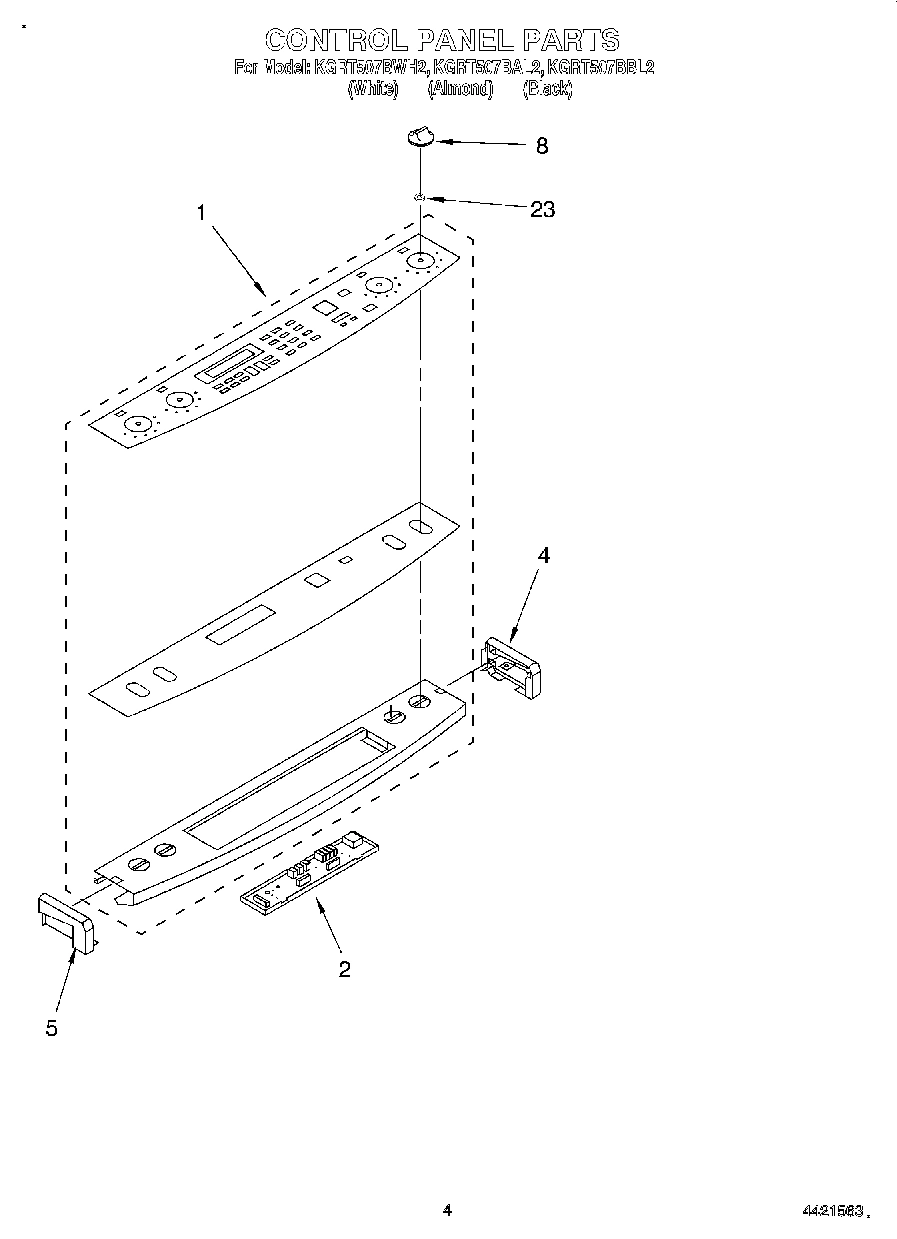

03 - CONTROL PANEL

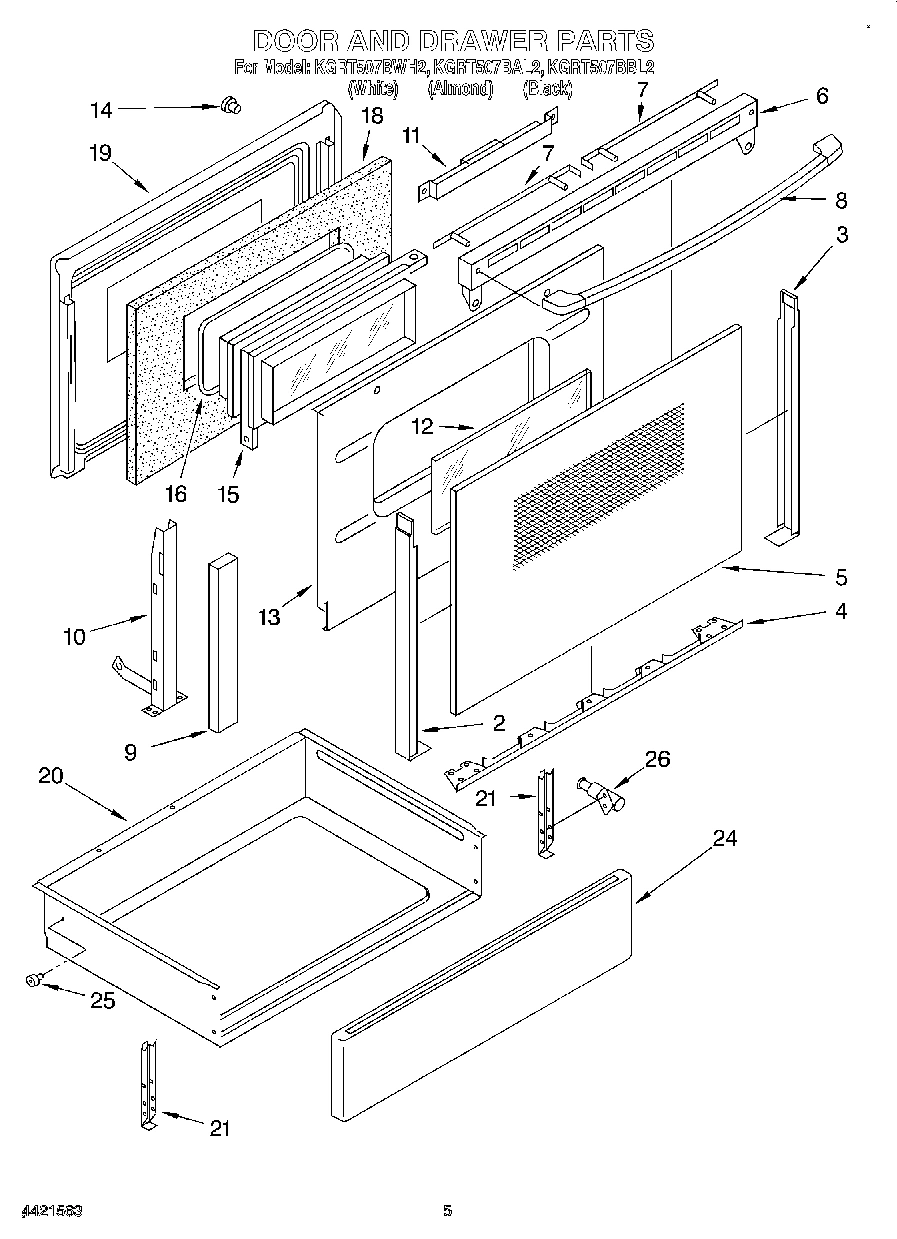

04 - DOOR AND DRAWER
Common parts from model Whirlpool KGRT507BWH2 GAS RANGE
WPL LIT9751683 WPL LIT9751683 Contact Us For Availability
WPL LIT9751686 WPL LIT9751686 Contact Us For Availability
WPL LIT9751761 WPL LIT9751761 Contact Us For Availability
WPL LIT9752390 WPL LIT9752390 Contact Us For Availability
WPL LIT9752669 WPL LIT9752669 Contact Us For Availability
WPL LIT9780959 WPL LIT9780959 Contact Us For Availability
1
Assembly, Fan WPL 9781543 Contact Us For Availability
1
Back, Chassis WPL 9751051 Contact Us For Availability
1
Cooktop, Ceran (White) WPL 9751034 Contact Us For Availability
1
Cooktop, Ceran (Almond) WPL 9751340 Contact Us For Availability
1
Cooktop, Ceran (Black) WPL 9751341 Contact Us For Availability
1
Console, Glass (White Mdl.) WPL 9751888 Contact Us For Availability
1
Console, Glass (Almond Mdl.) WPL 9751892 Contact Us For Availability
1
Console, Glass (Black Mdl.) WPL 9751894 Contact Us For Availability
2
Chassis, Front WPL 4212002 Contact Us For Availability
2
Timer, Electronic WPL 3190378 Contact Us For Availability
2
Trim, Door-Left (Black) WPL 4211899 Contact Us For Availability
2
Trim, Door-Left (White) WPL 4212028 Contact Us For Availability
2
Trim, Door-Left (Almond) WPL 9750631PT Contact Us For Availability
3
Screw, (2) WPL 4211813 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Cooktop (Black (Right)) WPL 9751275PB Contact Us For Availability
3
Trim, Cooktop (Almond (Right)) WPL 9751275PT Contact Us For Availability
3
Trim, Cooktop (White (Right)) WPL 9751275PW Contact Us For Availability
3
Trim, Cooktop (Black, Left) WPL 9751276PB Contact Us For Availability
3
Trim, Cooktop (Left Hand) (Almond) WPL 9751276PT Contact Us For Availability
3
(Trim, Cooktop (Left Hand)) (White) WPL 9751276PW Contact Us For Availability
3
Trim, Door-Right (Black) WPL 4211900 Contact Us For Availability
3
Trim, Door-Right (White) WPL 4212029 Contact Us For Availability
3
Trim, Door-Right (Almond) WPL 9750632PT Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Nut WPL 4173237 Contact Us For Availability
4
Gasket, Cooktop (Black) WPL 9752026 Contact Us For Availability
4
Gasket, Cooktop (Almond) WPL 9752028 Contact Us For Availability
4
Gasket, Cooktop (Grey) WPL 9752029 Contact Us For Availability
4
End Cap (Black, Right) WPL 9751280FB Contact Us For Availability
4
End Cap R.H. (Almond) WPL 9751280FT Contact Us For Availability
4
End Cap (White, Right) WPL 9751280FW Contact Us For Availability
4
Trim, Door Bottom (Black) WPL 4211924 Contact Us For Availability
4
Trim, Door Bottom (White) WPL 4212030 Contact Us For Availability
4
Trim, Door Bottom (Almond) WPL 9750236PT Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Oven Liner WPL 9781048GM Contact Us For Availability
5
Fan WPL 9751117 Contact Us For Availability
5
Support, Element WPL 9751274 Contact Us For Availability
5
End Cap L.H. (Black) WPL 9751279FB Contact Us For Availability
5
End Cap L.H. (Almond) WPL 9751279FT Contact Us For Availability
5
End Cap L.H. (White) WPL 9751279FW Contact Us For Availability
5
Glass, Door (White) WPL 9751769 Contact Us For Availability
5
Glass, Door (Almond) WPL 9751770 Contact Us For Availability
5
Glass, Door (Black) WPL 9751771 Contact Us For Availability
6
Ignitor, Oven Burner WPL 9751123 Contact Us For Availability
6
Vent, Door (Screw (2) 10AB x 1/2) WPL 3149333 Contact Us For Availability
6
Bracket, Regulator Valve WPL 9751500 Contact Us For Availability
6
Gasket Oven WPL 9750247 Contact Us For Availability
6
Shim Ring WPL 4173238 Contact Us For Availability
6
Bracket, Pivot WPL 9751629 Contact Us For Availability
6
Vent, Door (White) WPL 4212224 Contact Us For Availability
6
Vent, Door (Black) WPL 4212225 Contact Us For Availability
6
Vent, Door (Almond) WPL 4421443 Contact Us For Availability
7
Oven Lock Assembly WPL 9751439 Contact Us For Availability
7
Oven , Side L or R (Black) WPL 4211895 Contact Us For Availability
7
Oven , Side L or R (White) WPL 4211896 Contact Us For Availability
7
Oven , Side L or R (Almond) WPL 4211897 Contact Us For Availability
7
Starter, Holder WPL 9750866 Contact Us For Availability
7
Vent Back WPL 9750898 Contact Us For Availability
8
Knobs, Control (White Mdl.) WPL 9751199FW Contact Us For Availability
8
Washer WPL 4211875 Contact Us For Availability
8
Screw (2) WPL 4211945 Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
8
Support Clips (4) WPL 9750821 Contact Us For Availability
8
Screw (4) WPL 9751871 Contact Us For Availability
8
Knobs, Control (Almond Mdl.) WPL 9751199FT Contact Us For Availability
8
Handle, Door (Black) WPL 4212058 Contact Us For Availability
8
Handle, Door (White) WPL 4212069 Contact Us For Availability
8
Handle, Door (Almond Mdl.) WPL 4421442 Contact Us For Availability
9
Switch, Ignitor (4) WPL 9751325 Contact Us For Availability
9
Duct, Side Fan WPL 9751789 Contact Us For Availability
9
Screw (2) 8 x 3/8 WPL 9780270 Contact Us For Availability
9
Baffle, Convection WPL 9751904GM Contact Us For Availability
9
Cover, Light (White) WPL 9751327 Contact Us For Availability
9
Cover, Light (Black) WPL 9751632 Contact Us For Availability
9
Cover, Light (Almond) WPL 9751633 Contact Us For Availability
9
Gasket, Door Glass WPL 9750694 Contact Us For Availability
10
Lock-Nut, Cvr.Jack WPL 4167277 Contact Us For Availability
10
Backsplash (Black) WPL 9751266GB Contact Us For Availability
10
Backsplash (Almond) WPL 9751266GT Contact Us For Availability
10
Backsplash (White) WPL 9751266GW Contact Us For Availability
11
Screw, No.8-32 x 3/8 WPL 9780269 Contact Us For Availability
11
Burner Box WPL 9751166 Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Jack Cover WPL 4167266 Contact Us For Availability
11
Bezel, Small LR-RF (Black Mdl.) WPL 3185815 Contact Us For Availability
11
Bezel, Small LR-RF (Almond Mdl.) WPL 3185816 Contact Us For Availability
11
Bezel, Small LR-RF (White Mdl.) WPL 3185817 Contact Us For Availability
11
Channel, Heat WPL 9750693 Contact Us For Availability
12
Baffle, Glass WPL 9750634 Contact Us For Availability
12
Screw, (2) WPL 9750887 Contact Us For Availability
12
Nut (2) WPL 9750888 Contact Us For Availability
12
Switch, Interlock WPL 9751763 Contact Us For Availability
12
Oven Bottom WPL 9781043 Contact Us For Availability
12
Gasket WPL 4163975 Contact Us For Availability
12
Bezel, Large RR-LF (Nut, Zinc No.8-32) WPL 4166262 Contact Us For Availability
12
Bezel, Large RR-LF (Black Mdl.) WPL 3185818 Contact Us For Availability
12
Bezel, Large RR-LF (Almond Mdl.) WPL 3185819 Contact Us For Availability
12
Bezel, Large RR-LF (White Mdl.) WPL 3185820 Contact Us For Availability
13
Electrode WPL 3185804 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Receptacle, Probe WPL 3150107 Contact Us For Availability
13
Grates, Small (Black Mdl.) WPL 3186672 Contact Us For Availability
13
Grates, Small (Almond Mdl.) WPL 3186673 Contact Us For Availability
13
Grates, Small (White Mdl.) WPL 3186674 Contact Us For Availability
13
Shield Door WPL 4211941 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Spacer - Tubing WPL 3179672 Contact Us For Availability
14
Grates, Large (Black Mdl.) WPL 3186675 Contact Us For Availability
14
Grates, Large (Almond Mdl.) WPL 3186676 Contact Us For Availability
14
Grates, Large (White Mdl.) WPL 3186677 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Nut No.18 5/8 WPL 9751203 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Window Pack WPL 9751245 Contact Us For Availability
16
Bracket, Gas Broiler WPL 9752041 Contact Us For Availability
16
Ballast, Lamp WPL 9780881 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
16
Screw, (3) No.8 x 1`` WPL 9751808 Contact Us For Availability
16
WPL 3185795 WPL 3185795 Contact Us For Availability
16
WPL 3185796 WPL 3185796 Contact Us For Availability
16
WPL 3185797 WPL 3185797 Contact Us For Availability
16
Screw (2) 8 x 1/4 WPL 9780271 Contact Us For Availability
16
Seal, Glass WPL 9751135 Contact Us For Availability
17
WPL 341196 WPL 341196 Contact Us For Availability
17
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
17
WPL 799344 WPL 799344 Contact Us For Availability
17
Probe WPL 3150144 Contact Us For Availability
17
Orifice No.54 WPL 9752716 Contact Us For Availability
17
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
17
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
17
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
17
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
17
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
17
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
17
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
17
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
17
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
17
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
17
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
17
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
17
Grease WPL 261582 Contact Us For Availability
17
Coffee WPL 261886 Contact Us For Availability
17
New Avocado WPL 261888 Contact Us For Availability
17
Harvest Gold WPL 261890 Contact Us For Availability
17
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
17
Toast WPL 285365 Contact Us For Availability
17
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
17
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
17
Platinum (Uncut) WPL 285368 Contact Us For Availability
17
Harness, Wire (Spark Module) WPL 3190058 Contact Us For Availability
17
Harness, Wire (Main/Conv. Gas) WPL 3190207 Contact Us For Availability
17
Harness, Wire (Spar WPL 3190208 Contact Us For Availability
17
WPL 72108 WPL 72108 Contact Us For Availability
17
WPL 72112 WPL 72112 Contact Us For Availability
17
WPL 799832 WPL 799832 Contact Us For Availability
17
WPL 9750376 WPL 9750376 Contact Us For Availability
17
WPL 9751708 WPL 9751708 Contact Us For Availability
17
WPL 9751750 WPL 9751750 Contact Us For Availability
17
WPL 9751868 WPL 9751868 Contact Us For Availability
17
WPL 9752088 WPL 9752088 Contact Us For Availability
17
WPL 9781055 WPL 9781055 Contact Us For Availability
17
WPL 978883 WPL 978883 Contact Us For Availability
17
WPL 98884 WPL 98884 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
WPL 9751271GB WPL 9751271GB Contact Us For Availability
18
WPL 9751271GT WPL 9751271GT Contact Us For Availability
18
WPL 9751271GW WPL 9751271GW Contact Us For Availability
19
Hinge, Door L or R WPL 9750149 Contact Us For Availability
19
WPL 9751366 WPL 9751366 Contact Us For Availability
19
Liner, Door WPL 9781197GM Contact Us For Availability
20
Support Rail, Pan WPL 421771 Contact Us For Availability
20
Rack, Roasting WPL 3181534 Contact Us For Availability
20
Drawer & Roller WPL 9750257 Contact Us For Availability
21
Shield, Drawer WPL 9781025 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Rack, Standard (3) WPL 9750823 Contact Us For Availability
21
WPL 3185792 WPL 3185792 Contact Us For Availability
21
WPL 3185793 WPL 3185793 Contact Us For Availability
21
WPL 3185794 WPL 3185794 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
WPL 9752006 WPL 9752006 Contact Us For Availability
22
Plate, Reflectance WPL 9751641 Contact Us For Availability
22
Sensor WPL 3148440 Contact Us For Availability
22
Screw, (1) 8-32 x 3/8 WPL 9781509 Contact Us For Availability
23
WPL 9752034 WPL 9752034 Contact Us For Availability
23
Washer, Console (4) (Black Mdl.) WPL 9751449 Contact Us For Availability
23
Washer, Console (4) (White Mdl.) WPL 9751450 Contact Us For Availability
23
Washer, Console (4) (Almond Mdl.) WPL 9751451 Contact Us For Availability
24
WPL 9750273 WPL 9750273 Contact Us For Availability
24
Front, Drawer (White) WPL 4211992 Contact Us For Availability
24
Front, Drawer (Almond) WPL 4211993 Contact Us For Availability
24
Front, Drawer (Black) WPL 4212056 Contact Us For Availability
25
Vent Tube WPL 9751592 Contact Us For Availability
26
WPL 9751664 WPL 9751664 Contact Us For Availability
26
Latch, Drawer WPL 9751248 Contact Us For Availability
26
Screw, 4AB x 3/8 WPL 9780806 Contact Us For Availability
27
WPL 9751267FB WPL 9751267FB Contact Us For Availability
27
WPL 9751267FT WPL 9751267FT Contact Us For Availability
27
WPL 9751267FW WPL 9751267FW Contact Us For Availability
27
WPL 9751268FB WPL 9751268FB Contact Us For Availability
27
WPL 9751268FT WPL 9751268FT Contact Us For Availability
27
WPL 9751268FW WPL 9751268FW Contact Us For Availability
28
WPL 9781154 WPL 9781154 Contact Us For Availability
29
Glass Cleaner WPL W10355051 No Longer Available
29
Anti-Tip Kit WPL 9751745 Contact Us For Availability
29
Insulation, Rear WPL 9750221 Contact Us For Availability
29
Door Switch WPL 9750897 Contact Us For Availability
29
Insulation, Wrap WPL 9751164 Contact Us For Availability
29
Insulation, Bottom WPL 9751323 Contact Us For Availability
29
Gas Conversion Kit ((LP)) WPL 9751844 Contact Us For Availability
29
WPL 9781118 WPL 9781118 Contact Us For Availability
× ![]()
