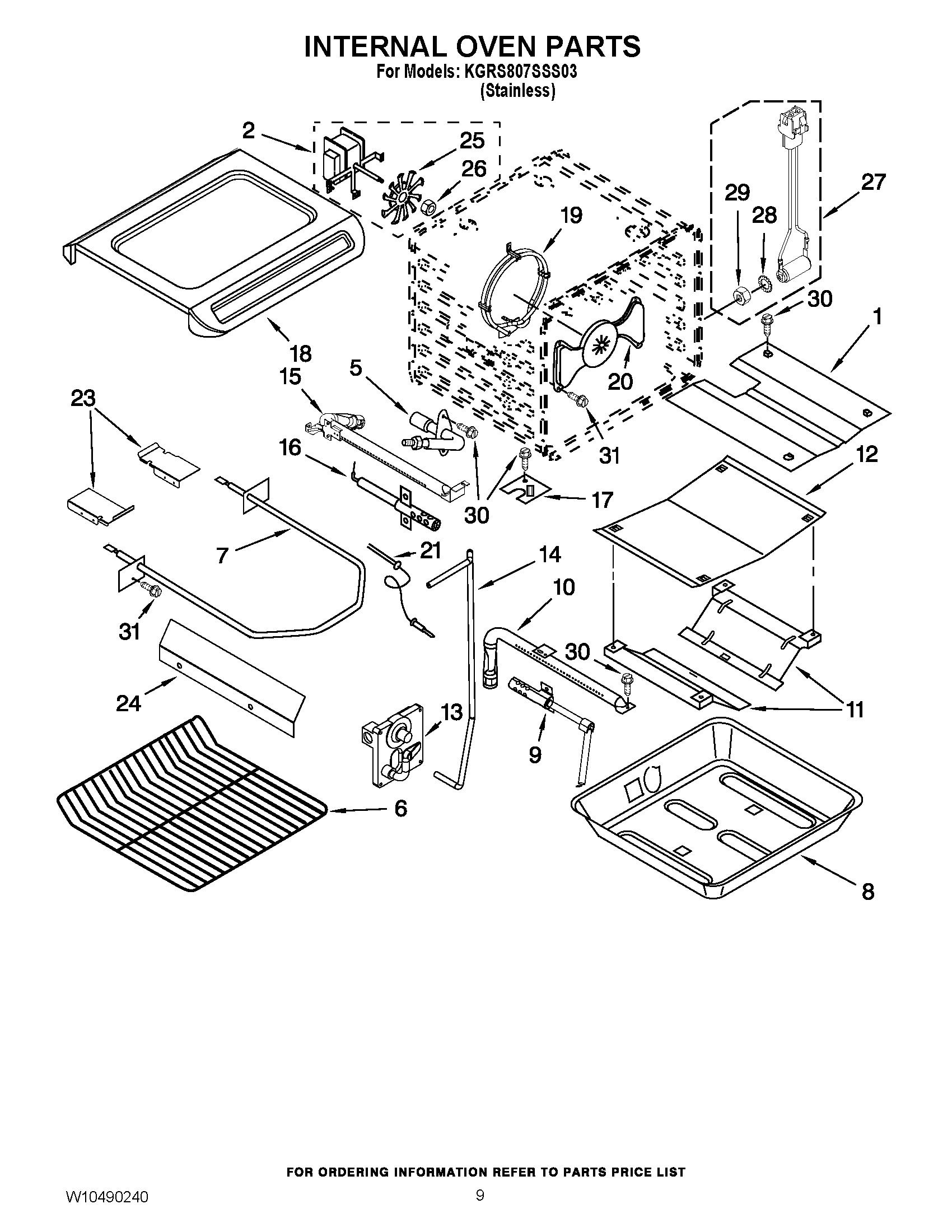

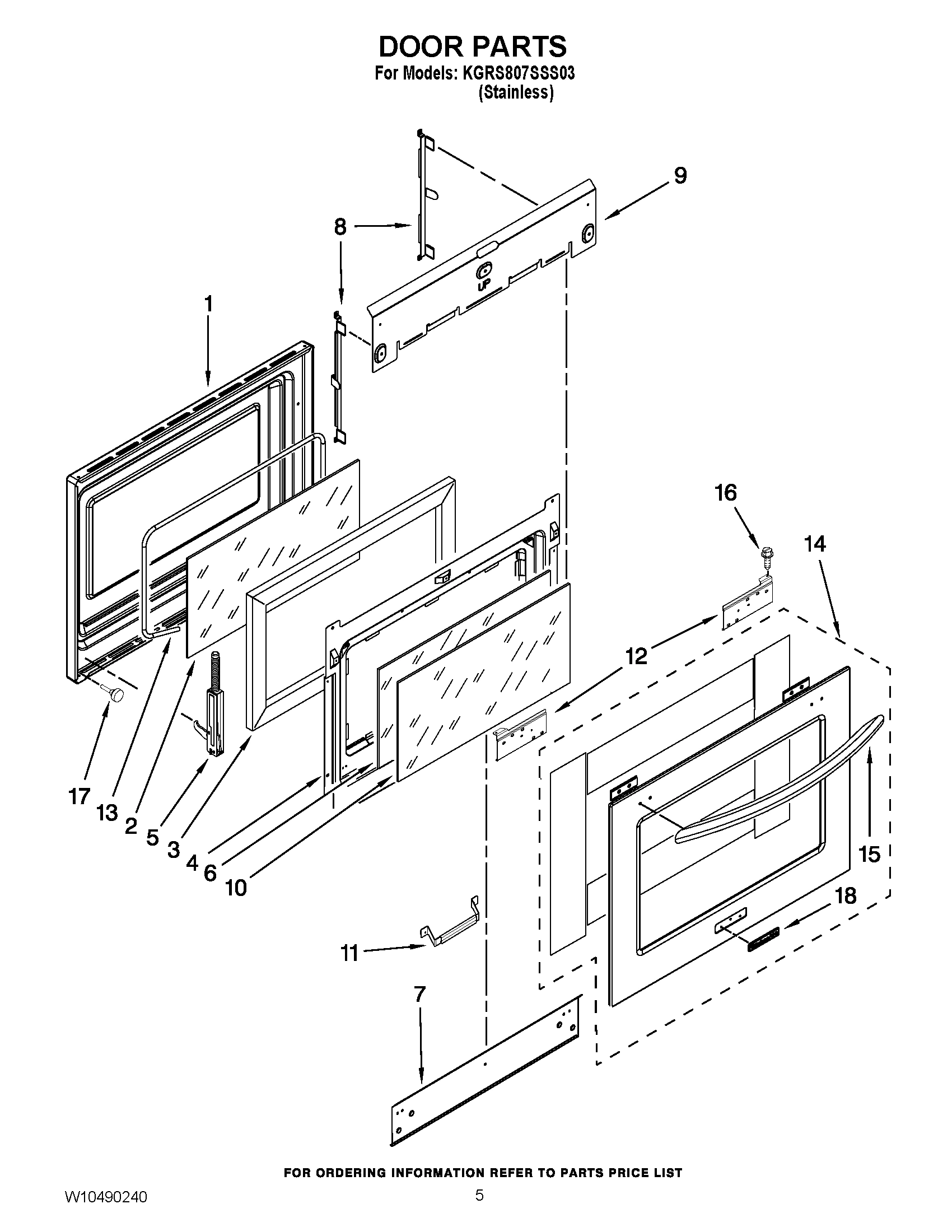

Model Whirlpool KGRS807SSS03 30`` FREESTANDING GAS RANGE WITH CONVECTION OVEN – Common Parts &amp; Diagrams

1

WP9761639 Whirlpool Orifice Holder In Stock WPL WP9761639 $103.35

1

WPW10128446 Whirlpool Orifice Holder Backorder WPL WPW10128446 $67.77

1

Burner Base (RR) WPL W10128455 Contact Us For Availability

1

CONTROL PANEL WPL W10156269 Contact Us For Availability

2

8285250 Whirlpool Oven Cover Plate Backorder WPL 8285250 $6.00

2

WP9757706 Whirlpool Door Inner Glass Backorder WPL WP9757706 $77.02

2

WP9761566 Whirlpool Membrane Switch In Stock WPL WP9761566 $218.38

2

TUBING, BURNER(RF) WPL 9761069 Contact Us For Availability

3

W10810687 Whirlpool Blower Assembly Backorder WPL W10810687 $144.86

3

WP4451722 Whirlpool Door Insulation Assembly Backorder WPL WP4451722 $68.58

3

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $56.11

3

WP4455606 Whirlpool Right Hand Hinge In Stock WPL WP4455606 $56.11

3

WP8285255 Whirlpool Burner Head Backorder WPL WP8285255 $64.83

3

WP9762794-includeCORE Whirlpool WP9762794 Ele Backorder WPL WP9762794-includeCORE $349.04

3

TUBING, BURNER(RR) WPL 9761070 Contact Us For Availability

4

W10105790 Whirlpool Bumper In Stock WPL W10105790 $4.85

4

WP4457132 Whirlpool Retainer Backorder WPL WP4457132 $107.44

4

WP8285256 Whirlpool Burner Head Backorder WPL WP8285256 $66.34

4

WPW10110378 Whirlpool Surface Igniter In Stock WPL WPW10110378 $25.84

4

COOKTOP WPL W10175857 Contact Us For Availability

4

Shield, Console WPL W10105370 Contact Us For Availability

5

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

5

WP9760574 Whirlpool Door Hinge (Left Hand) In Stock WPL WP9760574 $39.99

5

WP9760579 Whirlpool Right Door Hinge In Stock WPL WP9760579 $41.60

5

WPW10065280 Whirlpool Burner Cap Backorder WPL WPW10065280 $86.03

5

Fitting, Broiler WPL 9757779 Contact Us For Availability

5

Side, Base (Right) WPL 9759953 Contact Us For Availability

5

Side, Base (Left) WPL 9759954 Contact Us For Availability

5

TUBING, BURNER(LR) WPL 9761068 Contact Us For Availability

6

9762937 Whirlpool Range Orifice Backorder WPL 9762937 $33.69

6

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $2.51

6

WP9763494 Whirlpool Surface Igniter Backorder WPL WP9763494 $27.76

6

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

6

WPW10179152 Whirlpool Rack Oven In Stock WPL WPW10179152 $51.37

6

Orifice (RR) WPL 9762938 Contact Us For Availability

6

Support, Gas Valve WPL 9757409 Contact Us For Availability

7

W10207402 Whirlpool Broil Element Backorder WPL W10207402 $92.26

7

WP3400702 Whirlpool Screw Backorder WPL WP3400702 $5.23

7

WP4456816 Whirlpool Burner Valve Backorder WPL WP4456816 $140.71

7

Bracket, Touchsensor WPL 9761745 Contact Us For Availability

8

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $2.51

8

WP3196037 Whirlpool Leveling Foot In Stock WPL WP3196037 $27.82

8

WP4456817 Whirlpool Burner Valve Backorder WPL WP4456817 $140.57

8

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $63.73

8

WPW10111628 Whirlpool Transformer In Stock WPL WPW10111628 $108.72

8

Gasket, Vent Shield WPL W10116195 Contact Us For Availability

9

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

9

WP9756824 Whirlpool Wire Harness Backorder WPL WP9756824 $88.40

9

WP9760229 Whirlpool Range Igniter In Stock WPL WP9760229 $85.74

9

WPW10156265 Whirlpool Knob In Stock WPL WPW10156265 $49.17

9

VALVE, TCB WPL 9760519 Contact Us For Availability

WP9759225 Whirlpool Inner Door Glass Backorder WPL WP9759225 $87.13

WP9760228 Whirlpool Range Burner Backorder WPL WP9760228 $127.11

WPW10331686 Whirlpool Range Spark Module In Stock WPL WPW10331686 $178.45

Lens, Light WPL W10067870 Contact Us For Availability

TUBE, T.C.B. GAS (INNER) WPL 9761071 Contact Us For Availability

TUBE, T.C.B. GAS (OUTER) WPL 9761072 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Tube, Manifold WPL 9761648 Contact Us For Availability

9761641 Whirlpool Range Manifold Pipe Backorder WPL 9761641 $33.12

9761642 Whirlpool Manifold Pipe Backorder WPL 9761642 $75.48

9762443 Whirlpool Range Orifice Spud Backorder WPL 9762443 $4.85

WPW10155632 Whirlpool Slide Drawer Assembly Backorder WPL WPW10155632 $49.26

Orifice (External) WPL 9762442 Contact Us For Availability

GUIDE, ROLLER INCLUDES ROLLER (RIGHT) WPL W10155633 Contact Us For Availability

Gasket (Tape) WPL W10109920 Contact Us For Availability

KNOB, TCB LF WPL W10156262 Contact Us For Availability

12

Screw WPL 9780271 Contact Us For Availability

8522415 Whirlpool Range Wind Gasket Backorder WPL 8522415 $30.25

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

WP9763716 Whirlpool Gas Valve In Stock WPL WP9763716 $343.87

FRONT, DRAWER WPL W10203763 Contact Us For Availability

W10155557 Whirlpool Glass Door Backorder WPL W10155557 $290.84

HANDLE, DRAWER WPL W10292374 Contact Us For Availability

Tube, Broil WPL 9756831 Contact Us For Availability

BOLT, VALVE WPL 7101P64060 Contact Us For Availability

15

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $26.72

16

WP8054129 Whirlpool Range Igniter In Stock WPL WP8054129 $57.62

16

WP8274149 Whirlpool Sensor Assembly Backorder WPL WP8274149 $113.94

16

WP9759944 Whirlpool Thermostat Backorder WPL WP9759944 $72.29

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $10.76

4452152 Whirlpool Oven Mounting Bracket Backorder WPL 4452152 $13.12

VENT, CENTER WPL 9760225BL Contact Us For Availability

ELEMENT, WARMING WPL W10207401 Contact Us For Availability

18

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $28.26

18

WPW10272546 Whirlpool Broiler Pan Backorder WPL WPW10272546 $94.03

18

Tubing GDS to Manifold WPL 4453754 Contact Us For Availability

19

KIT, BURNER CAP WPL 9763503CB Contact Us For Availability

20

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $2.64

21

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $58.23

22

WPW10195934 Whirlpool Door Latch In Stock WPL WPW10195934 $112.97

23

WP9757807 Whirlpool High Limit Thermostat Backorder WPL WP9757807 $39.66

23

WP9763436 Whirlpool Rear Cover Backorder WPL WP9763436 $50.27

24

WPW10406243 Whirlpool Burner Head Auxiliary 6 In Stock WPL WPW10406243 $14.18

24

WPW10406797 Whirlpool Range Burner Base (12K In Stock WPL WPW10406797 $34.61

25

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

25

Glass, Backsplash WPL 9761749BL Contact Us For Availability

26

WPW10116349 Whirlpool Nut Backorder WPL WPW10116349 $9.59

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $54.84

31

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $2.51

32

Slide, GOC WPL W10083460 Contact Us For Availability

33

Central, Appliance WPL 9762774 Contact Us For Availability

36

TRIM, BOTTOM VENT WPL W10160347 Contact Us For Availability

37

WP9759242 Whirlpool Thermostat In Stock WPL WP9759242 $39.01

38

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $2.51

40

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $2.51

261900 Whirlpool Microwave Spray Backorder WPL 261900 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

9756921 Whirlpool Range Wire Harness Backorder WPL 9756921 $152.71

9757426 Whirlpool Range LP Conversion Kit Backorder WPL 9757426 $17.97

9763481 Whirlpool Range Wire Harness Backorder WPL 9763481 $30.25

W10157936 Whirlpool Wire Harness Backorder WPL W10157936 $135.60

W10624584 Whirlpool Power Cord Backorder WPL W10624584 $74.77

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $12.59

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $9.88

WP9762904 Whirlpool Wire Harness In Stock WPL WP9762904 $53.38

WPW10237644 Whirlpool Wire Harness Backorder WPL WPW10237644 $56.35

HARNESS, COMMUNICATION WPL 9762921 Contact Us For Availability

Insulation, Wrap WPL 9756817 Contact Us For Availability
