Model Kelvinator KGRS206XSS3 RANGE – Common Parts & Diagrams

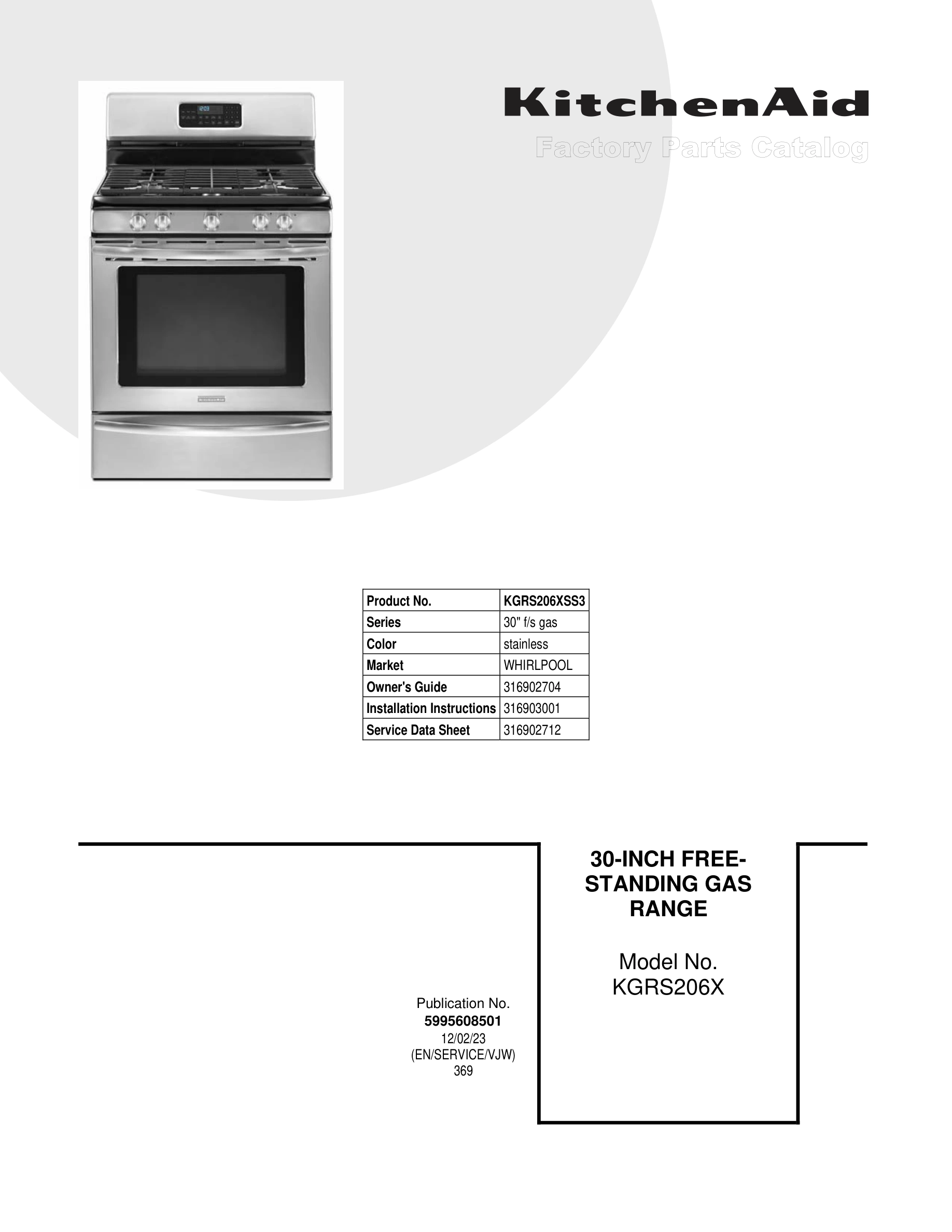

01 - COVER

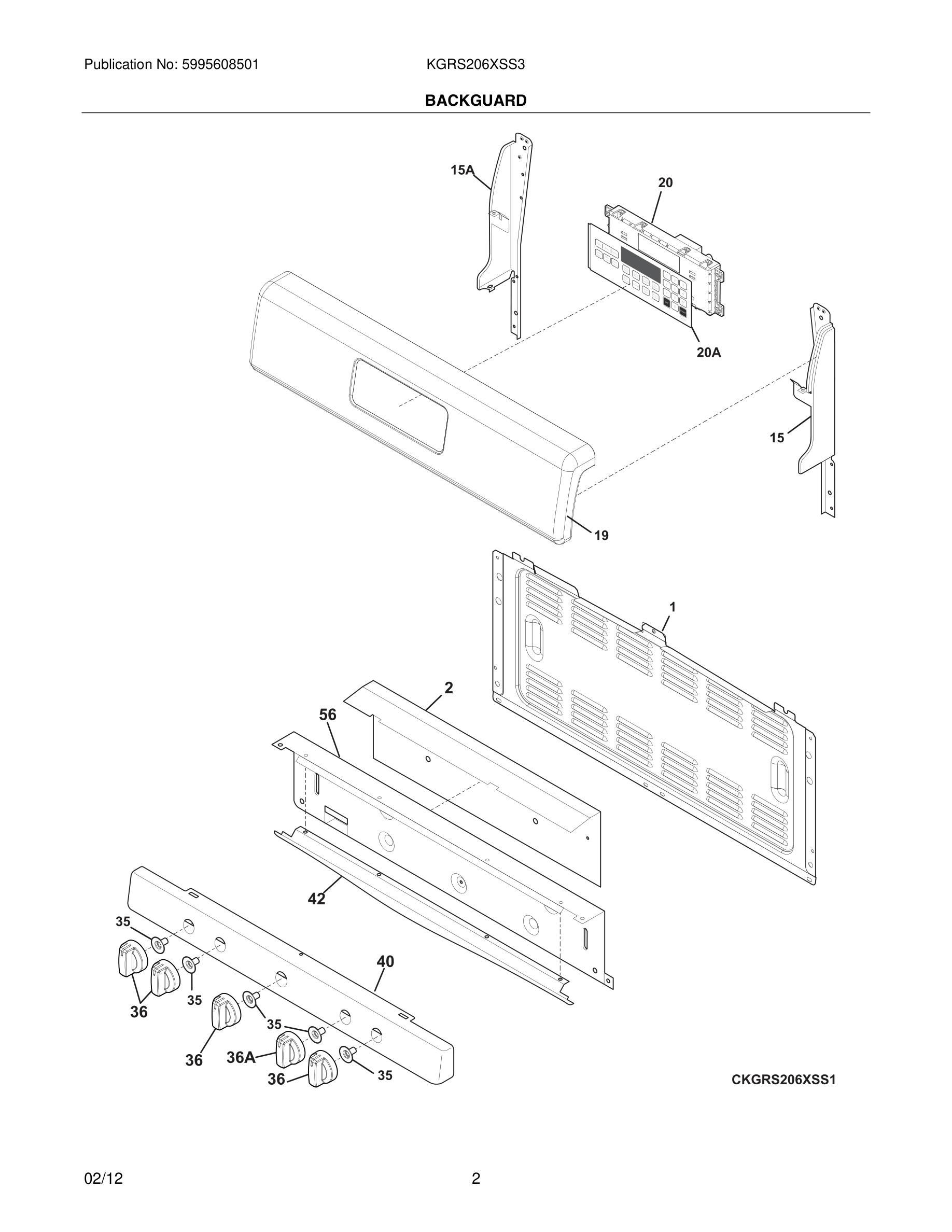

03 - BACKGUARD
05 - BURNER
07 - BODY
09 - BODY
11 - TOP/DRAWER
13 - DOOR
Common parts from model Kelvinator KGRS206XSS3 RANGE
*
Screw, 8-18 x 0.5, chrome WCI 316021109 Contact Us For Availability
*
Screw, hex head cup pt, 8-18 x 0.375, black WCI 316021105 Contact Us For Availability
*
Screw, wafer head, 8-32T x 0.500, black WCI 5303285179 Contact Us For Availability
*
Screw, 10-16 x .486 WCI 316089500 Contact Us For Availability
*
Screw, valve mtg., 1/4 - 20 WCI 316215600 Contact Us For Availability
*
Screw, trilobe, 10-32 x 5/16", black WCI 316418901 Contact Us For Availability
*
Screw, cup pt, 8-18 x 0.375, chrome WCI 316021108 Contact Us For Availability
2#
Valve, 14/17K burner, w/mtg screw WCI 5303935236 Contact Us For Availability
2A#
Valve, 5K top burner, w/mtg screw WCI 5303935308 Contact Us For Availability
2B#
Valve, 12/14K burner, w/mtg screw WCI 5303935306 Contact Us For Availability
2C#
Valve, 9.5K burner, w/mtg screw WCI 5303935305 Contact Us For Availability
3#
Wiring Harness, w/ignitor swtch WCI 316580614 Contact Us For Availability
5
Screw, leveling, plastic, rear, (2) WCI 316272900 Contact Us For Availability
7
Insulation, oven door WCI 316510400 Contact Us For Availability
8
Glass, door, inner, (2) WCI 316503300 Contact Us For Availability
9
Pan, broiler OPTIONAL ACCESS0RY WCI 316081900 Contact Us For Availability
10
Screw, handle mtg., 10-24 x 1.75", (2) WCI 316439500 Contact Us For Availability
10
Insert, broiler pan OPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability
10#
Burner, sealed, 18.2K WCI 316438400 Contact Us For Availability
10A#
Burner, sealed, 5K WCI 316438200 Contact Us For Availability
10B
Washer, 3/4 OD x 1/4 ID, steel WCI 316008401 Contact Us For Availability
10B#
Burner, sealed, 12K WCI 316438000 Contact Us For Availability
10C#
Burner, sealed, 9.5K WCI 316558300 Contact Us For Availability
11#
Ignitor/orifice assy .,, top burner, right fr WCI 316536622 Contact Us For Availability
11A#
Ignitor/orifice assy., top burner, right rear WCI 316536610 Contact Us For Availability
11B#
Ignitor/orifice assy., top burner, left rear, WCI 316536612 Contact Us For Availability
11C#
Ignitor/orifice assy., top burner, left front WCI 316536602 Contact Us For Availability
11D#
Ignitor/orifice assy., top burner, center, 9. WCI 316536623 Contact Us For Availability
12
Screw, burner, head mtg, (8) WCI 316540900 Contact Us For Availability
12
Switch, oven light, door frame WCI 316445500 Contact Us For Availability
13
Tube-manifold supply WCI 316489101 Contact Us For Availability
13
Glide, warmer, inner RH WCI 316415000 Contact Us For Availability
13A
Glide, warmer, inner LH WCI 316415001 Contact Us For Availability
14
Receptacle, oven light WCI 316116400 Contact Us For Availability
14*
Screw, hex, 8-18 x 3/8, nick, (3), regulator WCI 316021104 Contact Us For Availability
15
Support, backguard, black, RH WCI 316411405 Contact Us For Availability
15
Bracket, regulator WCI 316091600 Contact Us For Availability
15A
Support, backguard, black, LH WCI 316411404 Contact Us For Availability
16
Maintop panel, black WCI 316469605 Contact Us For Availability
16
Glass, door, airwash WCI 316552800 Contact Us For Availability
17
Retainer, lens WCI 316087500 Contact Us For Availability
17#
Valve, safety WCI 316404901 Contact Us For Availability
18#
Latch Assembly, oven door WCI 316405800 Contact Us For Availability
18#
Burner, oven WCI 316404400 Contact Us For Availability
19#
Ignitor, bake burner WCI 316489403 Contact Us For Availability
20
Spacer, door handle, (2) WCI 316284100 Contact Us For Availability
21
Nut, hex head sems WCI 5303013272 Contact Us For Availability
21
Clip, bodyside WCI 316408000 Contact Us For Availability
22
Bracket-bodyside, (2) WCI 316286300 Contact Us For Availability
23#
Burner, broiler WCI 316404302 Contact Us For Availability
23*
Screw, sims lp, #8-32 x 5/16", black WCI 316418900 Contact Us For Availability
25
Baffle, broil burner WCI 316401301 Contact Us For Availability
26*
Cover, broil Ignitor WCI 316401500 Contact Us For Availability
26A
Bracket-support, chassis, aluminum WCI 316498200 Contact Us For Availability
33
Shield, rear wall WCI 316402500 Contact Us For Availability
35
Shield, heat, (5), knob WCI 316354300 Contact Us For Availability
37
Screw, assy mtg, (8), ignitor/orifice WCI 316240600 Contact Us For Availability
37#
Probe, oven temp WCI 316490000 Contact Us For Availability
40
Bracket, airwash glass, (2) WCI 316552401 Contact Us For Availability
44
Spacer, oven door WCI 316517600 Contact Us For Availability
44#
Orifice, burner, 18.2K WCI 316527509 Contact Us For Availability
44A#
Orifice, burner, 5K WCI 316527504 Contact Us For Availability
44B#
Orifice, top burner, 12K WCI 316527502 Contact Us For Availability
44C#
Orifice, top burner, 9.5K WCI 316527500 Contact Us For Availability
58A
Insulation, oven wrapper WCI 316403700 Contact Us For Availability
58B
Insulation, oven back WCI 316403600 Contact Us For Availability
58G
Insulation, main front WCI 08067973 Contact Us For Availability
77
Glide, warmer drawer, outer/RH & LH, (2) WCI 316456700 Contact Us For Availability
82
Shield, bake burner WCI 316400801 Contact Us For Availability
86
Receptacle, hinge WCI 316441300 Contact Us For Availability
106
Bracket, motor mtg. WCI 316404100 Contact Us For Availability
107
Cover, fan WCI 316026702 Contact Us For Availability
108#
Motor-fan WCI 316256900 Contact Us For Availability
109
Fan Blade WCI 318398302 Contact Us For Availability
111
Nut, fan retainer WCI 316136600 Contact Us For Availability
× ![]()
