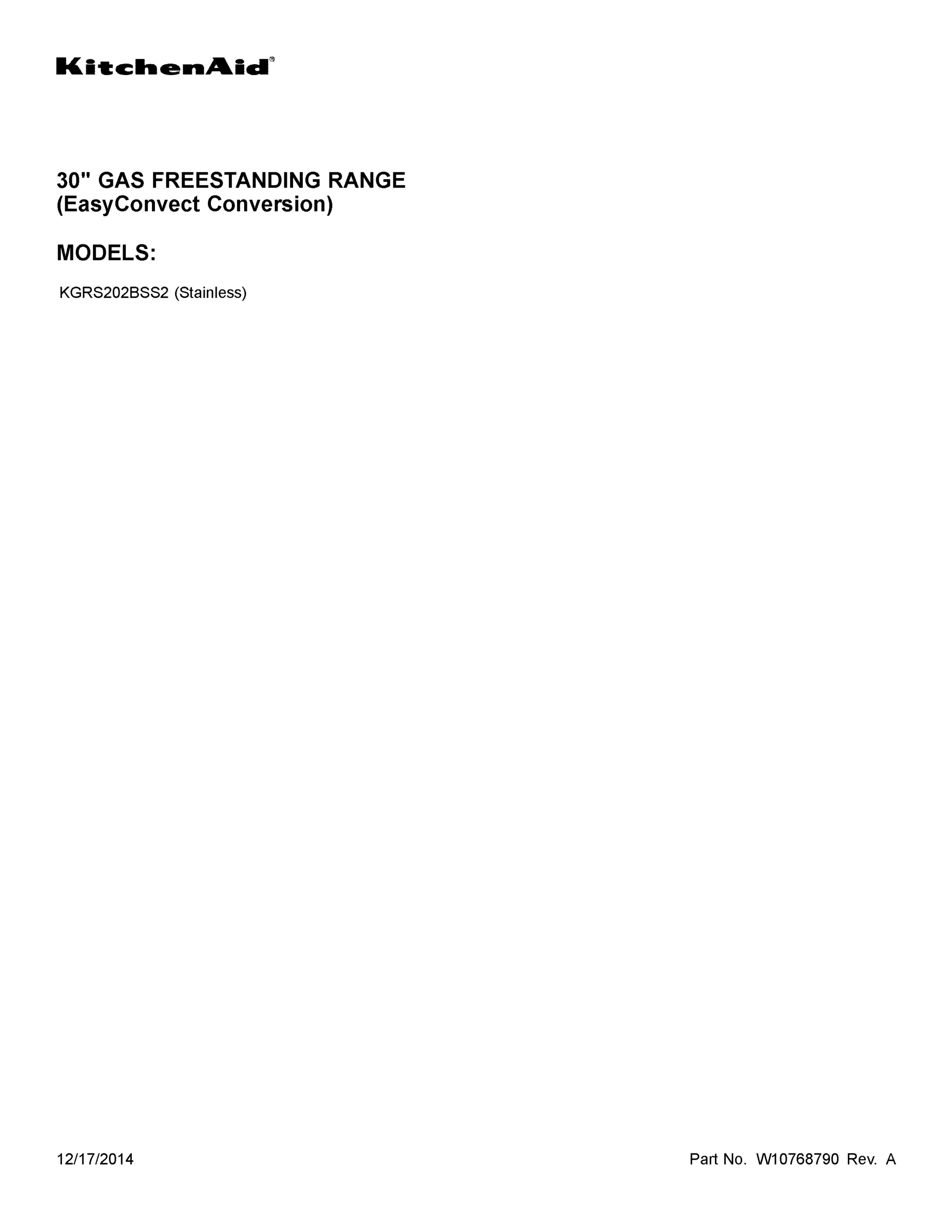

Model Whirlpool KGRS202BSS2 GAS RANGE – Common Parts &amp; Diagrams

1

W10314347 Whirlpool Oven Flue Assembly Backorder WPL W10314347 $112.67

1

W11219664 Whirlpool Endcap Panel In Stock WPL W11219664 $81.87

1

TRIM, VENT (BLACK) WPL W10339814 Contact Us For Availability

1A

W11219665 Whirlpool Panel Endcap Backorder WPL W11219665 $13.73

2

W10516123 Whirlpool Mounting Bracket Backorder WPL W10516123 $52.25

2

W10877054 Whirlpool Spacer Assembly Backorder WPL W10877054 $26.75

2

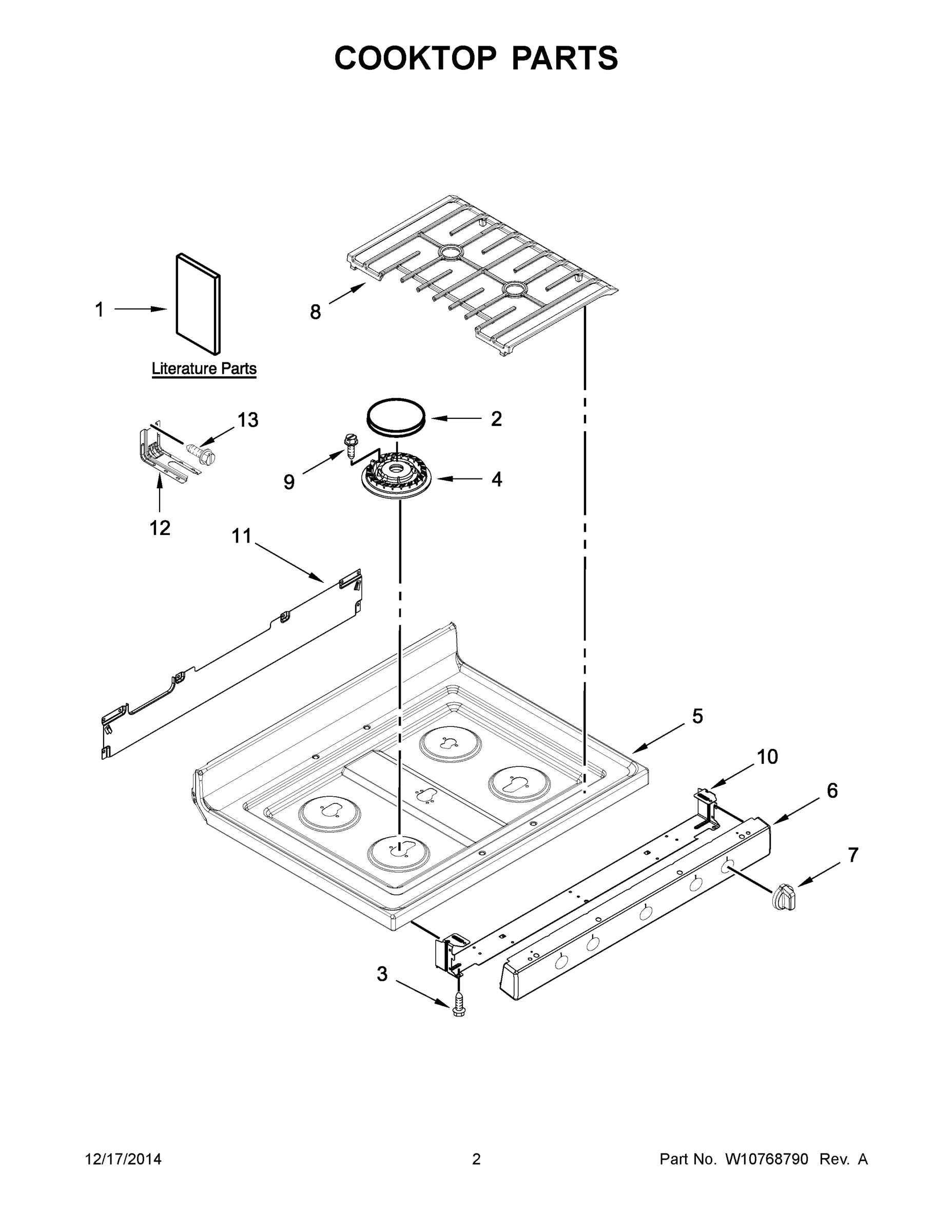

W11234417 Whirlpool Surface Burner Orifice Ho Backorder WPL W11234417 $36.89

2

WPW10183374 Whirlpool Burner Cap In Stock WPL WPW10183374 $96.69

2

WPW10317886 Whirlpool Screw Backorder WPL WPW10317886 $2.51

2

WPW10318026 Whirlpool Mounting Bracket Backorder WPL WPW10318026 $13.05

2A

W11700304 Whirlpool Orifice Holder Backorder WPL W11700304 $29.77

2B

W11700294 Whirlpool Range Orifice Holder Backorder WPL W11700294 $29.77

2C

W10473935 Whirlpool Orifice Holder Backorder WPL W10473935 $36.09

2D

W10474170 Whirlpool Orifice Holder Backorder WPL W10474170 $26.08

3

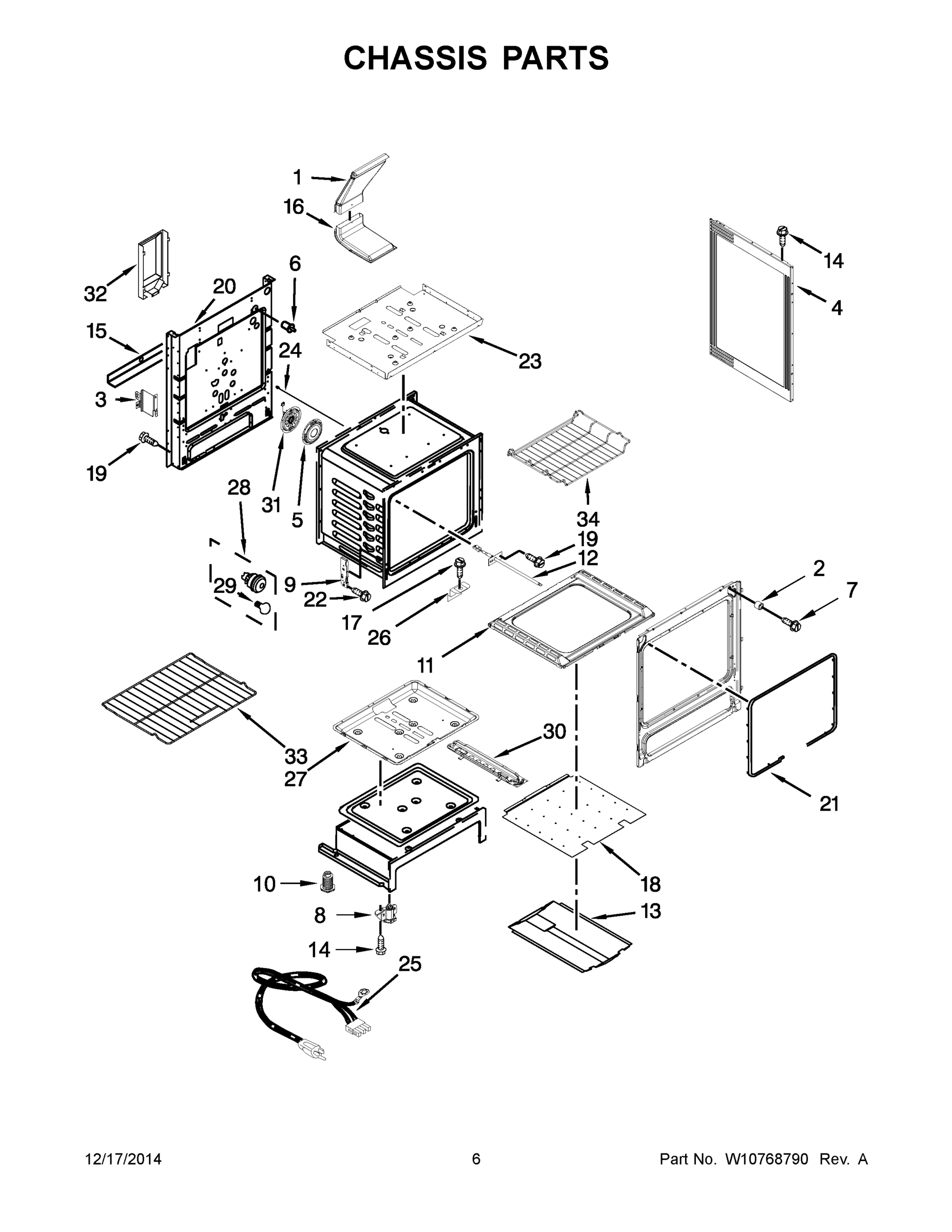

W10273002 Whirlpool Support Bracket Backorder WPL W10273002 $24.74

3

W10949105 Whirlpool Mounting Bracket Backorder WPL W10949105 $11.53

3

WPW10289076 Whirlpool Door Handle Backorder WPL WPW10289076 $135.76

3

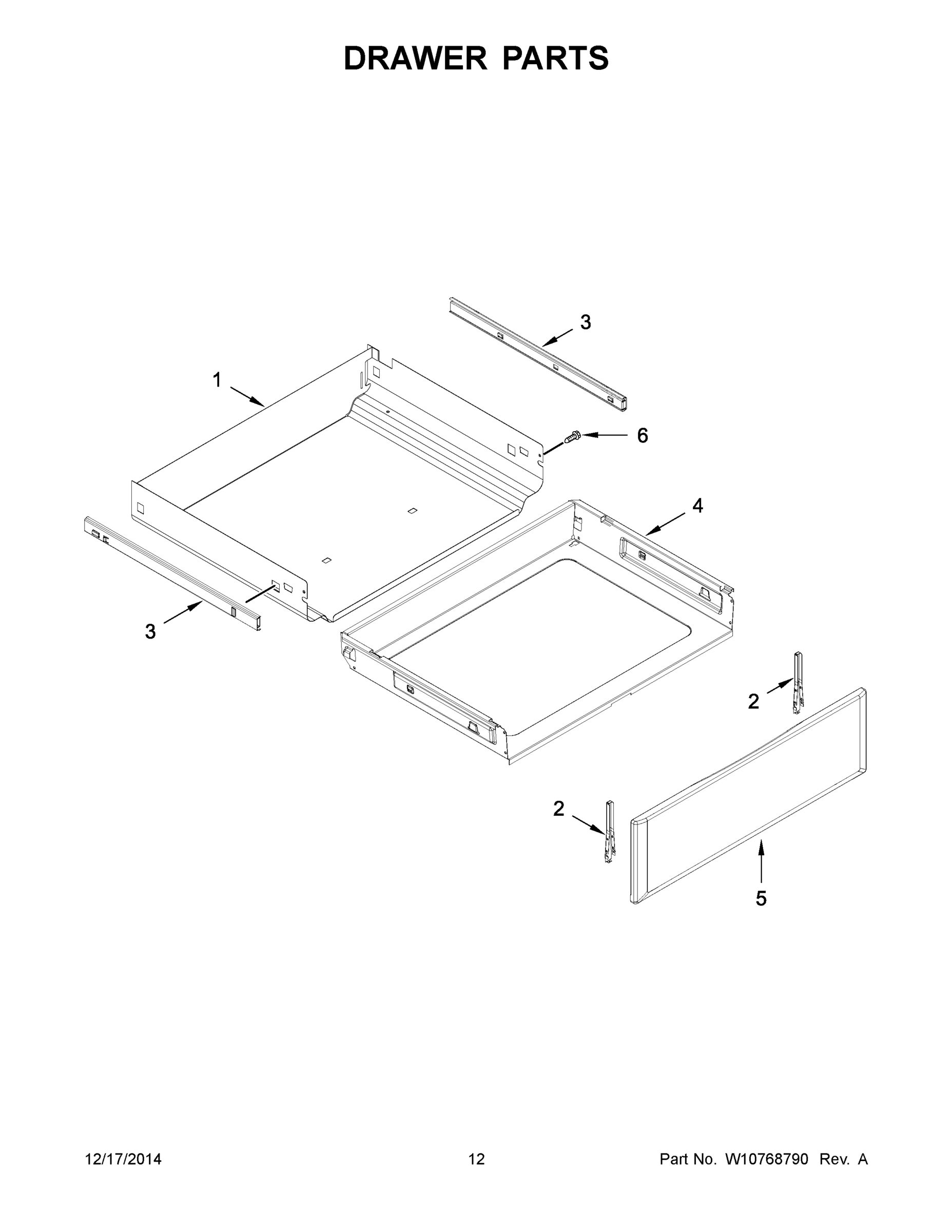

WPW10441804 Whirlpool Drawer Slide In Stock WPL WPW10441804 $37.94

3

CONSOLE (STAINLESS) WPL W10614437 Contact Us For Availability

3A

WPW10441805 Whirlpool Slide Drawer Backorder WPL WPW10441805 $37.94

4

W10510125 Whirlpool Gas Tubing Backorder WPL W10510125 $74.41

4

W10813962 Whirlpool Utility Drawer In Stock WPL W10813962 $59.84

4

WPW10297318 Whirlpool Door Liner Backorder WPL WPW10297318 $127.45

4

WPW10511278 Whirlpool Spark Module In Stock WPL WPW10511278 $130.22

4

WPW10515455 Whirlpool Burner Head In Stock WPL WPW10515455 $50.25

4A

WPW10515454 Whirlpool Burner Head In Stock WPL WPW10515454 $39.75

4B

WPW10515453 Whirlpool Burner Head In Stock WPL WPW10515453 $35.36

5

W10198745 Whirlpool Rear Cover Backorder WPL W10198745 $87.57

5

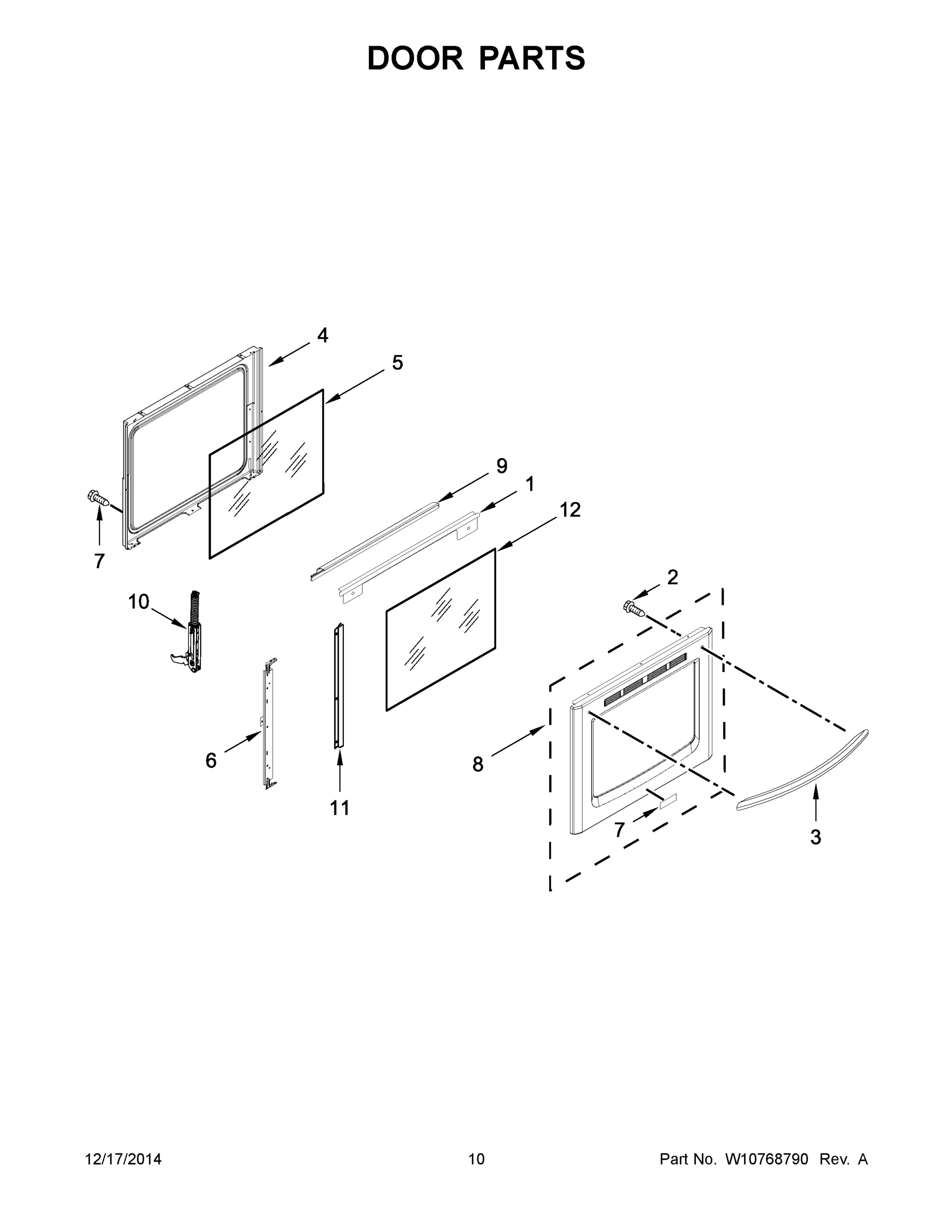

WPW10300487 Whirlpool Door Glass Backorder WPL WPW10300487 $147.12

5

WPW10413868 Whirlpool Wire Harness Backorder WPL WPW10413868 $73.49

6

W10192841 Whirlpool Heat Shield Backorder WPL W10192841 $53.05

6

W11116956 Whirlpool Support Bracket Backorder WPL W11116956 $66.61

6

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

6

WPW10515459 Whirlpool Surface Igniter In Stock WPL WPW10515459 $24.61

7

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.51

7

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

7

WPW10324398 Whirlpool Knob Backorder WPL WPW10324398 $150.71

7

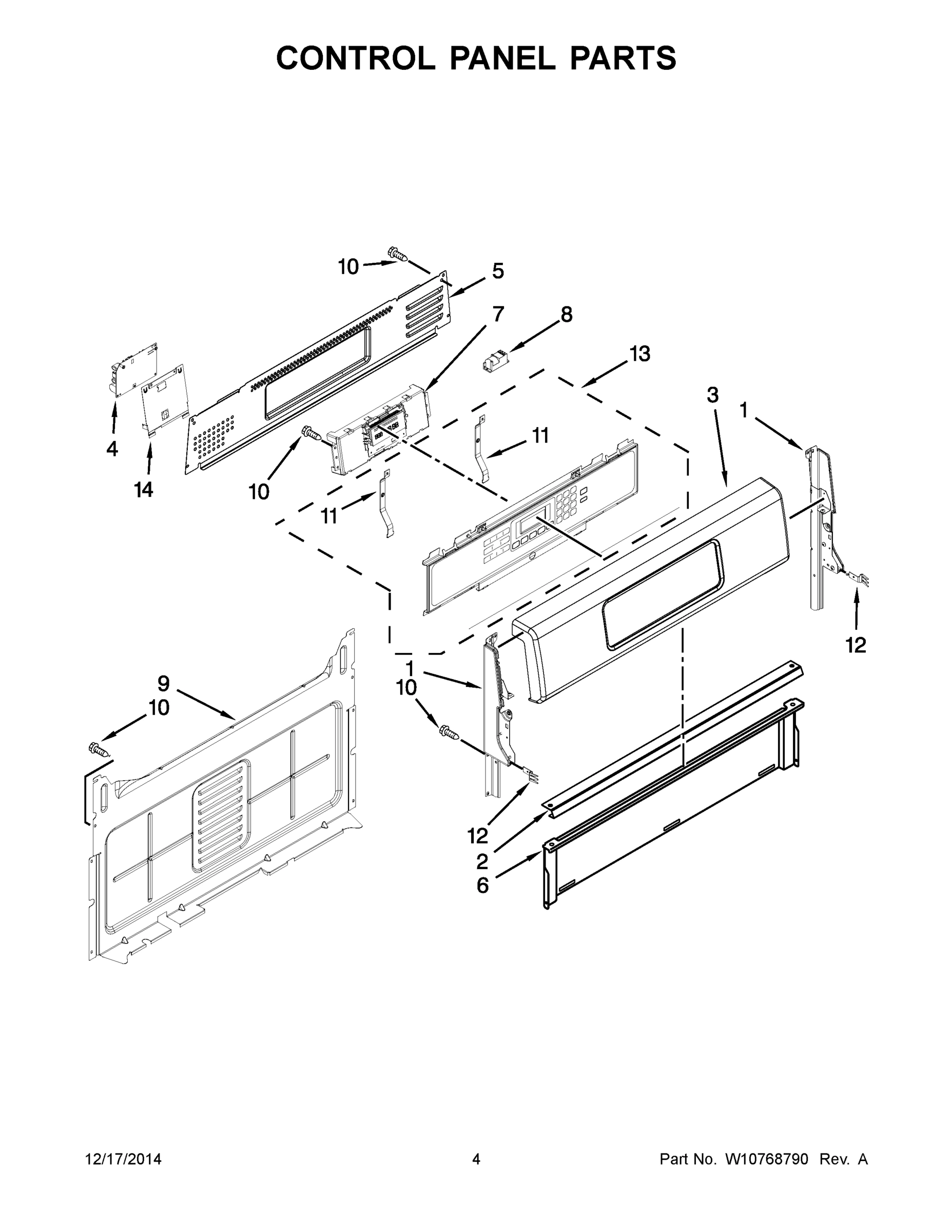

WPW10340699 Whirlpool Electronic Control Boar Backorder WPL WPW10340699 $161.55

7

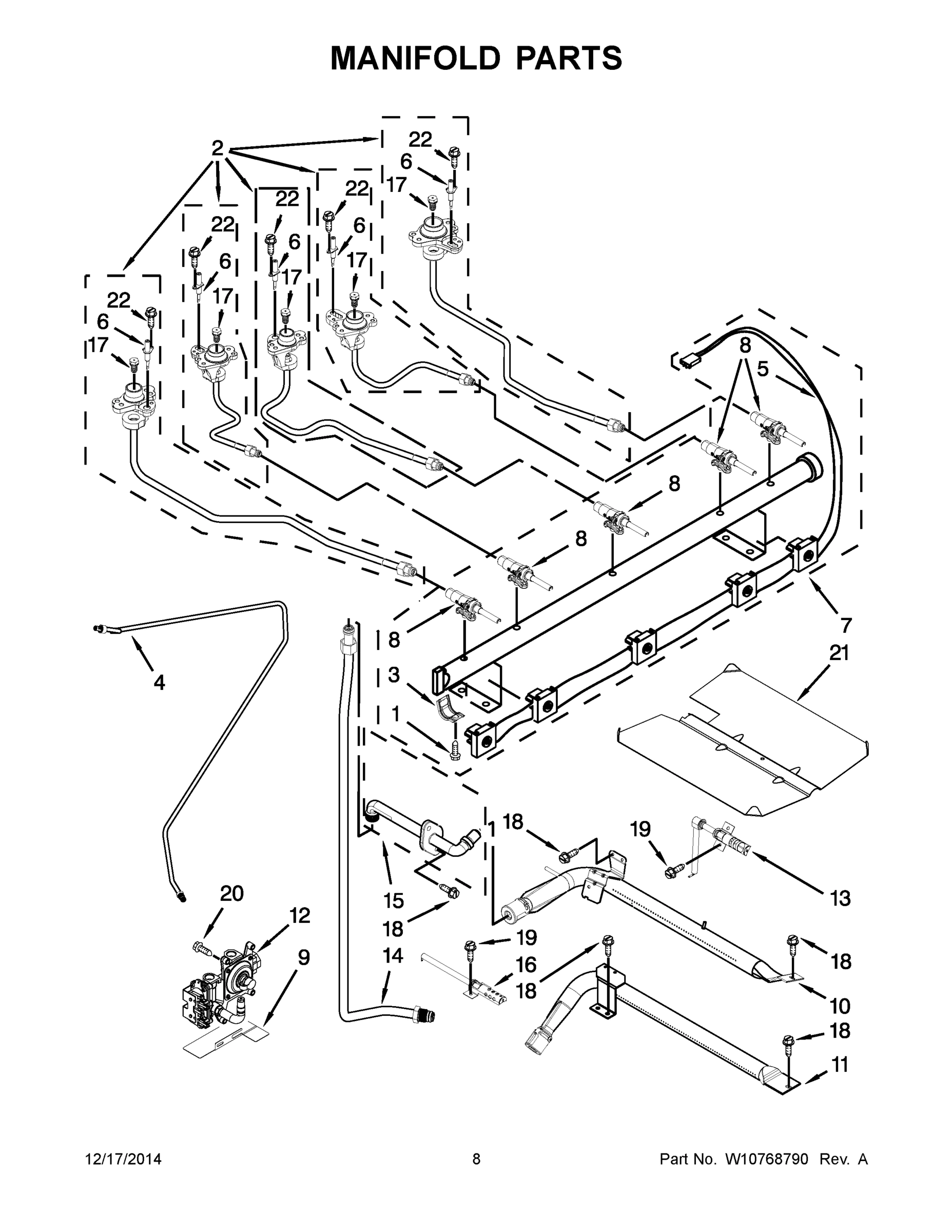

WPW10413870 Whirlpool Manifold Assembly Backorder WPL WPW10413870 $174.78

8

WPW10279615 Whirlpool Burner Valve In Stock WPL WPW10279615 $108.20

8

WPW10341186 Whirlpool Refrigerator Front Leve In Stock WPL WPW10341186 $10.80

8

WPW10475149 Whirlpool Spark Module In Stock WPL WPW10475149 $118.16

8

WPW10490829 Whirlpool Door Liner Backorder WPL WPW10490829 $167.37

8

GRATE, SET (BLACK) WPL W10509552 Contact Us For Availability

8A

WPW10279614 Whirlpool Burner Valve Backorder WPL WPW10279614 $114.04

8B

WPW10247744 Whirlpool Burner Valve Backorder WPL WPW10247744 $114.13

9

W10224921 Whirlpool Bracket Mounting Backorder WPL W10224921 $26.21

9

W10294853 Whirlpool Mounting Bracket Backorder WPL W10294853 $77.49

9

W10647259 Whirlpool Hinge Receiver In Stock WPL W10647259 $2.51

W10534174 Whirlpool Support Bracket Backorder WPL W10534174 $85.74

W11676566 Whirlpool Range Burner Broiler Backorder WPL W11676566 $32.28

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

WPW10388635 Whirlpool Door Hinge Backorder WPL WPW10388635 $36.65

11

W10294852 Whirlpool Mounting Bracket Backorder WPL W10294852 $57.11

11

WPW10211368 Whirlpool Oven Bottom Backorder WPL WPW10211368 $169.56

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $11.99

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $50.55

WPW10495964 Whirlpool Door Panel Backorder WPL WPW10495964 $131.24

WPW10602004 Whirlpool Regulator Backorder WPL WPW10602004 $247.81

13

W10324433 Whirlpool Membrane Switch Backorder WPL W10324433 $183.64

13

WPW10324262 Whirlpool Oven Igniter In Stock WPL WPW10324262 $50.21

14

W10306050 Whirlpool Gas Tubing Backorder WPL W10306050 $130.72

14

W10516577 Whirlpool Bracket Mounting Backorder WPL W10516577 $51.66

15

W10435470 Whirlpool Brace Backorder WPL W10435470 $26.21

15

W10583216 Whirlpool Fitting Assembly Backorder WPL W10583216 $36.75

16

W11243157 Whirlpool Oven Flue Backorder WPL W11243157 $122.46

16

WPW10333842 Whirlpool Oven Igniter In Stock WPL WPW10333842 $44.02

17

WPW10347414 Whirlpool Orifice Spud Backorder WPL WPW10347414 $25.48

17A

WPW10170506 Whirlpool Orifice Spud In Stock WPL WPW10170506 $32.56

17B

WPW10170508 Whirlpool Orifice Spud Backorder WPL WPW10170508 $38.81

17D

WPW10170507 Whirlpool Orifice Backorder WPL WPW10170507 $32.57

18

W10323077 Whirlpool Burner Baffle Backorder WPL W10323077 $103.53

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

19

W11684507 Whirlpool Screw In Stock WPL W11684507 $8.11

20

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $2.51

21

W11562931 Whirlpool Door Gasket In Stock WPL W11562931 $35.63

22

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $2.51

24

W11370463 Whirlpool Door Rod Assembly Backorder WPL W11370463 $24.12

25

WP9757891 Whirlpool Power Cord Backorder WPL WP9757891 $48.39

26

W10035900 Whirlpool Support Bracket Backorder WPL W10035900 $9.99

28

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

31

W11527111 Whirlpool Convection Fan Backorder WPL W11527111 $55.82

32

W10158780 Whirlpool Rear Cover Backorder WPL W10158780 $47.16

33

W10460125 Whirlpool Oven Rack Backorder WPL W10460125 $66.72

34

WPW10289145 Whirlpool Oven Rack Backorder WPL WPW10289145 $64.69

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.40

W10334923 Whirlpool Clip Backorder WPL W10334923 $5.29

W10355051 Whirlpool Cooktop Cleaner Affresh ( In Stock WPL W10355051 $5.93

W10519920 Whirlpool Wire Harness In Stock WPL W10519920 $8.07

W10519934 Whirlpool Wire Harness Backorder WPL W10519934 $177.04

W11688566 Whirlpool Insulation Backorder WPL W11688566 $45.31

WPW10170516 Whirlpool Conversion Kit In Stock WPL WPW10170516 $36.23

WPW10205524 Whirlpool Oven Rack Backorder WPL WPW10205524 $28.37

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $28.80

WPW10400494 Whirlpool Orifice Assembly Backorder WPL WPW10400494 $36.25

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability

ORIFICE, LP BROIL WPL W10400497 Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRANITE WPL W10275756 Contact Us For Availability

ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
