Model Whirlpool KGCV465MSS03 36`` Pro-Line Cooktop – Common Parts & Diagrams

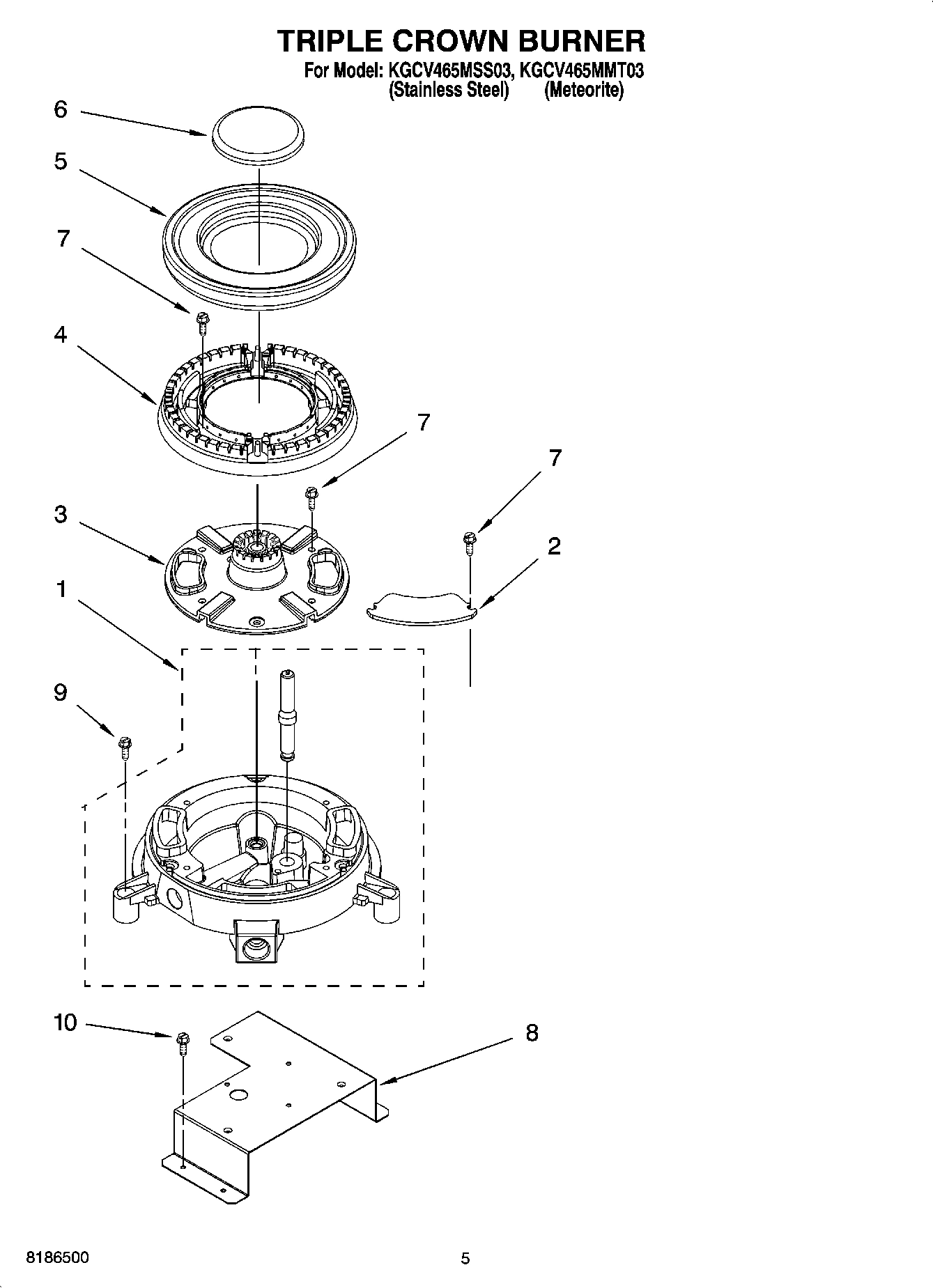

03 - TRIPLE CROWN BURNER, OPTIONAL PARTS

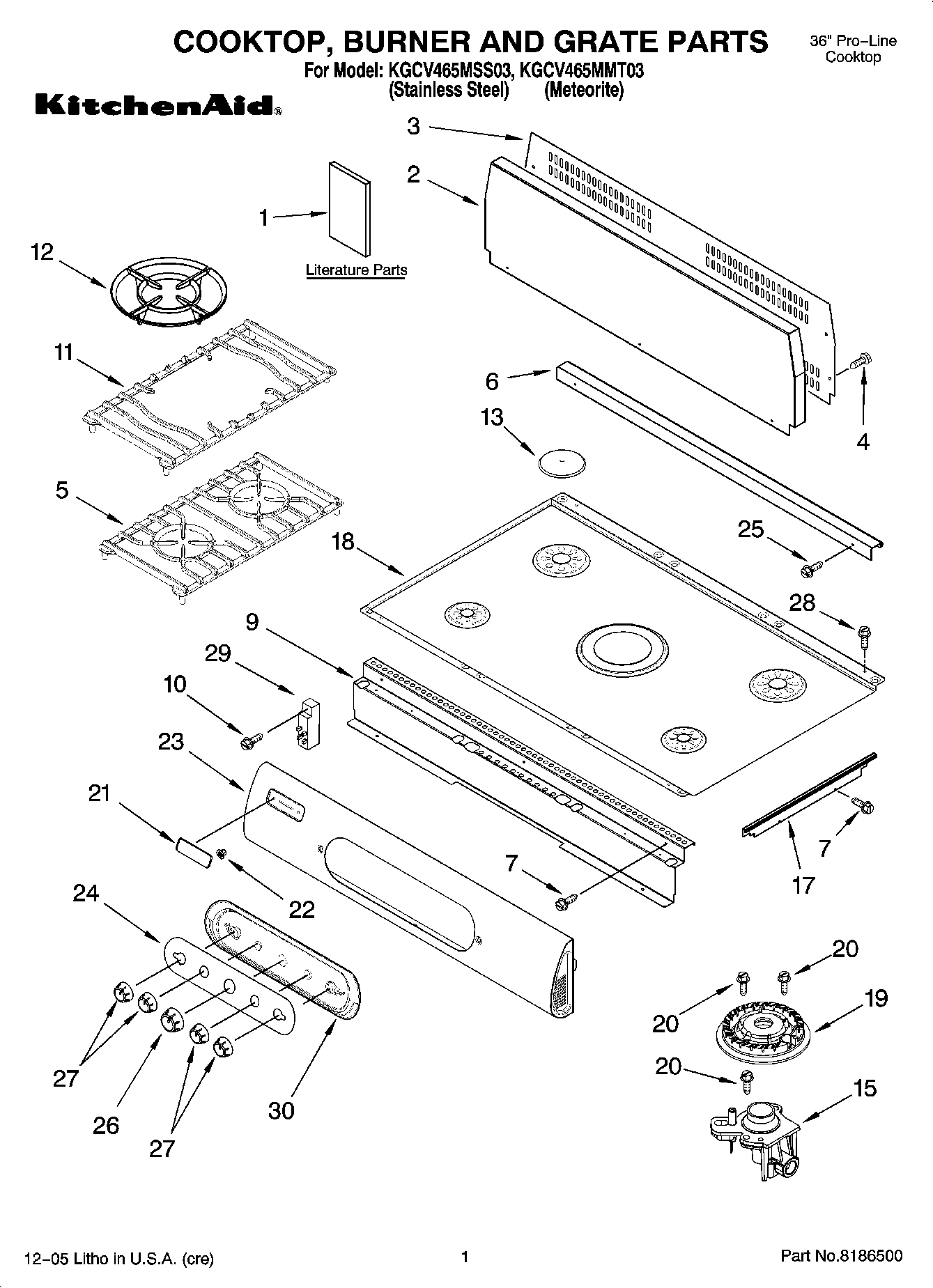

01 - COOKTOP, BURNER AND GRATE PARTS

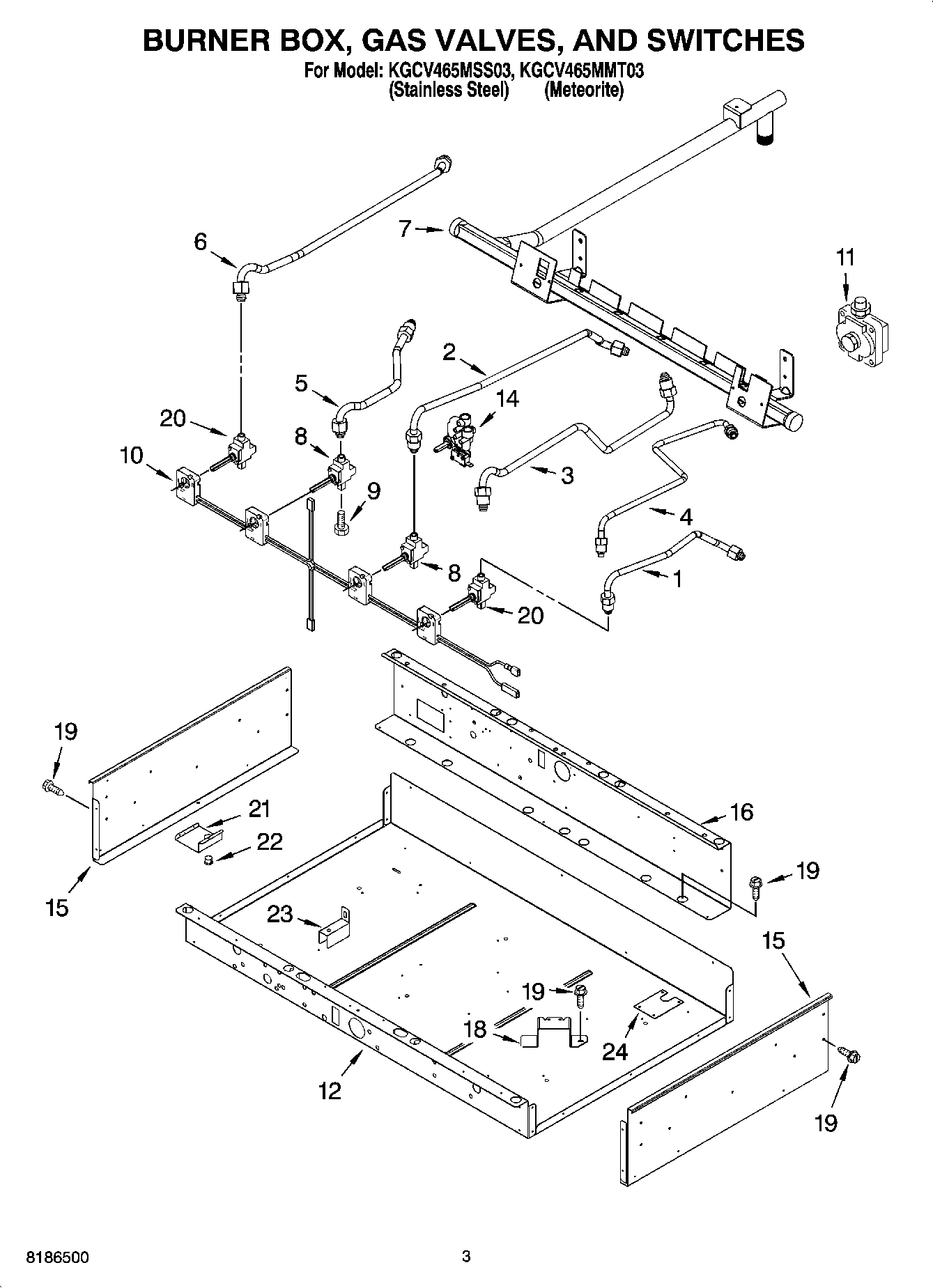

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCV465MSS03 36`` Pro-Line Cooktop
Harness, Wire (Ignitor 42``) WPL 4456628 Contact Us For Availability
L.P. Orific Spud Pack WPL 8285442 Contact Us For Availability
1
Tubing, Gas Burner - RF WPL 8285160 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4456969 Contact Us For Availability
3
Tubing, Gas Burner - Inner WPL 8285189 Contact Us For Availability
4
Tubing, Gas Burner - External WPL 8285190 Contact Us For Availability
5
Tubing, Gas Burner - LF WPL 8285157 Contact Us For Availability
6
Cap, Burner Int. WPL 8285257 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4456968 Contact Us For Availability
7
Manifold WPL 8285156 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456919 Contact Us For Availability
12
Burner Box WPL 4457094 Contact Us For Availability
13
Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability
14
Dual Valve, Triple Crown Brnr WPL 9760519 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 9782447 Contact Us For Availability
15
Side, Burner Box (Left Hand) WPL 8285606 Contact Us For Availability
15
Side, Burner Box (Right Hand) WPL 8285607 Contact Us For Availability
16
Support, Rear WPL 9759136 Contact Us For Availability
17
Trim, Side Left Hand (S.S. Model) WPL 9759123 Contact Us For Availability
17
Trim, Side Right Hand (Meteorite Model) WPL 9759182 Contact Us For Availability
17
Trim, Side Left Hand (Meteorite Model) WPL 9759183 Contact Us For Availability
18
Cooktop WPL 8285163 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head (Turbo (2)) WPL 4455849 Contact Us For Availability
21
Nameplate WPL 8531717 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Control Frame (S.S. Model) WPL 9759125 Contact Us For Availability
23
Control Frame (Meteorite Model) WPL 9759184 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Panel, Control (S.S. Model) WPL 8285182 Contact Us For Availability
24
Panel, Control (Meteorite Model) WPL 8285286 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
26
Knob, Center Brnr (S.S. Model) WPL 8285603 Contact Us For Availability
26
Knob, Center Brnr (Meteorite Model) WPL 8285605 Contact Us For Availability
27
Knob, Burner (4) (Meteorite Model) WPL 8285604 Contact Us For Availability
27
Knob, Burner (4) (S.S. Model) WPL 8285602 Contact Us For Availability
28
Screw WPL 4449040 Contact Us For Availability
30
Bezel, Front WPL 8285285 Contact Us For Availability
× ![]()
