Model Whirlpool KGCV465MSS02 36`` Pro-Line Cooktop – Common Parts & Diagrams

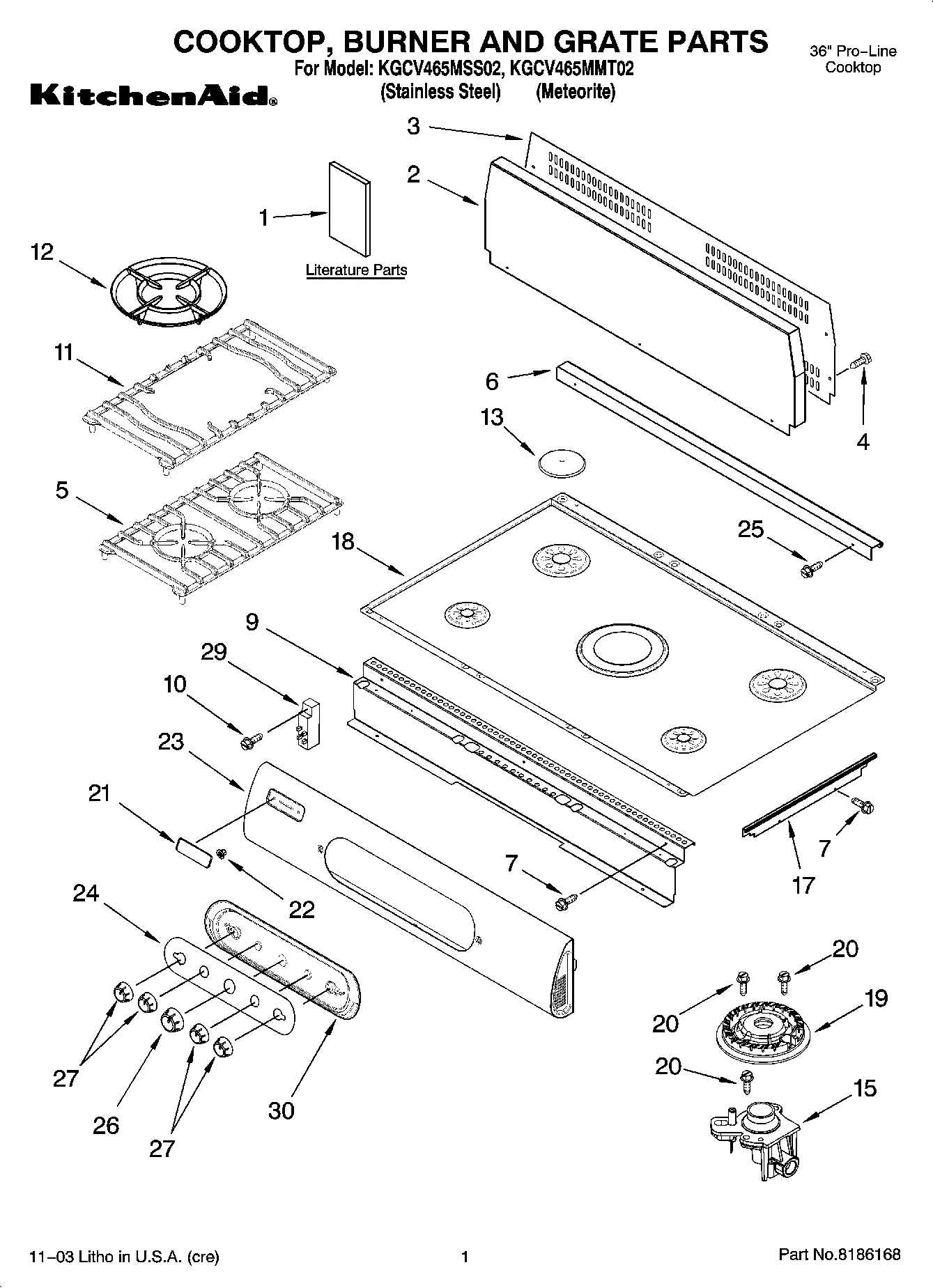

01 - COOKTOP, BURNER AND GRATE PARTS

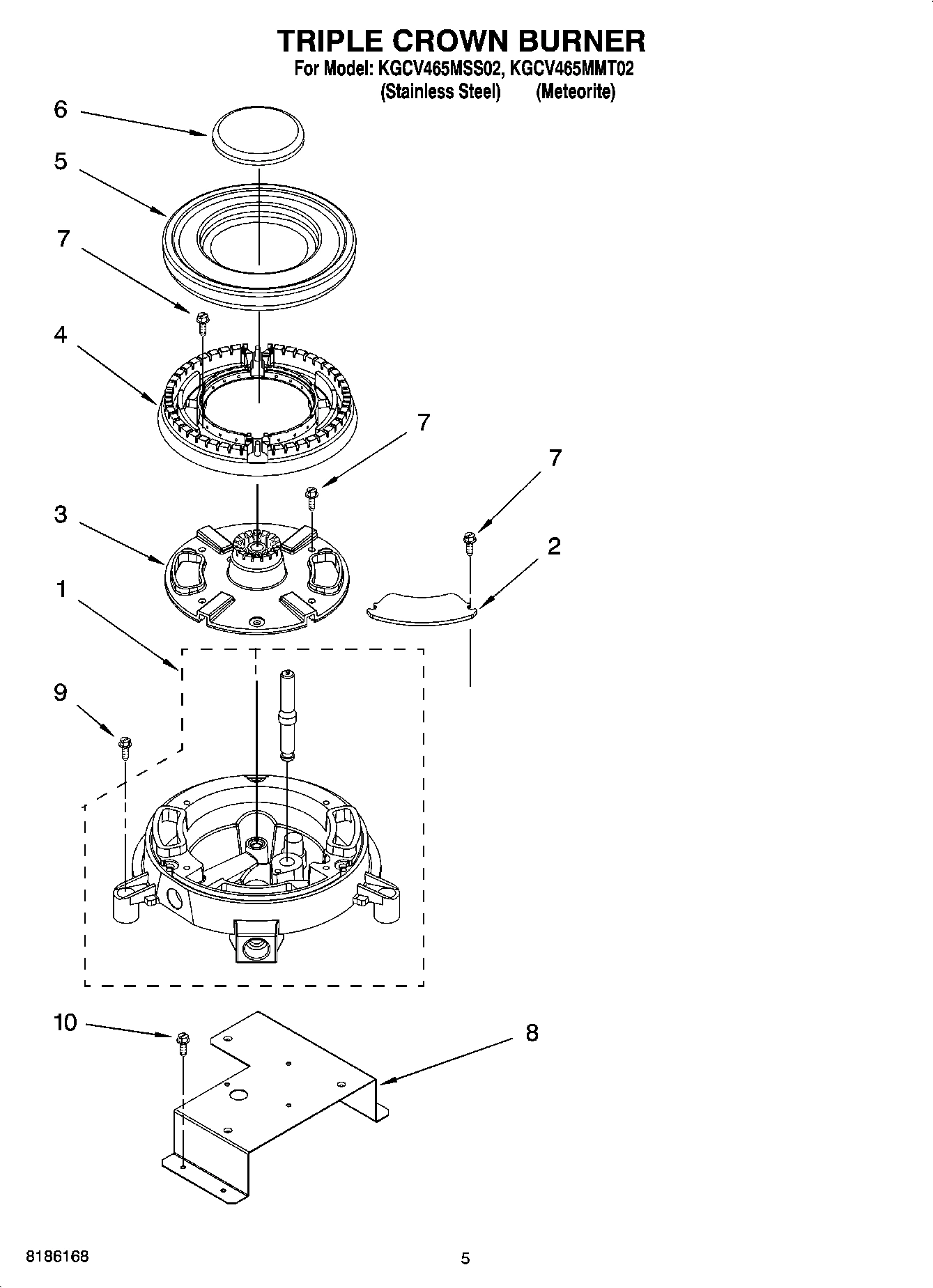

03 - TRIPLE CROWN BURNER

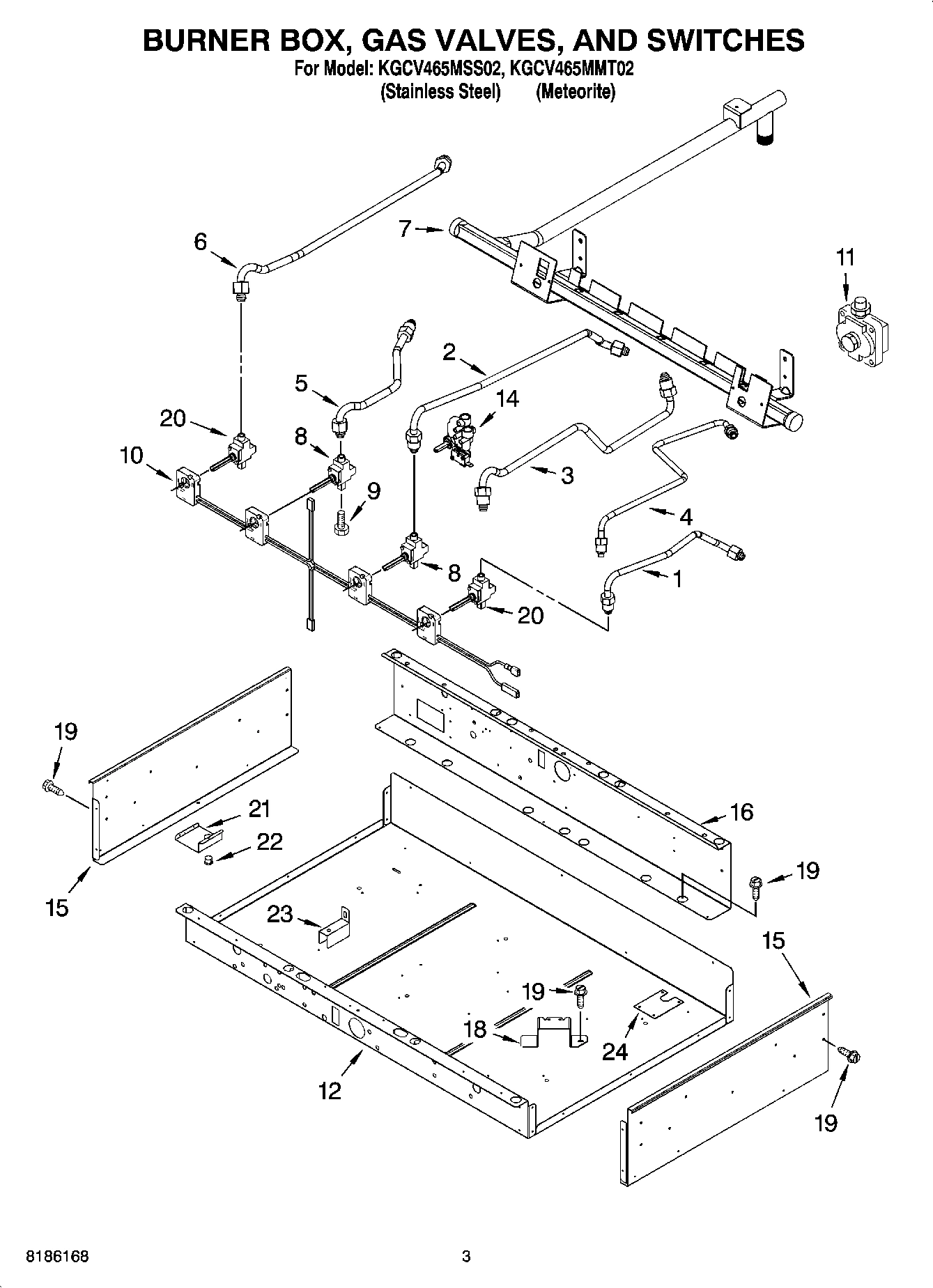

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCV465MSS02 36`` Pro-Line Cooktop
1
Burner Assy., Triple Crown Brnr WPL 8285248 Contact Us For Availability
1
Tubing, Gas Burner - RF WPL 8285160 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4456969 Contact Us For Availability
3
Tubing, Gas Burner - Inner WPL 8285189 Contact Us For Availability
4
Tubing, Gas Burner - External WPL 8285190 Contact Us For Availability
5
Tubing, Gas Burner - LF WPL 8285157 Contact Us For Availability
6
Cap, Burner Int. WPL 8285257 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4456968 Contact Us For Availability
7
Manifold WPL 8285156 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 4456818 Contact Us For Availability
8
Bracket, Triple Crown Burner WPL 8285177 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4456919 Contact Us For Availability
12
Burner Box WPL 4457094 Contact Us For Availability
13
Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability
14
Dual Valve, Triple Crown Brnr WPL 8285247 Contact Us For Availability
15
Side, Burner Box (Left Hand) WPL 8285606 Contact Us For Availability
15
Side, Burner Box (Right Hand) WPL 8285607 Contact Us For Availability
16
Support, Rear WPL 8285358 Contact Us For Availability
18
Screw (4) WPL 4449040 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head (Turbo (2)) WPL 4455849 Contact Us For Availability
21
Nameplate WPL 8531717 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Control Frame (Meteorite Model) WPL 8285446 Contact Us For Availability
23
Control Frame (S.S. Model) WPL 9759125 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Harness, Wire (Ignitor 42``) WPL 4456628 Contact Us For Availability
24
L.P. Orific Spud Pack WPL 8285442 Contact Us For Availability
24
Panel, Control (S.S. Model) WPL 8285182 Contact Us For Availability
24
Panel, Control (Meteorite Model) WPL 8285286 Contact Us For Availability
24
Bushing WPL 1129449 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
24
WIRING HARNESS PARTS WPL ARI87730A4 Contact Us For Availability
24
Miscellaneous WPL ARI87731A4 Contact Us For Availability
26
Knob, Center Brnr (S.S. Model) WPL 8285171 Contact Us For Availability
26
Knob, Center Brnr (Meteorite Model) WPL 8285284 Contact Us For Availability
27
Knob, Burner (4) (S.S. Model) WPL 8285170 Contact Us For Availability
27
Knob, Bu WPL 8285283 Contact Us For Availability
30
WPL 8285285 WPL 8285285 Contact Us For Availability
× ![]()
