Model Whirlpool KGCV465MSS00 36`` Pro-Line Cooktop – Common Parts & Diagrams

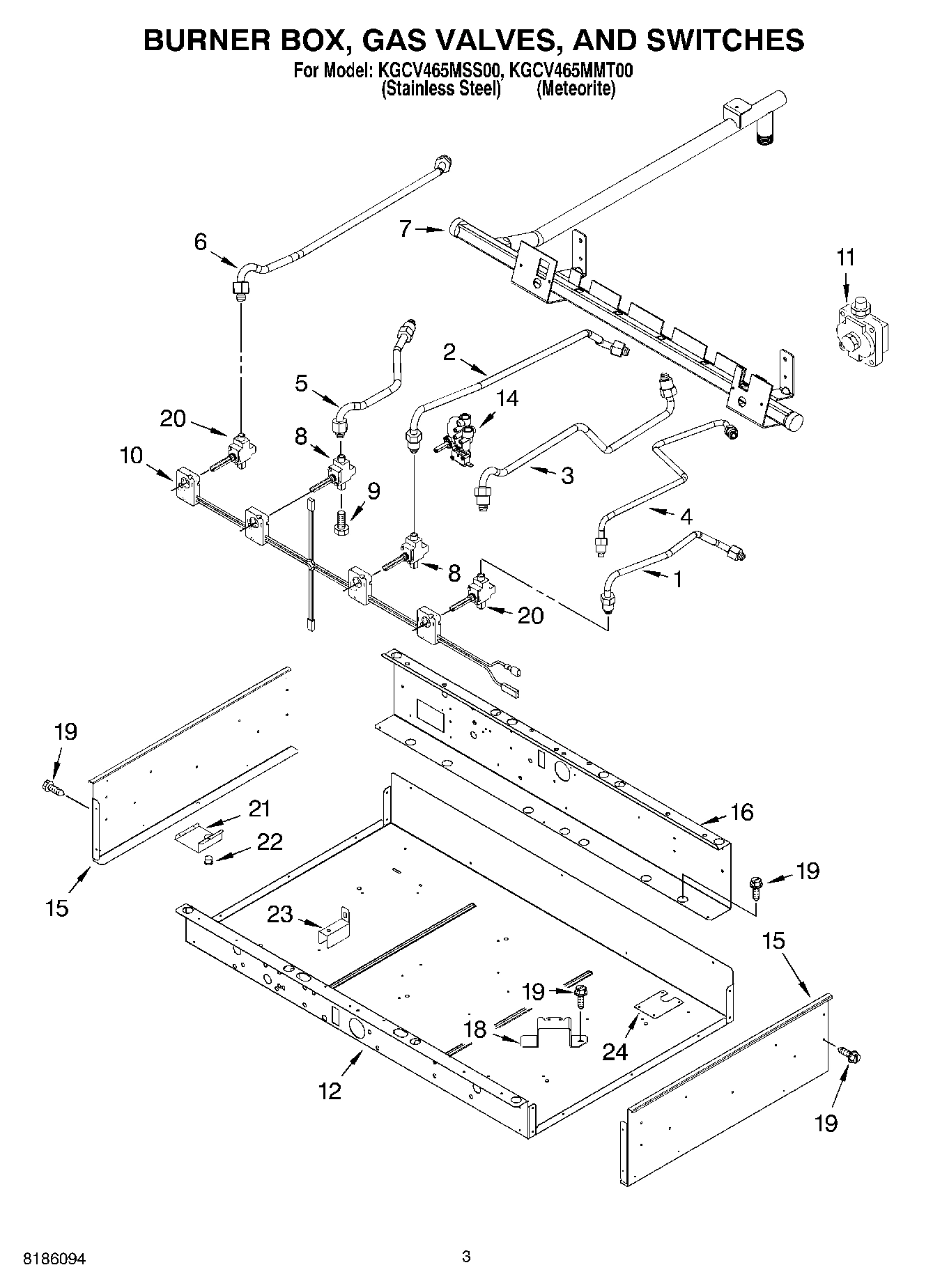

02 - BURNER BOX, GAS VALVES, AND SWITCHES

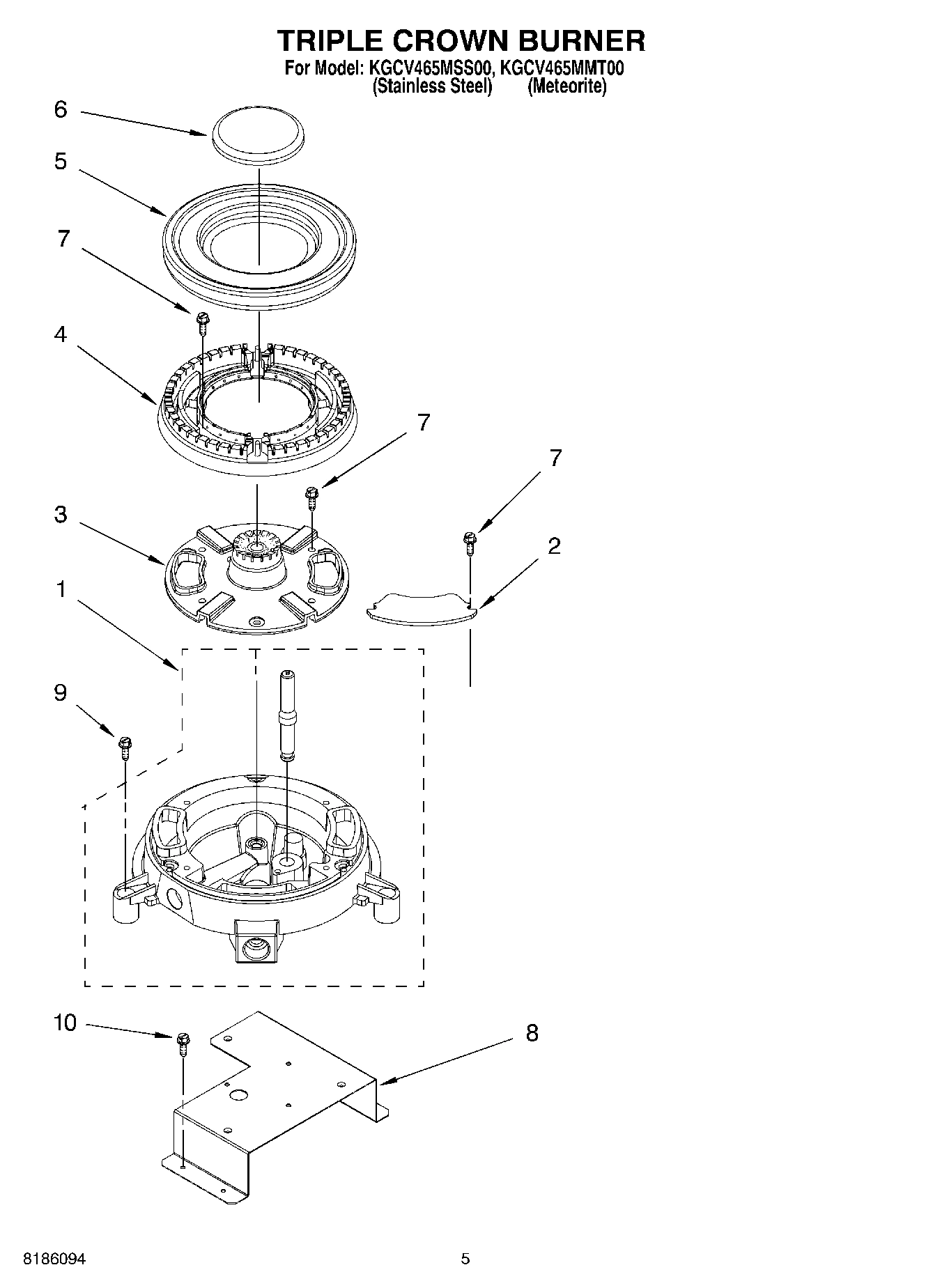

03 - TRIPLE CROWN BURNER

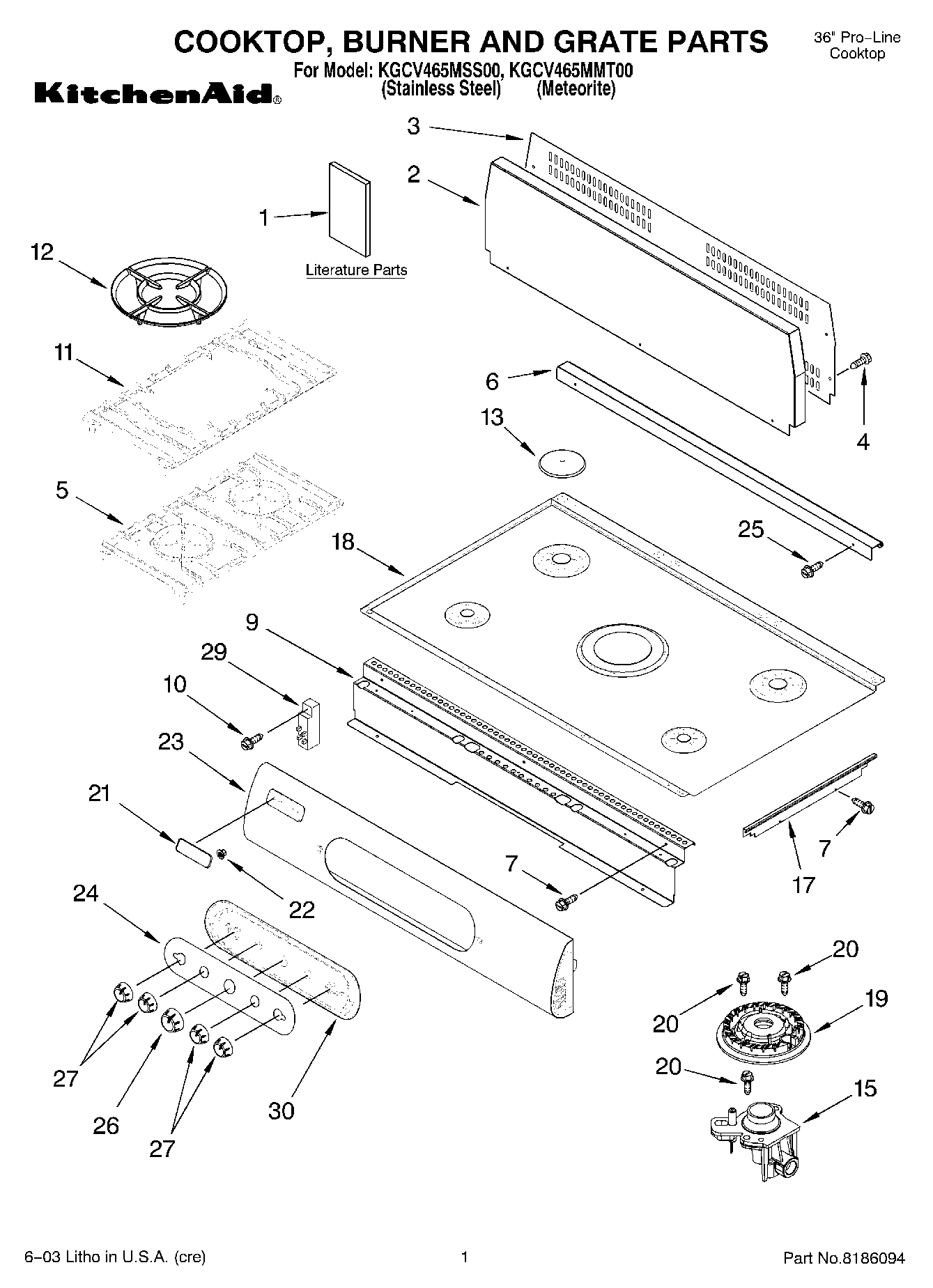

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCV465MSS00 36`` Pro-Line Cooktop
1
Burner Assy., Triple Crown Brnr WPL 8285248 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8285399 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8285400 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8285418 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8285441 Contact Us For Availability
2
Backsplash (S.S. Model) WPL 8285199 Contact Us For Availability
2
Backsplash (Meteorite Model) WPL 8285287 Contact Us For Availability
3
Support, Backsplash WPL 8285200 Contact Us For Availability
5
Cap, Burner Ext. (Coal Black) WPL 8285258 Contact Us For Availability
5
Grate, Side WPL 8285562 Contact Us For Availability
6
Cap, Burner Int. WPL 8285257 Contact Us For Availability
6
Trim, Island (S.S. Model) WPL 4454962 Contact Us For Availability
6
Trim, Island (Meteorite Model) WPL 8285288 Contact Us For Availability
8
Bracket, Triple Crown Burner WPL 8285177 Contact Us For Availability
9
Support, Control Panel WPL 8285155 Contact Us For Availability
11
Grate, Center WPL 8285563 Contact Us For Availability
12
Grate, Ring WPL 8285166 Contact Us For Availability
13
Cap, Burner ((14K)) WPL 4455243 Contact Us For Availability
14
Dual Valve, Triple Crown Brnr WPL 8285247 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Turbo (2)) WPL 9754188 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 9754183 Contact Us For Availability
17
Trim, Side Right Hand (Meteorite Model) WPL 8285281 Contact Us For Availability
17
Trim, Side Left Hand (Meteorite Model) WPL 8285282 Contact Us For Availability
17
Trim, Side Right Hand (S.S. Model) WPL 8759122 Contact Us For Availability
17
Trim, Side Left Hand (S.S. Model) WPL 9759123 Contact Us For Availability
18
Cooktop WPL 8285163 Contact Us For Availability
19
Burner Head (Turbo (2)) WPL 4455849 Contact Us For Availability
20
Valve, Burner Auxillary WPL 3191292 Contact Us For Availability
21
Nameplate WPL 8531717 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
23
Control Frame (Meteorite Model) WPL 8285446 Contact Us For Availability
23
Control Frame (S.S. Model) WPL 9759125 Contact Us For Availability
24
L.P. Orific Spud Pack WPL 8285442 Contact Us For Availability
24
Bushing WPL 1129449 Contact Us For Availability
24
Harness, Wire Ignitor (15``) WPL 4456530 Contact Us For Availability
24
Harness, Wire Ignitor 28`` WPL 4456531 Contact Us For Availability
24
Harness, Wire Ignitor (42``) WPL 4456532 Contact Us For Availability
24
Cover, Panel WPL 8285361 Contact Us For Availability
24
WIRING HARNESS PARTS WPL ARI87728A7 Contact Us For Availability
24
Miscellaneous WPL ARI87729A3 Contact Us For Availability
24
Panel, Control (S.S. Model) WPL 8285182 Contact Us For Availability
24
Panel, Control (Meteorite Model) WPL 8285286 Contact Us For Availability
26
Knob, Center Brnr (S.S. Model) WPL 8285171 Contact Us For Availability
26
Knob, Center Brnr (Meteorite Model) WPL 8285284 Contact Us For Availability
27
Knob, Burner (4) (S.S. Model) WPL 8285170 Contact Us For Availability
27
Knob, Burner (4) ( WPL 8285283 Contact Us For Availability
30
WPL 8285285 WPL 8285285 Contact Us For Availability
× ![]()
