Model Whirlpool KGCT366EWH0 GAS COOKTOP – Common Parts &amp; Diagrams

4173634 Whirlpool Bushing Backorder WPL 4173634 $4.61

8186533 Whirlpool Hardware Backorder WPL 8186533 $30.25

Ground Screw WPL 3148443 Contact Us For Availability

Tape, Foam WPL 3179164 Contact Us For Availability

Screw (2) WPL 3179557 Contact Us For Availability

Hardware, Mounting WPL 3188310 Contact Us For Availability

Sides WPL 3191111 Contact Us For Availability

Front & Back WPL 3191113 Contact Us For Availability

Harness, Ignitor Seal, Foam-Cooktop WPL 3191127 Contact Us For Availability

Harness, Switch WPL 3191128 Contact Us For Availability

Tinnerman Nut WPL 4167077 Contact Us For Availability

Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability

Wiring Diagram (Label) WPL LIT3191129 Contact Us For Availability

Use & Care Guide WPL LIT3191143 Contact Us For Availability

Installation Instructions WPL LIT3191144 Contact Us For Availability

1

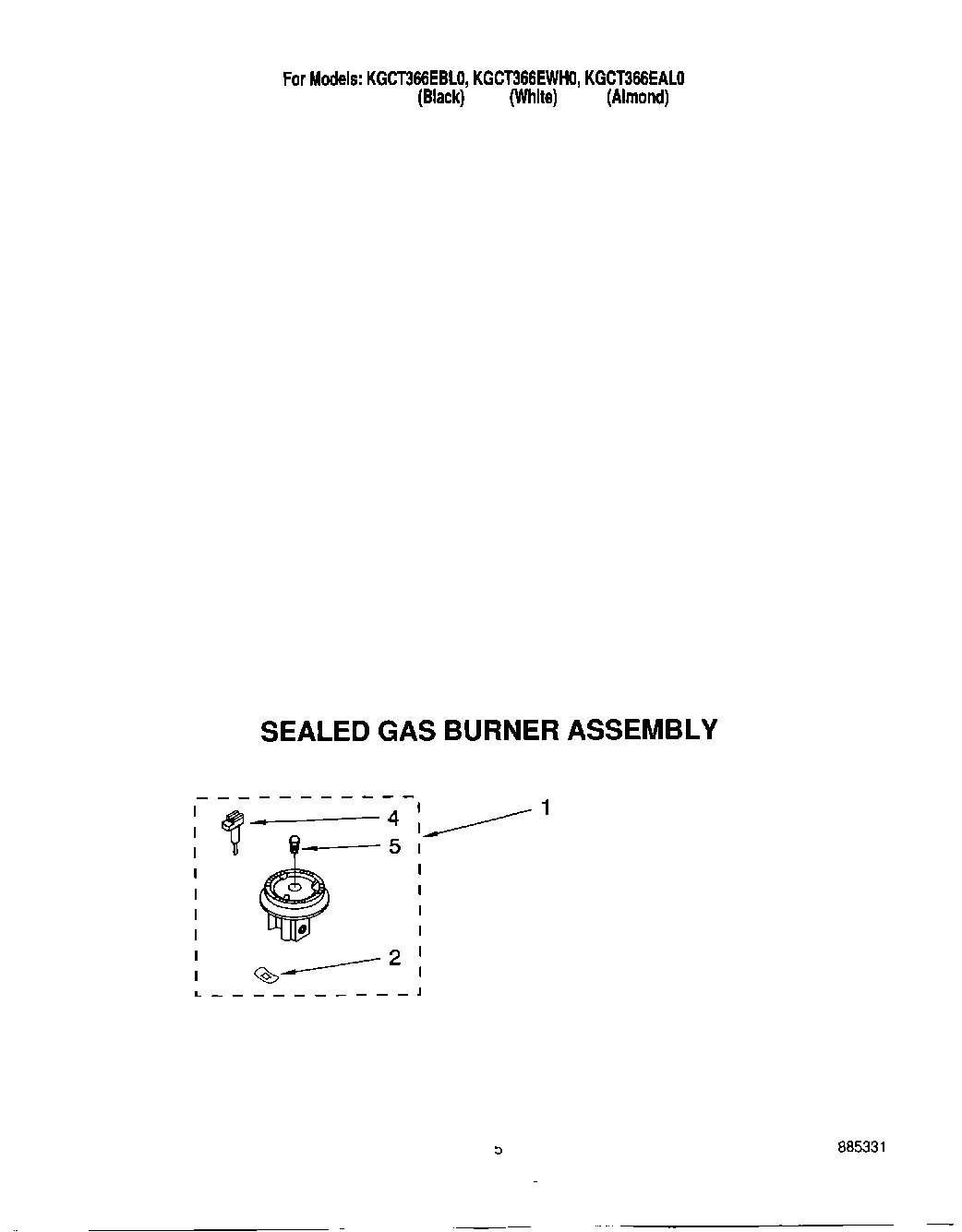

Sealed Gas Burner Assembly (Small Burner) WPL 3188799 Contact Us For Availability

1

Sealed Gas Burner Assembly (Large Burner) WPL 3188798 Contact Us For Availability

1

Backer Plate WPL 3190396 Contact Us For Availability

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $3.92

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $3.79

2

Pipe, Manifold WPL 3190750 Contact Us For Availability

2

Nut WPL 3185805 Contact Us For Availability

3

Valve, Gas Burner (LF, RR, & CR) WPL 3185828 Contact Us For Availability

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $30.25

4

Electrode WPL 3185804 Contact Us For Availability

5

Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability

5

Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability

5

Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability

8

Bezel, Cooktop (Small) (Almond) WPL 4454599 Contact Us For Availability

8

Bezel, Cooktop (Small) (White) WPL 4454600 Contact Us For Availability

8

Bolt (Gas Valve) WPL 3185829 Contact Us For Availability

10

Bracket, Burner (5) WPL 4454647 Contact Us For Availability

10

Screw (5) WPL 4454663 Contact Us For Availability

11

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

11

Bracket, Burner Box (9) WPL 3190926 Contact Us For Availability

12

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $10.78

12

WP3190779 Whirlpool Igniter Switch Backorder WPL WP3190779 $49.32

13

Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186675 Contact Us For Availability

13

Grate, Large (RF & LR) (Includes No. 12) (Alm WPL 3186676 Contact Us For Availability

13

Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186677 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186672 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Alm WPL 3186673 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186674 Contact Us For Availability

Tubing, Large Gas Burner (RF) WPL 3189880 Contact Us For Availability

Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability

Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability

Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability

Tubing, Small Gas Burner (LF) WPL 3189881 Contact Us For Availability

Cap, Semi Rapid Small (3) (Almond) WPL 3185795 Contact Us For Availability

Cap, Semi Rapid Small (3) (Black) WPL 3185796 Contact Us For Availability

Cap, Semi Rapid Small (3) (White) WPL 3185797 Contact Us For Availability

Tubing, Large Gas Gas Burner (RR) WPL 3189882 Contact Us For Availability

WP3182567 Whirlpool Oven Knob In Stock WPL WP3182567 $19.49

WP3182568 Whirlpool Control Knob In Stock WPL WP3182568 $12.54

WP3182569 Whirlpool Knob In Stock WPL WP3182569 $16.58

Tubing, Small Gas Burner (LR) WPL 3189883 Contact Us For Availability

18

Tubing, Small Burner (CR) WPL 3189884 Contact Us For Availability

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

22

Screw (9) WPL 3148442 Contact Us For Availability

22

Burner Box WPL 3190967 Contact Us For Availability

27

WPW10110486 Whirlpool Spark Module In Stock WPL WPW10110486 $140.34
