Model Whirlpool KGCT365EWH0 GAS COOKTOP – Common Parts & Diagrams
03 - SECTION
01 - SECTION

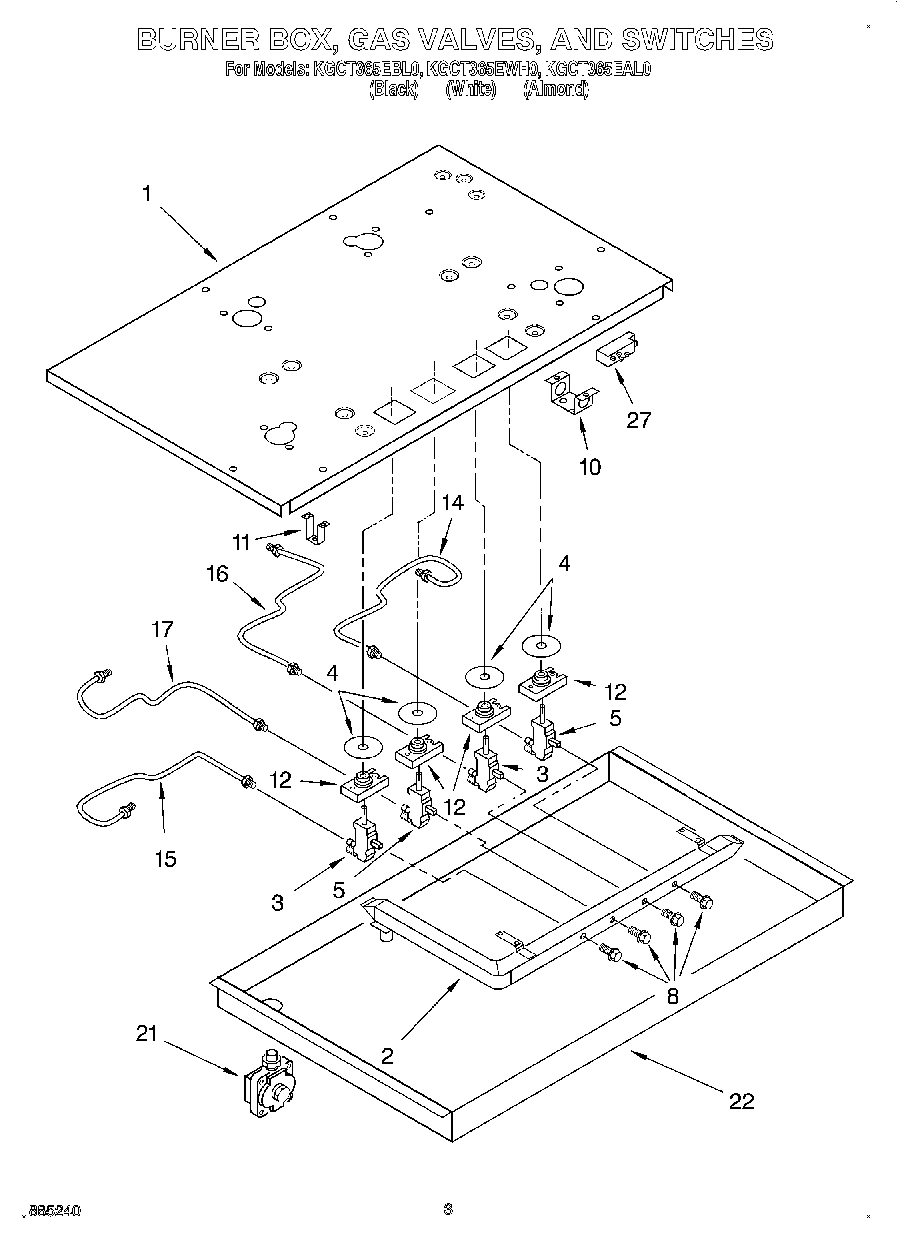

02 - SECTION
Common parts from model Whirlpool KGCT365EWH0 GAS COOKTOP
Wiring Diagram WPL LIT3190954 Contact Us For Availability
Use & Care Guide WPL LIT3190960 Contact Us For Availability
Installation Instructions WPL LIT3190961 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3190807 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3190808 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3190809 Contact Us For Availability
1
Backer Plate WPL 3191124 Contact Us For Availability
2
Pipe, Manifold WPL 3189302 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 4454595 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 4454596 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 4454597 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Harness, Ignitor WPL 3187588 Contact Us For Availability
5
Hardware, Mounting WPL 3188310 Contact Us For Availability
5
Harness, Switch WPL 3191088 Contact Us For Availability
5
Sides WPL 3191111 Contact Us For Availability
5
Front & Back WPL 3191113 Contact Us For Availability
5
Bracket Tinnerman Nut WPL 4167077 Contact Us For Availability
5
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
7
Speed Nut (12) WPL 3189021 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 4454598 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 4454599 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 4454600 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
10
Bracket, Burner (4) WPL 4454647 Contact Us For Availability
10
Screw (4) WPL 4454663 Contact Us For Availability
11
Screw (8) WPL 3148442 Contact Us For Availability
11
Bracket, Burner Box (8) WPL 3191098 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186675 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Alm WPL 3186676 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186677 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186672 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Alm WPL 3186673 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186674 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 4454624 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 4454625 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (RR) WPL 4454626 Contact Us For Availability
17
Tubing, Small Gas Burner (LR) WPL 4454627 Contact Us For Availability
18
Burner, Sma WPL 3188799 Contact Us For Availability
19
WPL 3188798 WPL 3188798 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3191133 Contact Us For Availability
27
Screw WPL 3148443 Contact Us For Availability
× ![]()
