Model Whirlpool KGCT365BAL4 GAS COOKTOP – Common Parts & Diagrams
03 - WIRING HARNESS
01 - COOKTOP, BURNER AND GRATE
02 - BURNER BOX, GAS VALVES, AND SWITCHES

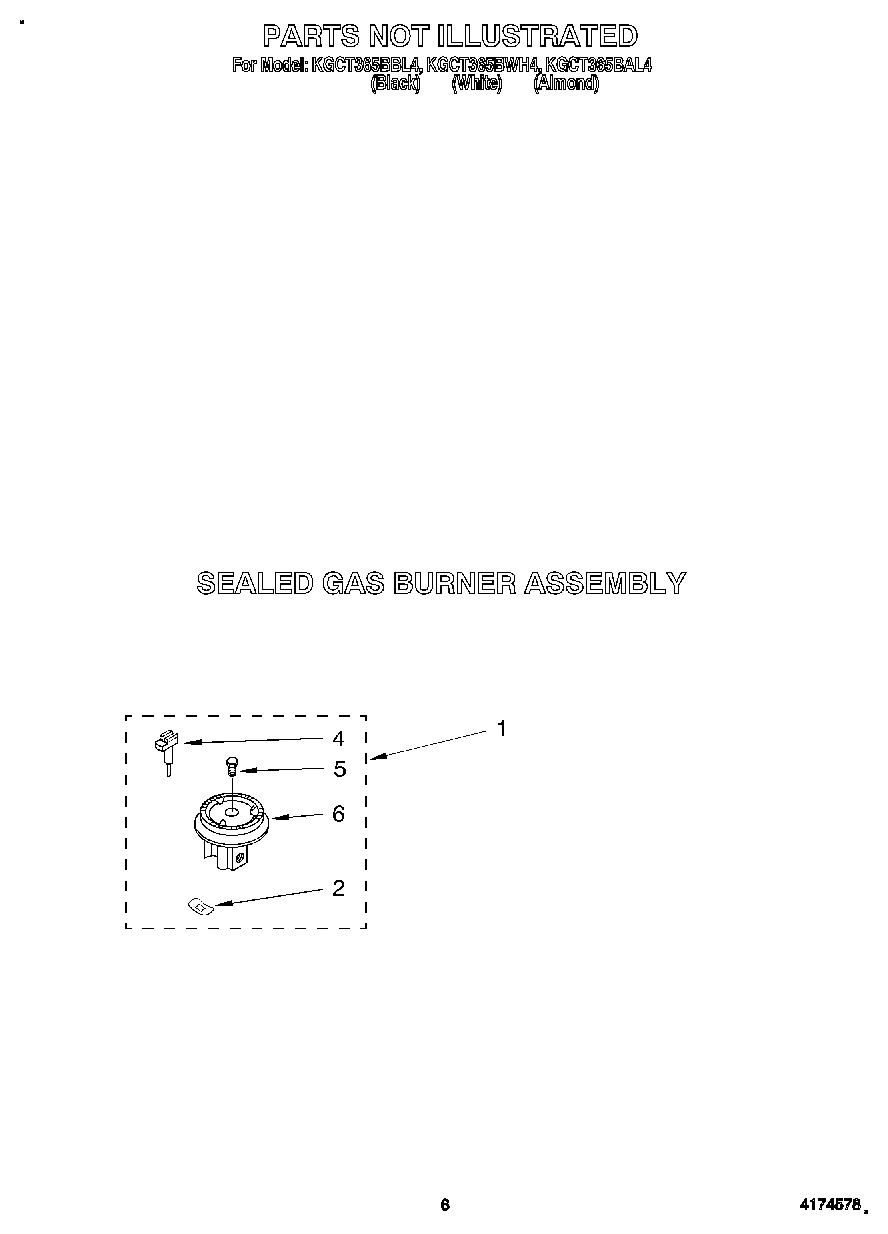

04 - SEALED GAS BURNER ASSEMBLY
Common parts from model Whirlpool KGCT365BAL4 GAS COOKTOP
Wiring Diagram WPL LIT3187587 Contact Us For Availability
Use & Care Guide WPL LIT3188080 Contact Us For Availability
Installation Instructions WPL LIT3188087 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3185899 Contact Us For Availability
1
Cover, Top Assy. WPL 4454510 Contact Us For Availability
2
Pipe, Manifold WPL 3189302 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 4454506 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 4454507 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 4454508 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
6
Sheild, Heat WPL 3188919 Contact Us For Availability
7
Nut, Hex (12) WPL 4166262 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 4454503 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 4454504 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 4454505 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
9
Spacer, Tubing WPL 4454525 Contact Us For Availability
9
Grommet, Wire WPL 3188533 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186564 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186598 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Alm WPL 3186599 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186565 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186600 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Alm WPL 3186601 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186685 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186686 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (LR) WPL 3186688 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186687 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Screw (11) WPL 3148443 Contact Us For Availability
22
Burner Box WPL 3189321 Contact Us For Availability
× ![]()
