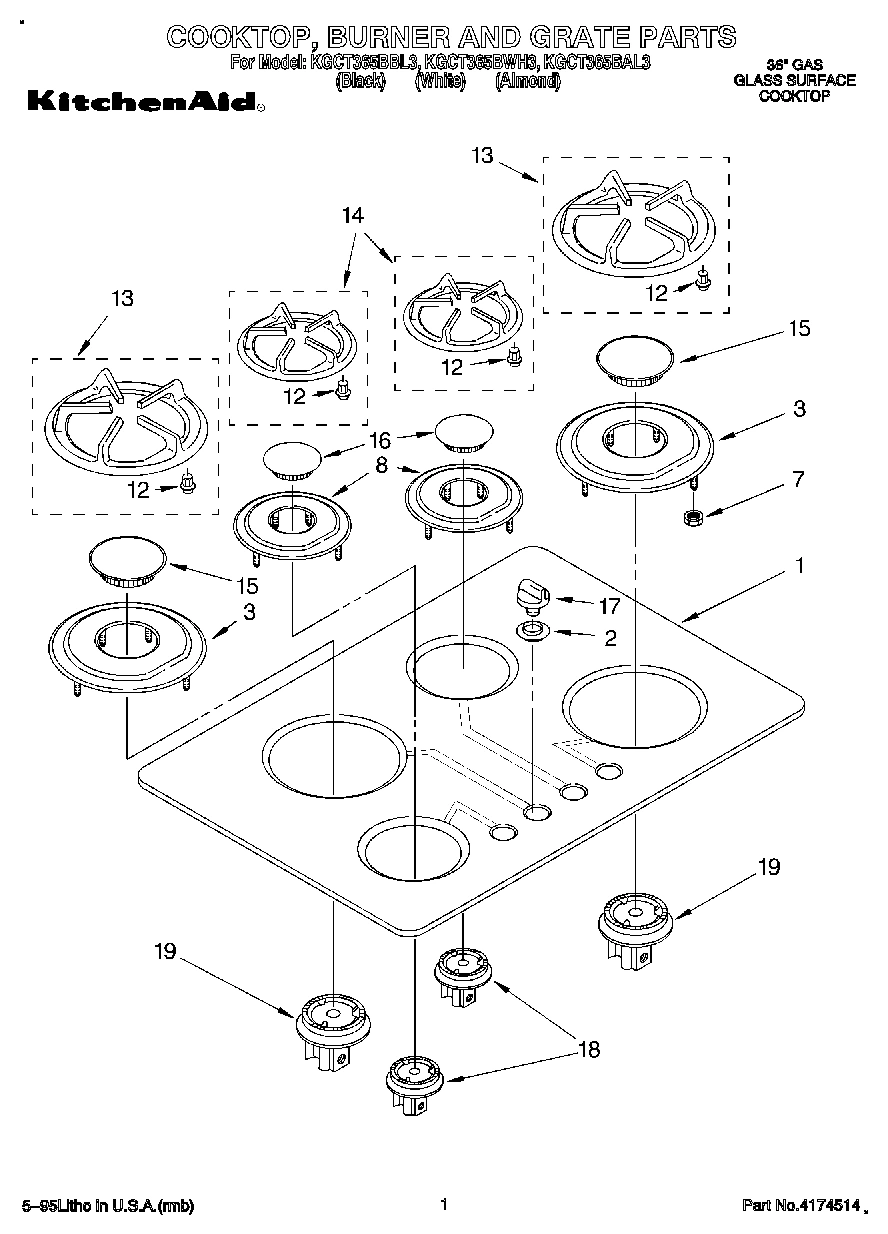

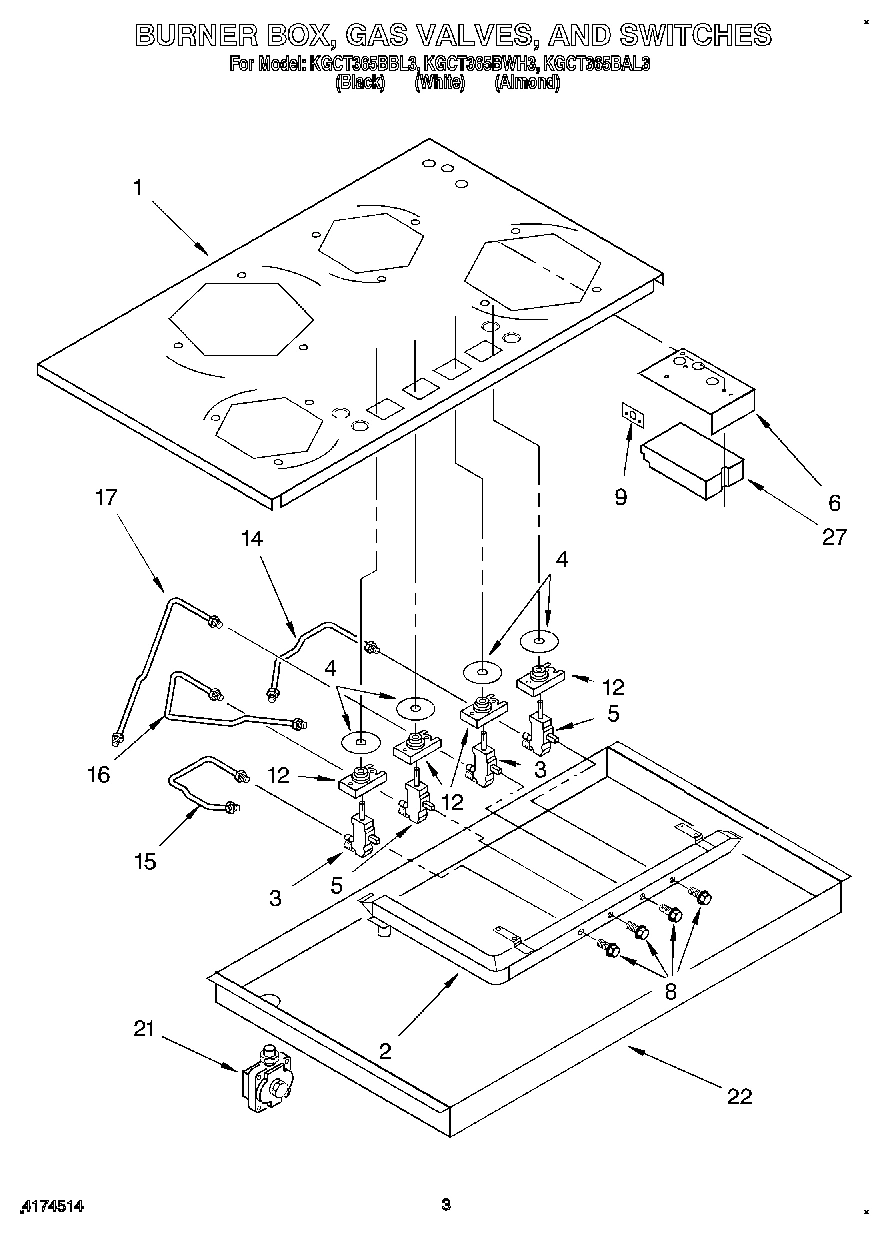

Model Whirlpool KGCT365BAL3 GAS COOKTOP – Common Parts &amp; Diagrams

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Tape, Foam WPL 3179164 Contact Us For Availability

Cord, Power WPL 3185833 Contact Us For Availability

Hardware, Mounting WPL 3188310 Contact Us For Availability

Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability

Wiring Diagram WPL LIT3187587 Contact Us For Availability

Use & Care Guide WPL LIT3188080 Contact Us For Availability

Installation Instructions WPL LIT3188087 Contact Us For Availability

1

Cover, Top Assy. WPL 3189319 Contact Us For Availability

2

W10854241 Whirlpool Grommet Backorder WPL W10854241 $5.60

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $3.92

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $3.79

2

Pipe, Manifold WPL 3189302 Contact Us For Availability

3

Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability

3

Bezel, Cooktop (Large) (Almond) WPL 3185819 Contact Us For Availability

3

Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability

3

Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $30.25

4

Electrode WPL 3185804 Contact Us For Availability

5

Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability

6

Sheild, Heat WPL 3188919 Contact Us For Availability

7

Nut, Hex (12) WPL 4166262 Contact Us For Availability

8

Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability

8

Bezel, Cooktop (Small) (Almond) WPL 3185816 Contact Us For Availability

8

Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability

8

Bolt (Gas Valve) WPL 3185829 Contact Us For Availability

9

Grommet, Wire WPL 3188533 Contact Us For Availability

12

814323 Whirlpool Range Burner Grate Foot Pads In Stock WPL 814323 $10.78

12

WP3185830 Whirlpool Oven Igniter Switch In Stock WPL WP3185830 $38.21

13

Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186564 Contact Us For Availability

13

Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186598 Contact Us For Availability

13

Grate, Large (RF & LR) (Includes No. 12) (Alm WPL 3186599 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186565 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186600 Contact Us For Availability

Grate, Small (LF & RR) (Includes No. 12) (Alm WPL 3186601 Contact Us For Availability

Tubing, Large Gas Burner (RF) WPL 3186685 Contact Us For Availability

Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability

Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability

Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability

Tubing, Small Gas Burner (LF) WPL 3186686 Contact Us For Availability

Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability

Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability

Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability

Tubing, Large Gas Gas Burner (LR) WPL 3186688 Contact Us For Availability

WP3182567 Whirlpool Oven Knob In Stock WPL WP3182567 $19.49

WP3182568 Whirlpool Control Knob In Stock WPL WP3182568 $12.54

WP3182569 Whirlpool Knob In Stock WPL WP3182569 $16.58

Tubing, Small Gas Burner (RR) WPL 3186687 Contact Us For Availability

18

Burner, Smal WPL 3185821 Contact Us For Availability

19

WPL 3185822 WPL 3185822 Contact Us For Availability

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

22

Screw (11) WPL 3148443 Contact Us For Availability

22

Burner Box WPL 3189321 Contact Us For Availability

27

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

27

WP4454392 Whirlpool Spark Module In Stock WPL WP4454392 $155.89
