Model Whirlpool KGCT365BAL1 GAS COOKTOP – Common Parts & Diagrams

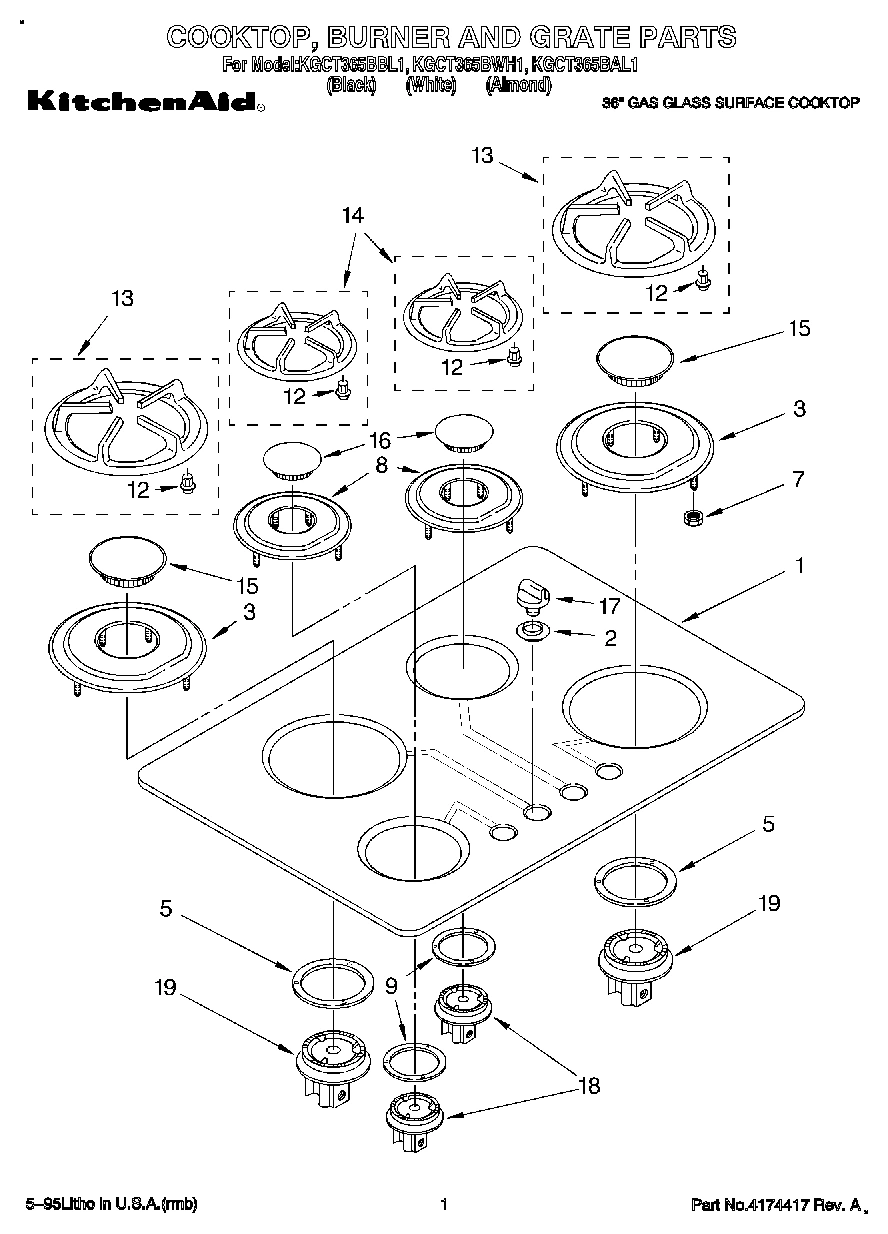

01 - COOKTOP, BURNER AND GRATE

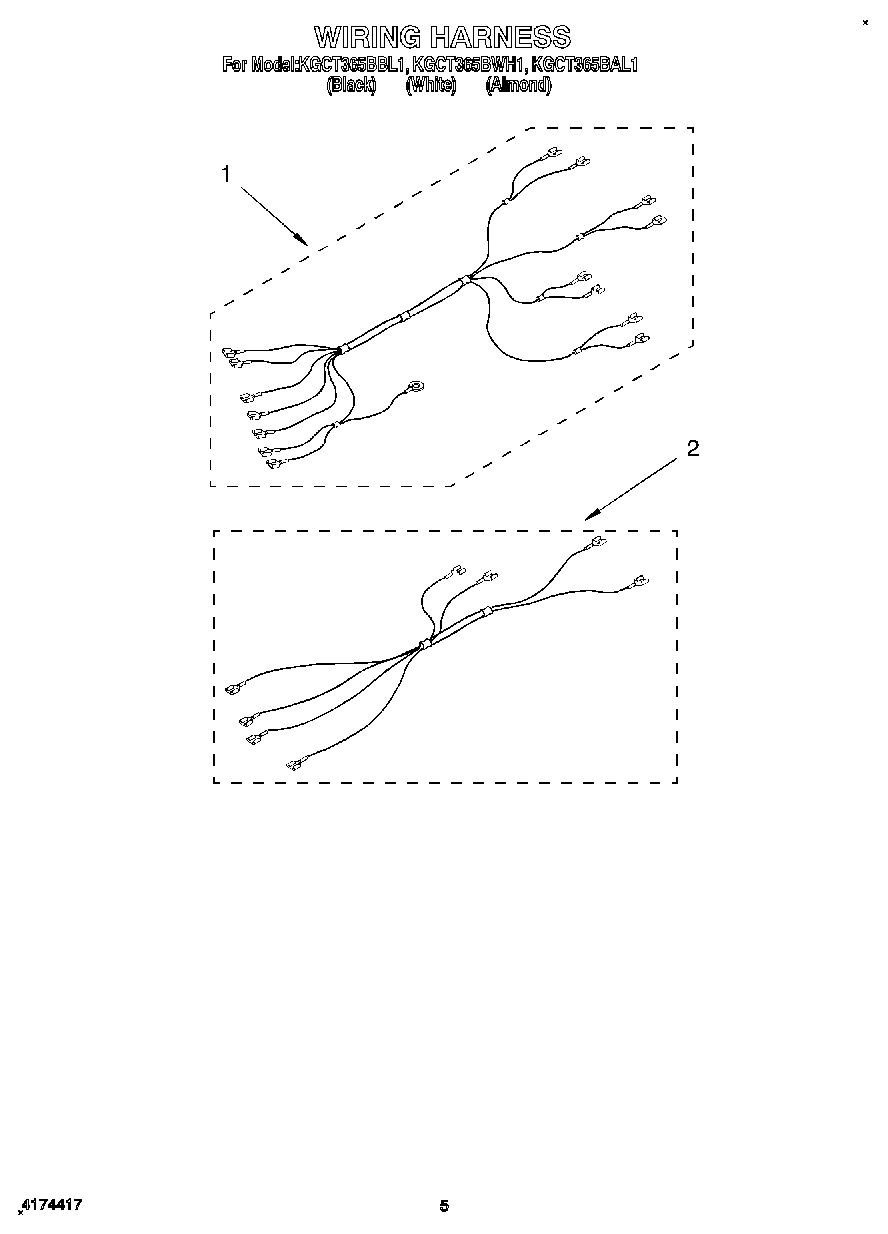

04 - WIRING HARNESS

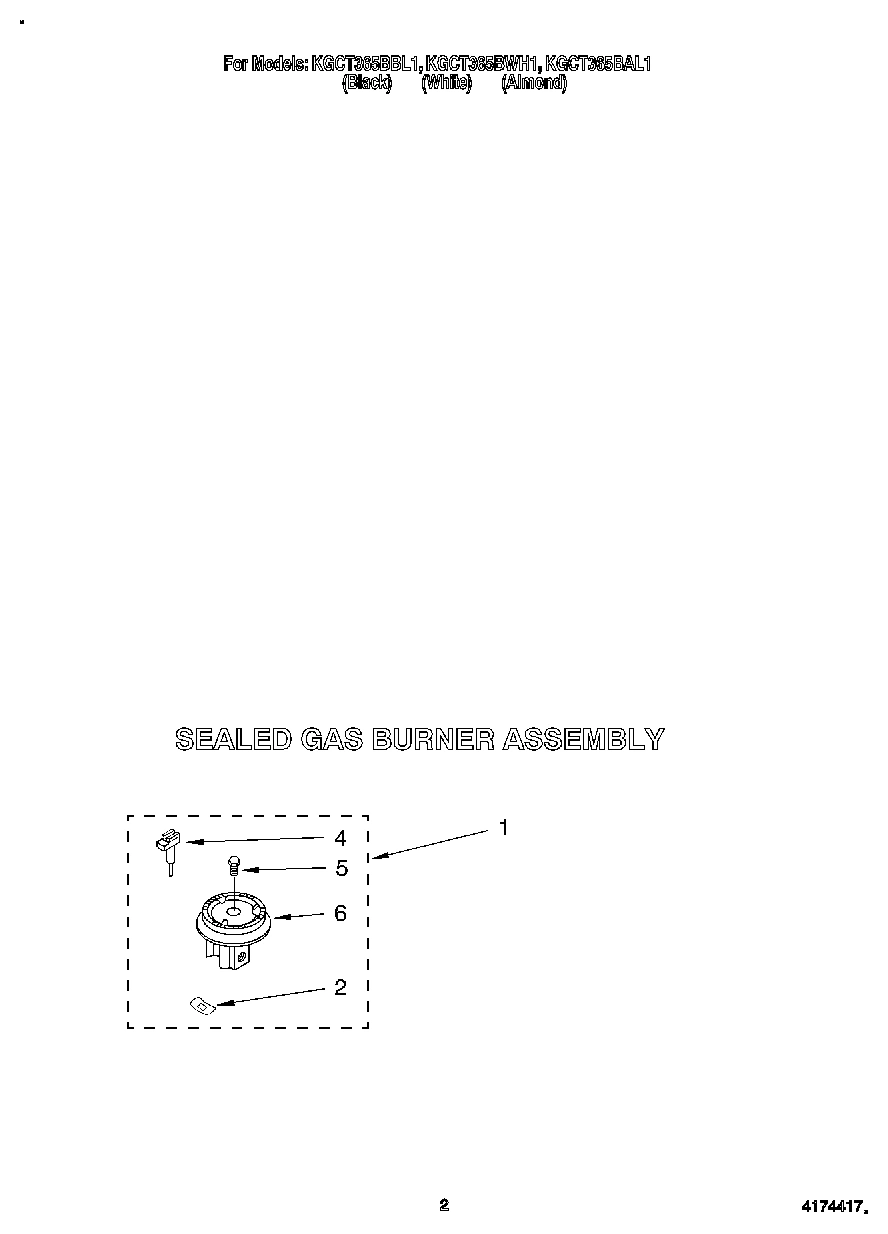

02 - SEALED GAS BURNER ASSEMBLY

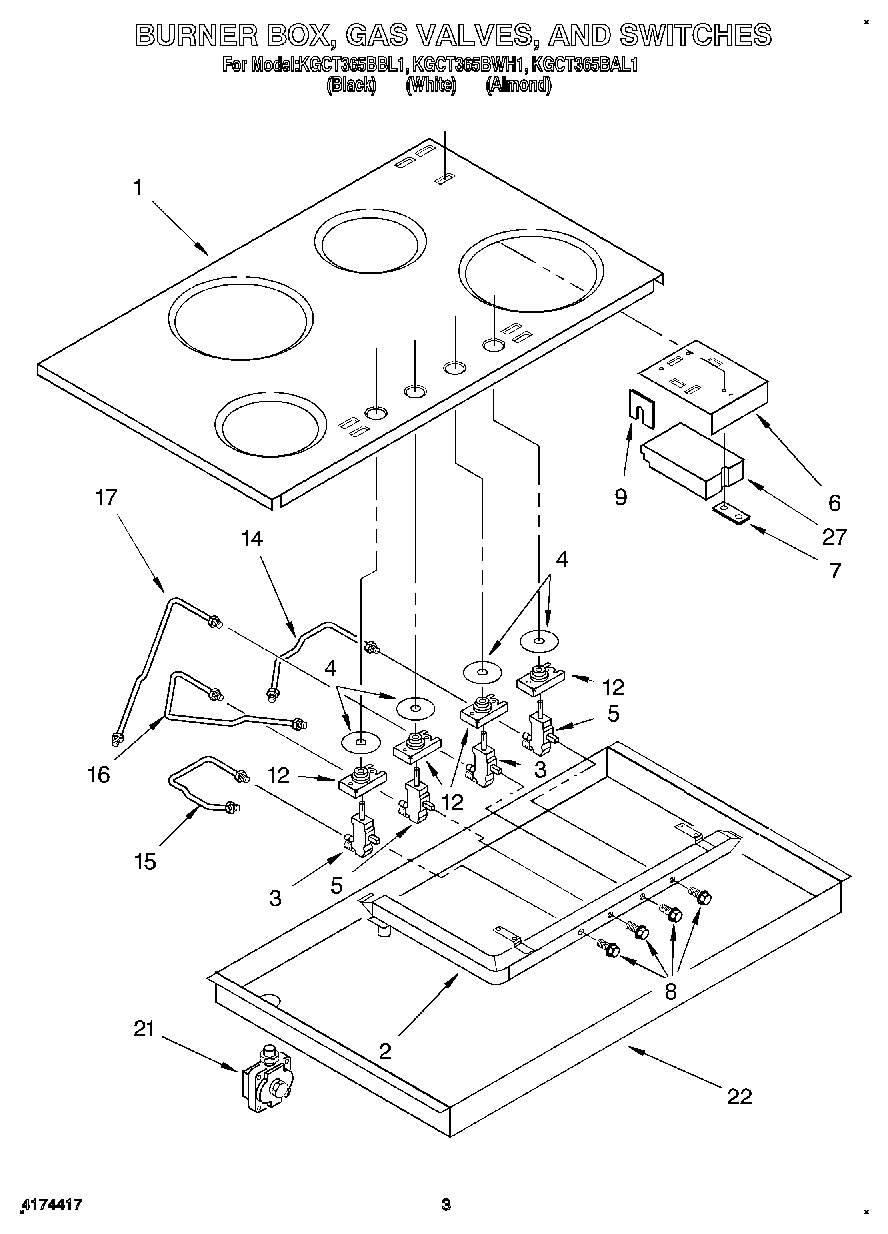

03 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCT365BAL1 GAS COOKTOP
Tape, Foam WPL 3179164 Contact Us For Availability
Cord, Power WPL 3185833 Contact Us For Availability
Hardware, Mounting WPL 3188310 Contact Us For Availability
Screw WPL 4159465 Contact Us For Availability
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
Wiring Diagram WPL LIT3187587 Contact Us For Availability
Use & Care Guide WPL LIT3188080 Contact Us For Availability
Installation Instructions WPL LIT3188087 Contact Us For Availability
1
Harness, Switch WPL 3187589 Contact Us For Availability
1
Sealed Gas Burner Assembly (Large Burner) WPL 814244 Contact Us For Availability
1
Sealed Gas Burner Assembly (Small Burner) WPL 814245 Contact Us For Availability
1
Cover, Top Assy. WPL 3188325 Contact Us For Availability
2
Harness, Ignitor WPL 3187588 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
2
Pipe, Manifold WPL 3187443 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3187570 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
4
Washer WPL 4159603 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3187569 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
6
Sheild, Heat WPL 3187444 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
7
Bracket WPL 3187583 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
9
Gasket, Burner (Small) WPL 3181658 Contact Us For Availability
9
Grommet, Wire WPL 3187754 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Bla WPL 3186564 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Whi WPL 3186598 Contact Us For Availability
13
Grate, Large (RF & LR) (Includes No. 12) (Alm WPL 3186599 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Bla WPL 3186565 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Whi WPL 3186600 Contact Us For Availability
14
Grate, Small (LF & RR) (Includes No. 12) (Alm WPL 3186601 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186685 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186686 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (LR) WPL 3186688 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186687 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3188322 Contact Us For Availability
27
Screw WPL 3148443 Contact Us For Availability
× ![]()
