Model Whirlpool KGCT305EAL0 GAS COOKTOP – Common Parts & Diagrams
01 - SECTION
02 - SECTION

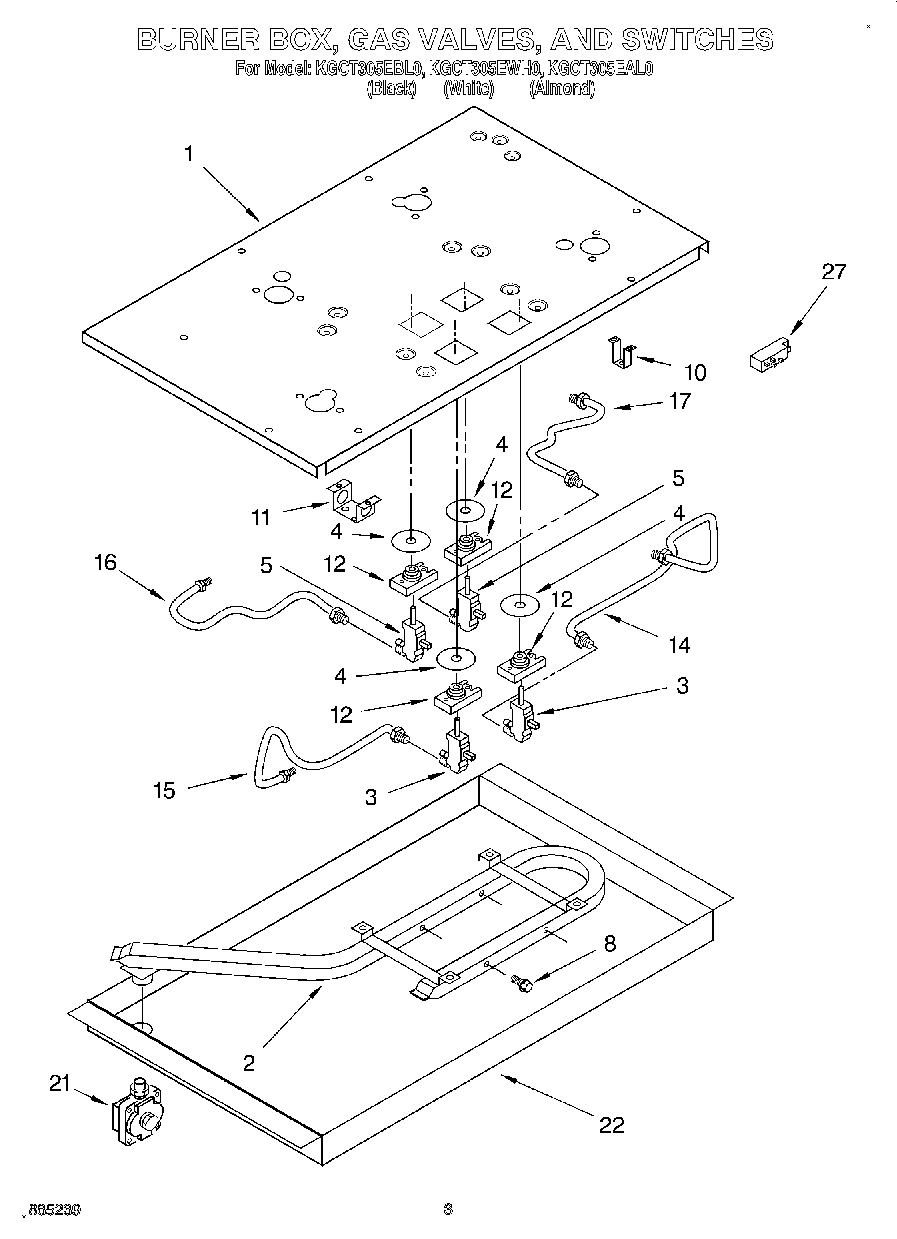

03 - SECTION
Common parts from model Whirlpool KGCT305EAL0 GAS COOKTOP
Wiring Diagram WPL LIT3190954 Contact Us For Availability
Use & Care Guide WPL LIT3190960 Contact Us For Availability
Installation Instructions WPL LIT3190961 Contact Us For Availability
1
Sealed Gas Burner Assembly (Small Burner) WPL 3188799 Contact Us For Availability
1
Sealed Gas Burner Assembly (Large Burner) WPL 3188798 Contact Us For Availability
1
Backer Plate WPL 3191123 Contact Us For Availability
2
Nut WPL 3189021 Contact Us For Availability
2
Pipe, Manifold WPL 3189301 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Tape, Foam WPL 3179164 Contact Us For Availability
5
Screw (2) WPL 3179557 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
5
Harness, Ignitor WPL 3187588 Contact Us For Availability
5
Hardware, Mounting WPL 3188310 Contact Us For Availability
5
Harness, Switch WPL 3191088 Contact Us For Availability
5
Seal, Foam-Cooktop (Sides) WPL 3191111 Contact Us For Availability
5
Seal, Foam-Cooktop (Front & Back) WPL 3191112 Contact Us For Availability
5
Tinnerman Nut (2) WPL 4167077 Contact Us For Availability
5
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
10
Screw (3) WPL 3148442 Contact Us For Availability
10
Bracket, Burner Box WPL 3191098 Contact Us For Availability
11
Bracket, Burner (4) WPL 4454647 Contact Us For Availability
11
Screw (4) WPL 4454663 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability
14
Grate, Small (LF & RR) (Black Model) WPL 3186565 Contact Us For Availability
14
Grate, Small (LF & RR) (White Model) WPL 3186600 Contact Us For Availability
14
Grate, Small (LF & RR) (Almond Model) WPL 3186601 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 4454620 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 4454621 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Gas Burner (LR) WPL 4454623 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 4454622 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3191132 Contact Us For Availability
27
Screw WPL 3148443 Contact Us For Availability
× ![]()
