Model Whirlpool KGCT305BWH3 GAS COOKTOP – Common Parts & Diagrams

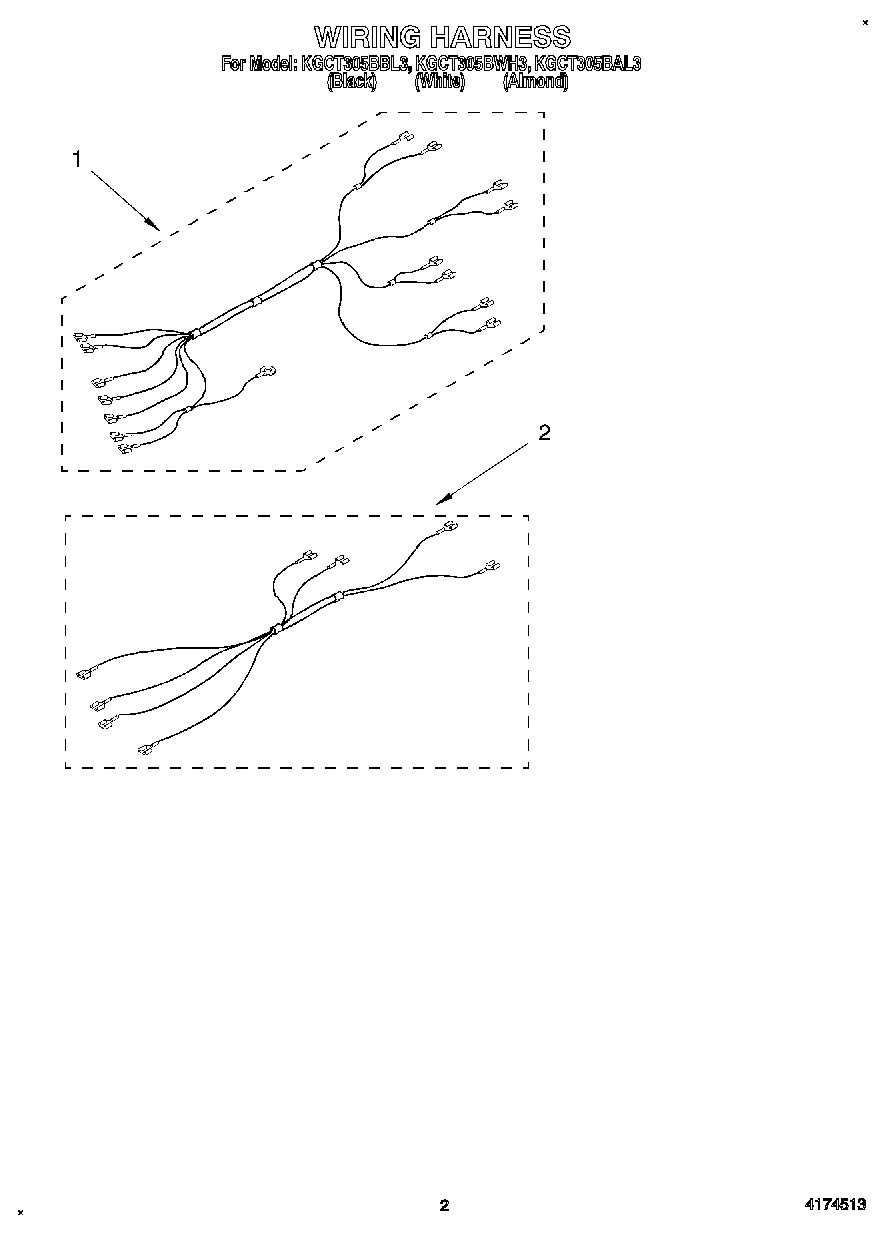

02 - WIRING HARNESS

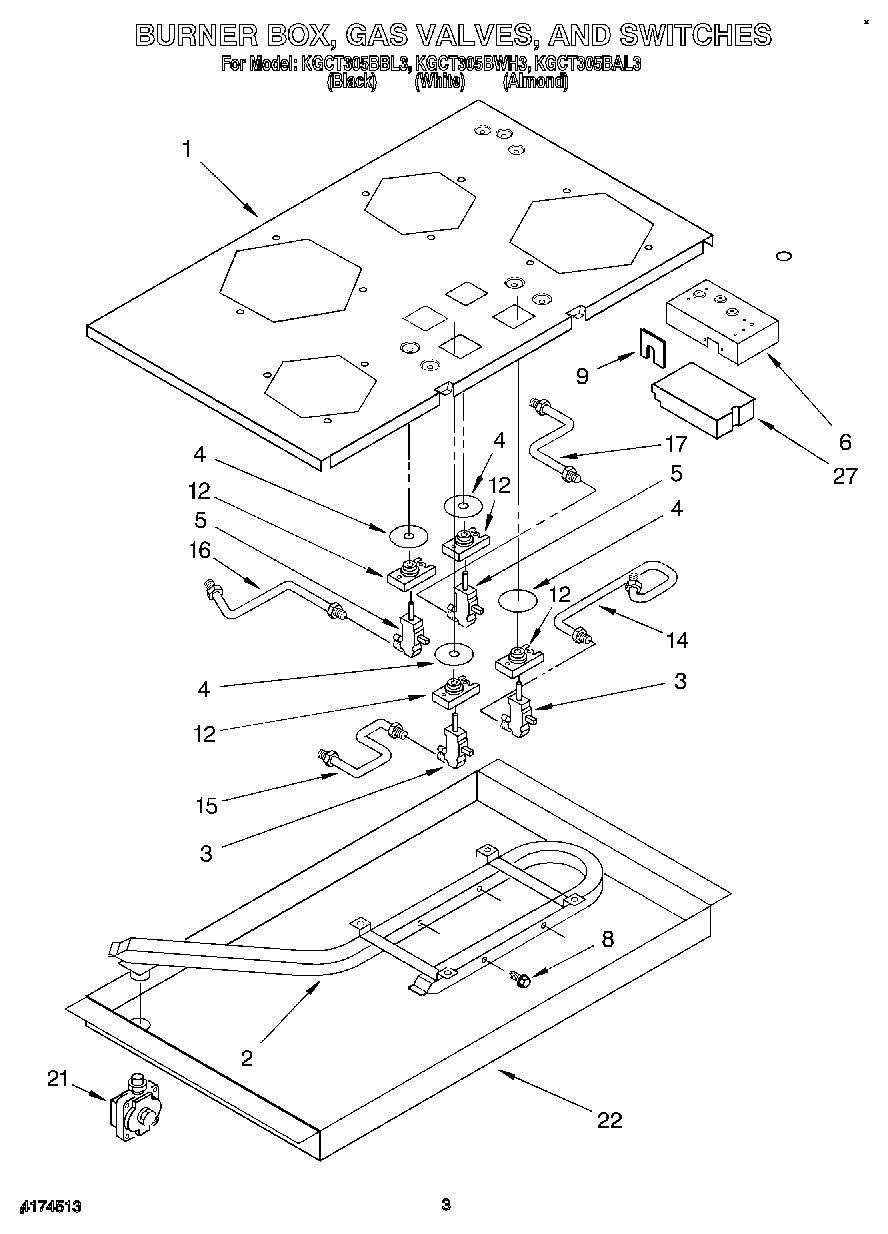

04 - BURNER BOX, GAS VALVES, AND SWITCHES
01 - COOKTOP, BURNER AND GRATE
03 - SEALED GAS BURNER ASSEMBLY
Common parts from model Whirlpool KGCT305BWH3 GAS COOKTOP
Wiring Diagram WPL LIT3187587 Contact Us For Availability
Use & Care Guide WPL LIT3188080 Contact Us For Availability
Installation Instructions WPL LIT3188087 Contact Us For Availability
1
Cover, Top Assy. WPL 3189318 Contact Us For Availability
1
Cooktop, Glass (Black) WPL 3185894 Contact Us For Availability
1
Cooktop, Glass (Almond) WPL 3185895 Contact Us For Availability
1
Cooktop, Glass (White) WPL 3185896 Contact Us For Availability
1
Sealed Gas Burner Assembly (Large Burner) WPL 814244 Contact Us For Availability
1
Sealed Gas Burner Assembly (Small Burner) WPL 814245 Contact Us For Availability
2
Pipe, Manifold WPL 3189301 Contact Us For Availability
2
Washer WPL 4159603 Contact Us For Availability
2
Nut WPL 3185805 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 3185819 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
5
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
5
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
6
Sheild, Heat WPL 3188919 Contact Us For Availability
6
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
6
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
7
Nut, Hex (3) WPL 4166262 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 3185816 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
9
Grommet, Wire WPL 3188533 Contact Us For Availability
9
Screw WPL 4159456 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3186564 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3186598 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability
14
Grate, Small (LF & RR) (Black Model) WPL 3186565 Contact Us For Availability
14
Grate, Small (LF & RR) (White Model) WPL 3186600 Contact Us For Availability
14
Grate, Small (LF & RR) (Almond Model) WPL 3186601 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3189320 Contact Us For Availability
27
Screw WPL 3148443 Contact Us For Availability
× ![]()
