Model Whirlpool KGCT305BBL4 GAS COOKTOP – Common Parts & Diagrams

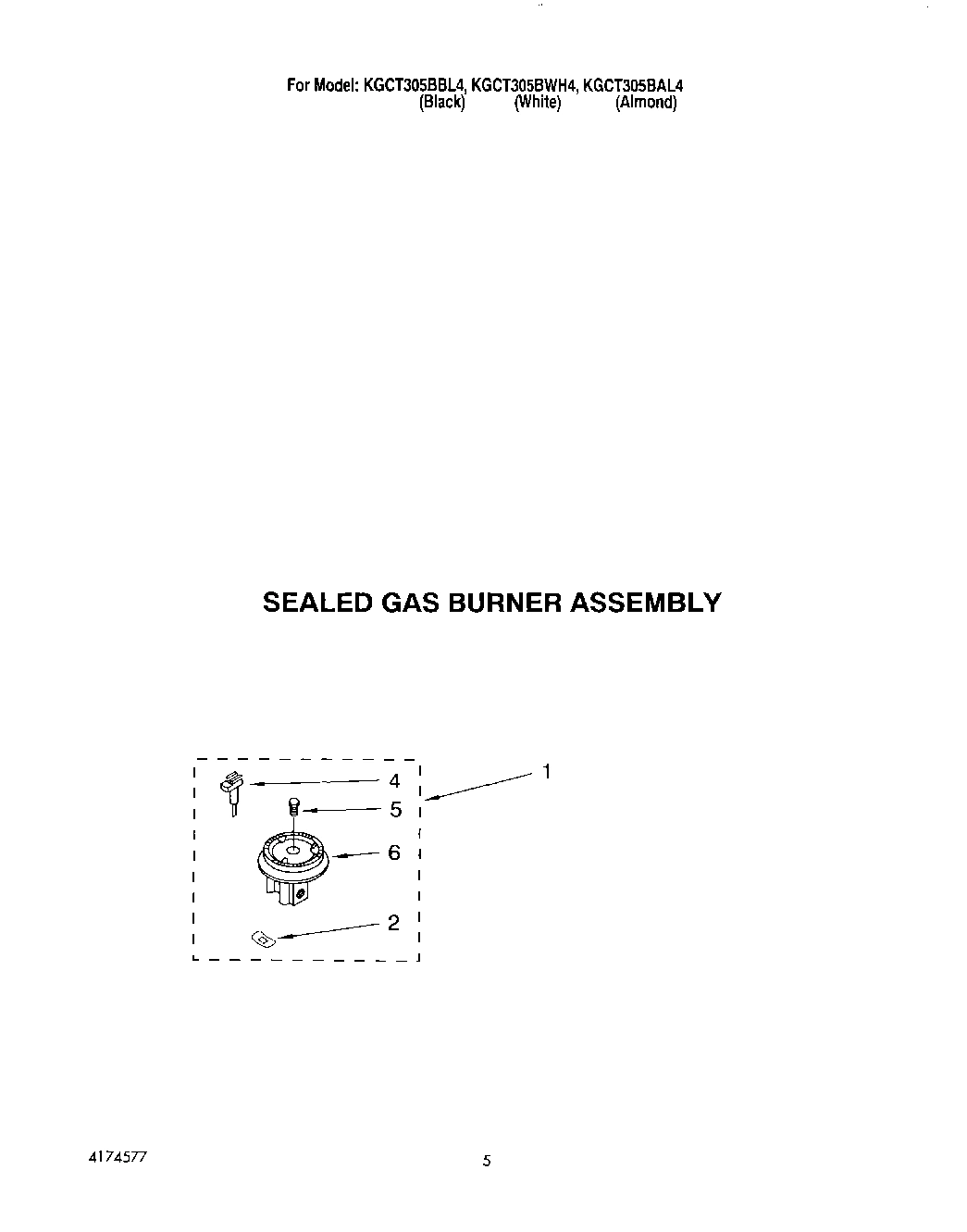

04 - SEALED GAS BURNER ASSEMBLY

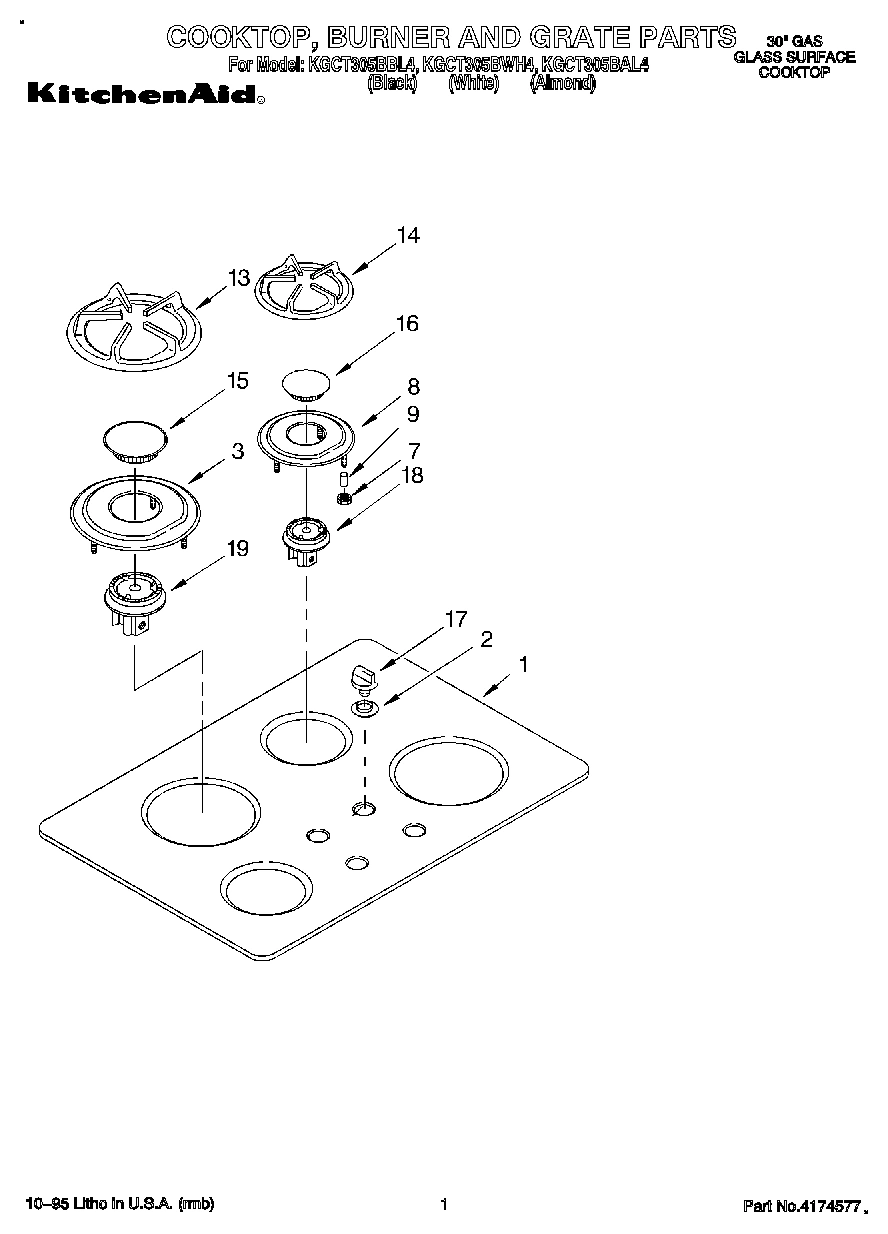

01 - COOKTOP, BURNER AND GRATE

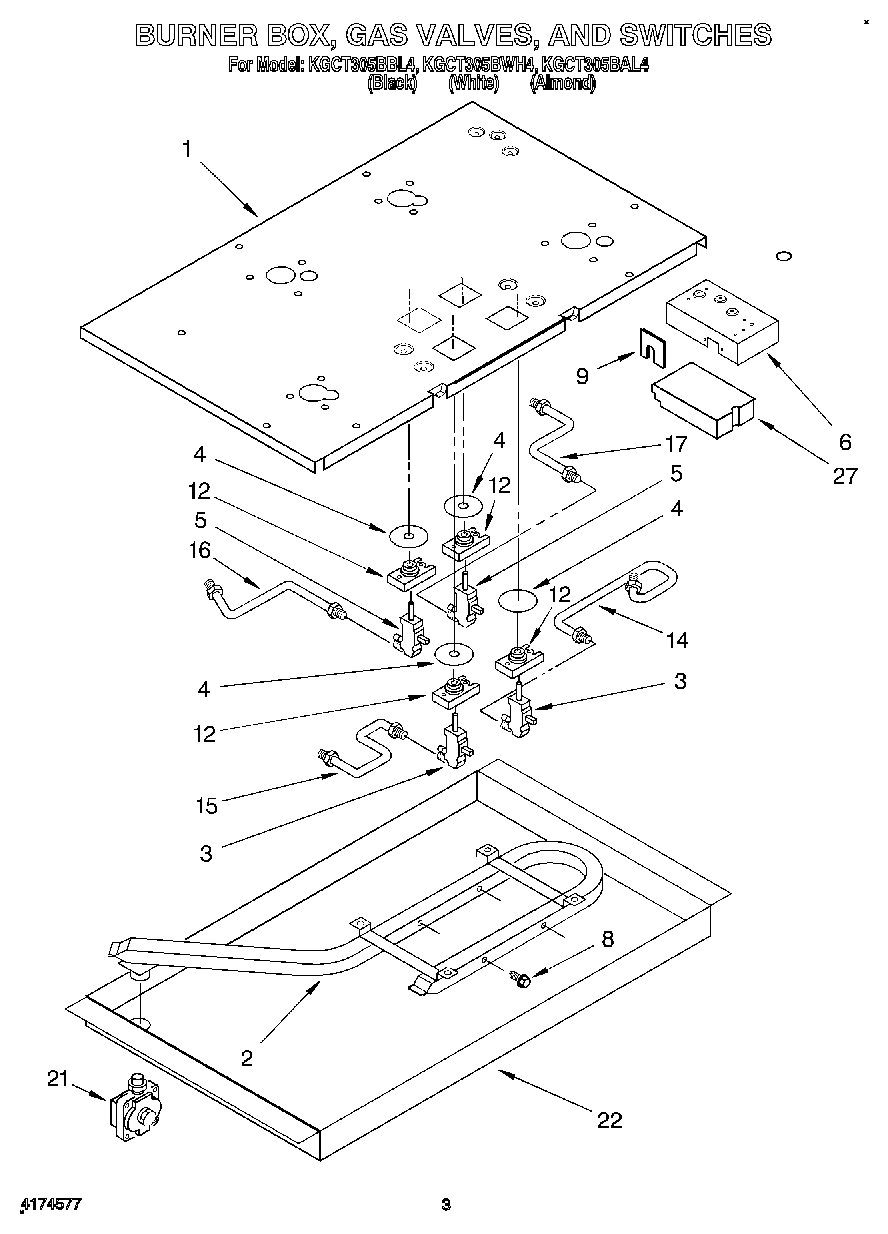

03 - BURNER BOX, GAS VALVES, AND SWITCHES

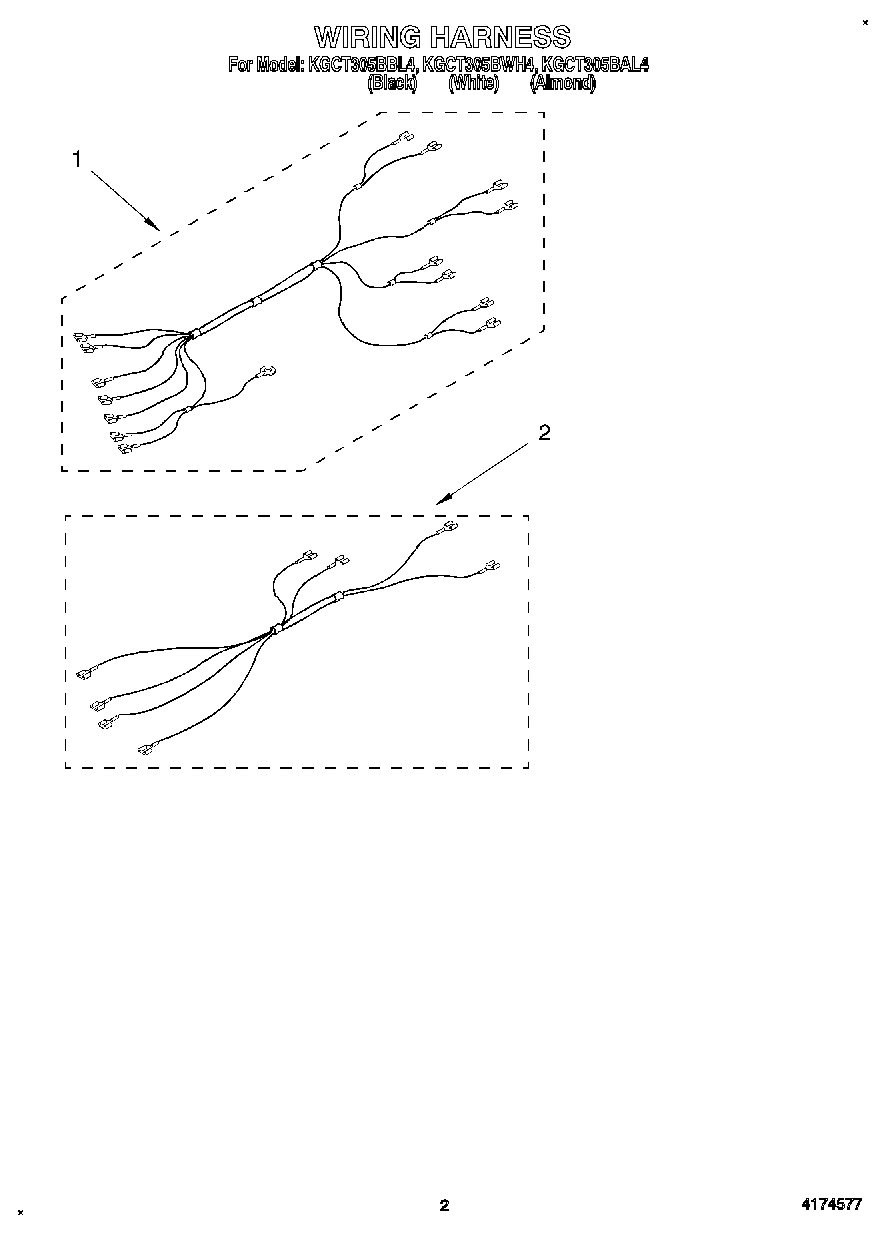

02 - WIRING HARNESS
Common parts from model Whirlpool KGCT305BBL4 GAS COOKTOP
Tape, Foam WPL 3179164 Contact Us For Availability
Screw (2) WPL 3179557 Contact Us For Availability
Cord, Power WPL 3185833 Contact Us For Availability
Hardware, Mounting WPL 3188310 Contact Us For Availability
Tinnerman Nut (2) WPL 4167077 Contact Us For Availability
Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability
Wiring Diagram WPL LIT3187587 Contact Us For Availability
Use & Care Guide WPL LIT3188080 Contact Us For Availability
Installation Instructions WPL LIT3188087 Contact Us For Availability
1
Cover, Top Assy. WPL 4454452 Contact Us For Availability
1
Harness, Switch WPL 3187589 Contact Us For Availability
2
Nut WPL 4166262 Contact Us For Availability
2
Pipe, Manifold WPL 3189301 Contact Us For Availability
2
Washer WPL 4159603 Contact Us For Availability
2
Screw WPL 3148443 Contact Us For Availability
2
Harness, Ignitor WPL 3187588 Contact Us For Availability
3
Bezel, Cooktop (Large) (Black) WPL 4454506 Contact Us For Availability
3
Bezel, Cooktop (Large) (Almond) WPL 4454507 Contact Us For Availability
3
Bezel, Cooktop (Large) (White) WPL 4454508 Contact Us For Availability
3
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
4
Electrode WPL 3185804 Contact Us For Availability
5
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
6
Sheild, Heat WPL 3188919 Contact Us For Availability
8
Bezel, Cooktop (Small) (Black) WPL 4454503 Contact Us For Availability
8
Bezel, Cooktop (Small) (Almond) WPL 4454504 Contact Us For Availability
8
Bezel, Cooktop (Small) (White) WPL 4454505 Contact Us For Availability
8
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
9
Spacer, Tubing WPL 4454525 Contact Us For Availability
9
Grommet, Wire WPL 3188533 Contact Us For Availability
9
Screw WPL 4159456 Contact Us For Availability
13
Grate, Large (RF & LR) (Black) WPL 3186564 Contact Us For Availability
13
Grate, Large (RF & LR) (White) WPL 3186598 Contact Us For Availability
13
Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability
14
Grate, Small (LF & RR) (Black Model) WPL 3186565 Contact Us For Availability
14
Grate, Small (LF & RR) (White Model) WPL 3186600 Contact Us For Availability
14
Grate, Small (LF & RR) (Almond Model) WPL 3186601 Contact Us For Availability
14
Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
15
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
15
Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability
16
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
16
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
16
Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability
17
Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability
18
Burner, Small WPL 3185821 Contact Us For Availability
19
Burner, Large WPL 3185822 Contact Us For Availability
21
Regulator, Pressure WPL 3177120 Contact Us For Availability
22
Burner Box WPL 3189320 Contact Us For Availability
× ![]()
