Model Whirlpool KGCT305BBL3 GAS COOKTOP – Common Parts & Diagrams

1
Cover, Top Assy.
Cover, Top Assy. WPL 3189318 Contact Us For Availability
View on Model
1
Cooktop, Glass (Black)
Cooktop, Glass (Black) WPL 3185894 Contact Us For Availability
View on Model
1
Cooktop, Glass (Almond)
Cooktop, Glass (Almond) WPL 3185895 Contact Us For Availability
View on Model
1
Cooktop, Glass (White)
Cooktop, Glass (White) WPL 3185896 Contact Us For Availability
View on Model
1

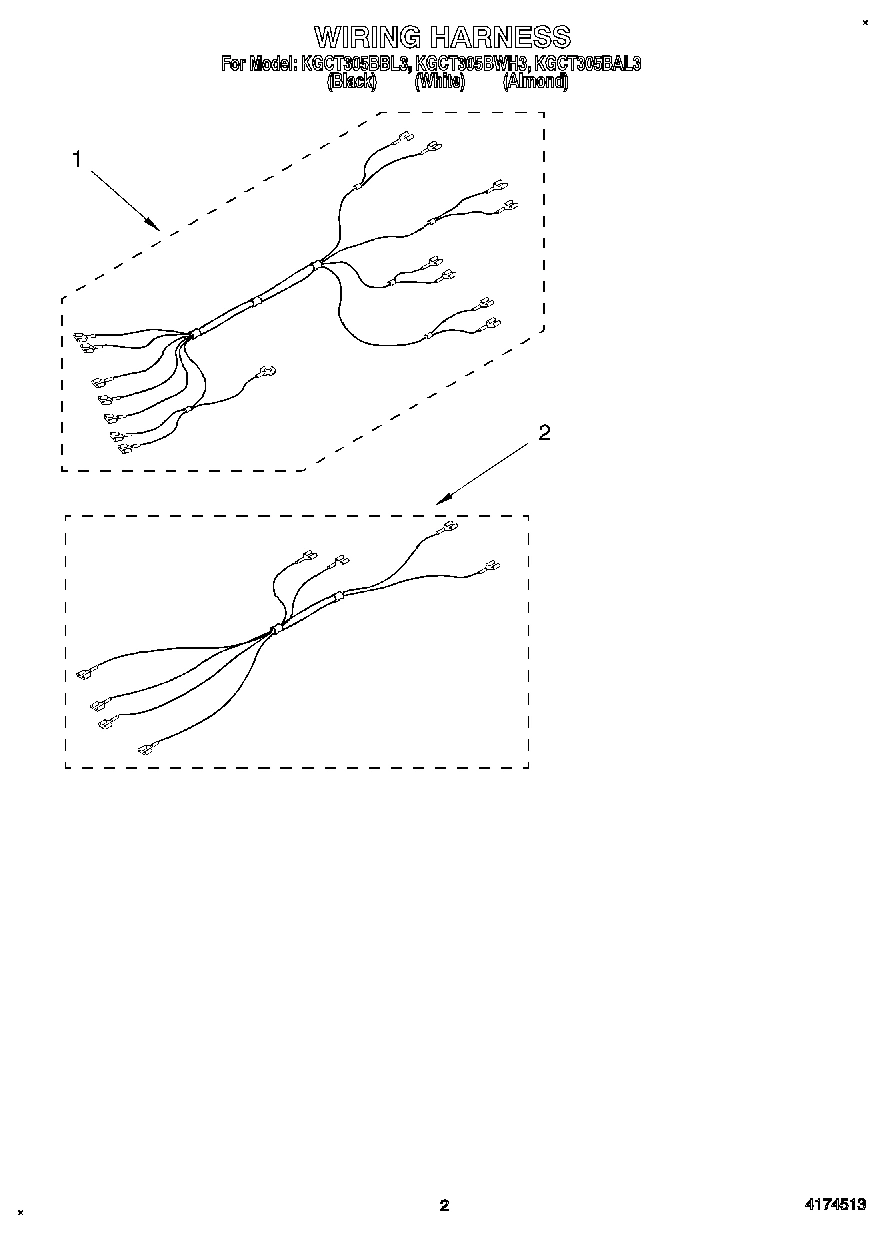

Harness, Switch
Harness, Switch WPL 3187589 Contact Us For Availability
View on Model
1

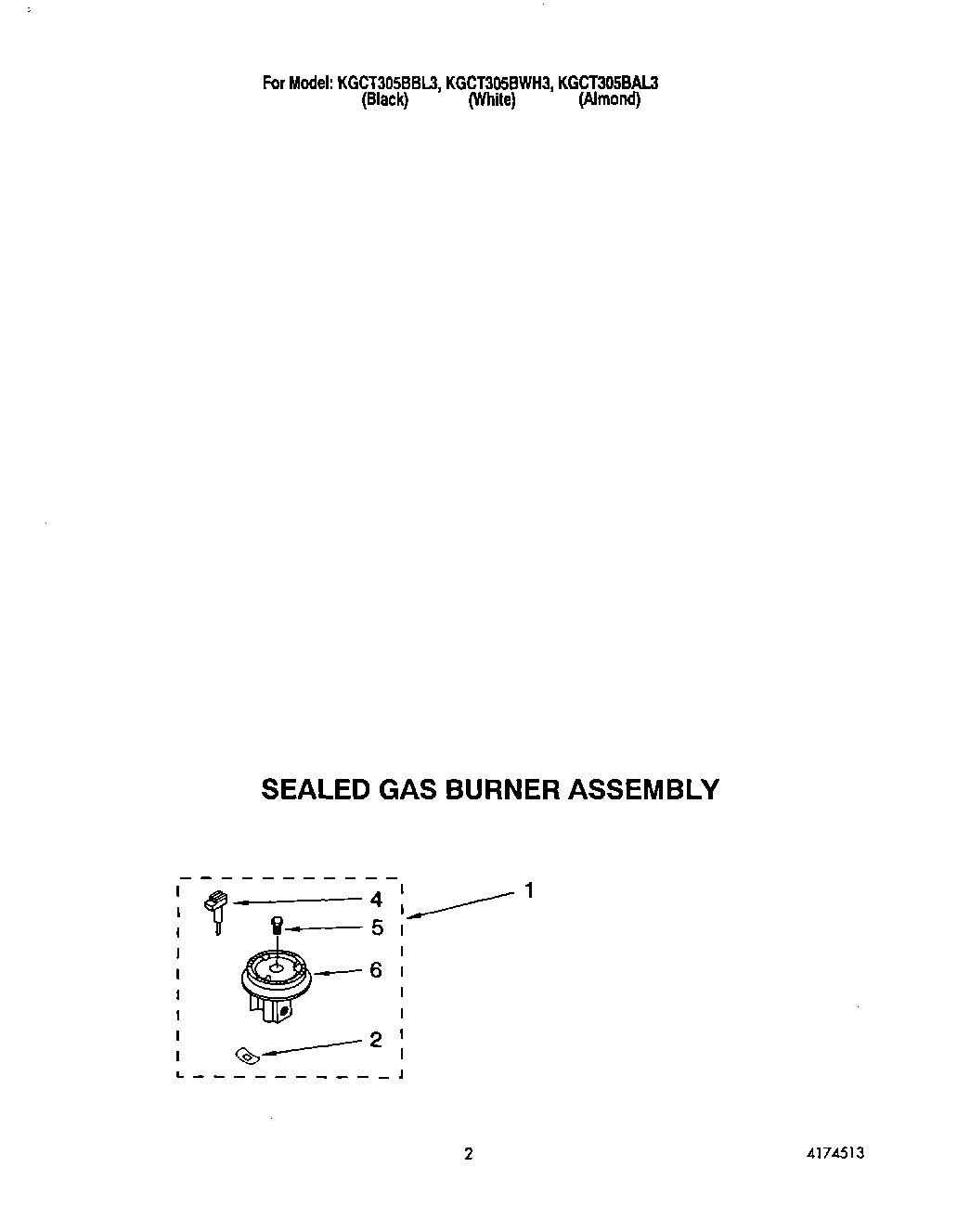

Sealed Gas Burner Assembly (Large Burner)
Sealed Gas Burner Assembly (Large Burner) WPL 814244 Contact Us For Availability
View on Model
1
Sealed Gas Burner Assembly (Small Burner)
Sealed Gas Burner Assembly (Small Burner) WPL 814245 Contact Us For Availability
View on Model
2
Pipe, Manifold
Pipe, Manifold WPL 3189301 Contact Us For Availability
View on Model
2
Washer
Washer WPL 4159603 Contact Us For Availability
View on Model
2
Screw
Screw WPL 3148443 Contact Us For Availability
View on Model
2
Harness, Ignitor
Harness, Ignitor WPL 3187588 Contact Us For Availability
View on Model
2
Nut
Nut WPL 3185805 Contact Us For Availability
View on Model
3
Valve, Gas Burner (LF & RR)
Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability
View on Model
3
Bezel, Cooktop (Large) (Black)
Bezel, Cooktop (Large) (Black) WPL 3185818 Contact Us For Availability
View on Model
3
Bezel, Cooktop (Large) (Almond)
Bezel, Cooktop (Large) (Almond) WPL 3185819 Contact Us For Availability
View on Model
3
Bezel, Cooktop (Large) (White)
Bezel, Cooktop (Large) (White) WPL 3185820 Contact Us For Availability
View on Model
4
Electrode
Electrode WPL 3185804 Contact Us For Availability
View on Model
5
Valve, Gas Burner (RF & LR)
Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability
View on Model
5
Orifice, Burner (Small Burner)
Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability
View on Model
5
Orifice, Burner (Large Burner)
Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability
View on Model
6
Sheild, Heat
Sheild, Heat WPL 3188919 Contact Us For Availability
View on Model
6
Burner, Sealed (Small Burner (Orifice Include
Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability
View on Model
6
Burner, Sealed (Large Burner (Orifice Include
Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability
View on Model
7
Nut, Hex (3)
Nut, Hex (3) WPL 4166262 Contact Us For Availability
View on Model
8
Bolt (Gas Valve)
Bolt (Gas Valve) WPL 3185829 Contact Us For Availability
View on Model
8
Bezel, Cooktop (Small) (Black)
Bezel, Cooktop (Small) (Black) WPL 3185815 Contact Us For Availability
View on Model
8
Bezel, Cooktop (Small) (Almond)
Bezel, Cooktop (Small) (Almond) WPL 3185816 Contact Us For Availability
View on Model
8
Bezel, Cooktop (Small) (White)
Bezel, Cooktop (Small) (White) WPL 3185817 Contact Us For Availability
View on Model
9
Grommet, Wire
Grommet, Wire WPL 3188533 Contact Us For Availability
View on Model
9
Screw
Screw WPL 4159456 Contact Us For Availability
View on Model
13
Grate, Large (RF & LR) (Black)
Grate, Large (RF & LR) (Black) WPL 3186564 Contact Us For Availability
View on Model
13
Grate, Large (RF & LR) (White)
Grate, Large (RF & LR) (White) WPL 3186598 Contact Us For Availability
View on Model
13
Grate, Large (RF & LR) (Almond)
Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability
View on Model
14
Tubing, Large Gas Burner (RF)
Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability
View on Model
14
Grate, Small (LF & RR) (Black Model)
Grate, Small (LF & RR) (Black Model) WPL 3186565 Contact Us For Availability
View on Model
14
Grate, Small (LF & RR) (White Model)
Grate, Small (LF & RR) (White Model) WPL 3186600 Contact Us For Availability
View on Model
14
Grate, Small (LF & RR) (Almond Model)
Grate, Small (LF & RR) (Almond Model) WPL 3186601 Contact Us For Availability
View on Model
15
Tubing, Small Gas Burner (LF)
Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability
View on Model
15
Cap, Rapid Burner Large (2) (Almond)
Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability
View on Model
15
Cap, Rapid Burner Large (2) (Black)
Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability
View on Model
15
Cap, Rapid Burner Large (2) (White)
Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability
View on Model
16
Tubing, Large Gas Burner (LR)
Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability
View on Model
16
Cap, Semi Rapid (Small 2) (Almond)
Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability
View on Model
16
Cap, Semi Rapid Small (2) (Black)
Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability
View on Model
16
Cap, Semi Rapid Small (2) (White)
Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability
View on Model
17
Tubing, Small Gas Burner (RR)
Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability
View on Model
21
Regulator, Pressure
Regulator, Pressure WPL 3177120 Contact Us For Availability
View on Model
22
Burner Box
Burner Box WPL 3189320 Contact Us For Availability
View on Model
