Model Whirlpool KGCT305BAL4 GAS COOKTOP – Common Parts &amp; Diagrams

8186533 Whirlpool Hardware Backorder WPL 8186533 $30.25

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Tape, Foam WPL 3179164 Contact Us For Availability

Screw (2) WPL 3179557 Contact Us For Availability

Cord, Power WPL 3185833 Contact Us For Availability

Hardware, Mounting WPL 3188310 Contact Us For Availability

Tinnerman Nut (2) WPL 4167077 Contact Us For Availability

Conversion Kit Natural Gas To L.P. WPL 4173627 Contact Us For Availability

Wiring Diagram WPL LIT3187587 Contact Us For Availability

Use & Care Guide WPL LIT3188080 Contact Us For Availability

Installation Instructions WPL LIT3188087 Contact Us For Availability

1

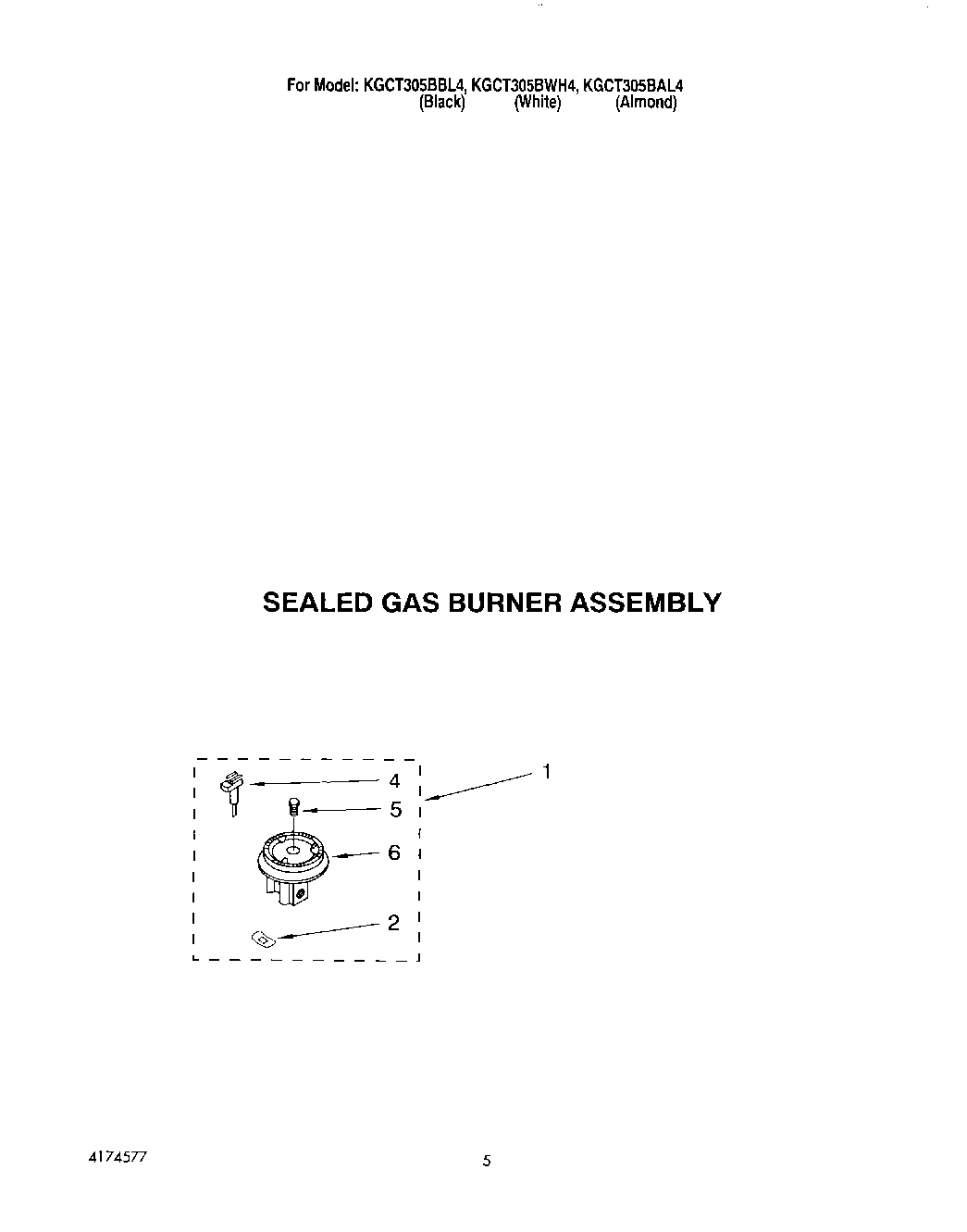

Sealed Gas Burner Assembly (Large Burner) WPL 814244 Contact Us For Availability

1

Sealed Gas Burner Assembly (Small Burner) WPL 814245 Contact Us For Availability

1

Cover, Top Assy. WPL 4454452 Contact Us For Availability

2

W10854242 Whirlpool Grommet In Stock WPL W10854242 $3.92

2

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.51

2

WP3180081 Whirlpool Grommet In Stock WPL WP3180081 $3.79

2

Nut WPL 3185805 Contact Us For Availability

2

Pipe, Manifold WPL 3189301 Contact Us For Availability

2

Washer WPL 4159603 Contact Us For Availability

2

Nut WPL 4166262 Contact Us For Availability

3

Valve, Gas Burner (LF & RR) WPL 3185828 Contact Us For Availability

4

WP3188425 Whirlpool Seal Switch In Stock WPL WP3188425 $30.25

4

Electrode WPL 3185804 Contact Us For Availability

5

Orifice, Burner (Small Burner) WPL 3185947 Contact Us For Availability

5

Orifice, Burner (Large Burner) WPL 3185948 Contact Us For Availability

5

Valve, Gas Burner (RF & LR) WPL 3185827 Contact Us For Availability

6

Burner, Sealed (Small Burner (Orifice Include WPL 3185821 Contact Us For Availability

6

Burner, Sealed (Large Burner (Orifice Include WPL 3185822 Contact Us For Availability

6

Sheild, Heat WPL 3188919 Contact Us For Availability

8

Bezel, Cooktop (Small) (Black) WPL 4454503 Contact Us For Availability

8

Bezel, Cooktop (Small) (Almond) WPL 4454504 Contact Us For Availability

8

Bezel, Cooktop (Small) (White) WPL 4454505 Contact Us For Availability

8

Bolt (Gas Valve) WPL 3185829 Contact Us For Availability

9

Spacer, Tubing WPL 4454525 Contact Us For Availability

9

Grommet, Wire WPL 3188533 Contact Us For Availability

9

Screw WPL 4159456 Contact Us For Availability

12

WP3185830 Whirlpool Oven Igniter Switch In Stock WPL WP3185830 $38.21

13

Grate, Large (RF & LR) (Black) WPL 3186564 Contact Us For Availability

13

Grate, Large (RF & LR) (White) WPL 3186598 Contact Us For Availability

13

Grate, Large (RF & LR) (Almond) WPL 3186599 Contact Us For Availability

Grate, Small (LF & RR) (Black Model) WPL 3186565 Contact Us For Availability

Grate, Small (LF & RR) (White Model) WPL 3186600 Contact Us For Availability

Grate, Small (LF & RR) (Almond Model) WPL 3186601 Contact Us For Availability

Tubing, Large Gas Burner (RF) WPL 3186689 Contact Us For Availability

Cap, Rapid Burner Large (2) (Almond) WPL 3185792 Contact Us For Availability

Cap, Rapid Burner Large (2) (Black) WPL 3185793 Contact Us For Availability

Cap, Rapid Burner Large (2) (White) WPL 3185794 Contact Us For Availability

Tubing, Small Gas Burner (LF) WPL 3186690 Contact Us For Availability

Cap, Semi Rapid (Small 2) (Almond) WPL 3185795 Contact Us For Availability

Cap, Semi Rapid Small (2) (Black) WPL 3185796 Contact Us For Availability

Cap, Semi Rapid Small (2) (White) WPL 3185797 Contact Us For Availability

Tubing, Large Gas Burner (LR) WPL 3186692 Contact Us For Availability

WP3182567 Whirlpool Oven Knob In Stock WPL WP3182567 $19.49

WP3182568 Whirlpool Control Knob In Stock WPL WP3182568 $12.54

WP3182569 Whirlpool Knob In Stock WPL WP3182569 $16.58

Tubing, Small Gas Burner (RR) WPL 3186691 Contact Us For Availability

21

Regulator, Pressure WPL 3177120 Contact Us For Availability

22

4173634 Whirlpool Bushing Backorder WPL 4173634 $4.61

22

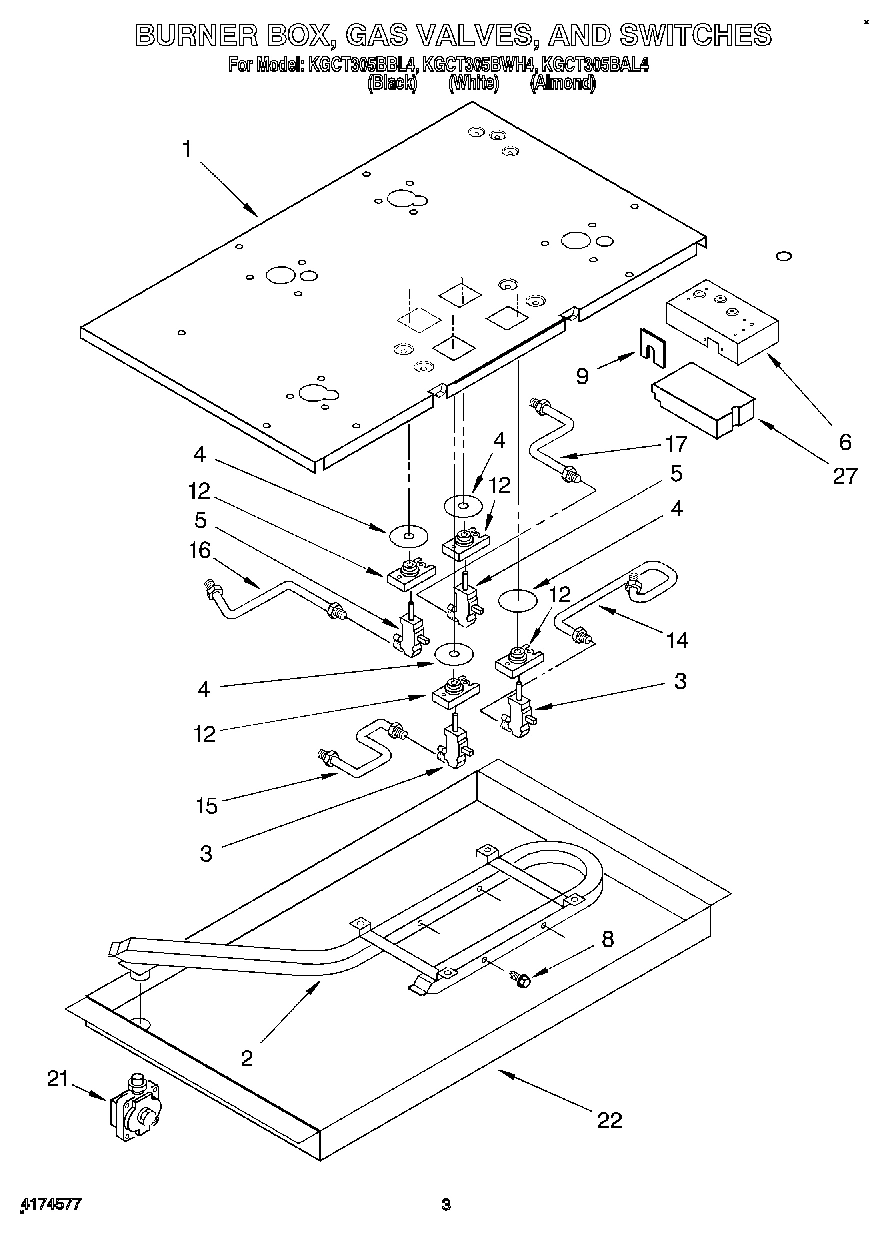

Burner Box WPL 3189320 Contact Us For Availability

27

WP4454392 Whirlpool Spark Module In Stock WPL WP4454392 $155.89

27

Screw WPL 3148443 Contact Us For Availability
