Model Whirlpool KGCP487JSS0 COOKTOP – Common Parts & Diagrams

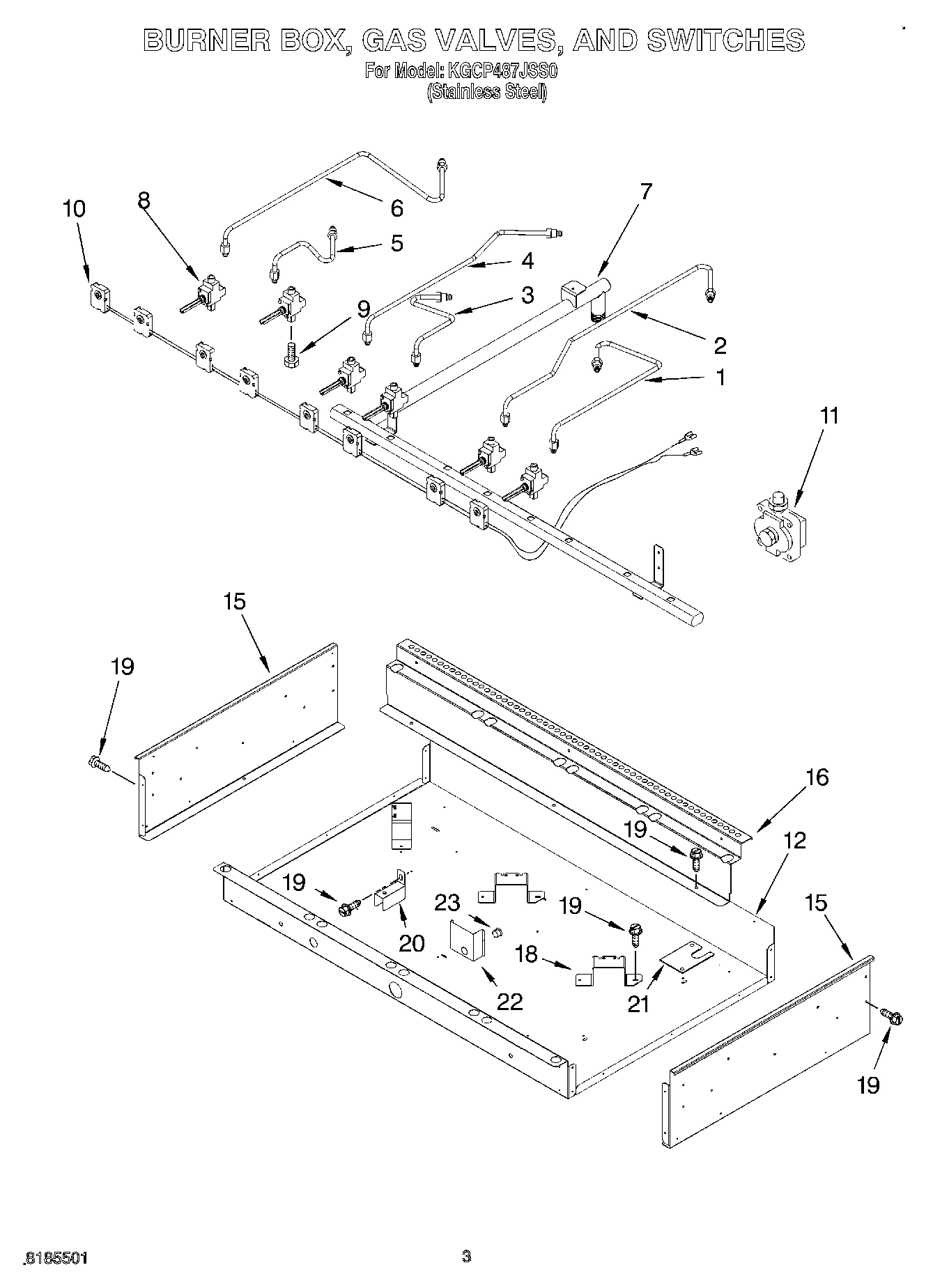

02 - BURNER BOX, GAS VALVES, AND SWITCHES

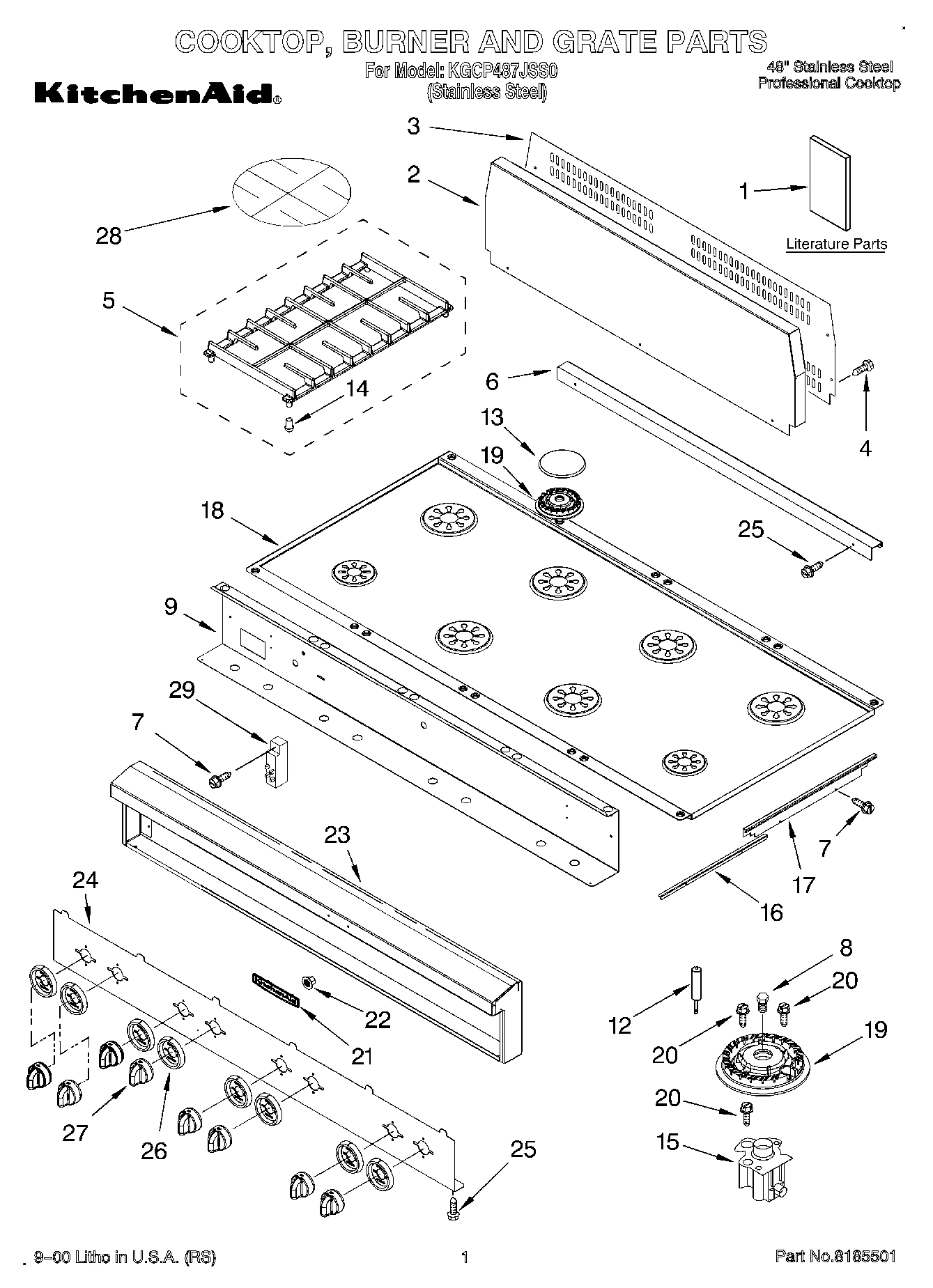

01 - COOKTOP, BURNER AND GRATE PARTS
Common parts from model Whirlpool KGCP487JSS0 COOKTOP
1
Literature Parts (Instructions, Island Trim) WPL LIT4455062 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8284642 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8284670 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT8284671 Contact Us For Availability
1
Literature Parts (Instructions, LP Conversion WPL LIT8284674 Contact Us For Availability
2
Backsplash WPL 8284590 Contact Us For Availability
3
Support, Backsplash WPL 8284760 Contact Us For Availability
5
Grate, Burner WPL 4454963 Contact Us For Availability
6
Trim, Island WPL 8284770 Contact Us For Availability
8
Valve, Burner (Small, LF-RF) WPL 3191292 Contact Us For Availability
8
Orifice, Burner (Turbo, 14K (6)) WPL 3192525 Contact Us For Availability
8
Orifice, Burner (AuxI, 6K LF-RF) WPL 3192528 Contact Us For Availability
9
Support, Control Panel WPL 8284767 Contact Us For Availability
12
Burner Box WPL 8284810 Contact Us For Availability
13
Cap, Burner (Turbo, 14K (6)) WPL 4455243 Contact Us For Availability
15
Base, Burner (Turbo, 14K (6)) WPL 9754188 Contact Us For Availability
15
Side, Burner Box (Right Side) WPL 8284677 Contact Us For Availability
15
Side, Burner Box (Left Side) WPL 8284678 Contact Us For Availability
15
Base, Burner (Auxi, 6K LF-RF Includes Orifice WPL 9754182 Contact Us For Availability
16
Support, Rear WPL 8284773 Contact Us For Availability
16
Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 4454958 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 4455029 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
18
Cooktop, Black WPL 8284596 Contact Us For Availability
19
Burner Head (Turbo, 14K (6)) WPL 9754181 Contact Us For Availability
20
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
21
Cover, Manifold Slot WPL 4455139 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
22
Cover, Shelf WPL 8284680 Contact Us For Availability
23
Bushing WPL 1129449 Contact Us For Availability
23
Harness, Wire Jumper WPL 3191418 Contact Us For Availability
23
L.P. Orifice Spud Pack WPL 8284663 Contact Us For Availability
23
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Harness, Wire Ignitor WPL 8284771 Contact Us For Availability
23
Control Frame WPL 8284594 Contact Us For Availability
24
Panel, Control WPL 8284593 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
× ![]()
