Model Whirlpool KGCP467JTL0 – Common Parts & Diagrams

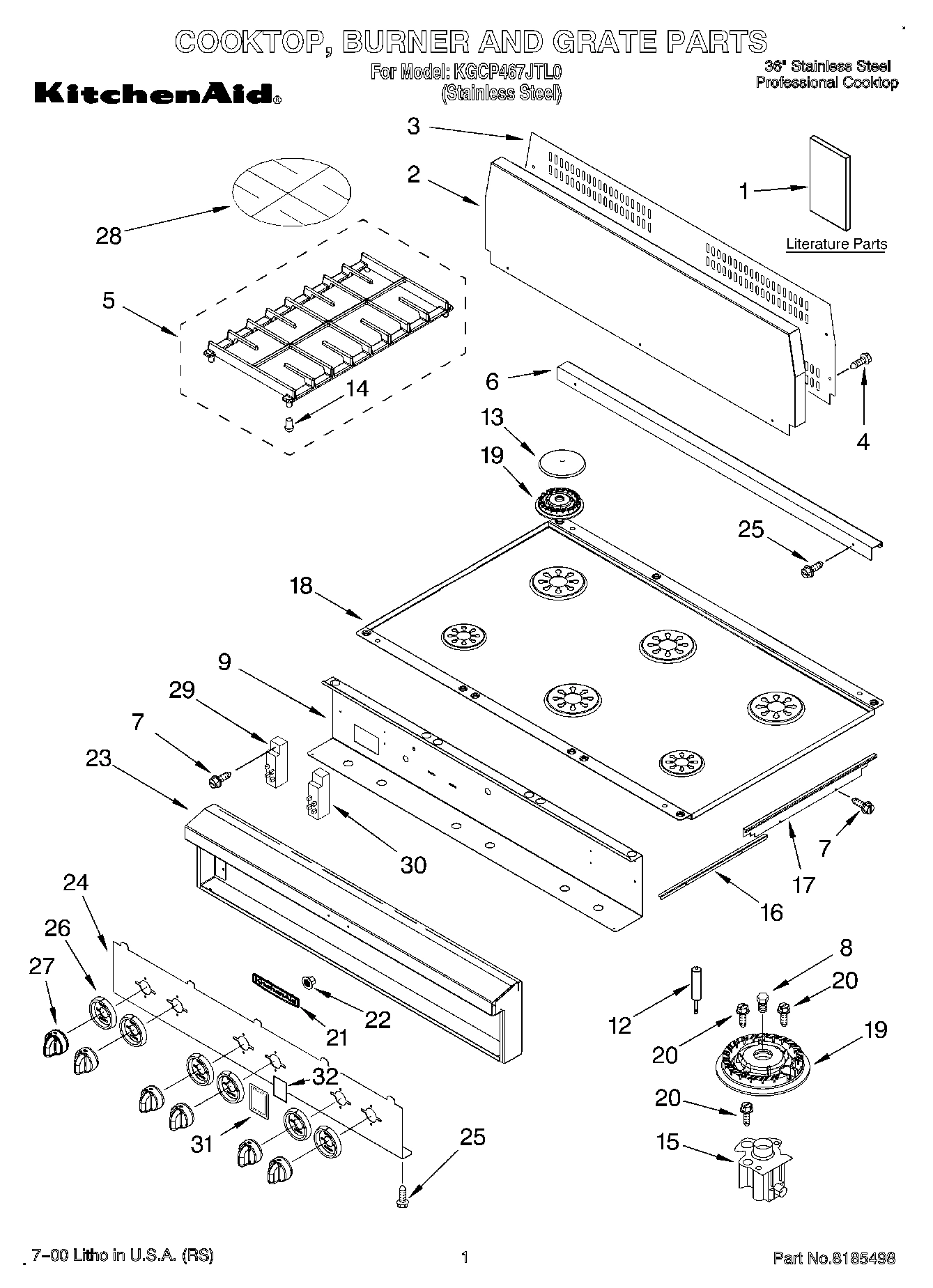

01 - COOKTOP, BURNER AND GRATE PARTS

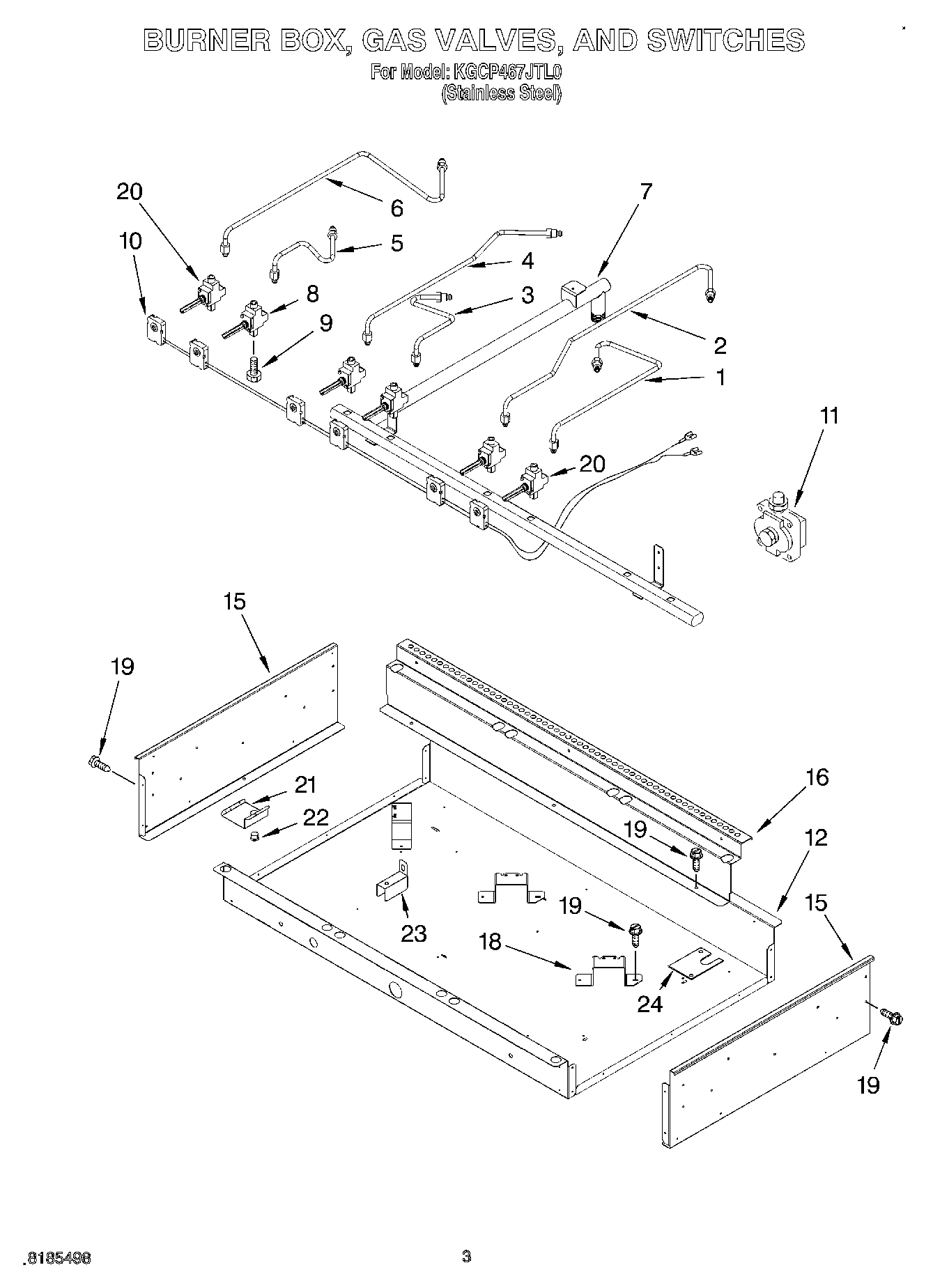

02 - BURNER BOX, GAS VALVES, AND SWITCHES
Common parts from model Whirlpool KGCP467JTL0
1
Tubing, Gas Burner - RF WPL 4455040 Contact Us For Availability
2
Tubing, Gas Burner - RR WPL 4455041 Contact Us For Availability
3
Tubing, Gas Burner - CF WPL 4455151 Contact Us For Availability
4
Tubing, Gas Burner - CR WPL 4455152 Contact Us For Availability
5
Tubing, Gas Burner - LF WPL 4455153 Contact Us For Availability
6
Tubing, Gas Burner - LR WPL 4455154 Contact Us For Availability
7
Manifold WPL 4454966 Contact Us For Availability
8
Orifice, Burner (Turbo (4)) WPL 3192525 Contact Us For Availability
8
Orifice, Burner (Auxillary (2)) WPL 3192528 Contact Us For Availability
8
Valve, Burner (Turbo) WPL 3192157 Contact Us For Availability
9
Support, Control Panel WPL 8284766 Contact Us For Availability
9
Bolt, Valve WPL 307630 Contact Us For Availability
10
Burner Switch & Harness Assembly WPL 4455155 Contact Us For Availability
12
Burner Box WPL 8284809 Contact Us For Availability
13
Cap, Burner WPL 4455243 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Turbo (4)) WPL 9754188 Contact Us For Availability
15
Holder, Orifice Includes Orifice (Auxillary ( WPL 9754182 Contact Us For Availability
15
Side, Burner Box (Right Side) WPL 8284677 Contact Us For Availability
15
Side, Burner Box (Left Side) WPL 8284678 Contact Us For Availability
16
Support Rail (R.H.& L.H.) WPL 4454974 Contact Us For Availability
16
Support, Rear WPL 8284682 Contact Us For Availability
17
Trim, Side (Right Hand) WPL 4454958 Contact Us For Availability
17
Trim, Side (Left Hand) WPL 4455029 Contact Us For Availability
18
Cooktop, Black WPL 8284664 Contact Us For Availability
18
Bracket, Burner WPL 3192811 Contact Us For Availability
19
Burner Head 14K (Turbo (4)) WPL 9754181 Contact Us For Availability
20
Valve, Burner Auxillary WPL 3191292 Contact Us For Availability
21
Nameplate WPL 2005292 Contact Us For Availability
21
Cover, Shelf WPL 8284680 Contact Us For Availability
22
Bushing, Cover Shelf WPL 8284722 Contact Us For Availability
23
Control Frame WPL 4455217 Contact Us For Availability
23
BRACKET-SUPPORT WPL 4449845 Contact Us For Availability
24
Panel, Control WPL 8284638 Contact Us For Availability
24
Bushing WPL 1129449 Contact Us For Availability
24
Harness, Wire Jumper WPL 3191418 Contact Us For Availability
24
Cover, Panel WPL 4455139 Contact Us For Availability
24
L.P. Orifice Spud Pack WPL 8284663 Contact Us For Availability
24
Harness, Wire Ignitor WPL 8284772 Contact Us For Availability
26
Bezel, Knob WPL 4455192 Contact Us For Availability
28
Plate, Simmer WPL 4455109 Contact Us For Availability
30
Module, Spark 2-Burner WPL 8053420 Contact Us For Availability
31
Bezel, Tile WPL 8284641 Contact Us For Availability
32
Spacer, Tile WPL 8284639 Contact Us For Availability
× ![]()
